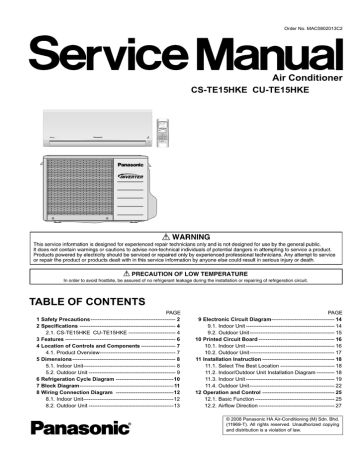

Panasonic Air Conditioner

Order No. MAC0802013C2

Air Conditioner

CS-TE15HKE CU-TE15HKE

TABLE OF CONTENTS

PAGE

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 4

2.1. CS-TE15HKE CU-TE15HKE -------------------------- 4

3 Features ------------------------------------------------------------- 6

4 Location of Controls and Components ------------------- 7

4.1. Product Overview------------------------------------------ 7

5 Dimensions--------------------------------------------------------- 8

5.1. Indoor Unit--------------------------------------------------- 8

5.2. Outdoor Unit ------------------------------------------------ 9

6 Refrigeration Cycle Diagram --------------------------------10

7 Block Diagram---------------------------------------------------- 11

8 Wiring Connection Diagram --------------------------------12

8.1. Indoor Unit--------------------------------------------------12

8.2. Outdoor Unit -----------------------------------------------13

PAGE

9 Electronic Circuit Diagram----------------------------------- 14

9.1. Indoor Unit ------------------------------------------------- 14

9.2. Outdoor Unit----------------------------------------------- 15

10 Printed Circuit Board ------------------------------------------ 16

10.1. Indoor Unit ------------------------------------------------- 16

10.2. Outdoor Unit----------------------------------------------- 17

11 Installation Instruction ---------------------------------------- 18

11.1. Select The Best Location ------------------------------ 18

11.2. Indoor/Outdoor Unit Installation Diagram ---------- 18

11.3. Indoor Unit ------------------------------------------------- 19

11.4. Outdoor Unit----------------------------------------------- 22

12 Operation and Control ---------------------------------------- 25

12.1. Basic Function -------------------------------------------- 25

12.2. Airflow Direction ------------------------------------------ 27

© 2008 Panasonic HA Air-Conditioning (M) Sdn. Bhd.

(11969-T). All rights reserved. Unauthorized copying and distribution is a violation of law.

12.3. Quiet operation (Cooling Mode/Cooling area of Dry Mode)----------------------------------------------- 27

12.4. Powerful Mode Operation ------------------------------ 28

12.5. ON Timer Control ---------------------------------------- 29

12.6. OFF Timer Control --------------------------------------- 29

12.7. Auto Restart Control------------------------------------- 29

12.8. Indication Panel------------------------------------------- 29

12.9. Ionizer Operation ----------------------------------------- 30

13 Protection Control ---------------------------------------------- 32

13.1. Protection Control For All Operations --------------- 32

13.2. Protection Control For Cooling & Soft Dry

Operation--------------------------------------------------- 34

13.3. Protection Control For Heating Operation --------- 35

14 Servicing Mode -------------------------------------------------- 36

14.1. Auto OFF/ON Button ------------------------------------ 36

14.2. Select Remote Control Transmission Code ------- 36

14.3. Remote Control Button --------------------------------- 37

15 Troubleshooting Guide --------------------------------------- 38

15.1. Refrigeration Cycle System --------------------------- 38

15.2. Breakdown Self Diagnosis Function ---------------- 40

15.3. Error Codes Table --------------------------------------- 41

16 Disassembly and Assembly Instructions -------------- 42

16.1. Disassembly of Indoor Unit --------------------------- 42

16.2. Outdoor Electronic Controller Removal

Procedure-------------------------------------------------- 47

17 Technical Data --------------------------------------------------- 48

17.1. Operation Characteristics ----------------------------- 48

17.2. Sensible Capacity Chart ------------------------------- 52

18 Exploded View and Replacement Parts List----------- 53

18.1. Indoor Unit------------------------------------------------- 53

18.2. Outdoor Unit ---------------------------------------------- 55

1 Safety Precautions

• Read the following “SAFETY PRECAUTIONS” carefully before perform any servicing.

• Electrical work must be installed or serviced by a licensed electrician. Be sure to use the correct rating of the power plug and main circuit for the model installed.

• The caution items stated here must be followed because these important contents are related to safety. The meaning of each indication used is as below. Incorrect installation or servicing due to ignoring of the instruction will cause harm or damage, and the seriousness is classified by the following indications.

This indication shows the possibility of causing death or serious injury.

This indication shows the possibility of causing injury or damage to properties.

• The items to be followed are classified by the symbols:

This symbol denotes item that is PROHIBITTED from doing.

• Carry out test running to confirm that no abnormality occurs after the servicing. Then, explain to user the operation, care and maintenance as stated in instructions. Please remind the customer to keep the operating instructions for future reference.

1.

Engage dealer or specialist for installation and servicing. If installation or servicing done by the user is defective, it will cause water leakage, electrical shock or fire.

2.

Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electric shock or fire.

3.

Use the attached accessories parts and specified parts for installation and servicing. Otherwise, it will cause the set to fall, water leakage, fire or electrical shock.

4.

Install at a strong and firm location which is able to withstand the set’s weight. If the strength is not enough or installation is not properly done, the set will drop and cause injury.

5.

For electrical work, follow the local national wiring standard, regulation and the installation instruction. An independent circuit and single outlet must be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.

6.

This equipment is strongly recommended to install with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD).

Otherwise, it may cause electrical shock and fire in case equipment breakdown or insulation breakdown.

7.

Use the specified cable and connect tightly for indoor/outdoor connection. Connect tightly and clamp the cable so that no external force will be acted on the terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the connection.

8.

Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will cause heat-up or fire at the connection point of terminal, fire or electrical shock.

9.

When carrying out piping connection, take care not to let air substances other than the specified refrigerant go into refrigeration cycle.

Otherwise, it will cause lower capacity, abnormal high pressure in the refrigeration cycle, explosive and injury.

10. Do not install outdoor unit near handrail of veranda. When installing air-conditioner unit at veranda of high rise building, child may climb up to outdoor unit and cross over the handrail and causing accident.

2

11. This equipment must be properly earthed. Earth line must not be connected to gas pipe, water pipe, earth of lightning rod and telephone. Otherwise, it may cause electric shock in case equipment breakdown or insulation breakdown.

12. When connecting the piping, do not allow air or any substances other than the specified refrigerant to enter the refrigeration cycle.

Otherwise, this may lower the capacity, cause abnormally high pressure in the refrigeration cycle, and possibly result in explosion and injury.

13. Do not damage or use unspecified power supply cord. Otherwise it will cause fire or electric shock.

14. Do not modify the length of the power supply cord or use extension cord, and do not share the single outlet with other electric appliances. Otherwise, it will cause fire or electric shock.

15. It is desirable that the amount of residual oil is less than 40 mg/10m.

Thickness of copper pipes used with R410A must be more than 0.6 mm. Never use copper pipes thinner than 0.6 mm.

16. During installation, before run the compressor, confirm the refrigerant pipes are fixed. Operation of compressor without fixing the piping, setting the valves at open condition, a burst may occur and cause injury.

17. After completion of installation or service, confirm there is no leakage or refrigerant gas. It may generate toxic gas when the refrigerant contacts with fire.

18. Ventilate if there is refrigerant gas leakage during operation. It may cause toxic gas when refrigerant contacts with fire.

1.

Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding of the unit, it may cause fire.

2.

Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water may enter the room and damage the furniture.

3.

Tighten the flare nut with torque wrench according to specified method. If the flare nut is over-tightened, after a long period, the flare may break and cause refrigerant gas leakage.

4.

Do not touch outdoor unit air inlet and aluminium fin. It may cause injury.

5.

Select an installation location which is easy for maintenance.

6.

Pb free solder has a higher melting point than standard solder; typically the melting point is 50 qF – 70qF (30qC – 40qC) higher. Please use a high temperature solder iron. In case of the soldering iron with temperature control, please set it to 700 ± 20 qF (370 ± 10qC).

Pb free solder will tend to splash when heated too high (about 1100 qF / 600qC).

7.

Power supply connection to the air conditioner. Connect the power supply cord of the air conditioner to the mains using one of the following methods.

Power supply point shall be the place where there is ease for access for the power disconnection in case of emergency. In some countries, permanent connection of this room air conditioner to the power supply is prohibited. i. Power supply connection to the receptacle using a power plug. Use an approved power plug with earth pin for the connection to the socket.

ii. Power supply connection to a circuit breaker for the permanent connection. Use an approved circuit breaker for the permanent connection.

It must be a double pole switch with a minimum 3.5 mm contact gap.

8.

Do not release refrigerant during piping work for installation, servicing, reinstallation and during repairing a refrigerant parts. Take care of the liquid refrigerant, it may cause frostbite.

9.

Installation work: It may need two people to carry out the installation work.

10. Do not install this appliance in a laundry room or other location where water may drip from the ceiling, etc.

3

2 Specifications

2.1.

CS-TE15HKE CU-TE15HKE

ITEM

Performance Test Condition

I

N

G

C

O

O

L

Capacity

EER

Noise Level

I

N

G

H

E

A

T

Capacity

COP

Noise Level

Moisture Removal

Air Volume

Q-Lo

Lo

Me

UNIT

kW kCal/h

Btu/h

W/W kCal/hW dB-A (H/L/Q-Lo)

Power level dB kW kCal/h

Btu/h

W/W kcal/hW dB-A (H/L/Q-Lo)

Power level dB l/h pt/h m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min)

Hi

Refrigeration Control Device

Refrigeration Oil

Refrigerant (R410A)

Dimension

Height

Width

Depth

Net Weight

Pipe Diameter

Gas

Liquid

Standard Length

Pipe Length Range

Height Difference

Additional Gas Amount

Refrigeration Charge Less

Inner Diameter

Drain Hose

Length

Type

Compressor Motor Type

Rated Output W cm

3 g (oz) mm (inch) mm (inch) mm (inch) kg (lbs) mm (inch) mm (inch) m (ft) m (ft) m (ft) g/m (oz/ft) m (ft) mm mm

INDOOR UNIT OUTDOOR UNIT

EUROVENT

4.30 (0.80 ~ 5.00)

3700 (690 ~ 4300)

14700 (2730 ~ 17100)

3.26 (5.00 ~ 3.13)

2.80 (4.31 ~ 2.69)

43/31/28

54

High 49

62

5.30 (0.80 ~ 6.80)

4560 (690 ~ 5850)

18100 (2730 ~ 23200)

3.42 (5.00 ~ 3.27)

2.94 (4.31 ~ 2.81)

43/35/32

54

High 51

64

2.4

5.1

Cooling; 5.3 (187)

Heating; 7.5 (265)

Cooling; 6.2 (219)

Heating; 8.5 (300)

Cooling; 8.1 (286)

Heating; 10.0 (353)

Cooling; 10.2 (360)

Heating; 11.5 (410)

Cooling; 32.5 (1150)

Heating; 31.3 (1100)

Expansion Valve

— RB68A or Freol Alpha68M (400)

298 (11-3/4)

799 (31-15/32)

139 (5-1/2)

8 (18)

12.7 (1/2)

6.35 (1/4)

7.5 (24.6)

3 (9.8) ~ 15 (49.2)

1.01k (35.7)

540 (21-9/32)

780 (30-23/32)

289 (11-13/32)

35 (77)

5 (16.4)

20 (0.2)

7.5 (24.6)

16

650

Hermetic Motor

Brushless (4-pole)

750

4

Fan

Heat Exchanger

ITEM

Type

Material

Motor Type

Input Power

Output Power

Fan Speed

Lo (Cool/Heat)

Me (Cool/Heat)

Hi (Cool/Heat)

SHi (Cool/Heat)

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L)

UNIT

W

W rpm rpm rpm rpm mm

INDOOR UNIT

Cross-Flow Fan

ASG20K1 or ASG32K1

Transistor (8-pole)

30

30

1100 / 1270

1320 / 1450

1570 / 1630

1610 / 1630

Aluminium (Pre Coat)

Slit Fin

2.1 x 11.4 x 23

640 x 304 x 25.4

OUTDOOR UNIT

Propeller Fan

PP

DC (8-pole)

40

870 / 850

Aluminium

Corrugated Fin

2 x 24 x 17

36.4 x 504 x 713

684

Air Filter

Material

Type

Polypropelene

One-Touch

1. Cooling capacities are based on indoor temperature of 27 qC D.B. (80.6qF D.B.), 19.0qC W.B. (66.2qF W.B.) and outdoor air temperature of 35 qC D.B. (95qF D.B.), 24qC W.B. (75.2qF W.B.)

2. Heating capacities are based on indoor temperature of 20 qC D.B. (68qF D.B.) and outdoor air temperature of 7qC D.B. (44.6qF

D.B.), 6 qC W.B. (42.8qF W.B.)

Item

Power Source (Phase, Voltage, Cycle)

Input Power

Starting Current

Running Current

Maximum current A

Power Factor %

Power factor means total figure of compressor, indoor fan motor and outdoor fan motor.

Power Cord

Number of core

Length m (ft)

Thermostat

Protection Device

Annual Consumption kWh

Unit

ø

V

Hz

W

A

A

Note

• Specifications are subject to change without notice for further improvement.

Single

230

50

Cooling; 1.32k (160 ~ 1.6k)

Heating; 1.55k (160 ~ 2.08k)

7.1

Cooling; 6.1

Heating; 7.1

9.5

Cooling; 94

Heating; 95

3 (1.0mm)

1.5 (5)

Electrical

660

5

3 Features

• Inverter Technology

- Wider output power range

- Energy saving

- Quick cooling

- Quick heating

- More precise temperature control

• Super Alleru-buster Filter

- Filter inactive various harmful airborne elements including allergens and bacteria

• Environment Protection

- Non-ozone depletion substances refrigerant (R410A)

Long Installation Piping

- CS/CU-TE15HKE, long piping up to 15 meters

Quality Improvement

- Random auto restart after power failure for safety restart operation

- Gas leakage protection

- Prevent compressor reverse cycle

- Inner protector to protect compressor

- Noise prevention during soft dry operation

• Operation Improvement

- Quiet mode to reduce the indoor unit operating sound

- Powerful mode to reach the desired room temperature quickly

- 24-hour timer setting

• Serviceability Improvement

- Breakdown Self Diagnosis function

6

4 Location of Controls and Components

4.1.

Product Overview

4.1.1.

Indoor Unit

4.1.2.

Outdoor Unit

4.1.3.

Remote Control

7

5 Dimensions

5.1.

Indoor Unit

8

5.2.

Outdoor Unit

9

6 Refrigeration Cycle Diagram

10

7 Block Diagram

11

8 Wiring Connection Diagram

8.1.

Indoor Unit

12

8.2.

Outdoor Unit

13

9 Electronic Circuit Diagram

9.1.

Indoor Unit

14

9.2.

Outdoor Unit

15

10 Printed Circuit Board

10.1. Indoor Unit

10.1.1.

Printed Circuit Board

16

10.2. Outdoor Unit

10.2.1.

Main Printed Circuit Board

17

11 Installation Instruction

11.1. Select The Best Location

INDOOR UNIT

• Do not install the unit in excessive oil fume area such as kitchen, workshop and etc.

• There should not be any heat source or steam near the unit.

• There should not be any obstacles blocking the air circulation.

• A place where air circulation in the room is good.

• A place where drainage can be easily done.

• A place where noise prevention is taken into consideration.

• Do not install the unit near the door way.

• Ensure the spaces indicated by arrows from the wall, ceiling, fence or other obstacles.

• Recommended installation height for indoor unit shall be at least 2.5 m.

OUTDOOR UNIT

• If an awning is built over the unit to prevent direct sunlight or rain, be careful that heat radiation from the condenser is not obstructed.

• There should not be any animal or plant which could be affected by hot air discharged.

• Keep the spaces indicated by arrows from wall, ceiling, fence or other obstacles.

• Do not place any obstacles which may cause a short circuit of the discharged air.

• If piping length is over the rated length, additional refrigerant should be added as shown in the table.

Model

Piping size

Rated

Length

(m)

Gas Liquid

Max

Elevation

(m)

Min.

Piping

Length

(m)

Max.

Piping

Length

(m)

Additional

Refrigerant

(g/m)

TE9HKE 3/8” 1/4” 7.5

TE12HKE,

TE15HKE

1/2” 1/4” 7.5

15

15

3

3

15

15

20

20

Example: For TE9HKE

If the unit is installed at 10 m distance, the quantity of additional refrigerant should be 50g ...... (10 - 7.5) m x 20 g/m = 50 g

11.2. Indoor/Outdoor Unit

Installation Diagram

18

11.3. Indoor Unit

11.3.1.

HOW TO FIX INSTALLATION PLATE

The mounting wall is strong and solid enough to prevent it from the vibration.

11.3.2.

TO DRILL A HOLE IN THE WALL

AND INSTALL A SLEEVE OF

PIPING

1. Insert the piping sleeve to the hole.

2. Fix the bushing to the sleeve.

3. Cut the sleeve until it extrudes about 15 mm from the wall.

The centre of installation plate should be at more than 450 mm at right of the wall.

The centre of installation plate should be at more than 450 mm at left of the wall.

The distance from installation plate edge to ceiling should more than 66 mm.

From installation plate left edge to unit’s left side is 20 mm.

From installation plate right edge to unit’s right is 70 mm.

: For left side piping, piping connection for liquid should be this line.

: For left side piping, piping connection for gas should be about

50 mm from this line.

: For left side piping, piping connection cable should be about

750 mm from this line.

1. Mount the installation plate on the wall with 5 screws or more.

(If mounting the unit on the concrete wall, consider using anchor bolts.)

• Always mount the installation plate horizontally by aligning the marking-off line with the thread and using a level gauge.

2. Drill the piping plate hole with ø70 mm hole-core drill.

• The center of the right piping hole is at the intersection of lines extending vertically from the edge of the installation plate and horizontally from the sideways arrow on the installation plate (see figure above).

• The center of the left piping hole is at the intersection of lines extending vertically from the downward arrow on the installation plate and horizontally from the sideways arrow on the installation plate (see figure above).

• Drill the piping hole at either the right or the left and the hole should be slightly slanted to the outdoor side.

Caution

When the wall is hollow, please be sure to use the sleeve for tube ass’y to prevent dangers caused by mice biting the connecting cable.

4. Finish by sealing the sleeve with putty or caulking compound at the final stage.

11.3.3.

INDOOR UNIT INSTALLATION

1. For the right rear piping

2. For the right and right bottom piping

19

3. For the embedded piping

20

(This can be used for left rear piping and left bottom piping also.)

21

11.3.4.

CONNECT THE CABLE TO THE

INDOOR UNIT

1. The inside and outside connecting cable can be connected without removing the front grille.

2. Connecting cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 4 u 1.5 mm

2 flexible cord, type designation 245 IEC 57 (H05RN-F) or heavier cord.

• Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.

• Earth lead wire shall be longer than the other lead wires as shown in the figure for the electrical safety in case of the slipping out of the cord from the anchorage.

• Secure the cable onto the control board with the holder

(clamper).

11.3.4.1. WIRE STRIPPING AND

CONNECTING REQUIREMENT

11.4. Outdoor Unit

11.4.1.

INSTALL THE OUTDOOR UNIT

• After selecting the best location, start installation according to Indoor/Outdoor Unit Installation Diagram.

1. Fix the unit on concrete or rigid frame firmly and horizontally by bolt nut (ø10 mm).

2. When installing at roof, please consider strong wind and earthquake. Please fasten the installation stand firmly with bolt or nails.

Model

TE9HKE, TE12HKE,

TE15HKE

A B C D

570mm 105mm 18.5mm

320mm

11.4.2.

CONNECTING THE PIPING

Connecting The Piping To Indoor Unit

Please make flare after inserting flare nut (locate at joint portion of tube assembly) onto the copper pipe

(in case of using long piping).

Connect the piping

• Align the center of piping and sufficiently tighten the flare nut with fingers.

• Further tighten the flare nut with torque wrench in specified torque as stated in the table.

Model

TE9HKE

TE12HKE, TE15HKE

Piping size (Torque)

Gas

3/8” [42 N

O m]

1/2” [55 N

O m]

Liquid

1/4” [18 N

1/4” [18 N

O

O m) m)

Do not over tighten, over tightening cause gas leakage.

Connecting The Piping To Outdoor Unit

Decide piping length and then cut by using pipe cutter. Remove burrs from cut edge. Make flare after inserting the flare nut

(locate at valve) onto the copper pipe.

Align center of piping to valves and then tighten with torque wrench to the specified torque as stated in the table.

CUTTING AND FLARING THE PIPING

1. Please cut using pipe cutter and then remove the burrs.

2. Remove the burrs by using reamer. If burrs is not removed, gas leakage may be caused.

Turn the piping end down to avoid the metal powder entering the pipe.

3. Please make flare after inserting the flare nut onto the copper pipes.

22

11.4.3.

EVACUATION OF THE EQUIPMENT

WHEN INSTALLING AN AIR CONDITIONER, BE SURE TO EVACUATE THE AIR INSIDE THE INDOOR UNIT AND PIPES in the following procedure.

1. Connect a charging hose with a push pin to the Low side of a charging set and the service port of the 3-way valve.

• Be sure to connect the end of the charging hose with the push pin to the service port.

2. Connect the center hose of the charging set to a vacuum pump with check valve, or vacuum pump and vacuum pump adaptor.

3. Turn on the power switch of the vacuum pump and make sure that the needle in the gauge moves from 0 cmHg (0 MPa) to

-76 cmHg (-0.1 MPa). Then evacuate the air approximately ten minutes.

4. Close the Low side valve of the charging set and turn off the vacuum pump. Make sure that the needle in the gauge does not move after approximately five minutes.

Note: BE SURE TO FOLLOW THIS PROCEDURE IN ORDER TO AVOID REFRIGERANT GAS LEAKAGE.

5. Disconnect the charging hose from the vacuum pump and from the service port of the 3-way valve.

6. Tighten the service port caps of the 3-way valve at a torque of 18 N

O m with a torque wrench.

7. Remove the valve caps of both of the 2-way valve and 3-way valve. Position both of the valves to “OPEN” using a hexagonal wrench (4 mm).

8. Mount valve caps onto the 2-way valve and the 3-way valve.

• Be sure to check for gas leakage.

CAUTION

• If gauge needle does not move from 0 cmHg (0 MPa) to -76 cmHg (-0.1 MPa), in step above take the following measure:

• If the leak stops when the piping connections are tightened further, continue working from step .

• If the leak does not stop when the connections are retightened, repair the location of leak.

• Do not release refrigerant during piping work for installation and reinstallation. Take care of the liquid refrigerant, it may cause frostbite.

11.4.4.

CONNECT THE CABLE TO THE OUTDOOR UNIT

1. Remove the control board cover from the unit by loosening the screw.

2. Connecting cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 4 x 1.5 mm

2

flexible cord, type designation 245 IEC 57 (H05RN-F) or heavier cord.

3. Secure the cable onto the control board with the holder (clamper).

4. Attach the control board cover in its original position with the screw.

23

11.4.5.

PIPE INSULATION

1. Please carry out insulation at pipe connection portion as mentioned in Indoor/Outdoor Unit Installation Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.

2. If drain hose or connecting piping is in the room (where dew may form), please increase the insulation by using POLY-E

FOAM with thickness 6 mm or above.

24

12 Operation and Control

12.1. Basic Function

Inverter control, which equipped with a microcomputer in determining the most suitable operating mode as time passes, automatically adjusts output power for maximum comfort always. In order to achieve the suitable operating mode, the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting. The compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature.

12.1.1.

Internal Setting Temperature

Once the operation starts, remote control setting temperature will be taken as base value for temperature shifting processes. These shifting processes are depending on the air conditioner settings and the operation environment. The final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit.

12.1.2.

Cooling Operation

12.1.2.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -1.5

qC.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF point +0.5

qC.

12.1.3.

Soft Dry Operation

12.1.3.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -2 qC.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF point +0.5

qC.

12.1.4.

Heating Operation

12.1.4.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature > +1.5

qC.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature < Compressor OFF point -0.5

qC.

25

12.1.5.

Automatic Operation

• This mode can be set using remote control and the operation is decided by remote control setting temperature, remote control operation mode, indoor intake air temperature and outdoor air temperature.

• During operation mode judgment, indoor fan motor (with speed of Lo-) and outdoor fan motor are running for 30 seconds to detect the indoor intake and outdoor air temperature. The operation mode is decided based on below chart.

Every 30 minutes, the indoor and outdoor temperature is judged. Based on remote control setting temperature, the value of T1 will increase up to 10 qC, T2 will decreased by 3qC and T3 will decreased up to 8qC.

The Auto Operation Mode shifting will take place whenever operation mode changed from Cooling/Soft Dry to Heating or vice versa.

12.1.6.

Indoor Fan Motor Operation

A. Basic Rotation Speed (rpm)

i. Manual Fan Speed

[Cooling, Dry]

• Fan motor’s number of rotation is determined according to remote control setting.

Remote Control

Tab

O

Hi

O

Me+

O

Me

O

Me-

[Heating]

• Fan motor’s number of rotation is determined according to remote control setting.

O

Lo

Remote Control

Tab

O

SHi

O

Me+

O

Me

O

Me-

O

Lo ii. Auto Fan Speed

[Cooling, Dry]

• According to room temperature and setting temperature, indoor fan speed is determined automatically.

• The indoor fan will operate according to pattern below.

O

QLo

O

QLo

[Heating]

• According to indoor pipe temperature, automatic heating fan speed is determined automatically.

B. Feedback control

• Immediately after the fan motor started, feedback control is performed once every second.

• During fan motor on, if fan motor feedback 2550 rpm or < 50 rpm continue for 10 seconds, then fan motor error counter increase, fan motor is then stop and restart. If the fan motor counter becomes 7 times, then H19 - fan motor error is detected.

Operation stops and cannot on back.

26

12.1.7.

Outdoor Fan Motor Operation

Outdoor fan motor is operated with one fan speed only. It starts when compressor starts operation and it stops 30 seconds after compressor stops operation.

12.2. Airflow Direction

1. There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by vertical vanes).

2. Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using remote control).

12.2.1.

Vertical Airflow

Operation Mode

Heating

Cooling and e-ion

Soft Dry

Airflow Direction

Auto with Heat Exchanger

Temperature

Manual

Auto

Manual

Auto

Manual

A

B

C

1

4

12

2

Vane Angle ( q)

3 4

28

20

45

28

35

12 ~ 40

51

19

19

26

12

26

33

33

5

66

40

12 40

1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the angles as stated above. For heating mode operation, the angle of the vane depands on the indoor heat exchanger temperature as Figure 1 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

12.2.2.

Horizontal Airflow

• The horizontal airflow direction louvers can be adjusted manually by hand.

12.3. Quiet operation (Cooling Mode/Cooling area of Dry Mode)

A. Purpose

To provide quiet cooling operation compare to normal operation.

B. Control condition

a. Quiet operation start condition

• When “quiet” button at remote control is pressed.

Quiet LED illuminates.

27

b. Quiet operation stop condition

1. When one of the following conditions is satisfied, quiet operation stops: a.Powerful button is pressed.

b.Stop by OFF/ON switch.

c.Timer “off” activates.

d.Quiet button is pressed again.

2. When quiet operation is stopped, operation is shifted to normal operation with previous setting.

3. When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.

4. When operation mode is changed, quiet operation is shifted to quiet operation of the new mode, except ion only operation.

5. During quiet operation, if timer “on” activates, quiet operation maintains.

6. After off, when on back, quiet operation is not memorised.

C. Control contents

1. Auto fan speed is changed from normal setting to quiet setting of respective fan speed.

This is to reduce sound of Hi, Me, Lo for 3dB.

2. Manual fan speed for quiet operation is -1 step from setting fan speed.

12.3.1.

Quiet operation (Heating)

A. Purpose

To provide quiet heating operation compare to normal operation.

B. Control condition

a. Quiet operation start condition

• When “quiet” button at remote control is pressed.

Quiet LED illuminates.

b. Quiet operation stop condition

1. When one of the following conditions is satisfied, quiet operation stops: a. Powerful button is pressed.

b. Stop by OFF/ON switch.

c. Timer “off” activates.

d. Quiet button is pressed again.

2. When quiet operation is stopped, operation is shifted to normal operation with previous setting.

3. When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.

4. When operation mode is changed, quiet operation is shifted to quiet operation of the new mode, expected ion only operation.

5. During quiet operation, if timer “on” activates, quiet operation maintains.

6. After off, when on back, quiet operation is not memorised.

C. Control contents

a. Fan speed auto

1. Indoor FM RPM depends on pipe temp sensor of indoor heat exchanger.

Auto fan speed is changed from normal setting to quiet setting of respective fan speed.

This is to reduce sound of Hi, Me, Lo for 3dB.

b. Fan speed manual

1. Manual fan speed for quiet operation is -1 step from setting fan speed.

12.4. Powerful Mode Operation

A. Purpose

To achieve the setting temperature quickly.

B. Control Condition

a. Powerful operation start condition

When the “powerful” button at remote control is pressed, Powerful LED illuminates b. Powerful operation stop condition

1. When one of the following conditions is satisfied, quiet operation stops: a. Powerful button is pressed again b. Quiet button is pressed c. Stop by OFF/ON switch d. Timer OFF is pressed again

28

2. When Powerful operation is stopped, operation is shifted to normal operation.

C. Control Contents

a. Fan speed

1. Indoor fan speed depends on indoor intake temperature and remote control setting temperature. Fan speed is changed from normal setting to Powerful setting of respective fan speed.

b. Temperature shifting

1. Internal setting temperature shift depends on indoor pipe temperature. Temperature is decreased (Cooling and Soft Dry operation) or increased (Heating operation) accordingly.

12.5. ON Timer Control

ON timer can be set using remote control, the unit with timer set will start operate earlier than the setting time. This is to provide a comfortable environment when reaching the set ON time.

70 minutes before the set time, indoor (at fan speed of Lo-) and outdoor fan motor start operate for 30 seconds to determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting time.

From the judgment, the decided operation will start operate earlier than the set time as shown below.

12.6. OFF Timer Control

OFF timer can be set using remote control, the unit with timer set will stop operate at set time.

12.7. Auto Restart Control

1. When the power supply is cut off during the operation of air conditioner, the compressor will re-operate within three to four minutes (there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly) after power supply resumes.

2. This type of control is not applicable during ON/OFF Timer setting.

12.8. Indication Panel

LED

Color

Light ON

Light OFF

POWER

Green

Operation ON

Operation OFF

TIMER

Orange

Quiet Setting ON

Quiet Setting OFF

Ion

Blue

Ion ON

Ion OFF

Note:

• If POWER LED is blinking, the possible operations of the unit are Hot Start, during Deice operation, operation mode judgement, or ON timer sampling.

• If Timer LED is blinking, there is an abnormality operation occurs.

29

12.9. Ionizer Operation

Purpose

To provide fresh air effect to users by discharging minus ion to air.

Control Condition

a. Ionizer Only Operation.

1. When air-conditioner unit is at “OFF” condition (standby) and ION operation button at remote control is pressed.

Fan & ionizer on, ION LED illuminates, but power LED maintain off. (1 o2)

However, fan speed can be adjusted later by customer during this operation.

Fan speed

Manual

Auto

Remote Control set fan speed

Repetition of 8 patterns as shown below.

Airflow direction (Horizontal Vane) control:

Follow vane direction control at cooling mode.

Horizontal vane can be changed by customer during ion only operation.

b. Operation Mode + Ionizer Operation

1. Ionizer Operation Start Condition.

When air conditioner unit is in “ON” condition (Heat, Cool, Dry, Auto mode) and ION operation button at remote control is pressed. Ionizer on & ION LED illuminates. (3 o4)

Power LED also illuminates.

2. Ionizer Operation Stop Condition.

When one of the following condition is satisfied, ION operation stops.

a. Stopped by ON/OFF switch.

b. Timer OFF activates.

c. ION feedback signal shows error.

3. Ionizer operation status is not memorised by microcontroller. After OFF, when operation is “ON” again, air conditioner operates without ionizer operation.

12.9.1.

Ionizer Error Detection

• There are 3 errors detect by the unit.

a. Connector Open Detection

- If the connector is pulled out during ionizer operation, ion LED blinks.

- Once the ionizer connector reconnect to the unit, ion LED stops blinking.

b. Ionizer Control Discharge Error Detection

- When ionizer generator is short circuit due to water or dust adhesion, power supplies to ionizer is stopped for 30 minutes and resume power supply after 30 minutes. If this situation happens for 24 times, ion LED blinks.

- The connector resets when the ionizer operates normally for 10 minutes or the unit switched off.

30

- Check and estimate the cause of short circuit, stop the unit operation once to cancel this error.

c. Ionizer Control Power Supply Error Detection

- During ionizer stopped, power is supplied to the ionizer due to indoor PCB error.

- During this error:

• TIMER LED blinks and unit stop operation

• Ion LED blinks

• error code H26 is indicated

- Exchange main PCB to cancel this error.

31

13 Protection Control

13.1. Protection Control For All Operations

13.1.1.

Time Delay Safety Control

1. The compressor will not start for 3 minutes after stop of the operation.

2. This control is not applicable if the power supply is cut off and on again or after 4-way valve deices condition.

13.1.2.

30 Seconds Forced Operation

1. Once compressor starts the operation, it will not stop its operation for 30 seconds.

2. However, it can be stopped with the remote control or the Auto Switch on the indoor unit.

13.1.3.

Total Running Current Control

1. When the outdoor unit total running current (AC) exceeds X value, the frequency instructed for compressor operation will be decreased.

2. If the running current does not exceed X value for 5 seconds, the frequency instructed will be increased.

3. However, if total outdoor unit running current exceeds Y value, compressor will be stopped immediately for 3 minutes.

TE15HK Model

Operation Mode

Cooling/Soft Dry (A)

Cooling/Soft Dry (B)

Cooling/Soft Dry (C)

Heating

4. The first 30 minutes of cooling operation, (A) will be applied.

X (A)

8.37

7.87

8.37

8.89

Y (A)

15.88

15.88

15.88

15.88

13.1.4.

IPM (Power transistor) Prevention Control

A. Overheating Prevention Control

1. When the IPM temperature rises to 110 qC, compressor operation will stop immediately.

2. Compressor operation restarts after 3 minutes the temperature decreases to 95 qC.

B. DC Peak Current Control

1.When electric current to IPM exceeds set value of 20.2 A, the compressor will stop operate. Then, operation will restart after

3 minutes.

2. If the set value is exceeded again more than 30 seconds after the compressor starts, the operation will restart after two minutes.

3. If the set value exceeded again within 30 seconds after the compressor starts, the operation will restart after one minute. If this condition repeats continuously for seven times, all indoor and outdoor relays will be cut off.

32

13.1.5.

Compressor Overheating Prevention Control

Instructed frequency for compressor operation will be regulated by compressor discharge temperature. The changes of frequency are as below.

If compressor discharge temperature exceeds 110 qC, compressor will stop, occurs 4 times per 20 minutes, timer LED will be blinking. (“F97” is to be confirmed.)

13.1.6.

Low Pressure Prevention Control (Gas Leakage Detection)

a. Control start conditions

• For 5 minutes, the compressor continuously operates and outdoor total current is between 0.6A and 1.15A.

• During Cooling and Soft Dry operations:

Indoor suction temperature - indoor piping temperature is below 4 qC.

• During Heating operations:

Indoor piping temperature - indoor suction is under 5 qC.

b. Control contents

• Compressor stops (and restart after 2 minutes).

• If the conditions above happen 2 times within 20 minutes, the unit will:

- Stop operation

- Timer LED blinks and “F91” indicated.

13.1.7.

Low Frequency Protection Control 1

When the compressor operate at frequency lower than 25 Hz continued for 240 minutes, the operation frequency will be changed to

24 Hz for 2 minutes.

13.1.8.

Low Frequency Protection Control 2

When all the below conditions comply, the compressor frequency will changed to lower frequency.

Temperature, T, for:

Indoor intake air ( qC)

Outdoor air ( qC)

Indoor heat exchanger ( qC)

Cooling/Soft Dry

T < 14 or T 30

T < 13 or T 38

T < 30

Heating

T < 14 or T 28

T < 4 or T 24

33

13.2. Protection Control For Cooling & Soft Dry Operation

13.2.1.

Outdoor Air Temperature Control

• The compressor operating frequency is regulated in accordance to the outdoor air temperature as shown in the diagram below.

• This control will begin 1 minute after the compressor starts.

13.2.2.

Cooling Overload Control

• Detects the Outdoor pipe temperature and carry out below restriction/limitation (Limit the compressor Operation frequency)

• The compressor stop if outdoor pipe temperature exceeds 63 qC

• If the compressor stops 4 times in 20 minutes, Timer LED blinking (F95: outdoor high pressure rise protection)

13.2.3.

Freeze Prevention Control

1. When indoor heat exchanger temperature is lower than 0 qC continuously for 6 minutes, compressor will stop operating.

2. Compressor will resume its operation 3 minutes after the indoor heat exchanger is higher than 13 qC.

3. At the same time, indoor fan speed will be higher than during its normal operation.

4. If indoor heat exchanger temperature is higher than 13 qC for 5 minutes, the fan speed will return to its normal operation.

34

13.3. Protection Control For Heating Operation

13.3.1.

Intake Air Temperature Control

Compressor will operate at Max freq. if either one of the below conditions occur:

1. When the indoor intake air temperature is 30 qC or above.

13.3.2.

Outdoor Air Temperature Control

• The Max current value is regulated when the outdoor air temperature rise above 14 qC in order to avoid compressor overloading.

13.3.3.

Overload Protection Control

• The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown in below.

• If the heat exchanger temperature exceeds 60 qC, compressor will stopped.

35

14 Servicing Mode

14.1. Auto OFF/ON Button

1. AUTO OPERATION MODE

The Auto operation will be activated immediately once the Auto OFF/ON button is pressed. This operation can be used to operate air conditioner with limited function if remote control is misplaced or malfunction.

2. TEST RUN OPERATION (FOR PUMP DOWN/SERVICING PURPOSE)

The Test Run operation will be activated if the Auto OFF/ON button is pressed continuously for more than 5 seconds. A “beep” sound will occur at the fifth seconds, in order to identify the starting of Test Run operation (Forced cooling operation). Within 5 minutes after Forced cooling operation start, the Auto OFF/ON button is pressed for more than 5 seconds. A 2 “beep” sounds will occur at the fifth seconds, in order to identify the starting of Forced heating operation.

The Auto OFF/ON button may be used together with remote control to set / change the advance setting of air conditioner operation.

3. REMOTE CONTROL NUMBER SWITCH MODE

The Remote Control Number Switch Mode will be activated if the Auto OFF/ON button is pressed continuously for more than

11 seconds (3 “beep” sounds will occur at 11th seconds to identify the Remote Control Number Switch Mode is in standby condition) and press any button at remote control to transmit and store the desired transmission code to the EEPROM.

For transmission code selection explanation, please refer to “Select Remote Control Transmission Code”.

4. REMOTE CONTROL RECEIVING SOUND OFF/ON MODE

The Remote Control Receiving Sound OFF/ON Mode will be activated if the Auto OFF/ON button is pressed continuously for more than 16 seconds (4 “beep” sounds will occur at 16th seconds to identify the Remote Control Receiving Sound Off/On

Mode is in standby condition) and press “AC Reset” button and then press “Check” button at remote control.

Press “Auto OFF/ON button” to toggle remote control receiving sound.

- Short “beep”: Turn OFF remote control receiving sound.

- Long “beep”: Turn ON remote control receiving sound.

After Auto OFF/ON Button is pressed, the 20 seconds counter for Remote Control Receiving Sound OFF/ON Mode is restarted.

14.2. Select Remote Control Transmission Code

• There are 4 types of remote control transmission code could be selected and stored in EEPROM of indoor unit. The indoor unit will only operate when received signal with same transmission code from remote control. This could prevent signal interference when there are 2 or more indoor units installed nearby together.

• To change remote control transmission code, short or open jumpers at the remote control printed circuit board.

36

Remote Control Printed Circuit Board

Jumper A (J-A) Jumper B (J-B) Remote Control No.

Short Open A (Default)

Open

Short

Open

Open

Short

Short

B

C

D

14.3. Remote Control Button

14.3.1.

SET BUTTON

• To check current remote control transmission code

- Press for more than 10 seconds.

• To change the air quality sensor sensitivity

- Press and release with pointer.

- Press the Timer Decrement button to select sensitivity:

1. Low Sensitivity

2. Standard (Default)

3. Hi Sensitivity

- Confirm setting by pressing Timer Set button, a “Beep” sound will be heard. LCD returns to original display after 2 seconds.

- LCD returns to original display if remote control does not operate for 30 seconds.

14.3.2.

CLOCK BUTTON

• To change the remote control’s time format

- Press for more than 5 seconds.

14.3.3.

RESET (RC)

• To clear and restore the remote control setting to factory default

- Press once to clear the memory.

14.3.4.

RESET (AC)

• To restore the unit’s setting to factory default

- Press once to restore the unit’s setting.

14.3.5.

TIMER

• To change indoor unit indicator’s LED intensity

- Press continuously for 5 seconds.

14.3.6.

TIMER

• To change remote control display from Degree Celsius to Degree Fahrenheit.

- Press continuously for 10 seconds.

37

15 Troubleshooting Guide

15.1. Refrigeration Cycle System

In order to diagnose malfunctions, make sure that there are no electrical problems before inspecting the refrigeration cycle.

Such problems include insufficient insulation, problem with the power source, malfunction of a compressor and a fan.

The normal outlet air temperature and pressure of the refrigeration cycle depends on various conditions, the standard values for them are shown in the table on the right.

38

15.1.1.

Relationship between the condition of the air conditioner and pressure and electric current

Condition of the air conditioner

Low Pressure

Cooling Mode

High Pressure

Electric current during operating

Low Pressure

Heating Mode

High Pressure

Electric current during operating

Insufficient refrigerant

(gas leakage)

Clogged capillary tube or Strainer

Short circuit in the indoor unit

Heat radiation deficiency of the outdoor unit

Inefficient compression

• Carry out the measurements of pressure, electric current, and temperature fifteen minutes after an operation is started.

39

15.2. Breakdown Self Diagnosis Function

15.2.1.

Self Diagnosis Function (Three Digits Alphanumeric Code)

• Once abnormality has been detected during operation, the unit will immediately stop its operation. (Timer LED blinks.)

• Although timer LED goes off when power supply is turned off, if the unit is operated under a breakdown condition, the

LED will light up again.

• In operation after breakdown repair, error code is not displayed. The last error code (abnormality) will be saved in

IC memory.

Timer LED Blinking in Abnormal Operation:

1. Automatically stops the operation.

2. Timer LED on display of the indoor unit blinks.

3. The LED will be off if the unit is turned off or the Error

RESET button on the remote controller is pressed.

To display memorized error (Protective operation)

status:

1. Turn the unit on.

2. Slide the remote controller cover down to show the operating buttons.

3. Press the CHECK button on the remote controller for continuously 5 seconds or more to show “--” on the display.

4. Press the “TEMP” or button on the remote controller to show “H00” on the display. Signal is transmitted to the main unit.

5. Press the “TEMP” or button (When button is pressed, the display goes back.) repeatedly and slowly until Beep sound (about 5 seconds intermittently) is heard from main unit.

6. Then, displayed error code matches to the error code saved in unit memory. The power LED on the main unit also lights up.

Note: When the CHECK button is pressed continuously for 5 seconds again, or when no operation continues for 30 seconds, or when the

RESET button on remote controller is pressed with a pointed object, the display is cancelled.

To clear memorized error (Protective operation) status

after repair:

1. Press the AUTO button in main unit continuously for 5 seconds or more and release it. (Test run / Pump down operation: Beep sound).

2. Press the CHECK button on remote controller for about 1 second to transmit signal to main unit. A beep sound is heard from main unit and the data is cleared..

Temporary Operation (Depending on breakdown status)

1. Press the ON/OFF button after selecting Cooling or

Heating operation. (Receiving Beep sound is heard and the TIMER LED blinks.)

2. The unit can temporarily be used until repaired.

Error Code

H23

H27, H28

Operation

Cooling

Cooling, Heating

Temporary items

Emergency Operation with limited power

40

15.3.

Error Codes Table

Diagnosis display

H11

H14

H15

H16

H19

Abnormality / Protection control

Indoor / outdoor abnormal communication

Indoor intake air temperature sensor abnormality

Outdoor compressor temperature sensor abnormality

Outdoor Current Transformer open circuit

Indoor fan motor merchanism lock

H23

H26

Indoor heat exchanger temperature sensor abnormality

Ionizer abnormality

H27

H28

H33

H97

H98

H99

F11

F91

F93

F95

F96

Outdoor air temperature sensor abnormality

Outdoor heat exchanger temperature sensor abnormality

Indoor/Outdoor wrong connection

Outdoor Fan Motor lock abnormality

Indoor high pressure protection

Indoor heat exchanger anti-freezing protection

Cooling / Heating cycle changeover abnormality

Refrigeration cycle abnormal

Outdoor compressor abnormal revolution

Cool high pressure protection

IPM (power transistor) overheating protection

F97

F98

F99

Outdoor compressor overheating protection

Total running current protection

Outdoor Direct Current (DC) peak detection

Note:

“O” - Frequency measured and fan speed fixed.

Abnormality

Judgement

> 1 min after starting operation

Continue for 5 sec.

Continue for 5 sec.

Continue for 5 sec.

Continue for 5 sec.

4 times occurance within 30 minutes

2 times occurance within 20 minutes

4 times occurance within 20 minutes

4 times occurance within 20 minutes

4 times occurance within 10 minutes

3 times occurance within 20 minutes

7 times occurance continuously

Emergency operation

Indoor fan operation only

O

(Cooling only)

O

O

Primary location to verify

• Internal / external cable connections

• Indoor / Outdoor PCB

• Intake air temperature sensor

(detective or disconnected)

• Compressor temperature sensor

(detective or disconnected)

• Outdoor PCB

• IPM (Power transistor) module

• Indoor PCB

• Fan motor

• Heat exchanger temperature sensor

(defective or disconnected)

• Indoor PCB

• Ionizer

• Outdoor temperature sensor

(defective or disconnected)

• Outdoor heat exchanger temperature sensor (defective or disconnected)

• Indoor/Outdoor supply voltage

• Outdoor PCB

• Outdoor Fan Motor

• Air filter dirty

• Air circulation short circuit

• Insufficient refrigerant

• Air filter dirty

• 4-way valve

• V-coil

• No refrigerant

(3-way valve is closed)

• Outdoor compressor

— • Outdoor refrigerant circuit

• Excess refrigerant

• Improper heat radiation

• IPM (Power transistor)

• Insufficient refrigerant

• Compressor

• Excess refrigerant

• Improper heat radiation

• Outdoor PCB

• IPM (Power transistor)

• Compressor

The memory data of error code is erased when the power supply is cut off, or press the Auto Switch until “beep” sound heard following by pressing the “RESET” button at remote controller.

Although operation forced to stop when abnormality detected, emergency operation is possible for certain errors (refer to Error

Codes Table) by using remote controller or Auto Switch at indoor unit. However, the remote controller signal receiving sound is changed from one “beep” to four “beep” sounds.

41

16 Disassembly and Assembly Instructions

High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with repair work. Failure to heed this caution may result in electric shocks.

16.1. Disassembly of Indoor Unit

16.1.1.

Removal of the Front Panel and Front Grille.

42

16.1.2.

Removal of Electronic Controller

43

16.1.3.

Removal of Control Board

44

16.1.4.

Removal of Fan Motor and Cross-Flow Fan

45

46

16.2. Outdoor Electronic Controller Removal Procedure

Caution! When handling electronic controller, be careful of electrostatic discharge.

1. Remove the 3 screws of the Top Panel.

5. Remove the Control Board as follows:

Fig. 1

2. Remove the 6 screws of the Front Panel.

Fig. 4

Fig. 2

3. Remove the screw of the Terminal Board Cover.

4. Remove the Top Cover of the Control Board by 4 hooks.

Fig. 5

Fig. 3

47

Fig. 6

17 Technical Data

17.1. Operation Characteristics

48

49

50

51

17.2. Sensible Capacity Chart

230V

Indoor wet bulb temp.

17.0

qC

19.0

qC

19.5

qC

22.0

qC

TC

4.27

4.68

5.10

30

SHC

3.23

3.39

3.51

IP

1.21

1.23

1.25

TC

SHC

IP

-

-

Total Cooling Capacity (kW)

Sensible Heat Capacity (kW)

Input Power (kW)

Indoor 27 qC/19qC

Outdoor 35 qC/24qC

TC

3.99

4.30

4.38

4.77

35

SHC

3.10

3.25

3.38

Outdoor Temp. ( qC)

IP

1.30

1.32

1.33

1.35

TC

3.71

4.07

4.44

40

SHC

2.98

3.13

3.26

IP

1.39

1.42

1.42

TC

3.37

46

SHC

2.83

3.70

4.03

2.98

3.11

IP

1.50

1.53

1.56

52

18 Exploded View and Replacement Parts List

18.1. Indoor Unit

Note

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

53

20

21

22

23

16

17

18

19

24

25

26

27

28

29

12

13

14

15

8

9

10

11

REF. NO.

1

2

5

6

7

3

4

41

42

43

44

37

38

39

40

45

46

47

48

33

34

35

36

30

31

32

PART NAME & DESCRIPTION

CHASSY COMPLETE

INSTALLATION PLATE

BACK COVER CHASSIS

FAN MOTOR

CROSS FLOW FAN COMPLETE

SCREW - CROSS FLOW FAN

BEARING ASS’Y

DISCHARGE GRILLE COMPLETE

HORIZONTAL VANE

VERTICAL VANE COMPLETE (R)

VERTICAL VANE COMPLETE (L)

FULCRUM

CAP (DRAIN CAP)

AIR SWING MOTOR

LEADWIRE FOR AIR SWING MOTOR

DRAIN HOSE

CONTROL BOARD CASING

TERMINAL BOARD COMPLETE

DISPLAY PCB HOLDER

ELECTRONIC CONTROLLER - RECEIVER, INDICATOR

POWER SUPPLY CORD

ELECTRONIC CONTROLLER - MAIN

CONTROL COVER (LOWER)

CONTROL COVER (PLASTIC PLATE - UPPER)

CONTROL COVER (STEEL PLATE - UPPER)

GEAR (FRONT PANEL OPEN/CLOSE MOTOR)

FRONT PANEL OPEN/CLOSE MOTOR

SENSOR HOLDER (PIPE TEMP)

ELECTRONIC CONTROLLER - IONIZER

ION GENERATOR

FRONT GRILLE COMPLETE

INTAKE GRILLE

GRILLE DOOR

SCREW FRONT GRILLE

CAP

AIR FILTER

EVAPORATOR COMPLETE (WITH PIPE)

FLARE NUT (1/4”)

EVAPORATOR HOLDER

FLARE NUT (3/8”) (1/2”)

REMOTE CONTROL COMPLETE

SUPER ALLERU BUSTER FILTER

OPERATION INSTRUCTION

OPERATION INSTRUCTION

INSTALLATION INSTRUCTION

INSTALLATION INSTRUCTION

INSTALLATION INSTRUCTION

INSTALLATION INSTRUCTION

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).

• “O” marked parts are recommended to be kept in stock.

CS-TE15HKE

CWD50C1558

CWH361074

CWD911465A

ARW41E8P30AC

CWH02K1029

CWH551146

CWH64K1005

CWE20C2754

CWE24C1115

CWE24C1221

CWE24C1222

CWH621050A

CWH521091

CWA981106J

CWA67C5265

CWH851110

CWH102280

CWA28C2233

CWD932475

CWA743634

CWA20C2679

CWA73C3239

CWH131229

CWH131232

CWH131230

CWH68C1023

L6JAEDJH0001

CWH32137

CWA73C1791

CWH94C0005

CWE11C3959

CWE22C1450

CWE141087C

XTT4 + 16CFJ

CWH521025E

CWD001149

CWB30C1706

CWT25086

CWD661048

CWT251032

CWA75C3196

CWD00C1263

CWF565933

CWF565934

CWF613411

CWF613412

CWF613413

CWF613414

REMARKS

O

O

O

O

O

O

O

O

O

O

O

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

QTY.

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

2

1

1

1

54

18.2. Outdoor Unit

Note

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

55

22

23

24

25

17

18

19

20

26

27

28

29

30

13

14

15

16

9

10

11

12

35

36

37

38

39

31

32

33

34

REF. NO.

1

2

3

6

7

8

4

5

PART NAME & DESCRIPTION

CHASSY ASSY

FAN MOTOR BRACKET

FAN MOTOR, AC 25W SINGLE

PROPELLER FAN ASSY

NUT - PROPELLER FAN

COMPRESSOR

NUT - COMPRESSOR MOUNT

CONDENSOR CO.

STRAINER

TUBE ASSY (EXP.VALVE)

4-WAY VALVE

3-WAY VALVE (GAS)

HOLDER COUPLING

DISCHARGE MUFFLER

2-WAYS VALVE (LIQUID)

V-COIL CO. FOR 4-WAY VALVE

V-COIL COMPLETE FOR EXP.VALVE

SOUND PROOF BOARD

REACTOR

SOUND PROOF MATERIAL

SENSOR - COMPLETE

ELECTRONIC CONTROLLER-MAIN

CONTROL BOARD COVER (TOP-PCB)

TERMINAL BOARD ASSY

SENSOR COMPLETE

TERMINAL COVER

CABINET SIDE PLATE-COMPLETE

CABINET SIDE PLATE (L)

HANDLE

WIRE NET

CABINET FRONT PLATE CO.

CABINET TOP PLATE

PLATE - C.B.COVER

CONTROL BOARD COVER COMP.

L.TUBE

PACKING - L.TUBE

SENSOR - COMPLETE

ANTI-VIBRATION BUSHING

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).

• “O” marked parts are recommended to be kept in stock.

CU-TE15HKE

CWD50K2076

CWD541089

ARW44W8P40AC

CWH03K1014

CWH56053J

5CS110XBD04

CWH56000J

CWB32C2456

CWB11094

CWT01C3643

CWB001037J

CWB011523

CWH351025

CWB121021

CWB021333

CWA43C2144J

CWA43C2058J

CWH151188

G0C193J00004

CWG302464

CWA50C2205

CWA73C3234R

CWH131264

CWA28K1036J

CWA50C2402

CWH171039A

CWE041279A

CWE041248A

CWE161010

CWD041111A

CWE06C1136

CWE031014A

CWH131213

CWH13C1145

CWH5850080

CWB81012

CWA50C2281

CWH50077

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

3

1

1

1

1

1

3

1

1

1

QTY.

1

1

1

REMARKS

O

O

O

O

O

O

O

O

O

O

O

56

[PHAAM] Printed in Malaysia

SFBZ0208-00

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
