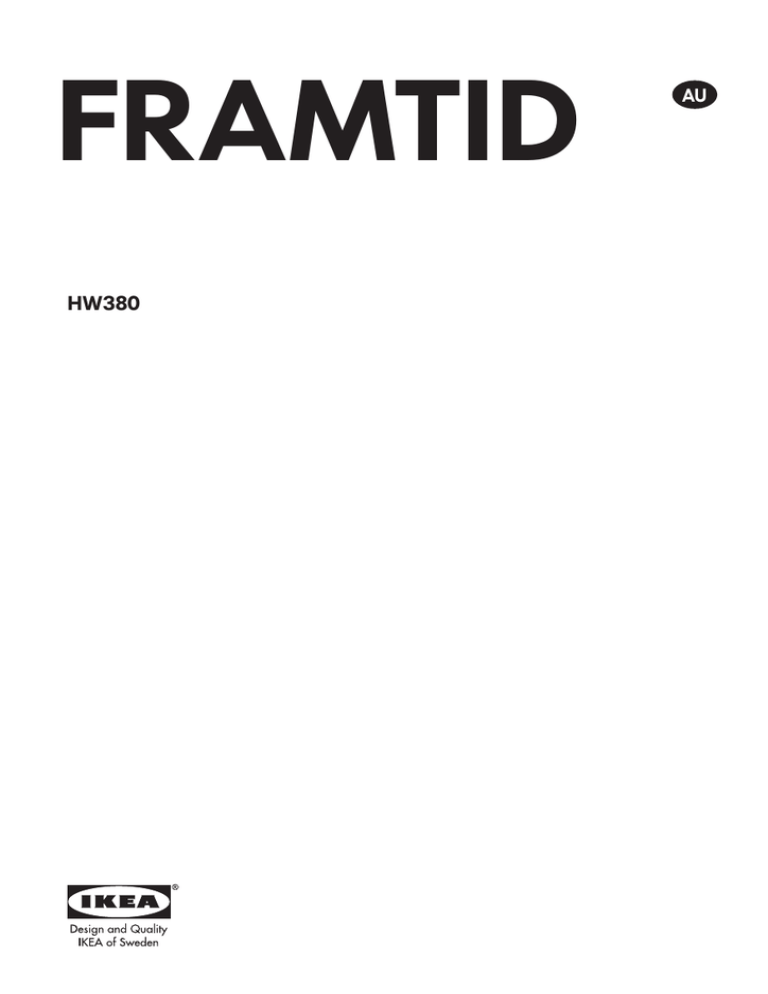

FRAMTID
HW380
AU
ENGLISH
4
ENGLISH
4
Contents
Safety information
Product description
Control panel
Cleaning and maintenance
4
7
7
8
What to do if ...
Technical data
Environmental concerns
IKEA GUARANTEE
10
11
12
13
Safety Information
Before first use
Your safety and that of others is paramount.
Remove cardboard protection pieces,
protective film and adhesive labels from
accessories.
Check the appliance for any transport
damage.
To avoid any damage do not place any
weights on the appliance. Do not expose
the appliance to atmospheric agents.
This manual and the appliance itself provide
important safety warnings, to be read and
observed at all times.
This is the attention symbol, pertaining
to safety, which alerts users to potential
risks to themselves and others.
All safety warnings are preceded by the
attention symbol and the following terms:
DANGER: indicates a hazardous
situation which, if not avoided, will
cause serious injury.
WARNING: Indicates a hazardous
situation which, if not avoided, could
cause serious injury.
All safety warnings give specific details
of the potential danger/warning present
and indicate how to reduce risk of injury,
damage and electric shock resulting from
improper use of the appliance. Carefully
observe the following instructions.
Precautions and general
recommendations
• The electrical installation and the
electrical connection must be carried
out by a qualified technician according
to the manufacturer’s instructions and
in compliance with the local safety
•
•
•
•
•
•
•
•
•
•
•
regulations. Do not repair or replace any
part of the appliance unless specifically
stated in the user manual.
The appliance must be disconnected
from the power supply before carrying
out any installation work.
Earthing of the appliance is compulsory.
(required only for class I).
The power cable must be long enough
for connecting the appliance, once
fitted in its housing, to the power supply
socket.
Do not pull the power supply cable in
order to unplug the appliance.
The electrical components must not be
accessible to the user after installation.
Do not touch the appliance with any wet
part of the body and do not operate it
when barefoot.
The appliance is not intended for use
by persons (including children) with any
physical, sensory or mental impairment,
or without experience and knowledge
of the appliance, unless supervised or
previously instructed in its use by those
responsible for their safety.
Do not repair or replace any part of the
appliance unless specifically indicated
in the manual. All other maintenance
services must be carried out by a
specialised technician.
Children must be supervised to ensure
they do not play with the appliance.
When drilling through the wall pay
attention not to damage electric
connections and/or pipes.
Air vents must always discharge to the
outside.
ENGLISH
•
•
•
•
•
•
•
•
•
•
•
•
The manufacturer rejects all
responsibilities for any damage caused
by improper use or wrong settings.
Appropriate maintenance and cleaning
ensure the good working order and
the best performance of the appliance.
Regularly clean all stubborn surface dirt
to avoid grease build up. Remove and
clean or change the filter regularly.
Never flame cook food (flambé) under
the appliance. Using free flames might
cause fire.
Failure to observe the instructions for
cleaning the hood and replacing the
filters may result in a fire.
Exhaust air must not be vented through
a flue used for removal of fumes
produced by gas combustion appliances
or other combustible materials, but must
have a separate outlet. All national
regulations governing extraction of
fumes must be observed.
There shall be adequate ventilation if
the hood is being used at the same time
as other appliances using gas or other
combustible materials. The negative
pressure of the room must not exceed 4
Pa (4x 10-5 bars). For this reason ensure
that the room is well ventilated.
Do not leave frying pans unattended
when frying, as the frying oil may catch
fire.
Before touching the light bulbs, ensure
that they are cold.
Do not use or leave the hood without
the light bulb correctly fitted, as this may
cause electric shock.
The hood is not a work surface, therefore
do not place any objects on top of it or
overload it.
During all installation and maintenance
operations wear appropriate working
gloves.
This appliance is not suitable for outdoor
use.
5
CAUTION: Accessible parts may become
hot when used with cooking appliances.
Installation and connection
After unpacking the appliance, check for
any transport damage. In the event of
problems, contact the After-sales Service.
To prevent any damage, only remove
the appliance from its polystyrene foam
packaging at the time of installation.
Preparing for installation
WARNING: this is a heavy product; the
hood should only be lifted and
installed by two or more people.
The minimum distance between the hob and
the bottom part of the hood must not be less
than 65 cm for gas cookers and 50cm for
electric cookers.
Before installation also check the minimum
distances stated in the manual of the cooker.
If the installation instructions for the cooker
specify a greater distance between cooker
and hood, this distance must be observed.
Electrical connection
Make sure the power voltage specified on
the appliance rating plate is the same as
the mains voltage.
This information can be found on the inside
of the hood, under the grease filter.
Power cable replacement (type H05
VV-F) must be carried out by a qualified
electrician. Contact an authorized service
centre.
If the hood is fitted with an electric plug,
connect the plug to a socket complying with
current regulations, located in an accessible
place.
If no plug is fitted (direct wiring to the
mains), or if the socket is not located in an
accessible place, a qualified electrician
should install a standardised double pole
power switch that will enable complete
isolation from the mains in case of category
III overvoltage conditions, in accordance
with wiring rules.
ENGLISH
Use
The hood has been designed to be installed
and used either as a “Exhausted model”, or
as a “Recirculation model”.
in
Exhausted model (see symbol
installation booklet)
Cooking steam is sucked and channelled
outside the house through a discharge duct
(not supplied), fitted to the hood steam
outlet.
Ensure that the discharge duct is correctly
fitted to the air outlet, unit using an
appropriate connection system.
Important: If already installed, remove the
charcoal filter/s.
6
Recirculation model (see symbol
in
installation booklet)
The air is filtered through one or more the
charcoal filters, and then resent into room.
Important: Ensure appropriate air
circulation around the hood.
Important: If the hood is supplied without
charcoal filters, these must be ordered and
fitted before the hood can be used.
The hood should be installed away from
particularly dirty areas, windows, doors and
heat sources.
The hood is sold with all necessary
components for installation on most types of
walls or ceilings. However, ask a qualified
technician to check that the items supplied
are suitable for the type of wall/ceiling.
Keep this booklet for future consultation.
ENGLISH
7
Product description
1 Control Panel.
2 Grease filter.
3 Light.
3
4 Chimney.
4
1
3
2
Control panel
A Light ON/OFF switch.
B Motor OFF switch.
C Speed 1 selector switch.
D Speed 2 selector switch.
E Speed 3 selector switch.
A
B
C
D
E
ENGLISH
8
Cleaning and maintenance
WARNING:
- Never use steam cleaning equipment.
- Disconnect the appliance from the power
supply.
IMPORTANT: do not use corrosive or
abrasive detergents. If any of these products
accidentally comes into contact with the
appliance, clean immediately with a damp
cloth.
• Clean the surfaces with a damp cloth.
If it is very dirty, add a few drops of
washing up detergent to the water.
Finish off with a dry cloth.
IMPORTANT: do not use abrasive sponges
or metallic scrapers or scourers. Over time,
these can ruin the surface.
• Use detergents specifically designed for
cleaning the appliance and follow the
manufacturer instructions.
IMPORTANT: clean the filters at least
monthly to remove any oil or grease
residuals.
To clean the grease filter
The metal grease filter has an unlimited life
and must be washed once a month by hand
or dishwasher at low temperature and with
a short cycle. With cleaning in a dishwasher
the grease filter may become dull; this does
not effect its filtering capacity.
Grease filter maintenance:
1. Unplug the appliance or disconnect the
power supply.
2. Remove the grease filters: pull the spring
release handle, then remove the filter
downwards.
3. After cleaning the grease filter, remount
in reverse order ensuring the entire
extraction surface is covered.
Charcoal filter maintenance
1. Unplug the appliance or disconnect the
power supply.
2. Remove the grease filter
3. If the carbon filters are already mounted
(two filters covering the motor protection
grille) and need renewing, turn the
central handle anticlockwise until the
filters release.
4. If the filters are not already fitted locate
one on each side to cover both motor
protection grilles, then turn the central
handle of the filters clockwise.
5. Refit the grease filters.
Charcoal filter is neither lavable nor
regenerable.
Replace the charcoal filter every 4
months.
ENGLISH
Replacing the Halogen lamps
WARNING: - Only use 20W MAX - G4
halogen lamps.
1. Disconnect the hood from the electric
power supply.
2. Insert the blade of a small flat
screwdriver where indicated by the
three points, and with a gentlepressure
remove the light cover from its position.
3. Remove the faulty lamp and replace
with a new one.
4. Replace the cover (spring lock system).
IMPORTANT: make sure you don’t touch the
lamp with your hands.
9
ENGLISH
10
What to do if ...
Problem
Possible cause
Solution
The appliance does not work
There is no mains
electrical power
Check for the presence of
mains electrical power.
Turn off the appliance and
restart it to see if the faults
persists.
The appliance is not
connected to the
electrical supply
Check if the appliance is
connected to the electrical
supply.
Turn off the appliance and
restart it to see if the faults
persists.
The suction speed is too
low
Check the suction speed and
adjust as necessary.
The metal filters are
dirty
Check that the filters are clean
If not, clean the filters in the
dishwasher.
The air vents are
obstructed
Check the air vents for any
obstructions and remove as
necessary.
The light bulb is broken
Check the light bulb and
replace it if necessary.
The light bulb is not
correctly fitted
Check that the light bulb has
been correctly fitted.
If not, fit the light bulb in right
way.
The hood’s suction level is not
enough
The light does not work
Before contacting the After-sales service:
Switch the appliance on again to see if the
problem has disappeared. If not, switch it
off again and repeat the operation after an
hour.
If your appliance still does not work properly
after carrying out the checks listed in the
troubleshooting guide and switching the
appliance on again, contact the After-sales
service, clearly explaining the problem and
specifying:
• the type of fault;
• the model;
• the type and serial number of the
appliance (given on the rating plate);
• the Service number (the number after the
word SERVICE on the rating plate inside
the appliance).
ENGLISH
11
Technical data
Dimensions - Internal (mm)
Width
898
Height
min 890 - max 1230
Depth
820
Airflow max - Exhaust (m /h)
380
3
Noise max - Exhaust (dBa)
65
Airflow max - Recirculating (m /h)
280
Noise max - Recirculating (dBa)
67
Total Power (W)
250
3
Lamps
Installation minimun height dimensions (cm)
The technical information are situated in
the rating plate on the internal side of the
appliance and in the energy label.
2 x 20W
gas or combi cookers
65
electric cookers
50
ENGLISH
12
Environmental concerns
Disposal of packing
The packing material is 100% recyclable
and is marked with the recycle symbol
.
The various parts of the packing must
therefore be disposed of responsibly and
in full compliance with local authority
regulations governing waste disposal.
Scrapping the product
- This appliance is marked in compliance
with European Directive 2002/96/EC,
Waste Electrical and Electronic Equipment
(WEEE).
- By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.
on the product or on the
The symbol
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
collection centre for the recycling of
electrical and electronic equipment.
Scrapping of household appliances
• This appliance is manufactured with
recyclable or reusable materials. Dispose
of it in accordance with local waste
disposal regulations. Before scrapping, cut
off the power supply cable.
• For further information on the treatment,
recovery and recycling of household
electrical appliances, contact your
competent local authority, the collection
service for household waste or the store
where you purchased the appliance.
Declaration of conformity
n
• This appliance has been designed,
manufactured and marketed in
compliance with:
- safety objectives of the “Low Voltage”
Directive 2006/95/EC (which
replaces 73/23/EEC and subsequent
amendments);
- the protection requirements of Directive
“EMC” 2004/108/EC.
Electrical safety of the appliance can only
be guaranteed if it is correctly connected to
an approved earthing system.
ENGLISH
13
Electrical connection for Australia
Power Cord and Plug: Declared Article –
Mandatory Approval Applies:
Current Australian Approval Certificates will
need to be forwarded, showing compliance
with applicable Australian Standards, as
noted below. Plug to have insulated pins.
Plug and Cord to have approval marking,
as required by the relevant Approval
Certificate
· AS/NZS 3112: 2004 with Amendment 1, for
Plug
· AS 3191: 2008, for Cord, or;
· ‘HAR’ Certification, for Cord
IKEA GUARANTEE
Who will execute the service?
IKEA has appointed Whirlpool (Australia)
Pty Ltd as the authorised service network
partner.
• If you encounter any trouble with the
appliance and wish to register a call with
Whirlpool, please call:
Australia contact centre:
1300 363 344.
from the date of purchase from IKEA. This
guarantee applies to domestic use only. The
exceptions are specified under the headline
“What is not covered under this guarantee?”
Within the guarantee period, the costs to
remedy the fault e.g. repairs, parts, labour
and travel will be covered, provided that the
appliance is accessible for repair without
special expenditure. Replaced parts become
the property of IKEA.
The services will be in-home service for
domestic appliances, and must to be done
by official Whirlpool service network.
Goods presented for repair may be replaced
by refurbished goods of the same type rather
than being repaired.
Refurbished parts may be used to repair the
goods.
If the authorized service agent requests
you to deliver the product directly to them,
please ensure that the appliance is suitably
packaged to prevent any damage during
transportation.
What does this guarantee cover?
The guarantee covers applicable faults of the
appliance, as per the terms and conditions,
What will IKEA do to correct the problem?
IKEA appointed service provider will
examine the product and decide, at its
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of your
appliance at IKEA, unless the appliance is
named LAGAN in which case two (2) years of
guarantee apply. The original sales receipt,
is required as proof of purchase. If service
work is carried out under guarantee, this
will not extend the guarantee period for the
appliance.
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN .
ENGLISH
sole discretion, if it is covered under this
guarantee. If considered covered, IKEA
service provider or its authorized service
partner through its own service operations,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this guarantee?
• Normal wear and tear.
• Deliberate or negligent damage,
damage caused by failure to observe
operating and maintenance instructions,
incorrect installation or by connection
to the wrong voltage, damage caused
by chemical or electrochemical reaction,
rust, abrasion or scratching, corrosion or
water damage including but not limited
to damage caused by excessive lime in
the water supply, damage caused by
abnormal environmental conditions.
• Damage caused from the use of the
appliance in a manner other than the use
for which it was specifically designed.
• Damage caused by power outages,
electrical power surge or improper
supply voltage via connection to Supply
Authority mains or alternative supply
systems.
• Consumable parts including batteries
and lamps, removable wire, glass and
plastic trays and other accessories.
• Internal or external damage as a result
of excessive use of cleaning products or
cleaning agents.
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches and
possible color differences.
• Accidental damage or blockages caused
by foreign objects, eg. coins, underwires,
nails, buttons or jewellery, or substances
and cleaning or unblocking of filters,
drainage systems or soap drawers
• Damage caused by vermin, insects or
pets.
14
•
•
•
•
•
•
•
•
•
•
•
Note – internal or external cabinet
transport damage must be reported
within 7 days of purchase date.
Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
Cases where no fault could be found
during a technician’s visit.
Any consequential loss due to appliance
failure.
Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where non
original parts have been used.
Repairs to parts or systems caused by
unauthorized modifications made to
appliance.
Repairs caused by installation which is
faulty or not according to specification.
Problems caused by incorrect or
inadequate venting of the appliance.
The use of the appliance in a non
domestic environment i.e. professional
use.
Transportation damages. If a customer
transports the product to his home or
another address, IKEA is not liable for
any damage that may occur during
transport.
However, if IKEA delivers the product
to the customer’s delivery address, then
damage to the product that occurs during
this delivery will be covered by IKEA.
Cost for carrying out the initial installation
of the IKEA appliance. However, if an
IKEA appointed service provider or its
authorized service partner repairs or
replaces the appliance under the terms
of this guarantee, the appointed service
provider or its authorized service partner
will reinstall the repaired appliance or
install the replacement, if necessary.
ENGLISH
•
The benefits conferred by this express
warranty are in addition to all other
conditions, warranties, guarantees, rights
and remedies expressed or implied
by the Trade Practices Act and similar
State and Territory laws and all other
obligations and liabilities on the part of
the manufacturer or supplier and nothing
contained herein shall restrict or modify
such rights, remedies, obligations or
liabilities.
How country law applies?
Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law.
You are entitled to a replacement or refund
for a major failure and for compensation for
any other reasonably foreseeable loss or
damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to be of
acceptable quality and the failure does not
amount to a major failure.
Area of validity
The IKEA guarantee applies only to products
purchased and installed in AUSTRALIA .
The dedicated AFTER SALES for IKEA
appliances
Please don’t hesitate to contact IKEA
appointed After Sales Service Provider to:
• make a service request under this
guarantee;
• ask for clarifications on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture;
• ask for clarification on functions of IKEA
appliances.
• Call our authorized service network
partner Whirlpool on 1300 363 344
(Australia).
WARRANTY PROCEDURE
Please ensure that installation procedure
entailed in the user manual has been
adhered to and in case of any doubts please
15
refer to the trouble shooting guide that has
been supplied with the appliance.
• Please read the user guide to ensure
that you are aware of all the features &
benefits of the appliance.
How to reach if you need our service
The Whirlpool call centre team will assist you
on the phone with basic trouble shooting for
your appliance at the time of warranty call
registration.
1300 363 344
Please describe the problem that you are
facing with the appliance in detail along
with your product model number, serial
number, date of purchase at the time of call
registration.
Please also always refer to the IKEA article
number (8 digit code) and 12 digit service
number placed on the rating plate of your
appliance.
SAVE THE SALES RECEIPT!
Kindly keep all these details and
original invoice of purchase handy
during the service technician’s visit to
enable him to carry out the job.
Whirlpool reserves the right not to
register the call under warranty if you
fail to provide these details at the time
of call registration.
Do you need extra help?
For any additional questions not related
to After Sales of your appliances please
contact your nearest IKEA store call centre.
We recommend you read the appliance
documentation carefully before contacting us.
For details on service agents locations, please
visit – www.whirlpool.com.au/services.
5019 618 33298
© Inter IKEA Systems B.V. 2011
AA-559863-1

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
