bertazzoni professional series

bertazzoni professional series

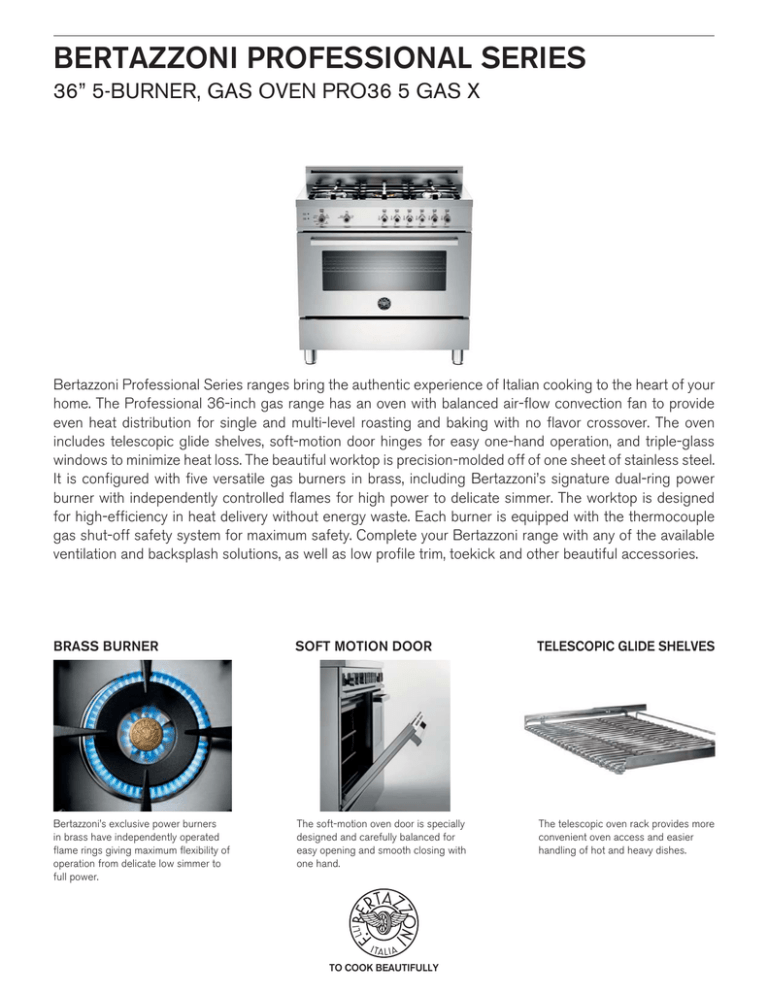

BERTAZZONI PROFESSIONAL SERIES
36” 5-BURNER, GAS OVEN PRO36 5 GAS X
Bertazzoni Professional Series ranges bring the authentic experience of Italian cooking to the heart of your
home. The Professional 36-inch gas range has an oven with balanced air-flow convection fan to provide
even heat distribution for single and multi-level roasting and baking with no flavor crossover. The oven
includes telescopic glide shelves, soft-motion door hinges for easy one-hand operation, and triple-glass
windows to minimize heat loss. The beautiful worktop is precision-molded off of one sheet of stainless steel.
It is configured with five versatile gas burners in brass, including Bertazzoni’s signature dual-ring power
burner with independently controlled flames for high power to delicate simmer. The worktop is designed
for high-efficiency in heat delivery without energy waste. Each burner is equipped with the thermocouple
gas shut-off safety system for maximum safety. Complete your Bertazzoni range with any of the available
ventilation and backsplash solutions, as well as low profile trim, toekick and other beautiful accessories.
BRASS BURNER
SOFT MOTION DOOR
TELESCOPIC GLIDE SHELVES
Bertazzoni’s exclusive power burners
in brass have independently operated
flame rings giving maximum flexibility of
operation from delicate low simmer to
full power.
The soft-motion oven door is specially
designed and carefully balanced for
easy opening and smooth closing with
one hand.
The telescopic oven rack provides more
convenient oven access and easier
handling of hot and heavy dishes.
TO COOK BEAUTIFULLY
BERTAZZONI PROFESSIONAL SERIES
36” 5-BURNER, GAS OVEN PRO36 5 GAS X
FEATURES
TECHNICAL SPECIFICATIONS
Gas burners
5
Voltage, frequency
120 V, 60Hz
Burner type
brass
Max Amp Usage, power rating 1.5 A - 150 W
Maintop
one piece stainless steel sheet
Certification
CSA
Burner controls
knobs
Warranty
2 years parts and labor
Knobs
metal finish
Grates
cast iron
Backguard
standard 4 inches
Gas safety device
thermocouple technology
One hand ignition
standard
Standard accessories
wok ring & simmer plate
Dual Power burner
750 - 18,000 Btu/h
Rapid burner
11,000 Btu/h
Semi-rapid burner
6500 Btu/h
Auxiliary burner
3400 Btu/h
Simmer rate
750 Btu/h
25" 3⁄16
35" 7⁄8
4"
1" 9⁄16
Main oven volume
gas convection with gas infrared
broiler
traditional bake, gas convection,
broil, defrost/dehydrate,
sabbath mode
4.4 ft3
Inner oven door
full - width triple glass
Oven equipment
1 telescopic glide shelf, 1 baking
tray, 2 heavy gauge wire shelves,
1 grill trivet for tray
Main oven
Main oven functions
35" 1⁄2 min
37" 1⁄4 max
32"
35" 7⁄8
2" 15⁄16
35" 7⁄8
2"
1" 11⁄16
⁄16
11
1"
Legs
⁄ "
78
Electricity
Gas
54"
24" 13⁄16
20"
3" 1⁄8
flap storage compartment
height adjustable stainless steel
wrapped legs
6" 9⁄16
3"
3"
3" 1⁄2 min
5" 1⁄4 max
25" 3⁄16
2" 3⁄8
4"
35" 1⁄2 min
37" 1⁄4 max
ACCESSORIES
Toe kick panel (TKS 36 X), flat island trim (IRF 36 X), side trim (ST 36 X)
Available LPG version PRO36 5 GAS X LP
1" 5⁄16
19" 15⁄16
4"
INSTALLATION INSTRUCTIONS
Bertazzoni recommends to operate the
appliance after it has been installed
in a cabinet. The kitchen cabinets
shall be made of materials capable
of withstanding temperatures at least
117°F (65°C) above room temperature
in order to avoid possible damage to the
cabinets during oven usage. For further
installation instructions refer to the
installation manual.
A LP conversion kit for all burners is included
MATCHING VENTILATION SOLUTIONS
Bertazzoni offers a variety of matching ventilation solutions for this
range. Please check our website under the ventilation tab for a
complete overview of all choices
Disclaimer: while every effort has been made to insure the accuracy of the information contained in
this brochure, Fratelli Bertazzoni reserves the right to change any part of the information at any time
without notice.
Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of
Bertazzoni Spa.
bertazzoni.com
