TG576x_QG(e).fm Page 1 Monday, February 20, 2006 3:39 PM

Model No.

KX-TG5761

KX-TG5766

KX-TG5767

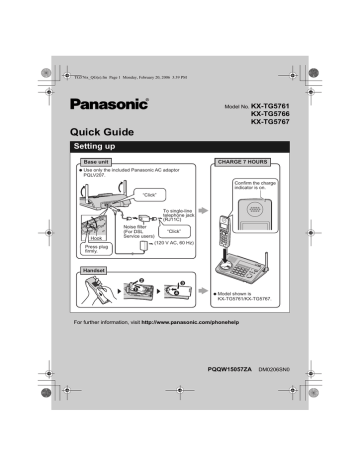

Quick Guide

Setting up

Base unit

Use only the included Panasonic AC adaptor

PQLV207.

Hook

Press plug firmly.

“Click”

To single-line telephone jack

(RJ11C)

Noise filter

(For DSL

Service users)

“Click”

(120 V AC, 60 Hz)

Handset

A

B

D

C

CHARGE 7 HOURS

Confirm the charge indicator is on.

Model shown is

KX-TG5761/KX-TG5767.

For further information, visit http://www.panasonic.com/phonehelp

PQQW15057ZA DM0206SN0

TG576x_QG(e).fm Page 2 Monday, February 20, 2006 3:39 PM

Operating tips for KX-TG5761/KX-TG5767

{ }

: indicates button names/soft key names.

Using the navigator key

Press {^}, {V}, {<}, or {>} to navigate through menus and to select items shown on the display.

{^}

{<}

Adjusting audio volume

Press {^} or {V} repeatedly while talking.

{V}

{>}

Handset soft keys

The handset features 3 soft keys. By pressing a soft key, you can select the feature shown directly above it on the display.

{

SELECT}, {SAVE}, {OK} and additional other functions are assigned to soft keys. Pay attention to soft keys to find functions you need during handset operation.

For further information, visit http://www.panasonic.com/phonehelp or refer to

Operating Instructions.

2

TG576x_QG(e).fm Page 3 Monday, February 20, 2006 3:39 PM

Operating tips for KX-TG5766

{ }

: indicates button names/soft key names.

Using the joystick

The handset joystick can be used to navigate through menus and to select items shown on the display, by pushing it up {^}, down {V}, left {<}, or right {>}.

Adjusting audio volume

Push the joystick up {^} or down {V} repeatedly while talking.

Handset soft keys

The handset features 2 soft keys and joystick (middle soft key). By pressing a soft key, you can select the feature shown directly above it on the display.

Middle soft key:

The joystick can be used to select the center soft key icon, by pushing down on the center of the joystick.

{

SELECT}, {SAVE}, {OK} and additional other functions are assigned to soft keys. Pay attention to soft keys to find functions you need during handset operation.

Middle soft key

For further information, visit http://www.panasonic.com/phonehelp or refer to

Operating Instructions.

3

TG576x_QG(e).fm Page 4 Monday, February 20, 2006 3:39 PM

Date and time (Handset)

1

{

MENU} (middle soft key) i {#}{1}{0}{1}

2 Enter the current month, day, and year by selecting 2 digits for each.

3 Enter the current hour and minute (12-hour clock format) by selecting 2 digits for each.

4 Press {AM/PM} to select “AM” or “PM”. i {SAVE} i {OFF}

Adding items to the phonebook (Handset)

1

{C}

(right soft key) i {ADD}

2 Enter the name (max. 16 characters). i {OK}

3 Enter the phone number (max. 32 digits). i {OK}

L

If you do not need to assign the ringer ID, light-up ID, and picture ID (KX-TG5766 only), go to step 12.

4 “Set Ringer ID” i {SELECT}

5 Select the desired item. i {SELECT}

6 Select the desired ringer ID. i {OK}

7 “Set Light-up ID” i {SELECT}

8 Select the desired light-up ID. i {OK}

L

KX-TG5761/KX-TG5767: go to step 12.

9 “Set Picture ID” i {SELECT}

10 Select the desired item. i {SELECT}

11 Select the desired picture ID. i {OK}

12

{

SAVE} i {OFF}

For further information, visit http://www.panasonic.com/phonehelp or refer to

Operating Instructions.

4

TG576x_QG(e).fm Page 5 Monday, February 20, 2006 3:39 PM

Basic operation (Handset)

Feature

Adjusting the receiver/ speaker volume

Viewing the caller list and calling back

Ringer volume

Answering call-waiting call (2nd call)

Operation

Press {^} or {V} repeatedly while talking.

{

CID} (left soft key) i Press {^} or {V} repeatedly to select the desired item. i {C}

1

{

MENU} (middle soft key) i {#}{1}{6}{0}

2 Select the desired volume. i {SAVE} i {OFF}

Press {CALL WAIT} when you hear call waiting tone.

Basic operation (Base unit)

Feature

Adjusting the speaker volume

Ringer volume

Operation

Press {^} or {V} repeatedly while talking.

Answering call-waiting call (2nd call)

Press {^} or {V} repeatedly to select the desired volume.

L

To turn the ringer off, press and hold {V} until the unit beeps.

Press {CALL WAIT} when you hear call waiting tone.

Voice Mail service

Voice Mail is an automatic answering service offered by your telephone service provider.

After you subscribe to this service, the telephone service provider’s Voice Mail system will answer calls for you when you are unavailable to answer the phone or when your line is busy. Messages are recorded by the telephone service provider, not your telephone.

Feature

Storing the Voice Mail

(VM) access number

Operation

1

{

MENU} (middle soft key) i {#}{3}{3}{1}

2 Enter your access number (max. 32 digits). i {SAVE} i {OFF}

Continue page 6.

For further information, visit http://www.panasonic.com/phonehelp or refer to

Operating Instructions.

5

TG576x_QG(e).fm Page 6 Monday, February 20, 2006 3:39 PM

Continued

Voice Mail service

Feature

Listening to Voice Mail messages with the handset

Listening to Voice Mail messages with the base unit

Operation

1 Press {C}, then press {VM} within 15 seconds.

2 Follow the pre-recorded instructions.

3 Press {OFF} when finished.

1

{

VM}

2 Follow the pre-recorded instructions.

3 Press {SP-PHONE} when finished.

Frequently asked questions

Question

How can I increase handset volume level?

Why is the conversation noisy or cutting off?

Cause/solution

L

Press {^} repeatedly while talking.

Can I add another accessory handset to my base unit?

Can I keep battery charging all the time?

How can I answer a callwaiting call (2nd call)?

L

Try to relocate the base unit so that distance from location to use the handset will be minimized.

L

Send your unit to service, if your unit has same problem when the handset is next to the base unit.

L

Yes, you can add up to 7 additional accessory handsets and devices.

L

To purchase accessory handsets (KX-TGA570/KX-

TGA571/KX-TGA572) and devices (KX-TGA573/KX-

TGA575), please visit http://www.panasonic.com or call 1-800-332-5368. TTY users (hearing or speech impaired users) can call 1-866-605-1277.

L

You can leave handset on the base unit or charger anytime. There is no damage to the battery.

L

Press {CALL WAIT} when you hear call-waiting tone.

For further troubleshooting information, visit http://www.panasonic.com/phonehelp or refer to Operating Instructions.

6

TG576x_QG(e).fm Page 7 Monday, February 20, 2006 3:39 PM

Quick troubleshooting

1 Handset shows:

“No link to base. Move closer to base, try again.”

Place the handset on the base unit, then check if the charge indicator is on.

L Model shown is KX-TG5761/KX-TG5767.

The charge indicator is OFF.

The charge indicator is ON.

Unplug and then plug AC adaptor properly to both the base unit and AC outlet.

The charge indicator is ON, now.

The charge indicator is still OFF.

Lift the handset, then try again.

If handset still shows the same message, try re-registration as explained later in this guide.

Re-registration failed.

Unplug the AC adaptor of the base unit and remove the battery from the handset, then plug in the AC adaptor and insert the battery into the handset again. Try reregistration as explained later in this guide.

Re-registration failed.

Your telephone may need service. For further troubleshooting, please visit http://www.panasonic.com/phonehelp

7

TG576x_QG(e).fm Page 8 Monday, February 20, 2006 3:39 PM

Quick troubleshooting

2 No dial tone is heard from handset.

Lift up the handset from the base unit.

Press {C} (TALK) at the handset, then check if the display shows “

Talk”.

KX-TGA570

(included with

KX-TG5761/

KX-TG5767)

{C}

KX-TGA571

(included with

KX-TG5766)

No link to base.

Move closer to

1 base, try again.

No link to base.

Move closer to

base, try again.” is displayed.

Example: KX-TGA570

(included with KX-TG5761/

KX-TG5767)

IN USE

Talk

00-00-00

Talk” is displayed.

Example: KX-TGA570

(included with KX-TG5761/

KX-TG5767)

Press {s} (SP-PHONE),

KX-TGA570

(included with then check if the dial KX-TG5761/ tone is heard from the KX-TG5767) speaker on the back.

KX-TGA571

(included with

KX-TG5766)

{s}

No dial tone Dial tone is heard.

Try remedy for 1 on previous page.

Check the telephone cord is properly connected to both the base unit and telephone jack on the wall.

Still no dial tone

Your telephone may need service when only back speaker provides a dial tone.

Your telephone may need service.

Please visit http://www.panasonic.com/phonehelp for further troubleshooting.

8

TG576x_QG(e).fm Page 9 Monday, February 20, 2006 3:39 PM

Registering a handset to base unit

The included handset and base unit are preregistered. If for some reason the handset is not registered to the base unit, register the handset.

Handset

Press {MENU} (middle soft key), then press {#}{1}{3}{0}.

KX-TGA570 (included with KX-TG5761/

KX-TG5767)

KX-TGA571

(included with

KX-TG5766)

Base unit

Press and hold {INTERCOM} until the IN USE indicator flashes.

L

Complete next step within 90 seconds.

Handset

Press {OK} (right soft key).

KX-TGA570 (included with KX-TG5761/

KX-TG5767)

Press INTERCOM

Then press OK sec

L

KX-TGA571

(included with

KX-TG5766)

Press INTERCOM

Then press OK sec

L

For further registration information, visit http://www.panasonic.com/RegisterYourHandset

9

TG576x_QG(e).fm Page 10 Monday, February 20, 2006 3:39 PM

IMPORTANT!

If your product is not working properly. . .

1 Read this Quick Guide or Operating

Instructions

L

If you lost Operating Instructions, you can download at http://www.panasonic.com/phonehelp

2 Visit our website: http://www.panasonic.com/phonehelp

L

FAQs and troubleshooting hints are available.

3 Contact us via the web at: http://www.panasonic.com/contactinfo

4 Call us at:

1-800-211-PANA (1-800-211-7262)

L

Monday - Friday 9:00am - 9:00pm (EST),

Saturday/Sunday 10:00am - 7:00pm (EST)

To order a replacement battery, please call: 1-800-332-5368

Or visit: http://www.panasonic.com/batterystore
