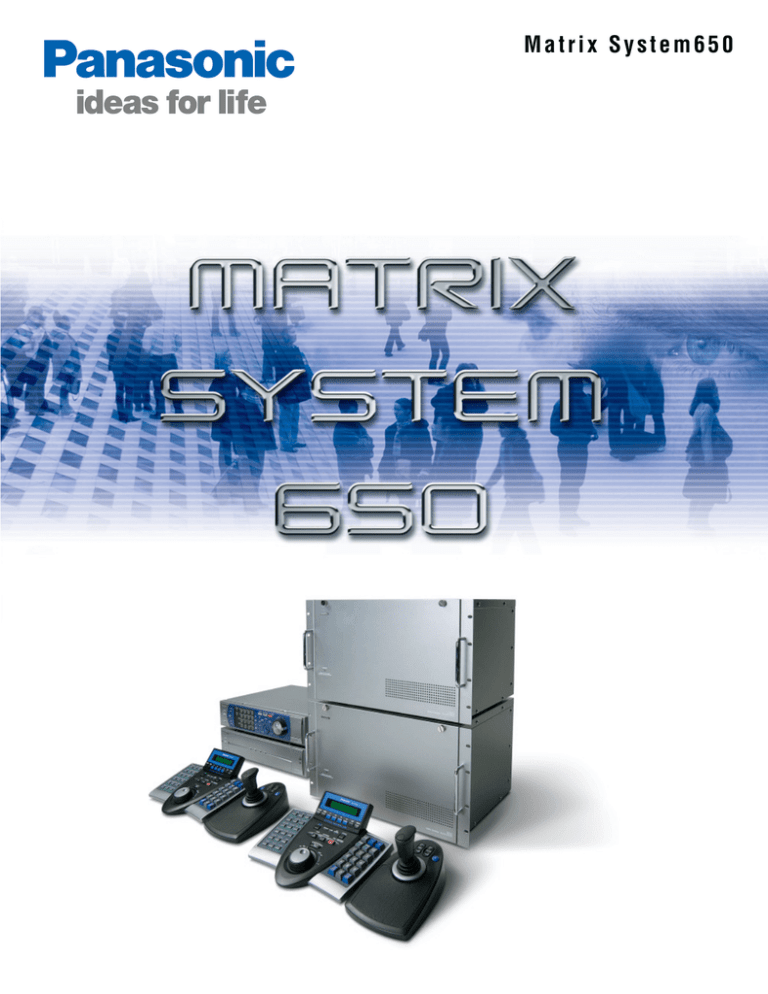

M a t r i x S y s t e m 6 5 0

Matrix System 650 uses simple components to give you fully integrated control of up to 256 cameras and 32 monitors.

Matrix System 650 from Panasonic is the new, easier way to configure mid-sized to large surveillance systems. This remarkable new system makes it simple to fully integrate up to 256 cameras, 32 monitors, and 60 registered users.* Adding WJ-HD300A Series

Digital Disk Recorders delivers the high image quality and high storage capacity that state-of-the-art surveillance requires.

Matrix System 650’s simple, flexible architecture makes it ideal for a wide range of applications including shopping malls, multipurpose complexes, office buildings and banks.

* 1 of the 60 users is reserved for recorder control.

Major Features and Functions

C a m e r a s •

Supports up to 256 cameras (using 8 Video Input Boards).

•

All 256 channels are coaxial, multiplex cables, reducing the number of cables required and simplifying installation.

•

Supports up to 256 RS-485, remote-controlled cameras.

•

Pan, tilt and other lens motions can be controlled either by multiplex data over coaxial cable or RS-485 remote-control signals.

•

Cables can be up to 900 m (3,000 feet) long (RG59/U coaxial cable, Belden 9259 or equivalent).

S y s t e m •

The maximum size (256 camera x 32 monitor) system requires four WJ-SX650/SX650U units.

•

Set up is simple with the Video Input and Video Output Boards, each composed of a front-access Main Board and rear-access Rear Boards.

•

Front access for Main Board and Power Supply maintenance.

•

Rich array of sequence, alarm, and scheduling features meets every surveillance need.

•

Supports up to 1,024 alarm inputs (Terminal/Camera/Recorder/Serial/Video Loss) and up to 64 alarm outputs (and also 1,024 Serial Alarm Out).

•

Storage for up to 10,000 alarms, with alarm histories downloadable to PC to facilitate management.

•

The Set-up Menu and WJ-SX650 Series Administrator Console make set up easy.

•

Fine tune management of up to 60 users* with individual level and priority settings.

M o n i t o r s •

Output support for up to 32 monitors (using 2 Video Output Boards).

•

Character displays show date, time, camera number, camera title and event information.

•

Set-up menus are available in seven languages: English, French, Spanish, German, Italian, Russian, and Japanese.

•

Alarm history display shows up to most recent 1,000 alarms.

R e c o r d e r s

(WJ-HD300A Series)

•

Supports connection of up to 16 WJ-HD300A Series recorders (using 2 Video Output Boards).

•

Use of WJ-HD300A Series network features allows remote surveillance from a PC.

Controllers •

Supports simultaneous use of up to 16 WV-CU650 System Controllers + personal computer (PC).

•

Supports use of PS

•

Data (With DATA1 port set to PS

•

Data).

Sequence

Here is where you set Camera Title and Camera Position.

Camera

WJ-SX650 Series Administrator Console

The user-friendly GUI interface is designed to maximize usability and is available in any of 8 languages: English, French, Spanish, German, Italian, Russian,

Chinese, Japanese.

Main Menu

Tips Feature Supports Set Up

To see an explanation and set-up tips, simply place the cursor over any of the buttons.

Here is where you set Timer Events and Camera Events.

Schedule

Here is where you set Tour Sequence and Group Sequence/

Group presets.

The CSV format Export/Import feature allows use of spreadsheet software to organize setup data.

The calendar supports schedule construction and review in yearly, monthly, or weekly units.

MAJOR FUNCTIONS

A Rich Array of Features for More Reliable and Efficient Surveillance

Three Sequencing Features for More Efficient Monitoring

These features allow you to determine the sequence in which you seem images from multiple cameras. System Controller buttons make monitoring more efficient by enabling instant selection of the pattern of your choice.

Tour Sequence

Automatically switches camera images in preset sequences on the monitor you select. You can preset up to 32 patterns with as many as

64 steps per pattern.

The image shifts automatically from one camera to another, as programmed.

step 1 step 2 step 3 step 64

Tour 1

C1 C2 C3 C16

Group Sequence

Automatically switches camera images in preset sequences on up to 16 pre-selected monitors at once. You can preset up to 8 patterns with as many as 32 steps per pattern.

Group Sequence 8 step 32

Group Sequence 2

Group Sequence 1

M1 M32

Tour 2

C5 C6 C7 C4

C1 C20 C5 C15

step 1

Tour 3

C9 C10 C11 C8

The images can be seen on any monitor.

Tour 32

C13 C14 C15 C12

Monitor 1 Monitor 2 Monitor 3 Monitor 16

Group Preset

Allows instant spot display of selected camera images on up to 16 preselected monitors at once. You can preset up to 24 patterns.

Group Preset 24

Group Preset 2

Group Preset 1

C1 C20 C5 C15

Set switching interval and other parameters for each step

Setting Content

Camera Number* 001 - 999

Preset*

AUX. 1/2

Dwell Time**

001 - 256

Note

Your choice for up to 256 cameras

Preset positions for combination cameras

ON / OFF To operate buzzers or other external devices

0 - 30 sec.

Image switching interval

* Can also be set using pre-registered camera position numbers.

** Not available for Group Preset since switching is occurs once.

Monitor 1 Monitor 2 Monitor 3 Monitor 16

Up to 1,024 Alarm Events Ensure That You Capture Vital Scenes

Preset camera positions, sequences and recording can be automatically activated by all types of alarm signals (Terminal, Camera,

Recorder, Serial, Video Loss). Register up to 1,024 Alarm Events.

For example: Terminal Alarm Event No.256

No.

256

Display Mode

SPOT

Camera Number

100

Preset

Camera 100

Preset Position 1

(Zoom in to Entrance 1)

Infrared

Sensor

Entrance 1

Terminal

Alarm 256

Sensor

System

Monitor 5

Sensor

Monitors

WJ-SX650

ZOOM

Recording

Source

Alarm Output

Alarm Output 50

Records the image of Camera 10

(Recording follows the command alarm setting and event recording setting of recorder.)

WJ-HD300A

Series

Alarm

Notification

Buzzer/Light

Alarm Schedule for up to 64 Alarms

Used to schedule pre-registered alarm events (ON/OFF, daily, weekly, monthly).

Four Display Modes

Alarm events can be displayed in Spot, Tour Sequence,

Group Sequence or Group preset modes.

Three Alarm Modes

(Spot Display Only)

Choose any of three ways to display multiple alarm event images in Spot display mode.

Sequence mode - - - - - - Alarm event images displayed on monitor in the sequence in which they occurred.

Latest mode - - - - - - - - - - - - - - - - Show latest alarm event image (Hold Last).

Earliest mode - - - - - - - - - - - - Show earliest alarm event image (Hold First).

(When alarms occur with Tour Sequence or Group Sequence/Group Preset set, earlier alarms are reset on that monitor.)

Log Up to 10,000 Alarms

Matrix System 650 can store up to 10,000 alarm events.

Alarm histories can downloaded to a PC for analysis and management. The latest 1,000 alarm events can be viewed from a surveillance monitor.

Schedules for Simple, Certain Operation

Monitors and cameras can be automatically activated at preset dates and times using Daily, Weekly, and Monthly modes.

Timer Events

Spot, Tour Sequence and Group Sequence/Group Preset features can be automatically activated on designated monitors, following preset schedules. Up to 128 timer events can be registered and assigned priorities.

PROGRAM ACTIVE PERIOD DESIGNATION

1 JUL.19.2005 ~ JUL.23.2005

Always Active

JAN.1.2005 ~ DEC.1.2005

•

128

TIME

9:00 ~ 16:00

SCHEDULE MODE

DAILY

10:00 ~ 17:00 WEEKLY (SUN)

22:00 ~ 01:00 MONTHLY (1)

DEC.1.2005 ~ DEC.23.2005

12:00 ~ 17:00 MONTHLY (1)

ACTION

TOUR SEQ

GROUP SEQ

CAMERA CLEANING

(ALL CAMERA)

Camera Events

Designated cameras can be set for automatic tracking, B/W switching and scene switching [PATROL(S)], and cleaning, following preset schedules. Up to 128 camera events can be registered.

* For WV-CS954 cameras only.

Timer Event Camera Event

MONITOR

1 ~ 32

—

PRIORITY

1 ~ 99

—

The Camera You Need to Take Full Advantage of Camera Events

GROUP PRESET 1 ~ 32 1 ~ 99

Super Dynamic III

Color Dome Camera

WV-CS954

All 256 channels with multiplex data over coaxial cables

To simplify installation and for smoother system expansion, video signals, control data, synchronous signals (VD2) and alarm signals are all transmitted over the same coaxial cable.

Cables can be up to 900 m (3,000 feet) long (RG59/U coaxial cable, Belden 9259 or equivalent).

VD2 Compatible Panasonic Camera List

B/W Camera

Color Camera

WV-BP330 Series

WV-CW484 Series, WV-CW244 Series,

WV-CF324, WV-CF284/294 Series,

WV-CP480 Series, WV-CW384, WV-CL930 Series,

WV-CP254H, WV-CP280 Series

Integrated Dome Camera

WV-CS954, WV-CW964/974, WV-CS574

Since 1988, most of Panasonic cameras have been designed and manufactured to accept VD2 signal for system integration.

Timing Pulse (VD2) for Vertical Genlock

Camera to Matrix Switcher

Data 8-bit x 4

Matrix Switcher to Camera

Alarm

Video

Vertical Blanking

Preventing unauthorized access

Up to 60 users* can be registered with individual user IDs and passwords. Security can be fine-tuned with individual level, priority and camera/recorder display and operation restrictions, to guard against unauthorized access and unauthorized changes in settings.

* 1 of the 60 users is reserved for recorder control.

Operator Registration

OPE

6 Priority

12123

Level 1

21233

Level 2

22342

Password

System Setup

OSD Control

Alarm History Display

System Status Display

OSD Control

Alarm History Display

OPE

Alarm Suspension

Alarms All Reset

Alarm ACK, Alarm

Individual/Monitor Reset

31256 34682

Level 3

Alarms All Reset

Alarm ACK, Alarm

Individual/Monitor Reset

Alarm ACK, Alarm

Individual/Monitor Reset

OPE

34397

Level 4

31625

Start Tour Sequence

Start Group Sequence

Monitor Lock Monitor Lock

Camera Setup

Preset Position Registration

All Cameras Control

Camera Control

Camera Selection

Preset Position Registration

All Cameras Control

Camera Control

Camera Selection

Camera Control

Camera Selection

Recorder Setup

Recorder Control

Start Tour Sequence

Start Group Sequence

Start Tour Sequence

Start Group Sequence

Start Tour Sequence

Start Group Sequence

Camera Selection

Recorder Control

OPERATOR’S LEVEL TABLE

OPE

39262

Level 5

33681

Camera Selection

High image quality and high capacity storage

When connected to the Panasonic WJ-HD300A Series Digital

Disk Recorder, Matrix System 650 can be used to construct surveillance systems that offer both high image quality and high capacity image storage. WJ-HD300A Series Digital Disk

Recorders can be operated seamlessly from Matrix System

650’s WV-CU650 System Controller, to support multi-screen live monitoring and high-speed Filtered Search. These digital disk recorders’ networking features also allow remote control from a PC.

Digital Disk Recorders

WJ-HD300A Series

Rich array of display options

Use of a newly developed LSI allows you to choose from any of seven languages (English, French, Spanish, German,

Italian, Russian, or Japanese) when setting up a system.

Example of Character Displays

When monitoring date and time, camera title, monitor status, and event information can all be displayed. Camera titles can include roman alphabet, special alphabet

(German or Russian), numbers, symbols, and

Chinese and Japanese characters (approx. 1,000).

Custom Character

You can create up to 32 your custom characters.

PRODUCT CONFIGURATION

Matrix Switcher: WJ-SX650 / Card Cage: WJ-SX650U

Front View

WJ-SX650/WJ-SX650U

(Front Panel attached)

OPERATE

OPERATE LED WILL BLINK

IF COOLING FAN MALFUNCTIONS

Matrix Switcher WJ-SX

650

Rear View

WJ-SX650

EXTENSION 3 IN EXTENSION 2 IN

4 3 2

VIDEO OUT 4

32 31 30

VIDEO OUT 3

29 28 27 26

VIDEO OUT 2

25 24 23

VIDEO OUT 1

22 21

MODE RS485 (CAMERA) MODE MODE RS485 (CAMERA) MODE IN C-3

20 19

ALARM IN

18 17

IN X-2

16 15 14 13 12 11 10 9

CAMERA IN

MODE

RS485 (CAMERA)

6 5 4

MODE MODE

RS485 (CAMERA)

MODE

3 2 1

IN X-1

IN B-3

SIGNAL GND

RS485(CAMERA) SET UP

4-Line

MODE

4-Line

MODE

Video Output Board 2

Video Output Board 1

DATA 4

HDR4/TMNL8

HDR2/TMNL4

DATA 3

HDR3/TMNL7

HDR1/TMNL3

DATA 2

TMNL6

TMNL2

DATA 1

TMNL5

TMNL1/PS DATA

TERM.ON

TERM.OFF

MODE MODE

MODE DATA

MODE

MODE DATA

OFF ON

MODE OUT EXTENSION 1 IN TERM.

OUT X-3

16 15 14 13 12 11 7 6 5 4 3 10 9

MONITOR OUT

8 2 1

OUT X-2

VS IN

ALARM OUT 2 ALARM OUT 1

VS OUT

(THRU)

VS OUT SERIAL

Video Output Board 1 Only

OUT X-1

AC IN

SIGNAL GND

Operation Indicator

Front Panel Fixing Screws

Power Switch

Expansion Slot

WJ-SX650/WJ-SX650U

(Front Panel detached)

420(16-9/16")

PULL

POWER

OFF

479(18-7/8")

WJ-SX650U

EXTENSION 3 IN

EXTENSION 3 OUT

EXTENSION 2 IN

MODE RS485 (CAMERA)

MODE RS485 (CAMERA) MODE MODE RS485 (CAMERA)

MODE MODE RS485 (CAMERA)

MODE

IN C-3

IN B-3

SIGNAL GND

RS485(CAMERA) SET UP

4-Line

MODE

4-Line

MODE

EXTENSION 2 OUT MODE RS485 (CAMERA) MODE MODE RS485 (CAMERA)

OFF ON

MODE OUT EXTENSION 1 IN TERM.

IN A-3

AC IN

SIGNAL GND

Video Input Board

Video Output Board

Video Input Board Rear Panels

Expansion Slot

RESET No.

MODE

TEST

RESET MODE

Video Output Board Rear Panels

AC Inlet Socket

Signal Ground Terminal

SPECIFICATIONS

Matrix Switcher: WJ-SX650

Power Source

120 V AC, 60 Hz

Power Consumption

60 W

Ambient Operating Temperature

–10 °C to +50 °C (14 °F to 122 °F)

Ambient Operating Humidity

Less than 90 %

Video Input Board

Video Output Board

Expansion Slot

RS-485 (Camera) Port

x 1 x 1 x 1

6-conductor modular jack x 4

Functions

(2-wire or 4-wire communication, With termination switches (MODE 1 to 4))

Monitor control (Camera selection, tour sequence, group sequence, group preset,

OSD display) , Camera/Receiver control

(Coaxial/RS-485 communication), Recorder control, Alarm control (Alarm event, Alarm

ACK, Alarm reset, Alarm suspension, Alarm

History Display), Timer event, Camera event

Dimensions (W x H x D)

420 mm x 265 mm x 372 mm

Weight

[16-9/16" x 10-7/16" x 14-3/5"]

(excluding rubber feet and projections)

19.0 kg (42 lbs.)

Card Cage: WJ-SX650U

Expansion Slot

x 3

RS-485 (Camera) Port

6-conductor modular jack x 12

(2-wire or 4-wire communication, With

Extension Port

termination switches (MODE 1 to 4))

6-conductor modular jack x 2 (With a

(EXTENSION 1 IN, OUT) termination switch (TERM: ON, OFF))

Extension Port

(EXTENSION IN 2, 3)

Extension Port

37-pin D-sub connector x 2

(EXTENSION OUT 2, 3)

Dimensions (W x H x D)

420 mm x 265 mm x 372 mm

Weight

[16-9/16" x 10-7/16" x 14-3/5"]

(excluding rubber feet and projections)

18.0 kg (40 lbs.)

Video Input Board: WJ-PB65C32

Front View

Main Board

Rear View

IN X-2 Board

IN X-1 Board

RESET No.

MODE

VIDEO OUT 4 VIDEO OUT 3 VIDEO OUT 2 VIDEO OUT 1

ALARM IN

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

IN X-2

16 15 14 13 12 11 10 9

CAMERA IN

8 7 6 5 4 3 2 1

IN X-1

SPECIFICATIONS

Camera Input

1 V [P-P]/75

Ω (BNC x 32), composite video signal

(CAMERA IN 1 to 32) 0.5 V [P-P]/75

Ω data signal and

Video Output

2.5 V [P-P]/75

Ω vertical timing pulse multiplexed

1 V [P-P]/75

Ω (25-pin D-sub connector x 4),

(VIDEO OUT 1 to 4) active loop-thru output

Alarm Input

(ALARM IN)

Dimensions (W x H x D)

N.O. (Normally Open contact) or

N.C. (Normally Close contact) selectable x 32 (37-pin D-sub connector)

Main Board

IN X-2 Board

IN X-1 Board

346 mm x 42 mm x 225 mm [13-3/5" x 1-3/5" x 8-4/5"]

355 mm x 21 mm x 115 mm [14" x 4/5" x 4-1/2"]

355 mm x 38 mm x 115 mm [14" x 1-1/2" x 4-1/2"]

Board Number Switch

Input Mode Selection Switches

Reset Switch

Video Output Ports 1 to 4

Alarm Input Port

Camera Input Connectors 1 to 32

Video Output Board: WJ-PB65M16

Front View

Main Board

Rear View

OUT X-3 Board

Video Output Board 2

Video Output Board 1

DATA 4

HDR4/TMNL8

HDR2/TMNL4

DATA 3

HDR3/TMNL7

HDR1/TMNL3

DATA 2

TMNL6

TMNL2

DATA 1

TMNL5

TMNL1/PS DATA

TERM.ON

TERM.OFF

MODE MODE

4 3

MODE DATA MODE

MODE DATA

OFF ON

MODE OUT EXTENSION 1 IN TERM.

OUT X-3

OUT X-2 Board

OUT X-1 Board

16 15 14 13 12 11 10 9

MONITOR OUT

8 7 6 5 4 3 2 1

OUT X-2

ALARM OUT 2

ALARM OUT 1

TEST

RESET MODE

VS IN

VS OUT

(THRU)

VS OUT SERIAL

Video Output Board 1 Only

OUT X-1

Output Mode Selection Switches

Reset Switch

Test Port

Extension Ports 1

Termination Selector

Data Ports 3, 4

Data Ports 1, 2

Rear Termination

MODE Switches 1 to 4

Monitor Output Connectors

Alarm Output Ports 1,2

VS Input Connector

VS Output Loop-thru Connector

VS Output Connector

Serial Port

SPECIFICATIONS

Monitor Output

(MONITOR OUT 1 to 16)

Data Port (DATA 1 to 4)

DATA 1

DATA 2

DATA 3, 4

1 V [P-P]/75

Ω (BNC x 16)

Terminal Mode (TMNL)/PS

•

Data (PS

•

DATA) selectable

Terminal Mode (TMNL)

Terminal Mode (TMNL)/Digital disk recorder (HDR) selectable

6-conductor modular jack x 4

(With termination switches (MODE 1 to 4))

Alarm Output (ALARM OUT 1, 2)

Alarm Output

Alarm Recover Input

Time Adjust Input

Time Adjust Output

Extension Port

(EXTENSION 1 IN, OUT)

VS Input

VS Output

Open collector output x 32, Max. 24 V DC, 100 mA

Non-voltage make contact input x 16

Non-voltage make contact input x 1

Open collector output x 32, Max. 24 V DC, 100 mA

6-conductor modular jack x 2

(With a termination switch (TERM: ON, OFF))

1 V [P-P]/75

Ω (VS IN)

(VS OUT (THRU)): VS loop-thru output,

(VS OUT): 1 V [P-P]/75

Ω (VS)

9-pin D-sub connector x 2

Serial Port

Dimensions (W x H x D)

Main Board

OUT X-3 Board

OUT X-2 Board

OUT X-1 Board

346 mm x 42 mm x 225 mm [13-3/5" x 1-3/5" x 8-4/5"]

355 mm x 21 mm x 115 mm [14" x 4/5" x 4-1/2"]

355 mm x 38 mm x 115 mm [14" x 1-1/2" x 4-1/2"]

SYSTEM EXAMPLES

Basic System

HD316A (2)

HD316A (1)

Input Board (1)

4 3 2 1

25 ~ 30 17 ~ 24 9 ~ 16 1 ~ 8

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

HD316A (1) ~ (2) HDR

Output Board (1)

16 15 14 13 12 11 10 9 8

4 3

7 6 5

2 1

4 3 2 1

Cam (30)

Camera (17) ~ (30) Camera (1) ~ (16)

TMNL

PS • DATA

SYSTEM

Camera ---- 30

Monitor ----- 16

HD316A ----- 2

Controller --- 6

PC ------------ 1

Operator ---- 4

Monitor (1) ~ (16)

Medium-sized System

HD316A (8)

Max.4

HD316A (7)

Input Board (4)

16 15 14 13

113 ~ 120 105 ~ 112 97 ~ 104

128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113

112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97

Cam (113)

Camera (113) ~ (120) Camera (97) ~ (112)

Camera (33) ~ (48)

Camera (49) ~ (64)

HD316A (4)

HD316A (3)

Input Board (2)

8 7 6 5

57 ~ 64 49 ~ 56 41 ~ 48 33 ~ 40

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

Cam (49)

Cam (32)

Camera (17) ~ (32) Camera (1) ~ (16)

HD316A (2)

HD316A (1)

Input Board (1)

4 3 2 1

25 ~ 30 17 ~ 24 9 ~ 16 1 ~ 8

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

HD316A (5) ~ (8) HDR

HD316A (1) ~ (4) HDR

Output Board (1)

16 15 14 13 12 11 10 9 8

4 3

7 6 5

2 1

4 3 2 1

TMNL

•

DATA

SYSTEM

Camera -- 120

Monitor ----- 16

HD316A ----- 8

Controller --- 5

PC ------------ 1

Operator ---- 3

Monitor (1) ~ (16)

Max.4

Maximum-sized 256-camera System

(Image playback is only possible on the monitors connected WJ-HD300A Series Digital Disk Recorders)

HD316A (16)

Input Board (8)

32 31

30 29

Cam (256)

Camera (241) ~ (256)

HD316A (15)

249 ~ 256 241 ~ 248 233 ~ 240 225 ~ 232

256 255 254 253 252 251 250 249 248 247 246 245 244 243 242 241

240 239 238 237 236 235 234 233 232 231 230 229 228 227 226 225

Camera (225) ~ (240)

HD316A (4)

Cam (49)

Camera (49) ~ (64) Camera (33) ~ (48)

HD316A (3)

HD316A (2)

HD316A (1)

Monitor (17) ~ (32)

Input Board (2)

Input Board (1)

8 7 6 5

57 ~ 64 49 ~ 56 41 ~ 48 33 ~ 40

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

4 3 2 1

25 ~ 30 17 ~ 24 9 ~ 16 1 ~ 8

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

HD316A (13) ~ (16) HDR

Output Board (2)

HD316A (9) ~ (12) HDR

8 7 6 5

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

Cam (32)

Camera (17) ~ (32) Camera (1) ~ (16)

TMNL

Max.4

TMNL

SYSTEM

Camera -- 256

Monitor ----- 32

HD316A --- 16

Controller -- 16

PC ------------ 1

Operator --- 17

Monitor (1) ~ (16)

HD316A (5) ~ (8) HDR

Output Board (1)

HD316A (1) ~ (4) HDR

WJ-HD300A Series Web Control System

SYSTEM

Camera ---- 30

Monitor ----- 16

HD316A ----- 2

(Web Control)

Controller --- 6

PC ------------ 1

Operator ---- 4

Internet

HD316A (2)

HD316A (1)

Monitor (1) ~ (16)

16 15 14 13 12 11 10 9 8

4 3

7 6 5

2 1

4 3 2 1

Input Board (1)

4 3 2 1

25 ~ 30 17 ~ 24 9 ~ 16 1 ~ 8

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

HDR

Output Board (1)

control of HD316A from CU650 control of Camera from HD316A-Web

4 3 2 1

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

TMNL

Cam (30)

Camera (17) ~ (30) Camera (1) ~ (16)

TMNL

PS • DATA

Max.4

VIDEO INPUT/OUTPUT BOARD COMBINATION

WJ-SX650U

WJ-SX650

Type 1

Input Board (1)

Not used

Output Board (1)

32 In x 16 Out

Type 2

Input Board (1)

Output Board (2)

Output Board (1)

32 In x 32 Out

Type 3

Input Board (2)

Input Board (1)

Output Board (1)

64 In x 16 Out

Type 4

Not used

Input Board (2)

Input Board (1)

Output Board (2)

Output Board (1)

64 In x 32 Out

Type 5

Not used

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (1)

96 In x 16 Out

Type 6

Not used

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (2)

Output Board (1)

96 In x 32 Out

Type 9

Input Board (5)

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (1)

160 In x 16 Out

Type 10

Not used

Input Board (5)

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (2)

Output Board (1)

160 In x 32 Out

Type 11

Not used

Input Board (6)

Input Board (5)

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (1)

192 In x 16 Out

MATRIX SYSTEM650 PRODUCT COMPONENTS

Matrix Switcher

WJ-SX650

Card Cage

WJ-SX650U

Type 12

Not used

Input Board (6)

Input Board (5)

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (2)

Output Board (1)

192 In x 32 Out

Type 13

Not used

Input Board (7)

Input Board (6)

Input Board (5)

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (1)

224 In x 16 Out

Video Input Board

WJ-PB65C32

Type 14

Input Board (7)

Input Board (6)

Input Board (5)

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (2)

Output Board (1)

224 In x 32 Out

Type 7

Not used

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (1)

128 In x 16 Out

Type 16

Type 8

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (2)

Output Board (1)

128 In x 32 Out

Type 15

Input Board (8)

Input Board (7)

Input Board (6)

Input Board (5)

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (1)

256 In x 16 Out

Not used

Input Board (8)

Input Board (7)

Input Board (6)

Input Board (5)

Input Board (4)

Input Board (3)

Input Board (2)

Input Board (1)

Output Board (2)

Output Board (1)

256 In x 32 Out

Video Output Board

WJ-PB65M16

Expansion Cable Kit

WJ-CA65L20K

(2m : 6.6ft)

WJ-CA65L07K

(0.7m : 2.3ft)

D-sub/BNC Video Cable

WJ-CA68

(0.5m : 1.65ft)

Digital Disk Recorders

WJ-HD316A

(16ch)

WJ-HD309A

(9ch)

RS-485 System Controller with 3D-Joystick & Jog/Shuttle

WV-CU650

Trademarks and registered trademarks

– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

Important

– Safety Precaution: carefully read the operating instructions and installation manual before using this product.

– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.

DISTRIBUTED BY:

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations. http://panasonic.net/security/

Printed in Japan (2P-535A)

Day/Night Fixed Camera

WV-CP300

Series

WV-CP300

(120 V AC)

WV-CP304

(24 V AC or 12 V DC)

WV-CP310

(120 V AC)

WV-CP314

(24 V AC or 12 V DC)

WV-CP300

(220 ~ 240 V AC)

WV-CP304

(24 V AC or 12 V DC)

WV-CP310

(220 ~ 240 V AC)

WV-CP314

(24 V AC or 12 V DC)

Lens: optional

WV-CP304

WV-CP314

WV-CP300

WV-CP310

(WV-CP310/WV-CP314) (WV-CP300/WV-CP304)

Compact Day/Night Fixed Camera with advanced features

Key Features

• High resolution: 650 TV lines

• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx

(B/W) at F1.4. IR cut ﬁlter switches on/off to enhance the sensitivity in B/W mode. (WV-CP310/WV-CP314)

• High sensitivity with Day/Night (electrical) function: 0.08 lx (Color),

0.05 lx (B/W) at F1.4 (WV-CP300/WV-CP304)

• ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.

• Focus Assist ensures easy installation.

• Various adjustment features including BLC (Back-Light Compensation),

ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)

• 16 axis matrix color compensation function enables wider range of natural color adjustment.

• Adaptive Digital Noise Reduction: Integration of 2D-DNR and

3D-DNR ensures noise reduction in various conditions.

• Electronic sensitivity enhancement: Auto (Up to 32x) / Fix (Up to

512x)

• Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/120,000 sec.

• Digital zoom: Up to 2x

• Auto Image Stabilizer for applications where vibration or wind is a concern

• Internal / Multiplexed Vertical Drive (VD2)* synchronization

• Over the coaxial cable data communication

• 16 alphanumerics camera title display

• Multi language: English, French, Italian, Spanish, German, Russian,Chinese,

Japanese

• Lens Distortion Correction

• On screen display menu

• ELC mode for easier lens adjustment upon installation

* NTSC model only

Standard Accessories

• Installation Guide........................ 1 pc.

• CD-ROM* ..................................... 1 pc.

*The CD-ROM contains the operating

instructions (PDF).

Optional Accessories

1/3 type 2x Varifocal Lens

WV-LZA61/2S

(3.8 ~ 8 mm)

F1.4 (Wide)

F1.8 (Tele)

The following items are for installation.

Power Cord

(Only for WV-CP300,WV-CP310)

........................................................ 1 pc.

Power Cord Plug

(Only for WV-CP304,WV-CP314)

........................................................ 1 pc.

1/3 inch High Resolution

2x Varifocal Lens

WV-LZA62/2

(2.8 ~ 6 mm)

F1.4 (Wide)

F2.1 (Tele)

1/3 inch 8x Varifocal Lens

WV-LZ62/8S

(5 ~ 40 mm)

F1.6 (Wide)

F1.9 (Tele)

Specifications

TV System

Camera

Image Sensor

Effective Pixels

Scanning Mode

Scanning Area

Scanning Frequency

NTSC

1/3 type interline transfer CCD

976 (H) x 494 (V)

2:1 interlace

4.8 (H) x 3.6 (V) mm

Horizontal: 15.734 kHz

Vertical: 59.94 Hz

PAL

976 (H) x 582 (V)

Horizontal: 15.625 kHz

Vertical: 50.00 Hz

Horizontal Resolution 650 TV lines

Minimum Illumination Color:

WV-CP310/WV-CP314 0.08 lx (F1.4, Sens Up: Off, AGC: High)

WV-CP300/WV-CP304 0.08 lx (F1.4, Sens Up: Off, AGC: High)

B/W:

WV-CP310/WV-CP314 0.008 lx (F1.4, Sens Up: Off, AGC: High)

WV-CP300/WV-CP304 0.05 lx (F1.4, Sens Up: Off, AGC: High)

Signal-to-Noise Ratio 52 dB (AGC: OFF)

White Balance AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 8,000 K),

ATW2 (2,400 ~ 8,000 K)

Light Control

AGC

Electronic Shutter

ALC/ALC+/ELC

ON (LOW, MID, HIGH) / OFF

OFF (1/60), AUTO, 1/100, 1/250, OFF (1/50), AUTO, 1/120, 1/250,

1/500, 1/1,000, 1/2,000, 1/4,000, 1/500, 1/1,000, 1/2,000, 1/4,000,

Day & Night

1/10,000, 1/120,000

Electronic Sensitivity UP 32x max. AUTO, 512x max. FIX

Auto Image Stabilizer ON / OFF

Camera Title 16 alphanumeric characters

1/10,000, 1/120,000

WV-CP310/WV-CP314 : Day & Night (IR) Off / Auto1 /Auto2 / On

WV-CP300/WV-CP304 : Day & Night (Electorical) Off / Auto

Digital Noise Reduction High or Low

Scene File 2 patterns

Video Motion Detection OFF / MOTION DET / SCENE CHANGE

Privacy Zone ON (1) / ON (2) / OFF, up to 8 zones

Synchronization

Input/

Output

Video Output

Controller Interface

General Setup Method

Language

Internal (INT) /

Multiplexed Vertical Drive (VD2)

1.0 V [p-p] / NTSC composite 75 1.0 V [p-p] / PAL composite 75

Coaxial Multiplex System

OSD setup menu

Internal (INT)

English, Russian, German, French, Italian, Spanish, Chinese,

Safty / EMC Standard

Japanese

UL (UL60065),

FCC (Part 15 ClassA),

CE (EN60065, EN55022 ClassB,

EN55024),

C-UL (E60065), DOC (ICES-003) GOST (GOST R 51558)

Power Source and

Power Consumption

Ambient Operating

Temperature

Ambient Operating

Humidity

Dimensions

WV-CP310/WV-CP300:

120 V AC, 60 Hz, 1.9 W

WV-CP314/WP-CP304:

12 V DC, 210 mA

24 V AC, 60 Hz, 2.3 W

–10 °C ~ +50 °C (14 °F ~ 122 °F)

WV-CP310/WV-CP300:

220-240 V AC, 50/60 Hz, 2.3 W

WV-CP314/WP-CP304:

12 V DC, 180 mA

24 V AC, 50/60 Hz, 2.1 W"

90 % or less (without condensation)

Mass (approx.)

Finish

WV-CP310/WV-CP300: 72 mm (W) x 55 mm (H) x 101 mm (D)

WV-CP314/WV-CP304: 72 mm (W) x 55 mm (H) x 81 mm (D)

WV-CP310: 190 g WV-CP310: 180g

WV-CP314: 160 g WV-CP314: 160g

WV-CP300: 190 g

WV-CP304: 160 g

ABS resin / Sail White

WV-CP300: 180g

WV-CP304: 150g

Part Names and Functions

Side View

Rear View

WV-CP300, WV-CP310

AC power input terminal

Video output connector

Tripod mount base

Appearance

WV-CP300

WV-CP310

(The illustrations are WV-CP300.)

WV-CP304

WV-CP314

(The illustrations are WV-CP304.)

72 (2-27/32")

2-1/4-20UNC for Tripods

(Depth 10 mm)

72 (2-27/32")

Bottom View

WV-CP304, WV-CP314

* This illustration represents E Model(PAL)

ALC lens c onnector

Back focus adjustment screw

Power input terminal

Setup button

101(3-31/32")

36 (1-3/8")

81(3-3/16")

2-1/4-20UNC for Tripods

(Depth 10 mm)

36 (1-3/8")

Unit: mm (inches)

Trademarks and registered trademarks

– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

Important

– Safety Precaution: carefully read the operating instructions and installation manual before using this product.

– "Super Dynamic", "SD

II", "SDIII", "SD5", "SD5Link","SD6", "i-PRO" and "i-PRO SmartHD" logos are trademarks or registered trademarks of

Panasonic Corporation.

DISTRIBUTED BY:

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Speciﬁcations are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

http://panasonic.net/security/

Printed in Japan (2A-082AL)

Super Dynamic 5

Day/Night Camera

WV-CP500

Series

WV-CP500

(120 V AC)

WV-CP504

(24 V AC or 12 V DC)

WV-CP500

(220 ~ 240 V AC)

WV-CP504

(24 V AC or 12 V DC)

WV-CP500L

(220 ~ 240 V AC)

WV-CP504L

(24 V AC or 12 V DC)

Lens: optional

WV-CP504

WV-CP504L

WV-CP500

WV-CP500L

(WV-CP500 Series) (WV-CP500L Series)

Super Dynamic 5

Day/Night Camera with ABS

(Adaptive Black Stretch)

, i-VMD*

(intelligent-Video Motion Detection)

and ABF*

(Auto Back Focus)

* Except for WV-CP500L, WV-CP504L

Key Features

•

Super Dynamic 5 delivers Superior image by fusion of Super

Dynamic, ABS (Adaptive Black Stretch) and i-VMD* (intelligent-

Video Motion Detection) intelligence technology.

• High resolution: 650 TV lines typical (Color mode), 700 TV lines minimum (B/W mode) (WV-CP500 Series)

• High resolution: 650 TV lines typical (WV-CP500L Series)

• High sensitivity with Day/Night function: 0.1 lux (Color), 0.01 lux

(B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity in B/W mode. (WV-CP500 Series)

• High sensitivity with Simple Day/Night function: 0.1 lux (Color), 0.07 lux (B/W) at F1.4 (WV-CP500L Series)

• i-VMD (intelligent-Video Motion Detection) including video motion detection, object detection (removal and left behind), scene change detection when lens is covered, spray painted, removed or defocused*

• ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes.*

• 3-dimensional color conversion function for natural color reproduction even in lower color temperature situation

• Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-

DNR ensures noise reduction in various conditions.

• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 32x)

• Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/10,000 sec.

• Digital zoom: Up to 2x

• Alarm input* and alarm output terminals

• Auto Image Stabilizer for applications where vibration or wind is a concern

• Internal / Line-lock / Multiplexed Vertical Drive (VD2) synchronization

• Over the coaxial cable data communication

• 16 alphanumerics camera title display

• Multi language: English, French, Italian, Spanish, German, Russian, Japanese

* Except for WV-CP500L, WV-CP504L

Standard Accessories

• CD-ROM

(including Operating Instructions) ........ 1 pc.

• Installation Guide .......................... 1 pc.

• Power Cord (for WV-CP500) ......... 1 pc.

• Power Cord Plug (for WV-CP504) ... 1 pc.

Compatible Panasonic lenses

WV-LZA62/2, WV-LZA61/2S, WV-LZ62/8S, WV-LZ61/15

In case of use of other lenses

Please select lenses that meets the following:

ø20 mm (25/32") or les s

5.5 mm (7/32") or less

Specifications

TV System

Camera

Image Sensor

Effective Pixels

Scanning Mode

Scanning Area

NTSC

1/3 inch interline transfer CCD

976 (H) x 494 (V)

2:1 interlace scan

4.8 (H) x 3.6 (V) mm

PAL

976 (H) x 582 (V)

Scanning Frequency Horizontal: 15.734 kHz

Vertical: 59.94 Hz

525 lines

Horizontal: 15.625 kHz

Vertical: 50 Hz

625 lines Scanning Line

Horizontal Resolution

WV-CP500 Series 650 TV lines typical at color mode, 700 TV lines at B/W mode

WV-CP500L Series 650 TV lines typical

Minimum Illumination

WV-CP500 Series

Light Control

AGC

Super Dynamic 5

Color: 0.1 lux (SENS UP: OFF), 0.003 lux* (SENS UP: 32x) at F1.4

B/W: 0.01 lux (SENS UP: OFF), 0.0003 lux* (SENS UP: 32x) at F1.4

WV-CP500L Series Color: 0.1 lux (SENS UP: OFF), 0.003 lux* (SENS UP: 32x) at F1.4

B/W: 0.07 lux (SENS UP: OFF), 0.002 lux* (SENS UP: 32x) at F1.4

Signal-to-Noise Ratio 50 dB (AGC Off, Weight On)

White Balance ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K), or AWC (2,000 ~ 10,000 K)

ALC / ALC+ / ELC

ON (HIGH / MID / LOW) / OFF

WV-CP500 Series ON / ON (i-VMD) / OFF (with BLC masking 8 x 6 areas)

WV-CP500L Series ON / OFF (with BLC masking 8 x 6 areas)

Dynamic Range

Electronic Shutter

52 dB typical (Super Dynamic 5 ON) 54 dB typical (Super Dynamic 5 ON)

OFF (1/60), 1/100, 1/250, OFF (1/50), 1/120, 1/250,

1/500, 1/1,000, 1/2,000,

1/4,000, 1/10,000 s 1/4,000, 1/10,000 s

Electronic Sensitivity UP OFF / AUTO (2x, 4x, 6x, 10x, 16x, 32x) / FIX (2x, 4x, 6x, 10x, 16x, 32x)

Digital Noise Reduction High / Low

Black and White Mode Mode: AUTO1 / AUTO2 / ON / OFF with external control,

(WV-CP500 Series only) Level: High / Low

1/500, 1/1,000, 1/2,000,

Simple Day/Night Mode AUTO / OFF

(WV-CP500L Series only)

Digital Zoom

Scene File

ON (up to 2x) / OFF

2 patterns i-VMD (intelligent-Video Video Motion Detection

Motion Detection) Object Detection (Removal and Left Behind)

(WV-CP500 Series only) Scene Change Detection

Video Motion Detection Video Motion Detection

(WV-CP500L Series only) Scene Change Detection

Privacy Zone ON (Gray / Mosaic) or OFF

Auto Image Stabilizer ON / OFF

Camera Title Up to 16 characters

Lens Mount

Lens ALC Drive

CS-mount

Input/

Output

Back Focus Adjustment ABF (AUTO / PRESET / FIX), MANUAL-ADJ

(WV-CP500 Series only)

Synchronization

Video Output

Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)

1.0 V [P-P] / NTSC composite 1.0 V [P-P] / PAL composite

75 Ω / BNC Connector Multiplexed 75 Ω / BNC Connector Multiplexed

VD2 and control data capable VD2 and control data capable

External I/O Terminals

WV-CP500 Series ALARM IN: 1 (OFF / ALARM / VMD PERMIT / BW / SCENE2)

ALARM OUT: 1 (OFF / ALARM / BW)

WV-CP500L Series ALARM OUT: 1 (OFF / ALARM)

General Setup Method

Language

OSD setup menu

English, Russian (For setup menu and camera title), German, French, Italian,

Spanish (For setup menu), Japanese (Only for camera title. Setup menu is in English.)

Safety/EMC Standard UL (UL60065),

FCC (Part15 ClassA),

C-UL (CAN/CSA C22.2 No.60065),

CE (EN60065, EN55022

ClassB, EN55024)

Power Source and

Power Consumption

DOC (ICES003 ClassA)

WV-CP500:

120 V AC 60 Hz, 3.2 W

WV-CP504:

WV-CP500/WV-CP500L:

220 ~ 240 V AC 50 Hz, 3.7 W

WV-CP504/WV-CP504L:

24 V AC 60 Hz, 3.6 W

12 V DC, 310 mA

Ambient Operating Temperature –10 °C ~ +50 °C (14 °F ~ 122 °F)

24 V AC 50 Hz, 3.6 W

12 V DC, 310 mA

Ambient Operating Humidity 90 % or less (without condensation)

Dimensions WV-CP500 75 mm (W) x 65 mm (H) x 132.5 mm (D)

WV-CP500L (2-15/16"" (W) x 2-9/16"" (H) x 5-3/16"" (D))

WV-CP504 72 mm (W) x 65 mm (H) x 103.5 mm (D)

WV-CP504L (2-13/16"" (W) x 2-9/16"" (H) x 4-1/16"" (D))

Weight WV-CP500 430 g (0.95 lbs.) (without power cord)

(approx.) WV-CP504 350 g (0.77 lbs.)

WV-CP500L 420 g (0.93 lbs.) (without power cord)

WV-CP504L 340 g (0.75 lbs.)

* Estimated figure

Part Names and Functions

Rear View

WV-CP500

Side View

WV-CP500

WV-CP504

WV-CP500L

WV-CP504L

External Terminal

Power Connector

Power Indicator

Video Output Connector

AC/DC Power Terminal

ALC Lens Connector

Appearance

WV-CP500

WV-CP500L

(The illustrations are WV-CP500.)

3(1/8")

75(2-15/16")

71(2-13/16")

1(1/16")

WV-CP504

WV-CP504L

(The illustrations are WV-CP504.)

Unit: mm (inches)

WV-CP500L

2-1/4-20UNC for Tripod

(Depth 10 mm)

72(2-13/16")

71(2-13/16") 1(1/16")

Operation Buttons

Flange-back Adjusting Ring

132.5(5-3/16")

36(1-7/16") 18(11/16")

2-1/4-20UNC for Tripods

(Depth 10 mm)

103.5(4-1/16")

4(3/16")

36(1-7/16") 18(11/16")

WV-CP500

WV-CP504

4(3/16")

Trademarks and registered trademarks

– "Super Dynamic", "SDII", "SDIII", "SD5", "SD5Link" and "i-Pro" logos are trademarks or registered trademarks of Panasonic Corporation.

Important

– Safety Precaution: carefully read the operating instructions and installation manual before using this product.

DISTRIBUTED BY:

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

http://panasonic.net/security/

Printed in Japan (2A-043CL)

WV-CP624

Day/Night Fixed Camera

WV-CP600

Series

WV-CP620

(120 V AC 60 Hz)

WV-CP624

(24 V AC or 12 V DC)

WV-CP620

Lens: optional

**Compact Day/Night Fixed Camera featuring Super Dynamic 6 technology**

Key Features

• Super Dynamic 6 technology delivers 128x wider dynamic range compared to conventional cameras.

• High resolution: 650 TV lines

• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut ﬁlter switches on/off to enhance the sensitivity in B/W mode.

• ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.

• Focus Assist ensures easy installation.

• Various adjustment features including ATW (Auto Tracing White

Balance) and ALC (Automatic Light Control)

• 16 axis matrix color compensation function enables wider range of natural color adjustment.

• 3-dimensional color conversion function for natural color reproduction even in lower color temperature situation

• Adaptive Digital Noise Reduction: Integration of 2D-DNR and

3D-DNR ensures noise reduction in various conditions.

• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual

(Up to 512x)

• Electronic shutter from 1/100 to 1/120,000 sec.

• Digital zoom: Up to 2x

• Auto Image Stabilizer for applications where vibration or wind is a concern

• Internal / Multiplexed Vertical Drive (VD2) synchronization

• Over the coaxial cable data communication

• 16 alphanumerics camera title display

• Multi language: English, French, Italian, Spanish, German, Russian,

Chinese, Japanese

• On screen display menu

• ELC mode for easier lens adjustment upon installation

• Smart look ﬁts for various applications such as shopping mall, hotels and hospitals.

Standard Accessories

• CD-ROM* ..................................... 1 pc.

• Installation Guide........................ 1 pc.

The following is used during installation procedures:

• Power cord (only for WV-CP620) (Approx. 1.8 m {5.9 feet})................................. 1 pc.

• Power cord plug (only for WV-CP624P)................................................................1 pc.

• Safety wire lug.......................................................................................................1 pc.

• Safety wire (Approx. 300 mm {1 feet})...................................................................1 pc.

• Wire lug ﬁxing screws (M2.5 × 8 mm {5/16 inches}).......2 pcs. (including 1 for replacement)

• Washer...................................................................................................................1 pc.

• Spring washer........................................................................................................1 pc.

*The CD-ROM contains the operating installations and installation guide (PDF).

Optional Accessories

1/3 type 2x Varifocal Lens

WV-LZA61/2S

(3.8 ~ 8 mm)

F1.4 (Wide)

F1.8 (Tele)

1/3 inch 8x Varifocal Lens

WV-LZ62/8S

(5 ~ 40 mm)

F1.6 (Wide)

F1.9 (Tele)

Specifications

TV System

Camera

Input /

Output

General

Image Sensor

Effective Pixels

Scanning Mode

Scanning Area

Scanning Frequency

Horizontal Resolution

Minimum color mode

Illumination black-andwhite mode

Signal-to-Noise Ratio

White Balance

Light Control

AGC

Super Dynamic 6

Dynamic Range

Electronic Shutter

Electronic Sensitivity UP

Day & Night (IR)

Digital Noise Reduction

Scene File

Video Motion Detection

Privacy Zone

Image Stabilizer

Camera Title

Synchronization

Video Output

Controller Interface

External I/O Terminals

Setup Method

Language

Safty / EMC Standard

Power Source and

Power Consumption

Ambient Operating

Temperature

Ambient Operating

Humidity

Dimensions

Mass (approx.)

Finish

WV-CP620

1/3 type interline transfer CCD

976 (H) x 494 (V)

WV-CP624

2:1 interlace

4.8 (H) x 3.6 (V) mm {3/16 inches (H) × 5/32 inches (V)}

Horizontal: 15.734 kHz Vertical: 59.94 Hz

650 TV lines typ.

0.08 lx

0.008 lx

52 dB (AGC: OFF)

AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)

ALC/ALC+/ELC

ON (LOW, MID, HIGH) / OFF

ON / OFF

52 dB typical (Super Dynamic 6 : ON)

OFF (1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/120000 (s)

32x max. AUTO, 512x max. FIX

AUTO1/AUTO2/ON/OFF

High or Low

2 patterns

OFF / MOTION DETECTION / SCENE CHANGE

ON(1) / ON(2) / OFF

ON / OFF

16 alphanumeric characters

Internal (INT), multiplexed vertical drive (VD2)

1.0 V [p-p] NTSC composite video signal 75 Ω

Coaxial Multiplex System

Alarm IN 1pc, Alarm OUT 1pc

OSD setup menu

English, French, Italian, Spanish, German, Russian, Chinese, Japanese

UL (UL60065), FCC (Part 15 ClassA), C-UL (E60065), DOC (ICES-003)

120 V AC 60 Hz 2.3 W 24 V AC 60 Hz: 2.5 W ,

12 V DC: 220 mA

–10 °C ~ +50 °C (14 °F ~ 122 °F)

90 % or less (without condensation)

101 mm (L) × 72 mm (W) × 55 mm (H)

{3-31/32 inches (L) ×

2-27/32 inches(W) × 2-5/32 inches (H)}

Approx.190 g {0.42 lbf}

(Power cord excluded)

ABS resin / White Painting

81 mm (L) × 72 mm (W) × 55 mm (H)

{3-3/16 inches (L) ×

2-27/32 inches(W) × 2-5/32 inches (H)}

Approx.170 g

{0.35 lbf}

Part Names and Functions

Side View Bottom View

Rear View

WV-CP620P

AC Power Input Terminal [120 V AC 60 Hz]

Video Output Connector [VIDEO OUT]

Tripod Mount Base

ALC Lens Connector

Appearance

WV-CP620P

3 (1/8") 72 (2-27/32")

WV-CP624P

Back Focus Adjustment Screw

Power Input Terminal

[12 V IN, 24 V~IN]

Setup Button [SET]

Exterior I/O Connector

101(3-31/32")

11(7/16")

10 (1/16")

1/4-20UNC for Tripods

(Depth 10 mm)

WV-CP624P

3 (1/8")

72 (2-27/32")

36 (1-3/8")

81(3-3/16") 11(7/16")

10 (1/16")

1/4-20UNC for Tripods

(Depth 10 mm)

36 (1-3/8")

Unit: mm (inches)

Important

– Safety Precaution: carefully read the operating instructions and installation manual before using this product.

– "Super Dynamic", "SD II", "SDIII", "SD5", "SD5Link","SD6", "i-PRO" and "i-PRO SmartHD" logos are trademarks or registered trademarks of

Panasonic Corporation.

DISTRIBUTED BY:

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Speciﬁcations are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

http://panasonic.net/security/

Printed in Japan (2A-097L)

Super Dynamic III

Weather Resistant Day/Night Camera

WV-CW380

Series

WV-CW384

(24 V AC or 12 V DC)

WV-CW380

(220 ~ 240 V AC)

WV-CW384

(24 V AC or 12 V DC)

**Super Dynamic III Weather Resistant Fixed Camera with**

Day/Night and 8x Varifocal lens

Key Features

• Super Dynamic III technology delivers 128x (NTSC) / 160x (PAL) wider dynamic range compared to conventional cameras.

• High resolution: 540 TV lines typical / 520 TV lines minimum (Color HIGH mode), 480 TV lines (Color NORMAL mode), 570 TV lines (B/W mode)

• High sensitivity with Day/Night function: 0.65 lux (Color), 0.09 lux

(B/W) at F1.6 (Wide). IR cut filter switches on/off to enhance the sensitivity in B/W mode.

• Signal-to-Noise Ratio: 50 dB (equivalent to AGC Off, Weight On)

• ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes.

• Electronic sensitivity enhancement: Auto (Up to 10x) / Manual (Up to

32x)

• Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/10,000 sec.

• VMD (Video Motion Detector) with Mask 8 x 6 areas

• 5.0 ~ 40 mm, 8x Varifocal Auto Iris lens with 2x digital zoom

• Monitor output for easier view angle adjustment upon installation

• Auto Image Stabilizer for applications where vibration or wind is a concern.

• Over the coaxial cable data communication

• Internal/Line-lock/Multiplexed Vertical Drive (VD2) synchronization

• 16 alphanumerics camera title display

• Multi language: English, French, Italian, Spanish, German, Russian,

Chinese, Japanese

• Strong visibility with flashing blue LED is an effective deterrent.

• IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.

• Built-in fan, heater and sun shield maintains operating temperature

–30 °C ~ +50 °C (–22 °F ~ 122 °F).

• Smart looking mounting bracket encloses the video and power cables properly.

Standard Accessories

• Operating Instructions ................... 1 pc.

The followings are for installation.

• Camera mount bracket ................. 1 pc.

• Mount bracket cover.................... 2 pcs.

• Sun shield ..................................... 1 pc.

• Tripod socket ................................ 1 pc.

• Adapter box .................................. 1 pc.

• Camera fixing screws (M4 x 8)

(incl. 1 spare screw) .................... 4 pcs.

• Mount bracket cover screws (M3 x 6)

(incl. 1 spare screw) .................... 3 pcs.

• Adapter box mounting screw

(M4 x 35) ....................................... 1 pc.

• Mounting screws for adapter box/camera mount bracket (M5 x 20)

(incl. 1 spare screw) .................... 5 pcs.

• Sunshield mounting screws (M3 x 6)

(incl. 1 spare screw) .................... 5 pcs.

• Mounting screws for tripod socket

(M3 x 8) ....................................... 4 pcs.

• Desiccant ...................................... 1 pc.

• Waterproof tape .............................1 pc.

Specifications

TV System

Camera

Image Sensor

Effective Pixels

Scanning Mode

Scanning Area

Scanning Frequency

Scanning Line

Horizontal Resolution

Minimum Illumination

Signal-to-Noise Ratio

White Balance

Light Control

AGC

Super Dynamic III

Dynamic Range

Electronic Shutter

NTSC

1/3 inch interline transfer CCD

768 (H) x 494 (V)

2:1 interlace scan

4.8 (H) x 3.6 (V) mm

PAL

752 (H) x 582 (V)

Horizontal: 15.734 kHz

Vertical: 59.94 Hz

Horizontal: 15.625 kHz

Vertical: 50 Hz

525 lines 625 lines

540 TV lines typical at color high mode,

480 TV lines at color normal mode, 570 TV lines at B/W mode

Color (30 IRE):

0.65 lux (Sens UP: OFF), 0.065 lux* (SENS UP: 10x) at F1.6 Wide

B/W (10 IRE):

0.09 lux (Sens UP: OFF), 0.009 lux* (SENS UP: 10x) at F1.6 Wide

50 dB (AGC Off, Weight On)

AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K),

ATW2 (2,000 ~ 6,000 K)

ALC

ON (HIGH/MID/LOW) or OFF

ON or OFF (with BLC masking 8 x 6 areas)

52 dB typical 54 dB typical

(Super Dynamic III ON)

OFF (1/60), 1/100, 1/250,

1/500, 1/1,000, 1/2,000,

(Super Dynamic III ON)

OFF (1/50), 1/120, 1/250,

1/500, 1/1,000, 1/2,000,

1/4,000, 1/10,000 s 1/4,000, 1/10,000 s

Electronic Sensitivity UP OFF / AUTO (2x, 4x, 6x, 10x) / FIX (2x, 4x, 6x, 10x, 16x, 32x)

Digital Noise Reduction High / Low

Resolution Mode Normal / High

Black and White Mode Mode: AUTO1 / AUTO2 / ON / OFF, Level: High / Low

Digital Zoom 2x

Video Motion Detection OFF / Mode1 (VMD) / Mode2 (Scene change),

Mask 8 x 6 areas

Scene Change Detection Yes, Included in VMD Mode2

Privacy Zone ON (Gray/Mosaic) or OFF

Auto Image Stabilizer ON or OFF

Camera Title

Lens Mount

Up to 16 characters

CS-mount

Back Focus Adjustment ABF, MANUAL, AUTO / PRESET / FIX

Synchronization Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)

Lens

Focal Length

Angular Field of View

Adjusting Horizontal

5.0 ~ 40.0 mm, 8x varifocal

H : 6.6° (Tele) ~ 52° (Wide)

V : 5° (Tele) ~ 39.6° (Wide)

Maximum Aperture Ratio 1:1.6 (Wide) 1:1.9 (Tele)

Focusing Range 1.2 m ~ ∞ (3.9 ft. ~ ∞)

±100° (Camera mount bracket)

Angle

Input/

Output

Vertical

Video Output

+30°, –90° (Camera mount bracket)

1.0 V [p-p] / NTSC composite 75 Ω / 1.0 V [p-p] / PAL composite 75 Ω /

BNC Connector Multiplexed BNC Connector Multiplexed

General

Monitor Output

Setup Method

Language

VD2 and control data capable VD2 and control data capable

1.0 V [p-p] / NTSC composite 75 Ω / 1.0 V [p-p] / PAL composite 75 Ω /

ø3.5 mm mini jack ø3.5 mm mini jack

OSD setup menu

English, Russian (For setup menu and camera title), German,

French, Italian, Spanish (For setup menu), Chinese, Japanese

(Only for camera title. Setup menu will be English.)

Safety/EMC Standard UL (UL60065),

FCC (Part15 ClassA),

Power Source and

Power Consumption

24 V AC 60 Hz, 18 W**,

12 V DC 540 mA***

CE (EN60065, EN55022 ClassB,

EN55024),

C-UL (CAN/CSA C22.2 No.60065), GOST (GOST R 51558)

DOC (ICES003 ClassA)

WV-CW380:

220 ~ 240 V AC 50 Hz, 14 W**

WV-CW384:

Ambient Operating

24 V AC 50 Hz, 18 W**,

12 V DC 560 mA***

–10 °C ~ +50 °C (14 °F ~ 122 °F),

Ambient Operating Humidity 90 % or less (without condensation)

Water and Dust Resistance IP66, Compatible with IEC60529 measurement standard

Dimensions

Weight (approx.)

78 mm (H) x 82 mm (W) x 301 mm (L)

(3-1/16"(H) x 3-1/4"(W) x 11-7/8"(L)) (without bracket and sun shield)

1.5 kg (3.3 lbs.) (without bracket)

* Estimated figure

** With Heater

*** Heater cannot be operated under 12 V DC operation

Part Names and Functions

Front View

Rear View

Side View

Appearance

82(3-1/4")

50(1-15/16")

15.5(5 /8" )

301(11-7/8")

720(28-3/8")

Mounting Bracket

130(5-1/8")

133(5-1/4")

72(2-13/16")

(1-13/16")

27( 1-1/16")

212(8 -3/8" )

Monitor Output Connector

Zoom Adjustment Ring

Auto-Back-Focus Button

Focus Lock Knob

Sun Shield (accessory)

Front Glass

Lens Cover

LED

Tilting Lock Screw

Panning Lock Screw

Power Cord

Video Output Cable

Safety Wire

Rear Cover

Switch Cover

Up Button (UP)

Right Button (RIGHT)

Down Button (DOWN)

Left Button (LEFT)

Set Button (SET)

Camera Mount Bracket (accessory)

Adapter Box (accessory)

351(13-13/16")

720(28-3/8")

200(7 -7/8" )

Trademarks and registered trademarks

– "Super Dynamic", "SDII", "SDIII" and "i-Pro" logos are trademarks or registered trademarks of Panasonic Corporation.

Important

– Safety Precaution: carefully read the operating instructions and installation manual before using this product.

DISTRIBUTED BY:

NPSM 3/4

4-M5

5 40(1-9/16")

(3/16")

Unit: mm (inches)

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

http://panasonic.net/security/

Printed in Japan (2A-033AL)

HD Dome Network Camera

WV-SC384

HD/1,280 x 960 H.264 PTZ Dome Network Camera.

Key Features

• 720p HD images up to 30 fps

• Newly developed 1.3 Megapixel MOS Sensor

• Multiple H.264 (High proﬁle) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by

“UniPhier ® ”, Panasonic’s proprietary System LSI platform.

• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size

• 18x optical zoom. 36x extra optical zoom at VGA resolution with 8x digital zoom enabling 288x zoom.

• Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range compared with conventional cameras.

• Face Wide Dynamic Range technology ensures clear face image.

• H.264 and MPEG-4 are selectable for system migration.

• High sensitivity with Day/Night function : 0.6 lx (Color), 0.5 lx (B/W) at F1.6 (Wide)

• Adaptive Digital Noise Reduction: 2D-DNR and 3D-DNR integration ensures reduced noise and motion blur in various conditions.

• Superior color reproduction by primary (RGB) color ﬁlter

• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF

• Selectable light control modes: Outdoor / Indoor / Fixed electronic shutter

Outdoor / Indoor: Electronic shutter and ALC lens iris control are

automatically controlled depending on the mode and luminance level.

Fixed electronic shutter: Up to 1/10,000 ﬁxed electronic shutter

can be selectable.

• Panning with auto ﬂip function can be performed 0 to 360 degrees.

• PTZ control can be taken on the user friendly GUI with 16 speeds pan/tilt and new “Drag and Zoom” operation enabling ﬁner control.

256 speeds available for system with WV-CU950 system controller.

• Up to 64 preset positions

• 360 map shot: 8 thumbnail images at 45 deg. intervals make it simple to direct the camera easily by clicking on a thumbnail.

• Industrial grade Pan/Tilt/Zoom mechanism for high reliability

• VMD (Video Motion Detector) with 4 programmable detection areas,

15 steps sensitivity level and 10 steps detection size

• Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

• Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDHC/SD memory recording, FTP image transfer, E-mail notiﬁcation, Indication on browser, Alarm terminal output, and Panasonic protocol output.

• Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.

• JPEG image compression ratio can be changed by alarm so that higher quality image can be provided.

• Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.

• SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)

• H.264/MPEG-4 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.

• Multi-language GUI and setup menu: English, French, Italian, Spanish,

German, Russian (PAL) / English, French (NTSC)

* Installation required except for English

• IPv4/IPv6 protocol supported

• Analog Monitor output for easier installation

• Supports SSL, DDNS (viewnetcam, RFC2136)

• Still images (JPEG) can be viewed on mobile phones via Internet.

• ONVIF compliant model

Standard Accessories

• CD-ROM*

.....................................1 pc.

• Installation Guide ...........................1 pc.

The followings are for installation.

• Camera Mount Bracket (w/safety wire)

.......................................................1 pc.

• Camera Fixing Screw

............................. 2 pcs. (incl. 1 spare)

Optional Accessories

Inner Dome Cover

WV-Q157

Surface Ceiling Mount Brackets

WV-Q156C

(Clear)

WV-Q156S

(Smoke)

(Smoke Type)

Wall Mount Brackets

WV-Q154C

(Clear)

WV-Q154S

(Smoke)

(Smoke Type)

• Decorative Cover...........................1 pc.

• Power Cable Plug ..........................1 pc.

• Code Label*

.................................1 pc.

*1 The CD-ROM contains the operating instructions

(PDFs) and different kinds of tool software programs.

*2 This label may be required for network management.

The network administrator shall retain the code label.

* Not compatible with optional accessories of conventional cameras

Embedded Ceiling Mount Brackets

WV-Q155C

(Clear)

WV-Q155S

(Smoke)

(Smoke Type)

Ceiling Mount Bracket

WV-Q105

Specifications

Lens

TV System

Camera Image Sensor

Effective Pixels

Scanning Mode

Scanning Area

Minimum Illumination

White Balance

Light Control Mode

Shutter Speed

Wide Dynamic Range

NTSC

1/3 type MOS Sensor

Approx. 1.3 megapixel

Progressive scan

PAL

4.8 mm (H) x 3.6 mm (V) (3/16" (H) × 5/32" (V))

Color: 0.6 lx (F1.6, Auto slow shutter: Off (1/30 s), AGC: High, WDR Off)

0.038 lx (F1.6, Auto slow shutter: max. 16/30 s, AGC: High, WDR Off)

BW: 0.5 lx (F1.6, Auto slow shutter: Off (1/30 s), AGC: High)

0.031 lx (F1.6, Auto slow shutter: max. 16/30 s, AGC: High)

ATW1 / ATW2 / AWC

Indoor scene (50 Hz / 60 Hz) / Outdoor scene / Fix shutter

1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500,

1/1,000, 1/2,000, 1/4,000, 1/10,000

ON / OFF

Face Wide Dynamic Range ON / OFF

Adaptive Black Stretch ON / OFF

AGC

Auto Slow Shutter

ON (LOW, MID, HIGH ) / OFF

OFF (1/30 s), max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s

Simple Black and White Mode OFF / AUTO

Digital Noise Reduction High / Low

Video Motion Detection

Privacy Zone

Up Side Down

Image Stabilizer

Camera Title (OSD)

Focal Length

ON / OFF, 4 areas available

ON / OFF (up to 2 zones available)

Ceiling mount only

ON / OFF

4.7 mm ~ 84.6 mm

Zoom Ratio 18x / 36x with extra optical zoom (at VGA resolution)

Digital (Electronic) Zoom 8x (Max. 288x combined with extra optical zoom under VGA)

Angular Field of View H: 3.2° (Tele) ~ 55.2° (Wide), V: 2.4° (Tele) ~ 42.1° (Wide)

Maximum Aperture Ratio 1 : 1.6 (Wide) ~ 2.8 (Tele)

Focus Range 1.5 m ~ ∞

Aperture Range

Pan and Tilt Panning Range

Panning Speed

Tilting Range

F1.6 ~ 22, Close

0° ~ 350°

Manual: approx. 0.5°/s ~ 100°/s, Preset: up to approx. 300°/s

–30° ~ 90° (upward-level-downward)

Tilting Speed

Auto Mode

Image Hold

PTZ Position Display

Self Return

Pan/tilt flip *1

Map Shot

Browser GUI Camera Control

Tilting angle limit: 10° / 5° / 3° / 0° / –3° / –5° / –10° / –15° / –20° / –25° / –30°

Manual: approx.0.5°/s ~ 100°/s, Preset: up to approx. 100°/s

Proportional Pan/Tilt Control Yes

Number of Preset Positions 64

Auto pan / Preset sequence / 360 map-shot / Preset map-shot

ON / OFF

10 s / 20 s / 30 s / 1 min / 2 min / 3 min / 5 min / 10 min / 20 min / 30 min / 60 min

ON / OFF

360 map shot / preset map shot

Pan/Tilt (16 steps), Zoom, Focus, Click centering, Drag zoom, Iris,

Display Mode

Preset position call and program, Auto mode

Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad

Audio

Camera Title

Clock Display

Alarm Control

One Shot Capture screens or 16 split screen (JPEG only). 20 characters camera title available.

Up to 20 characters (alphanumeric characters, marks), Character size: Small

Time: 12H / 24H, Date: 5 formats on the browser, Summer time (Manual/AUTO)

Reset

A still picture will be displayed on a newly opened window.

Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,

Audio Output: ON / OFF Volume adjustment: Low / Middle / High

SD Memory Data Download Still or motion images recorded in the SDHC/SD memory card can be downloaded.

GUI/Setup Menu Language English, French

(Installation required for French)

System Log

English, French, Italian, Spanish,

German, Russian (Installation required except for English)

Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the

Supported OS recording format is set to JPEG.) error logs

Microsoft ® Windows ® 8, Microsoft ® Windows ® 7,

Supported Browser

Microsoft ® Windows Vista ® , Microsoft ® Windows ® XP SP3

Windows ® Internet Explorer ® 10.0 (32 bit)Windows ® Internet Explorer ® 9.0 (32 bit)

Windows ® Internet Explorer ® 8.0 (32 bit),Windows ® Internet Explorer ® 7.0 (32 bit) ,

Network Network IF


Microsoft ® Internet Explorer ® 6.0 SP3

10Base-T / 100Base-TX, RJ-45 connector

Aspect ratio: H.264: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps

Resolution [4 : 3]

*2 *3

MPEG-4: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps

JPEG (MJPEG): 1,280 x 960 / 640 x 480 / 320 x 240, up to 30 fps

H.264/

Aspect ratio:

[16 : 9]

H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps

JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps

Transmission Mode Constant bitrate / Framerate priority / Best effort / Advanced VBR

MPEG-4 Frame Rate 1 / 3 / 5 / 7.5 / 10 / 15 / 20 / 30 fps 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps

*2 Bit Rate/Client 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /

4,096 / 8,192* kbps / Unlimited * H.264 mode Only

Image Quality LOW / NORMAL / FINE

Refresh Interval 0.2 s / 0.25 s / 0.33 s / 0.5 s / 1 s / 2 s / 3 s / 4 s / 5 s

Transmission Type UNICAST / MULTICAST

JPEG Image Quality 0 SUPER FINE / 1 FINE / 2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9 LOW (10 steps: 0-9)

(MJPEG) Transmission Type PULL / PUSH

Transmission Interval

Audio Compression

Audio Mode

Authentication for Audio

Total Bit Rate

Supported Protocol

0.1 fps - 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264/MPEG-4 images.)

G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps

OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Level 1 only / Level 2 higher / All users

64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited

IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6

IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,

FTP Client

Multi-Screen

FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP

Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDHC/SD memory card is available.)

Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself)

• All TV pictures are simulated. • Masses and dimensions are approximate.

• Speciﬁcations are subject to change without notice.

• These products may be subject to export control regulations. • All product pictures are NTSC models.

TV System

Network

Maximum Concurrent

Access Number

(Option)

NTSC

Up to 14

(Depends on network conditions)

PAL

SDHC/SD Memory Card H.264 recording: Manual REC / Alarm REC (PRE/Post) / Schedule REC

JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure

Compatible SD (SDHC) card: Panasonic 256 MB, 512MB, 1GB,

Alarm Alarm Source

Alarm Actions

2 GB, 4 GB*, 8 GB*, 16GB*, 32GB* model *SDHC card

Cellular Phone Compatibility JPEG image, panning / tilting / zoom control, AUX control (by access level)

3x Terminal inputs, VMD, Command alarm

SD memory recording, E-mail notiﬁcation, Indication on browser,

Input /

Output

Alarm Log

Schedule

Monitor Output

(for adjustment)

Microphone/Line Input

Camera positioning, Preset position 1 ~ 64, FTP image transfer,

Terminal output, Panasonic protocol output

With SD memory card: 5,000 logs, Without SD memory card: 1,000 logs

Alarm/VMD/Access permission, Preset position call, Position refresh,

H.264 recording

1.0 V [p-p] / 75 Ω, NTSC composite, 1.0 V [p-p] / 75 Ω, PAL composite,

ø3.5 mm mini jack ø3.5 mm mini jack

ø3.5 mm monaural mini jack, Input impedance: approx. 2 kΩ

General

Audio Output

External I/O Terminals

Safety/EMC Standard

ø3.5 mm stereo mini jack (monaural output) Line level

Output impedance: Approx. 600 Ω, Line level

ALARM IN 1, ALARM IN 2 / ALARM OUT, ALARM IN 3 / AUX OUT (x1 each)

UL (UL60065), FCC (Part15 ClassA), CE (EN60065, EN55022 ClassB,

Power Source/

Consumption

Ambient Operating

Temperature/Humidity

C-UL (CAN/CSA C22.2 No.60065), EN55024), GOST (GOST R 51558)

DOC (ICES003 ClassA)

12 V DC, PoE (IEEE802.3af compliant)

12 V DC : 690 mA, PoE 48 V : 10 W / 190 mA (Class 0 device)

–10 °C ~ +50 °C (14 °F ~ 122 °F),

90% or less (whitout condensation)

Dimensions ø115 mm x 155 mm (H) (ø4-17/32" x 6-3/32" (H)) (excluding the 12 V DC power cord plug)

Mass (approx.) 900 g (1.99 lbs.)

*1 The pan/tilt-ﬂip function cannot be activated by clicking live images. When the zoom ratio is adjusted to the

"TELE" side, images will be partially hidden even if the pan/tilt-ﬂip function is activated.

*2 H.264 and MPEG-4 are alternative. *3 [4 : 3] and [16 : 9] are alternative.

Part Names and Functions

Front View

Rear View

WV-SC385

FRONT

OPE

LOCK

OPEN

Transparent Part

Panasonic Logo Plate

SDHC/SD Memory Card Slot Cover

SDHC/SD Memory Card Slot

Link Indicator

Network Connector

12 V DC Power Supply Terminal

Access Indicator

INITIAL SET Button

Cable Guide

Audio Output Connector

Monitor Out Connector for Adjustment

Safety Wire Holder

Microphone/Line Input Connector

External I/O Terminals

Camera Mount Bracket

Safety Wire

Decorative Cover

Appearance

83.5(3-5/16")

110(4-5/16")

132(5-3/16")

ø185(ø7-5/16")

4xø5(ø3/16")

4xø7(ø1/4")

4xø5(ø3/16")

ø115(ø4-1/2")

1/4-20UNC

For Camera Mount

(Depth: 6 mm(1/4"))

Unit: mm (inches)

Trademarks and registered trademarks

– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

– UniPhier is a registered trademark of Panasonic Corporation.

– "i-PRO SmartHD" logo is trademarks or registered trademarks of Panasonic Corporation.

– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.

Important

– Safety Precaution: Carefully read the operating instructions and installation manual before using this product.

– Panasonic cannot be responsible for the performance of the network and/or other manufacturers'

products used on the network.

DISTRIBUTED BY: http://security.panasonic.com

http://www.facebook.com/PanasonicNetworkCamera

Printed in Japan (2A-073CL)

HD Dome Network Camera

WV-SF135

Dome Network Camera

WV-SF132

Front View

(WV-SF135)

WV-SF135/WV-SF132

WV-SF135/WV-SF132

HD/1,280 x 960 H.264 Dome Network Camera with 2x Extra Zoom

(WV-SF135)

VGA/640 x 480 H.264 Dome Network Camera

(WV-SF132)

Key Features

• 720p HD images up to 30 fps (WV-SF135)

• 1.3 Megapixel high sensitivity MOS Sensor (WV-SF135)

• 0.32 Megapixel high sensitivity MOS Sensor (WV-SF132)

• Multiple H.264 (High proﬁle) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by

“UniPhier

”, Panasonic’s proprietary System LSI platform.

• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size (WV-SF135)

• Full frame (Up to 30 fps) transmission at VGA (640 x 480) image size (WV-SF132)

• ABS (Adaptive Black Stretch) technologies deliver wider dynamic range compared with conventional cameras.

• High sensitivity with Day & Night (Electrical) function:

0.8 lx (Color), 0.6 lx (B/W) at F2.2 (WV-SF135)

2.0 lx (Color), 1.3 lx (B/W) at F2.9 (WV-SF132)

• VIQS (Variable Image Quality on Speciﬁed area) technology allows the designated area to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image ﬁle size and bit rate.

• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.

• Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.

• Superior color reproduction by primary (RGB) color ﬁlter

• Electronic sensitivity enhancement:

Auto (Up to 16x) / OFF (WV-SF135)

Auto (Up to 8x) / OFF (WV-SF132)

• 2x extra zoom at VGA resolution (WV-SF135)

• 2x, 4x digital zoom controlled by browser

• Selectable light control modes: Indoor scene (50 Hz) / Indoor scene

(60 Hz) / ELC (maximum exposure time)

Indoor scene (50 Hz/60Hz): Flicker caused by ﬂuorescent lightning will be automatically compensated.

ELC (maximum exposure time): The lightning control will be automatically performed by adjusting shutter speed in the range of ELC.

• VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size

• Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

• Camera title display: Up to 20 alphanumeric characters on the browser

• Alarm sources including VMD and Panasonic alarm command can trigger actions such as FTP image transfer, E-mail notiﬁcation,

Indication on browser, and Panasonic alarm protocol output.

• JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided.

• H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.

• Internet mode: H.264 images can be transmitted over HTTP protocol.

• Multi-language: English / Italian / French / German / Spanish /

Russian / Chinese / Japanese

• IPv4/IPv6 protocol supported

• Supports SSL, DDNS (viewnetcam, RFC2136)

• Still images (JPEG) can be viewed on mobile phones via Internet.

• Onvif compliant model

• Low proﬁle design for discrete installation

• Wide coverage

WV-SF135 Horizontal: 104°, Vertical: 85°

WV-SF132 Horizontal: 68°, Vertical: 53°

Standard Accessories

• Installation Guide ..........................1 pc.

• Important Safety Instructions ........1 pc.

• CD-ROM*

.....................................1 pc.

• Code Label*

.................................1 pc.

• Lens adjuster .................................1 pc.

Optional Accessories

Smoke Dome Cover

WV-CW6S

The followings are for installation.

• Installation Template Label ...........1 pc.

*1 The CD-ROM contains the operating instructions

and different kinds of tool software programs.

*2 This label may be required for network management.

The network administrator shall retain the code label.

Specifications

TV System

Camera Image Sensor

Effective Pixels

Scanning Mode

Scanning Area

NTSC PAL

WV-SF135: 1/3 type MOS image Sensor

WV-SF132: 1/5 type MOS image Sensor

WV-SF135: Approx. 1.3 megapixels

WV-SF132: Approx. 0.32 megapixels

Progressive scan

WV-SF135: 4.8 mm (H) x 3.6 mm (V) (3/16" (H) × 5/32" (V))

WV-SF132: 2.69 mm (H) x 2.01 mm (V) (1/8" (H) × 1/16" (V))

Minimum Illumination WV-SF135:

Color: 0.8 lx (F2.2, Auto slow shutter: Off (1/30 s), Gain: On (High))

0.05 lx (F2.2, Auto slow shutter: Max. 16/30 s, Gain: On (High))

BW: 0.6 lx (F2.2, Auto slow shutter: Off (1/30 s), Gain: On (High))

0.04 lx (F2.2, Auto slow shutter: Max. 16/30 s, Gain: On (High))

WV-SF132:

Color: 2.0 lx (F2.9, Auto slow shutter: Off (1/30 s), Gain: On (High))

0.3 lx (F2.9, Auto slow shutter: Max. 8/30 s, Gain: On (High))

White Balance

Light Control Mode

Shutter Speed

0.16 lx (F2.9, Auto slow shutter: Max. 8/30 s, Gain: On (High))

AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)

Indoor scene (50 Hz / 60 Hz) / ELC

1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500,

1/1,000, 1/2,000, 1/4,000, 1/8,000 (WV-SF132), 1/10,000 (WV-SF135)

Adaptive Black Stretch ON / OFF

AGC ON (LOW, MID, HIGH) / OFF

Electronic Sensitivity

WV-SF135 : OFF (1/30) / AUTO (Max. 2x (2/30 s),

4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))

WV-SF132 : OFF (1/30) / AUTO (Max. 2x (2/30 s),

3x (3/30 s), 4x (4/30 s), 8x (8/30 s)

Day & Night (electrical) Auto / OFF

Digital Noise Reduction High / Low

Video Motion Detection ON / OFF, 4 areas available

Lens

Privacy Zone

VIQS

Camera Title (OSD)

Focal Length

Zoom Ratio

ON / OFF (up to 2 zones available)

ON / OFF

Up to 20 characters (alphanumeric characters, marks), ON / OFF

1.95 mm

WV-SF135: 1x Extra Zoom: 2x (at VGA resolution)

WV-SF132: 1x

Angular Field of View WV-SF135: Horizontal: 104 °, Vertical: 85 °

WV-SF132: Horizontal: 68 °,Vertical: 53 °

Maximum Aperture Ratio 1 : 2.2 (WV-SF135) 1:2.9 (WV-SF132)

Focusing Range

Adjusting Angle

0.5 m ~ ∞

Ceiling Installation Horizontal: -20 ° to +20 ° Vertical: -20 ° to +90 °

Wall Installation Horizontal: -80 ° to +80 ° Vertical: -90 ° to +20 °

Browser Camera Control

GUI

Display Mode

Brightness

Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad

screens or 16 split screen (JPEG only). 20 characters camera title available.

Digital Zoom 1x, 2x, 4x controlled by browser GUI

Camera Title

Clock Display

Up to 20 alphanumeric characters

Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)

One Shot Capture A still picture will be displayed on a newly opened window.

GUI/Setup Menu Language English, Italian, French, German, Spanish, Russian, Chinese, Japanese

System Log Up to 100

Supported OS

*2 *3

Microsoft ® Windows ® 8, Microsoft ® Windows ® 7,

Microsoft ® Windows Vista ® , Microsoft ® Windows ® XP SP3

Supported Browser Windows ® Internet Explorer ® 10.0 (32 bit),

Windows ® Internet Explorer ® 9.0 (32 bit),

Windows ® Internet Explorer ® 8.0 (32 bit),

Windows ® Internet Explorer ® 7.0 (32 bit),

Microsoft ® Internet Explorer ® 6.0 SP3

Network Network IF


10Base-T / 100Base-TX, RJ-45 connector

Aspect ratio: WV-SF135:

Resolution [4 : 3] H.264: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps

JPEG: 1,280 x 960 / VGA (640 x 480) /QVGA (320 x 240), up to 30 fps

WV-SF132:

H.264: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps

JPEG: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps

Aspect ratio: WV-SF135:

[16 : 9] H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps

JPEG: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps

WV-SF132:

H.264: 640 x 360 / 320 x 180, up to 30 fps

JPEG: 640 x 360 / 320 x 180, up to 30 fps

Frame Rate 1 / 3 / 5 / 7.5 / 10 / 15 / 20 / 30 fps 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps

Bit Rate/

Client

64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /

4,096 / 8,192* kbps *H.264 mode only (WV-SF135)

Image Quality LOW / NORMAL / FINE

Transmission UNICAST / MULTICAST

Type

Quality

0 SUPER FINE / 1 FINE / 2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9

LOW (10 steps: 0-9)

Refresh Interval 0.1 fps ~ 30 fps

Transmission PULL / PUSH

Type

DISTRIBUTED BY:

TV System

Network Total Bit Rate

Supported Protocol

NTSC PAL

64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited

Pv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6

IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,

FTP Client

FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP

Alarm image transmission, FTP periodic transmission

No. of Simultaneous Users Up to 14 users (Depends on network conditions)

Alarm

Cellular Phone Compatibility JPEG image, AUX control (by access level)

Mobile Terminal Compatibility iPad, iPhone, iPod touch

Alarm Source

Alarm Actions

VMD, Command alarm

E-mail notiﬁcation,Indication on browser, FTP image transfer,

Alarm Log

Panasonic protocol output

1,000 logs

Schedule VMD

General Safety/EMC Standard UL (UL60950-1), FCC (Part15 ClassA), CE, IEC60950-1

C-UL (CAN/CSA C22.2 No.60950-1), (EN55022 ClassB, EN55024)

DOC (ICES003 ClassA)

Power Source and

Power Consumption

PoE (IEEE802.3af compliant)

WV-SF135: PoE 48 V: 54 mA (Class1 device)

WV-SF132: PoE 48 V: 46 mA (Class1 device)

Ambient Operating Temperature 0 °C ~ +40 °C (32 °F ~ 104 °F)

Ambient Operating Humidity Less than 90 % (no condensation)

Dimensions

Mass (approx.)

Finish

ø100 mm x 47 mm (H) (ø3-15/16" x 1-27/32" (H))

200 g (0.44 lbs.)

Main Body: ABS resin, Sail White

Dome Section: Clear Polycarbonate Resin

*1 Transmission for 2 streams can be individually set in the same compression method.

*2 Refer to "Notes on Windows Vista

Windows ®

Microsoft ®

8 or Microsoft ®

Windows Vista ® .

® / Windows

Windows

® 7 / Windows

® 7 or Microsoft

*3 When using IPv6 for communication, use Microsoft

® 8" on the provided CD-ROM for

further information about system requirements for a PC and precautions when using Microsoft ®

Windows Vista

® Windows

® .

® 8 or Microsoft ® Windows ® 7 or

Part Names and Functions

Front View Rear View

Appearance

ø100

(3-15/16")

Enclosure

Dome Cover

Lens

Access Indicator (lit when accessing)

Link Indicator (lit when linking)

Initial Set Button

Network Connector

* These illustrations are WV-SF135.

Unit: mm (inches)

Trademarks and registered trademarks

– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

– iPad, iPhone and iPod touch are registered trademarks of Apple Inc.

– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.

– UniPhier is a registered trademark of Panasonic Corporation.

–"i-PRO SmartHD" logo is trademarks or registered trademarks of Panasonic Corporation.

Important

– Safety Precaution: Carefully read the operating instructions and installation manual before using this product.

– Panasonic cannot be responsible for the performance of the network and/or other manufacturers'

products used on the network.

• All TV pictures are simulated.

• Masses and dimensions are approximate.

• Speciﬁcations are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

http://security.panasonic.com

http://www.facebook.com/PanasonicNetworkCamera

Printed in Japan (2A-078CL)

HD Fixed Dome Network Camera

WV-SF335

HD/1,280 x 960 H.264 Fixed Dome Network Camera

Key Features

• 720p HD images up to 30 fps

• Newly developed 1.3 Megapixel high sensitivity MOS Sensor

• Multiple H.264 (High proﬁle) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by

“UniPhier ® ”, Panasonic’s proprietary System LSI platform.

• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size

• Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range compared with conventional cameras.

• Face Wide Dynamic Range technology ensures clear face image.

• H.264 and MPEG-4 are selectable for system migration.

• High sensitivity with Simple Day/Night function: 0.3 lx (Color), 0.2 lx

(B/W) at F1.3 (Wide)

• Focus Assist ensures easy installation.

• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.

• Progressive scan ensures clear images with less motion blur and no

tearing even when the subject is moving.

• Superior color reproduction by primary (RGB) color ﬁlter

• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF

• Selectable light control modes: Outdoor / Indoor / Fixed electronic shutter

Outdoor / Indoor: Electronic shutter and ALC lens iris control are

automatically controlled depending on the mode and luminance level.

Fixed electronic shutter: Up to 1/10,000 ﬁxed electronic shutter can be selectable.

• VMD (Video Motion Detector) with 4 programmable detection areas,

15 steps sensitivity level and 10 steps detection size

• Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

• 2x extra zoom at VGA resolution

• 2x, 4x digital zoom controlled by browser

• Camera title display: Up to 20 alphanumeric characters on the browser, Up to 20 alphanumeric characters embedded in the image

• Alarm sources including 1 terminal input, VMD and Panasonic alarm command can trigger actions such as SDHC/SD memory recording, FTP image transfer, E-mail notiﬁcation,

Indication on browser, Alarm terminal output, and Panasonic protocol output.

• Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.

• JPEG image compression ratio can be changed by alarm so that higher quality image can be provided.

• SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)

• Alarm log, Manual REC log, FTP error log saved in the SDHC/SD memory card is displayed on the browser GUI and can be downloaded to the client

PC. Playback or Image data download through the log is also available.

• Internet mode: H.264/MPEG-4 images can be transmitted over HTTP protocol.

• Multi-language: English / Italian / French / German / Spanish /

Russian / Chinese / Japanese

• IPv4/IPv6 protocol supported

• Supports DDNS (viewnetcam, RFC2136)

• Still images (JPEG) can be viewed on mobile phones via Internet.

• Analog Monitor output for easier installation

• 2.8 mm ~ 10 mm, 3.6x Varifocal Auto Iris lens

• ONVIF compliant model

• Fog compensation

Standard Accessories

• Installation Guide ......................... 1 pc.

• CD-ROM*

.................................... 1 pc.

• Code Label* 2 ................................ 1 pc.

The followings are for installation.

• Power Cord Plug .......................... 1 pc.

• External I/O Terminal Plug ............ 1 pc.

Optional Accessories

Embedded Ceiling

Mount Bracket

(Sail white)

WV-Q174

Embedded Ceiling

Mount Bracket

(AV-light gray)

WV-Q168

* Different from the

color of the camera.

• Installation Template Label .......... 1 pc.

• Cable Tie .............. 2 pcs. (incl. 1 spare)

*1 The CD-ROM contains the operating instructions

(PDFs) and different kinds of tool software programs.

*2 This label may be required for network management.

The network administrator shall retain the code label.

Smoke Dome Cover

WV-CF5S

Ceiling Mount Bracket

WV-Q105

Specifications

TV System

Camera Image Sensor

Effective Pixels

Scanning Mode

NTSC

1/3 type MOS Sensor

Approx. 1.3 megapixel

Progressive scan

PAL

Scanning Area

Minimum Illumination

4.8 mm (H) x 3.6 mm (V) {3/16 inches (H) x 5/32 inches (V)}

Color: 0.3 lx, B/W: 0.2 lx at F1.3 (Shutter: 1/30 s, AGC: High),

Color: 0.019 lx, B/W: 0.013 lx at F1.3 (Shutter: 16/30 s, AGC: High)

White Balance

Light Control Mode

AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)

Outdoor: Automatic integration of ALC and ELC

Indoor [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s)

Indoor [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s)

Shutter Speed Fix shutter: OFF (1/30), 3/100, 3/120, 2/100, 2/120, 1/100,

1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000

Wide Dynamic Range ON / OFF

Face Wide Dynamic Range ON / OFF (Only at Wide Dynamic Range: ON)

Adaptive Black Stretch ON / OFF (Only at Wide Dynamic Range: OFF)

AGC ON (LOW, MID, HIGH) / OFF

Electronic Sensitivity UP OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))

Simple Day/Night Mode AUTO / OFF

Digital Noise Reduction High / Low

Video Motion Detection 4 areas, Sensitivity: 15 steps, Detection size: 10 steps

Lens

Privacy Zone

VIQS

Camera Title (OSD)

Up to 2 zones, Gray

ON / OFF

Up to 20 alphanumeric characters

Focus Adjustment

Vari Focal Length

Focus Assist

2.8 mm ~ 10 mm, 3.6x varifocal

Angular Field of View H: 27.7° (Tele) ~ 100.3° (Wide), V: 20.8° (Tele) ~ 73.5° (Wide)

Maximum Aperture Ratio 1 : 1.3 (Wide) ~ 1 : 3.1 (Tele)

Focusing Range 0.3 m ~ ∞

Adjusting Angle

GUI

Browser Camera Control

Display Mode

Horizontal: 180° (clockwise), 170° (counterclockwise)

Vertical: ±75°, Imaging tilt adjustment range: ±100°

Brightness, AUX ON / OFF

Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad

screens or 16 split screen (JPEG only). 20 characters camera title available.

Digital Zoom

Camera Title

Clock Display

1x, 2x, 4x controlled by browser GUI

Up to 20 alphanumeric characters

Time: 12H/24H, Date: 5 formats on the browser, Summer time (Auto / Manual)

Alarm Control

One Shot Capture

Reset

A still picture will be displayed on a newly opened window.

Audio Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,

Audio Output: ON / OFF Volume adjustment: Low / Middle / High

SD Memory Data Download Still or motion Images recorded in the SDHC/SD memory card can be downloaded.

GUI/Setup Menu Language English, Italian, French, German, Spanish, Russian, Chinese, Japanese

System Log

Supported OS

Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG.) error logs

Microsoft ® Windows ® 8,Microsoft ® Windows ® 7,

Supported Browser

Microsoft ® Windows Vista ® ,

Microsoft ® Windows ® XP SP3

Windows ® Internet Explorer ® 10.0 (32 bit),

Windows

® Internet Explorer

Internet Explorer

® Internet Explorer

® 9.0 (32 bit),

8.0 (32 bit),

® 7.0 (32 bit),

Network Network IF


Microsoft ® Internet Explorer ® 6.0 SP3

10Base-T / 100Base-TX, RJ-45 connector

Aspect ratio: H.264: 1,280 × 960 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

Resolution [4 : 3] MPEG-4: VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

*1 *2 JPEG: 1,280 × 960 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

Aspect ratio: H.264: 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps

H.264/

[16 : 9] JPEG: 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps

Transmission Constant bitrate / Framerate priority / Best effort / Advanced VBR

MPEG-4 Mode

Frame Rate 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps

Bit Rate/ 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /

Client 4,096 / 8,096* kbps / Unlimited * H.264 mode only

Image Quality LOW / NORMAL / FINE

Refresh Interval 0.2 s / 0.25 s / 0.33 s / 0.5 s / 1 s / 2 s / 3 s / 4 s / 5 s

Transmission Type UNICAST / MULTICAST

JPEG Image Quality 10 steps

Transmission Type PULL / PUSH

Audio Compression G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps

Audio Mode OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Authentication for Audio Level 1 only / Level 2 higher / All users

Total Bit Rate

Supported Protocol

FTP Client

64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited

IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP,

SNMP, DHCPv6, ICMPv6

IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP,

DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP

Alarm image transfer, Periodic image transfer, Active/Passive selectable (When the FTP periodic transmission is failed, backup on an optional SDHC/SD memory card is available.)

No. of Simultaneous Users Up to 14 users (Depends on network conditions)

TV System NTSC PAL

Network SDHC/SD Memory Card H.264 recording: Manual REC / Alarm REC (Pre/Post)

(Option) JPEG recording: Manual REC / Alarm REC (Post) / Backup upon

network failure Compatible SD (SDHC) card: Panasonic 256 MB,

512 MB, 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB* model * SDHC card

Cellular Phone Compatibility JPEG image

Mobile Terminal Compatibility

iPad, iPhone, iPod touch (iOS 4.2.1 or later) , Android

mobile terminals

Alarm Alarm Source 1 terminal input, VMD, Command alarm

Input/

Output

Alarm Actions

Alarm Log

Schedule

Monitor Output

(for adjustment)

SDHC/SD memory recording, E-mail notiﬁcation, Alarm terminal output,

Indication on browser, FTP image transfer, Panasonic protocol output

With SDHC/SD memory card: 5,000 logs, without SDHC/SD memory card: 1,000 logs

Alarm / VMD / Access permission / H.264 recording

1.0 V [p-p] / 75 Ω, 1.0 V [p-p] / 75 Ω,

NTSC composite, RCA Jack PAL composite, RCA Jack

Microphone/Line Input MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack

Audio Output

(monaural input) (Applicable microphone; Plug-in power type)

Supply voltage: 2.5 V ±0.5 V input impedance: approx. 2 kΩ

ø3.5 mm stereo mini jack (monaural output) Line level

External I/O Terminals ALARM IN, ALARM OUT, AUX OUT

General Safety/EMC Standard UL (UL60065), FCC (Part15 ClassA), CE (EN55022 ClassB, EN55024)

C-UL (CAN/CSA C22.2 No.60065),

Power Source and

DOC (ICES003 ClassA)

12 V DC: 280 mA, PoE (IEEE 802.3af): 3.5 W (Class 2 device)

Power Consumption

Ambient Operating -10 °C ~ +50 °C (14 °F ~ 122 °F),

Temperature/Humidity Less than 90 % (no condensation)

Dimensions ø129.5 mm x 93 mm (H) {ø5-3/32 inches x 3-21/32 inches(H)}

Mass (approx.) 370 g (0.82 lbs.)

*1 H.264 and MPEG-4 are alternative.

*2 [4 : 3] and [16 : 9] are alternative.

*3 For further information about compatible devices, refer to our website

(http://security.panasonic.com/pss/security/support/info.html).

Part Names and Functions

3.6x Variable Focal Lens

Monitor Out Connector for Adjustment

Panning Table Lock Screw

12 V DC Power Cable Terminals

Focus Assist Button

SDHC/SD Memory Card Error Indicator

/ Focus Assist Indicator

Link Indicator

Access Indicator

SDHC/SD Memory Card Slot

INITIAL SET Button

Audio Output Connector

Microphone/Line Input Connector

Network Connector (RJ-45)

External I/O Terminals

* Due to space limitation, the connector of the audio cable and network cable

should be within 30 mm (1-3/16") from the connector of the camera.

Appearance

(46)

(1-13/16")

0.5(1/32") 93(3-21/32")

4-ø4.7(3/16")

48(1-7/8")

Unit: mm (inches)

Trademarks and registered trademarks

– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

– iPad, iPhone and iPod touch are registered trademarks of Apple Inc.

– UniPhier is a registered trademark of Panasonic Corporation.

– "i-PRO SmartHD" logo is trademarks or registered trademarks of Panasonic Corporation.

– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.

Important

– Safety Precaution: Carefully read the operating instructions and installation manual before using this product.

– Panasonic cannot be responsible for the performance of the network and/or other manufacturers'

products used on the network.

• All TV pictures are simulated.

• Masses and dimensions are approximate.

• Speciﬁcations are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

DISTRIBUTED BY: http://security.panasonic.com

http://www.facebook.com/PanasonicNetworkCamera

Printed in Japan (2A-061JL)

HD Fixed Dome Network Camera

WV-SF336

HD/1,280 x 960 H.264 Fixed Dome Network Camera with ABF

(Auto Back Focus)

Key Features

• 720p HD images up to 30 fps

• Newly developed 1.3 Megapixel high sensitivity MOS Sensor

• Multiple H.264 (High proﬁle) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by

“UniPhier ® ”, Panasonic’s proprietary System LSI platform.

• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size

• Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range compared with conventional cameras.

• Face Wide Dynamic Range technology ensures clear face image.

• H.264 and MPEG-4 are selectable for system migration.

• High sensitivity with Simple Day/Night function: 0.3 lx (Color), 0.2 lx

(B/W) at F1.3 (Wide)

• ABF (Auto Back Focus) ensures easy installation.

• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.

• Progressive scan ensures clear images with less motion blur and no

tearing even when the subject is moving.

• Superior color reproduction by primary (RGB) color ﬁlter

• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF

• Selectable light control modes: Outdoor / Indoor / Fixed electronic shutter

Outdoor / Indoor: Electronic shutter and ALC lens iris control are

automatically controlled depending on the mode and luminance level.

Fixed electronic shutter: Up to 1/10,000 ﬁxed electronic shutter can be selectable.

• VMD (Video Motion Detector) with 4 programmable detection areas,

15 steps sensitivity level and 10 steps detection size

• Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

• 2x extra zoom at VGA resolution

• 2x, 4x digital zoom controlled by browser

• Camera title display: Up to 20 alphanumeric characters on the browser, Up to 20 alphanumeric characters embedded in the image

• Alarm sources including 1 terminal input, VMD and Panasonic alarm command can trigger actions such as SDHC/SD memory recording, FTP image transfer, E-mail notiﬁcation, Indication on browser, Alarm terminal output, and Panasonic protocol output.

• Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.

• JPEG image compression ratio can be changed by alarm so that higher quality image can be provided.

• SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)

• Alarm log, Manual REC log, FTP error log saved in the SDHC/SD memory card is displayed on the browser GUI and can be downloaded to the client

PC. Playback or Image data download through the log is also available.

• Internet mode: H.264/MPEG-4 images can be transmitted over HTTP protocol.

• Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese

• IPv4/IPv6 protocol supported

• Supports DDNS (viewnetcam, RFC2136)

• Still images (JPEG) can be viewed on mobile phones via Internet.

• Analog Monitor output for easier installation

• 2.8 mm ~ 10 mm, 3.6x Varifocal Auto Iris lens

• ONVIF compliant model

• Fog compensation

Standard Accessories

• Installation Guide ......................... 1 pc.

• CD-ROM*

.................................... 1 pc.

• Code Label* 2 ................................ 1 pc.

The followings are for installation.

• Power Cord Plug .......................... 1 pc.

• External I/O Terminal Plug ............ 1 pc.

Optional Accessories

Embedded Ceiling

Mount Bracket

(Sail white)

WV-Q174

Embedded Ceiling

Mount Bracket

(AV-light gray)

WV-Q168

* Different from the

color of the camera.

• Installation Template Label .......... 1 pc.

• Cable Tie .............. 2 pcs. (incl. 1 spare)

*1 The CD-ROM contains the operating instructions

(PDFs) and different kinds of tool software programs.

*2 This label may be required for network management.

The network administrator shall retain the code label.

Smoke Dome Cover

WV-CF5S

Ceiling Mount Bracket

WV-Q105

Specifications

TV System

Camera Image Sensor

Effective Pixels

Scanning Mode

NTSC

1/3 type MOS Sensor

Approx. 1.3 megapixel

Progressive scan

PAL

Scanning Area

Minimum Illumination

4.8 mm (H) x 3.6 mm (V) {3/16 inches (H) x 5/32 inches (V)}

Color: 0.3 lx, B/W: 0.2 lx at F1.3 (Shutter: 1/30 s, AGC: High),

Color: 0.019 lx, B/W: 0.013 lx at F1.3 (Shutter: 16/30 s, AGC: High)

White Balance

Light Control Mode

AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)

Outdoor: Automatic integration of ALC and ELC

Indoor [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s)

Indoor [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s)

Shutter Speed Fix shutter: OFF (1/30), 3/100, 3/120, 2/100, 2/120, 1/100,

1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000

Wide Dynamic Range ON / OFF

Face Wide Dynamic Range ON / OFF (Only at Wide Dynamic Range: ON)

Adaptive Black Stretch ON / OFF (Only at Wide Dynamic Range: OFF)

AGC ON (LOW, MID, HIGH) / OFF

Electronic Sensitivity UP OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))

Simple Day/Night Mode AUTO / OFF

Digital Noise Reduction High / Low

Video Motion Detection 4 areas, Sensitivity: 15 steps, Detection size: 10 steps

Lens

Privacy Zone

VIQS

Camera Title (OSD)

Up to 2 zones, Gray

ON / OFF

Up to 20 alphanumeric characters

Back Focus Adjustment ABF/MANUAL

Vari Focal Length 2.8 mm ~ 10 mm, 3.6x varifocal

Angular Field of View H: 27.7° (Tele) ~ 100.3° (Wide), V: 20.8° (Tele) ~ 73.5° (Wide)

Maximum Aperture Ratio 1 : 1.3 (Wide) ~ 1 : 3.1 (Tele)

Focusing Range 0.3 m ~ ∞

Adjusting Angle

GUI

Browser Camera Control

Display Mode

Horizontal: 180° (clockwise), 170° (counterclockwise)

Vertical: ±75°, Imaging tilt adjustment range: ±100°

Brightness, AUX ON / OFF

Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad

screens or 16 split screen (JPEG only). 20 characters camera title available.

Digital Zoom

Camera Title

Clock Display

1x, 2x, 4x controlled by browser GUI

Up to 20 alphanumeric characters

Time: 12H/24H, Date: 5 formats on the browser, Summer time (Auto / Manual)

Alarm Control

One Shot Capture

Reset

A still picture will be displayed on a newly opened window.

Audio Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,

Audio Output: ON / OFF Volume adjustment: Low / Middle / High

SD Memory Data Download Still or motion Images recorded in the SDHC/SD memory

GUI/Setup Menu Language English, Italian, French, German, Spanish, Russian, Chinese, Japanese

System Log

Supported OS card can be downloaded.

Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG.) error logs

Microsoft ® Windows ® 8,Microsoft ®

Microsoft ® Windows Vista ® ,

Microsoft ® Windows ® XP SP3

Windows ® 7,

Supported Browser Windows ® Internet Explorer ® 10.0 (32 bit),

Windows

® Internet Explorer

Internet Explorer

® Internet Explorer

® 9.0 (32 bit),

8.0 (32 bit),

® 7.0 (32 bit),

Microsoft ® Internet Explorer ® 6.0 SP3

Network Network IF


10Base-T / 100Base-TX, RJ-45 connector

Aspect ratio: H.264: 1,280 × 960 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

Resolution [4 : 3] MPEG-4: VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

*1 *2 JPEG: 1,280 × 960 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

Aspect ratio: H.264: 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps

[16 : 9] JPEG: 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps

MPEG-4 Mode

Frame Rate 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps

Bit Rate/ 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /

Client 4,096 / 8,096* kbps / Unlimited * H.264 mode only

Image Quality LOW / NORMAL / FINE

Refresh Interval 0.2 s / 0.25 s / 0.33 s / 0.5 s / 1 s / 2 s / 3 s / 4 s / 5 s

Transmission Type UNICAST / MULTICAST

JPEG Image Quality 10 steps

Transmission Type PULL / PUSH

Audio Compression G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps

Audio Mode OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Authentication for Audio Level 1 only / Level 2 higher / All users

Total Bit Rate

Supported Protocol

FTP Client

64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited

IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP,

SNMP, DHCPv6, ICMPv6

IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP,

DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP

Alarm image transfer, Periodic image transfer, Active/Passive selectable (When the FTP periodic transmission is failed, backup on an optional SDHC/SD memory card is available.)

No. of Simultaneous Users Up to 14 users (Depends on network conditions)

TV System NTSC PAL

Network SDHC/SD Memory Card H.264 recording: Manual REC / Alarm REC (Pre/Post)

(Option) JPEG recording: Manual REC / Alarm REC (Post) / Backup upon

network failure Compatible SD (SDHC) card: Panasonic 256 MB,

512 MB, 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB* model * SDHC card

Cellular Phone Compatibility JPEG image

Mobile Terminal Compatibility

iPad, iPhone, iPod touch (iOS 4.2.1 or later) , Android

mobile terminals

Alarm Alarm Source

Alarm Actions

1 terminal input, VMD, Command alarm

SDHC/SD memory recording, E-mail notiﬁcation, Alarm terminal output,

Input/

Output

Alarm Log

Schedule

Monitor Output

(for adjustment)

Indication on browser, FTP image transfer, Panasonic protocol output

With SDHC/SD memory card: 5,000 logs, without SDHC/SD memory card: 1,000 logs

Alarm / VMD / Access permission / H.264 recording

1.0 V [p-p] / 75 Ω, 1.0 V [p-p] / 75 Ω,

NTSC composite, RCA Jack PAL composite, RCA Jack

Microphone/Line Input MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack

(monaural input) (Applicable microphone; Plug-in power type)

Supply voltage: 2.5 V ±0.5 V input impedance: approx. 2 kΩ

Audio Output ø3.5 mm stereo mini jack (monaural output) Line level

External I/O Terminals ALARM IN, ALARM OUT, AUX OUT

General Safety/EMC Standard UL (UL60065), FCC (Part15 ClassA), CE (EN55022 ClassB, EN55024)

C-UL (CAN/CSA C22.2 No.60065),

Power Source and

Power Consumption

DOC (ICES003 ClassA)

12 V DC: 320 mA, PoE (IEEE 802.3af): 4.2 W (Class 2 device)

Ambient Operating -10 °C ~ +50 °C (14 °F ~ 122 °F),

Temperature/Humidity Less than 90 % (no condensation)

Dimensions

Mass (approx.)

ø129.5 mm x 93 mm (H) {ø5-3/32 inches x 3-21/32 inches(H)}

410 g (0.91 lbs.)

*1 H.264 and MPEG-4 are alternative.

*2 [4 : 3] and [16 : 9] are alternative.

*3 For further information about compatible devices, refer to our website

(http://security.panasonic.com/pss/security/support/info.html).

Part Names and Functions

3.6x Variable Focal Lens

Monitor Out Connector for Adjustment

Panning Table Lock Screw

12 V DC Power Cable Terminals

ABF Button

SDHC/SD Memory Card Error Indicator

/ ABF Indicator

Link Indicator

Access Indicator

SDHC/SD Memory Card Slot

INITIAL SET Button

Audio Output Connector

Microphone/Line Input Connector

Network Connector (RJ-45)

External I/O Terminals

* Due to space limitation, the connector of the audio cable and network cable

should be within 30 mm (1-3/16") from the connector of the camera.

Appearance

(46)

(1-13/16")

0.5(1/32") 93(3-21/32")

48(1-7/8")

4-ø4.7(3/16")

Unit: mm (inches)

Trademarks and registered trademarks

– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

– iPad, iPhone and iPod touch are registered trademarks of Apple Inc.

– UniPhier is a registered trademark of Panasonic Corporation.

– "i-PRO SmartHD" logo is trademarks or registered trademarks of Panasonic Corporation.

– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.

Important

– Safety Precaution: Carefully read the operating instructions and installation manual before using this product.

– Panasonic cannot be responsible for the performance of the network and/or other manufacturers'

products used on the network.

• All TV pictures are simulated.

• Masses and dimensions are approximate.

• Speciﬁcations are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

DISTRIBUTED BY: http://security.panasonic.com

http://www.facebook.com/PanasonicNetworkCamera

Printed in Japan (2A-060JL)

Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

User manual | Matrix System650

Matrix System 650 uses simple components to give you fully integrated control of up to 256 cameras and 32 monitors.

Matrix System 650 from Panasonic is the new, easier way to configure mid-sized to large surveillance systems. This remarkable new system makes it simple to fully integrate up to 256 cameras, 32 monitors, and 60 registered users.* Adding WJ-HD300A Series

Digital Disk Recorders delivers the high image quality and high storage capacity that state-of-the-art surveillance requires.

Matrix System 650’s simple, flexible architecture makes it ideal for a wide range of applications including shopping malls, multipurpose complexes, office buildings and banks.

Major Features and Functions

Supports up to 256 cameras (using 8 Video Input Boards).

All 256 channels are coaxial, multiplex cables, reducing the number of cables required and simplifying installation.

Supports up to 256 RS-485, remote-controlled cameras.

Pan, tilt and other lens motions can be controlled either by multiplex data over coaxial cable or RS-485 remote-control signals.

Cables can be up to 900 m (3,000 feet) long (RG59/U coaxial cable, Belden 9259 or equivalent).

The maximum size (256 camera x 32 monitor) system requires four WJ-SX650/SX650U units.

Set up is simple with the Video Input and Video Output Boards, each composed of a front-access Main Board and rear-access Rear Boards.

Front access for Main Board and Power Supply maintenance.

Rich array of sequence, alarm, and scheduling features meets every surveillance need.

Supports up to 1,024 alarm inputs (Terminal/Camera/Recorder/Serial/Video Loss) and up to 64 alarm outputs (and also 1,024 Serial Alarm Out).

Storage for up to 10,000 alarms, with alarm histories downloadable to PC to facilitate management.

The Set-up Menu and WJ-SX650 Series Administrator Console make set up easy.

Fine tune management of up to 60 users* with individual level and priority settings.

Output support for up to 32 monitors (using 2 Video Output Boards).

Character displays show date, time, camera number, camera title and event information.

Set-up menus are available in seven languages: English, French, Spanish, German, Italian, Russian, and Japanese.

Alarm history display shows up to most recent 1,000 alarms.

Supports connection of up to 16 WJ-HD300A Series recorders (using 2 Video Output Boards).

Use of WJ-HD300A Series network features allows remote surveillance from a PC.

Supports simultaneous use of up to 16 WV-CU650 System Controllers + personal computer (PC).

Supports use of PS

Data (With DATA1 port set to PS

Data).

Sequence

Camera

WJ-SX650 Series Administrator Console

Main Menu

Schedule

MAJOR FUNCTIONS

A Rich Array of Features for More Reliable and Efficient Surveillance

Three Sequencing Features for More Efficient Monitoring

These features allow you to determine the sequence in which you seem images from multiple cameras. System Controller buttons make monitoring more efficient by enabling instant selection of the pattern of your choice.

Tour Sequence

Automatically switches camera images in preset sequences on the monitor you select. You can preset up to 32 patterns with as many as

64 steps per pattern.

Group Sequence

Automatically switches camera images in preset sequences on up to 16 pre-selected monitors at once. You can preset up to 8 patterns with as many as 32 steps per pattern.

Group Preset

Allows instant spot display of selected camera images on up to 16 preselected monitors at once. You can preset up to 24 patterns.

Up to 1,024 Alarm Events Ensure That You Capture Vital Scenes

Preset camera positions, sequences and recording can be automatically activated by all types of alarm signals (Terminal, Camera,

Recorder, Serial, Video Loss). Register up to 1,024 Alarm Events.

Used to schedule pre-registered alarm events (ON/OFF, daily, weekly, monthly).

Alarm events can be displayed in Spot, Tour Sequence,

Group Sequence or Group preset modes.

Choose any of three ways to display multiple alarm event images in Spot display mode.

Matrix System 650 can store up to 10,000 alarm events.

Alarm histories can downloaded to a PC for analysis and management. The latest 1,000 alarm events can be viewed from a surveillance monitor.

Schedules for Simple, Certain Operation

Monitors and cameras can be automatically activated at preset dates and times using Daily, Weekly, and Monthly modes.

Timer Events

Spot, Tour Sequence and Group Sequence/Group Preset features can be automatically activated on designated monitors, following preset schedules. Up to 128 timer events can be registered and assigned priorities.

Camera Events

Designated cameras can be set for automatic tracking*, B/W switching and scene switching [PATROL(S)]*, and cleaning, following preset schedules. Up to 128 camera events can be registered.

The Camera You Need to Take Full Advantage of Camera Events

All 256 channels with multiplex data over coaxial cables

To simplify installation and for smoother system expansion, video signals, control data, synchronous signals (VD2) and alarm signals are all transmitted over the same coaxial cable.

Cables can be up to 900 m (3,000 feet) long (RG59/U coaxial cable, Belden 9259 or equivalent).

Preventing unauthorized access

Up to 60 users* can be registered with individual user IDs and passwords. Security can be fine-tuned with individual level, priority and camera/recorder display and operation restrictions, to guard against unauthorized access and unauthorized changes in settings.

High image quality and high capacity storage

When connected to the Panasonic WJ-HD300A Series Digital

Disk Recorder, Matrix System 650 can be used to construct surveillance systems that offer both high image quality and high capacity image storage. WJ-HD300A Series Digital Disk

Recorders can be operated seamlessly from Matrix System

650’s WV-CU650 System Controller, to support multi-screen live monitoring and high-speed Filtered Search. These digital disk recorders’ networking features also allow remote control from a PC.

Rich array of display options

Use of a newly developed LSI allows you to choose from any of seven languages (English, French, Spanish, German,

Italian, Russian, or Japanese) when setting up a system.

When monitoring date and time, camera title, monitor status, and event information can all be displayed. Camera titles can include roman alphabet, special alphabet

(German or Russian), numbers, symbols, and

Chinese and Japanese characters (approx. 1,000).

PRODUCT CONFIGURATION

Front View

Rear View

Designated cameras can be set for automatic tracking, B/W switching and scene switching [PATROL(S)], and cleaning, following preset schedules. Up to 128 camera events can be registered.

**Compact Day/Night Fixed Camera featuring Super Dynamic 6 technology**

**Super Dynamic III Weather Resistant Fixed Camera with**
