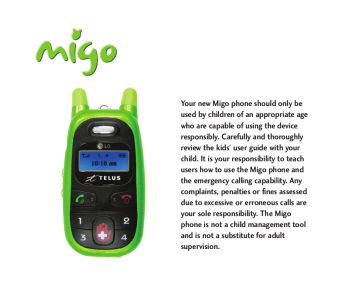

Your new Migo phone should only be
used by children of an appropriate age
who are capable of using the device
responsibly. Carefully and thoroughly
review the kids' user guide with your
child. It is your responsibility to teach
users how to use the Migo phone and
the emergency calling capability. Any
complaints, penalties or fines assessed
due to excessive or erroneous calls are
your sole responsibility. The Migo
phone is not a child management tool
and is not a substitute for adult
supervision.
IMPORTANT SAFETY PRECAUTIONS
WARNING! Violation of the instructions may cause serious injury or death.
1. Never use an unapproved battery since this could damage the phone and/or battery and could
cause the battery to explode.
2. Never place your phone in a microwave oven as it will cause the battery to explode.
3. Never store your phone in temperatures less than -4°F or greater than 122°F.
4. Do not dispose of your battery by fire or with hazardous or flammable materials.
I M P O RTA N T SA F E T Y P R E C AU T I O N S
Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is
given in this user guide.
5. When riding in a car, do not leave your phone or set up the hands-free kit near to the air bag. If
wireless equipment is improperly installed and the air bag is deployed, you may be seriously
injured.
6. Do not use a hand-held phone while driving.
7. Do not use the phone in areas where its use is prohibited. (For example: aircraft)
3
IMPORTANT SAFETY PRECAUTIONS
I M P O RTA N T SA F E T Y P R E C AU T I O N S
1. Do not expose the battery charger or adapter to direct sunlight or use it in places with high
humidity, such as a bathroom.
2. Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your
phone. This could cause a fire.
3. Do not drop, strike, or shake your phone severely. It may harm the internal circuit boards of the
phone.
4. Do not use your phone in high explosive areas as the phone may generate sparks.
5. Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug if it
is loose as it may cause a fire or electric shock.
6. Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as
it may cause electric shock or fire.
7. Do not handle the phone with wet hands while it is being charged. It may cause an electric shock
or seriously damage your phone.
8. Do not disassemble the phone.
4
2. Do not hold or let the antenna come in contact with your body during a call.
3. Make sure that no sharp-edged items such as animal’s teeth or nails, come into contact with the
battery. This could cause a fire.
4. Store the battery out of reach of children.
5. Be careful that children do not swallow any parts. This could cause asphxiation or suffocation
resulting in serious injury or death.
6. Unplug the power cord and charger during lightning storms to avoid electric shock or fire.
I M P O RTA N T SA F E T Y P R E C AU T I O N S
1. Do not place or answer calls while charging the phone as it may short-circuit the phone and/or
cause electric shock or fire.
7. Only use the batteries and chargers provided by LG. The warranty will not be applied to products
provided by other suppliers.
8. Only authorized personnel should service the phone and its accessories. Faulty installation or
service may result in accidents and consequently invalidate the warranty.
9. An emergency call can be made only within a service area. For an emergency call, make sure that
you are within a service area and that the phone is turned on.
5
TABLE OF CONTENTS
TA B L E O F C O N T E N T S
IMPORTANT SAFETY
PRECAUTIONS
3
Using Phone Menus
15
Helping Your Child Use Migo 19
Table of Contents
6
Entering Menu
15
Safety
1 Set Ringtone
15
Welcome
7
2 Set Caller ID
15
Important Information
7
TIA(Telecommunications
Industry Association) Safety
Information
20
3 Phonebook
16
Industry Canada Compliance
7
Multi-tap Method
16
Technical Details
8
4 Language
18
FCC RF Exposure Information
9
+ Emergency #
18
11
Making Calls
Getting Started with Your
Phone
12
The Battery
Charging the Battery
Charger and Adapter Safety 23
Battery Information and Care 23
Safety Information
24
18
Avoid damage to your
hearing
26
Emergency Calls
19
FDA Consumer Update
26
Receiving Calls
19
12
Incoming Calls
19
Consumer Information on
SAR
33
12
Missed Calls
19
ACCESSORIES
35
Turning the Phone On and Off
13
Using Speakerphone
19
Signal Strength
13
LIMITED WARRANTY
STATEMENT
36
Phone Overview
Some of contents in this user guide maybe different from your phone
depending on the software of the phone or your service provider. Features
and specifications might be subject to change without prior notice.
6
20
WELCOME
Thank you for choosing Migo specially designed for
kids.
Migo has the following features:
Important Information
Kid-Friendly Design.
Simplified Keypad and Interface.
4 Programmable Speed Dial Keys.
Dedicated Emergency Button.
Cute, Compact Design to Fit Small Hands.
Unique, Bright Green Color.
Ultra Lightweight.
Simplified Keypad with Large Keys.
Easy-to-Use User Interface.
Blue Backlit LCD for Caller ID and Missed Calls.
This device and its accessories comply with part 15
of FCC rules. Operation is subject to the following
two conditions: (1) This device and its accessories
may not cause harmful interference, and (2) this
device and its accessories must accept any
interference received, including interference that
causes undesired operation.
2 Small Antennas.
Industry Canada Compliance
Side Volume Control Keys.
Headset Jack.
This phone complies with Industry Canada RSS 133.
This phone complies with the Class B limits for radio
noise emissions as set out in the interference causing
standard entitled "Digital Apparatus" ICES-003 of
Industry Canada.
W E LC O M E
This user’s guide provides important information on
the use and operation of your phone. Please read all
the information carefully prior to using the phone for
the best performance and to prevent any damage to
or misuse of the phone. Any unapproved changes or
modifications will void your warranty.
FCC Part 15 Class B Compliance
7
TECHNICAL DETAILS
Technical Details
T E C H N I C A L D E TA I L S
8
The Migo is an all digital phone that operates on
both Code Division Multiple Access (CDMA)
frequencies: cellular services at 800 Mhz and
Personal Communication Services (PCS) at 1.9 Ghz.
CDMA technology uses a feature called DSSS
(Direct Sequence Spread Spectrum) that enables the
phone to keep communication from being crossed
and to use one frequency channel by multiple users
in the same specific area. This results in a 10-fold
capacity increase when compared with analog mode.
In addition, features such as soft / softer handoff,
hard Handoff, and dynamic RF power control
technologies combine to reduce call interruptions.
The Cellular and PCS CDMA networks consist of
MSO (Mobile Switching Office), BSC (Base Station
Controller), BTS (Base station Transmission System),
and MS (Mobile Station).
* TSB -74: Protocol between an IS-95A system and
ANSI J-STD-008
1xRTT system receives twice as many subscribers in
the wireless section as IS-95. Its battery life is twice
as long as IS-95. High-speed data transmission is
also possible.
The following table lists some major CDMA
standards.
CDMA Standard Designator
Basic Air
Interface
Network
Service
Performance
Description
TIA/EIA-95A
TSB-74
ANSI J-STD-008
TIA/EIA-IS2000
CDMA Dual-Mode Air Interface
14.4kbps radio link protocol
and inter-band operations
IS-95 adapted for PCS
frequency band CDMA2000
1xRTT Air Interface
TIA/EIA/IS-634
TIA/EIA/IS/651
TIA/EIA/IS-41-C
TIA/EIA/IS-124
MAS-BS
PCSC-RS
Intersystem operations
Non-signaling data comm.
TIA/EIA/IS-96-B
TIA/EIA/IS-99
TIA/EIA/IS-637
TIA/EIA/IS-657
IS-801
TIA/EIA/IS-707-A
Speech CODEC
Async Data and Fax
Short message service
Packet Data
Position Determination Service
High Speed Packet Data
TIA/EIA/IS-97
TIA/EIA/IS-98
ANSI J-STD-018
ANSI J-STD-019
TIA/EIA/IS-125
Cellular base station
Cellular mobile station
PCS personal station
PCS base station
Speech CODEC
FCC RF Exposure Information
WARNING! Read this information before operating
the phone.
The design of this phone complies with the FCC
guidelines and these international standards.
Bodily Contact During Operation
This device was tested for typical use with the back of the
phone kept 0.6 inches (1.5 cm) from the body. To
comply with FCC RF exposure requirements, a minimum
separation distance of 0.6 inches (1.5 cm) must be
maintained between the user’s body and the back of the
phone, including the antenna, whether extended or
retracted. Third-party belt-clips, holsters and similar
accessories containing metallic components should not
Vehicle-Mounted External Antenna
(Optional, if available.)
A minimum separation distance of 8 inches (20 cm) must
be maintained between the user / bystander and the
vehicle-mounted external antenna to satisfy FCC RF
exposure requirements. For more information about RF
exposure, visit the FCC website at www.fcc.gov.
T E C H N I C A L D E TA I L S
In August 1996, the Federal Communications
Commission (FCC) of the United States, with its action in
Report and Order FCC 96-326, adopted an updated
safety standard for human exposure to Radio Frequency
(RF) electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the
safety standard previously set by both U.S. and
international standards bodies.
be used. Avoid the use of accessories that cannot
maintain 0.6 inches (1.5 cm) distance between the user’s
body and the back of the phone and have not been
tested for compliance with FCC RF exposure limits.
Caution
Use only the supplied and approved antenna. Use of
unauthorized antennas or modifications could impair call
quality, damage the phone, void your warranty and/or
result in violation of FCC and IC regulations.
Do not use the phone with a damaged antenna. If a
damaged antenna comes into contact with the skin a
minor burn may result. Contact your local dealer for a
replacement antenna.
9
TECHNICAL DETAILS
What about children using wireless phones?
TWEECLC
HO
N IMCEA L D E TA I L S
10
The scientific evidence does not show a danger to
users of wireless phones, including children and
teenagers. If you want to take steps to lower
exposure to radiofrequency energy (RF), the
measures described above would apply to children
and teenagers using wireless phones. Reducing the
time or wireless phone use and increasing the
distance between the user and the RF source will
reduce RF exposure.
Some groups sponsored by other national
governments have advised that children be
discouraged from using wireless phones at all. For
example, the government in the United Kingdom
distributed leaflets containing such a
recommendation in December 2000. They note that
no evidence exists that using a wireless phone causes
brain tumors or other ill effects. Their
recommendation to limit wireless phone use by
children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
PHONE OVERVIEW
LCD
Screen
Side
Keys
Yes Key
Number
Key
P H O N E OV E RV I E W
Headset
Jack
Headset Jack Lets you attach a hands-free headset
(optional accessory) to hear and talk to your callers.
Metal
LCD Screen Displays phone status, indicator icons,
eyelet
time, and date.
Side Keys Use to adjust the ringer volume and the
earpiece volume during a call. Also, if you press long
the side keys, the vibrate only mode turns on/off.
Earpiece
Yes Key Use to answer a call or access the Menu to set
your ringtone, change your phonebook, or set
emergency number.
Number Key Use to add phonebook entries and to
make a call to a phonebook entry.
Metal eyelet Attach a lanyard or carabiner.
No Key
Earpiece
No Key Use to turn the power on/off and to end a call.
Also, in standby mode, press to display the date (after a
Emergency few seconds the time reappears). This key is also used to
Key
backspace or delete a incorrectly entered character when
Microphone programming a name or a number in the phonebook.
Emergency Key Use for emergency calls. This key is
also used to insert a space between 2 words.
Charger
port
Microphone Lets callers hear you.
Charger port For charger cable.
11
GETTING STARTED WITH YOUR PHONE
The Battery
Note
It is important to fully charge the battery before
initial use of the phone.
G E T T I N G STA RT E D W I T H YO U R P H O N E
12
Charging the Battery
To use the charger provided with your phone:
WARNING! Use only the charger provided with the
phone. Using any charger other than the one included
with the Migo may damage your phone or battery.
The phone comes with a rechargeable battery. Keep
the battery charged while not in use in order to
maximize talk and standby time. The battery charge
level is shown at the top of the LCD screen.
1. Plug the end of the adapter into the phone’s
charger port and the other end into an electrical
outlet.
Installing the Battery
2. The charge time varies depending upon the
battery level.
To install the battery, insert the battery into the
opening on the back of the phone. Put the battery
cover on the battery and push it slightly upwards.
Fully Charged
Fully Discharged
Removing the Battery
Turn the power off.
Lift the release latch to detach the battery.
Do not allow minors to install, remove or charge the
battery without parental or custodial assistance.
Turning the Phone On and Off
Turning the Phone On
2. Press
for a few seconds until the LCD screen
lights up.
Note
Like any other radio device, avoid any
unnecessary contact with the antenna while
your phone is on.
Turning the Phone Off
1. Press and hold
until the display turns off.
Call quality depends on the signal strength in your
area. The signal strength is indicated on the screen
as the number of bars next to the signal strength
icon: The more bars, the better the signal strength. If
the signal quality is poor, move to an open area. If
you are in a building, the reception may be better
near a window.
Note
Battery life and signal strength are 2 significant
factors (among many others) that could affect
the ability of the Migo phone to send/receive
calls.
G E T T I N G STA RT E D W I T H YO U R P H O N E
1. Install a charged battery or connect the phone to
an external power source approved or
manufactured by LG such as a vehicle power
charger or hands-free car kit.
Signal Strength
13
GETTING STARTED WITH YOUR PHONE
Screen Icons
When the phone is powered on, the top line of the LCD screen displays icons indicating the status of the phone.
Signal strength indicator. The strength of the signal received
by the phone is indicated by the number of bars displayed.
G E T T I N G STA RT E D W I T H YO U R P H O N E
Battery indicator. Indicates battery charge level.
In use indicator. A call is in progress.
* No icon indicates the phone is in standby mode.
No service indicator. The phone is not receiving a system signal.
Roaming indicator. The phone is outside of the home service area.
LBS indicator. The indicator is displayed all the time except
in roaming status.
Digital indicator. Digital service is available.
1X Service indicator.
Vib Only/ Ring+Vib.
Speakerphone.
14
USING PHONE MENUS
Entering Menu
2 Set Caller ID
1. Press
Caller ID displays the number of the
person calling when your phone rings.
Check with your service provider to ensure they offer
this feature.
in standby mode to enter Menu.
2. Enter Menu? is displayed.
3. Press
.
The following 5 menus are listed.
This menu offers 10 ringtones. Choose
one of them to set it as your ringtone.
2. Press
twice.
Set Ringtone.
3. Use the side keys to highlight the sound you want
to hear when your Migo phone rings.
4. Press
.
twice.
Set Caller ID.
3. Press
,
,
or
depending on
which phonebook entry you want to set with
Caller ID.
4. Use the side keys to highlight the ringtone that
will identify the phonebook entry.
5. Press
.
USING PHONE MENUS
2. Press
1 Set Ringtone
1. In standby mode press
1. In standby mode press
Anytime Caller ID is not identifiable as setup in the
Phonebook, the default ringtone will be played.
15
USING PHONE MENUS
3 Phonebook
Note
Lets you enter four phone numbers into
your phonebook to quickly and easily
call these numbers. Use the multitap method shown
on the following page.
Be careful when choosing a phonebook location.
If you have already used that location and you
select it again, the new information you enter
overwrites the old with no warning message.
1. In standby mode press
USING PHONE MENUS
2. Press
twice.
Multi-tap Method
Phonebook.
How to Enter Numbers
3. Lock Code ???? is displayed.
4. Enter the numbers
order.
5. Set Location:
,
,
,
,
,
or
in that
Press
.
Key
6. Press one of the numbers, then enter the phone
number for that phonebook entry.
7. Press
.
8. Use the number keys to enter a name to go with
the phone number entered.
9. Press
16
Each number key on the handset represents multiple
numbers and characters when pressed.
.
Once
Twice
Three times
1
2
3
4
5
6
7
8
9
0
*
#
How to Enter Names
Key to press
Key to
press
Number of times to press key
3 k
1 k
Number of times to press key
1
2
3
4
5
6
6
A
B
C
D
E
F
0
1
2
3
4
5
6
G
H
I
J
K
L
4
1
2
3
4
5
6
7
2 k
5
M
N
O
P
Q
R
S
2 k
5
2 k
5
1 k
1
2 k
2
1 k
M
1 k
1
3 k
O
1 k
T
2 k
H
2 k
2
* Please wait 2 seconds between each key entry.
Key to press
1
2
3
4
5
6
7
T
U
V
W
X
Y
Z
Number of times to press key
5 k
E
6 k
R
USING PHONE MENUS
1 k
17
USING PHONE MENUS
4 Language
Making Calls
Allows you to set your favorite language
to either English or French.
1. Make sure the phone is turned on. If not, press
for about 3 seconds.
Set the language your child is going to use.
1. In standby mode press
2. Press
twice.
Language.
USING PHONE MENUS
3. Use the side keys to highlight English or French.
4. Press
.
+ Emergency #
3. Press
You can program this key to any
emergency contact number by
following these instructions (i.e. Mom's answering
service, etc).
1. In standby mode press
2. Press
twice.
Emergency #.
3. Press
,
,
???? is displayed.
,
when Lock Code
4. Enter the number you want to set as emergency #.
18
2. Press the number key that corresponds to the
phonebook entry you want to call. The LCD
displays the name of the phonebook entry in the
form of a question.
For example, if you have saved Daddy as
phonebook entry #1, when you press 1 Call
Daddy? will be displayed.
.
4. You will hear the connecting tone through the
earpiece when the call is made.
Emergency Calls
Using Speakerphone
1. In the event of an emergency, press and hold the
emergency key from standby mode.
Lets you activate the speakerphone function.
2. A confirmation message ('Call Emergency?') is
displayed to make an emergency call.
3. Press and hold
.
Incoming Calls
Note
again to cancel
Helping Your Child Use Migo
to
Please read this user guide in order to have a
thorough understanding of the Migo mobile handset.
This will help you guide your child to effectively and
safely use the Migo handset.
USING PHONE MENUS
2. Press and hold
speakerphone.
Receiving Calls
1. When the phone rings or vibrates press
answer.
1. Press and hold
to activate speakerphone.
"Speaker On" is displayed briefly. In standby
mode the speakerphone icon
is displayed on
the right side of the LCD.
and Side Keys ( ) cannot be used to
answer a call.
2. Press
to end the call.
Missed Calls
When a call is missed, the LCD screen displays
Missed Call.
19
SAFETY
TIA(Telecommunications Industry
Association) Safety Information
The following is the complete TIA Safety Information
for wireless handheld phones.
Exposure to Radio Frequency Signal
SA F E T Y
20
Your wireless handheld portable phone is a low power
radio transmitter and receiver. When it is ON, it
receives and also sends out Radio Frequency (RF)
signals. In August, 1996, the Federal Communications
Commissions (FCC) adopted RF exposure guidelines
with safety levels for handheld wireless phones.
Those guidelines are consistent with the safety
standards previously set by both U.S. and
international standards bodies:
Those standards were based on comprehensive and
periodic evaluations of the relevant scientific
literature. For example, over 120 scientists, engineers,
and physicians from universities, government health
agencies, and industry reviewed the available body of
research to develop the ANSI Standard (C95.1).
The design of your phone complies with the FCC
guidelines, IC Regulations (and those standards).
Antenna Care
Use only the supplied or an approved replacement
antenna. Unauthoriaed antennas, modifications, or
attachments could damage the phone and may
violate FCC regulations.
ANSI C95.1 (1992) *
Phone Operation
NCRP Report 86 (1986)
ICNIRP (1996)
NORMAL POSITION: Hold the phone as you would
any other telephone with the antenna pointed up
and over your shoulder.
Health Canada, Safety Code 6, 1999.
Tips on Efficient Operation
Pacemakers
For your phone to operate most efficiently:
The Health Industry Manufacturers Association
recommends that a minimum separation of six inches
be maintained between a handheld wireless phone
and a pacemaker to avoid potential interference with
the pacemaker. These recommendations are
consistent with the independent research by and
recommendations of Wireless Technology Research.
Do not touch the antenna unnecessarily when the
phone is in use. Contact with the antenna affects call
quality and may cause the phone to operate at a
higher power level than otherwise needed.
Driving
Give full attention to driving -- driving safely is
your first responsibility;
Use hands-free operation, if available;
Pull off the road and park before making or answering
a call if driving conditions or the law so require.
Electronic Devices
Most modern electronic equipment is shielded from
RF signals. However, certain electronic equipment
may not be shielded against the RF signals from your
wireless phone.
Persons with Pacemakers:
Should ALWAYS keep the phone more than six
inches from their pacemaker when the phone is
turned ON;
Should not carry the phone in a breast pocket;
Should use the ear opposite the pacemaker to
minimize the potential for interference;
Should turn the phone OFF immediately if there is any
reason to suspect that interference is taking place.
SA F E T Y
Check the laws and regulations on the use of wireless
phones in the areas where you drive and always obey
them. Also, if using your phone while driving, please
observe the following:
Hearing Aids
Some digital wireless phones may interfere with some
hearing aids. In the event of such interference, you
may want to consult your service provider (or call the
customer service line to discuss alternatives.)
Optional for each phone manufacturer.
21
SAFETY
SA F E T Y
Other Medical Devices
Aircraft
If you use any other personal medical device, consult
the manufacturer of your device to determine if it is
adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this
information.
FCC and Transport Canada regulations prohibit using
your phone while in the air. Switch OFF your phone
before boarding an aircraft.
Health Care Facilities
To avoid interfering with blasting operations, turn
your phone OFF when in a “blasting area” or in areas
posted: “Turn off two-way radio”. Obey all signs and
instructions.
Turn your phone OFF in health care facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may use equipment
that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle. You should also
consult the manufacturer of any equipment that has
been added to your vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted
notices so require.
22
Blasting Areas
Potentially Explosive Atmosphere
Turn your phone OFF when in any area with a potentially
explosive atmosphere and obey all signs and
instructions. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are
often, but not always marked clearly. Potential areas
may include: fueling areas (such as gasoline stations);
below deck on boats; fuel or chemical transfer or
storage facilities; vehicles using liquefied petroleum
gas (such as propane or butane); areas where the air
contains chemicals or particles (such as grain, dust, or
metal powders); and any other area where you would
normally be advised to turn off your vehicle engine.
For Vehicles Equipped with an Air Bag
An air bag inflates with great force. DO NOT place
objects, including either installed or portable wireless
equipment, in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment
is improperly installed and the air bag inflates, serious
injury could result.
Charger and Adapter Safety
The charger and adapter are intended for indoor
use only.
Do not expose the battery charger or adapter to
direct sunlight or use it in places with high
humidity, such as a bathroom.
Battery Information and Care
Please dispose of your battery properly or take it
to your local wireless carrier for recycling.
Do not dispose of your battery by fire or with
hazardous or flammable materials..
Never use an unapproved battery since this could
damage the phone and/or battery and could
cause the battery to explode.
The battery does not need to be fully discharged
before recharging.
Use only LG-approved chargers specific to your
phone model since they are designed to maximize
battery life.
Do not disassemble or short-circuit the battery.
Keep the battery’s metal contacts clean.
Replace the battery when it no longer provides
acceptable performance. The battery can be
recharged several hundred times before
replacement.
Recharge the battery after long periods of non-use
to maximize battery life.
Battery life will vary due to usage patterns and
environmental conditions.
Use of extended backlighting, MiniBrowser, and
data connectivity kits affect battery life and
talk/standby times.
SA F E T Y
23
SAFETY
Safety Information
Please read and observe the following information for
safe and proper use of your phone and to prevent
damage. Also, keep the user’s guide in an accessible
place at all the times after reading it.
Explosion, Shock, and Fire Hazards
SA F E T Y
24
Do not put your phone in a place subject to
excessive dust and keep the minimum required
distance between the power cord and heat sources.
Unplug the power cord prior to cleaning your
phone, and clean the power plug pin when it is dirty.
Do not damage the power cord by bending,
twisting, pulling, or heating. Do not use the plug if
it is loose as it may cause a fire or electric shock.
Unplug the power cord and charger during
lightning storms to avoid electric shock or fire.
Make sure that no sharp-edged items such as
animal’s teeth, nails, come into contact with the
battery. There is a risk of this causing a fire.
When using the power plug, ensure that it is firmly
connected. If it is not, it may cause excessive heat
or fire.
Do not use harsh chemicals(such as alcohol,
benzene, thinners, etc.) or detergents to clean
your phone. There is a risk of this causing a fire.
Do not place any heavy items on the power cord.
Do not allow the power cord to be crimped as it
may cause fire or electric shock.
Do not disassemble the phone.
Do not handle the phone with wet hands while it
is being charged. It may cause an electric shock or
seriously damage your phone.
Do not place or answer calls while charging the
phone as it may short-circuit the phone and/or
cause electric shock or fire.
Do not drop, strike, or shake your phone severely.
Such actions may harm the internal circuit boards
of the phone.
If you put your phone in a pocket or bag without
covering the receptacle of the phone (power plug
pin), metallic articles (such as a coin, paperclip or
pen) may short-circuit the phone. Always cover the
receptacle when not in use.
Do not short-circuit the battery. Metallic articles
such as a coin, paperclip or pen in your pocket or
bag may short-circuit the + and – terminals of the
battery (metal strips on the battery) upon moving.
Short-circuit of the terminal may damage the
battery and cause an explosion.
Never place your phone in a microwave oven as it
will cause the battery to explode.
Only use the batteries, antennas, and chargers
provided by LG. The warranty will not be applied
to products provided by other suppliers.
Store the battery in a place out of reach of children.
Using a damaged battery or placing a battery in
your mouth may cause serious injury.
Do not place items containing magnetic
components such as a credit card, phone card,
bank book or subway ticket near your phone. The
magnetism of the phone may damage the data
stored in the magnetic strip.
Do not hold or let the antenna come in contact
with your body during a call.
Do not use the phone in areas where its use is
prohibited. (For example: aircraft).
Do not immerse your phone in water. If this
happens, turn it off immediately and remove the
battery. If the phone does not work, take it to an
LG Authorized Service Center.
SA F E T Y
General Warnings and Cautions
Talking on your phone for a long period of time
may reduce call quality due to heat generated
during use.
When the phone is not used for a long period
time, store it in a safe place with the power cord
unplugged.
Using the phone in proximity to receiving
equipment (i.e., TV or radio) may cause
interference to the phone.
Only authorized personnel should service the
phone and its accessories. Faulty installation or
service may result in accidents and consequently
invalidate the warranty.
Do not use the phone if the antenna is damaged.
If a damaged antenna contacts skin, it may cause a
slight burn. Please contact an LG Authorized
Service Center to replace the damaged antenna.
25
SAFETY
Use accessories, such as earphones and headsets,
with caution. Ensure that cables are tucked away
safely and do not touch the antenna unnecessarily.
If you are listening to music whilst out and about,
please ensure that the volume is at a reasonable level
so that you are aware of your surroundings. This is
particularly imperative when attempting to cross the
street.
SA F E T Y
26
Avoid damage to your hearing
Damage to your hearing can occur if you are exposed
to loud sound for long periods of time. We therefore
recommend that you do not turn on or off the
handset close to your ear. We also recommend that
music and call volumes are set to a reasonable level.
FDA Consumer Update
The U.S. Food and Drug Administration’s
Center for Devices and Radiological
Health Consumer Update on Mobile
Phones:
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that
any health problems are associated with using
wireless phones. There is no proof, however, that
wireless phones are absolutely safe. Wireless phones
emit low levels of radiofrequency energy (RF) in the
microwave range while being used. They also emit
very low levels of RF when in the Main Menu Screen.
Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that
does not produce heating effects causes no known
adverse health effects. Many studies of low level RF
exposures have not found any biological effects.
Some studies have suggested that some biological
effects may occur, but such findings have not been
confirmed by additional research. In some cases,
other researchers have had difficulty in reproducing
those studies, or in determining the reasons for
inconsistent results.
2. What is the FDA's role concerning the safety of
wireless phones?
Although the existing scientific data do not justify
FDA regulatory actions, the FDA has urged the
wireless phone industry to take a number of steps,
including the following:
Support needed research into possible biological
effects of RF of the type emitted by wireless phones;
Design wireless phones in a way that minimizes any
RF exposure to the user that is not necessary for
device function; and
Cooperate in providing users of wireless phones
with the best possible information on possible
effects of wireless phone use on human health.
The FDA belongs to an interagency working group of
the federal agencies that have responsibility for
different aspects of RF safety to ensure coordinated
efforts at the federal level. The following agencies
belong to this working group:
National Institute for Occupational Safety and
Health
Environmental Protection Agency
Occupational Safety and Health Administration
National Telecommunications and Information
Administration
SA F E T Y
Under the law, the FDA does not review the safety of
radiation-emitting consumer products such as wireless
phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown
to emit radiofrequency energy (RF) at a level that is
hazardous to the user. In such a case, the FDA could
require the manufacturers of wireless phones to
notify users of the health hazard and to repair,
replace, or recall the phones so that the hazard no
longer exists.
The National Institutes of Health participates in
some interagency working group activities, as well.
The FDA shares regulatory responsibilities for wireless
phones with the Federal Communications Commission
(FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF
exposure.
The FCC relies on the FDA and other health agencies
for safety questions about wireless phones.
27
SAFETY
The FCC also regulates the base stations that the
wireless phone networks rely upon. While these base
stations operate at higher power than do the wireless
phones themselves, the RF exposures that people get
from these base stations are typically thousands of
times lower than those they can get from wireless
phones. Base stations are thus not the subject of the
safety questions discussed in this document.
SA F E T Y
28
3. What kinds of phones are the subject of this
update?
The term “wireless phone” refers here to handheld
wireless phones with built-in antennas, often called
“cell”, “mobile”, or “PCS” phones. These types of
wireless phones can expose the user to measurable
radiofrequency energy (RF) because of the short
distance between the phone and the user’s head.
These RF exposures are limited by FCC safety
guidelines that were developed with the advice of the
FDA and other federal health and safety agencies.
When the phone is located at greater distances from
the user, the exposure to RF is drastically lower
because a person's RF exposure decreases rapidly
with increasing distance from the source. The
socalled “cordless phones,” which have a base unit
connected to the telephone wiring in a house,
typically operate at far lower power levels, and thus
produce RF exposures far below the FCC safety
limits.
4. What are the results of the research done
already?
The research done thus far has produced conflicting
results, and many studies have suffered from flaws in
their research methods. Animal experiments
investigating the effects of radiofrequency energy
(RF) exposures characteristic of wireless phones have
yielded conflicting results that often cannot be
repeated in other laboratories. A few animal studies,
however, have suggested that low levels of RF could
accelerate the development of cancer in laboratory
animals. However, many of the studies that showed
increased tumor development used animals that had
been genetically engineered or treated with
cancer-causing chemicals so as to be pre-disposed to
develop cancer in the absence of RF exposure. Other
studies exposed the animals to RF for up to 22 hours
per day. These conditions are not similar to the
conditions under which people use wireless phones,
so we don’t know with certainty what the results of
5. What research is needed to decide whether RF
exposure from wireless phones poses a health
risk?
A combination of laboratory studies and
epidemiological studies of people actually using
wireless phones would provide some of the data that
are needed. Lifetime animal exposure studies could
be completed in a few years. However, very large
numbers of animals would be needed to provide
reliable proof of a cancer promoting effect if one
exists. Epidemiological studies can provide data that
is directly applicable to human populations, but 10
or more years follow-up may be needed to provide
answers about some health effects, such as cancer.
This is because the interval between the time of
exposure to a cancer-causing agent and the time
tumors develop — if they do — may be many, many
years. The interpretation of epidemiological studies is
hampered by difficulties in measuring actual RF
exposure during day-to-day use of wireless phones.
Many factors affect this measurement, such as the
angle at which the phone is held, or which model of
phone is used.
SA F E T Y
such studies mean for human health. Three large
epidemiology studies have been published since
December 2000. Between them, the studies
investigated any possible association between the
use of wireless phones and primary brain cancer,
glioma, meningioma, or acoustic neuroma, tumors of
the brain or salivary gland, leukemia, or other
cancers. None of the studies demonstrated the
existence of any harmful health effects from wireless
phone RF exposures. However, none of the studies
can answer questions about long-term exposures,
since the average period of phone use in these
studies was around three years.
6. What is the FDA doing to find out more about
the possible health effects of wireless phone RF?
The FDA is working with the U.S. National Toxicology
Program and with groups of investigators around the
world to ensure that high priority animal studies are
conducted to address important questions about the
effects of exposure to radio frequency energy (RF).
The FDA has been a leading participant in the World
Health Organization International Electromagnetic
Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the
development of a detailed agenda of research needs
29
SAFETY
SA F E T Y
30
that has driven the establishment of new research
programs around the world. The project has also
helped develop a series of public information
documents on EMF issues. The FDA and the Cellular
Telecommunications & Internet Association (CTIA)
have a formal Cooperative Research and
Development Agreement (CRADA) to do research on
wireless phone safety. The FDA provides the scientific
oversight, obtaining input from experts in
government, industry, and academic organizations.
CTIA-funded research is conducted through
contracts with independent investigators. The initial
research will include both laboratory studies and
studies of wireless phone users. The CRADA will also
include a broad assessment of additional research
needs in the context of the latest research
developments around the world.
7. How can I find out how much radio frequency
energy exposure I can get by using my wireless
phone?
All phones sold in the United States must comply
with Federal Communications Commission (FCC)
guidelines that limit radio frequency energy (RF)
exposures. The FCC established these guidelines in
consultation with the FDA and the other federal
health and safety agencies. The FCC limit for RF
exposure from wireless telephones is set at a Specific
Absorption Rate (SAR) of 1.6 watts per kilogram
(1.6 W/kg). The FCC limit is consistent with the
safety standards developed by the Institute of
Electrical and Electronic Engineering (IEEE) and the
National Council on Radiation Protection and
Measurement. The exposure limit takes into
consideration the body’s ability to remove heat from
the tissues that absorb energy from the wireless
phone and is set well below levels known to have
effects. Manufacturers of wireless phones must report
the RF exposure level for each model of phone to the
FCC. The FCC website (http://www.fcc.gov/oet/
rfsafety) gives directions for locating the FCC
identification number on your phone so you can find
your phone’s RF exposure level in the online listing.
8. What has the FDA done to measure the radio
frequency energy coming from wireless phones?
If there is a risk from these products — and at this
point we do not know that there is — it is probably
very small. But if you are concerned about avoiding
even potential risks, you can take a few simple steps
to minimize your exposure to radio frequency energy
(RF). Since time is a key factor in how much exposure
a person receives, reducing the amount of time spent
using a wireless phone will reduce RF exposure. If you
must conduct extended conversations by wireless
phone every day, you could place more distance
between your body and the source of the RF, since
the exposure level drops off dramatically with
distance. For example, you could use a headset and
carry the wireless phone away from your body or use
a wireless phone connected to a remote antenna.
Again, the scientific data do not demonstrate that
wireless phones are harmful. But if you are concerned
about the RF exposure from these products, you can
use measures like those described above to reduce
your RF exposure from wireless phone use.
SA F E T Y
The Institute of Electrical and Electronic Engineers
(IEEE) is developing a technical standard for
measuring the radio frequency energy (RF) exposure
from wireless phones and other wireless handsets
with the participation and leadership of FDA
scientists and engineers. The standard,
“Recommended Practice for Determining the SpatialPeak Specific Absorption Rate (SAR) in the Human
Body Due to Wireless Communications Devices:
Experimental Techniques,” sets forth the first
consistent test methodology for measuring the rate
at which RF is deposited in the heads of wireless
phone users. The test method uses a tissue-simulating
model of the human head. Standardized SAR test
methodology is expected to greatly improve the
consistency of measurements made at different
laboratories on the same phone. SAR is the
measurement of the amount of energy absorbed in
tissue, either by the whole body or a small part of
the body. It is measured in watts/kg (or milliwatts/g)
of matter. This measurement is used to determine
whether a wireless phone complies with safety
guidelines.
9. What steps can I take to reduce my exposure to
radio frequency energy from my wireless
phone?
31
SAFETY
10. What about children using wireless phones?
SA F E T Y
32
The scientific evidence does not show a danger to
users of wireless phones, including children and
teenagers. If you want to take steps to lower
exposure to radio frequency energy (RF), the
measures described above would apply to children
and teenagers using wireless phones. Reducing the
time of wireless phone use and increasing the
distance between the user and the RF source will
reduce RF exposure. Some groups sponsored by
other national governments have advised that
children be discouraged from using wireless phones
at all. For example, the government in the United
Kingdom distributed leaflets containing such a
recommendation in December 2000. They noted
that no evidence exists that using a wireless phone
causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by
children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
11. What about wireless phone interference with
medical equipment?
Radio frequency energy (RF) from wireless phones
can interact with some electronic devices. For this
reason, the FDA helped develop a detailed test
method to measure electromagnetic interference
(EMI) of implanted cardiac pacemakers and
defibrillators from wireless telephones. This test
method is now part of a standard sponsored by the
Association for the Advancement of Medical
instrumentation (AAMI). The final draft, a joint effort
by the FDA, medical device manufacturers, and many
other groups, was completed in late 2000. This
standard will allow manufacturers to ensure that
cardiac pacemakers and defibrillators are safe from
wireless phone EMI. The FDA has tested hearing aids
for interference from handheld wireless phones and
helped develop a voluntary standard sponsored by
the Institute of Electrical and Electronic Engineers
(IEEE). This standard specifies test methods and
performance requirements for hearing aids and
wireless phones so that no interference occurs when
a person uses a “compatible” phone and a
“compatible” hearing aid at the same time. This
standard was approved by the IEEE in 2000. The
FDA continues to monitor the use of wireless phones
for possible interactions with other medical devices.
Should harmful interference be found to occur, the
FDA will conduct testing to assess the interference
and work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the
following resources:
Federal Communications Commission (FCC) RF
Safety Program
(http://www.fcc.gov/oet/rfsafety)
International Commission on Non-lonizing Radiation
Protection
(http://www.icnirp.de)
World Health Organization (WHO) International EMF
Project
(http://www.who.int/emf)
National Radiological Protection Board (UK)
(http://www.nrpb.org.uk/)
(Specific Absorption Rate)
This Model Phone Meets the Government’s
Requirements for Exposure to Radio Waves. Your
wireless phone is a radio transmitter and receiver. It
is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications
Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish
permitted levels of RF energy for the general
population. The guidelines are based on standards
that were developed by independent scientific
organizations through periodic and thorough
evaluation of scientific studies. The standards
include a substantial safety margin designed to
assure the safety of all persons, regardless of age
and health.
SA F E T Y
FDA web page on wireless phones
(http://www.fda.gov/cdrh/phones/index.html)
Consumer Information on SAR
The exposure standard for wireless mobile phones
employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set
by the FCC is 1.6 W/kg. Tests for SAR are
conducted using standard operating positions
specified by the FCC with the phone transmitting at
33
SAFETY
its highest certified power level in all tested
frequency bands. AlthoughSAR is determined at the
highest certified power level, the actual SAR level of
the phone while operating can be well below the
maximum value. Because the phone is designed to
operate at multiple power levels to use only the
power required to reach the network, in general, the
closer you are to a wireless base station antenna,
the lower the power output.
SA F E T Y
Before a phone model is available for sale to the
public, it must be tested and certified to the FCC
that it does not exceed the limit established by the
government-adopted requirement for safe exposure.
The tests are performed in positions and locations
(e.g., at the ear and worn on the body) as required
by the FCC for each model.
The highest SAR value for this model phone when
tested for use at the ear is 1.24 W/kg and when
worn on the body, as described in this user guide, is
0.839 W/kg (body-worn measurements differ
among phone models, depending upon available
accessories and FCC/IC requirements). While there
may be differences between SAR levels of various
phones and at various positions, they all meet the
34
government requirement for safe exposure. The
FCC has granted an Equipment Authorization for
this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF
emission guidelines. SAR information on this model
phone is on file with the FCC and can be found
under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on
FCC ID BEJVX1000. Additional information on
Specific Absorption Rates (SAR) can be found on
the Cellular Telecommunications Industry
Association (CTIA) website at http://www.wowcom.com.
* In the United States and Canada, the SAR limit
for mobile phones used by the public is 1.6
watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of
safety to give additional protection for the public
and to account for any variations in measurements.
ACCESSORIES
There are a variety of accessories available for your child's Migo phone.
Power Adapter
The power adapter allows you to charge the battery.
Battery
Standard battery is available.
AC C E S S O R I E S
Hands-free Headset (sold separately)
The hands-free headset connects to your phone allowing hands-free operation.
It includes earpiece and microphone.
Note
If you have activated "Vib Only Mode", it will
operate in vibration mode (no sound) even when
connected to a headset.
35
LIMITED WARRANTY STATEMENT
1. WHAT THIS WARRANTY COVERS :
LG offers you a limited warranty that the enclosed
subscriber unit and its enclosed accessories will be
free from defects in material and workmanship,
according to the following terms and conditions:
(1) The limited warranty for the product extends
for ONE (1) year beginning on the date of
purchase of the product by the original end
user.
L I M I T E D WA R RA N T Y STAT E M E N T
36
(2) The limited warranty extends only to the
original end user of the product and is not
assignable or transferable to any subsequent
purchaser/end user.
(3) This warranty is good only to the original end
user of the product during the warranty period
as long as it is in Canada.
(4) Upon request from LG, the consumer must
provide information to reasonably prove the
date of purchase.
(5) During the applicable warranty period, LG will
repair or replace at LG’s sole option, without
charge to the original end user, any defective
component part of the phone or accessory.
(6) LG may use rebuilt, reconditioned, or new parts
or components when repairing any product or
replace a product with a rebuilt, reconditioned
or new product.
2. WHAT THIS WARRANTY DOES NOT COVER :
(1) Defects or damages resulting from use of the
product in other than its normal and customary
manner.
(2) Defects or damages from abnormal use,
abnormal conditions, improper storage,
exposure to moisture or dampness,
unauthorized modifications, unauthorized
connections, unauthorized repair, misuse,
neglect, abuse, accident, alteration, improper
installation, or other acts which are not the
fault of LG, including damage caused by spills of
food or liquids.
(3) Breakage or damage to antennas unless caused
directly by defects in material or workmanship.
(4) Alleged defects or malfunction of the product
that the end user does not notify to the
carrier's or manufacturer's Customer Service
Centre during the warranty period.
(5) Products which have had their serial numbers
removed or made illegible.
(6) Damage resulting from use of non-LG approved
accessories.
(7) All plastic surfaces and all other externally
exposed parts that are scratched or damaged
due to normal customer use.
(8) Products serviced by non-authorized persons or
companies.
Notes:
(2) Shipping damage is the sole responsibility of
the shipping company.
No other express warranty is applicable to this
product. THE DURATION OF ANY IMPLIED
WARRANTIES, INCLUDING THE IMPLIED
WARRANTY OF MARKETABILITY, IS LIMITED TO
THE DURATION OF THE EXPRESS WARRANTY
HEREIN. LG ELECTRONICS CANADA, INC. SHALL
NOT BE LIABLE FOR THE LOSS OF THE USE OF
THE PRODUCT, INCONVENIENCE, LOSS OR ANY
OTHER DAMAGES, DIRECT OR
CONSEQUENTIAL, ARISING OUT OF THE USE
OF, OR INABILITY TO USE, THIS PRODUCT OR
FOR ANY BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY APPLICABLE
TO THIS PRODUCT.
4. HOW TO GET WARRANTY SERVICE :
To obtain warranty service, please call the
following telephone number from anywhere in
Canada:
LG Electronics Canada, Inc.
Tel. 1-888-542-2623
L I M I T E D WA R RA N T Y STAT E M E N T
(1) This limited warranty is in lieu of all other
warranties, express or implied either in fact or
by operations of law, statutory or otherwise,
including, but not limited to any implied
warranty of merchantability or fitness for a
particular purpose.
3. EXCLUSION OF LIABILITY :
37
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
