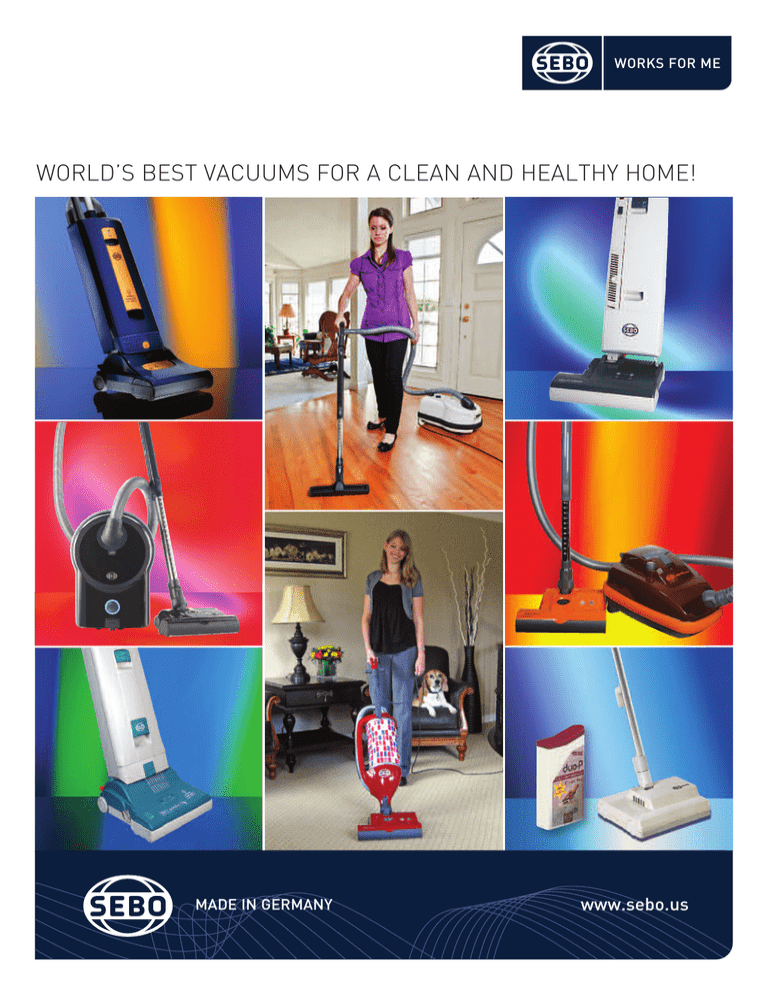

WORKS FOR ME

WORLD’S BEST VACUUMS FOR A CLEAN AND HEALTHY HOME!

MADE IN GERMANY

www.sebo.us

THE SEBO STORY

SEBO was the WORLD’S FIRST

Vacuum Manufacturer to Introduce:

!

An integrated suction hose on an upright vacuum.

!

A timing-belt-driven brush with clutch protection.

!

A dust bag that fills from the top, followed by a microfilter and then the motor.

!

An electrostatic microfilter.

!

An electronic brush control and safety shut off.

!

A soft bumper on a canister vacuum, which protects furniture and walls from damage.

!

An electronically controlled automatic height adjustment, S-class filtration, and a detail wand with telescopic hose. To this day, the most modern vacuum cleaner in the world!

In 1978, two engineers founded SEBO in Velbert, Germany. Since then, SEBO has become the most important manufacturer of high-quality commercial vacuum cleaners in the world, with sales in Europe, Asia, Africa and North America. Millions of

SEBO vacuums have been sold to hotels, hospitals, schools . . .

even The White House!

SEBO’s first shipment to the U.S.A. was in 1979, which was for commercial cleaning customers, followed by its duo-P Cleaning

Powder in 1984, and its household vacuums were launched in

1997. Today, SEBO stands as a synonym for high-quality vacuums in commercial and retail markets worldwide.

2

Pg. 3

Pgs. 14 & 15

Pgs. 4 & 5 Pgs. 6 & 7 Pgs. 8 & 9

Pgs. 10 & 11 Pgs. 12 & 13

Pgs. 16 & 17

Pgs. 18 & 19 Pgs. 20 & 21

Pgs. 22 & 23

Suction Motor

Brush Motor

Belt Guarantee

Bag Capacity

Handle Weight

Body Weight

Cord Length

Sound Level

Other Specs

Pg. 24

THE ENVIRONMENT

Buy Your New Vacuum with a Green and Clean Conscience!

There is more to being environmentally aware than just looking at energy ratings . . . friends of the environment also want their new appliances to be responsibly manufactured.

Everyone knows to look for efficiency when it comes to buying new appliances for the home, but what about the amount of energy consumed in their production and distribution?

Sometimes this can far exceed the energy used during the entire lifespan of a product.

Made in Germany, using locally sourced materials and components, SEBO vacuum cleaners are built to last and are manufactured in an environmentally responsible way that reduces waste and uses fewer resources. Plastic is recycled into new components, and the SEBO factory is completely self-sustaining with respect to electricity. Its combined heat and power system produces the electricity required to run the factory’s machinery. The warm air and water created by the system’s generators are then used to heat the factory and warehouse.

For SEBO, reducing the carbon footprint of a product starts in the initial design process. An important consideration is to ensure that products pack into the smallest possible cartons, and that carton sizes allow the maximum number of machines to fit on a pallet. Most SEBO packaging is made from unbleached recycled cardboard, and waste paper from the offices is shredded and re-used for packing. Even deliveries are carefully planned, to ensure delivery trucks are running economically and are filled to capacity.

Water resources are also conserved at the SEBO factory.

Rainwater is collected from the roof, then filtered and stored, to be used in production and within the factory washrooms, saving the unnecessary use of treated drinking water.

The factory and offices are designed to use natural light as much as possible, avoiding artificial lighting and the associated power consumption. And work hours are scheduled to make use of daylight hours; this also improves the working environment for employees.

3

4

STANDARD FEATURES OF ALL SEBO VACUUM CLEANERS

Designed and Manufactured in Germany – Legendary quality, reliability and performance make SEBO vacuums the first choice of cleaning professionals throughout the world.

The World’s Best Pet Vacuums – Because of superior powerhead technology, SEBO vacuums are the world’s best for pet hair removal!

Rubber Wheels and Soft Bumpers Protect Homes –

Smooth-gliding rubber wheels protect hard floors and provide exceptional maneuverability.

In addition, the bumpers that surround the power heads and the soft AIRBELT bumpers that surround SEBO’s canisters protect furniture, walls and vacuum housings from incurring scuffs and scratches during use.

High-tech Brush Roller Technology – SEBO’s brush rollers are uniquely designed to funnel hair and debris into the power heads’ airflow channel, which improves vacuum cleaning performance on all flooring surfaces.

Excellent for Users With Allergies or Asthma – The British

Allergy Foundation recommends SEBO filters.

Tightly Sealed Vacuums Ensure Effective Filtration – Dirty air, which flows through a vacuum, can only be filtered completely if it does not escape into the room through seams or seals in the machine. This is why all SEBO vacuums have tight seals throughout.

Changing Bags is Easy and Clean – SEBO filter bags can be changed in just a few seconds, and a cap keeps dust sealed inside during removal and disposal.

Many vacuum companies with high-filtration claims are actually quoting specifications made by the manufacturer of the filter material, as measured in the laboratory, not the filtration effectiveness of the vacuum itself while operating. Whether or not dirty air can escape through leaks in the body of the machine is not considered. The filtration effectiveness of SEBO vacuums is tested while they operate.

Reliable, Commercial-grade Components – All SEBO vacuums are constructed with thick, reinforced ABS plastic, aluminum and metal parts, steel axles and bearings and high-end, quality motors. Therefore, SEBO users own reliable, long-lasting vacuum cleaners. Competing vacuums are made with thin, flimsy, inexpensive plastic materials, none of which are reinforced, and typically have a useful lifespan of one or two years (i.e., disposable vacuums).

Save Money! SEBO Vacuums Last for Years and Extend

Carpet Life! – If properly maintained, SEBO vacuums save ordinary residential users hundreds of dollars by providing excellent performance for ten to fifteen years or more, and their deep cleaning power-brush technology extends the life of carpets. Typical vacuums perform poorly, even when new, and usually do not last beyond two years. So six or seven “disposable vacuums” must be purchased during the average life expectancy of just one SEBO machine.

Five-year Warranty Coverage – All SEBO models include a five-year warranty on the motor and all non-wear parts and a five-year warranty on labor charges. The

AUTOMATIC X models also offer a lifetime belt warranty.

SEBO’s FILTRATION SYSTEM

Bagged vs. Bagless . . . Bags are Better! – Top-fill, three and four-layer bags are an integral part of SEBO’s filtration system because they hold virtually all dirt captured by the vacuum, which improves the effectiveness and useful life of the microfilters. They also ensure continuously strong suction because dirt enters from the top, deposits at the bottom, accumulates upward, and air exits through the sides, which allows unimpeded airflow as they fill to capacity. And they can be sealed when full, so no dust can escape into the air during bag removal and disposal.

In contrast, without bags to hold nearly all the captured dirt, the microfilters on bagless vacuums quickly clog from excessive dirt build-up and must be replaced often, or a loss of suction and cleaning effectiveness will occur. In addition, dust and other allergens become airborne when emptying bagless dirt containers. Lastly, bagless vacuum microfilters are expensive, usually costing more than a multi-year supply of SEBO filter bags.

Step

One

Step

Two

Step

Three

FELIX and AIRBELT D MODELS

Pre-motor Filters – Pre-motor filters clean suction air after it passes through the filter bag, but before it passes over the vacuum motor. Cooling the motor with clean air is important because this increases useful life expectancy.

S-class Exhaust Microfilters – S-class Exhaust Microfilters

(S =“Schwebstoff” = airborne particles) are made from electrostatically charged micro-fiber material, which attracts and captures dust particles from the airflow of the vacuum after it passes over the motor to cool it. This means that exhaust air is cleaned to the highest level. The

S-class Standard requires filters to absorb greater than

99.9% of particles down to 0.3 microns in diameter. For comparison, 100 microns is the diameter of a human hair.

Their advantages are a relatively open texture that allows smoother airflow for better suction performance, a longer life expectancy, and they cost less than HEPA filters.

AUTOMATIC X, ESSENTIAL G, 370 COMFORT and AIRBELT K MODELS

S-class Pre-motor Microfilters – S-class Pre-motor

Microfilters (S =“Schwebstoff” = airborne particles) are made from electrostatically charged micro-fiber material, which attracts and captures dust particles from the airflow of the vacuum before it passes over the motor to cool it.

Cooling the motor with super-clean air increases motor life and reduces the possibility of maintenance, even after many years of use. The S-class Standard requires filters to absorb greater than 99.9% of particles down to 0.3

microns in diameter. For comparison, 100 microns is the diameter of a human hair. Their advantages are a relatively open texture that allows smoother airflow for better suction performance, a longer life expectancy, and they cost less than HEPA filters.

HEPA Pre-motor Microfilters (Optional) – HEPA Pre-motor

Microfilters (“High Efficiency Particulate Air”) remove a minimum of 99.97% of all airborne particulate matter down to 0.3 microns in diameter.

Because these filters use small grid-like structures to capture dust particles, dirt build-up clogs the airflow pathway sooner than what is expected from S-class microfilters. However, SEBO’s

HEPA microfilters are sold along with four-layer “Ultra-bags,” which provide highly effective filtration before the airflow goes through the HEPA microfilter, greatly increasing life expectancy and reducing the potential of diminished air flow.

Exhaust Filters – Exhaust filters clean the air emitted by vacuum motors.

5

6

SEBO AUTOMATIC X4 and X5

The AUTOMATIC X is the most technically advanced vacuum cleaner in the world! It features an electronic controller that acts as a brain, measuring the resistance of the brush roller against the floor and signaling the power head to adjust up or down to the appropriate brush height, to ensure optimal performance on both carpet and hard-floor surfaces. The controller also regulates a warning system that alerts the user to problems such as clogs, a worn brush, a full bag and brush roller obstructions, and it automatically shuts off the vacuum, when necessary, to protect the motor and belts from damage. In addition, the AUTOMATIC X has a convenient instant-use cleaning wand and suction hose, a lifetime belt warranty, and comes in two power head widths . . . the 12-inch X4 and the 15-inch X5.

Refer to Pages 4 & 5 for the Standard

Features and

Filtration System of the AUTOMATIC X.

AUTOMATIC X4

White

#9570AM

Instant-use Wand and Suction Hose – The integrated instantuse wand and suction hose are always ready. Just pull out either tool, or both together, to clean hard-to-reach corners, edges and crevices. The wand and hose together have an eight-foot reach. The suction hose is ideal for cleaning furniture. And an optional nine-foot extension hose is available, which creates a total hose length of 15 feet . . . perfect for cleaning stairs. Choose from a range of optional attachments that can be fitted to the wand or hose!

A Low 5

1

2

-inch Profile – Lower the handle flat to the floor to clean under beds, or lower it to the intermediate stop position to maneuver over rugs. Depress the foot pedal again to bypass the intermediate stop position, or close this position by moving the orange handle-position slider.

AUTOMATIC X4

Red

#9558AM

AUTOMATIC X4

Blue

#9577AM

AUTOMATIC X4

Onyx

#9501AM

AUTOMATIC X5

Blue

#9587AM

AUTOMATIC X5

White

#9580AM

Orange Handle-

Position Slider

Automatic Height Adjustment: From Hard Floors to Carpets –

The electronic controller adjusts the power head up or down to the appropriate brush height, providing optimal cleaning of both carpets and hard floors. The “sealing strip,” located behind the brush, improves hard floor cleaning performance by channeling the airflow and preventing debris kickback.

Brush Adjustment Indicator Lights – Two green lights, one for “up” and one for

“down,” illuminate to indicate when the power head is in the process of adjusting brush height to the proper cleaning level. Optimal cleaning effectiveness occurs when both lights are off.

Brush Obstruction Light with Automatic

Shut Off – If an obstruction jams the brush roller, the red “check brush” warning light flashes quickly, the brush roller immediately stops spinning, and the vacuum shuts off. This feature prevents the belts from breaking and protects the motor and carpet from damage.

Worn Brush Light. Easy Brush Removal and Cleaning –

When the brush roller’s bristles are worn to a point that brush agitation is less effective, the red “check brush” warning light remains illuminated during use. (The vacuum continues to operate; it will not automatically shut off.) When needed, installing a new brush roller or cleaning hair or other debris from a used brush is quick and easy, and no tools are required!

Stationary Use Light – When the vacuum is stationary in its upright handle-locked position, the power head adjusts upward to the height necessary (or to its highest possible level) to disengage the spinning brush roller from the floor. However, if the brush remains in contact with carpet fibers, despite the power head’s upward adjustment, the red “check brush” warning light flashes to alert the user to avoid potential carpet marking from excessive use time in a stationary position. Usually, very high-pile carpets cause this situation, or the vacuum is tilted toward the brush roller while using the cleaning wand and/or hose.

The solution is to tilt the locked upright handle backward such that the brush is raised above the carpet pile.

Bag Full or Clog Light with Automatic Shut Off – When a full bag, a clog in the airflow pathway, or an excessively dirty microfilter is detected, the red “bag full or clog” warning light illuminates, the vacuum automatically shuts off after

30 seconds, and then the warning light starts continuously flashing. This feature prevents overheating and motor damage from a lack of adequate airflow.

Combination Carrying Handle with Rotating Cord Hook – The

AUTOMATIC X is easy to carry or quickly unwind the cord, using its unique handle with integrated rotating cord hook.

Three On-board Full-size Tools. Large

Filter Bag – The vacuum comes standard with a crevice tool, dusting brush, upholstery nozzle, and a large

1.4-gallon filter bag. Also, many optional accessories are available.

Lifetime Belt Warranty – Stop changing vacuum belts! With an AUTOMATIC X, they should last the life of the machine!

Forty-foot Cord – A 40-foot cord saves time, by reducing the number of electrical outlet changes needed during use.

Two Power Head Widths. One or Two-sided Edge Cleaning –

The AUTOMATIC X4 is 12-inches wide with a cleaning path of 10

1

2 inches and one-sided edge cleaning. The

AUTOMATIC X5 is 15-inches wide with a cleaning path of

14

1

2 inches and two-sided edge cleaning.

Protective Rubber-coated Wheels – SEBO’s wheels protect all floor surfaces and provide smooth maneuverability.

Easy Maintenance – The clog removal door, brush, and replaceable hard floor

“sealing strip” are easy to access.

Attachments

Crevice Tool

#1092DG

Dusting Brush

Horsehair Bristles

#1387DG

Upholstery Nozzle

#1491DG

Color Exception: X4 Onyx - Crevice Tool #1092SW & Upholstery Nozzle #1491SW

20” Extension Wand*

#1084HG

9-Foot Extension Hose*

#1495AM

Parquet Brush*

#1359DG

*All three items are available individually or as a three-piece attachment kit, #1991AM.

Radiator Brush

#1496DG

Flat Upholstery

Nozzle #1090HG

Wall & Floor Brush

#1325HG

Hand-held Turbo

Brush #6179DA

Bags, Filters, Accessories and Wear Items

Sealing Strip**

12” #5400-1

Sealing Strip**

15” #5400-2

HEPA Service

Box #5827ER contains 8 Ultra

Bags, an

Exhaust Filter and a HEPA

Microfilter.

10 Filter Bags**

#5093AM

Exhaust Filter**

#5143

HEPA Service

Box #5827ER

Service Box

#5828ER

Electrostatic

Microfilter** #5036AM

**All four items are also available as a Service

Box #5828ER containing

10 Filter Bags, an

Exhaust Filter, an

Electrostatic Microfilter and a Sealing Strip.

15” Brush Roller

Set #5290AM

12” Brush Roller

#5010AM

SEBO FRESH

1 Pkg. of 5

#0496AM

Charcoal

Anti-odor

Microfilter

#5425AM

7

8

SEBO ESSENTIAL G1 and G2

The sturdy and lightweight ESSENTIAL G is a technically advanced upright vacuum cleaner. It features an electronic controller that acts as a brain, monitoring a warning system that alerts the user to problems such as clogs, a worn brush, a full bag, brush obstructions, and when brush height is set too high for optimal cleaning, and it automatically shuts off the vacuum, when necessary, to protect the motor and belts from damage. And it offers manual brush height adjustment, years of reliability, a convenient instant-use cleaning wand and suction hose, an exterior housing with a scratch and scuffresistant matte finish, and comes in two power head widths . . . the 12-inch ESSENTIAL G1 and the 15-inch ESSENTIAL G2.

Refer to Pages 4 & 5 for the Standard

Features and

Filtration System of the ESSENTIAL G.

ESSENTIAL G2

Teal

#9592AT

Instant-use Wand and Suction Hose – The integrated instant-use wand and suction hose are always ready.

Just pull out either tool, or both together, to clean hardto-reach corners, edges and crevices. The wand and hose together have an eight-foot reach. The suction hose is ideal for cleaning furniture. And an optional nine-foot extension hose is available, which creates a total hose length of 15 feet . . . perfect for cleaning stairs. Choose from a range of optional attachments that can be fitted to the wand or hose!

A Low 5

1

2

-inch Profile – Lower the handle flat to the floor to clean under beds, or lower it to the intermediate stop position to maneuver over rugs. Depress the foot pedal again to bypass the intermediate stop position, or close this position by moving the orange handle-position slider.

ESSENTIAL G1

Teal

#9591AT

Orange Handle-

Position Slider

Four-level Manual Brush Height Adjustment – The brush height can be manually adjusted up or down for optimal cleaning effectiveness.

Brush Obstruction Light with Automatic Shut Off – If an obstruction jams the brush roller, the red “check brush” warning light flashes quickly, the brush roller immediately stops spinning, and the vacuum shuts off. This feature prevents the belts from breaking and protects the motor and carpet from damage.

Incorrect Height Setting or Worn Brush Light – When the brush height is set too high for optimal cleaning or when the brush roller should be replaced due to reaching maximum bristle wear, the red “check brush” warning light remains illuminated during use. (The vacuum will not automatically shut off.) The light shuts off when the condition is corrected, ensuring consistently effective brush agitation of the carpet pile.

Easy Brush Removal and Cleaning –

Cleaning hair or other debris from the brush roller or replacing it when its bristles are worn is quick and easy, and no tools are required! This feature ensures consistently effective brush agitation of the carpet pile.

Bag Full or Clog Light with Automatic Shut Off – When a full bag, a clog in the airflow pathway, or an excessively dirty microfilter is detected, the red “bag full or clog” warning light illuminates, the machine automatically shuts off after

60 seconds, and then the warning light starts continuously flashing. This feature prevents overheating and motor damage from a lack of adequate airflow.

Soft-start Feature – The vacuum’s gradual power-up capability extends motor life.

Durable Matte Finish – The ESSENTIAL G has an exterior housing with a special matte finish that is extra scratch and scuff-resistant, so it looks great even after years of use.

Combination Carrying Handle with Rotating Cord Hook – The vacuum is easy to carry or quickly unwind the cord, using its unique handle with integrated rotating cord hook.

Three On-board Full-size Tools. Large

Filter Bag – The ESSENTIAL G comes standard with a crevice tool, dusting brush, upholstery nozzle, and a large

1.4-gallon filter bag. Also, many optional accessories are available.

Two Power Head Widths with One-sided Edge Cleaning – The

ESSENTIAL G1 is 12 inches wide with a 10 ½-inch cleaning path. The ESSENTIAL G2 is 15 inches wide with a 13 ¼-inch cleaning path. Both heads have one-sided edge cleaning.

Durable Heavy-duty Belts – The reinforced toothed belts do not slip or stretch, resulting in a more efficient use of power, and they should last the life of the machine.

40-foot Cord

Crevice Tool

#1092JE

Ergonomic Handle

Instant-use Wand and

Suction Hose with 8-foot Reach

Combination

Carrying Handle with Rotating

Cord Hook

Practical

Hand Grip

Warning System

Display

5.5 inches

Flat-to-the-floor Profile Manual Brush Height Adjustment

Forty-foot Cord – A 40-foot cord saves time, by reducing the number of electrical outlet changes needed during use.

Protective Rubber-coated Wheels – SEBO’s wheels protect all floor surfaces and provide smooth maneuverability.

Easy Maintenance – The ESSENTIAL G’s clog removal door and brush roller are easy to access on the power head.

Attachments

Crevice and

Upholstery Nozzles

Dusting Brush

#1387DG

Upholstery Nozzle

#1491JE

20” Extension Wand*

#1084HG

9-Foot Extension Hose*

#1495AM

Parquet Brush*

#1359DG

*All three items are available individually or as a three-piece attachment kit, #1991AM.

Radiator Brush

#1496DG

Flat Upholstery

Nozzle #1090HG

Wall & Floor Brush

#1325HG

Hand-held Turbo

Brush #6179DA

Bags, Filters, Accessories and Wear Items

10 Filter Bags

#5093AM

Electrostatic

Microfilter #5036AM

Exhaust Filter

#2846

Charcoal

Anti-odor

Microfilter

#5425AM

12” Brush Roller

#5010AM

15” Brush Roller

#2838AM

SEBO FRESH

1 Pkg. of 5

#0496AM

9

10

SEBO 370 COMFORT

The heavy-duty 370 COMFORT, a two-motor vacuum with separate suction and brush motors, is SEBO’s quietest upright vacuum cleaner! It is designed to provide many years of trouble-free operation and features an aggressive power head with manual brush height adjustment and a convenient instant-use cleaning wand and suction hose. In addition, the vacuum features an electronic controller that alerts the user to problems such as clogs, a worn brush, a full bag, brush obstructions, and when brush height is set too high for optimal cleaning, and it automatically shuts off the brush roller when it is jammed to protect the motor and belt from damage. This is a perfect vacuum for large carpeted areas.

Refer to Pages 4 & 5 for the Standard

Features and

Filtration System of the 370 COMFORT.

370 COMFORT

Gray

#90703AM

Instant-use Wand and Suction Hose – The integrated instant-use wand and suction hose are always ready.

Just pull out either tool, or both together, to clean hard-to-reach corners, edges and crevices. The wand and hose together have an eight-foot reach. The suction hose is ideal for cleaning furniture. And an optional nine-foot extension hose is available, which creates a total hose length of 15 feet . . . perfect for cleaning stairs. Choose from a range of optional attachments that can be fitted to the wand or hose!

A Flat-to-the-floor 5

1

2

-inch Profile – Its low profile makes cleaning under furniture and beds easy!

Four-level Manual Brush Height Adjustment – The brush height can be manually adjusted up or down for optimal cleaning effectiveness.

Brush Obstruction Light with Automatic Brush Shut Off –

If an obstruction jams the brush roller, a red warning light on the power head illuminates, and the brush roller immediately stops spinning. This prevents the belt from breaking and protects the motor and carpet from damage.

Incorrect Height Setting or Worn Brush Light – When the brush height is set too high for optimal cleaning or when the brush strip should be replaced due to reaching maximum bristle wear, a red warning light, next to the green “on light,” remains illuminated during use. (The vacuum will not automatically shut off.) The light shuts off when the condition is corrected, ensuring consistently effective brush agitation of the carpet pile.

Three On-board Full-size Tools. Large Filter Bag – The

370 COMFORT comes standard with a crevice tool, dusting brush, upholstery nozzle, and a large 1.4-gallon filter bag. Also, many optional accessories are available.

Thirty Nine-foot Cord – A 39-foot cord saves time, by reducing the number of electrical outlet changes needed during use.

Protective Rubber-coated Wheels – SEBO’s wheels protect all floor surfaces and provide smooth maneuverability.

Combination Carrying Handle with

Rotating Cord Hook – The vacuum is easy to carry or quickly unwind the cord, using its unique handle with integrated rotating cord hook.

Easy Brush Strip Removal and Cleaning – Cleaning hair or debris from the brush strip or replacing it when the bristles are worn is quick and easy.

This feature ensures consistently effective brush agitation of the carpet pile. The 370 COMFORT has a brush roller with a replaceable brush strip.

This is part of its heavy-duty sealed brushing mechanism, which provides extra rugged durability.

Two-motor Design. Automatic Brush Shut Off During

Stationary Use – The 370 COMFORT vacuum operates using two motors: a 1,000-watt motor for suction and a 150watt motor to power the spinning brush roller.

Thus, when the handle is in the upright locked position, the vacuum’s brush roller automatically shuts off, but suction remains on, so stationary cleaning using the wand and/or hose can be done for an extended period of time.

Full Bag or Clog Warning Light – When a full bag, a clog in the airflow pathway, or an excessively dirty microfilter is detected, a red warning light on the bag housing illuminates and an airflow bypass valve opens. This feature prevents overheating and motor damage from a lack of adequate airflow.

Durable Heavy-duty Belts – The reinforced toothed belts do not slip or stretch, resulting in a more efficient use of power, and they should last the life of the machine.

Wide Power Head with One-sided Edge Cleaning – The

14-inch wide power head with a 12

1

2

-inch cleaning path is perfect for larger homes, and its L-shape provides excellent maneuverability around furniture and under cabinets.

The extension side of the head cleans to the edge.

Attachments

Crevice Tool

#1092DG

Dusting Brush

#1387DG

Upholstery Nozzle

#1491DG

20” Extension Wand*

#1084HG

9-Foot Extension Hose*

#1495AM

Parquet Brush*

#1359DG

*All three items are available individually or as a three-piece attachment kit, #1991AM.

Radiator Brush

#1496DG

Flat Upholstery

Nozzle #1090HG

Wall & Floor Brush

#1325HG

Hand-held Turbo

Brush #6179DA

Bags, Filters, Accessories and Wear Items

10 Filter Bags

#5093AM

Exhaust Filter

#1878

Electrostatic

Microfilter #1875

Alternative

Motor Filter #1825

370 Brush Strip

#2046

SEBO FRESH

1 Pkg. of 5

#0496AM

11

12

SEBO FELIX 1 and 2 Premium and FELIX 4 Kombi

The stylish FELIX offers all the flexibility of a canister vacuum cleaner in an upright configuration! It has a "flex" neck with amazing 180° steering ability, an ultra-modern filtration system, a detachable suction unit that becomes a hand-held vacuum, and an instant-use suction hose. The three FELIX models have different cleaning head options. The FELIX 1

Premium has a 12-inch-wide power head, the FELIX 2 Premium has a 15-inch-wide power head, and both include a parquet brush that is perfectly designed for cleaning hard floors. The FELIX 4 Kombi has only a straight-suction, 12-inch-wide Kombi

Nozzle. All three models can morph into a hard-floor polisher by attaching a DISCO head. The FELIX Premium power head deep cleans carpets, or the spinning brush roller can be shut off to clean delicate rugs and hard floors with straight suction.

The power head also has easy brush roller removal, and an orange warning light illuminates when brush height is set too high for optimal cleaning, the bristles are worn, or automatic shut-off occurs due to a brush obstruction.

FELIX 1

Premium

Refer to Pages 4 & 5 for the Standard

Features and

Filtration System of the FELIX.

Fun

#9803AM

Ice Blue

#9806AM

Multi-surface Cleaning Capabilities – With a power head for carpets and a parquet brush for hard floors, the FELIX 1 or 2

Premium provides all the cleaning flexibility of a canister vacuum! All three

FELIX models can morph into a hard floor polisher by adding a DISCO head.

A FELIX Premium Includes a Power Head, Two On-board Tools and a Parquet Brush – Along with a commercial-quality power head, a FELIX Premium comes standard with a crevice tool, upholstery nozzle and a hard-floor parquet brush.

A FELIX Kombi Includes a Combination Nozzle and Two

On-board Tools – The Kombi does not have a power head.

Instead, it includes a combination nozzle (a straight suction nozzle for hard floors or rugs), crevice tool and upholstery nozzle. The Kombi can accommodate a FELIX Premium power head, which can be purchased separately.

A Flat-to-the-floor 6-inch Profile – The vacuum’s low profile makes cleaning under furniture and beds easy!

Classic

#9804AM

Onyx

#9807AM

White

#9808AM

FELIX 1

Premium

Rosso

#9809AM

Fun

#9825AM

Ice Blue

#9824AM

Classic

#9826AM

Ice Blue

#9813AM

Instant-use Suction Hose – The integrated instant-use suction hose is always ready! Just pull it out to clean corners, crevices or furniture. Two on-board tools and a range of attachments can be fitted to the hose, such as a 20-inch wand for cleaning hard-to-reach areas or a nine-foot extension hose, which creates a total length of 15 feet . . . perfect for cleaning stairs.

Superb Maneuverability – A unique 180° turning swivel neck offers superb maneuverability around and under furniture.

Protective Rubber-coated Wheels – SEBO’s wheels protect all floor surfaces and provide smooth maneuverability.

Variable Suction Control on Handle with Soft

Start – The user can select the suction power needed, from curtains to carpet. And its gradual power-up extends motor life.

Three-level Adjustable Handle – This feature provides compact storage, maneuverability when the suction unit is detached and easy adjustment to user height requirements.

Full Bag or Clog Indicator – When a full bag, a clog in the airflow pathway, or an excessively dirty microfilter is detected, an indicator gauge on the bag housing lid

“fills” with orange color and an airflow bypass valve opens, to prevent overheating and motor damage from a lack of adequate airflow.

Detachable Suction Unit Creates a Hand-held

Portable Vacuum – By removing its power head, the FELIX instantly transforms from an upright floor vacuum into a handheld portable vacuum, ideal for cleaning stairs, upholstery and car interiors. It can be easily carried using its alternative side handle or its shoulder strap attachment.

Thirty-one Foot Cord with Rotating Quick-release Hook – It is easy to quickly unwind the cord by rotating the hook!

Easy Maintenance – The clog removal door and brush roller are easy to access on the power head.

Innovative Exhaust Filter . . . Design and Functionality – Behind the stylish surface hides an ultra-modern S-class exhaust microfilter that not only provides excellent filtration, but it also absorbs motor noise, resulting in extremely quiet operation.

Four-level Manual Height Adjustment – The power head can be adjusted up or down for optimal cleaning effectiveness.

Brush Obstruction Light with Automatic Brush Shut Off – If an obstruction jams the brush roller, an orange warning light on the power head illuminates and the brush roller stops spinning. This feature prevents the belts from breaking and protects the motor and carpet from damage.

Incorrect Height Setting or Worn Brush Light – When the brush height is set too high for optimal cleaning or when the brush roller should be replaced because of maximum bristle wear, an orange warning light on the power head remains illuminated during use. The light shuts off when the condition is corrected.

Easy Brush Removal and Cleaning –

Cleaning hair or other debris from the brush roller or replacing it when its bristles are worn is quick and easy, and no tools are required! This feature ensures consistently effective brush agitation of the carpet pile.

Manual and Automatic Brush Shut Off – The FELIX can clean delicate rugs or hard floors with straight suction because the brush roller can be manually switched off by pressing the green illuminated on/off button on the power head cover. Also, the brush roller automatically shuts off when the suction hose is removed from its housing port or when the handle is in its upright locked position.

Attachments

Crevice Tool

#1092DG

Upholstery Nozzle

#1491DG

Parquet Brush

#7200DG

Exceptions:

Parquet Brush -

Fun #7200VO

Classic #7200SR

Exceptions: Crevice Tool- Onyx #1092SW | Upholstery Nozzle- Onyx #1491SW

Crevice Tool

#1092DG

Upholstery Nozzle

#1491DG

Kombi Nozzle

#7260GS

Exceptions:

Fun #7240VO

Classic #7240SR

20” Extension Wand*

#1084HG

9-Foot Extension Hose*

#1495AM

*All three items are available individually or as a three-piece attachment kit, #1998AM.

Dusting Brush*

#1387DG

Premium Power Heads

Two Power Head Widths with One-sided Edge Cleaning –

The FELIX 1 Premium model is 12 inches wide with a

10

1

2

-inch cleaning path. The FELIX 2 Premium - Ice Blue is 15 inches wide with a 13-inch cleaning path.

Radiator Brush

#1496DG

Flat Upholstery

Nozzle #1090HG

Wall & Floor Brush

#1325HG

Hand-held Turbo

Brush #6179DA

Bags, Filters, Accessories and Wear Items

8 Filter Bags

#7029ER

Motor Protection

Filter

#7012ER

Exhaust Microfilters:

Fun #7095ER01

Ice Blue #7095ER02

Classic #7095ER03

Onyx #7095ER04

White #7095ER10

Rosso #7095ER11

15” Brush Roller

#2838AM

SEBO

FRESH

1 Pkg. of 5

#0496AM

FELIX Shoulder

Strap #7158

12” Brush Roller

#5010AM

13

SEBO DISCO FLOOR POLISHER HEAD

The DISCO floor polisher head is lightweight, easy to operate, and very low cost compared to alternative polishing machines. It features a new floor-pad technology that provides a high-gloss shine to many types of hard floors without the use of water, chemicals or polishing sands. And its drive disc has instantaneous height adjustment, along with automatic shut off caused by disc obstructions or suction blockages. The DISCO attaches to the SEBO FELIX vacuum cleaner; therefore, it has a suction capability that simultaneously removes the fine dust created during the polishing process. The DISCO is truly a revolution in hard-floor care!

14

DISCO FEATURES INCLUDE:

!

A quick and easy pad-change mechanism.

!

Automatic torque-controlled height adjustment of the floor pad, in relation to the floor surface, ensures consistent and optimal performance.

!

!

Automatic safety shut off caused by disc obstructions or suction blockages.

Lightweight, low-cost, commercial-grade machine.

!

!

!

!

!

!

!

Bumpers to protect walls, furniture and the polisher.

Three rubber-coated wheels to protect floor surfaces.

Agile and easy to use, due to a highly maneuverable swivel neck and high-quality castors.

A convenient machine width of 13 inches and a polishing path of 11

3

4 inches.

The complete modular system includes a vacuum cleaner and a hard-floor polisher.

Immediate retention of polishing dust by the suction unit.

Reinforced drive disc that provides optimal floor contact and a speed of 2,000 rpm.

FELIX Kombi

Ice Blue

#9824AM with DISCO Polisher Head

White

#9430AM

DISCO White

#9430AM

DISCO Onyx

#9433AM

DISCO Orange

#9431AM

The SEBO DISCO Floor Polisher – introduces a new sophisticated and highly efficient floor-pad technology that produces a highgloss effect without the use of water, chemicals or polishing sands. The new pad technology achieves its results by using four different floor pads, each of which is designed to accomplish distinctly different tasks. The pads are color-coded to assure proper selection. In addition, they are highly abrasion resistant and have a life expectancy of over 100,000 square feet.

The DISCO is usually suitable for the following types of floors:

!

!

!

!

!

PVC (coated or uncoated vinyl or vinyl composite tiles).

Natural stone, such as granite, marble or terrazzo.

Acrylic or polyurethane-coated floors.

Hardwood with oil or varnish finishes.

Hardwood or other floors with soft-coated finishes, like wax (use the blue floor pad only).

The Red, Yellow and Green Floor Pads – restore the shine of dull, scratched and scuffed hard-floor surfaces without the use of water, chemicals or polishing sands. The pads do the work using the following three-step procedure (soft coatings should not be present):

!

Step One. The Red Floor Pad – removes the deepest or most visible scratches and smoothes the floor surface.

Thus, it prepares the floor for the yellow pad.

!

Step Two. The Yellow Floor Pad – restores a higher gloss finish and prepares the floor surface for the green pad.

!

Step Three. The Green Floor Pad – creates the final gloss finish in the “three-step process,” and it is suitable for daily use to maintain the floor’s highgloss finish.

The Blue Floor Pad – is designed to maintain soft coatings, like wax, on hard floors, and it is suitable for daily use as well.

It should be used along with a typical floor wax suitable for the specific floor surface or recommended by the flooring manufacturer. And because the DISCO has suction ability while polishing, it removes the fine dust from fully dried floor-wax products.

The DISCO is NOT suitable for the following types of floors:

!

!

!

!

!

Any floor on which a shiny finish is not desired.

Glazed, ceramic and porcelain tiles, or porous tiles such as terracotta or slate.

Cushioned vinyl, linoleum, laminate, and any floor types that are poorly bonded to the sub-floor.

All floors with textured or uneven surfaces or tiles with raised edges.

Floors with maintenance-free coatings, floors in which acceptability of the polisher is uncertain, or when polisher use is contrary to manufacturer recommendations.

Typically, maintaining the shine of hard floors is difficult, due to the following problems:

!

Small and medium-size furnished hard-floor areas do not easily accommodate typical polishers.

!

Big, heavy, hard-floor polishing machines are difficult to use, require trained staff and are expensive.

!

Regular maintenance of hard floors is costly and time consuming.

!

Typical hard-floor polishers have limited flexibility and mobility.

!

Most hard-floor polishers cannot reach small areas.

!

Correct use of floor-care chemicals and polishing sands is difficult and requires sophisticated knowledge.

The DISCO Polisher is the solution to all of these problems, and it is built to commercial-quality standards!

Pads*

Step One Step Two Step Three

Blue Pad

#3230ER00

Red Pad Yellow Pad

#3286ER40

Red and Yellow Pads in one box.

Green Pad

#3230ER30

* PLEASE NOTE: Suitability of all floor surfaces should first be determined by consulting the manufacturer recommendations, and then by testing the DISCO and its four pads in an inconspicuous spot. If floor damage occurs, immediately discontinue use.

15

SEBO POWER HEADS and CENTRAL VACUUM ADAPTER

SEBO power heads are recognized worldwide as the most reliable and best designed on the market. They are virtually maintenance free and feature warning systems and automatic shut off capabilities designed to protect the machine and provide optimal performance. Removing the brush roller is quick and easy and no tools are required, so it can be cleaned or replaced if the bristles are worn, ensuring consistently effective brush agitation of the carpet pile. They also offer electronic overload protection that extends belt life by shutting off power if an obstruction jams the brush roller. And do not worry about pet clean up. All SEBO power heads easily remove pet hair!

16

ET-1

Onyx

#9951AM

The SEBO ET-1 (12 inches wide, 10

1

2 and ET-2 (14

3

4

-inch cleaning path) inches wide, 13-inch cleaning path) – This model comes in two width designations and has four-level manual brush height adjustment. It aggressively cleans carpets, but the brush roller may be switched off by pressing the green illuminated on/off button, so delicate rugs and hard floors can be cleaned with straight suction. Its amazing 180° steering ability provides maneuverability around furniture, and the extension side of the L-shaped head makes cleaning edges and under counters easy.

It also has easy tool-free brush roller removal, a convenient clog removal door, and an orange warning light with automatic shut off for brush roller obstructions. This prevents the belt from breaking and protects the motor and carpet from damage. Its warning light also remains illuminated during use when brush height is set too high for optimal cleaning or when the brush roller should be replaced due to reaching maximum bristle wear.

ET-1 Brush Roller

Removal

ET-1

Orange

#9272AM

ET-1

Red

#9299AM

ET-1

White

#9258AM

ET-1

Cream

#9273AM

ET-2

Onyx

#9958AM

ET-2

White

#9259AM

ET-2

Red

#9250AM

The SEBO ET-C (14 inches wide, 12

1

2

-inch cleaning path) –

This power head was designed to clean carpets. It delivers unmatched durability and aggressive brush agitation.

The ET-C has a brush roller with a replaceable brush strip. This is part of its heavy-duty sealed brushing mechanism, so the brush cannot be manually switched off. The extension side of its

L-shaped head makes cleaning around furniture and under counters easy.

However, its steering mechanism does not rotate left or right.

ET-C White

#9254AM

The ET-C features an orange warning light with automatic shut off for brush roller obstructions. This prevents the belt from breaking and protects the motor and carpet from damage. The warning light, located next to the green “on light,” remains illuminated during use when brush agitation is not cleaning optimally, i.e., its brush strip should be replaced because its bristles have reached maximum wear.

It has “floating style” brush height adjustment.

The SEBO ET-H Power Head (11

3

4 inches wide, 11

1

2

-inch cleaning path) – This model’s T-shaped head offers two-sided edge cleaning and variable brush pressure adjustment for optimal cleaning of carpets and hard floors.

However, its brush roller cannot be manually switched off. The

ET-H’s 180° steering mechanism helps to easily clean around obstacles.

ET-H White

#9256AM

ET-H Red

#9257AM

If an obstruction jams the brush roller, an orange warning light, located next to the green “power light,” illuminates and the brush roller immediately stops spinning. This prevents the belt from breaking and protects the motor and carpet from damage. It also has easy tool-free brush roller removal and a convenient clog removal door.

The SEBO Central Vacuum Wand Adapter -

This device fits on any SEBO power head and can attach to most existing central vacuum wands.

Central Vacuum

Wand Adapter

#2780AM

Brush Rollers And Strips

ET-1 Brush Roller

#5010AM

ET-2 Brush Roller

#2838AM

ET-H Brush

Roller Set

#2758AM

ET-C Brush Strip

#2046

17

SEBO AIRBELT D1, D4 and D4 Premium

The AIRBELT D1 and the two AIRBELT D4 models are powerful, full-size, yet ultra-quiet, canister vacuum cleaners that feature three on-board attachments, an unmatched 40-foot cord and 50-foot cleaning radius, rubber-coated wheels to protect floor surfaces, a durable telescopic tube with quick-release connections, and a full bag or clog indicator. A tapered hose, along with a 320° rotating canister connection, improves airflow and provides smooth maneuverability, and a soft bumper protects the vacuum, furniture and walls from scuffs and scratches. The D4 models accommodate commercial-quality power heads that can deep clean carpets. The AIRBELT D4 Premium comes standard with the 12-inch wide ET-1 Power Head. However, the red-colored AIRBELT D4 offers the choice between the ET-1 or the 15-inch-wide ET-2 Power Head. Both D4 models include a parquet brush for cleaning hard floors with straight suction, and an ergonomically designed handle, which also has a suction adjustment switch, provides user comfort and effortless control of the power head’s 180° steering ability.

Refer to Pages 4 & 5 for the Standard

Features and

Filtration System of the AIRBELT D.

AIRBELT D4

Premium

White

#90641AM with ET-1

AIRBELT D4

Premium

Black (Onyx)

#90640AM with ET-1

18

ET-1 Red

(12-inch width)

#9299AM

ET-2 Red

(15-inch width)

#9250AM

AIRBELT D4

Red

#90630AM

Optional for red model only:

ET-1 or ET-2 power head.

A Flat-to-the-floor 3 1/2-inch Profile – A low cleaning-head profile makes reaching under furniture and beds easy!

Three Full-size, On-board Tools – A crevice tool, an upholstery nozzle and a dusting brush are integrated into the canister body, so they are on-board and ready for use at all times. Also, many optional attachments are available.

Full-size Canister Vacuum – The AIRBELT D series are fullsize canister vacuums that are larger, more powerful machines, offering three full-size attachments, a huge

1.5-gallon filter bag and an extra-long power cord.

A 40-foot Power Cord and an

Amazing 50-foot Cleaning Radius –

These two features provide operating efficiency because large areas can be cleaned without changing electrical outlets. The power cord automatically rewinds by simply pressing a button.

A Huge 1.5-gallon Filter Bag – The large filter bag is convenient and economical because fewer bag changes are needed. An indicator window turns orange when the filter bag should be replaced, and closing its built-in hygiene cap prevents dust from escaping during bag disposal.

AIRBELT D1

White

#90601AM with Kombi

Nozzle

A Durable, Rotating Suction-hose

Connection – A brilliantly designed hose-to-canister connection allows

320° rotation of the suction hose, providing easier user movement and machine maneuverability.

LED Suction-power Indicator – This technology actually makes it possible for the user to optically monitor the vacuum’s suction power. When using lower power settings, the LED light rotates slowly. When using higher power settings, the light rotates more quickly. When the power is set to standby mode, the light slowly blinks back and forth, left to right.

Patented AIRBELT Bumper – The soft, textile-covered foam bumper protects furniture, walls and the vacuum itself from incurring scratches and scuffs during use. The bumper also diffuses exhaust air, which contributes to its ultra-quiet performance.

Four Castors with Rubber-coated

Wheels, Mounted on Bearings and Steel

Axles – The superb castor-wheels glide easily and gently over all floor types, providing exceptional maneuverability and protection of floor surfaces.

Convenient Parking and Storage Aids –

After the work is done, the suction hose with telescopic tube, parquet brush or Kombi Nozzle can be firmly stored on the canister’s underside

(shown) or backside housing.

Personalized Vacuums – The AIRBELT bumper can be personalized with one of these colorful textile covers:

#6047AM/01 #6047AM/02 #6047AM/03 #6047AM/04 #6047AM/05

#6047AM/06 #6047AM/07 #6047AM/08 #6047AM/10

AIRBELT D1

Kombi Nozzle But No Power Head – The AIRBELT D1 model has a telescopic tube and hose without a power cord, so it does not accommodate an electric power head. Instead, the D1 includes only the Kombi Nozzle that has retractable bristles, for cleaning both rugs or hard floors with straight suction.

Suction Adjustment Switch on Canister Body – Because the

AIRBELT D1 has a hose and handle without a power cord, its suction adjustment switch is located on the canister body, not the handle.

AIRBELT D4 and D4 Premium

Two Power Head Widths, Amazing Steering Ability and

Easy Brush Roller Removal - The ET-1 power head (12-inch width) is included with the black or white D4 Premium, but the red D4 does not include a power head. It offers a choice between the ET-1 or the ET-2 (15-inch width).

Both power head models have manual, four-level brush height adjustment, they effectively clean both carpets and hard floors and offer manual brush shut off, for use on delicate rugs or other floor types that require straightsuction cleaning. Their amazing steering ability provides

180° maneuverability, and they have easy tool-free brush roller removal, convenient clog access doors, automatic shut off for brush obstructions, and a light that indicates when brush height is set too high for optimal cleaning or when the brush roller should be replaced due to reaching maximum bristle wear.

Adjustable Suction Switch on the

Handle – The suction power of both

AIRBELT D4 models can be conveniently adjusted on the hose handle; therefore, upholstery can be cleaned with stronger suction, yet curtains can be gently vacuumed as well.

Attachments

Crevice Tool

#8066GS

Parquet Brush

#6391DA

Dusting Brush

#8146ER

Upholstery Nozzle

#8142GS

Crevice Tool

#8066GS

Parquet Brush

#6391DA

Dusting Brush

#8146ER

Upholstery Nozzle

#8142GS

ET-1 Power Head

Color: White or Black

Kombi Nozzle

#7260GS

Crevice Tool

#8066GS

Dusting Brush

#8146ER

Upholstery Nozzle

#8142GS

Radiator Brush

#1496DG

Flat Upholstery

Nozzle #1090HG

Wall & Floor Brush

#1325HG

Hand-held Turbo

Brush #6179DA

20” Extension Wand

#1084HG

9-Foot Extension Hose

#1495AM

TT-C Turbo Brush

#6780ER

Premium Parquet Brush

#7200DG

Kombi Nozzle

#7260GS

Bags, Filters, Accessories and Wear Items

8 Ultra

Filter Bags

#8120AM

SEBO FRESH

1 Pkg. of 5

#0496AM

Filter Set - 2 pc.

Pre-motor Microfilter and Exhaust Filter

#8191AM

12” Brush Roller

#5010AM

AIRBELT

COVERS

8 Choices

#6047AM/

01 to 08 and 10

15” Brush Roller

#2838AM

SEBO AIRBELT K3, K2 TURBO and K2 KOMBI

The AIRBELT K2 and K3 models are mid-size, powerful and lightweight canister vacuum cleaners featuring clever storage of three on-board attachments, easy bag changes, remarkably quiet operation, rubber-coated wheels to protect floor surfaces, a durable telescopic tube with quick-release connections, a full bag or clog warning light, and a soft bumper to protect the vacuum, furniture and walls from scuffs and scratches. The two AIRBELT K2 models offer a choice of straightsuction cleaning heads, while the AIRBELT K3 model offers the 12-inch-wide ET-1 Power Head and a hard-floor parquet brush. And the K3’s ergonomically designed handle, which also has a suction adjustment switch, provides user comfort and effortless control of the power head’s 180° steering ability.

Refer to Pages 4 & 5 for the Standard

Features and

Filtration System of the AIRBELT K.

20

AIRBELT K3

Volcano

#9689AM

AIRBELT K3

Red

#9687AM

A Flat-to-the-floor 3

1

4

-inch Profile – A low cleaning-head profile makes reaching under furniture and beds easy!

Mid-size Canister Vacuum with Large Filter Bag– The AIRBELT

K3 and K2 are considered mid-size canister vacuums, which means they are smaller, more compact machines. They offer one mid-size and two full-size on-board attachments, a

.8-gallon filter bag, and the K-model canisters weigh about four pounds less than SEBO’s D4-model canister.

Three On-board Tools – The SEBO AIRBELT K models come standard with a crevice tool, dusting brush and upholstery nozzle.

Also, many optional attachments are available that can be fitted to the telescopic tube or the hose handle.

Large Operating Range – A 37-foot operating range, with a

25-foot cord, saves time because it minimizes the number of electrical outlets needed during use.

AIRBELT K3

Onyx

#9688AM

Tug and Retract Cord Rewinder – The AIRBELT K models offer a

“tug and retract” cord rewinder, instead of a control switch rewinder, which is the type offered on the AIRBELT D models.

Full Bag or Clog Light – When a full bag, a clog in the airflow pathway, or an excessively dirty microfilter is detected, an orange warning light, next to the green “on light,” on the canister body illuminates and an airflow bypass valve opens.

This feature prevents overheating and motor damage from a lack of adequate airflow.

Protective Rubber-coated Wheels – The superb castorwheels glide easily and gently over all floor types, providing exceptional maneuverability and protection of floor surfaces.

Patented AIRBELT Bumper – The soft, textile-covered bumper protects furniture, walls and the vacuum itself from incurring scratches and scuffs during use. The bumper also diffuses exhaust air, which contributes to its ultra-quiet performance.

Personalized Vacuums – The K-series AIRBELT bumper can be personalized with any of these colorful textile covers:

#6047AM/01 #6047AM/02 #6047AM/03 #6047AM/04

#6047AM/05

#6047AM/06 #6047AM/07 #6047AM/08 #6047AM/10

AIRBELT K3

Durable Power Head with Amazing Steering Ability and Easy

Brush Roller Removal – The AIRBELT K3 comes standard with

SEBO’s ET-1 power head, which effectively cleans both carpets and hard floors. It is 12-inches wide and offers four-level manual brush height adjustment. Also, to clean delicate rugs and hard floors with straight-suction cleaning, the brush roller can be manually switched off. Its 180° steering ability provides amazing maneuverability. It also has easy tool-free brush roller removal, a handy clog removal door, and an orange warning light with automatic shut off for brush roller obstructions. The warning light also remains illuminated during use when brush height is set too high for optimal cleaning or when the brush roller should be replaced due to reaching maximum bristle wear.

Suction Adjustment Switch on Handle – The vacuum’s suction power can be adjusted from 0 to 1,250 watts by a slider switch conveniently located on the handle of the K3, providing convenient suction control for normal to more delicate cleaning tasks.

AIRBELT K2 KOMBI

Dark Blue

#9679AM includes a Kombi

Nozzle #7260GS

Optional Premium

Parquet Brush

#7200DG

AIRBELT K2 TURBO

Dark Green

#9696AM

AIRBELT K2 TURBO and KOMBI

The two SEBO AIRBELT K2 models are straight-suction vacuums. Thus, they differ from the AIRBELT K3 as follows:

Turbo Brush or Kombi Nozzle, But No Power

Head – The AIRBELT K2 models have telescopic tubes and hoses without power cords, so they do not accommodate electric power heads. Instead, the K2 TURBO comes with an air-driven turbo brush for cleaning carpets and a parquet brush for cleaning hard floors. The K2 KOMBI comes with only one cleaning head, the Kombi Nozzle, that has retractable bristles for use on hard floors or rugs.

Suction Adjustment Switch on Canister

Body – Because the AIRBELT K2s have hoses and telescopic tubes without power cords, their suction adjustment switches are located on the canister body, not the handle.

Attachments

ET-1 Power Head included with K3 model vacuum.

Colors: Onyx (shown), Red and Orange

Crevice Tool

#1092DG

Dusting Brush

#1387DG

Upholstery Nozzle

#6627DG

Parquet Brush

#6391DA

Crevice Tool

#1092DG

Dusting Brush

#1387DG

Upholstery Nozzle

#6627DG

Kombi Nozzle

#7260GS

Crevice Tool

#1092DG

Dusting Brush

#1387DG

Upholstery Nozzle

#6627DG

Parquet Brush

#6391DA

Wall & Floor

Brush #1325HG

Hand-held Turbo

Brush #6179DA

Radiator Brush

#1496DG

TT-C Turbo

Brush #6780ER

Kombi Nozzle

#7260GS

20” Extension Wand

#1084HG

9-Foot Extension

Hose #1495AM

Premium Parquet

Brush #7200DG

Parquet Brush

#6391DA

Flat Upholstery

Nozzle #1090HG

TT-C Turbo

Brush #6780ER

Bags, Filters, Accessories and Wear Items

Microfilter Set*

#6696AM

12” Brush Roller

#5010AM

8 Filter Bags*

#6629AM

*All three items are also available as a

Service Box

#6695AM, containing 8 Filter

Bags, an

Exhaust Filter and a

Pre-motor

Microfilter.

Service Box

#6695AM

AIRBELT COVERS

8 Choices #6047AM/01 to 08 and10

SEBO FRESH

1 Pkg. of 5 #0496AM

HEPA Service

Box #6431ER contains 8

Ultra Bags, an

Exhaust Filter and a HEPA

Pre-motor

Microfilter.

SEBO duo CLEANING SYSTEM

DESIGNED TO DRY CLEAN CARPET AND UPHOLSTERY – SEBO’s easy-to-use duo Cleaning System effectively cleans large and small carpeted areas or removes stubborn stains from upholstery and carpets. The duo-P Powder and Brush Machine can easily clean a room or house full of carpeting! In addition, the duo Daisy or Hand Brush quickly cleans high-traffic areas, stairs, automobiles, RVs and boats. This do-it-yourself system is highly effective, easy to use, saves time and money, and avoids potential carpet damage caused by some wet cleaning methods.

22

SEBO duo

Brush Machine

#9401AM

The duo Cleaning System consists of the following four components, which are all sold separately:

1) The duo-P Carpet and Upholstery Cleaning Powder.

2) The duo Brush Machine for cleaning large carpeted areas.

3) The duo Daisy Brush for cleaning small to medium-size carpeted areas, like hallways.

4) The duo Hand Brush for cleaning spots, stairs, hard-to-reach areas, cars and RVs.

Advantages of using the duo System are:

!

!

!

!

!

!

!

!

Do-it-yourself carpet cleaning is highly effective, easy

to do, and saves time and money.

Almost immediate use of the carpet or upholstery.

Eliminates dust mite allergens.

No need to move furniture and easily cleans stairs.

No detergent residue.

A built-in fiber protector helps to protect against future stains and soil.

Avoids potential damage caused by some wet cleaning methods.

No carpet shrinking or mildew.

duo Daisy Brush

#CD100AM

Refill package contains five, 1.1 lb. refill bags.

Each single 1.1 lb. pack can clean up to 250 square feet of carpet.

#0472AM duo-P Clean Box with built-in Spot Brush.

Contains one 1.1 lb. bag.

#0478AM duo Hand Brush

#6392

Step Two

FOUR EASY STEPS

Step Three Step Four Step One

Before

Apply duo-P

Cleaning Powder.

Spot-clean stubborn stains. (Older or more stubborn stains may require additional treatments.)

Brush in the duo-P

Powder with the duo

Brush Machine,

Daisy or Hand Brush.

Vacuum when dry, usually after 30 to 60 minutes.

After

SEBO duo-P Cleaning Powder Cleans Carpet and Upholstery –

This amazing powder cleans carpets or upholstery to like new condition and removes even the most stubborn stains! It is made of polyurethane granules moistened with a cleaner and is environmentally friendly and safe to use. And, unlike other cleaning powders, no “pre-spray” is needed. (Tightly seal partially used packages after opening to maintain moisture.)

When the powder is worked into the carpet fibers, the moistened sponge-like granules lift soil and stains out. Within 30 to 60 minutes, the powder is dry and is removed by vacuuming, leaving the carpet or upholstery clean, dry and ready for use.

Because this is a dry cleaning process, duo-P Powder will not promote the growth of mold and fungus in your carpet and pad. And the GAF allergy research center in Germany found that six months after a single cleaning with duo-P, seven out of ten carpets remained free of dust mite allergens.

The duo Daisy Brush Provides Quick

Convenient Carpet Cleaning – This duo accessory is a necessity! The Daisy is a single brush and is not motorized.

However, it is the ultimate in convenience because, with its adjustable handle and very light weight, one can work in a comfortable upright position and clean both small and medium-size carpeted areas, such as hallways or an entire room. The Daisy even offers two brush bristle options for different types of carpet: easy or aggressive. Its adjustable handle accommodates user height preferences and enables it to be stored in small spaces. The Daisy and duo Hand Brush can also be used to clean carpet and upholstery in cars, boats and RVs.

The duo Brush Machine Cleans Large

Carpeted Areas – SEBO's duo Brush

Machine features two spinning brushes that open the carpet pile, enabling the duo-P Powder to clean each fiber.

Weighing only 11 pounds, it is lightweight and easy to use. And with a brush path width of 12 ½ inches, a room or entire house of carpet can be quickly cleaned.

Why Use Dry Cleaning? – Some wet cleaning methods inject water and detergent into the carpet pile under pressure, and an extractor is used to collect the liquid and disolved soil. However, many rental and do-ityourself machines only remove 50% of the dirty water, so much of the remaining water soaks into the pad. Often, this amount of moisture will cause deterioration of the carpet backing, and a wet carpet may take 8 to 36 hours to dry, depending on humidity.

That is long enough for mold spores to grow. Also, carpets may re-soil quickly because of residual detergent, and spots may reappear in a short period of time, as the moisture and dissolved soil “wicks up” through the carpet fibers.

23

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

Suction Motor

Brush Motor

Airflow (motor rating)

Water Lift (motor rating)

Belt Guarantee

Height Adjustment

Suction Motor Protection

Bag Capacity

Handle Weight

Body Weight

Variable Suction Control

Bare Floor Cleaning

Dusting Brush Included

Cleaning Wand Included

Cord Length/Range

Power Head Width

Hose Length

S-class Filtration

Adjustable Handle

6 ft.

Yes

No

HEPA Filtration Available

Use Without Power Head

Yes

No

Brush Height Settings

Brush Wear Compensation

Brush Speed

Sound Level

AUT

OMA

TIC X

ESS

ENT

IAL G

370

COM

FOR

T

1300 Watts 1300 Watts 1000 Watts

FELI

X

1300 Watts n/a

103.8 CFM

92 in.

n/a

103.8 CFM

92.5 in.

150 Watts

106.0 CFM

80.3 in.

102.0 CFM

90 in.

AIRB

ELT

1250 Watts

120 CFM

95 in.

D4

AIRB

ELT

120 CFM

110 in.

K

1250 Watts

175/200 Watts 175/200 Watts 175 Watts

Lifetime

Electronic

Electronic

1.4 gal.

1.5 lbs.

5 Years

Manual

Electronic

1.4 gal.

1.5 lbs.

5 Years

Manual

Thermal

1.4 gal.

3 lbs.

5 Years

Manual

Thermal

.92 gal.

3 lbs.

5 Years

Manual

Thermal

1.5 gal.

1.5 lbs.

5 Years

Manual

Thermal

.8 gal.

1.5 lbs.

16.7/16.9 lbs.

16.9/17.1 lbs.

19 lbs.

No

Yes

Yes

Yes

No

Yes

Yes

Yes

No

No

Yes

Yes

15.4 lbs.

Yes

Yes

15.9 lbs.

Yes

Yes

12 lbs.

Yes

Yes

40 ft.

12 in./15 in.

40 ft.

12in./15 in.

6 ft.

Yes

No

Yes

No

39 ft.

14 in.

6 ft.

Yes

No

No

No

No

No

31 ft.

12 in./14

3

4 in.

12 in. /14

3

4 in.

12 in.

6 ft.

40ft./50 ft.

7 ft.

25 ft./37 ft.

7 ft.

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Automatic

Automatic

3100 RPM

69 dBA

4

Manual

3100 RPM

69 dBA

4

Manual

2700 RPM

66.1 dBA

No

Yes

4

Manual

2700 RPM

68 dBA

No

Yes

4

Manual

2700 RPM

63 dBA

Yes

Yes

4

Manual

2700 RPM

63 dBA

40 ft.

14 in.

n/a n/a

No

11 lbs.

n/a n/a n/a n/a

DUO n/a

200 Watts n/a n/a

5 Years

Floating n/a n/a

0.8 lbs.

n/a n/a

Floating

No

400 RPM n/a

MADE IN GERMANY

SEBO America, LLC • 7472 S. Tucson Way, Suite 190, Centennial, CO 80112 • 800-334-6614 • www.sebo.us

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
