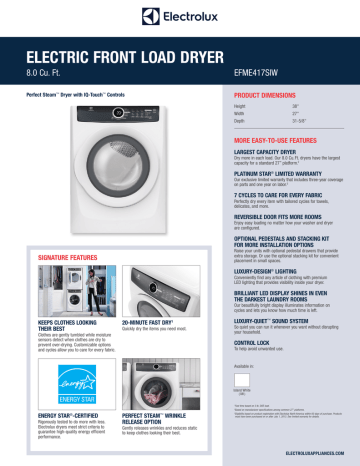

ELECTRIC FRONT LOAD DRYER
ELECTRIC FRONT LOAD DRYER 8.0 Cu. Ft. EFME417SIW Perfect Steam™ Dryer with IQ-Touch™ Controls PRODUCT DIMENSIONS Height38" Width27" Depth31-5/8" MORE EASY-TO-USE FEATURES LARGEST CAPACITY DRYER Dry more in each load. Our 8.0 Cu. Ft. dryers have the largest capacity for a standard 27” platform.2 PLATINUM STAR® LIMITED WARRANTY Our exclusive limited warranty that includes three-year coverage on parts and one year on labor.3 7 CYCLES TO CARE FOR EVERY FABRIC Perfectly dry every item with tailored cycles for towels, delicates, and more. REVERSIBLE DOOR FITS MORE ROOMS Enjoy easy loading no matter how your washer and dryer are configured. OPTIONAL PEDESTALS AND STACKING KIT FOR MORE INSTALLATION OPTIONS Raise your units with optional pedestal drawers that provide extra storage. Or use the optional stacking kit for convenient placement in small spaces. SIGNATURE FEATURES LUXURY-DESIGN® LIGHTING Conveniently find any article of clothing with premium LED lighting that provides visibility inside your dryer. BRILLIANT LED DISPLAY SHINES IN EVEN THE DARKEST LAUNDRY ROOMS Our beautifully bright display illuminates information on cycles and lets you know how much time is left. KEEPS CLOTHES LOOKING THEIR BEST 20-MINUTE FAST DRY1 Quickly dry the items you need most. Clothes are gently tumbled while moisture sensors detect when clothes are dry to prevent over-drying. Customizable options and cycles allow you to care for every fabric. LUXURY-QUIET™ SOUND SYSTEM So quiet you can run it whenever you want without disrupting your household. CONTROL LOCK To help avoid unwanted use. Available in: Island White ( IW ) 1 2 ENERGY STAR -CERTIFIED ® Rigorously tested to do more with less. Electrolux dryers meet strict criteria to guarantee high-quality energy efficient performance. PERFECT STEAM WRINKLE RELEASE OPTION ™ 3 F ast time based on 3 lb. DOE load. Based on manufacturer specifications among common 27” platforms. Eligibility based on product registration with Electrolux North America within 60 days of purchase. Products must have been purchased on or after July 1, 2013. See limited warranty for details. Gently releases wrinkles and reduces static to keep clothes looking their best. ELECTROLUXAPPLIANCES.COM ELECTRIC FRONT LOAD DRYER EFME417SIW 27" ELECTRIC FRONT LOAD DRYER Capacity D.O.E. 8.0 Cu. Ft. FEATURES Pull-to-Open Door IQ-Touch™ Controls Perfect Steam™ Dry System Dry System Sound System Lighting Tumble System Moisture Sensor Dryer Drum Tumble Speed (RPM) Reversible Door Adjustable Leveling Legs ENERGY STAR® NSF® Certified Yes Yes Yes Luxury-Dry™ Luxury-Quiet™ Luxury-Design® Gentle Tumble™ Yes Painted Steel 50 Yes Yes Yes CYCLES Timed Dry (30, 45, 60), Heavy Duty, Mixed Load, Towels, Normal, 20-Min. Fast Dry, Delicates 7 OPTIONS Temperature Selections Add Steam Electronic Auto Dry System Manual Timed Dry Selections Delay Start (Hours) End-of-Cycle Chime Extended Tumble Anti-Static Line Dry Shrink Guard Dryness Levels 4 Yes Yes 4 12 On / Off 4 INSTALLATION OPTIONS Freestanding, Under Counter *, Stacked (Above Washer), Pedestal, Hidden (In Closet), Second Floor 4-Way Dryer Venting Yes Yes ACCESSORIES Luxury-Glide® Pedestal with Spacious Storage Drawer– Island White – PN # EPWD157SIW Dryer Stacking Kit – PN # STACKIT7X Drying Rack – PN # A04840701 Optional Optional Optional SPECIFICATIONS Color – Island White Maximum Exhaust Duct Length** (Ft.) Power Supply Connection Location Voltage Rating Connected Load (kW Rating) @ 240 Volts Amps @ 240 Volts Heating Element @ 240 Volts (Watts) Shipping Weight (Approx.) IW 125 Rear 240V / 60 Hz / 30A 6.0 25 5,400 141 Lbs. *Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry. ** Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows and vents. Refer to Installation Guide on web for additional information. NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com. Specifications subject to change. PRODUCT DIMENSIONS Height (without 15" Pedestal) (with 15" Pedestal) Width Depth (to Center of Arc Not Including Hose) (with Door 90° Open) 38" 53-1/4" 27" 31-5/8" 53-1/2" Electrolux Major Appliances, N.A. USA • 10200 David Taylor Drive • Charlotte, NC 28262• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca EFME417S 03/16 © 2016 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice. EFME417S_EFME517S_EFME617S (steam) ELECTRIC FRONT LOAD DRYER Electrolux EFME417SIW Front Left /4" hose clearance required 3 27" Rear 53 1/2" 31 5/8" 2 1/4" Wall Water inlet 38" (75 3/4" min. for stacked units) Reversible Door Swing 3 7/16" Built-In Installations 0"min. Elevates dryer height to 53 1/4". For detailed pedestal installation, refer to instructions included with pedestal or on web. Pedestal Installation may require modified utility hookup locations. For details, refer to Product Installation Guide on web. 0"min. 0"min.* 1" min. Vented door Front Side 3" 60" sq. in. min. 27" Front *Steam dryer requires additional 3/4" hose clearance. 26 1/2" Side Overall depth with drawer fully extended – 42 1/2" 60" sq. in. min. 3" 15" 15 /4" 1 240V Power supply 6 1/2" 12 1/2" 22" 15" Pedestal Drawer Installation 2 1/2" Closet Installation: If washer and dryer are installed in same closet, door(s) MUST be vented with 120 sq. in. minimum louvered opening, equally divided, located 3" from top and bottom of door. Louvered door(s) with equivalent air openings for full-length of door is acceptable. Air openings MUST remain unobstructed with door(s) installed. 13 1/2" Installation Clearances: Dryer can be built in alone or with washer (side by side or stacked) in closet, recess or under counter installation with 0" minimum clearance required around sides and back of unit(s). To achieve 0" minimum rear clearance, dryer MUST be vented straight back or with quick-turn 90° elbow. Steam dryer requires additional 3/4" steam hose clearance at back of unit(s). Installation of closet door(s) requires additional 1" minimum clearance between front of unit(s) and door(s). Location of plumbing, exhaust and utility hookups MUST be considered when planning any built-in installation. For additional installation details, refer to Product Installation Guides on web. Under Counter Installation: Installation of dryer alone or side by side with washer under counter, requires custom-built countertop and/or cabinetry to accommodate unit(s) height. Stacking Units: Stacking dryer above washer requires use of optional Stacking Kit (PN# STACKIT7X) with modified utility hookup locations for dryer. For complete installation details, refer to instructions included with Stacking Kit or on web. Electric Dryer Specifications •Product Weight – 128 Lbs. / Shipping Weight – 141 Lbs. Rating – 240 / 60 Hz / 30A •Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line. (Do not use same circuit as washer.) •Connected Load (kW Rating) @ 240 Volts = 6.0 kW •Amps @ 240V = 25A •Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum, 30 amp power supply cord marked for use with clothes dryers (not supplied). •Grounding through neutral link prohibited in specific applications and certain locales, requiring use of 4-wire system. (For detailed electrical requirements, refer to Product Installation Guide on web.) •Always consult local and national electric & plumbing codes. •Can be installed alone, with or without optional 15" pedestal drawer, or stacked above matching Electrolux Washer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.) •Can be built in alone or with matching Electrolux Washer (side by side or stacked) in closet, recess or under counter installation with 0" minimum clearance required around sides and back of unit(s). To achieve 0" minimum rear clearance, dryer MUST be vented straight back or with quick-turn 90° elbow. Steam dryer requires additional 3/4" steam hose clearance at back of unit(s). Installation of closet door(s) requires additional 1" minimum clearance between front of unit(s) and door(s). Location of plumbing, exhaust and utility hookups MUST be considered when planning any built-in installation. •Under-counter installation requires custom-built countertop and/or cabinetry to accommodate unit(s) height. •Voltage •Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored. •For garage installation, dryer MUST be located minimum 18" above floor. •Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface. •Dryer MUST exhaust to outside of building, NOT into any concealed space. •Dryer equipped for 4-way venting and approved for up to 125-foot-equivalent of duct length, determined by length of run and number of elbows needed. •Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal duct with approved, unobstructed vent hood having swing-out damper(s). If installing rigid metal duct (preferred), do not exceed MAXIMUM venting run length of 125 ft., allow deductions for elbows and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM venting run length of 8 ft., always allow deductions for elbows and vents (Refer to Product Installation Guide on web for additional information). Do NOT use flexible plastic or metal foil duct and use shortest run possible. •Leveling legs supplied to level dryer properly and reduce excessive noise and vibration. •Water inlet hose for steam setting connects to cold water supply with “Y” connector and requires 3/4" clearance between back of unit and wall. Note: F or planning purposes only. Refer to Product Installation Guide on the web at electroluxappliances.com for detailed instructions. Optional Accessories •Pedestal Drawers – Island White (PN # EPWD157SIW). Stacking Kit – (PN # STACKIT7X). •Drying Rack – (PN # A04840701). •Dryer Electrolux Major Appliances, N.A. USA • 10200 David Taylor Drive • Charlotte, NC 28262• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca EFME417S 03/16 © 2016 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice.
