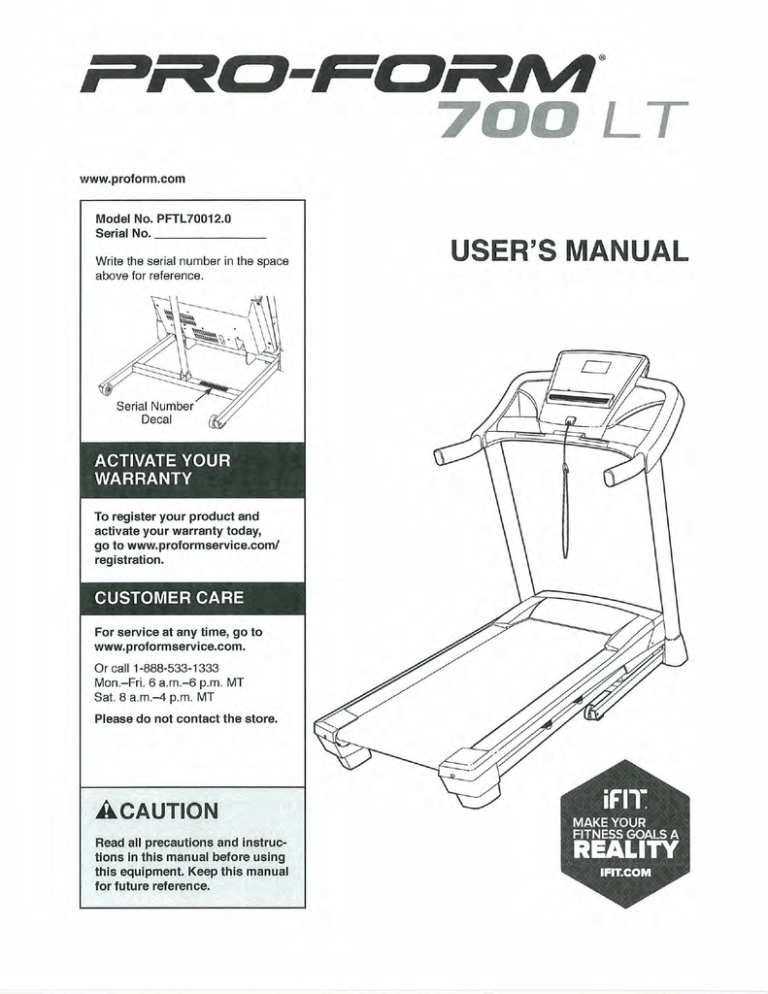

PRO-FORM
PrRO-FORN
www.proform.com
Model No. PFTL70012.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.-Fri. 6 a.m.—6 p.m. MT
Sat. 8a.m.—4 p.m. MT
Please do not contact the store.
A CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
00 LT
USER’S MANUAL
MAKE YOUR
FITNESS GOALS A
IFIT. COM
TABLE OF CONTENTS
WARD: DEALER GE MER 20.06 abone Boi fle be 587003 Sur bali dr i ados a Mu A MAA S03 5 Airis ete Budo hs Bisa 2
IMPORTANT PREROGAD TENE tea her ate y ak Dit iss 3
BEFORE YOU BEGIN: 6566 4 5585508 606 hid 60a [mid Broads ba E Rei E NETA EIN LEE 6
FART [DEN TIFIGATICEN START. 52 $ енко В CODAE au Til dings A EE AE EA as 7
ASEMBLY avere mais ENEE Das Del нео oa 3 os alg 8
OPERATION AND: ABJUSTIMENT >>> =0.7 7% 055605 545 meas 503 00ad pans sn bash ams oh in yes piven di a 15
FCW TE FOLD ANBIWNKIVE THE TREMDMILL zara ma A E AAA ae 22
PREIVELESHOLANINES alta iad ak afar ire slit of MIDA e Aide Eee oh ll 23
EXERCISE GUIDELINES à 00raa 5 ad vétèa à 6 à Diem d 0e £ ams 6 gies donds smi a hes gas ems saws esas sien 26
PRE: Dion Oui a ALE AA lac a Re 27
EXPLODED DEAN 272 Eonia e PEU area ds ate res ao ph eee hae: 100 28
ORDERING REPLACEMENT PARDO: 2:77 35 c25 505697 55% 20d od 6 a Gad 5.5 5790 7558 58 Visas 5a Back Cover
CINE NA AIT M Aa AN AAA STALE ri GL RDA AAA AAA AE Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning (AWARNING:
decals. If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decals may not be
shown at actual size.
Protect yourself and
others from risk of serious
injury. Read the user's
manual я
A Stand only on the
side rails when
starting or stopping
A CAUTION |
KEEP HANDS AND FEET AWAY
FROM THIS AREA WHILE THE
TREADMILL IS IN OPERATION.
a
J
E) * A
ЧЁ
В
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
A WAR N | NG = To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1.
10.
11.
It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
Use the treadmill only as described in this
manual.
The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
Keep children under age 12 and pets away
from the treadmill at all times.
The treadmill should be used only by per-
sons weighing 300 Ibs. (136 kg) or less.
Never allow more than one person on the
treadmill at a time.
Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
12.
13.
14.
15.
16.
17.
18.
19.
Plug the power cord into a surge suppressor
(not included), and plug the surge suppres-
sor into an appropriate outlet (see page 15).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
Use only a surge suppressor that meets all of
the specifications described on page 15. To
purchase a surge suppressor, see your local
PROFORM dealer, call the telephone number
on the front cover of this manual, or see your
local electronics store.
Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
Keep the power cord and the surge suppres-
sor away from heated surfaces.
Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
TROUBLESHOOTING on page 23 if the tread-
mill is not working properly.)
Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 17).
Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
20.
21.
22.
23.
The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 6 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 8 and HOW TO FOLD AND MOVE
THE TREADMILL on page 22.) You must be
able to safely lift 45 Ibs. (20 kg) to move the
treadmill.
When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
24.
25.
26.
27.
28.
Do not change the incline of the treadmill by
placing objects under the treadmill.
Never insert any object into any opening on
the treadmill.
Inspect and properly tighten all parts of the
treadmill regularly.
DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS
PROTECT
YOUR FITNESS EQUIPMENT
WITH AN EXTENDED SERVICE PLAN
Your new fitness equipment is not an ordinary purchase; itis an
investment in your health and well being for years to come.
As the leading provider of manufacturer's extended service plans,
ICON strives to protect your equipment and your future.
Please review the following service plans and find one that best fits your needs.
PREVENTIVE MAINTENANCE SERVICE PLANS
To protect your fitness equipment today, please
call Customer Careat 1-800-6/7-3838.
Or visit us onlineat WWW.Utserv.com.
Equipment Price 3-Year Plan 5-Year Plan Features:
+ Includes an annual preventive
$0.00 to $1000.00 $199.99 $289.99 maintenance and performance
check at your convenience
$1001.00 to $1500.00 $259.99 $379.99 Unlimited in-home repairs;
no shipping required
$1501.00 to $2500.00 $339.99 $489.99 Covers parts and labor on all
manufacturer's defects, as well as
a. $139.99 NA wear and tear on parts
* Up to 5 years of coverage available
STANDARD SERVICE PLANS
Equipment Price 1-Year Plan 3-Year Plan 5-Year Plan Features:
$0.00 to » Unlimited in-home repairs;
$300.00 $29.99 $39.99 $59.99 no shipping required
$301.00 to » Covers parts and labor on all
$1000.00 282.99 7119.99 5149.99 manufacturer's defects, as
$1001.00 to well as wear and tear parts
$2000.00 $109.99 $139.99 $179.99 - Up to 5 years of
coverage available
$2001.00 to |
$3000.00 $179.99 $209.99 $239.99
UTS Ú
UNIVERSAL TECHNICAL SERVICES
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM® 700 LT manual. To help us assist you, note the product model
treadmill. The 700 LT treadmill provides an impressive number and serial number before contacting us. The
selection of features designed to make your workouts model number and the location of the serial number
at home more effective and enjoyable. decal are shown on the front cover of this manual.
For your benefit, read this manual carefully before Before reading further, please familiarize yourself with
you use the treadmill. If you have questions after the parts that are labeled in the drawing below.
reading this manual, please see the front cover of this
Length: 5 ft. 10 in. (178 cm) Л
Width: 2 ft. 10 in. (86 cm) p=
A Console
2 27]
Accessory Tray eT A= Heart Rate Monitor
\\ | i > e. Handrail
| | Key/Clip
|
Motor Hood
a Power Switch
Walking Belt A | TC os
Foot Rail
Power Cord
Wheel
Platform Cushion
>
=
Adjustment Screws —
Idler Roller
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-
tached. Extra parts may be included.
5/16" Star
— 3/8" Star 3/8" Nut (3)—4
da Washer (5)-10
ATL
#8 x 3/4" Screw 1/4" x 1" 5/16" x 1"
(6)-12 Screw (10)—4 Screw (7)-2
3/8" x 2" Bolt (12)-2 3/8" x 2 1/2" Bolt (2)-2
3/8" x 3 1/2" Screw (9)—4
3/8" x 4" Screw (4)—6
ASSEMBLY
* To hire an authorized service technician to assem- + To identify small parts, see page 7.
ble your exercise equipment, call 1-800-445-2480.
- Assembly requires the following tools:
Assembly requires two persons.
the included hex keys Е
* Place all parts in a cleared area and remove the |
packing materials. Do not dispose of the packing one adjustable wrench о
materials until you finish all assembly steps.
one Phillips screwdriver EF
- After shipping, there may be an oily substance I
on the exterior of the treadmill. This is normal. If SCISSOTS ©
there is an oily substance on the treadmill, wipe :
it off with a soft cloth and a mild, non-abrasive needlenose pliers =>
cleaner.
To avoid damaging parts, do not use power tools.
* Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
1. Goto www.proformservice.com/registration
on your computer and register your product.
Registration provides the following benefits:
- activates your product manufacturer's warranty
* saves you time if you ever need to contact
Customer Care
allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
CUSTOMER CARE (see the front cover of this
manual) to register your product.
2. Make sure that the power cord is unplugged.
Locate the Upright Wire (70) bundled around the
front of the Base (80) beneath the Belly Pan (68).
Cut the plastic tie securing the Upright Wire.
Route the Upright Wire out of the indicated hole.
Press a Base Cap (77) into each side of the
Base (80).
See the inset drawing. Cut the plastic tie near
the Upright Wire (70). Be careful not to damage
the Upright Wire.
3.
Identify the Left Upright (75). Have a second
person hold the Left Upright near the Base (80).
See the inset drawing. Tie the wire tie in the
Left Upright (75) securely around the end of the
Upright Wire (70). Then, insert the Upright Wire
into the lower end of the Left Upright as you pull
the other end of the wire tie through the Left
Upright.
With the help of a second person, hold the Left
Upright (75) against the Base (80). Be careful
not to pinch the wires.
Partially tighten three 3/8" x 4" Screws (4) with
three 3/8" Star Washers (5) into the Left Upright
(75) and the Base (80); do not fully tighten the
Screws yet.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the right
side.
5.
6.
Identify the Left and Right Base Covers (73, 74).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (75, 76) as shown.
Identify the Left Handrail (71). If there is a wire in
the Left Handrail, remove and discard it.
Hold the Left Handrail (71) near the Left Upright
(75). Insert the wire tie on the Upright Wire (70)
through the bottom and pull it out of the end
of the Left Handrail as shown. Then, pull the
Upright Wire through the Left Handrail.
Attach the Left Handrail (71) to the Left Upright
(75) with two 3/8" x 3 1/2" Screws (9) and two
3/8" Star Washers (5). Make sure not to pinch
the Upright Wire (70). Start both Screws, but
do not tighten them yet.
10
7. Attach the Right Handrail (72) to the Right
8.
Upright (76) with two 3/8" x 3 1/2" Screws (9)
and two 3/8" Star Washers (5). Start both
Screws, but do not tighten them yet.
Insert the Console Frame (87) into the Handrails
(71, 72). Attach the Console Frame with the four
1/4" x 1" Screws (10). Start all four Screws,
and then tighten them. Be careful not to pinch
the Upright Wire (not shown).
Firmly tighten the four 3/8" x 3 1/2" Screws (9).
72
11
9. With the help of a second person, hold the con-
sole assembly near the Left Handrail (71) and
the Right Handrail (not shown).
Connect the Upright Wire (70) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
10. Set the console assembly on the Left and Right
Handrails (71, 72). Make sure that no wires
are pinched. Insert the excess Upright Wire (70)
into the Left Handrail.
Attach the console assembly to the brackets on
the Handrails (71, 72) with two 5/16" x 1" Screws
(7) and two 5/16" Star Washers (8). Start both
Screws, and then tighten them.
9
Console
o Assembly
o
—
=
—
J,
x
70 Y
ee
%
71
Wire
Tie
Console
Wire
12
11. Attach the two Console Clamps (34) to the con- 11
sole assembly with four #8 x 3/4" Screws (6).
See step 4. Tighten all six 3/8" x 4" Screws (4).
12. Identify the Left and Right Trays (45, 85). Orient
the Trays as shown and attach each Tray
with four #8 x 3/4" Screws (6). Start all of the
Screws before tightening them. Be careful
not to overtighten the Screws.
13
13. Raise the Frame (49) to the position shown. 13
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (51)
to the Base (80) with a 3/8" x 2" Bolt (12) and a
3/8" Nut (3).
Attach the upper end of the Storage Latch (51)
to the Frame (49) with a 3/8" x 2" Bolt (12) and a
3/8" Nut (3).
Latch Knob
Large Barrel
Way в
| Mun >
(VU
14. Attach a Wheel (81) to the Base (80) with a 3/8"
x 2 1/2" Bolt (2) and a 3/8" Nut (3). Do not over-
tighten the Nut; the Wheel must turn freely.
Attach the other Wheel (81) to the other side
of the Base (80) in the same way.
Lower the Frame (not shown) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 22).
15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex key in a secure place; the hex key is used to adjust
the walking belt (see pages 24 and 25).
14
OPERATION AND ADJUSTMENT
HOW TO CONNECT THE POWER CORD
Use a Surge Suppressor
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your home's
power. Voltage surges, spikes, and noise interfer-
ence can result from weather conditions or from other
appliances being turned on or off. To decrease the
risk of damaging the treadmill, always use a surge
suppressor with the treadmill. To purchase a surge
suppressor, see precaution 13 on page 3.
Use only a surge suppressor that is UL 1449 listed as a
transient voltage surge suppressor (TVSS). The surge
suppressor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dissipation of
450 joules. The surge suppressor must also be electri-
cally rated for 120 volts AC and 15 amps. There must
be a monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill
and serious injury to users.
Plug in the Power Cord
The treadmill must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. The treadmill power cord has a plug with a
grounding pin (see drawing 1 on this page).
A DANGER: Improper connection
of the power cord increases the risk of elec-
tric shock. Do not modify the plug—if it will
not fit an outlet, have a proper outlet installed
by a qualified electrician. If you are unsure
whether the treadmill is properly grounded,
contact a qualified electrician.
Plug the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet that is
properly installed and grounded in accordance with all
local codes and ordinances. The outlet must be on a
nominal 120-volt circuit capable of carrying 15 or
more amps. To avoid overloading the circuit, do
not plug other electrical devices, except for low-
power devices such as cell phone chargers, into
the surge suppressor or into an outlet on the same
circuit. IMPORTANT: The treadmill is not compat-
ible with GFCl-equipped outlets and may not be
compatible with AFCI-equipped outlets.
Grounded Outlet
Grounding Pin
> A
De Pin
Surge
Suppressor
A temporary
adapter may
be used to
connect the
surge sup-
pressor to
a 2-pole
receptacle
If a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet box
cover is grounded. The temporary adapter should
be used only until a properly grounded outlet can
be installed by a qualified electrician.
15
CONSOLE DIAGRAM
„3000 800..
~ 80 S0-
IAN GH GH ©)
e-90609 &
be ;
= ( ) CE om)
Се) EROS 00 EE) D
JERR
hs
PROVEN 8-WEEK WEIGHT LOSS PROGRAM
A WARNING: To reduce rsh
or ON
QUICK INCLINE ad understand the ers mani, a погоста же нар Бе цве. Кач len ay QUICK SPEED
FEATURES OF THE CONSOLE You can even listen to your favorite workout music or
audio books with the console's stereo sound system
The treadmill console offers an impressive array of while you exercise.
features designed to make your workouts more effec-
tive and enjoyable. To turn on the power, see page 17. To use the man-
ual mode, see page 17. To use an onboard workout,
When you use the manual mode, you can change the see page 19. To use an 8-week weight-loss work-
speed and incline of the treadmill with the touch of a out, see page 20. To use the stereo sound system,
button. As you exercise, the console will display instant see page 21. To use the information mode, see
exercise feedback. You can even measure your heart page 21.
rate using the handgrip heart rate monitor.
Note: The console can display speed and distance in
In addition, the console features eighteen onboard either miles or kilometers. To find which unit of mea-
workouts—five speed workouts, five incline workouts, surement is selected, see THE INFORMATION MODE
five intensity workouts, and three calorie workouts. on page 21. For simplicity, all instructions in this man-
Each workout automatically controls the speed and in- ual refer to miles.
cline of the treadmill as it guides you through an effec-
tive exercise session. IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
Lose unwanted pounds with the progressive 8-week to the walking platform, wear clean athletic shoes
weight-loss program. Each workout in the program while using the treadmill. The first time you use
controls the speed and incline of the treadmill as it the treadmill, observe the alignment of the walking
guides you through an effective workout designed to belt, and center the walking belt if necessary (see
help you achieve the results you want. page 25).
16
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord
(see page 15). Next, locate
the power switch on the
treadmill frame near the
power cord. Make sure that
the switch is in the reset
position.
Next, stand on the
foot rails of the
treadmill. Find the clip
attached to the key
and slide the clip onto
the waistband of your
clothes. Then, insert
the key into the con-
Key
——|
Clip
sole. After a moment,
the displays will light.
IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
17
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
Select the manual mode.
When the key is inserted, the manual mode will be
selected. If you have selected a workout, press the
Manual button on the console.
Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the Quick Speed
buttons numbered 1 through 10.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons. Each time you press
one of the buttons, the speed setting will change
by 0.1 mph; if you hold down the button, the speed
setting will change more quickly. Note: After you
press the button, it may take a moment for the
walking belt to reach the selected speed setting.
If you press one of the numbered Quick Speed but-
tons, the walking belt will gradually change speed
until it reaches the selected speed setting.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To re-
start the walking belt, press the Start button or the
Speed increase button.
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease button or one of the
numbered Quick Incline buttons. Each time you
press one of the buttons, the treadmill will gradually
adjust to the selected incline setting.
5. Follow your progress with the displays.
When the
manual
mode is |
selected, the
upper half of
the display
will show a
track that represents 1/4 mile (400 m). As you walk
or run, indicators will appear in succession around
the track until the entire track appears. The track
will then disappear and the indicators will again
begin to appear in succession.
Track
The upper half of the display can also show the
elapsed time, the distance you have walked or
run, the speed of the walking belt, the approximate
number of calories you have burned, your pace in
minutes per mile, and the incline of the treadmill.
Press the Priority Display button repeatedly until
the desired workout information appears.
eC CL
95
The lower left corner
of the display will show
the elapsed time, the
distance that you have
walked or run, and
the incline level of
the treadmill. Note: When an onboard workout is
selected, the display will show the time remaining
in the workout instead of the elapsed time.
The lower right corner
of the display will show
the approximate number
v
of calories you have
burned, the speed of
Г
Sie
the walking belt, and
your pace in minutes per mile. The right side of the
display will also show your heart rate when you use
the handgrip heart rate monitor.
To reset the display, press the Stop button, remove
the key, and then reinsert the key.
Measure your heart rate if desired.
Before using the handgrip heart rate monitor, re-
move the sheets of plastic from the metal contacts
on the pulse bar. In addition, make sure that your
hands are clean.
18
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on
the metal contacts for approximately ten seconds;
avoid moving your hands. When your pulse is
detected, a heart symbol in the calorie display
will flash each time your heart beats, one or two
dashes will appear, and then your heart rate will be
shown. For the most accurate heart rate read-
ing, continue to hold the contacts for about 15
seconds.
. Turn on the fan if desired.
The fan features multiple
speed settings. Press
the fan increase or de-
crease button to select a
fan speed or to turn off
the fan. Note: If the fan
is on when the walking
belt is stopped, the fan
will turn off automatically
after a few minutes.
Decrease
Increase
When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest set-
ting or you may damage the treadmill when you
fold it to the storage position. Next, remove the
key from the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
HOW TO USE AN ONBOARD WORKOUT
1.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 17.
Select an onboard workout.
To select an onboard workout, press the Speed
button, the Incline button, the Intensity button,
or the Calorie button repeatedly until the desired
workout appears in the display.
When you select an onboard workout, the maxi-
mum speed setting and the maximum incline set-
ting of the workout will flash in the display for a few
seconds and a profile of the speed settings of the
workout will scroll across the display. If you select
a Calorie workout, the approximate number of calo-
ries you will burn will also appear in the display.
Start the workout.
Press the Start button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
first speed and incline settings of the workout. Hold
the handrails and begin walking.
Each workout is divided into one-minute segments.
One speed setting and one incline setting are
programmed for each segment. Note: The same
speed setting and/or incline setting may be pro-
grammed for consecutive segments.
During the
workout, the
profile will
show your
progress.
The flashing
segment of
the profile represents the current segment of the
workout. The height of the flashing segment indi-
cates the speed setting for the current segment.
At the end of each segment, a series of tones will
sound and the next segment of the profile will begin
to flash. If a new speed and/or incline setting is
programmed for the next segment, the new speed
and/or incline setting will appear in the displays for
a few seconds and the treadmill will automatically
adjust to the new speed and/or incline setting.
Current Segment
19
The workout will continue in this way until the last
segment of the profile flashes in the display and the
last segment ends. The walking belt will then slow
to a stop.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories
that you burn will depend on various factors
such as your weight. In addition, if you manu-
ally change the speed or incline of the treadmill
during the workout, the number of calories you
burn will be affected.
If the speed or incline setting is too high or too low
at any time during the workout, you can manu-
ally override the setting by pressing the Speed or
Incline buttons; however, when the next segment
of the workout begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the Stop
button. The time will begin to flash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment of
the workout begins, the treadmill will automatically
adjust to the speed and incline settings for the next
segment.
Follow your progress with the displays.
See step 5 on page 18. The lower left corner of the
display will show the time remaining instead of the
elapsed time.
Measure your heart rate if desired.
See step 6 on page 18.
. Turn on the fan if desired.
See step 7 on page 18.
When you are finished exercising, remove the
key from the console.
See step 8 on page 18.
HOW TO USE AN 8-WEEK WEIGHT-LOSS
WORKOUT
1.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 17.
Select the desired week of the program.
Hi Di
Week Number
To select the
desired week
of the pro-
gram, press
the Select
Week button
repeatedly
until the number of the desired week appears in
the upper left display.
Select the desired day of the program.
|4] Di
Day Number
There are
three day
workouts for
each week of
the program.
To select
the desired
day of the program, press the Select Day button
repeatedly until the number of the desired day
appears in the upper right display.
Enter your weight.
To allow the console to calculate the amount of cal-
ories you will burn more accurately, press the Enter
Weight increase and decrease buttons to enter
your weight. The console will adjust the workout's
intensity level according to the weight entered.
20
Start the workout.
Press the Go button, and then press the Start but-
ton to start the workout.
The workout will function in the same way as an
onboard workout (see step 3 on page 19).
Follow your progress with the displays.
See step 5 on page 18. The lower left corner of the
display will show the time remaining instead of the
elapsed time.
Measure your heart rate if desired.
See step 6 on page 18.
. Turn on the fan if desired.
See step 7 on page 18.
When you are finished exercising, remove the
key from the console.
See step 8 on page 18.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the console’s
stereo speakers, you must connect your MP3 player,
CD player, or other personal audio player to the con-
sole through the MP3 jack.
To use the MP3 jack, plug your audio wire into the MP3
jack. Then, plug your audio wire into a jack on your
MP3 player, CD player, or other personal audio player.
Make sure that your audio wire is fully inserted.
Next, press the play button
on your MP3 player, CD
player, or other personal
audio player. Adjust the vol-
ume on your personal audio
player or press the volume
increase and decrease but-
tons on the console.
Increase
Decrease
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat sur-
face instead of on the console.
21
THE INFORMATION MODE
The console features an information mode that keeps
track of treadmill usage information. The information
mode also allows you to select miles or kilometers as
the unit of measurement and to turn on and turn off the
display demo mode.
To select the information mode, hold down the Stop
button, insert the key into the console, and then re-
lease the Stop button. When the information mode is
selected, the following information will appear in the
display:
* The number of
hours that the 7 E
treadmill h 10"
been 3 AUEO
operated.
* The total number of miles or kilometers that the
walking belt has moved.
* An “E” for English miles or an “M” for metric kilome-
ters. To change the unit of measurement, press the
Speed decrease button.
- An “On,” “Off,” or “Auto” for the backlight setting. To
change the backlight setting, press the Speed in-
crease button.
To exit the information mode, remove the key from the
console.
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to the lowest position before you fold the treadmill.
Then, remove the key and unplug the power cord.
CAUTION: You must be able to safely lift 45 Ibs. (20
kg) to raise, lower, or move the treadmill.
1:
Hold the metal frame firmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
2. Raise the frame until the latch knob locks in the
storage position. CAUTION: Make sure that the
latch knob locks.
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the latch knob is
locked in the storage position. Moving the treadmill
may require two people.
22
La
Hold the frame and one of the handrails, and place
one foot against a wheel.
Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1.
See drawing 2. Hold the upper end of the treadmill
with your right hand. Then, pull the latch knob to
the left and hold it. IMPORTANT: Do not turn the
latch knob. If necessary, push the frame forward
slightly. Pivot the frame downward a few inches,
and release the latch knob.
See drawing 1 at the left. Hold the metal frame
firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
TROUBLESHOOTING
Most treadmill problems can be solved by following
the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assis-
tance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a
surge suppressor and that the surge suppressor
is plugged into a properly grounded outlet (see
page 15). Use only a surge suppressor that meets
all of the specifications described on page 15.
IMPORTANT: The treadmill is not compatible
with GFCl-equipped outlets and may not be
compatible with AFCI-equipped outlets.
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in.
Tripped Reset
SYMPTOM: The power turns off during use
a. Check the power switch (see the drawing above).
If the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The console displays remain lit when
you remove the key from the console
a. The console features a display demo mode,
designed to be used if the treadmill is displayed in
a store. If the displays remain lit when you remove
the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a
few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 21 to turn off the
demo mode.
SYMPTOM: The displays of the console do not
function properly
a. Remove the key from the console and UNPLUG
THE POWER CORD. Remove the three #8 x 3/4"
Screws (6). Carefully slide the Motor Hood (57) off.
23
Locate the Reed Switch (94) and the Magnet (95)
on the left side of the Pulley (43). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet
and the Reed Switch is about 1/8 in. (3 mm). If
the maximum incline level and then return to the
minimum level. This will recalibrate the incline
system. If the incline does not begin calibrating,
press the Stop button again, and then press the
Incline increase or decrease button again. When
the incline is calibrated, remove the key from the
console.
SYMPTOM: The walking belt slows when walked on
a. Use only a surge suppressor that meets all of the
24
specifications described on page 15.
necessary, loosen the #8 x 3/4” Truss Head Screw р. If the walking belt is overtightened, treadmill per-
(19), move the Reed Switch slightly, and then formance may decrease and the walking belt may
retighten the Screw. Reattach the Motor Hood (not become damaged. Remove the key and UNPLUG
shown) with the five #8 x 3/4” Screws (not shown) THE POWER CORD. Using the hex key, turn both
and run the treadmill for a few minutes to check for idler roller screws counterclockwise, 1/4 of a turn.
a correct speed reading. When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
Front careful to keep the walking belt centered. Then,
View plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walk-
ing belt is properly tightened.
Right Left
SYMPTOM: The incline of the treadmill does not
change correctly
a. Hold down the Stop button and the Speed increase
button, insert the key into the console, and then
release the Stop button and the Speed increase ldler Roller Screws
button. Next, press the Priority Display button.
Then, press the Incline increase or decrease
button. The treadmill will automatically rise to C. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, see the front cover of this manual.
If the walking belt still slows when walked on, see
the front cover of this manual.
SYMPTOM: The walking belt is off-center or slips
when walked on
a.
If the walking belt is off-center, first remove the
key and UNPLUG THE POWER CORD. If the
walking belt has shifted to the left, use the hex
key to turn the left idler roller screw clockwise 1/2
of a turn; if the walking belt has shifted to the
right, turn the left idler roller screw counterclock-
wise 1/2 of a turn. Be careful not to overtighten the
walking belt. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
N
25
If the walking belt slips when walked on, first
remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walk-
ing belt is correctly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to
7 cm) off the walking platform. Be careful to keep
the walking belt centered. Then, plug in the power
cord, insert the key, and carefully walk on the tread-
mill for a few minutes. Repeat until the walking belt
is properly tightened.
NN
К =
EXERCISE GUIDELINES
A WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
165 155 145 140 130 125 115 W
145 138 130 125 118 110 103 W
125 120 115 110 105 95 90 ®
20 30 40 50 60 70 $80
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
26
Burning Fat— To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise— Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down —Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week
If desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
PART LIST
Key No. Qty.
1 4
2 2
3 4
4 6
5 10
6
7
8
9
A
—
N
A
Vss44H4H<NDNH4H4HA4HHSANNO4HAAHANNADANDNNAENESONNNNNDNZS5AS4ANN
Description
#8 x 1/2" Ground Screw
3/8" x 2 1/2" Bolt
3/8" Nut
3/8" x 4" Screw
3/8" Star Washer
#8 x 3/4" Screw
5/16" x 1" Screw
5/16" Star Washer
3/8" x 3 1/2" Screw
1/4" x 1" Screw
#3 x 1/4" Screw
3/8" x 2" Bolt
Speaker
1/4" x 2 1/2" Screw
3/8" x 1 3/8" Bolt
1/2" x 2 1/4" Bolt
1/2" Nut
Hood Clip
#8 x 3/4" Truss Head Screw
3/8" x 1 3/4" Bolt
3/8" Locknut
Incline Motor Spacer
1/4" x 3/8" Screw
#8 x 1/2" Screw
5/16" x 1 1/4" Bolt
Left Speaker Cover
5/16" x 1 3/4" Bolt
5/16" Washer
5/16" Nut
Right Speaker Cover
Pulse Crossbar
1/4" x 2" Screw
#8 x 1" Tek Screw
Console Clamp
Base Pad Spacer
Platform Cushion
Left Foot Rail
Latch Warning Decal
Walking Platform
Walking Belt
Belt Guide
Rubber Spacer
Drive Roller/Pulley
Left Speaker Grill
Left Tray
Drive Motor Belt
Drive Motor
Frame Spacer
Key No. Qty.
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
79
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
| ILLA — NO = bh = = 20 = == ББ О = = = = = = № =D) = = =D) rr PM) Bb bh dk ok A
Model No. PFTL70012.0 RO113A
Description
Frame
Right Foot Rail
Storage Latch
Right Rear Foot
Left Rear Foot
#8 x 1/2" Pan Head Screw
#8 x 1/2" Controller Screw
Idler Roller
Motor Hood
Incline Frame Spacer
Incline Frame
Incline Motor
Controller Ground Wire
Controller
Wire Tie
Belly Pan Plate
Power Switch
Power Cord
Grommet
Belly Pan
Upright Cap
Upright Wire
Left Handrail
Right Handrail
Left Base Cover
Right Base Cover
Left Upright
Right Upright
Base Cap
Caution Decal
Base Pad
Base
Wheel
Key/Clip
Console Base
Not Used
Right Tray
Console
Console Frame
Cushion Bottom
Console Ground Wire
Not Used
Console Wire Tie
Right Speaker Grill
Reed Switch Clip
Reed Switch
Magnet
User's Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
27
Model No. PFTL70012.0 R0113A
EXPLODED DRAWING A
Model No. PFTL70012.0 RO113A
EXPLODED DRAWING B
29
Model No. PFTL70012.0 RO113A
EXPLODED DRAWING C
30
EXPLODED DRAWING D Model No. PFTL70012.0 R0113A
31
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
vide the following information when contacting us:
» the model number and serial number of the product (see the front cover of this manual)
- the name of the product (see the front cover of this manual)
* the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 5.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor
is warranted for twenty-five (25) years from the date of purchase. Parts and labor are warranted for one
(1) year from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer's responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specific legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 338247 RO113A Printed in China © 2012 ICON IP, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
