KitchenAid KPTT890TG1 Toaster Owner's Manual

KitchenAid

PRO LI N E

SERIES

_

PROF

GUIDE TO

SS|ONA_

RESULTS

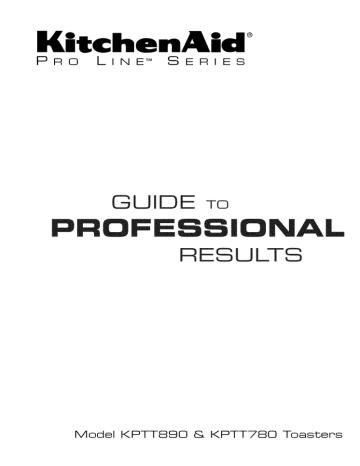

Model KPTT890 & KPTT780 Toasters

KitchenAid ® PRO LINE are encineered to oe a n_ commercial aurability, cla._

contemporary performance

_ylooking at the es__ by t simplicity, depenc

_a_ ose essential qualit ae found ar

Series Toasters

d of the home. VVe ing in the commercial ftsmanship

)int, our goal became offered a

Series 2 and 4 slice toasters

_stmetal construction will wil

_okterrific doing so. A tot

I remain within the

_nd the toughest

_eshade levels provide toast for eve@ beautifully con_,stent resu ts

•

Ice Toaster speeds preparation when sli

_stfor part cular tastes.

IHTRO©UCTIOH

Introduction .....................................................................................................

Toaster Safety

Important Safeguards ....

Proof of Purchase & Product Registration

Electrical Requirements

FEAi[URES Slit: OPERA/Y/OH

Toaster Features

Using the Toasters

Before First Use ....

Dual Controls of the KPTT890

Toaster Operation

Checking the Toasting Progress

Canceling the Toasting Cycle

Toasting Tips

Using the Sandwich Rack & Bun Warmer Accessories

Care & Cleaning

Troubleshooting

Recipes for Flavored Butter

RRAHPl s/_/_:> /HFORMAIr/OH

Warranty for the 50 United States & District of Columbia

Warranty for Puerto Rico

Arranging for Hassle-Free Replacement

Ordering Accessories & Replacement Parts

Arranging

Arranging for Service After the Warranty Expires for Service Outside the 50 United States & Puerto Rico

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."These words mean:

You can be killed or seriously injured

if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance d injury, and tell you what can happen if the instructions are not followed.

followed,includingthefollowing

Read all instructions.

Do not touch hot surfaces. Use handles or knobs.

To protect against electrical shock, do not immerse cord, plugs, or

Toaster in water or other liquids.

Close supervision is necessarywhen any appliance is used by or near children.

;i Unplug Toaster from outlet when not in use and before cleaning.

Allow to cool before putting on or taking off parts.

Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized servicefacility for examination, repair, or adjustment.

The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

_!:' Do not use outdoors.

Do not let cord hang over edge of table or counter, or touch hot surfaces.

Do not place on or near a hot gas or electric burner, or in a heated oven.

" To disconnect, turn any control to "Off", then remove plug from outlet.

_ Do not use appliance for other than intended use.

" ' Oversize foods, metal foil packages, or utensils must not be inserted in

Toaster as they may involve a risk of fire or electric shock.

4 A fire may occur if Toaster is covered or touching flammable material, including curtains, draperies, walls and the like, when in operation.

;; Do not attempt to dislodge food when Toaster is plugged in.

This product has been UL Listed for household and commercial use.

yourwarranty.

SerialNumber

DatePurchased

StoreName

Volts:120V.A.C.only.

Hertz:60 Hz outletonlyoneway.If the plugdoesnotfit inthe outlet,contacta qualified theplugin anyway.

ElectricalShockHazard

Pluginto a grounded3 prong outlet.

Donot removegroundprong.

Donot usean adapter.

Donot use

an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

LINE

SERIES

UR S

Model KPTT780

2-slice Toaster

Stainless Steel and Die-Cast

Metal Construction

Designed to withstand the commercial environment, the rugged metal construction will last for years.

Outstanding Performance

Heavy gauge heating elements held flat on extra-thick mica boards ensure even browning. A heat sensor and microprocessor yield consistent toasting slice after slice, without pre-heating.

Flexible Operation

On the 4-slice KPTT890, each pair of slots features its own shade dial, lift lever, and on/off switch. Speeds preparation when making toast for different tastes.

Wide, Deep Slots

1" wide slots handle toaster pastries easily.

Extra-deep toasting cavity enhances even browning.

bagels, English muffins, thick breads, and

Stay Warm

Feature

After toasting is complete, bread remains in the warm toasting cavity until it is raised manually. Raising the lift lever doesn't cancel a toasting cycle, so the toasting progress can be checked anytime. Lift levers are motion-damped for smooth operation.

True Vertical Lift

Lift lever raises bread vertically, not in an arc - so specialty breads are less likely to tear or jam in slots.

Shade Dial

9 shade levels provide consistent browning for every taste.

Z j,

On/Off Switch

Turn switch momentarily to "On" to start toasting, or to "Off" to stop a toasting cycle.

(: }

Function Light

Indicates when toaster is operating.

Toasting Finished Tone

Tone sounds when a toasting cycle is complete.

Removable

Crumb Tray

Full-width, polished stainless steel tray is dishwasher-safe. Model

KPTT890 has two trays, one for each pair of slots.

Under Base

Cord Wrap

Keeps extra cord out of sight and out of the way.

Overtemp Protection

Toasting cycle is electronically controlled.

Toaster will not remain on and overheat due to a mechanical jam or failure.

I I

LIN ......

@_;_W _w_I I ,.=.,, i"" _ ]]Z) I k,,,, =" ....,,J

Before First Use:

Before using your toaster, check the slots and remove any packing or printed material that may have fallen inside during shipping or handling.

The toaster may emit a pungent odor or light smoke the first time you use it. This is a normal result of the manufacturing process. The odor or smoke is harmless and will dissipate quickly.

Dual Controls of the KPTT890:

The 4-slice KPTT890 toaster has separate controls for each pair of toasting slots, so you can prepare toast for different tastes - or toast different breads - simultaneously. Follow the same operating steps regardless of which slot pair you are using.

Toaster Operation:

Shorten the cord, if necessary, by wrapping it under the base.

Model KPTT890

4-slice Toaster

I')

;y,}

_J z)

Model KPTT780

2-slice Toaster

(: !

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

2 Plug toaster cord into a grounded

3 prong electrical outlet. A tone will sound when the toaster is connected.

Insert bread or other food to be toasted into the slots. If you have only 1 or 2 slices to toast, it makes no difference which pair of slots, or individual slot, you use.

Turn the Shade Dial to select the degree of darkness you want.

Rotate the Shade Dial clockwise for darker toast, counter-clockwise for lighter. Shade settings 1-3 are light,

4-6 are medium, and 7-9 are dark.

Push the lift lever down until the bread is lowered as far as possible, then turn the On/Off Switch momentarily to the "On" position.

The switch will spring back to the middle position and the function light will glow, indicating the toasting cycle has started.

NOTE: Toaster will automatically shut off if the On/Off Switch is held in the

"On" position more than 15 seconds.

When the toasting cycle is complete, a tone will sound and the function light will stop glowing. The toast will remain in the warm toasting cavity until the lift lever is raised.

To Check Toasting Progress:

To check the progress of your toast during a toasting cycle, raise the manual lift lever. Raising the lift lever will not cancel the toasting cycle, enabling you to simply lower the bread if additional browning is required. If you remove the bread before a toasting cycle is complete, don't forget to cancel the cycle by turning the

On/Off Switch momentarily to the

"Off" position. If you forget to cancel the cycle, the toaster will automatically shut off at the end of the cycle time.

NOTE: Operating the toaster without bread will not harm the toaster.

To Cancel Toasting Cycle:

To cancel the toasting cycle at anytime, turn the On/Off Switch momentarily to the "Off" position.

The function light will stop glowing and the toasting cycle will end.

Z j,

CkC

C _'__Z2;: _ C_ rapidly than moist bread and will require a lighter setting. Bagels and

English muffins usually require higher shade settings due to their firm texture and high density.

For best results, toast only one bread type and thickness at a time in a given pair of toasting slots.

Sandwich

Model KTSR

Rack

The sandwich rack is the perfect way to toast sandwiches quickly and easily.

To use:

Open the rack by spreading the handles apart.

7 Place one edge of the sandwich against the bottom channel of the rack.

Press the sandwich rack handles together to grip the sandwich.

¢,)

Lower the toaster lift lever as far as possible and insert the sandwich rack into the slot.

Select a shade level and turn the

On/Off Switch momentarily to the

"On" position to begin toasting.

Remove sandwich rack when toasting is complete. Remember: the rack will be hot immediately following a toasting cycle.

Remove the sandwich from the rack. You may want to use a spatula or tongs when doing so.

c:,

;J}

(: }

Sandwich

Toasting Tips

Do not overfill the sandwich. Thinly sliced ingredientslike ham, turkey, and cheese - work best.

Lightly butter the outside of the sandwich bread - do not butter the side which faces the filling. Buttering the outside of the bread slows browning and helps warm the filling.

Bun Warmer

Model KTBW2 - 2-slice

Model KTBW4 - 4-slice

Conveniently warm buns on the top of your toaster with the bun warmer accessory.

To use:

Lower the toaster lift lever or levers as far as possible. Place bun warmer on top of the toaster, making sure the formed wire loops on the bottom of the warmer fit into the toaster slots.

Place buns on top of the warmer, select a shade level, and turn the

On/Off Switch momentarily to the

"On" position to begin warming.

Remember: the bun warmer will be hot immediately following a toasting cycle.

Alwaysunplugthetoasterand letit coolbeforecleaning.

Besureto insertthe crumbtrayinto toastingresults,do not usethe toasterwithoutthe crumbtrayin its properposition.

Slideoutthecrumbtray(the eachpairof slots)andshakethe

C, a toastingcycle.

NOTE:Liftingthecrumbtrayhandle locksthecrumbtrayinsidethetoaster, washedinthetop rackof a water.If handwashing,besureto crumbtraystraightfromthetoaster withoutliftingthe handle.

Thecrumbtraycanbewashedinthe warmsoapywater.If handwashing, besureto rinsethetrayanddryit

: _! Wipethetoasterwitha soft, dampcottoncloth.Donot use toasterinwater.

c:,

Z j,} z;>

The toaster may emit a pungent odor or light smoke the first time you use it.

This is a normal result of the manufacturing process. The odor or smoke is harmless and will dissipate quickly.

If the function light remains dark and the toaster fails to heat when the On/Off Switch is turned to "On":

Check to see if the toaster is plugged in; if it is, unplug the toaster, then plug it back in again. A tone will sound when the toaster is plugged into a live electrical outlet. If no tone sounds, check the electrical circuit the toaster is connected to - is a fuse blown or a circuit-breaker tripped in your home?

If the problem cannot be corrected, see the KitchenAid Warranty and Service section on page 25 for service information.*

If you have difficulty removing the crumb tray:

Lifting the crumb tray handle locks the crumb tray inside the toaster, preventing removal. Always pull the crumb tray straight from the toaster without lifting the handle.

If the function light next to the On/Off Switch flashes:

A flashing function light signals a fault in the toaster electronics. Unplug the toaster and refer to the KitchenAid Warranty and Servicesection on page 25 for service information.*

* Do not return the Toaster to the retailer - they do not provide service.

HONEY-ORANGE BUTTER

Add all ingredients to food processor. Process until thoroughly mixed, about 30 seconds.

_Acup (16_A-tablespoon servings).

About 56 cal, 0 g pro, 1 g carb,

6 g fat, 16 mg chol, 38 mg sod.

7± cup very soft butter,

margarine, or reduced-calorie margarine

2 tablespoons orange juice

concentrate,

thawed

1 tablespoon honey

7_ teaspoon cinnamon

½ cup very soft butter,

margarine, or reduced-calorie margarine tablespoon thyme leaves fresh

(stripped from stem) teaspoons lemon juice

LEMON-THYME BUTTER

Add all ingredients to food processor. Process until thoroughly mixed, about 30 seconds.

Y,:i: Y_cup (1 @A-tablespoon servings).

;_ev _::About51 cal, 0g pro, 0gcarb,

6 g fat, 16 mg chol, 39 mg sod.

CHEESY

GARLIC BUTTER

With food processor running, add garlic through feed tube. Process until coarsely chopped, about

5 seconds. Add remaining ingredients. Process until well mixed, about 30 seconds.

clove

garlic

1/± cup very soft

butter, margarine, or reduced-calorie margarine

1A cup freshly grated

Parmesan cheese

72cup (1 6V2-tablespoon servings).

About 58 cal, 1 g pro, 0 g carb,

6 g fat, 17 mg chol, 67 mg sod.

{,3 o ks

c:>

Z j,}

;])

EINE

SERIES

INF

VICE

This warranty extends to the purchaser and any succeeding owner for PROLINE

Series

Toasters operated in the 50 United States and District of Columbia.

Length of

Warranty:

Two Year Full

Warranty for

Household Use, from date of purchase.

KitchenAid Will Pay For Your

Choice of:

Hassle-Free

Replacement of your Toaster.See

"Arranging for

Hassle-Free

Replacement" for details, or call the Customer Satisfaction Center toll-free at 1-800-541-6390.

The replacement parts and repair labor costs to correct defects in materials and workmanship.

Service must be provided by an

Authorized KitchenAid Service

Center. See the KitchenAid®

PROLINE

SeriesToasterWarranty for Puerto Rico for details on how to arrange for service.

KitchenAid Will Not

Pay For:

A. Repairswhen Toaster is used in other than normal single family home use.

B. Damage resulting from accident, alteration, misuse or abuse.

C. Any shipping or handling costs to deliver your Toasterto an Authorized Service

Center.

D. Replacement parts or repair labor costs for

Toastersoperated outside the United

Statesand District of

Columbia.

KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Series Toasters operated in Puerto Rico. During the warranty period, all service must be handled by an Authorized KitchenAid Service Center.

Please bring the Toaster, or ship it prepaid and insured, to the nearest Authorized

Service Center. Simply call toll-free 1-800-541-6390 Monday through Friday, 8 a.m. to

8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m. to learn the location of a Service

Center near you. Your repaired Toaster will be returned to you prepaid and insured.

Toaster should fail within two years of ownership, simply call our toll-free Customer

Satisfaction Center at 1-800-541-6390 Monday through Friday, 8 a.m. to 8 p.m.

(Eastern Time), or Saturday, 10 a.m. to 5 p.m. Give the consultant your complete shipping address. (No RO. Box Numbers, please.)

KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your "failed" Toaster returned to us. Your replacement unit will also be covered by our two year full warranty.

When you receive your replacement PRO LINE

Series Toaster, use the carton and packing materials to pack-up your "failed" Toaster. In the carton, include your name and address on a sheet of paper along with a copy of the proof of purchase

(register receipt, credit card charge slip, etc.).

To order accessories or replacement parts for your Toaster, call toll-free 1-800-541-6390

Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m.

or write to: Customer Satisfaction Center, KitchenAid Portable Appliances, RO. Box 218,

St. Joseph, MI 49085-0218.

For service information, call toll-free 1-800-541-6390 Monday through Friday,

8 a.m. to 8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m. or write to:

Customer Satisfaction Center, KitchenAid Portable Appliances, RO. Box 218,

St. Joseph, MI 49085-0218.

Electrical Shock Hazard

Unplug before servicing.

Failure to do so can result in death or electrical shock.
