User guide T610, R5a English

User guide T610, R5a English

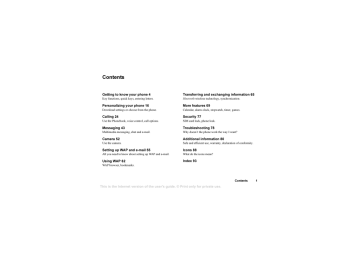

Contents
Getting to know your phone 4
Transferring and exchanging information 65
Key functions, quick keys, entering letters.
Bluetooth wireless technology, synchronization.
Personalizing your phone 16
More features 69
Download settings or choose from the phone.
Calendar, alarm clock, stopwatch, timer, games.
Calling 24
Security 77
Use the Phonebook, voice control, call options.
SIM card lock, phone lock.
Messaging 43
Troubleshooting 78
Multimedia messaging, chat and e-mail.
Why doesn’t the phone work the way I want?
Camera 52
Additional information 80
Use the camera.
Safe and efficient use, warranty, declaration of conformity.
Setting up WAP and e-mail 55
Icons 88
All you need to know about setting up WAP and e-mail.
What do the icons mean?
Using WAP 62
Index 93
WAP browser, bookmarks.
Contents
This is the Internet version of the user's guide. © Print only for private use.
1
Sony Ericsson
GSM 900/1800/1900
Fifth edition (May 2003)
This manual is published by Sony Ericsson Mobile
Communications AB, without any warranty.
Improvements and changes to this manual
necessitated by typographical errors, inaccuracies
of current information, or improvements to programs
and/or equipment, may be made by Sony Ericsson
Mobile Communications AB at any time and without
notice. Such changes will, however, be incorporated
into new editions of this manual.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2002
Publication number: EN/LZT 108 6258 R5A
Please read the Guidelines for safe and efficient
use and the Limited warranty chapters before you
use your mobile phone.
The BLUETOOTH trademarks are owned by
Bluetooth SIG, Inc.
T9™ Text Input is a trademark or a registered
trademark of Tegic Communications.
T9™ Text Input is licensed under one or more of
the following: U.S. Pat. Nos. 5,818,437, 5,953,541,
5,187,480, 5,945,928, and 6,011,554; Canadian Pat.
No. 1,331,057, United Kingdom Pat. No. 2238414B;
Hong Kong Standard Pat. No. HK0940329; Republic
of Singapore Pat. No. 51383; Euro.Pat. No. 0 842
463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE,
GB; and additional patents are pending worldwide.
Please note:
2
Some of the services in this manual are not supported
by all networks. This also applies to the GSM
International Emergency Number 112.
Java and all Java based trademarks and logos
are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
Please contact your network operator or service
provider if you are in doubt whether you can use
a particular service or not.
End-user license agreement for Sun™ Java™ J2ME™.
Contents
This is the Internet version of the user's guide. © Print only for private use.
1. Restrictions: Software is confidential copyrighted
information of Sun and title to all copies is retained
by Sun and/or its licensors. Customer shall not modify,
decompile, disassemble, decrypt, extract, or otherwise
reverse engineer Software. Software may not be
leased, assigned, or sublicensed, in whole or in part.
2. Export Regulations: Software, including technical
data, is subject to U.S. export control laws, including
the U.S. Export Administration Act and its associated
regulations, and may be subject to export or import
regulations in other countries. Customer agrees to
comply strictly with all such regulations and
acknowledges that it has the responsibility to obtain
licenses to export, re-export, or import Software.
Software may not be downloaded, or otherwise
exported or re-exported (i) into, or to a national or
resident of, Cuba, Irak, Iran, North Korea, Libya,
Sudan, Syria (as such listing may be revised from
time to time) or any country to which the U.S. has
embargoed goods; or (ii) to anyone on the U.S.
Treasury Department’s list of Specially Designated
Nations or the U.S. Commerce Department’s Table
of Denial Orders.
3. Restricted Rights: Use, duplication or disclosure
by the United States government is subject to the
restrictions as set forth in the Rights in Technical Data
and Computer Software Clauses in DFARS 252.2277013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable.
Part of the software in this product is copyright ©
SyncML initiative Ltd. (1999-2002). All rights reserved.
Other product and company names mentioned herein
may be the trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
Contents
This is the Internet version of the user's guide. © Print only for private use.
3
Getting to know your phone
About this user’s guide
The “Getting to know your phone” chapter gives a
quick overview of the main functions of the phone,
shortcuts and general information.
More information and downloads are available at
www.SonyEricsson.com/ or wap.SonyEricsson.com/.
Available services
Some services and functions described in this
user’s guide are network or subscription-dependent,
which means that all menus may not be available in
your phone.
This symbol indicates that a service
or function is network or subscriptiondependent.
Please consult your network operator for
more information about your subscription.
4
Assembly
Before you can use your phone you need to:
• Insert the SIM card.
• Attach and charge the battery. See “SIM card and
battery information” on page 5.
Note: Always turn off the phone and detach the
charger before you insert or remove a SIM card.
The SIM card
When you register as a subscriber with a network
operator, you get a SIM (Subscriber Identity Module)
card. The SIM card contains a computer chip that keeps
track of your phone number, the services included in
your subscription, and your Phonebook information,
among other things.
Tip: Check if your information is saved to the SIM
card before you remove it from another phone. For
example, Phonebook entries may be saved in the
phone memory.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
SIM card and battery information
1.
2.
3.
4.
5.
6.
7.
It may take up to 30 minutes before an icon
appears when charging.
Insert the SIM card. Slide the silvery holder over
the SIM card to lock it in place.
Place the battery on the back of the phone with
the connectors facing each other.
Place the back cover as shown in the picture and
slide it into place.
Connect the charger to the phone at the flash
symbol. The flash symbol on the charger plug
must face upwards.
It may take up to 30 minutes before the battery
charging icon appears in the display.
Wait approximately 4 hours or until the icon indicates
that the battery is fully charged. If you do not see the
battery icon after this time, press any key or the joystick
to activate the display.
Remove the charger by tilting the plug upwards.
30 min.
4 h.
Note: You have to insert the SIM card and
charge the battery before you can use the phone.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
5
Turning the phone on
Wel
If you make a mistake while entering your PIN, delete
the wrong number by pressing
.
on/off
If your PIN starts with the same digits as an
emergency number, for example 112, the digits are
not hidden with an * when you enter them. This is
so that you can see and call an emergency number
without entering a PIN. See “Making emergency
calls” on page 24.
Note: If you enter the wrong PIN three times in a
row, the SIM card is blocked and the message PIN
blocked appears. To unblock it, you need to enter
your PUK (Personal Unblocking Key). Your PUK
is provided by your network operator.
To turn on the phone
Press the on/off button on the top of the phone.
To turn off the phone
Press and hold the on/off button at the top of the phone.
Note: The first time you turn on the phone it takes
up to 40 seconds to begin operating.
• Enter your PIN (Personal Identity Number), if you
have one for your SIM card.
Your PIN is provided by your network operator.
6
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Navigating the menus
The main menus are shown as icons on the desktop.
To go to the desktop, press the joystick.
Press to go to
the desktop.
Desktop
Move up,
down, left,
right through
menus.
Press to select
highlighted
items.
Example
To set an alarm
1. Use the joystick to scroll to Organizer, and press
the left
key to select it.
2. Use the joystick to scroll down to Alarms, and press
the left
key to select this function. Press the left
key again to select Alarm.
3. Enter the time and press the left
key to save
your entry.
Throughout this user’s guide instructions such as
those above will be given in a shorter form, as follows:
To set an alarm
1. Scroll to Organizer, Alarms, Alarm.
2. Enter the time, SAVE.
Press to go back one
level in the menus.
Press and hold to
return to standby.
Press to select
the options shown
above these keys
in the display.
To make and receive calls from standby
• Enter the area code and phone number, press CALL.
• Press END CALL to end the call.
• When the phone rings, press YES to answer the call.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
7
Key functions
Press once to activate camera
function. Press again to take
a picture.
Volume keys increase/decrease
the earpiece volume during a
call. Enter the Status menu in
standby. Press twice to reject
an incoming call. Press once
to turn off the ring signal when
receiving a call.
Press to select the options
that appear in the display
immediately above these keys.
Press once to go back one level
in the menus. Press and hold to
return to standby.
Enter *. Shift between lower/
upper case.
8
Infrared port.
Press and hold to switch
the phone on or off.
Press to go directly to
the Internet.
Move through the menus,
lists and texts.
1-9, 0
Delete numbers, letters or an
item from a list. Press and hold
to turn off the microphone
(during calls) or turn off sound.
Enter digits, 0–9, and letters.
Press and hold
to enter
the international prefix +.
Enter # or a space.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Quick keys
Useful key combinations are described below.
To...
When in standby:
enter the main menu
To...
enter the menu to see
today’s date, the profile
in use and the model
name of the phone
change the language
to Automatic
change the language
to English
reject a call
press
or press the
centre of the joystick
press a volume key once
make an emergency call
When in standby:
enter the emergency
number and press CALL
enter Call contact
press
enter Internet services
press
voice dial
press and hold a volume
key or say your magic word
enter Call list
press CALLS
call your voice mail
press and hold
enter the + sign
press and hold
turn off the ring signal
press
, or press
when receiving a call
a volume key once
View the time
Press a volume key
set the phone to silent
press and hold
reach a contact beginning press and hold any of
with a specific letter
the keys
reach a phone number
press the position number
at a specific position.
and
speed dial
press any of the number
keys
and CALL
enter the first submenu
press
of the shortcut menu
To...
press
8888
press
0000
quickly press a volume key
twice when receiving a call
or press NO
During a call:
put a call on hold
press HOLD
retrieve a call
press RETRIEVE
turn off the microphone
press and hold
enter a quick options menu press MORE
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
9
To...
When in the menus:
move through menus or lists press (and hold) a volume
key or use the joystick
delete an item
press and hold
when in lists
go back to standby
press and hold
To...
When entering letters
using multitap text input:
reach the second letter
or character of a key
press the
volume
key and press any of
the number keys
press the
volume
key and press any of
the number keys
press
, then the letter
reach the third letter
or character of a key
shift between capital
and lower-case letters
enter numbers
press and hold any of the
number keys
enter a space
press
delete letters and numbers press
10
To...
When entering letters
using multitap text input:
shift between multitap
press and hold
or T9 Text input methods
shift between input
press and hold
languages (including
character or numeric)
To...
When entering letters
using T9 Text Input:
view alternative words
accept a word
and add a space
enter a full stop
shift between capital
and lower-case letters
enter numbers
press
press
press
press
or
, then the letter
press and hold any of the
number keys
delete letters and numbers press
shift between multitap
press and hold
or T9 Text input methods
shift between input
press and hold
languages (including
character or numeric)
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Help texts
More information, explanations or tips about selected
menus or functions are available in your phone.
To get help
Select the menu or function and press INFO.
Delete and edit
If you add items, for example, a contact, a note,
an appointment or a WAP bookmark, you can
delete or edit them.
To delete an item
Select an item and press
.
A SIM card which supports Online services works
in the same way as a normal SIM card. When you have
inserted your SIM card and turned on your phone, your
network operator can download data to your SIM card.
When you restart your phone after the first data
download, a new submenu appears under the menu.
To enter your new menu system
Scroll to Connectivity, Online services.
Note: This menu only appears if your SIM card
supports this service. Some operators may not use
the name “Online services”. Your phone may not
support all of the services offered.
To edit an item
Select an item, press MORE, and choose from the list
of options.
Online services
Online services are customized services offered by
network operators, independently of mobile phones
and mobile phone manufacturers.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
11
Menu overview
Operator direct Internet
link
services
My shortcuts
Camera
View week
Ring volume
Select profile
Switch to line 1*
My numbers
Edit shortcuts
12
Messaging
Entertainment
Pictures &
sounds
Text
Call voice mail
E-mail
WAP push
Chat
Area info
Options
Games & more
Other games
My pictures
More pictures
My sounds
More sounds
Themes
More themes
Picture editor
Music DJ
Record sound
Phonebook
Calls
Connectivity
Organizer
Settings
Call contact
Find and send**
Add contact
Manage contact
Pictures
Personal rings
Voice commands
Special numbers
Advanced
Options
Missed calls
Calling local*
Call list
Switch to line 1*
Divert calls
Manage calls
Time and cost
Next call
Options
Online services*
Bluetooth
Infrared port
WAP options
Synchronization
GSM Networks
Data comm.
Accessories
Calendar
Notes
Alarms
Timer
Stopwatch
Calculator
Code memo
Sounds and
alerts
Display
Profiles
Language
Time and date
Voice control
Locks
Handsfree
Master reset
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
* Please note that
some menus are
operator, network
and subscription
dependent.
** Only visible
during calls
Entering letters
You can enter letters, for example, when you add
names to the Phonebook, write text messages or
enter WAP addresses.
Apart from the way you normally enter letters
in your phone, using multitap text input, you can
use T9™ Text Input for entering text messages and
e-mail, for example, if the input language you select
supports this. T9™Text Input is a predictive input
method and is a quicker way to write texts. See
“T9™ Text Input” on page 14.
Input languages
Before you start entering letters, you need to select
the input languages that you want to use when writing.
To select input languages
1. Scroll to Settings, Language, Input.
2. Scroll to the language that you want to use for
entering letters and check each language you want.
3. Press OK to exit the menu.
When writing, you can switch to one of your
selected input languages by pressing MORE and then
selecting Input language. See “The list of options”
on page 15.
Multitap text input
When saving names in the Phonebook or when writing
WAP addresses, you enter letters using multitap text
input. You press each key as many times as needed
to show the letter you want. In the following example,
we are going to write a name in the Phonebook.
To enter letters using multitap text input
1. Scroll to Phonebook, Add contact.
–
2. Press ADD and then the appropriate key,
,
or
, repeatedly until the character
you want appears in the display.
See the table below:
Press…
to get…
. , - ? !’ @ : ; / ( ) 1
ABCÅÄÆàÇ2Γ
DEFèÉ3∆Φ
GHIì4
JKL5Λ
MNOÑÖØò6
PQRSß7ΠΣ
TUVÜù8
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
13
Press…
MORE
-
to get…
WXYZ9
+0
Space ↵ ¶
for an options list
to delete letters and numbers
to shift between capital
and lower-case letters
press and hold to enter numbers
Example:
• To enter an ‘A’, press
once.
• To enter a ‘B’, quickly press
twice.
• To shift between capital and lower-case
letters, press
, then enter the letter.
Tip: You can also use the volume keys as a shortcut
to certain letters:
To enter a ‘B’, press the
volume key and
press
.
To enter a ‘C’, press the
volume key and
press
.
14
T9™ Text Input
You can use T9™ Text Input when writing, for
example, text messages and e-mail. The T9™
Text Input method uses a built-in dictionary that
recognizes the most commonly used word for each
sequence of key presses. This way, you press each
key only once, even if the letter you want is not the
first letter on the key.
To shift from multitap to T9 text input method
Press and hold
.
To enter letters using T9™ Text Input
1. Scroll to Messaging, Text, Write new.
2. For example, if you want to write the word “Jane”,
press
,
,
,
.
3. If the word shown is the one you want:
• press
to accept and add a space.
(To accept a word without adding a space, press .)
If the word shown is not the one you want:
or repeatedly to view alternative
• Press
words (candidates). Accept a word and add
a space by pressing
.
If you do not find the word you want by pressing
or :
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
• Press MORE to go to a list of options.
• Select Spell word.
• Press and hold
to delete the entire word,
or delete one letter at a time by pressing
repeatedly.
• Write the new word using multitap text input
and press INSERT.
The word is added to the dictionary. The next
time you enter the word, it appears as one of
the alternative words.
4. Continue writing your message. See “Sending text
messages” on page 44. Press
to enter a full stop.
To enter other punctuation marks, press
and
then
or repeatedly. Accept by pressing
.
Press and hold
to select an input language.
•
•
•
•
Text format – Change style, size and alignment.
Input language– Change input language.
Input method – Change input method.
Word suggestions – Select to show a list of
suggested words.
My words – A list of words you have added to
the dictionary.
• Help.
The list of options
If you press MORE when writing a text message, you
enter a list of options:
• Add symbol – Symbols and punctuation marks such
as ? and, are shown. Move between the symbols by
using the joystick.
• Insert item – Pictures, melodies and sounds.
• Spell word – Change the suggested word by using
multitap text input.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
15
Personalizing your phone
You can adjust the phone settings to suit your own
requirements.
Note: If you change a setting which is included in
a profile, the active profile is also changed. See
“Profiles” on page 23.
Themes
You can change the appearance of the display, for
example, the colours and background picture, by
using themes. Your phone comes with some preset
themes. You cannot delete these, but you can create
new themes and download them to your phone.
1.
2.
3.
4.
To receive and save a theme
1. From standby, press MORE and select Turn on
Bluetooth or Turn on infrared.
2. When you receive the theme, press SAVE to save it.
For more information, visit www.SonyEricsson.com
or wap.SonyEricsson.com.
To download a theme
1. Scroll to Pictures & sounds, More themes.
2. Select a link.
•
•
•
•
16
To send a theme
You can exchange themes via IR, Bluetooth wireless
technology, picture message or e-mail. Please note
that you are not allowed to exchange copyrightprotected material. For more information on sending
themes in messages, see “Messaging” on page 43.
Scroll to Pictures & sounds, Themes.
Select a theme, press MORE.
Select Send.
Select a transfer method.
Pictures
Your phone comes with a number of pictures.
You can:
Download more pictures to your phone.
Have a picture as wallpaper when in standby mode.
Assign a picture to a contact in the Phonebook.
When that person calls, the picture appears in the
display (provided your subscription supports the
Calling Line Identification service). See “To add a
picture to a phonebook contact” on page 27.
Insert a picture in a text message.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
All pictures are saved in My pictures, in the Pictures
& sounds menu.
You can also save animations in your phone.
These are handled like pictures.
Handling pictures
You can add, edit, or delete pictures in My pictures.
The number of pictures that can be saved depends
on the size of the pictures. File types supported are
GIF, JPEG and WBMP.
The pictures are shown in thumbnail view. To get
a full view, press VIEW.
To view your pictures
Scroll to Pictures & sounds, My pictures.
To download a picture
1. Scroll to Pictures & sounds, Picture editor.
2. Select a link.
Tip: You can select Wallpaper by pressing
MORE when viewing pictures in My pictures.
1.
2.
3.
4.
To edit and save a picture
Scroll to Pictures & sounds, My pictures.
Scroll to the picture you want, MORE.
Scroll to Edit. You can now start to edit the picture.
Press MORE, select Save picture. The picture is saved
in My pictures.
Note: To edit pictures taken with the camera,
you must select 120x160 as picture size.
To draw a picture
1. Scroll to Pictures & sounds, Picture editor.
2. Select a type.
3. Select TOOL and choose the tool you want to work with.
To turn wallpaper on or off
Scroll to Settings, Display, Wallpaper, Activate.
To set a picture as wallpaper
1. Scroll to Settings, Display, Wallpaper, Set picture.
2. Select a picture.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
17
When editing or drawing a picture:
Press…
to…
move the cursor up and left.
move the cursor up.
move the cursor up and right.
move the cursor left.
activate the current drawing tool.
move the cursor right.
move the cursor down and left.
move the cursor down.
move the cursor down and right.
MORE
view an options menu.
press and hold to exit the picture editor.
undo the last action.
select tool.
select a colour.
18
Exchanging pictures
You can exchange pictures via IR, Bluetooth
wireless technology, picture message or e-mail.
Please note that you are not allowed to exchange
copyright-protected material. For more information
on sending pictures in messages, see “Messaging”
on page 43. Save the e-mail address of a WAP
album in your Phonebook and you can save pictures
in that album if you send the pictures as attachments.
To send a picture
1. Scroll to Pictures & sounds, My pictures. Scroll to
the picture you want, MORE.
2. Select Send.
3. Select a transfer method.
If you use infrared make sure that the infrared ports
are facing each other.
To receive and save a picture
1. Scroll to Connectivity, Bluetooth, Turn on.
2. When you receive the picture, press SAVE to save
it in My pictures.
When you receive a picture in a text message or
a picture message, a new message appears in your
Inbox. To save the picture in My pictures, highlight
the picture by moving the joystick to select it and
press SAVE.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
Screen saver
The phone has a screen saver, which is activated
automatically when the phone has been in idle mode
for a few seconds. After a few more seconds, the
screen saver changes to sleep mode to save power.
To turn the screen saver On or Off, scroll to Settings,
Display, Screen saver, Activate.
To use a picture as the screen saver
You select a picture saved in the phone and use it as
the screen saver.
1. Scroll to Settings, Display, Screen saver, Set picture.
2. Scroll to and select the picture you want to use as the
screen saver.
3. Press YES to accept.
Ring signals and melodies
Your phone comes with a number of ring signals
and melodies. You can edit your own ring signals
and melodies and send them to a friend in a text
message. It is also possible to exchange melodies
via WAP, Bluetooth wireless technology, IR or cable.
Please note that you are not allowed to exchange
copyright-protected material. You can also download
ring signals to your phone.
To select a ring signal
Scroll to Settings, Sounds and alerts, Ring signal.
To download a ring signal
1. Scroll to Pictures & sounds, More sounds.
2. Select a link.
1.
2.
3.
•
To set the ring signal volume
Scroll to Settings, Sounds and alerts, Ring volume.
Press
or
to increase or decrease the volume.
Press SAVE to save the setting.
To turn the ring signal on or off, press and hold
. All signals except the alarm are turned on/off.
To compose a ring signal or melody
1. Scroll to Pictures & sounds, Music DJ.
2. Choose to insert a selection of prerecorded
music blocks. You can choose from four
different selections.
3. Copy and paste these blocks to build up
your melody.
4. Select MORE to play the melody and view
other options.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
19
To turn increasing ring On or Off,
Scroll to Settings, Sounds and alerts, Increasing ring.
Note: To edit your own melody, scroll to Pictures &
sounds, My sounds, select the melody and press MORE.
Select EDIT.
1.
2.
3.
4.
Specific ring signals for personal calls
If you subscribe to the Two Line Service, you
can set different ring signals for the two voice
lines. Line 1 and Line 2 are displayed instead
of Voice calls.
If your subscription includes the Calling Line
Identification (CLI) service, you can assign a
personal ring signal to up to ten callers.
To send a melody
Scroll to Pictures & sounds, My sounds.
Scroll to a melody, MORE.
Select Send.
Select a transfer method.
Note: To send a ring signal or melody in a text
message, see “To insert an item in a text message”
on page 44.
Receiving melodies
You can receive a sound or melody via IR,
Bluetooth wireless technology, text, picture message,
or download it via WAP. When you receive the sound
or melody, press SAVE to save it in My sounds.
Increasing ring
You can choose a ring signal that rises in steps from
the lowest volume to the highest.
20
1.
2.
3.
4.
To set a specific ring signal for a caller
Scroll to Phonebook, Personal rings, New contact.
Enter the first letters of the contact, OK .
Select a contact.
Select a ring signal.
Sound and alerts
You can choose to be notified of an incoming call
by the buzzing of the vibrating alert. You can set
the phone’s vibrating alert to one of the following:
• On – all the time.
• On if silent – on when the ring volume is turned
off or when you have set the phone to silent.
• Off – all the time.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
To set the vibrating alert
1. Scroll to Settings, Sounds and alerts, Vibrating alert.
2. Select the setting you want.
From the Settings, Sounds and alerts menu, you can
also select Message alert, Key sound and turn on the
Minute minder.
If you turn on the minute minder, you hear a beep
once every minute during a call.
Menu language
Most SIM cards automatically set the menu language
to the language of the country where you bought your
SIM card. If this is not the case, the preset language
is English.
To change the menu language
1. Scroll to Settings, Language, Menus.
2. Select a language.
Display light
The display light can be set to automatic or on.
In automatic mode, the display light is turned off
a few seconds after you last press a key.
• To set the display light, scroll to Settings, Display,
Light.
• To set the display contrast, scroll to Settings,
Display, Contrast.
Time settings
The time is always displayed in standby.
• To set the time, scroll to Settings, Time and date,
Set time.
You can choose a 12-hour clock or a 24-hour clock.
• To set the time format, scroll to Settings, Time and
date, Time format.
Date
When the phone is in standby mode, you can press
a volume key up or down to see today’s date in the
Status menu.You can set the date and date format in
the Settings, Time and date menu.
Advanced time settings
Under Advanced in the Settings, Time and
date menu, you can set time zone and
daylight saving time. By changing these
you also change the time.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
21
When your phone changes network, and the time
sent out from the operator deviates from the time in
your phone, you are asked whether you want to update
the time if you have turned on Auto time zone. If you
press YES, the time is updated automatically.
Answering mode
When using a portable handsfree kit, you can choose
to answer a call by pressing any key (except the NO
key) or set the phone to answer the call automatically.
• To select answering mode, scroll to Settings,
Handsfree, Answering mode.
Start-up picture
When you turn your phone on or off, the Sony
Ericsson start-up picture appears in the display.
Your operator’s own greeting may be shown instead.
To select a start-up picture
1. Scroll to Settings, Display, Start-up picture.
2. Select a greeting.
My phone numbers
You can check your own phone number(s).
22
• To check your phone number, scroll to Phonebook,
Special numbers, My numbers. If your number is not
saved on your SIM card, you can enter it yourself.
Keypad lock
You can lock the keypad to avoid dialling a number
by accident.
Note: Calls to the international emergency number
112 can still be made, even when the keypad is locked.
Automatic keylock
Automatic keylock means the keypad is locked
25 seconds after you last press a key.
• To lock the keypad manually, press MORE in standby,
and select Lock keys.
The keypad remains locked until you answer an
incoming call or until you unlock the keypad manually.
.
• To unlock the keypad, press UNLOCK and then
My shortcuts
You can place your favourite functions that you want
to reach quickly and easily in the My shortcuts menu.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
To add a function to my shortcuts
1. Scroll to My shortcuts, Edit shortcuts.
2. Select a function from the list by pressing CHECK.
3. Enter the position number you want for this function
in your menu and press OK .
4. Press SAVE to exit the list.
Profiles
Your phone has a number of preset profiles which
are set to suit a certain environment. You can rename,
change and add accessories to these profiles. For
example, when you go to a meeting, you can simply
choose the Meeting profile and a number of settings,
such as the ring signal, is turned off.
• To select a profile, scroll to Settings, Profiles,
Select profile.
1.
2.
3.
•
To change a profile setting
Scroll to Settings, Profiles, Edit profile.
Select a setting.
Change the profile settings and press SAVE to confirm.
To rename a profile, scroll to Settings, Profiles,
Edit profile, Profile name.
You can reset all profile settings to the way they were
set when you bought your phone.
• To reset all profiles, scroll to Settings, Profiles,
Reset profiles.
Automatic activation
Some profiles, for example In car, are automatically
activated when used with a specific accessory.
When disconnected, the profile is changed back.
Master reset
You can reset all the settings in the phone to the way
they were when you bought your phone by selecting
Reset settings.
If you also want to delete all contacts, messages
and other personal data, select Reset all instead.
To reset the phone
1. Scroll to Settings, Master reset.
2. Select Reset settings or Reset all.
Enter the phone lock code (0000 or the new code if you
have changed it) and press OK.
Note: If you select Reset all, some content that came
with your phone may be deleted.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
23
Calling
Before you can make or receive any calls, you must
turn on the phone and be within range of a network.
See “Turning the phone on” on page 6.
Making calls
1. Enter the area code and the phone number.
2. Press CALL to make the call.
3. Press END CALL to end the call.
To change the earpiece volume during a call
Use the volume keys on the side of the phone to
increase or decrease the earpiece volume during
a call.
To turn off the microphone during a call
Press and hold
until the display shows Muted.
Press and hold
again to resume the conversation.
Note: The microphone must be turned on to change
the earpiece volume during a call.
24
Automatic re-dialling
If the connection of the call failed and the display
shows Retry?, press YES. The phone re-dials the
number (up to ten times):
• Until the call is connected.
• Until you press a key or receive a call.
Note: Do not hold the phone to your ear while
waiting. When the call is connected, the phone
gives out a loud signal.
Automatic re-dialling is not available for fax
and data calls.
Making international calls
1. Press and hold
until a + sign appears in
the display.
The + replaces the international prefix number
of the country from which you are calling.
2. Enter the country code, area code (without
the leading zero) and phone number, CALL .
Making emergency calls
• Enter 112 (the international emergency number), CALL .
Your phone supports the international emergency
numbers, 112, 911 and 08. This means that these
Calling
This is the Internet version of the user's guide. © Print only for private use.
numbers can normally be used to make an emergency
call in any country, with or without a SIM card inserted,
if a GSM network is within range.
Note: Some network operators may require that a
SIM card is inserted, and in some cases that the PIN
has been entered as well.
In some countries, other emergency numbers may also
be promoted. Your operator may therefore have saved
additional local emergency numbers on the SIM card.
• To view your local emergency numbers, scroll to
Phonebook, Special numbers, SOS numbers.
Receiving calls
When you receive a call, the phone rings and the
display shows Answer?
If your subscription includes the Calling Line
Identification service and the caller’s number is
identified, the number is displayed. If you have
saved the number in the Phonebook, the name and
number are displayed. If you have assigned a picture
to a contact, the picture is displayed. If the number
is a restricted number, the display shows Withheld.
To answer a call
Press YES.
To reject a call
Press NO.
Tip: You can also use your voice to answer or reject
calls. See “Voice control” on page 30.
Missed calls
If you have missed a call, Missed calls:1 appears
in standby, indicating the number of missed calls.
To check your missed calls
1. Press YES to display the missed calls.
2. To call a number from the list, scroll to the
number, CALL .
Call list
The numbers of the last 30 calls that you have made
are saved in the call list. If your subscription includes
the Calling Line Identification service and the caller’s
number is identified, you will also find the numbers
of answered and missed calls in the call list.
Calling
This is the Internet version of the user's guide. © Print only for private use.
25
To call a number from the call list
1. To enter the call list, press CALLS from standby.
2. Scroll to the number you want to call, CALL .
Phonebook
In the Phonebook you can store the information on
your SIM card and on your phone. You have space for
up to 510 numbers. You can save all the information
needed to contact people. You can also set how much
information you want to show.
Entries saved are stored in your phone’s memory,
not on your SIM card. To synchronize your phonebased contact list with your PDA or PC, see
“Synchronization” on page 68.
• To clear the call list, scroll to Calls, Options,
Clear call list.
• To turn the call list on or off, scroll to Calls, Options,
Call listing.
Call priority service
You can request a certain priority when you
make a call, if your subscription supports the
call priority service.
The priority levels are defined by your operator
and are normally within the range of 0 – 4, where 0
is the highest priority.
To set the fields in contact information
1. Scroll to Phonebook, Options, Contact Info.
2. Press CHECK/UNCHECK to select or clear fields.
If your Phonebook is empty, you are prompted to copy
information from your SIM card. If you press NO , you
can add new contacts. If you press YES, your names
and numbers are copied from your SIM.
To check or change your standard priority level
1. Scroll to Calls, Manage calls, Default priority.
2. The network sends available priority levels.
3. Select a priority level.
To change the priority for one call
1. Enter the phone number you want to call.
2. Scroll to Calls, Next call, Next incoming call.
3. Select a priority. The number is called.
26
1.
2.
3.
4.
5.
To add a contact
Scroll to Phonebook, Add contact.
Scroll to the field you want to fill in, ADD.
Enter the information, OK .
Select the next field and so on.
When you have entered the information, press SAVE.
Calling
This is the Internet version of the user's guide. © Print only for private use.
1.
2.
3.
4.
Tip: To enter an unsaved number, press LOOK UP
when you are in a number field, and select a number
in the unsaved numbers list.
2. When the contact you want to call is highlighted,
press SELECT.
3. Select the number you want to call.
Pictures, personal rings and voice commands
You can add a picture, personal ring signal and voice
command to a contact.
To call a name from your SIM card
1. Scroll to Phonebook, Advanced, Call from SIM.
2. Enter the first letter of the name, OK .
3. Select the name, CALL .
To add a picture to a phonebook contact
Scroll to Phonebook, Pictures.
Enter the first letters of the contact, OK .
Select the contact.
This takes you to My pictures. Select a picture, YES.
• Select Personal rings to add a personal ring signal.
• Select Voice commands to add a voice command.
To call a contact from your contact list
1. From standby, press and hold one of the number keys
2-9 to find a contact beginning with the first letter on
that key (or closest following).
• For example, press and hold 5 to go to the first
contact beginning with “J”. To go to a contact
beginning with “L” press 5 three times after you
have entered the list of contacts.
Updating the phonebook
When needed, you can easily update or delete any
contact information.
1.
2.
3.
4.
5.
6.
7.
8.
To edit a contact
Scroll to Phonebook, Manage contact, Edit contact.
Enter the first letters of the contact, OK .
When the contact is highlighted, press EDIT.
Select Edit info
Scroll to the field you want to fill in, EDIT.
Enter the information, OK .
Select the next field and so on.
When you have entered the information, press SAVE.
Calling
This is the Internet version of the user's guide. © Print only for private use.
27
To delete a contact
• Scroll to Phonebook, Manage contact, Delete
contact. Then select the contact and press DELETE.
Tip: You can also delete a contact by pressing
when the contact is highlighted.
To delete all contacts
• To delete all contacts, scroll to Phonebook,
Advanced, Delete all.
Note: Contacts that are saved on the SIM card are
not deleted.
Default (standard) number
Each contact has a default phone number. The first
phone number you link to a contact automatically
becomes the default number. If you scroll to a certain
contact in the Call contact list and then press SELECT,
the default number is highlighted.
To set the default number
1. Scroll to Phonebook, Manage contact, Edit contact.
2. Enter the first letters of the contact, OK .
3. Select the contact, EDIT.
28
4. Select Default number. Highlight the number you
want as default, press SELECT.
Groups
You can create a group of contacts. By doing so, you
can send text messages to several recipients at the same
time. See “Sending text messages” on page 44.
To create a group of contacts
1. Scroll to Phonebook, Manage contact, Groups,
New group, ADD.
2. Enter a name for the group, OK.
3. Select New member, ADD .
4. Enter the first letters of the contact you want to add,
press OK .
5. Select the contact.
6. Select a phone number.
7. Repeat steps 3-6 to add more members.
Business cards
You can add your own business card to the
Phonebook.
• To add your own business card, scroll to Phonebook,
Manage contact, My card. Then select Add.
Calling
This is the Internet version of the user's guide. © Print only for private use.
Exchanging business cards
You can exchange business cards between your
phone and another similar phone, a PDA or a PC,
using Bluetooth wireless technology, the infrared
port, text or picture message.
To send your business card
1. Scroll to Phonebook, Manage contact,
My card, Send.
2. Select a transfer method.
When you receive a business card via a text message,
you accept the card by pressing YES. To be able to
receive a business card using the infrared port or
Bluetooth wireless technology, you need to turn these
functions on.
3. Select the contact you want to send, SEND.
4. Select transfer method.
To send all contacts
Scroll to Phonebook, Advanced, Send all and select
a transfer method.
Copy names and numbers
You can copy the names and numbers between your
phone’s memory and the SIM card. The number of
phone numbers that can be saved depends on the
type of SIM card.
To copy names and numbers to the SIM card
Scroll to Phonebook, Advanced, Copy all to SIM.
Note: Everything on the SIM card is replaced.
To receive a business card
1. From standby, press MORE and scroll to Turn on
Bluetooth or Turn on infrared.
2. When you receive the business card, press YES.
To send a contact
1. Scroll to Phonebook, Manage contact, Send contact.
2. Enter the first letters of the contact you want to
send, OK .
If you insert a SIM card with saved numbers in your
phone, you can call a number by selecting Phonebook,
Advanced, Call from SIM. If you want to edit a name
and number saved on the SIM card, you first need to
copy the name and number to the phone.
Calling
This is the Internet version of the user's guide. © Print only for private use.
29
To copy names and numbers to the phone
Scroll to Phonebook, Advanced, Copy from SIM.
Checking the memory
With the Memory status function in your Phonebook,
you can check how many positions you have left in
your memory for the phone, SIM, e-mail and voice
commands.
Tip: When you have selected a name on the SIM
card in the Call from SIM menu, you can copy it
to the phone by pressing MORE and then selecting
Copy to phone.
To check the memory
Scroll to Phonebook, Advanced, Memory status.
Speed dialling
You can save the phone numbers that you want
to reach easily in positions 1-9 on your SIM card.
•
To call any of these phone numbers from
standby:
Enter the position number and press CALL .
To change position numbers
1. Scroll to Phonebook, Advanced, Position list.
2. Select the phone number you wish to change.
3. Select the position to which you want to move
the phone number.
4. Repeat steps 2 and 3 to continue to move
phone numbers.
5. When you have finished, press BACK .
30
•
•
•
•
•
Voice control
With your phone, you can use your voice to:
Voice dial – call someone by saying the name and
number type.
Re-dial the last dialled number.
Answer and reject calls when using a handsfree kit.
Change profile.
Record or listen to sound recordings by using voice
commands.
Activate the voice control by saying a “magic word”.
You can save approximately 50 recorded words as
voice commands in the 40 seconds available. This
also depends on what is saved in the memory with
other functions. When recording, make sure you are
in a quiet environment.
Calling
This is the Internet version of the user's guide. © Print only for private use.
Before voice dialling
You must first turn on the voice dialling function and
record your voice commands.
1.
2.
3.
4.
5.
6.
7.
To turn voice dialling on and record number
types
Scroll to Settings, Voice control, Voice dialling.
Select On. Now you are going to record a voice
command for each number type you use with your
Phonebook contacts, for example, “home” or “mobile”.
Instructions appear. Press OK .
Select a number type.
Lift the phone to your ear, wait for the tone and say the
command that you want to record. The voice command
is played back to you.
If the recording sounds OK, press YES to save the
voice command. If not, press NO and repeat step 4.
Repeat steps 4 and 5 for each voice command
you need.
You also need to record voice commands for each
contact name, for example, “John”.
To record a voice command for a contact name
1. Scroll to Settings, Voice control, Voice dialling,
Edit names, New voice.
2. Select a contact.
3. Follow the instructions in the display.
An icon appears next to a contact name that has a
voice command.
Caller name
You can choose whether you want to hear the recorded
contact name when you receive an incoming call from
that contact.
• To turn the caller name On or Off, scroll to Settings,
Voice control, Caller name.
Voice dialling
You can voice dial by saying a prerecorded word or
by using specific key sequences.
To make a call
1. From standby, press and hold a volume key for
one second.
2. Lift the phone to your ear, wait for the tone and say
a name, for example “John”. The name is played back
to you.
Calling
This is the Internet version of the user's guide. © Print only for private use.
31
3. If you have several numbers for that contact, after a
second tone, say the number type, for example, “home”.
The number type is played back to you, and the call
is connected.
From standby, you can also initiate voice dialling, voice
profiles and voice control of sound recordings by:
• Pressing and holding a volume key.
• Pressing the handsfree button (when using a
portable handsfree or a Bluetooth headset).
• Saying the magic word. See “The magic word” on
page 33.
Redialling
You can use your voice to redial the last dialled
number, if you record a voice command for redialling.
1.
2.
3.
4.
32
To turn on and record a redial command
Scroll to Settings, Voice control, Voice redial.
Select On.
Instructions appear. Press OK .
Lift the phone to your ear, wait for the tone and say
“Redial”, or another word. If the recording sounds
OK, press YES. If not, press NO and repeat step 4.
To redial using a voice command
1. From standby, press and hold a volume key for
one second.
2. Lift the phone to your ear, wait for the tone and say
“Re-dial”. The voice command is played back to
you and the last dialled number is called.
Voice answering
You can answer or reject incoming calls by using
your voice, when using a portable handsfree or a
car handsfree kit.
1.
2.
3.
4.
5.
6.
To turn on voice answering and record voice
answer commands
Scroll to Settings, Voice control, Voice answer.
Select On.
Select the accessories you want to be able to use with
voice answering by pressing CHECK and then SAVE.
Instructions appear. Press OK .
Lift the phone to your ear, wait for the tone and say
“Answer”, or another word. If the recording sounds
OK, press YES. If not, press NO and repeat step 5.
Say “Busy”, or another word. Press OK .
Calling
This is the Internet version of the user's guide. © Print only for private use.
To answer a call using voice commands
When the phone rings, say “Answer”.
The call is connected.
To reject a call using voice commands
When the phone rings, say “Busy”.
The call is rejected. The caller is diverted to voice mail,
if turned on, or hears a busy tone.
The magic word
You can record a magic word and use it as a voice
command to allow total handsfree access to voice
control. Instead of pressing a volume key, you say
the magic word and then one of your recorded voice
commands. The magic word is especially suitable
when using a car handsfree kit.
Tip: Choose a long, unusual word or phrase
which can easily be distinguished from ordinary
background speech.
To turn on and record the magic word
1. Scroll to Settings, Voice control, Magic word.
2. Select On.
3. Select the accessories you want to be able to use with
the magic word by pressing CHECK and then SAVE.
4. Instructions appear. Press OK .
5. Lift the phone to your ear, wait for the tone and say
the magic word.
Tip: Turn off the magic word when you no longer need
total handsfree access in order to save battery power.
Changing profiles
If you record voice commands for your profiles, you
can change profile with your voice.
1.
2.
3.
4.
5.
To turn on and record profile commands
Scroll to Settings, Voice control, Voice profiles.
Select On.
Instructions appear. Press OK .
Select a profile.
Lift the phone to your ear, wait for the tone and
say the profile name. Repeat steps 4 and 5 to
record voice commands for the other profiles.
To change a profile using voice commands
1. From standby, press and hold a volume key for
one second.
Calling
This is the Internet version of the user's guide. © Print only for private use.
33
2. Lift the phone to your ear, wait for the tone and
say the profile command for the required profile.
The profile command is played back to you and
the current profile is changed.
Sound recordings
Instead of using the menus, you can record voice
commands to start or to listen to a recording.
To turn on and record recording commands
Scroll to Settings, Voice control, Record sound.
Select On.
Instructions appear. Press OK .
Lift the phone to your ear, wait for the tone and say
“Record”, then press YES.
5. Say “Play”, press YES.
1.
2.
3.
4.
To start a recording using a voice command
1. From standby, press and hold a volume key for
one second.
2. Lift the phone to your ear, wait for the tone and say
“Record”. The voice command is played back to you
and a tone indicates that the recording has begun.
3. To end the recording, press STOP.
34
To listen to recordings using a voice command
1. From standby, press and hold a volume key for
one second.
2. Lift the phone to your ear, wait for the tone and say
“Play”. The voice command is played back to you.
3. Listen to your recordings. Press STOP to stop.
Editing your voice commands
You can keep all your voice commands up to date by
re-recording them or deleting the ones you do not use.
See the following example:
To re-record a voice command
1. Scroll to Settings, Voice control, Voice profiles,
Edit commands.
2. Select a voice command.
3. Select Replace voice.
To listen to a recorded voice command, select
Play voice.
4. Lift the phone to your ear, wait for the tone and say
the command.
You can also edit the voice command for a contact
name in Edit contact in the Phonebook menu.
Calling
This is the Internet version of the user's guide. © Print only for private use.
•
•
•
•
•
•
Tips when recording and using voice
commands
If your phone cannot detect speech, one of the
following might have happened:
You spoke too softly – try speaking more loudly.
You held the phone too far away – hold it as you
do during a call.
The voice command was too short – it should be
around one second long and more than one syllable.
You spoke too late or too soon – speak immediately
after the tone.
You did not record the voice command when the
handsfree was attached – for voice control with a
handsfree kit, record when the handsfree is attached.
You used another intonation – use the same intonation
as you did when recording the voice command.
Voice mail
If your subscription includes an answering
service, callers can leave a voice mail
message when you cannot answer a call.
Receiving a voice mail message
Depending on your network operator, you are
informed that someone has left a message by a text
message or by a voice mail indication. Press YES to
listen to the message.
Calling your voice mail service
You can easily call your voice mail service by pressing
and holding
, if you have saved your voice mail
number in the phone. You get the number from your
service provider.
• To enter the number, scroll to Messaging, Options,
Voice mail number.
Call time and cost
During a call, the duration of the call
is shown in the display. If you subscribe
to cost information, the call cost (or the
number of call units) is displayed.
You can check the duration of your last call, outgoing
calls and the total time.
• To check the call time, scroll to Calls, Time and cost,
Call timers and select an option. To reset the call
time meter, select Reset timers.
You can check the cost of your last call and the total
cost of your calls.
• To check the call cost, scroll to Calls, Time and cost,
Call costs and select an option. To reset the call cost
meter, select Clear total cost.
Calling
This is the Internet version of the user's guide. © Print only for private use.
35
Note: If you subscribe to cost information, you must
enter your PIN2 to clear the cost or time counter.
Setting the call cost
You can use the Tariff function to specify the price per
call unit. If you do not specify a price per call unit, the
number of call units appears.
To enter the price per call unit
Scroll to Calls, Time and cost, Call costs, Set tariff.
Enter your PIN2, OK.
Select Change, OK .
Enter the code for the currency you want, (for example
GBP for Pounds Sterling), OK .
5. Enter the price per call unit, OK .
To enter a decimal point, press
.
1.
2.
3.
4.
Credit limit for calls
You can enter a total amount of money
that can be used for making calls. When the
amount reaches zero, no more calls can be
made. Please note that the credit limit is only
an estimated value.
36
1.
2.
3.
4.
To set a credit limit
Scroll to Calls, Time and cost, Call costs, Set credit.
Enter your PIN2, OK .
Select Change, OK .
Enter an amount, OK .
Diverting calls
If you cannot answer incoming voice, fax
or data calls, you can divert them to another
number, for example your answering service.
For voice calls, you can choose between the
following divert alternatives:
• Divert always – divert all voice calls.
• When busy – divert calls if you are already on
the phone.
• Not reachable – divert calls if your phone is turned
off or if you are unreachable.
• No reply – divert calls that you do not answer
within a specified time limit (operator-dependent).
Note: When the Restrict calls function is on,
some Divert calls options cannot be activated.
Calling
This is the Internet version of the user's guide. © Print only for private use.
1.
2.
3.
4.
To turn on a call divert
Scroll to Calls, Divert calls.
Select a call category and then a divert alternative.
Select Activate.
Enter the phone number to which you want your
calls to be diverted and press OK , or retrieve it
from the Phonebook.
To turn off a call divert, select a divert option and
select Cancel.
To check status
• Scroll to Calls, Divert calls. Select a call type.
Scroll to the divert you want to check. Select
Get status.
• To check the status of all call diverts, select Check all
in the Divert calls menu.
More than one call
You can handle more than one call
simultaneously. For example, you can put
an ongoing call on hold, while you make or
answer a second call, and then switch between
the two calls.
Note: To open the Ongoing call menu during a call,
press the joystick.
Call waiting service
If the call waiting service is on, you hear a beep in
the earpiece if you receive a second call during an
ongoing call.
• To turn the call waiting service on or off, scroll to
Calls, Manage calls, Call waiting.
To make a second call
1. Press HOLD to put the ongoing call on hold.
2. Enter the number you want to call and press CALL ,
or retrieve a number from the Phonebook.
Note: You can only put one call on hold.
Receiving a second call
• To answer the second call and put the ongoing call
on hold, select Answer.
• To reject the second call and continue the ongoing
call, select Busy.
• Select Release & answer to answer the second call
and to end the ongoing call.
Calling
This is the Internet version of the user's guide. © Print only for private use.
37
•
•
•
•
•
Handling two calls
When you have one ongoing call and one call on
hold, you can do the following:
Press the joystick and select Switch calls to switch
between the two calls.
Press the joystick, then select Join calls to join the
two calls into a conference call.
Press the joystick, then select Transfer call, to
connect the two calls. You are disconnected from
both calls.
Press END CALL to end the ongoing call, then press
YES to retrieve the held call.
Press END CALL twice to end both calls.
Note: You cannot answer a third call without ending
one of the first two calls.
Conference calls
In a conference call, you can have a joint
conversation with up to five other people.
You can also put a conference on hold and
make another call.
Note: There may be additional charges for calls
involving multiple parties. Contact your service
provider for more information.
Creating a conference call
To create a conference call, you must first have one
ongoing call and one call on hold.
To join the two calls into a conference call
• Press the joystick and select Join calls.
To add a new participant
1. Press HOLD to put the conference call on hold.
2. Call the next person you wish to include in the
conference call.
3. Press the joystick and select Join calls.
Repeat steps 1 to 3 to include more participants.
To release a participant
1. Press the joystick and select Release part.
2. Select the participant.
To end the conference call
• Press END CALL .
38
Calling
This is the Internet version of the user's guide. © Print only for private use.
Having a private conversation
You can have a private conversation with one of
the participants and put the other participants on hold.
• Press MORE, then select Extract part to select the
participant that you want to talk with.
• Select Join calls to resume the conference call.
Two voice lines
Your phone may have two voice lines with
different phone numbers. This may be useful
if, for example, you want to keep business and
private calls on separate lines.
• To select a line, scroll to Calls, Next call.
All outgoing calls are made on this line until you
change it. Incoming calls can still be received on
either line.
You can change the names of the lines, and have
different settings for each line, for example, different
ring signals.
• To change the name of a line, scroll to Settings,
Display, Edit line tags.
Calling card calls
You can use the calling card service to
redirect the cost of a call to a credit card
or a calling card account, instead of your
normal account. This may be useful, for
example, when making long distance calls.
You can save two separate calling card numbers.
The numbers and the codes associated with them
are protected by the code.
Before making a calling card call, you need to
select and activate a card.
Note: You cannot use the calling card service for fax
and data calls.
To turn the calling card service on or off
1. Scroll to Calls, Time and cost, Calling cards,
Use calling cards.
2. Enter your phone lock code, OK .
3. Select On or Off, OK .
To save a card number
1. Scroll to Calls, Time and cost, Calling cards,
My cards.
2. Enter your phone lock code, OK .
Calling
This is the Internet version of the user's guide. © Print only for private use.
39
3. Select New card.
Enter the card settings (the access number and name
of the calling card server, and the verification code).
You get this information from your card provider.
Select which you want to send first – the number
that you want to call, or the verification code.
Restricted dialling
You can use the restrict calls service to
restrict outgoing and incoming calls. This
may be useful, for example, when you are
abroad. To use this service, you need a
password which you get from your service provider.
To select a card
1. Scroll to Calls, Time and cost, Calling cards,
My cards.
2. Enter your phone lock code, OK.
3. Select a card.
4. Select Activate card.
Note: If you divert incoming calls, you cannot activate
some Restrict calls options.
To make a calling card call
1. Enter the phone number of the person you want to
call or retrieve the number from the Phonebook.
2. Press MORE, select Call via call. card.
The access number of the calling card server is
called. During the connecting phase, you are asked
to send the phone number you want to call and the
verification code.
3. Press YES when the display shows Send called
number?, or wait a few seconds and the number
and code are sent automatically.
40
The following calls can be restricted:
• All outgoing calls – All outgoing.
• All outgoing international calls – Outgoing intl.
• All outgoing international calls except to your home
country – Outgoing intl roam.
• All incoming calls – All incoming.
• All incoming calls when you are abroad (when
roaming) – Inc. when roam.
1.
2.
3.
4.
•
•
To turn a call restriction on or off
Scroll to Calls, Manage calls, Restrict calls.
Select an option.
Select Activate or Cancel.
Enter your PIN, OK.
To turn off all call restrictions, select Cancel all.
To change the PIN, select Change password.
Calling
This is the Internet version of the user's guide. © Print only for private use.
Fixed dialling
The fixed dialling function allows calls to
be made only to certain numbers saved on
the SIM card. Fixed dialling requires a SIM
card that allows fixed numbers to be saved.
The fixed numbers are protected by your PIN2.
• To save a fixed number, scroll to Phonebook,
Special numbers, Fixed numbers. Select New
number and enter the information.
Closed user groups
The Closed User Group function is a way of lowering
call costs. On some networks it is cheaper to make calls
within a call group. You can save ten groups.
Note: Calls to the international emergency number
112 can still be made, even when the fixed dialling
function is on.
• Partial numbers can be saved. For example, saving
0123456 allows calls to be made to all numbers
starting with 0123456.
• Numbers with question marks can be saved. For
example, saving 01234567?0, allows calls to be
made to numbers from 0123456700 to 0123456790.
To enter a question mark, press and hold
.
To turn fixed dialling on or off
1. Scroll to Phonebook, Options, Fixed dialling.
2. Enter your PIN2, OK.
3. Select On or Off.
1.
2.
3.
4.
To add a group
Scroll to Calls, Manage calls, Closed groups, Edit list.
Scroll to New group, ADD .
Enter the name of the user group, OK .
Enter the index number, OK .
You get the index number from your operator.
To activate a group
1. Scroll to Calls, Manage calls, Closed groups, Edit list.
2. Select a group.
3. Select Activate.
Calls can only be made within the selected group.
• To call outside a Closed User Group, select Calls,
Manage calls, Closed groups, Open calls and then
select On.
Calling
This is the Internet version of the user's guide. © Print only for private use.
41
Accept calls
With the accept calls service, you can choose to
receive calls only from certain numbers. Other calls
are automatically rejected by a busy tone. The phone
numbers of calls you have rejected are saved in the
Call List.
To add numbers to the accepted callers list
1. Scroll to Calls, Manage calls, Accept calls,
Accepted list.
2. Scroll to New, ADD .
This takes you to the Phonebook or Groups.
3. Select an entry.
• To select an accept option, scroll to Calls,
Manage calls, Accept calls, Accept options.
Networks
When you turn on the phone, it automatically
selects your home network if this is within
range. If it is not within range, you may use
another network, provided your network operator
has an agreement that allows you to do so. This is
called roaming.
You can select the network you want to use,
or you can add a network to your list of preferred
42
networks. You can also change the order in which
networks are selected during an automatic search.
For all such options, scroll to Connectivity, GSM
Networks.
Tone signals
You can use telephone banking services or
control an answering machine by sending
tone signals (also known as DTMF tones
or touch tones) during a call.
• To send the tones, press the number keys 0-9,
and
.
• To clear the display after the call is finished,
press
.
Notepad
You can use the phone to make a note of a phone
number during a call. When you press the number
keys, the person you are talking to hears tone signals.
To turn these tone signals off during the call, press the
joystick and select Turn off tones. When you end the
call, the number remains in the display. You can then
call the number by pressing CALL .
Calling
This is the Internet version of the user's guide. © Print only for private use.
Showing or hiding your number
If your subscription supports the Calling
Line Identification Restriction (CLIR)
service, you can hide your phone number
when making a call.
To show or hide your phone number
1. Enter the phone number you want to call.
2. Press MORE and select Call and hide ID
or Call and show ID.
Messaging
Your phone supports various messaging services text messaging, chat messaging, picture messaging
and e-mail. Please contact your service provider
for details of which services you can use. For
more information about text, see “Entering letters”
on page 13.
Text messaging
Text messages can be sent to one person, several
recipients or to a group of recipients that you have
saved in the Phonebook. See “Groups” on page 28.
Text messages can also contain pictures, animations,
melodies and sounds.
Before you start
• First make sure that the number of your service centre
is set. The number is supplied by your service provider
and is usually saved on the SIM card.
To set the service centre number
1. Scroll to Messaging, Text, Options, Service centres.
If the service centre number is saved on the SIM card,
it appears in the display.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
43
2. If there is no number in the list, select
New number, ADD .
3. Enter the number, including the international “+” sign
and country code, OK .
Sending text messages
For information about entering letters, see
“Entering letters” on page 13.
1.
2.
3.
4.
To write and send a text message
Scroll to Messaging, Text, Write new.
Write your message, CONTINUE.
Enter the recipient’s phone number, OK or retrieve a
number or a group from the Phonebook by pressing
LOOK UP .
Press SEND.
Note: If you send a text message to a group,
you are charged for each member of that group.
To insert an item in a text message
1. Scroll to Messaging, Text, Write new.
2. While writing your message press MORE.
3. Select Insert item.
44
4. Select Picture, Sound effect, Melody, Animation
or Picture (other).
5. Select an item, YES.
Text formatting
You can change the style, size and alignment of the
text, and create new paragraphs, in a text message.
To format the text in a text message
1. Scroll to Messaging, Text, Write new.
2. Write the text message. Press MORE.
3. Select Text format. Then select Text style, Text size,
Alignment or New paragraph.
4. Select a text format, OK .
Receiving text messages
When you receive a text message, the phone beeps
and the message Read now? appears in the display.
Press YES to read the text message, or NO if you want
to read the message later.
• While reading the text message you can, for
example, start a chat session with the sender or
go to a WAP address found in the text message.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
When you have read the text message, press MORE
to view a list of options.
Press
to close the text message.
Calling a number in a text message
You can call a phone number that appears in a
text message.
• Select the phone number, CALL .
Saving incoming text messages
Incoming text messages are saved in the phone
memory. It is also possible to save messages on
the SIM card. Messages that you have saved on
the SIM card remain there until you delete them.
To save from a text message
When the phone number, WAP address, picture,
animation or melody is highlighted, press MORE.
Then select SAVE.
• A picture or animation is saved in My pictures.
• A melody is saved in My sounds.
• A phone number is saved in Phonebook.
• A WAP address is saved in Bookmarks.
Long messages
A text message can contain up to 160 characters.
You can send a longer message by linking two or
more messages. Please note that you are charged
for each message within a linked message.
• To turn long messages on, select Long messages from
the Messaging, Text, Options menu, then select On.
Templates
If you have one or more messages that you send
often, you can save these as templates. There are
five pre-defined templates in your phone, but you
can also create your own.
To create a template
1. Scroll to Messaging, Text, Templates,
New template, ADD .
2. Write the message, OK .
3. Press YES if you want to send the message now.
Press NO to save the template.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
45
•
•
•
•
Message options
You can set a default value for the message
options below, or you can turn on the Set on
send option which means that you choose
the settings each time you send a message.
SMS type– The phone supports different types
of messages. Your service provider may offer the
facility of converting a text message into a format
(e mail or fax, for example) that suits the equipment
that is going to receive the message.
Validity period – If your message cannot be delivered,
for example, if the recipient has turned off the phone,
your service centre can save the message to send it
later.
Request reply – Include a reply request if you want
the recipient of your message to reply.
Status request – Check if a message has been
delivered.
To set a default message option
1. Scroll to Messaging, Text, Options.
2. Select an option.
To turn set on send on or off
Repeat steps 1 and 2 above, then select Set on send.
46
Picture Messages
Picture messages can contain text, pictures
and sounds and are sent via MMS (Multimedia
Messaging Service). You must have a subscription
that supports MMS. Picture messages can be sent
to a mobile phone and e-mail account. You can also
send contacts, calendar entries, sound recordings and
notes as attachments.
Before you start
Before sending a picture message, make sure that:
• The number to your service centre is set. To set the
message server number, scroll to Messaging, Picture,
Options, Message server.
• You have entered the WAP settings. Scroll to
Messaging, Picture, Options, WAP profile and
select Select or Create new. To create a WAP
profile, see “Setting up WAP and e-mail” on page
55. Your operator can automatically download all
the settings you need.
To compose and send a picture message
1. Scroll to Messaging, Picture, Create new.
The following options appear:
• Picture – From My pictures.
• Text – Write a message.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
2.
3.
4.
5.
6.
7.
• Sound – From My sounds.
• Camera – From the Camera.
• Recording – Add a sound recording.
• Page options – Start a new page.
Select an option.
Press ADD to continue composing the message.
Press MORE for the following options:
• Send – Send the message.
• Preview – View the message before sending.
• Preview page – View the page in the message.
• Page timing – Set the duration in seconds that the
page will be shown on the recipient’s display.
• Background – Set the background colour.
• Delete page – Remove a page.
Select SEND.
Enter a recipient’s phone number or press LOOK UP to
retrieve it from the phonebook.
Press SEND.
Note: If you entered the number manually,
press PROCEED to go to “Advanced send options”.
Send options
Before sending a picture message, you can
set different options.
• To edit an option, scroll to Messaging,
Picture, Options.
Advanced send options
You can enter more information to accompany
the message as follows:
• To: – Phone number or e-mail address.
These can be selected from the Phonebook.
• Subject: – Write a title, YES.
• Cc: – Phone number or e-mail address.
• Bcc: – Phone number or e-mail address.
• Attachments: – Add your own card, a business
card or a melody from My sounds.
• Priority: – High, normal, low.
• Delivery report: – Turn on or off.
• Read report: – Turn on or off.
Tip: You can base your message on one of the
pre-defined templates.
To use a pre-defined template for a picture
message
1. Scroll to Messaging, Picture, Templates.
2. Select a template and press ADD to make changes.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
47
Receiving picture messages
When you receive a picture message, the phone beeps
and the message Read now? appears in the display.
Press YES to read the message.
Note: You can receive a maximum of 20 messages.
You may have to delete old messages before you can
receive new ones.
•
•
•
•
48
Restrict messages
From the Messaging, Picture, Options, Restrict
messages, Home network or Roaming network
select one of the following:
Allow– Your phone automatically downloads
messages to your phone as soon as they come to
your operator’s server. This is default.
Always ask – You will be prompted to download
or to keep it on the server.
Restrict– New messages appear in the box as icons.
No prompt is received with the message.
From the Messaging, Picture, Options, Restrict
messages, Filter, select the type of message you
want to reject automatically:
• Advertisements
• Anonymous
Mobile chat
The mobile chat function works in the same way as
a chat on the Internet. You can choose a nickname
that will appear in the recipient’s display each time
you send a chat message.
To enter a chat nickname
1. Scroll to Messaging, Chat.
2. Select Nickname.
3. Enter your nickname (maximum of 11 characters), OK .
To start a chat session
1. Scroll to Messaging, Chat, Start new.
2. Enter the recipient’s phone number, OK or retrieve
it from the Phonebook by pressing LOOK UP .
3. Write your message, SEND.
Receiving a chat session invitation
When you receive a chat session invitation, the phone
beeps and the message Chat message Chat now?
appears in the display.
• To read the chat message, press YES.
• Write your chat message reply and press YES.
• To suspend a chat session, press NO .
Messaging
This is the Internet version of the user's guide. © Print only for private use.
• To resume a chat session, scroll to Messaging,
Chat, Resume
• To end a chat session, press and hold
.
• To reject a chat message, press NO.
If you receive a new chat message while another
chat session is ongoing, press YES to end the ongoing
session and start the new one.
Area information
Area information is a type of text message (for
example, a local traffic report) that is sent to all
subscribers in a certain network area. When you
receive an area information message, the message
automatically appears in the display. You cannot
save area messages. Please consult your service
provider for more information about area
information codes.
• To turn area information on or off, scroll to
Messaging, Area info, Reception.
• To enter an area information code, scroll to
Messaging, Area info, Message list, Add new?
Cell information
The cell information channel is used by some
network operators to send messages to their
subscribers within a certain network area.
• To turn on the channel, scroll to Messaging,
Area info, Cell information.
E-mail
You can use your phone to send and receive e-mail
messages. Please note that you need a subscription
that supports data transmission. For more
information, consult your service provider.
Before you start
First make sure that you have:
• Set up a data account. See “Data account” on page 57.
• Set up and selected an e-mail account. See “E-mail
account settings” on page 61.
Sending and receiving e-mail messages
The Send and receive option offers the fastest way to
send e-mail messages saved in the Outbox and check
for new e-mail messages.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
49
To write and send an e-mail message
1. Scroll to Messaging, E-mail, Write new.
2. Select:
• To: – Then add name, enter an e-mail address,
or retrieve an e-mail address from the Phonebook.
To retrieve a saved address from the Phonebook
or received messages in your inbox, press MORE
and select either Phonebook or Archive. When
you have finished adding recipients, press DONE
to return to writing an e-mail message.
• Cc: – If you want to send a copy of the message
to someone.
• Priority: – Set the message priority.
• Subject:– Write a title, OK .
• Text: – Write your message, OK .
• Attachments: – Add pictures to a message.
To retrieve a number from the phonebook or archive
press LOOK UP.
When you have finished, press DONE.
3. Select one of the following:
• Send now – The e-mail message is sent.
• Send with attach. – You can attach a picture from
My pictures or from a digital camera connected via
IR. Select a picture and press SEND.
50
• Save to outbox – The e-mail message is saved in
the Outbox.
• Save to drafts – The e-mail message is saved in
the Drafts folder.
• Send and receive in the E-mail menu – All e-mail
messages in the Outbox are sent.
To receive and read e-mail messages
1. Scroll to Messaging, E-mail, Send and receive
2. When the e-mail messages have been downloaded
to the phone, scroll to Messaging, E-mail, Inbox
to read them.
Note: The phone can save up to six complete e-mail
messages depending on size or you can download
headers only. See “E-mail account settings” on
page 61. All e-mail messages are also saved on
your e-mail server.
An arrow in the top or bottom left corner indicates
that there are more messages on the server.
To reply to an e-mail message
1. Select REPLY.
2. Select Write new or Include this msg to include the
received message.
3. Write the message, SEND.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
To save an e-mail address or a phone number
• When the e-mail address or phone number is
highlighted, select SAVE.
Archiving
You can archive an e-mail message in order to
read it later. You can archive only as much text
as the display shows.
To archive an e-mail message
1. Open the e-mail message.
2. Make sure that the text you want to archive is visible
in the display.
3. Place the cursor in the text and press MORE .
4. Select Copy to archive The text can be found in
Archive in the menu.
To delete an e-mail message (POP3 users)
1. Scroll to Messaging, E-mail, Inbox.
2. Scroll to the message and press MORE.
3. Select Mark f.deletion. The message is deleted
the next time you connect to your e-mail server
by selecting Send & receive.
To delete e-mail messages (IMAP4 users)
1. Scroll to Messaging, E-mail, Inbox.
2. Scroll to the message and press MORE.
3. Select Mark for deletion The message is marked for
deletion on the server.
Select Empty inbox in the Options menu.
4. The message is deleted the next time you connect
to your e-mail server by selecting Send and receive.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
51
Camera
Your mobile phone has a digital camera. You can take
pictures and send them as picture messages. To do this,
you need a subscription that supports this service.
Please check with your network operator.
You can also use a picture as a screen saver or as
wallpaper, or save it together with a contact in your
phonebook so that the picture appears when that
person calls. See “To add a picture to a phonebook
contact” on page 27.
Taking pictures
There are different ways to take a picture. You can
scroll to Camera and hold the phone as shown in
the illustration. You can see the subject in the
phone display. Press CAPTURE to take the picture.
Tip: You can take a rapid succession of pictures by
repeatedly pressing the joystick.
52
Camera
This is the Internet version of the user's guide. © Print only for private use.
Press the camera button on the side of the phone
to activate the camera. Hold the phone as shown
in the illustration. You can see the subject in the
phone display. Press the camera button again to
take the picture.
You can also take a self-portrait. Hold the phone as
shown in the illustration. You can see your reflection
in the mirror provided. Press the camera button on
the side of the phone to activate the camera. Press
the camera button again to take the picture.
To attach the mirror to your phone
1. Remove the back cover and rubber plug from the
phone.
2. Place the mirror in the opening and press down to
secure it.
Camera
This is the Internet version of the user's guide. © Print only for private use.
53
Options
When the camera is activated, press MORE for the
following options.
My pictures – View all your pictures.
Size – Choose between 288x352 or 120x160.
Night mode – Use in poor lighting conditions.
Effects – Select different effects for your picture.
Default name – Create a name for your picture.
Self-timer – The picture is taken a few seconds later.
Tip: To adjust the brightness, press the joystick up
or down repeatedly.
Note: All phones that support pictures can receive
the picture size 120x160. Some phones that support
pictures cannot receive the picture size 288x352.
The best picture size to view on a PC is 288x352.
Saving, discarding and deleting pictures
To discard a picture
When you have taken a picture, a Save icon will appear
in the display immediately above the joystick. If you do
not want to save the picture, select DISCARD .
54
To save a picture
• Press the joystick to save the picture in My pictures.
To delete a picture from My pictures
1. Scroll to Pictures & sounds, My pictures.
2. Highlight the picture you wish to delete, MORE.
3. Scroll to and select Delete, YES.
Note: If Memory full appears, you cannot save any
more pictures until you have deleted an item from
the phone’s memory.
Picture messaging
Before you send a picture message, you need to enter
your service centre number and WAP settings in your
phone. Your network operator provides you with the
settings. See “Setting up WAP and e-mail” on page 55.
The phone that you are sending the picture to needs
to support data transmission and pictures in order to
receive and show the picture.
To take and send a picture
1. Scroll to Camera.
2. Take a picture by pressing CAPTURE.
3. Press SEND and create your picture message.
Camera
This is the Internet version of the user's guide. © Print only for private use.
Setting up WAP and e-mail
In order to use the Internet, browse via WAP services
or send and receive picture and e-mail messages, the
following are required:
1. A phone subscription that supports data
transmission.
2. Settings entered in your phone.
• Your settings may already be entered when you
buy your phone.
• You can receive settings in a text message from
your network operator or service provider. Settings
are also available at www.SonyEricsson.com/
• You can set up with the wizard in Connectivity,
WAP options, WAP profiles, New profile. The
wizard is also started when you try to access
the Internet without having configured a profile.
3. You may also have to register as a WAP/e-mail
user with your service provider or network operator.
Note: Some settings are not necessarily mandatory.
Please consult your network operator or service
provider for more information.
Receive settings in a text message
Your GSM network operator or Internet service
provider may be able to send the required data
account, WAP and e-mail settings direct to your
phone in a text message.
To request settings from Sony Ericsson
1. Use a PC to go to
http://www.SonyEricsson.com/. Select your region
and then use the Configurators to request that a
text message be sent to your phone with the settings
you need.
2. When the message arrives,
• Press YES to install the new settings
Note: If settings already exist in your phone, you
can either keep or replace them. See “Enter or edit
settings manually” on page 56.
3. After installation, see “Using WAP” on page 62.
Set up with the wizard
If your phone is not set up for WAP, you can ask your
network operator or service provider to provide you
with WAP settings information. Then you can simply
use the wizard in your phone to help guide you
through the relevant settings.
Setting up WAP and e-mail
This is the Internet version of the user's guide. © Print only for private use.
55
Note: The wizard starts automatically if no WAP
settings exist in your phone.
To set up with the wizard
1. Scroll to Internet services, and select a homepage
(for example Sony Ericsson).
2. Create now? appears. Press YES.
3. Enter a name for the profile. Press OK .
4. Select Connect using. Press EDIT.
5. Select New account. Press ADD .
6. Select an account type, GSM data or GPRS data.
7. Select New account, and press EDIT, enter the
following:
• A name for the data account.
• For GSM enter phone number and for GPRS enter
APN (Access point name address) – the address
of the external data network you want to connect
to, either an IP address or a text string.
• Use your user id to log on to the external
data network.
• Use your password to log on to the external
data network.
• Save the new data account.
• Select the new data account to be used.
8. Enter IP address for the gateway.
9. Save the new profile.
56
Enter or edit settings manually
You can manually enter or edit settings information
from your network operator or service provider.
To create profile settings manually
1. Scroll to Connectivity, WAP options, WAP profiles.
2. Select New profile and press ADD to create a new
profile, or select an existing profile and press EDIT
to edit an existing profile.
• See steps 3 - 7 in “To set up with the wizard” on
page 56.
Note: If no settings exist, you must enter data account
(connection settings) as well as WAP profile settings.
3. Enter or edit settings until all required information is
entered. Press SAVE.
To edit profile settings
1. Scroll to Connectivity, WAP options, WAP profiles.
2. Select an existing profile and press EDIT to edit an
existing profile.
When editing a profile, you can do the following:
• Change the name of the profile.
• Select data account.
Setting up WAP and e-mail
This is the Internet version of the user's guide. © Print only for private use.
• Enter, Select, Change WAP gateway server address.
• Add more profile settings, see below.
• Remove the profile.
3. Select EDIT.
4. Select the setting you want to edit.
5. Repeat step 4 for other settings you want to edit.
If you select Advanced settings you can also do the
following:
• Enter the address of the WAP site you want to
have as your homepage.
• Select an alternative data account, if the first fails.
• Enter your user id for the WAP gateway.
• Enter your password for the WAP gateway.
• See WAP security.
• View pictures while browsing.
More settings information
To use the WAP browser, via a WAP service
provider, you need settings for:
• a specific data account for WAP, and a WAP profile.
Data account
You may want to create or edit an existing data account.
To create a data account manually
1. Scroll to Connectivity, Data comm., Data accounts.
2. See steps 5 - 7 in “To set up with the wizard” on
page 56.
To edit a data account
1. Scroll to Connectivity, Data comm., Data accounts.
2. Select a data account.
To use e-mail messaging, via an Internet service
provider, you need settings for:
• a specific data account for e-mail, and an
e mail account.
To send a text message to an e-mail address via your
network operator, you need to set:
• an e-mail gateway phone number.
Descriptions
A data account includes connection settings for
access to an Internet server at your service provider.
A WAP profile includes user settings that allow
browsing and picture messaging.
Setting up WAP and e-mail
This is the Internet version of the user's guide. © Print only for private use.
57
An e-mail account includes user settings that allow
e-mail messaging direct from your phone, such as
those provided by your Internet service provider.
Alternatively, E-mail via WAP includes user
settings that also allow e-mail messaging, such as
those provided by your Internet service provider.
However, this is set up on your service provider’s
WAP site.
Note: Check with your WAP service provider if their
site supports e-mail.
WAP profile
The WAP settings are stored in a WAP profile.
In most cases, you only need to use one profile
to access the Internet.
You set up and use additional WAP profiles, for
example, when accessing secure Internet sites, such
as a banking site or a corporate intranet. You then
simply switch between profiles when you need to
change the network connection. See “To set up with
the wizard” on page 56 for more information.
58
Data account
You can have several data accounts saved in your
phone with different settings for different purposes.
The main setting for a data account is the
connection method.
Data account settings can be created with the
wizard. See “Set up with the wizard” on page 55.
You can choose either GSM data or GPRS data
account types.
Note: Please contact your network operator for
charging details.
GPRS (General Packet Radio Service) allows access
where you can always be online.
Note: You need a subscription that supports GPRS.
GPRS settings that are available:
• APN – the address of the external data network
you want to connect to, either an IP address or
a text string.
• Your user id to log on to the external data network.
• Your password to log on to the external data
network.
Setting up WAP and e-mail
This is the Internet version of the user's guide. © Print only for private use.
• Password request – if this setting is on, you are
asked for a password each time you log on to
the external data network.
• Preferred service – if you want to be able to
accept incoming calls during a GPRS session,
select Automatic. If not, select GPRS only.
• The IP address that the phone uses when
communicating with the network. If you do not
enter an address, the network provides you with
a temporary IP address.
• If the network does not provide the IP address
to the DNS server automatically, you may enter
it here.
• Advanced settings – these are optional. Consult
your network operator.
GSM settings include some settings that are similar
to GPRS settings and some that are GSM specific
as follows:
• The phone number of your Internet service
provider.
• Select the speed you want for the connection.
• Select analogue or ISDN connection.
Note: If you want to change access type, you have
to create a new data account and select the access
type you want to use.
Preferred service
You can set GPRS or GSM as the preferred service.
To select preferred mode
• Scroll to Connectivity, Data comm., Preferred
service and select GPRS and GSM or GSM only.
WAP security
Your phone has support for WAP secure browsing.
When you turn on security, the connection between
your phone and the WAP gateway is secure.
Note: Security for a connection between a
WAP gateway and a WAP service provider is
the responsibility of the WAP service provider.
1.
2.
3.
4.
To turn on a secure connection
Scroll to Connectivity, WAP options, WAP profiles.
Select the profile to be used. Press EDIT.
Select Advanced, Security.
Select On or Off.
Setting up WAP and e-mail
This is the Internet version of the user's guide. © Print only for private use.
59
Security module (Locks)
The security module is located on the SIM card, if
your network operator or service provider supplies
such a service. It can contain both certificates and
your private keys. The security module is protected
by a special access PIN and your phone asks you
for it when establishing a secure connection.
To enter the access PIN (for the security
module) and the signature PIN
• Scroll to Connectivity, WAP options,
Security, Locks.
Digital signatures
You can sign a contract with your phone by entering a
digital signature PIN as if signing with a pen on paper.
Digital signature records can be traced back to your
private key through a certificate that is used for signing
a contract.
All transactions (signed contracts) made with your
phone when browsing are stored in your phone.
To check your contracts
• Scroll to Connectivity, WAP options,
Security, Contracts.
60
Trusted certificates and Client certificates
To establish a secure connection when using certain
WAP services, for example banking or WAP shopping,
you need certificates in your phone.
• The different types of certificates are as follows:
1. Server certificates are used to identify a WAP gateway
to the phone and to show that it is certified by a trusted
authority. The server certificate is checked against
trusted certificates that are stored in the phone or in a
security module. If the phone cannot verify the identity
of a server, you are given the option to terminate or
continue the connection.
2. Trusted certificates are used to verify the WAP
gateway that you are trying to connect to. Your
phone may already contain trusted certificates
when you buy it. If you have a security module,
it may also contain trusted certificates. You can
also download trusted certificates from
www.SonyEricsson.com.
3. Client certificates are located in a security module
together with your private keys. Client certificates
can be used to present your identity to a bank or
other services. They can also be used for digital
signatures.
Setting up WAP and e-mail
This is the Internet version of the user's guide. © Print only for private use.
To check the certificates in your phone
• Scroll to Connectivity, WAP options, Security,
Client certificates.
E-mail account settings
An e-mail account specifies, for example, the server
that is used for your e-mail messages.
•
•
There are two ways to create an e-mail account:
• create an e-mail account manually
• use the Internet
•
To create an e-mail account manually
Scroll to Messaging, E-mail, Options.
Select Edit account.
Select New account.
Enter a name for the account, for example Home
or Office.
5. Select Connect using.
6. Select the data account you want to use with this
e-mail account.
7. Enter the rest of the settings in the list, some of
which are optional. To enter the settings, scroll to the
setting, press SELECT and enter the information. Press
OK to confirm. Repeat this for each required setting.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
You use the same e-mail settings in your phone as
in your PC e-mail program. If you do not have an
e-mail service, contact your operator to get all the
necessary settings.
Protocol – select POP3 or IMAP4.
Incoming server – enter the name or IP address of
the service provider for incoming e-mail messages.
For example, mail.server.com or 10.1.1.1.
Incoming port – if needed, change the number of the
port used by the protocol you are using.
Mailbox – enter a user name for your e-mail account.
Password – enter a password for your e-mail
account. Your service provider may alternatively
request a password on connection.
Outgoing server – enter the name or IP address of
the SMTP server to be able to send e-mail messages.
Outgoing port – if needed, change the number of the
port used by the SMTP protocol.
E-mail address – enter your e-mail address.
Download – select whether to receive headers and
text or headers only.
From name – enter your name.
Signature – select if you want to add your business
card to your e-mail messages.
Setting up WAP and e-mail
This is the Internet version of the user's guide. © Print only for private use.
61
• Copy outgoing – Select On, if you want e-mail
messages sent from your phone also to be sent
to an e-mail address of your choice. This way,
your sent messages are copied and can be saved
for future reference.
• Check interval – Select how often you want the
phone to connect to your e-mail server and check
for incoming e-mail messages.
If you have both an office and a home e-mail
account, you can set one of them as default:
• Select Set account from the Messaging, E-mail,
Options menu and select the account.
Internet
At www.sonyericsson.com you can get support
on how to enter your e-mail settings. Use the e-mail
configurator to set up your phone for e-mail, or read
the Getting Started document. Contact your network
operator for information about your settings.
Using WAP
Your phone has a WAP (Wireless Application Protocol)
browser and e-mail messaging which are designed to
bring a modified Internet to your mobile phone.
A wide range of services are available, for example,
news, entertainment, timetables, reservations, banking,
e-commerce, positioning and e-mail.
Before you start
First make sure that you have:
• A phone subscription that supports data transmission.
• Correct settings in your phone for mobile Internet,
WAP and/or e-mail messaging.
• Registered as a WAP/E-mail user with your network
operator or service provider.
Note: See “E-mail account settings” on page 61
or “E-mail” on page 49 for more information
about e-mail set-up and messaging.
To select a WAP profile
1. Scroll to Connectivity, WAP options, WAP profiles.
2. Select the profile you want to use.
You then return to the WAP options menu and the
WAP profile is selected.
62
Using WAP
This is the Internet version of the user's guide. © Print only for private use.
Using the WAP browser
• Enter the WAP address of a site you want to visit.
• Save a picture from the site.
• Send a text message with a link to the current
WAP page to another phone.
• Send a link to the current site to another phone via
infrared or Bluetooth.
• Refresh the contents of the WAP page.
• Close the current browsing session.
• Display current status information, for
example, profile, access type, connection
time, security, address.
• Set the current site as the home page of the WAP
profile you are using.
To start browsing
• Select either the top middle or top left icon on the
desktop. When the WAP page is loaded into the
phone, press MORE and select from the following:
• Open your home page at the top of the list, for
example, Sony Ericsson.
• Go to one of your bookmarks. Select Bookmarks.
• Enter the address of a WAP site. Select Enter
address, to enter a new WAP address or select
one of the 10 most recently entered addresses.
Tip: When you enter a WAP address, the normal
http:// prefix is not needed.
Using bookmarks
You use bookmarks in your mobile phone just as
you do with a PC Internet browser. You can have
up to 25 bookmarks.
To exit WAP and disconnect
• Press MORE and scroll to Exit WAP.
Options when browsing
1. Select MORE.
2. Select one of the following:
• Go to the home page set for the current profile.
• Add the site you are currently browsing to your
list of bookmarks, or see the list of bookmarks.
1.
2.
3.
4.
To work with bookmarks
Scroll to Internet services.
Press MORE, Bookmarks.
Select the bookmark you want to work with.
Press MORE and select one of the following options:
• Go to – Go to the marked WAP address.
Using WAP
This is the Internet version of the user's guide. © Print only for private use.
63
• Edit– Edit the name and/or the WAP address of
the bookmark.
• Delete – Delete the bookmark.
• Send as text msg – Send a link to the WAP address
in a text message.
• Send – Send a link to the current WAP address via
infrared or Bluetooth.
• Set as homepage – Set the WAP address as the
home page.
Downloading
You can download pictures, themes, games and
ring signals, for example, from WAP sites directly
to your phone.
To download from wap.sonyericsson.com
1. Scroll to Sony Ericsson.
2. Select what you want to download and follow the
instructions that appear.
Stored information
The following information can be saved in your phone:
• Cache – improves memory efficiency.
• Passwords – improves server access efficiency.
• Cookies – improves site access efficiency.
64
To clear cache
Scroll to Connectivity, WAP options, Clear cache.
To remember passwords
Scroll to Connectivity, WAP options, Passwords,
Remember pwds.
To clear passwords
Scroll to Connectivity, WAP options, Passwords,
Clear passwords.
To allow cookies
1. Scroll to Connectivity, WAP options, Cookies.
2. Select Allow cookies.
To clear cookies
1. Scroll to Connectivity, WAP options, Cookies.
2. Select Clear cookies.
It is advisable to clear any sensitive information about
previously visited WAP services. This is to avoid a
security risk if your phone is misplaced, lost or stolen.
Using WAP
This is the Internet version of the user's guide. © Print only for private use.
Transferring and exchanging
information
Bluetooth™ wireless technology
Your phone has built-in Bluetooth wireless technology
which makes it possible for you to connect your phone
wirelessly to other Bluetooth devices such as a
handsfree, PC or other phones. You can, for example,
have a conversation via a cordless Bluetooth handsfree
or browse the Internet, wirelessly connected via your
mobile phone. You can automatically synchronize
information in your phone and your PC. You can also
exchange, for example, contacts, calendar items and
pictures.
Note: We recommend that your phone and the
Bluetooth device you are communicating with
are within a range of 10 metres. The connection
may be improved if there are no solid objects in
between your phone and the other Bluetooth device.
Before you start
To communicate with another Bluetooth device, you
first need to add the device to the list of my devices.
To synchronize with your PC, and to browse the
Internet, you also need to install software on your
PC from the Sony Ericsson web site,
www.SonyEricsson.com/support/.
You can exchange items or play games without
having to add the other device to the list of My devices.
To turn Bluetooth on
1. In standby, press MORE.
2. Select Turn on Bluetooth.
To add a device to your phone
1. Scroll to Connectivity, Bluetooth, My devices,
New device.
Press ADD and your phone searches for all types of
available devices. Press MORE if you want to select
a specific type of device to search for.
2. The phone searches for Bluetooth devices. A list
of available devices appears in the display. Select
a device.
3. Enter a passkey (up to 16 digits) for the device,
both in the phone and, for example, in the PC. (If
a passkey does not come with the Bluetooth device
when you buy it, you need to create one yourself.)
Transferring and exchanging information
This is the Internet version of the user's guide. © Print only for private use.
65
Note: To add a device or accept the addition of
a device to My devices means that the device has
access to functionality and content in the phone.
To organize your list of devices
Scroll to Connectivity, Bluetooth, My devices. Then
select a device from the list and press MORE to view
a list of options.
Phone name
You can choose a name for your phone. This name
is shown in other devices when your phone is found,
and is also used for the infrared port.
• To enter a name, scroll to Connectivity, Bluetooth,
Options, Phone name.
In order for your phone to be found by other
Bluetooth devices, you must make sure Bluetooth is
turned on and your phone is visible to other devices.
To hide or show your phone when using Bluetooth
1. Scroll to Connectivity, Bluetooth, Options, Visibility.
2. Select Show phone or Hide phone.
66
Handsfree
To add a Bluetooth handsfree to your phone
1. Scroll to Connectivity, Bluetooth, Handsfree,
My handsfree, New handsfree.
2. Select ADD .
Transferring sound when using a handsfree
When you are using a Bluetooth handsfree with your
your phone, you can choose where the sound should
be transferred during a call.
• Press MORE in standby during the call, select Transfer
sound. Then select either to transfer sound to the phone
or to other handsfree devices that have been added to
your phone.
You can select where to direct the sound when
making call.
• Scroll to Connectivity, Bluetooth, Handsfree,
Outgoing calls, then select In handsfree, In phone,
Always ask.
Sending and receiving
To send an item using Bluetooth wireless
technology, you need to make sure that the
devices are within 10 metres.
Transferring and exchanging information
This is the Internet version of the user's guide. © Print only for private use.
To send an item
After you select Bluetooth as the transfer method,
a list of possible receivers is presented. First in the
list will be the last device you were in contact with
and devices that have been previously added to your
phone. The phone also searches for other devices
which are shown in the list.
• To activate the infrared port, scroll to Connectivity,
Infrared port. From standby, you can also select
MORE, Turn on infrared.
To connect two devices
1. Place your phone as in the picture. The infrared
port on the phone must face the infrared port on
the other device.
Tip: You can send certain items in your phone
(calendar overviews, appointments and tasks,
contacts, text messages) to specific Bluetooth
printers.
Note: In countries where the use of Bluetooth
wireless technology is not allowed, you must
ensure that the Bluetooth function is set to Off.
Infrared port
You can use the built-in infrared port to establish
contact between your phone and a PC or another
device equipped with an infrared port.
Activate the infrared port
Before you can connect to another infrared device
you have to activate the infrared port in your phone.
Note: If you are connecting to a PC, make sure
your PC has activated infrared communication
(Start, Settings, Control Panel, Infrared, Options
tab, Enable infrared communication).
2. Your phone now establishes contact with the
other device.
Transferring and exchanging information
This is the Internet version of the user's guide. © Print only for private use.
67
Synchronization
You can synchronize the calendar and Phonebook in
your phone with similar programs in, for example, a
PC, PDA or mobile phone and with similar programs
on the Internet.
• To select which order first name and last name
appear in the phone when you synchronize contacts,
scroll to Phonebook, Options, Synchronize view.
Synchronization with nearby devices
After installing the synchronization program
from the Sony Ericsson WAP site,
www.SonyEricsson.com/support/, you can
synchronize your phone with your PC.
A status bar shows the progress of the
synchronization. If you use a cable, the
synchronization starts as soon as you connect
the cable. For more information, please refer
to the synchronization software online help.
Internet synchronization
You can synchronize your mobile phone contacts,
appointments and tasks with similar programs on the
Internet, using WAP. Contact your network operator
for more information about these programs on the
68
Internet and to receive user id, password and
addresses for the different programs. You must also
have a WAP profile set in your mobile phone.
Fax and data calls
Send fax and data calls
To send fax messages and make data calls, you need
to connect your phone to a computer, and then start
the appropriate software program.
Receive fax and data calls
The procedure of receiving fax messages and data
calls depends on your network and subscription. If
you have separate numbers for voice, fax and data
calls, your phone recognizes the type of call.
To receive a fax or data call (separate numbers)
1. Connect your phone to a computer.
2. Answer the call from within the software program
(if it does not answer automatically).
You cannot answer a fax or data call by pressing YES
on the phone.
Transferring and exchanging information
This is the Internet version of the user's guide. © Print only for private use.
One number
If you have a SIM card that does not support separate
fax and data numbers, the phone does not recognize
the type of incoming call.
If you want to receive a fax or data call, you have to
set the phone to one of these options. Once you have set
your phone for a specific incoming call, it stays like this
until you change it.
To select the call type you want your next incoming
call to be, scroll to Calls, Next call, Next incoming call.
More features
Alarm clock
The alarm can be set to ring at a specific time within
24 hours, or recurrently at a specific time on several
days. You can have both these alarms set at the same
time. Even if you have set your phone to silent, the
alarm and timer signals ring. The alarm clock also
rings if the phone is turned off.
To set an alarm
1. Scroll to Organizer, Alarms, Alarm.
2. Enter the time, SAVE.
• To change the alarm time, scroll to Organizer,
Alarms, Alarm, New time.
• Press any key to turn the alarm signal off when it
rings. If you do not want the alarm to be repeated,
press YES.
• To cancel the alarm, scroll to Organizer, Alarms,
Alarm, Cancel.
• To set a recurrent alarm, scroll to Organizer, Alarms,
Recurrent alarm. Then enter the time and select the
days that you want the alarm to recur by scrolling
and pressing CHECK. Press SAVE to exit the menu.
• To select an alarm signal, scroll to Settings,
Sounds and alerts, Alarm signal.
More features
This is the Internet version of the user's guide. © Print only for private use.
69
•
•
•
•
•
Stopwatch
Scroll to Organizer, Stopwatch.
Press START to start the stopwatch.
Press NEW LAP to start a new lap time.
Press STOP to finish.
Press RESTART to restart the stopwatch.
Press RESET to reset the stopwatch.
Note: The stopwatch is turned off when you answer an
incoming call or when you exit the stopwatch menu.
Timer
The phone has a timer that can be set to count
down from 99 hours, 59 minutes, 59 seconds.
• To set the timer, scroll to Organizer, Timer.
When the signal rings, press any key to turn it off.
Calculator
The phone has a calculator, which can add, subtract,
multiply, divide and calculate percentages.
• Enter a digit and scroll to a symbol (+, -, x, /, %, .).
• Press
to delete a digit or symbol.
• Press
to start a new calculation.
70
Code memo
Instead of having to remember all the different security
codes for credit cards, you can, for example, save them
in the code memo in your phone. Then all you need to
remember is the password to open the code memo. You
can save a maximum of ten codes in the code memo.
Checkword and security
To confirm that you have entered the correct password
for the code memo and to prevent unauthorized access
to your codes, you must enter a checkword. When you
enter your password to open the code memo, the
checkword is shown for a short time. If the password
is correct, the correct codes are shown. If you enter
the incorrect password, the checkword and the codes
that are shown are also incorrect.
Factors strengthening the security of the Code
memo function are:
• You get no feedback about whether the password
is correct, except for the checkword, and only you
know the checkword.
• All codes are encrypted in the mobile phone.
• When you access your codes, they are shown for
a limited time only.
More features
This is the Internet version of the user's guide. © Print only for private use.
To open code memo for the first time
1. Scroll to Organizer, Code memo.
A message with instructions appears.
2. Press OK .
3. Enter a four-digit password to open Code memo, OK.
4. Re-enter the new password to confirm.
5. Enter a checkword (maximum 15 characters), OK .
The checkword can consist of both letters and
numbers. To enter a number, press and hold the key.
To add a new code
Scroll to Organizer, Code memo.
Enter your password.
Select New code, ADD .
Enter a name associated with the code, for example,
the name of the credit card company, OK .
5. Enter the code, OK .
1.
2.
3.
4.
To open code memo
1. Scroll to Organizer, Code memo.
2. Enter your password, OK.
Your entered checkword appears. When the
decryption process has finished, your codes
are shown.
1.
2.
3.
4.
5.
To change the password
Open code memo as described above.
Press MORE, Change password.
Enter your new password, OK.
Re-enter the new password, OK .
Enter a checkword, OK .
Forgot your password?
If you forget your password, just enter any password
to access the Code memo function. The checkword
and codes that are then shown are incorrect. You
must now reset the Code memo.
To reset code memo
1. Press MORE, Reset.
2. Reset code memo? appears. Press YES.
The Code memo is reset and all entries are cleared.
The next time you enter the Code memo, you must
start at “To open code memo for the first time” on
page 71.
Calendar
You can use the calendar to keep track of important
meetings that you need to attend, phone calls that you
need to make or tasks that you need to do. The calendar
More features
This is the Internet version of the user's guide. © Print only for private use.
71
can be synchronized with a PC calendar or, using WAP,
with a calendar on the Web. For more information see
“Synchronization” on page 68.
Appointments and tasks
You can save up to 300 appointments and 80 tasks in
your calendar, depending on the size of each item. You
can choose to add a new appointment or task, or to use
an old appointment or task as a template by copying
and editing it.
Tip: When you are in the list of appointments and
tasks for a certain day, you can press MORE to edit,
delete, reschedule, send or copy.You can also call
a number included in a phone call task.
To add a new appointment
1. Scroll to Organizer, Calendar, Add appointment.
2. Enter the appropriate information, for example,
subject, location, icon and times. Confirm each
entry with OK, SELECT, or SAVE.
3. If you want to set a reminder for your appointment,
select a reminder.
72
To add a new task
1. Scroll to Organizer, Calendar, Tasks, New task, ADD .
2. Select a category.
• If the category is a phone call, enter the
phone number, OK .
3. Enter a subject, OK .
4. If you want to set a reminder for your appointment,
press YES. Save the date and time.
Viewing your calendar
To view your calendar content, scroll to Organizer,
Calendar, and then select one of the following:
• View today – All appointments for today
as well as unfinished tasks are shown.
• View week – Move within and among the days
by moving the joystick. Press SELECT to view
a certain day.
• View month – Move within and among the days
or weeks by moving the joystick. Press SELECT
to view a certain week. Days on which you have
appointments are marked in bold.
Tip: In the monthly and weekly views, you can go to
next week by pressing 3, to next month by pressing 6
and to next year by pressing 9. You can go back a week,
a month or a year by pressing 1, 4, and 7 respectively.
To reach the current day, press
.
More features
This is the Internet version of the user's guide. © Print only for private use.
Calendar settings
• Select Options from the Organizer, Calendar menu
and then select one of the options:
• View.
Starting day – Select a start day for the week.
Week display – Select 5-day week or 7-day week.
• Profile switch – If you want the phone to remind
you to switch profile when a meeting is about to
start, select Manual. If you want the profile to be
switched automatically, select Auto, then select
a profile.
• Reminders – Select Always if you want the
reminder to sound even though the phone is
turned off.
Check the status
You can check how much space is left for new
appointments and tasks
• To check the status, scroll to Organizer, Calendar,
Advanced, Memory status.
Tip: To delete all appointments and tasks in your
calendar, select Delete all in the Advanced menu.
Exchanging calendar entries
You can send and receive appointments and tasks
using Bluetooth wireless technology, the infrared
port or picture message.
To send an appointment or a task
1. In the list of appointments and tasks for a certain day,
scroll to the item you want to send and press MORE.
2. Select Send.
3. Select a transfer method.
To receive an appointment or a task
1. From standby, press MORE and scroll to
Turn on Bluetooth or Turn on infrared.
Both the infrared port and the Bluetooth function
are activated for ten minutes.
2. Add appointment or Add task? appears. Press YES
to save the appointment or task in your calendar.
If your calendar is full, you must remove
calendar items before you can save any new ones.
Find an appointment or task
You can search for appointments and tasks that
contain a specific text.
More features
This is the Internet version of the user's guide. © Print only for private use.
73
To search for appointments or tasks
1. Scroll to Organizer, Calendar, Advanced, Find.
2. Check or uncheck if you want to search for
appointments or tasks (if you have added any).
Press OK .
3. Enter the text you want to search for, OK .
Appointments or tasks that match your search
are shown. Select to view the item or edit, delete,
reschedule, send, or copy the item by pressing MORE.
Sound recorder
With the Sound recorder function, you can record
either your own memos or calls. All participants in
the call are automatically recorded. The recording
is stopped if any party ends the call.
The recordings are saved in your mobile phone and
can be accessed even if you change your SIM card.
Note: In some countries or states it is required
by law that you inform the other person before
recording the call.
To record a call
1. During the call press the joystick
2. .Select Record.
74
To start a sound recording
• Scroll to Pictures & sounds, Record sound.
• Wait until you hear a tone. When the recording
starts, the display shows Recording together with
the time of the current recording.
To end the recording
• Press STOP.
Tip: You can start recording or listening
to recordings with a voice command.
See “Voice control” on page 30.
The recording stops automatically if you receive an
incoming call or when the call ends. You hear a tone
a few seconds before the memory is full.
To listen to your recordings
1. Scroll to Pictures & sounds, My sounds.
2. Select the recording you wish to hear. Press PLAY.
To send a recording
1. Scroll to Pictures & sounds, My sounds.
2. Scroll to the recording you wish to send.
3. Press MORE and select Send.
More features
This is the Internet version of the user's guide. © Print only for private use.
1.
2.
3.
4.
To delete or rename a sound recording
Scroll to Pictures & sounds, My sounds.
Scroll to the recording you wish to delete or rename.
Press MORE when the recording is highlighted.
Select Delete or Rename.
Entertainment
Your phone has several entertaining applications and
games. You can play some of the games with another
person, both using your phone, or you can play on
two phones, using Bluetooth wireless technology
or infrared. You can also download games and
applications directly to your phone. Help texts
are available in some games and applications.
To start an application
1. Scroll to Entertainment, Games & more.
2. Select an application, START.
To download an application
1. Scroll to Entertainment, Games & more.
2. Scroll to a direct link, START.
Note: Make sure the file sizes do not exceed the free
memory in your phone. See “Checking the memory”
on page 30.
1.
2.
3.
4.
To start and end a game
Scroll to Entertainment, Other games.
Select New game, START.
Press MORE to read help texts.
Press
to end the game.
To download a game
1. Scroll to Entertainment, Other games.
2. Scroll to a direct link, START.
Tip: If you press MORE, you will get more
information about your game.
How to control the games:
For most games you can use the joystick to move
up, down, left or right and to select an item, or use
the keys as follows:
left up
left
left down
up
select/fire
down
right up
right
right down
More features
This is the Internet version of the user's guide. © Print only for private use.
75
Notes
If you need to remember something, you can make a
note of it in your phone. You can add, edit, delete or
send a note. You can save 10 notes.
To add a note
1. Scroll to Organizer, Notes, New note, ADD.
2. Enter the note, OK .
To view the notes
1. Scroll to Organizer, Notes.
2. A list which shows the beginning of each note
appears. Select the note that you want to view.
Post note
You can display a note in standby mode.
To display a note in standby
1. From standby, press MORE and scroll to Post note.
2. Select the note you want to display in standby
or select New note to write a new note.
Exchanging notes
You can send and receive notes using Bluetooth
wireless technology, the infrared port or picture
messaging.
To send a note
1. Scroll to a note and press MORE to display the list
of options.
2. Select Send.
3. Select a transfer method.
To receive a note
1. From standby, press MORE and scroll to
Turn on Bluetooth or Turn on infrared.
Both the infrared port and the Bluetooth function
are activated for ten minutes.
2. Add note? appears. Press SAVE to save the note
among your other notes.
• If the note is long and you cannot see all of it, press
MORE, Show note.
• To turn off the note in standby, press MORE, Hide note.
76
More features
This is the Internet version of the user's guide. © Print only for private use.
Security
SIM card lock
The SIM card lock protects your subscription,
but not your phone itself, from unauthorized use.
If you change SIM cards, the phone still works with
the new SIM card.
Most SIM cards are locked at the time of purchase.
If the SIM card lock is on, you have to enter a “PIN”
(Personal Identity Number) every time you turn on
your phone.
If you enter your PIN incorrectly three times in
a row, the SIM card is blocked. This is indicated by
the message PIN blocked. To unblock it you need to
enter your “PUK” (Personal Unblocking Key). Your
PIN and PUK are supplied by your operator.
1.
2.
3.
4.
To unblock your SIM card
PIN blocked appears in the display.
Enter your PUK and press OK .
Enter a new four- to eight-digit PIN and press OK.
Re-enter the new PIN to confirm and press OK .
• To edit your PIN, scroll to Settings, Locks, SIM lock,
Change PIN.
Note: If the message “Codes do not match” appears,
you entered the new PIN incorrectly. If the message
“Wrong PIN” appears, followed by “Old PIN:”,
you entered your old PIN incorrectly.
• To edit your PIN2, scroll to Settings, Locks,
SIM lock, Change PIN2.
To turn the SIM card lock on or off
1. Scroll to Settings, Locks, SIM lock,
Protection.
2. Select On or Off.
3. Enter your PIN and press OK .
Phone lock
The phone lock protects the phone against
unauthorized use if it is stolen and the SIM card
is exchanged. It is not on when you buy the phone.
You can change the phone lock code (0000) to any
four- to eight-digit personal code. The phone lock
can be set to on, automatic or off.
Phone lock on
If the phone lock is on, the message Phone locked
appears each time you turn on the phone. You have
to enter your code followed by YES to use your
phone.
Security
This is the Internet version of the user's guide. © Print only for private use.
77
Automatic
If the phone lock is set to automatic, you do not need to
enter your phone lock code until a different SIM card is
inserted in the phone.
• To edit your phone lock code, scroll to Settings,
Locks, Phone lock, Change code.
Note: It is important that you remember your new
code. If you should forget it, you have to hand in
your phone to your local Sony Ericsson retailer.
To set the phone lock
1. Scroll to Settings, Locks, Phone lock, Protection.
2. Select an alternative.
3. Enter the phone lock code and press OK .
Troubleshooting
This chapter lists some problems that you might
encounter while using your phone. Some problems
require that you call your service provider, but you
can easily correct most of the problems yourself.
The phone cannot be switched on
Hand-held phone
Recharge or replace the battery. See “SIM card and
battery information” on page 5.
No indication of charging
When you start charging a battery that is empty or a
battery that has not been used for a long time, it may
take up to 30 minutes before the battery icon appears
in the display.
Menu language
If the display shows a language that you do not
understand, you can always choose Automatic
(determined by your SIM card) by pressing
8888
in standby. You can always choose
English by pressing
0000
in standby.
78
Troubleshooting
This is the Internet version of the user's guide. © Print only for private use.
Grey menu options
Grey text indicates a function that is
temporarily unavailable, for example
due to your subscription or due to a
certain setting which has not been turned on.
Since you cannot send themes, pictures and
sounds that are copyright-protected, the Send menu
is sometimes unavailable.
Error messages
Insert SIM
There is no SIM card in the phone or you may have
inserted it incorrectly. Insert a SIM card. See “SIM
card and battery information” on page 5.
emergency number 112. See “Making emergency
calls” on page 24.
No network
There is no network within range or the received signal
is too weak. You have to move to get a signal that is
strong enough.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2 incorrectly.
• Enter the correct PIN or PIN2, and press YES. See
“SIM card lock” on page 77.
Insert correct SIM card
The phone is set to work only with certain SIM
cards. Insert the correct SIM card.
Codes do not match
When you want to change a security code (for
example, your PIN) you have to confirm the new
code by entering it again. The two codes that you
have entered do not match. See “SIM card lock” on
page 77.
SOS calls only
You are within range of a network, but you are not
allowed to use it. However, in an emergency, some
operators allow you to call the international
PIN blocked/PIN2 blocked
You have entered your PIN or PIN2 incorrectly three
times in a row. To unblock your phone, see “SIM card
lock” on page 77.
Troubleshooting
This is the Internet version of the user's guide. © Print only for private use.
79
PUK blocked- contact operator
You entered your personal unblocking key code
(PUK) incorrectly 10 times in a row. Contact your
network operator or service provider.
Phone locked
The phone is locked. To unlock the phone, see
“Phone lock” on page 77.
Additional information
Guidelines for Safe and Efficient Use
Please read this information before using
your mobile phone.
RECOMMENDATIONS
Phone lock code:
Your phone comes with the phone lock code, 0000.
You can change it to any four- to eight-digit code.
See “Phone lock” on page 77.
• Always treat your product with care and keep it in
a clean and dust-free place.
Number not permitted
The Fixed Dialling function is on and the number
you have dialled is not on your fixed numbers list.
See “Fixed dialling” on page 41.
• Do not expose your product to extreme
high or low temperatures.
Charging, alien battery
The battery you are using is not a Sony Ericssonapproved battery and is charging slowly for safety
reasons.
• Do not expose your product to liquid or moisture
or humidity.
• Do not expose your product to open
flames or lit tobacco products.
• Do not drop, throw or try to bend
your product.
• Do not paint your product.
80
Additional information
This is the Internet version of the user's guide. © Print only for private use.
• Do not use your product near medical equipment
without requesting permission.
• Do not use your product when in, or around aircraft,
or areas posted “turn off two-way radio”.
Use of unauthorised or modified antennas could
damage your mobile phone and may violate
regulations, causing loss of performance and SAR
levels above the recommended limits (see below).
EFFICIENT USE
• Do not use your product in an area where
a potentially explosive atmosphere exists.
• Do not place your product or install
wireless equipment in the area above
your car’s air bag.
• Do not attempt to disassemble your
product. Only Sony Ericsson authorised
personnel should perform service.
• Do not direct the infrared ray at anyone’s
eye and make sure that it does not disturb any other
infrared units.
• To avoid hearing impairment, accept the call before
holding your product (or portable handsfree device)
to your ear.
ANTENNA
Only use an antenna that has been specifically
designed by Sony Ericsson for your mobile phone.
Hold your mobile phone as you would any other
phone. Do not cover the top of the phone when in use,
as this affects call quality and may cause the phone to
operate at a higher power level than needed, thus
shortening talk and standby times.
RADIO FREQUENCY (RF) EXPOSURE AND
SAR
Your mobile phone is a low-power radio transmitter
and receiver. When it is turned on, it emits low levels
of radio frequency energy (also known as radio waves
or radio frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
(International Commission on Non-Ionizing Radiation
Protection), through periodic and thorough evaluation
of scientific studies. These guidelines establish
permitted levels of radio wave exposure for the
general population. All Sony Ericsson mobile phone
models are designed to operate within these stringent
levels. The levels include a safety margin designed to
assure the safety of all persons, regardless of age and
Additional information
This is the Internet version of the user's guide. © Print only for private use.
81
health, and to account for any variations in
measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency
energy absorbed by the body when using a mobile
phone. The SAR value is determined at the highest
certified power level in laboratory conditions, but the
actual SAR level of the mobile phone while operating
can be well below this value.
This is because the mobile phone is designed to
use the minimum power required to reach the network.
Therefore, the closer you are to a base station, the
more likely it is that the actual SAR level will decrease.
Variations in SAR below the radio frequency
exposure guidelines do not mean that there are
variations in safety. While there may be differences
in SAR levels among various mobile phones, all Sony
Ericsson mobile phone models are designed to meet
radio frequency exposure guidelines.
A separate leaflet with SAR information for this
mobile phone model is included with the material that
comes with this mobile phone. This information can
also be found, together with more information on radio
frequency exposure and SAR, on
www.SonyEricsson.com/.
to use handsfree solutions. We recommend that you
use only Ericsson or Sony Ericsson handsfree
solutions intended for use with your product. Please
note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid the use
of mobile phones in their vehicles unless a handsfree
kit with an external antenna supports the installation.
Always give full attention to driving and pull off the road
and park before making or answering a call if driving
conditions so require.
PERSONAL MEDICAL DEVICES
Mobile phones may affect the operation of cardiac
pacemakers and other implanted equipment. Please
avoid placing the mobile phone over the pacemaker,
e.g. in your breast pocket. When using the mobile
phone, place it at the ear opposite the pacemaker.
If a minimum distance of 15 cm (6 inches) is kept
between the mobile phone and the pacemaker, the risk
of interference is limited. If you have any reason to
suspect that interference is taking place, immediately
turn off your mobile phone. Contact your cardiologist
for more information.
For other medical devices, please consult the
manufacturer of the device.
DRIVING
Please check if local laws and regulations restrict the
use of mobile phones while driving or require drivers
82
Additional information
This is the Internet version of the user's guide. © Print only for private use.
CHILDREN
EMERGENCY CALLS
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR
COULD ACCIDENTALLY DAMAGE THE
MOBILE PHONE OR ACCESSORY. YOUR
MOBILE PHONE OR ITS ACCESSORY MAY
CONTAIN SMALL PARTS THAT COULD BE
DETACHED AND CREATE A CHOKING HAZARD.
Mobile phones operate using radio signals, which
cannot guarantee connection under all conditions.
Therefore you should never rely solely upon any
mobile phone for essential communications (e.g.
medical emergencies).
Emergency calls may not be possible on all
cellular networks or when certain network services
and/or mobile phone features are in use. Check with
your local service provider.
DISPOSING OF THE PRODUCT
BATTERY USE AND CARE
Your mobile phone should not be placed
in municipal waste. Please check local
regulations for disposal of electronic
products.
We recommend that you fully charge the battery
before you use your mobile phone for the first time.
The battery can only be charged in temperatures
between +5°C (+41°F) and +45°C (+113°F).
A new battery or one that has not been used for
a long time could have reduced capacity the first few
times it is used.
The talk and standby times depend on the actual
transmission conditions when using the mobile phone.
If the mobile phone is used near a base station, less
power is required and talk and standby times are
prolonged.
POWER SUPPLY
Connect the AC power adapter only to designated
power sources as marked on the product. Make sure
the cord is positioned so that it will not be subjected
to damage or stress. To reduce risk of electric shock,
unplug the unit from any power source before
attempting to clean it. The AC power adapter must
not be used outdoors or in damp areas. Never alter
the cord or plug. If the plug will not fit into the outlet,
have a proper outlet installed by a qualified electrician.
• Warning! May explode if disposed of in fire.
• Use only Ericsson or Sony Ericsson branded original
batteries and chargers intended for use with your
Additional information
This is the Internet version of the user's guide. © Print only for private use.
83
mobile phone. Other chargers may not charge
sufficiently or may produce excessive heat. Using
other batteries and chargers could be dangerous.
• Do not expose the battery to liquid.
• Do not let the metal contacts on the battery touch
another metal object. This could short-circuit and
damage the battery.
DISPOSING OF THE BATTERY
Please check local regulations for
disposal of batteries or call your local
Sony Ericsson Customer Care Center
for information.
The battery should never be placed in
municipal waste. Use a battery disposal facility
if available.
Limited Warranty
• Do not disassemble or modify the battery.
• Do not expose the battery to extreme
temperatures, never above +60°C
(+140°F). For maximum battery capacity,
use the battery in room temperature.
• Turn off your mobile phone before removing
the battery.
• Keep out of children’s reach.
• Use the battery for the intended
purpose only.
• Do not allow the battery to be put into the mouth.
Battery electrolytes may be toxic if swallowed.
84
Sony Ericsson Mobile Communications AB, S-221 88
Lund, Sweden, (Sony Ericsson), provides this Limited
Warranty for your mobile phone and original accessory
delivered with your mobile phone (hereinafter referred
to as “Product”).
Should your Product need warranty service, please
return it to the dealer from whom it was purchased,
or contact your local Sony Ericsson Customer Care
Center (national rates may apply) or visit
www.SonyEricsson.com to get further information.
OUR WARRANTY
Subject to the conditions of this Limited Warranty,
Sony Ericsson warrants this Product to be free from
defects in design, material and workmanship at the
time of its original purchase by a consumer, and for
a subsequent period of one (1) year.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
WHAT WE WILL DO
If, during the warranty period, this Product fails to
operate under normal use and service, due to defects
in design, materials or workmanship, Sony Ericsson
authorised distributors or service partners, in the
country/region* where you purchased the Product, will,
at their option, either repair or replace the Product in
accordance with the terms and conditions stipulated
herein.
Sony Ericsson and its service partners reserve the
right to charge a handling fee if a returned Product is
found not to be under warranty according to the
conditions below.
Please note that your personal settings/downloads
might be lost when the Product is repaired or replaced.
remaining time of the original warranty period or for
ninety (90) days from the date of repair, whichever is
longer. Repair or replacement may involve the use of
functionally equivalent reconditioned units. Replaced
parts or components will become the property of
Sony Ericsson.
3. This warranty does not cover any failure of the Product
due to normal wear and tear, or due to misuse,
including but not limited to use in other than the normal
and customary manner, in accordance with the Sony
Ericsson instructions for use and maintenance of the
Product. Nor does this warranty cover any failure of
the Product due to accident, software or hardware
modification or adjustment, acts of God or damage
resulting from liquid.
CONDITIONS
1. The warranty is valid only if the original proof of
purchase issued to the original purchaser by an,
for this Product, Sony Ericsson authorised dealer,
specifying the date of purchase and serial number**,
is presented with the Product to be repaired or
replaced. Sony Ericsson reserves the right to refuse
warranty service if this information has been removed
or changed after the original purchase of the Product
from the dealer.
4. Since the cellular system on which the Product is
to operate is provided by a carrier independent from
Sony Ericsson, Sony Ericsson will not be responsible
for the operation, availability, coverage, services or
range of that system.
5. This warranty does not cover Product failures caused
by installations, modifications, or repair or opening of
the Product performed by a non-Sony Ericsson
authorised person.
2. If Sony Ericsson repairs or replaces the Product, the
repaired or replaced Product shall be warranted for the
Additional information
This is the Internet version of the user's guide. © Print only for private use.
85
6. The warranty does not cover Product failures which
have been caused by use of accessories or other
peripheral devices which are not Ericsson or Sony
Ericsson branded original accessories intended for
use with the Product.
7. Tampering with any of the seals on the Product will
void the warranty.
the preceding limitations or exclusions may not apply
to you.
The warranty provided does not affect the consumer’s
statutory rights under applicable legislation in force,
nor the consumer’s rights against the dealer arising
from their sales/ purchase contract.
* EUROPEAN UNION (EU)
8. THERE ARE NO EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN
THIS PRINTED LIMITED WARRANTY. ALL IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. IN
NO EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY
NATURE WHATSOEVER, INCLUDING BUT NOT
LIMITED TO LOST PROFITS OR COMMERCIAL
LOSS, TO THE FULL EXTENT THOSE DAMAGES
CAN BE DISCLAIMED BY LAW.
If you have purchased your Product in an EU country
you can have your Product serviced, under the
conditions set out above, within the warranty period
in any EU country where an identical Product is sold
by an authorised Sony Ericsson distributor. To find
out if your Product is sold in the EU country you are
in, please call the local Sony Ericsson Customer Care
Centre. Please observe that certain services may not
be possible elsewhere than in the country of original
purchase, for example due to the fact that your
Product may have an interior or exterior which is
different from equivalent models sold in other EU
countries. It may not be possible to repair SIM-locked
Products.
Some countries/states do not allow the exclusion or
limitation of incidental or consequential damages, or
limitation of the duration of implied warranties, so
86
Additional information
This is the Internet version of the user's guide. © Print only for private use.
** In some countries/regions additional information is
requested. If so, this is clearly shown on the valid proof
of purchase.
FCC Statement
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
This device must accept any interference
received, including interference that may
cause undesired operation.
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
S-221 88 Lund, Sweden.
declare under our sole responsibility that our product
Sony Ericsson type AAB-1021011-BV
and in combination with our accessories, to which this
declaration relates is in conformity with the appropriate
standards 3GPP TS 51.010-1, EN 301489-7,
EN 300328, EN 301489-17 and EN 60950, following
the provisions of, Radio Equipment and
Telecommunication Terminal Equipment directive 99/5/
EC with requirements covering EMC directive 89/336/
EEC, and Low Voltage directive 73/23/EEC.
Lund, February 2003
Place & date of issue
0682
Kentaro Odaka, Head of Product Business Unit GSM/UMTS
We fulfil the requirements of the R&TTE Directive (99/
5/EC).
Additional information
This is the Internet version of the user's guide. © Print only for private use.
87
Icons
Icon
The table below shows icons which may appear
in standby or in the menus.
Icon
Operator services
Description
Games and applications.
Desktop icons
Your personal phone book.
Handling of text, pictures, e-mail and
voice messages.
Handling of call time, call cost information
and ongoing calls.
88
Description
Create your own menu for the functions you
use most often.
Standby
Desktop icon.
Camera function.
Handling of ongoing calls. Only available
during calls.
Tells you the strength of the GSM
network signal.
Handling of pictures, sounds and themes.
GPRS is within range.
Personal settings including profiles, display,
language, time and locks.
GPRS is within range and can be used.
Gives you access to Internet services.
Tells you are in a premium charge zone.
Calendar, alarm clock and other extras.
Tells you the status of the battery.
Receive items via Bluetooth, infrared,
networks, data communications settings,
WAP options and accessories.
You cannot receive any incoming calls.
Icons
This is the Internet version of the user's guide. © Print only for private use.
Icon
Description
Icon
Description
You have missed an incoming call.
You have received a WAP push message.
All incoming calls are diverted to a
defined number.
No calls or only certain calls from numbers in
a list are received.
The infrared port is on.
All signals are off, except the alarm and timer.
A GPRS session is in progress.
The alarm clock has been set and is on.
Line 1 is in use for outgoing calls.
The timer has been set and is on.
Line 2 is in use for outgoing calls.
A profile other than Normal has been chosen.
Ciphering is currently not being provided by
the network.
The keypad is locked.
The network is preferred and can be used.
The card lock or phone lock is on.
A secure WAP connection is established.
The network is forbidden and cannot be used.
Infrared communication is in progress.
You have received an e-mail message.
Your home network is within range and can
be used.
An ongoing call.
You have received a picture message.
A chat session is in progress.
You have received a voice message.
The Bluetooth function is on.
You have received a text message.
Icons
This is the Internet version of the user's guide. © Print only for private use.
89
Icon
Description
Icon
Description
A Bluetooth headset, added to your phone.
A reminder is set for a calendar appointment.
A Bluetooth phone, added to your phone.
The task is a phone call.
A Bluetooth PC, added to your phone.
A completed task in your calendar.
A Bluetooth printer, added to your phone.
A task or message of high priority.
A Bluetooth PDA, added to your phone.
A task or message of low priority.
Other Bluetooth device.
The appointment is a meeting.
The appointment is a date.
The appointment is to travel.
Phonebook
A home number in the phone book.
A work number in the phone book.
A mobile number in the phone book.
The appointment is a vacation.
The appointment is an anniversary.
A miscellaneous appointment.
A miscellaneous task.
An all day calendar appointment.
90
An e-mail address in the phone book.
A picture is connected to the contact.
Messaging
A text message is saved on the SIM card.
Icons
This is the Internet version of the user's guide. © Print only for private use.
Icon
Description
Icon
Description
A voice message has not been checked.
A message has been read by the recipient.
A message has not been read.
A message has been delivered to the recipient.
A theme is attached to a message.
A sent message that has expired or been
rejected by the recipient.
A message has been read.
Pre-defined message template (not editable).
Only part of a read e-mail message is saved in
the phone.
Only part of an unread e-mail or a multimedia
message is saved in the phone.
A read message will be deleted the next time
you connect to the server.
An unread message will be deleted the next
time you connect to the server.
User-defined message template.
A note is posted in standby.
A picture message is playing.
A picture message has been stopped.
A damaged message.
A picture message has been paused.
A read picture message.
Picture could not be shown.
An unread picture message.
A business card is attached to a picture
message.
The message has not been sent.
An event is attached to a picture message.
The message has been sent.
Icons
This is the Internet version of the user's guide. © Print only for private use.
91
Icon
Description
A theme is attached to a picture message.
Icon
Description
Multimedia
An i-Melody saved in My sounds.
A picture message contains a melody.
An e-Melody saved in My sounds.
A picture message contains a recorded sound.
A polyphonic melody saved in My sounds.
Cursor in a picture message.
More message options.
Chat message prompt.
Camera
Large picture size.
Small picture size.
Calls
A missed call in the call list.
An answered call in the call list.
A dialled number in the call list.
Call from a number on the SIM card.
Your magic word is active.
92
Text input
T9 text input.
Upper & lower case letters.
Upper case letters.
Lower case letters.
Icons
This is the Internet version of the user's guide. © Print only for private use.
Index
A
About 4
Alarm clock 69
Answering mode 22
Area information 49
B
Battery 5
Bluetooth wireless technology 65
Business cards 28, 29
C
Calculator 70
Calendar 71
Call costs 35, 41
calling card 39, 41
credit limit 36
minute minder 21
Call time 35
Calls
accept 42
answer 6, 25
automatic re-dialling 24
call list 25
divert 36
emergency 24
fixed dialling 41
groups 28
international 24
make 6, 24
missed 25
put on hold 37
receive 6, 25
reject 25
restrict 40
speed dialling 30
Cell information 49
Chat 48
Code memo 70
Conference calls 38
Contacts 26
Contrast (display) 21
Credit limit 41
D
Data calls 68
Declaration of conformity 87
Desktop 7
Display
contrast 21
greeting 22
icons 88
light 21
Diverting calls 36
Downloading 64
Drawing pictures 17
E
E-mail 49
gateway 57
settings 57, 61
Emergency calls 24
Error messages 79
F
Fax, sending and receiving 68
Fixed dialling 41
G
Games 75
GPRS 58
Greeting 22
Groups 28
closed user groups 41
conference calls 38
Index
This is the Internet version of the user's guide. © Print only for private use.
93
H
Handsfree 22
Help texts 11
I
Icons (display) 88
Infrared port 67
International calls 24
International emergency number
24
K
Key functions 8
Key sound 21
Keypad lock 22
L
Language (display) 21
Locks
keypad 22
phone 77
SIM card 77
M
Magic word 33
Melodies, see Ring signals 19
Melody composer 19
94
Menu language 21
Minute minder 21, 41
Mirror 53
Missed calls 25
MMS 46
MMS, see Multimedia messages
46
Multimedia messages 46
Multimedia Messaging Service 46
Multitap text input 13
My numbers 22
My shortcuts 22
N
Navigating the menus 7
Networks 6, 42
Notes 76
O
Online services 11
Own number 22
P
Passkey 65
Personal ring signal 20
Phone book 26
check memory 30
Phone lock 77
Picture editor 17
Picture messages 46
Picture messaging 46
Pictures 16
background picture 17
draw 17
edit 17
exchange 18
PIN
change 77
enter 6
PIN2
change 77
Profiles 23
PUK 77
Q
Quick keys 9
R
Redialling 24
Reset 23
Restrict messages 48
Ring signals 19
Index
This is the Internet version of the user's guide. © Print only for private use.
S
Screen saver 19
Security
WAP 59
Shortcuts 9, 22
Silent ring signal 19
SIM card 11
copy contacts 29
unblock 77
SIM card lock 77
SMS, see Text messages 43
Sound recorder 74
Speed dialling 30
Stopwatch 70
Synchronization 68
V
Vibrating alert 21
Voice answering 32
Voice control 30
Voice dialling 31
Voice mail 35
W
WAP
bookmarks 63
options 63
security 59
settings (manual) 56
settings (text message) 55
settings (wizard) 55
Warranty 84
T
T9 Text input 14
Taking pictures 52
Text messages 43
e-mail gateway 57
Themes 16
Time settings 21
Timer 70
Turning the phone on/off 6
Two voice lines 39
Index
This is the Internet version of the user's guide. © Print only for private use.
95
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
