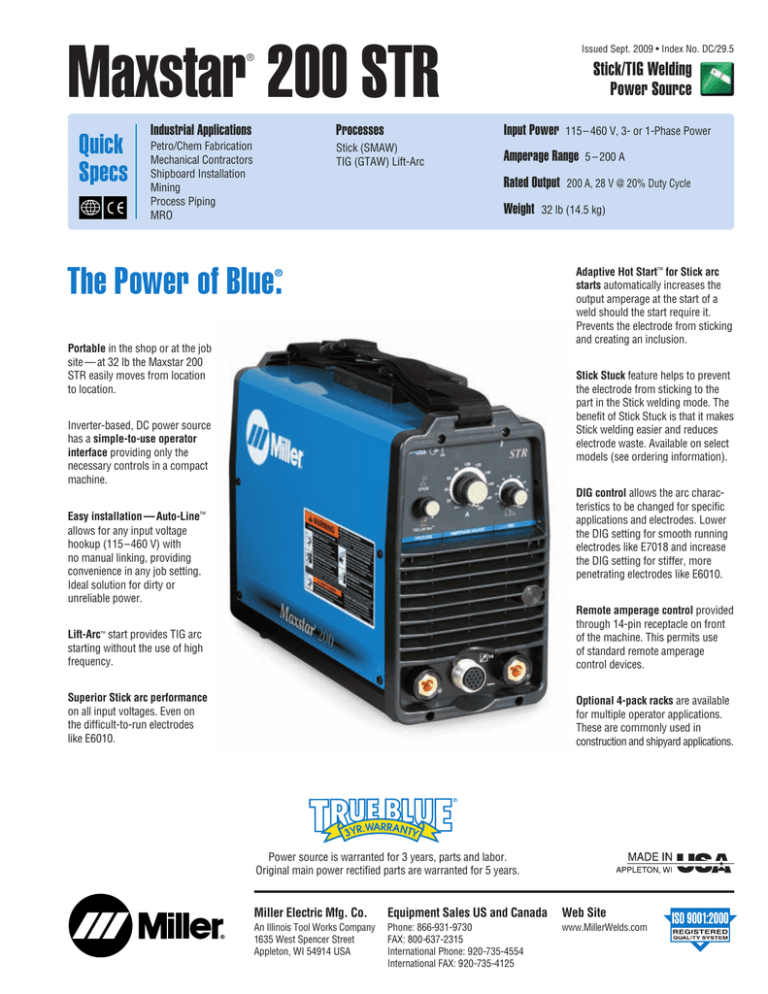

Maxstar 200 STR

Maxstar 200 STR
Maxstar 200 STR
Issued Sept. 2009 • Index No. DC/29.5
®
Quick
Specs
Stick/TIG Welding
Power Source
Industrial Applications
Processes
Input Power
Petro/Chem Fabrication
Mechanical Contractors
Shipboard Installation
Mining
Process Piping
MRO
Stick (SMAW)
TIG (GTAW) Lift-Arc
Amperage Range
Rated Output
Weight
115– 460 V, 3- or 1-Phase Power
5 – 200 A
200 A, 28 V @ 20% Duty Cycle
32 lb (14.5 kg)
Adaptive Hot Start™ for Stick arc
starts automatically increases the
output amperage at the start of a
weld should the start require it.
Prevents the electrode from sticking
and creating an inclusion.
The Power of Blue .
®
Portable in the shop or at the job
site — at 32 lb the Maxstar 200
STR easily moves from location
to location.
Stick Stuck feature helps to prevent
the electrode from sticking to the
part in the Stick welding mode. The
benefit of Stick Stuck is that it makes
Stick welding easier and reduces
electrode waste. Available on select
models (see ordering information).
Inverter-based, DC power source
has a simple-to-use operator
interface providing only the
necessary controls in a compact
machine.
DIG control allows the arc characteristics to be changed for specific
applications and electrodes. Lower
the DIG setting for smooth running
electrodes like E7018 and increase
the DIG setting for stiffer, more
penetrating electrodes like E6010.
Easy installation — Auto-Line™
allows for any input voltage
hookup (115–460 V) with
no manual linking, providing
convenience in any job setting.
Ideal solution for dirty or
unreliable power.
Lift-Arc™ start provides TIG arc
starting without the use of high
frequency.
Remote amperage control provided
through 14-pin receptacle on front
of the machine. This permits use
of standard remote amperage
control devices.
Superior Stick arc performance
on all input voltages. Even on
the difficult-to-run electrodes
like E6010.
Optional 4-pack racks are available
for multiple operator applications.
These are commonly used in
construction and shipyard applications.
Power source is warranted for 3 years, parts and labor.
Original main power rectified parts are warranted for 5 years.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
www.MillerWelds.com
Specifications
Welding
Mode
Welding
Amperage
Range
TIG
(GTAW)
DC 1–140 A
(120 VAC)
(Subject to change without notice.)
Max.
OpenCircuit
Voltage
Input
Power
Rated
Output
Amps Input at Rated Load Output, 50/60 Hz,
115 V 200 V 230 V 400 V 440 V 460 V KVA
80 VDC
3-Phase
175 A at 17 V,
60% Duty Cycle
—
—
12.1 10.5 6.0
5.3
5.2
4.2
4.0
0.16* 0.16* 0.24* 0.24* 0.25* 0.06* 0.03*
1-Phase
175 A at 17 V,
60% Duty Cycle
—
—
19.9 17.4 —
0.25* 0.23* —
150 A at 16 V,
70% Duty Cycle
29.7 —
0.42* —
—
—
125 A at 15 V,
100% Duty Cycle
23.0 —
0.42* —
—
—
3-Phase
150 A at 26 V,
60% Duty Cycle
—
—
14.7 13.1 7.4
6.6
6.4
5.2
5.0
0.16* 0.16* 0.24* 0.24* 0.25* 0.06* 0.03*
1-Phase
150 A at 26 V,
60% Duty Cycle
—
—
24.9 21.7 —
0.25* 0.23* —
125 A at 25 V,
50% Duty Cycle
34.1 —
0.42* —
—
—
90 A at 24 V,
100% Duty Cycle
25.0 —
0.42* —
—
—
9 –14 VDC**
DC 1–200 A
(200–460 VAC)
Stick
(SMAW)
DC 1–90 A
(120 VAC)
80 VDC
DC 1–200 A
(200–460 VAC)
KW
—
—
—
—
4.0
4.0
0.05* 0.02*
—
—
—
—
—
—
3.4
3.4
0.05* 0.03*
—
—
—
—
—
—
2.6
2.6
0.05* 0.03*
—
—
—
—
5.0
5.0
0.05* 0.02*
—
—
—
—
—
—
4.0
3.8
0.05* 0.03*
—
—
—
—
—
—
4.0
3.8
0.05* 0.03*
Dimensions
Net Weight
H: 13-1/2 in
(343 mm)
W:7-1/2 in
(191 mm)
D: 17-1/2 in
(445 mm)
32 lb
(14.5 kg)
*Indicates idle draw. **Sense voltage for Stick and Lift-Arc™ TIG.
CSA approval.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Performance Data
DUTY CYCLE
110–120 V INPUT VOLTAGE
%
10 – 40%
70%
100%
TIG
150 A
150 A
125 A
STICK
125 A
110 A
90 A
200–460 V INPUT VOLTAGE
%
10 – 30%
40%
60%
100%
TIG
200 A
200 A
175 A
150 A
STICK
200 A
175 A
150 A
125 A
Control Panel
Maxstar 200 STR
1
2
4
3
2
5
1. Output Light
2. Overtemp Light
3. Weld Process Selector Switch
4. Amperage Adjustment Control
5. Dig Adjustment Control
Genuine Miller Accessories
RCCS-14 Remote
Contactor and
Current Control
#043 688
Up-and-down rotary-motion fingertip
control fastens to TIG torch using two
Velcro® straps. Includes 28 ft (8.5 m)
control cord. Great for applications that
require a finer amperage control.
Weldcraft® TIG Torches
The Weldcraft line of TIG torches complements
the most popular TIG power source line
available today. The Weldcraft torch line
includes both air-cooled and water-cooled
models. Available with genuine Weldcraft parts.
#WP-17V-12-2 150 A, 12 ft (3.7 m)
air-cooled torch with valve, two-piece cable.
#WP-17V-25-2 150 A, 25 ft (7.6 m)
torch with valve, two-piece cable.
#WP-26V-12-2 200 A, 12 ft (3.7 m)
air-cooled torch with valve
#WP-26V-25-2 200 A, 25 ft (7.6 m)
air-cooled torch with valve
TIG torches require the installation of a Dinse
Connector (042418).
Universal Carrying Cart and Cylinder Rack
#042 934
Holds power source, and gas cylinder up
to 56 in (142.2 cm) high measuring
6 to 9 in (15.2 to 22.8 cm) in diameter.
Remote Controls
RCC-14 Remote
Contactor and
Current Control
#151 086 14-pin plug
Side-to-side rotary-motion fingertip control
fastens to TIG torch using two Velcro®
straps. Includes 28 ft (8.5 m) control cord.
Great for production or contractors that
need quick ramp-up.
International-Style Connectors
Note: All Maxstar power sources are equipped with
International-style connectors for secondary connections.
(Power source is shipped with two 50-mm male
International-style plugs for use with #1 or #2 AWG
size cable.)
International-Style Connector Kit
#042 418 50 mm
Accepts #1 or #2 AWG cable size. Required
if male plugs shipped with power source must
be replaced or if additional plugs are needed.
Kit includes one International-style male
plug which attaches to the work and/or
weld cables and plugs into the Internationalstyle receptacles on the power source.
RFCS-14 HD Foot
Control #194 744
New design with larger,
more stable base and
heavier cord that can
exit front, back or sides of pedal. Provides
remote current and contactor control and
includes 20 ft (6 m) cord and 14-pin plug.
RHC-14 Hand Control
#129 340
Miniature hand control for
remote current and contactor
control. Dimensions: 4 x 4
x 3-1/4 in (102 x 102 x 82 mm). Includes
20 ft (6 m) cord and 14-pin plug.
(Will accept Dinse™ or other international connectors.)
Extension Kit for International-Style
Cable Connectors #042 419 50 mm
Accepts #1 or #2 AWG size cable. Used to
adapt or extend weld and/or work cables.
Kit includes one male International-style
plug and one in-line female Internationalstyle receptacle.
International/Cam-Lok
Adapter #042 466
A one-piece adapter which
has an International-style
male plug (to power source) on one end
and a Cam-Lok receptacle (for weld cable
connection) on other end.
International/Tweco®
Adapter #042 465
A one-piece adapter which
has an International-style
male plug (to power source) on one end
and a female Tweco receptacle (for weld
cable connection) on other end.
3
Multi-Operator Rack
4-Pack Rack (empty) #195 051
Appropriate fuses required.
Rugged enclosure provides a simple means for
protecting and transporting multiple welding
power sources for construction, power plant
turn-arounds, and shipbuilding applications.
Light-weight and small footprint for easy
transportation. Low weight enables the use of
elevators to move the rack.
Top cover protects machines from falling debris.
Lifting eye simplifies transportation using crane
or overhead lifting device.
Lift truck side and end fork pockets.
One main disconnect box with fused circuit
breaker switches for each machine.
Common output ground connection (for same
polarity use only).
Power Source
Rack
Capacity
Input Power to Rack
Generator kW
(Required)
Rack Fuse Size
(3 per Power Source Required)*
Maxstar 200
4
230 V at 74 A
20 kW
30 A (#199 795)
460 V at 36 A
20 kW
15 A (#220 514)
4-Pack Rack Running Gear #195 114
Large 5-inch diameter wheels enable
the rack to be moved over grating and
driveway gravel.
Dimensions
Net Weight
H: 59-3/8 in (1508 mm)
W: 43 in (1092 mm)
D: 34-3/8 in (873 mm)
Rack only
239 lb (108 kg)
with Power Sources
367 lb (166 kg)
*Rack comes with 25 A fuses. Order appropriate fuses for primary voltage.
Ordering Information
Power Source and Options
Stock No.
Description
Maxstar 200 STR
#907 036-00-1
#907 036
#907 355
120 – 460 VAC, 50/60 Hz, Normal OCV
120 – 460 VAC, 50/60 Hz, Low OCV, with Stick Stuck
120 – 460 VAC, 50/60 Hz, CE, Normal OCV, with Stick Stuck
#195 051
#195 114
#199 795
#220 514
Order power source and fuses separately
(4) 5-in diameter wheels and brackets
230 V, 30 A Individual fuse. 12 required for 4 Pack
460 V, 15 A Individual fuse. 12 required for 4 Pack
See page 3
Remote Controls
RCC-14
RCCS-14
RFCS-14 HD
RHC-14
#151 086
#043 688
#194 744
#129 340
Remote current side-to-side rotary control
Remote current up and down rotary control
Remote current foot pedal control
Remote current hand control
International-Style Connectors
Dinse Connector 50 mm (1 male)
Dinse Connector 50 mm (1 male, 1 female)
Tweco Terminal Adapter
Cam-Lok Terminal Adapter
#042 418
#042 419
#042 465
#042 466
Used to connect weld lead to Dinse terminal machine
Used to extend weld cables
Male Dinse to female Tweco
Male Dinse to female Cam-Lok
®
Accessories
4-Pack Rack (empty)
4-Pack Rack Running Gear
Fuses
Weldcraft® TIG Torches
Gas Cylinder/Hose and Fittings
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Qty.
Price
