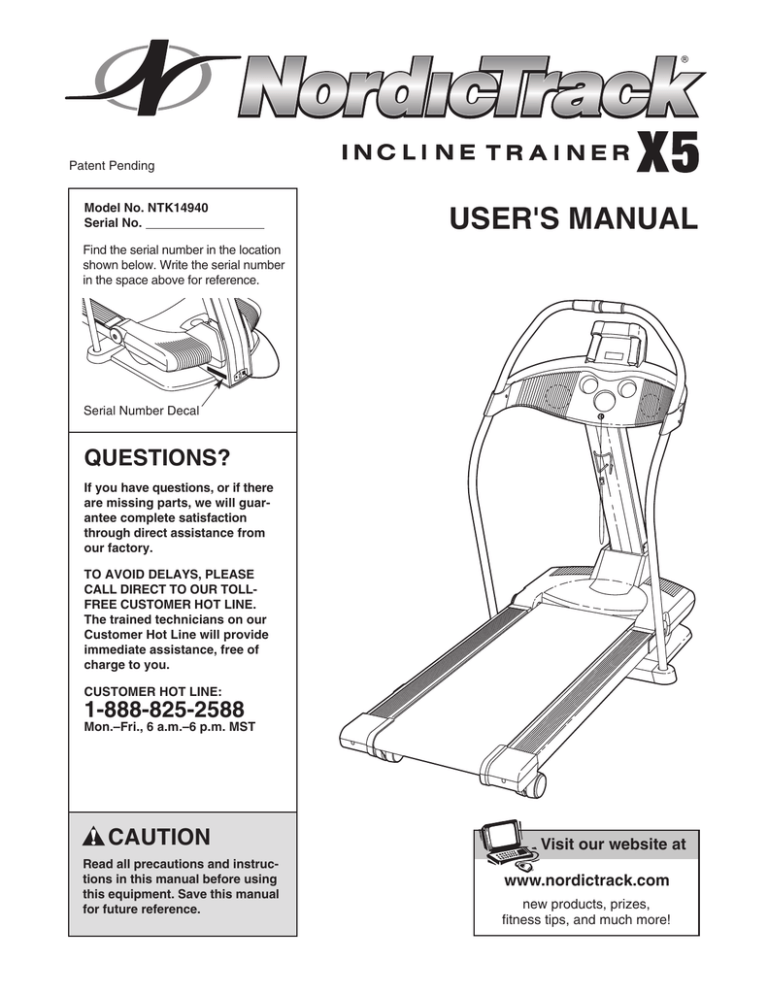

Owners Manual
Patent Pending
Model No. NTK14940
Serial No.
USER'S MANUAL
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
HOW TO FOLD AND MOVE THE INCLINE TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
NordicTrack is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the incline trainer.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the incline trainer. If the control
system is damaged, the walking belt may
change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
1. It is the responsibility of the owner to ensure
that all users of this incline trainer are adequately informed of all warnings and precautions.
2. Use the incline trainer only as described.
3. Place the incline trainer on a level surface,
with at least eight feet of clearance behind it
and two feet on each side. Do not place the
incline trainer on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the incline trainer.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the incline
trainer if the power cord or plug is damaged,
or if the incline trainer is not working properly. (See BEFORE YOU BEGIN on page 5 if
the incline trainer is not working properly.)
4. Keep the incline trainer indoors, away from
moisture and dust. Do not put the incline
trainer in a garage or covered patio, or near
water.
15. Never start the incline trainer while you are
standing on the walking belt. Always hold the
handrails while using the incline trainer.
5. Do not operate the incline trainer where
aerosol products are used or where oxygen is
being administered.
16. The incline trainer is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
6. Keep children under the age of 12 and pets
away from the incline trainer at all times.
7. The incline trainer should not be used by persons weighing more than 300 pounds.
17. The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
8. Never allow more than one person on the incline trainer at a time.
9. Wear appropriate exercise clothes when
using the incline trainer. Do not wear loose
clothes that could become caught in the incline trainer. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the incline
trainer with bare feet, wearing only stockings,
or in sandals.
18. Never leave the incline trainer unattended
while it is running. Always remove the key, unplug the power cord, and switch the reset/off
circuit breaker to the off position when the incline trainer is not in use. (See the drawing on
page 5 for the location of the reset/off circuit
breaker.)
10. When connecting the power cord (see page 11),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
19. Do not attempt to raise, lower, or move the incline trainer until it is properly assembled.
(See ASSEMBLY on page 6, and HOW TO
FOLD AND MOVE THE INCLINE TRAINER on
page 28.) You must be able to safely lift 45
pounds (20 kg) to raise, lower, or move the incline trainer.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 11. To purchase a surge suppressor, see
your local NordicTrack dealer or call 1-888825-2588 and order part number 146148.
20. Do not change the incline of the incline
trainer by placing objects under the incline
trainer.
3
21. Use the upper body handles only at walking
speeds. Using the handles and not holding
the handrails may compromise your ability to
maintain your balance. Exercises using the
handles should be attempted only by experienced users.
25. Always remove iFIT.com CDs and videos from
your CD player or VCR when you are not
using them.
22. When folding or moving the incline trainer,
make sure that the storage latch is fully
closed.
27. Never insert or drop any object into any
opening.
26. Inspect and properly tighten all parts of the
incline trainer regularly.
28.
23. When using iFIT.com CDs and videos, an
electronic “chirping” sound will alert you
when the speed and/or incline of the incline
trainer is about to change. Always listen for
the “chirp” and be prepared for speed and/or
incline changes. In some instances, the speed
and/or incline may change before the personal trainer describes the change.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the incline trainer, and before performing the
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
24. When using iFIT.com CDs and videos, you
can manually override the speed and incline
settings by pressing the speed and incline
buttons. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
29. The incline trainer is intended for in-home use
only. Do not use the incline trainer in a commercial, rental, or institutional setting.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on your incline trainer. If a decal is missing or
illegible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on page 35). Apply the decal in the
location shown. Note: The decals may not be shown at actual size.
!
Crush Zone
Keep Children Away
Treadmill moves down
with force.
4
BEFORE YOU BEGIN
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the incline trainer is
NTK14940. The serial number can be found on a decal
attached to the incline trainer (see the front cover of
this manual for the location).
Thank you for selecting the revolutionary NordicTrack®
X5 incline trainer. The X5 incline trainer offers a selection of features designed to make your workouts at
home more enjoyable and effective. And when you’re
not exercising, the unique X5 incline trainer can be
folded up, requiring less floor space.
For your benefit, read this manual carefully before
using the incline trainer. If you have questions after
reading this manual, please call our Customer Service
Department toll-free at 1-888-825-2588, Monday
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handrail
Upper Body Handles
Console
Latch Knob
Fan
Key/Clip
Water Bottle Holder*
Reset/Off
Circuit Breaker
Walking Belt
Power Cord
Foot Rail
Cushioned Walking Platform
Rear Roller
Adjustment Bolts
*No water bottle is included
5
ASSEMBLY
Assembly requires two persons. Set the incline trainer in a cleared area and remove all packing materials. Do
not dispose of the packing materials until assembly is completed.
Note: The underside of the incline trainer walking belt is coated with high-performance lubricant. During shipping,
a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect incline trainer performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench
and your own phillips screwdriver
and
wire cutters
. For help identifying the assembly hardware, see the hardware drawings below.
3/4” Tek Screw (94)–10
3/4” Screw (66)–5
Washer (97)–2
3/4” Bolt (60)–4
3” Bolt (98)–2
1” Bolt (55)–6
1. To protect the floor during assembly, place a sheet
of cardboard under the pallet as shown.
With the help of a second person, carefully raise the
Upright (110) to the position shown.
1
110
While the other person holds the Upright (110), firmly
tighten two 1” Bolts (55) into the lower end of the
Upright and the Upright Base (96).
115
Insert the Power Cord (85) through the hole in the
Upright Cover (115). Press the Upright Cover onto the
Upright (110). Make sure that the Upright Cover is
securely held by the clips along the opening in the
Upright. Tighten a 3/4” Screw (66) into the lower end of
the Upright Cover.
55
96
Cardboard
Pallet
6
66
85
2. Insert a Handrail (67) into the Upper Handrail (68) as
shown. The lower end of the Handrail should sit on the
Base Hood (105) as shown. (Note: It may be necessary to
twist the Handrail as you insert it. It may also be necessary to loosen the two 1/2” Screws [63] several turns.)
Next, tighten two 3/4” Screws (66) into the Handrail. If
you loosened the 1/2” Screws, retighten them.
2
68
63
66
67
Attach the other Handrail (not shown) to the left side of
the incline trainer in the same way.
105
3. Interlock the tabs on the Right Outer Cover (88) with the
tabs on the Right Inner Cover (65). Attach the Right Outer
Cover with two 3/4” Bolts (60) as shown
3
88
65
60
4. Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. Insert the threaded end of
the pin through the hole in the Left Outer Cover (61).
Tighten the knob back onto the pin.
Insert the pin into the hole in the Left Inner Cover (106).
Interlock the tabs on the Left Outer Cover (61) with the
tabs on the Left Inner Cover. Attach the Left Outer Cover
with two 3/4” Bolts (60).
4
60
Knob
61
Spring
Pin
Collar
106
7
5. With the help of a second person, carefully tip the Upright
Base (96) to the position shown.
5
Pallet
Remove the four indicated bolts and washers attaching
the pallet to the Upright Base (96). Discard the pallet,
bolts, and washers..
Bolts,
Washers
96
Bolts,
Washers
6. Attach the Upright Base Pad (103) and the six Base Pads
(93) to the bottom of the Upright Base (96) with ten 3/4”
Tek Screws (94) as shown.
6
103
94
93
94
94
93
96
93
94
94
93
94
94
93
8
94
93
7. Tighten two 3” Bolts (98) with two Washers (97) into the
bottom of the Upright Base (96) and the Handrails (67)
(only one Handrail is shown). Firmly tighten the Bolts.
7
With the help of a second person, carefully tip the Upright
Base (96) so it is flat on the floor. Remove the cardboard
from underneath the Upright Base.
98
97
96
67
98
97
8. Fold the incline trainer to the storage position (see HOW
TO FOLD THE INCLINE TRAINER FOR STORAGE on
page 28).
8
Slide the Right Wheel Bracket (59) into the slot in the
Right Rear Endcap (57). Align the holes in the Bracket
with the holes in the Frame (43). Attach the Bracket to the
Frame with two 1” Bolts (55).
57
59
Attach the Left Wheel Bracket (not shown) in the same
way.
43
55
9. Make sure that all parts are properly tightened before you use the incline trainer. Keep the included
allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 31). To protect
the floor or carpet from damage, place a mat under the incline trainer.
9
If you purchase the optional chest pulse sensor (see page 27), follow the steps below to install the receiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
1
Look under the Console Back (70) and locate the Access
Door (135) on the indicated side of the incline trainer.
Remove the Access Door Screw (72) and the Access
Door.
135
72
2. Connect the wire on the receiver (A) to the indicated wire
extending from the console. Hold the receiver so the
small cylinder is oriented as shown and is facing the
console. Attach the receiver to the plastic posts on the
Access Door (135) with the two included small screws.
3. See step 1 on page 9. Make sure that no wires are
pinched, and reattach the Access Door (135) to the
Console Back (70) with the Access Door Screw (72).
70
2, 3
Small
Screws
Wire
Discard the other wires included with the receiver.
70
A
Small
Cylinder
135
10
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The incline trainer is not compatible
with GFCI-equipped outlets.
Your incline trainer features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to the
walking belt or the walking platform. Such substances will deteriorate the walking belt and cause
excessive wear.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
HOW TO PLUG IN THE POWER CORD
DANGER:
Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Your incline trainer, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your incline trainer being damaged, always use a
surge suppressor with your incline trainer (see
drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call
1-888-825-2588 and order part number 146148.
Grounding Pin
Grounded Outlet
Grounding Plug
2
Grounded Outlet Box
Adapter
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the incline trainer. If the control system is damaged, the
walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
Surge Suppressor
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
11
CONSOLE DIAGRAM
Note: If there are sheets of
clear plastic on the console,
remove the plastic.
Clip
Key
FEATURES OF THE CONSOLE
cable, you can connect the incline trainer to your home
stereo, portable stereo, computer, or VCR and play
special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
IFIT.com CD and video programs automatically control
the speed and incline of the incline trainer as a personal trainer coaches you through every step of your
workout. High-energy music provides added motivation.
To purchase iFIT.com CDs or videocassettes, call
toll-free 1-888-825-2588.
The advanced console offers an impressive array of
features designed to help you get the most from your
exercise. When the manual mode of the console is selected, the speed and incline of the incline trainer can
be changed with the touch of a button. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the
handgrip pulse sensor or the optional chest pulse sensor (see page 27).
With the incline trainer connected to your computer,
you can also go to our Web site at www.iFIT.com and
access iFIT.com programs directly from the internet.
See www.iFIT.com for more information.
The console also offers 5 speed programs and 10 incline programs. Each program automatically controls
the speed and incline of the incline trainer as it guides
you though an effective workout. You can even create
your own custom workout programs and store them in
memory for future use.
In addition, the console offers four pulse programs that
automatically adjust the speed and incline of the incline trainer to keep your heart rate near a target level
while you exercise. Note: The pulse programs require
the use of the optional chest pulse sensor.
To use the manual mode of the console, follow the
steps beginning on page 13. To use a speed program
or an incline program, see page 16. To create and
use a custom program, see pages 18 and 19. To use
a pulse program, see page 20. To use an iFIT.com
CD or video program, see page 24. To use an
iFIT.com program directly from our Web site, see
page 26.
The console also features iFIT.com interactive technology. Having iFIT.com technology is like having a personal trainer in your home. Using the included audio
Note: During the first few minutes that the incline trainer
is used, observe the alignment of the walking belt, and
align it if necessary (see page 31).
12
HOW TO USE THE MANUAL MODE
CAUTION: Before operating the
console, read the following precautions.
1
• Do not stand on the walking belt when turning on the power.
See HOW TO TURN ON THE POWER at the left.
• Always wear the clip (see the drawing on
page 12) while operating the incline trainer.
2
• The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console.
3
If the Start button or the
Speed + button is
pressed, the walking belt
will begin to move at 1
mph. As you exercise,
change the speed of the
walking belt as desired by pressing the Speed +
and – buttons. Each time a button is pressed, the
speed setting will change by 0.1 mph; if a button
is held down, the speed setting will change in increments of 0.5 mph.
Plug in the power cord.
See page 11.
Move the reset/off circuit breaker to the reset
position.
Locate the reset/off circuit breaker on the incline trainer near the
power cord. Make sure
that the circuit breaker
is in the reset position.
3
Start the walking belt.
To start the walking belt, press the Start button,
the Speed + button, or one of the 1-Step Speed
buttons.
HOW TO TURN ON THE POWER
2
Select the manual mode.
When the key is
inserted, the manual mode will be
selected. If a program has been selected, press the
iFIT.com button
once or twice until a track appears in the matrix but
the iFIT.com indicator is not lit.
• Adjust the speed in small increments to
avoid sudden jumps in speed.
1
Insert the key into the console.
If one of the 1-Step Speed buttons is pressed, the
walking belt will gradually increase in speed until it
reaches the selected speed setting. Note: It may
take a few seconds for the walking belt to reach
the selected speed setting. The incline trainer is
designed so that the walking belt cannot move
at high speed while the incline trainer is at a
high incline level. Therefore, when you increase the speed, the incline may automatically
decrease.
Reset
Position
Attach the clip to the waistband of your clothes.
Stand on the foot rails of the incline trainer. Find
the clip attached to the key (see the drawing on
page 12), and slide the clip securely onto the
waistband of your clothes. Next, insert the key into
the console. Test the clip by carefully taking a
few steps backward until the key is pulled
from the console. If the key is not pulled from
the console, adjust the position of the clip as
needed. Then, remove the key from the console.
To stop the walking belt, press the Stop button.
The time will begin to flash in the Time/Distance
display. To restart the walking belt, press the Start
button, the Speed + button, or one of the 1-Step
Speed buttons.
13
4
Change the incline of the incline trainer as
desired.
Fat Calories/Calories/
Pulse display—This
display shows the approximate numbers of
fat calories and calories
you have burned (see
FAT BURNING on page 33). The display will alternate between one value and the other every few
seconds, as shown by the indicators below the display. The display will also show your heart rate
when you use the handgrip pulse sensor or the
optional chest pulse sensor.
To change the incline of
the incline trainer, press
the Incline increase and
decrease buttons. Each
time a button is
pressed, the incline will
change by 0.5%. To change the incline setting
quickly, press the 1-step Incline buttons. Note: It
may take a few seconds for the incline trainer to
reach the selected incline setting. The incline
trainer is designed so that it cannot be adjusted to a high incline level while the walking
belt is moving at high speed. Therefore, when
you increase the incline, the speed may automatically decrease.
5
Time/Distance
display—When the
manual mode or the
iFIT.com mode is selected, this display will
show the elapsed time
and the distance that you have walked or run.
When a program is selected, the display will show
the time remaining in the program and the distance that you have walked or run. The display will
alternate between one value and the other every
few seconds, as shown by the indicators below the
display.
Follow your progress with the matrix and the
displays.
The matrix—
When the manual
mode or the
iFIT.com mode is
selected, the matrix will display a
track representing
1/4 mile. As you exercise, the indicators around the
track will light in succession until the entire track is
lit. The track will then darken and the indicators
will again begin to light in succession.
Speed/Pace display—
This display shows the
speed of the walking belt
and your walking or running pace, in minutes
per mile. The display will
alternate between one value and the other every
few seconds, as shown by the indicators above
and below the display. Note: Each time the incline
level changes, the display will show the incline
level.
The Training Zone
display—As you exercise, the Training Zone
display will show the
approximate intensity
level of your exercise.
For example, if five to
eight indicators are lit,
the Training zone display shows that your intensity
level is ideal for fat burning.
Note: The console can
display speed and distance in either miles or
kilometers. The word
“METRIC” will light below
the Time/Distance display when speed and distance are displayed in kilometers. To change the unit of measurement, first
hold down the Stop button while inserting the key
into the console. An “E” for English miles or an “M”
for metric kilometers will appear in the Speed/Pace
display. Press the Speed + button to change the
unit of measurement. When the desired unit of
measurement is selected, remove the key and
then reinsert it. Note: For simplicity, all instructions in this manual refer to miles.
Incline/Elevation
display—This display
shows the incline level
of the incline trainer
and the number of vertical feet you have
climbed. The display will alternate between one
value and the other every few seconds, as shown
by the indicators above and below the display.
Note: Each time the incline level changes, the display will show the incline level.
14
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
6
8
CAUTION: Do not use the upper body handles
until you are comfortable using the incline
trainer without the upper body handles.
Measure your heart rate if desired.
To use the opMetal Contacts
tional chest pulse
sensor, see the instructions included
with the chest
pulse sensor. To
use the handgrip
pulse sensor, see
the instructions
below. Note: If there are sheets of clear plastic on
the metal contacts on the handgrip pulse sensor,
remove the plastic. If you use the optional chest
pulse sensor and the handgrip pulse sensor at the
same time, the console will not display your heart
rate accurately.
To use the upper
body handles, hold
one handle in each
hand, and pull the
handles as you
swing your arms
naturally at your
sides. Practice this
motion until it feels
comfortable.
Upper Body Handles
To increase or decrease
the resistance of the
upper body handles,
press the + and – buttons below the matrix.
Indicators above the buttons will light to show which of the four resistance
levels is selected.
To measure your heart rate, stand on the foot
rails and place your hands on the metal contacts
on the handgrip pulse sensor. Your palms must be
resting on the contacts closest to you, and your
fingers must be touching the contacts on the opposite side of the handgrip pulse sensor—avoid
moving your hands. When your pulse is detected,
the Pulse indicator above the Fat Calories/
Calories/Pulse display will light, one or two dashes
(– –) will appear in the display, and then your
heart rate will be shown. For the most accurate
heart rate reading, continue to hold the contacts for about 15 seconds.
7
Use the upper body handles if desired.
9
When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the incline trainer to the lowest
level. The incline must be at the lowest level
when the incline trainer is raised to the storage
position or the incline trainer will be damaged.
Next, remove the key from the console and put it in
a secure place. Note: If the displays and indicators on the console remain lit after the key is
removed, the console is in the “demo” mode.
See page 27 and turn off the demo mode.
Turn on the fans if desired.
To turn on the fans at low speed, press the button
near the left fan. To turn on the fans at high
speed, press the button a second time. To turn off
the fans, press the button a third time. Note: Any
time that the walking belt is stopped for a few minutes, the fans will automatically turn off.
When you are finished using the incline trainer,
switch the reset/off circuit breaker to the off
position and unplug the power cord.
15
3
HOW TO USE A SPEED PROGRAM OR AN
INCLINE PROGRAM
A moment after the button is pressed, the incline
trainer will automatically adjust to the first speed
and incline settings for the program. Hold the
handrails and begin walking.
The console offers 5 speed programs and 10 incline
programs. All 15 programs automatically control the
speed and the incline of the incline trainer as they
guide you through effective workouts. Speed programs
regulate the intensity of your exercise primarily by
varying the speed of the walking belt, although they
also vary the incline; incline programs primarily vary
the incline, although they also vary the speed.
Each program is divided into one-minute segments. One speed setting and one incline setting
are programmed for each segment. Note: The
same speed setting and/or incline setting may be
programmed for two or more consecutive segments.
Follow the steps below to use a speed program or an
incline program.
1
If a speed proCurrent Segment
gram is selected,
the speed setting
for the first segment will be
shown in the flashing Current
Segment column
of the matrix. (The
incline settings will not be shown in the matrix.)
The speed settings for the next seven segments
will be shown in the columns to the right. If an incline program is selected, the incline setting for
the first segment will be shown in the flashing
Current Segment column of the matrix. (The
speed settings will not be shown in the matrix.)
The incline settings for the next seven segments
will be shown in the columns to the right.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
2
Press the Start button or the Speed + button to
start the program.
Select a speed program or an incline program.
To select a
speed program,
press the Speed
Programs/
Custom button repeatedly. As each
speed program is
selected, the Speed indicator will light and a profile
of the speed settings of the selected program will
scroll across the matrix.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. If the speed and/or incline of the incline trainer is about to change, the
Speed/Pace display and/or the Incline/Elevation
display will flash to alert you. When the first segment ends, all speed settings or incline settings
will move one column to the left. The setting for the
second segment will then be shown in the flashing
Current Segment column and the incline trainer will
automatically adjust to the speed and incline settings for the second segment. Note: If all of the indicators in the Current Segment column are lit
after the settings have moved to the left, all settings will move downward so that only the highest
lit indicators appear in the matrix. If some of the indicators in the Current Segment column are not lit
when the settings move to the left again, all settings will move back up.
To select an incline program,
press the Incline
Programs/Pulse
button repeatedly.
As each incline
program is selected, the Incline indicator will light and a profile of
the incline settings of the selected program will
scroll across the matrix.
For a few seconds after a speed program or an incline program is selected, the maximum speed
setting for the program will flash in the Speed/
Pace display, and the maximum incline setting for
the program will flash in the Incline/Elevation display. The Time/Distance display will show how
long the program will last.
16
The program will continue until the setting for the
last segment is shown in the Current Segment
column and the last segment ends. The walking
belt will then slow to a stop.
6
See step 7 on page 15.
7
If the speed or incline setting is too high or too low
at any time during the program, you can manually
override the setting by pressing the Speed or
Incline buttons. However, when the next segment begins, the speed and/or incline will automatically change if a different setting is programmed for the next segment.
8
When you are finished exercising, remove the
key.
Step onto the foot rails and make sure that the incline of the incline trainer is at the lowest level. The
incline must be at the lowest level when the incline trainer is raised to the storage position.
Next, remove the key from the console and put it in
a secure place. Note: If the displays and indicators on the console remain lit after the key is
removed, the console is in the “demo” mode.
See page 27 and turn off the demo mode.
When you are finished using the incline trainer,
switch the reset/off circuit breaker to the off
position and unplug the power cord.
Follow your progress with the displays.
See step 5 on page 14.
5
Use the upper body handles if desired.
See step 8 on page 15.
To stop the program temporarily, press the Stop
button. The time will begin to flash in the
Time/Distance display. To restart the program,
press the Start button or the Speed + button. The
walking belt will begin to move at 1 mph. When the
next segment of the program begins, the incline
trainer will automatically adjust to the speed and incline settings for the next segment. To end the program, press the Stop button, remove the key, and
then reinsert the key.
4
Turn on the fans if desired.
Measure your heart rate if desired.
See step 6 on page 15.
17
Segment column of the matrix. (The incline settings will not be shown in the matrix.) To program
a speed setting and an incline setting for the first
segment, simply adjust the speed and incline of
the incline trainer as desired by pressing the
Speed and Incline buttons. Every few times a
Speed button is pressed, an additional indicator
will light or darken in the Current Segment column.
HOW TO CREATE A CUSTOM PROGRAM
If desired, you can create your own custom workout
programs and store them in memory for future use. Up
to four different programs can be stored at the same
time.
Follow the steps below to create a custom program.
1
During the last three seconds of the first segment,
both the Current Segment column and the column
to the right will flash, a series of tones will sound,
and the Speed/Pace display and the Incline/
Elevation display will flash. When the first segment
ends, the current speed setting and the current incline setting will be saved in memory, and all
speed settings in the matrix will move one column
to the left. The speed setting for the second segment will then be shown in the flashing Current
Segment column. Program a speed setting and an
incline setting for the second segment as described above.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
2
Select one of the custom programs.
To select a custom program,
press the Speed
Programs/
Custom button repeatedly. As each
custom program is
selected, the Custom indicator will light and a profile
of the speed settings of the selected program will
scroll across the matrix. Note: If the custom program has not yet been defined, only three
columns of indicators will be lit in the matrix. If
more than three columns of indicators are lit,
see HOW TO USE A CUSTOM PROGRAM on
page 19.
3
Continue programming speed and incline settings
for as many segments as desired; custom programs can have up to forty segments. When you
are finished with your workout, press the Stop button twice. The speed and incline settings that you
have programmed and the number of segments
that you have programmed will then be saved in
memory.
4
Press the Start button or the Speed + button
and program the desired speed and incline
settings.
Follow your progress with the displays.
See step 5 on page 14.
5
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
Measure your heart rate if desired.
See step 6 on page 15.
6
See the matrix.
Each custom proCurrent Segment
gram is divided
into one-minute
segments. One
speed setting and
one incline setting can be programmed for
each segment. The speed setting for the first segment will be shown in the flashing Current
Turn on the fans if desired.
See step 7 on page 15.
7
Use the upper body handles if desired.
See step 8 on page 15.
8
When you are finished exercising, remove the
key.
See step 8 on page 17.
18
tings are not shown in the matrix.) The speed settings for the next several segments will be shown
in the columns to the right.
HOW TO USE A CUSTOM PROGRAM
Follow the steps below to use a custom program.
1
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and a
tone will sound. If the speed and/or incline of the
incline trainer is about to change, the Speed/Pace
display and/or the Incline/Elevation display will
flash to alert you, and three tones will sound.
When the first segment ends, all speed settings
will move one column to the left. The speed setting for the second segment will then be shown in
the flashing Current Segment column and the incline trainer will automatically adjust to the speed
and incline settings for the second segment.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
2
Select one of the custom programs.
To select a custom program,
press the Speed
Programs/
Custom button repeatedly. As each
custom program is
selected, the Custom indicator will light and a profile
of the speed settings of the selected program will
scroll across the matrix. Note: If only three
columns of indicators are lit in the matrix, see
HOW TO CREATE A CUSTOM PROGRAM on
page 18.
The program will continue until the speed setting
for the last segment is shown in the Current
Segment column and the last segment ends. The
walking belt will then slow to a stop.
If desired, you can redefine the program while
using it. To change the speed or incline setting
for the current segment, simply press the Speed
or Incline buttons. When the current segment ends,
the new setting will be saved in memory. To increase the length of the program, first wait until
the program ends. Then, press the Start button and
program speed and incline settings for as many additional segments as desired. When you have
added as many segments as desired, press the
Stop button twice. To decrease the length of the
program, press the Stop button twice at any time
before the program ends.
For a few seconds after a custom program is selected, the maximum speed setting for the program will flash in the Speed/Pace display, and the
maximum incline setting for the program will flash
in the Incline/Elevation display. The Time/Distance
display will show how long the program will last.
3
Press the Start button or the Speed + button to
start the program.
A moment after the button is pressed, the incline
trainer will automatically adjust to the first speed
and incline settings that you programmed previously. Hold the handrails and begin walking.
To stop the program at any time, press the Stop
button. The time will begin to flash in the
Time/Distance display. To restart the program,
press the Start button or the Speed + button. The
walking belt will begin to move at 1 mph. When the
next segment of the program begins, the incline
trainer will automatically adjust to the speed and incline settings for the next segment.
Each program is divided into several one-minute
segments. One speed setting and one incline setting are programmed for each segment.
The speed setting
for the first segment will be
shown in the
flashing Current
Segment column
of the matrix.
(The incline set-
Current Segment
4
Follow your progress with the displays.
See step 5 on page 14.
5
Measure your heart rate if desired.
See step 6 on page 15.
19
6
Turn on the fans if desired.
HOW TO USE A PULSE PROGRAM
See step 7 on page 15.
7
CAUTION:
Use the upper body handles if desired.
If you have heart problems, or if you are over 60 years of age and
have been inactive, do not use the pulse programs. If you are taking medication regularly,
consult your physician to find whether the
medication will affect your exercise heart rate.
See step 8 on page 15.
8
When you are finished exercising, remove the
key.
See step 8 on page 17.
The four pulse programs automatically adjust the
speed and incline of the incline trainer to keep your
heart rate near a target level while you exercise.
Follow the steps below to use a pulse program.
1
Put on the optional chest pulse sensor.
See the instructions included with the chest pulse
sensor.
2
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
3
Select a pulse program.
To select a pulse
program, press
the Incline
Programs/Pulse
button repeatedly.
As each pulse program is selected,
the Pulse indicator will light and a profile of the heart
rate settings of the selected program will scroll
across the matrix.
4
Enter your age.
When a pulse program is selected,
the word “AGE”
will appear in the
Fat Calories/
Calories/Pulse display and the current age setting
will begin to flash in the Time/Distance display. If
you have already entered your age, simply press
the Start button (the program will not start at this
time). If you have not entered your age, press the
+ and – buttons below the matrix to enter your
age, and then press the Start button.
20
5
Enter a maximum speed setting.
matically increase or decrease to bring your heart
rate closer to the target heart rate. If the speed
reaches the maximum speed setting of the program (see step 5 on this page) and your heart rate
is still too far below the current target heart rate,
the incline of the incline trainer will also increase
to bring your heart rate closer to the target heart
rate.
After you have
entered your age,
the letters “SPd”
will appear in the
Fat Calories/
Calories/Pulse
display and the
maximum speed
setting of the program will begin to flash in the
Time/Distance display. If desired, press the + and
– buttons below the matrix to change the maximum speed setting.
6
The program will continue in this way until the target heart rate setting for the last segment is
shown in the Current Segment column and the
last segment ends. The walking belt will then slow
to a stop.
A moment after the button is pressed, the incline
trainer will automatically adjust to the first speed
and incline settings for the program. Hold the
handrails and begin walking.
If the speed or incline setting is too high or too low
at any time during the program, you can adjust the
setting with the Speed or Incline buttons. However,
each time the console compares your heart rate to
the target heart rate, the speed and/or incline of
the incline trainer may automatically change to
bring your heart rate closer to the target heart rate.
Each pulse program is divided into several oneminute segments. (The Time/Distance display will
show how long the program will last.) One target
heart rate setting is programmed for each segment. Note: The same target heart rate setting may
be programmed for two or more consecutive segments.
If your pulse is not detected during the program,
the letters “PLS” will flash in the Fat Calories/
Calories/Pulse display and the speed and incline
of the incline trainer may automatically decrease
until your pulse is detected. If this occurs, see the
instructions included with the optional chest pulse
sensor.
The target heart
Current Segment
rate setting for
the first segment
will be shown in
the flashing
Current Segment
column of the matrix. The target
heart rate settings
for the next seven segments will be shown in the
columns to the right.
To stop the program at any time, press the Stop
button. The time will begin to flash in the
Time/Distance display. To restart the program,
press the Start button or the Speed + button. The
walking belt will begin to move at 1 mph. When the
console compares your heart rate to the target
heart rate, the speed and/or incline of the incline
trainer will automatically change to bring your
heart rate closer to the target heart rate.
Press the Start button or the Speed + button to
start the program.
7
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. In addition, the
Speed/Pace display and the Incline/Elevation display will flash. When the first segment ends, all
target heart rate settings will move one column to
the left. The target heart rate setting for the second segment will then be shown in the flashing
Current Segment column.
Follow your progress with the displays.
See step 5 on page 14.
8
Turn on the fans if desired.
See step 7 on page 15.
9
Use the upper body handles if desired.
See step 8 on page 15.
10
During each segment, the console will compare
your heart rate to the target heart rate. If your
heart rate is too far below or above the target
heart rate, the speed of the walking belt will auto-
When you are finished exercising, remove the
key.
See step 8 on page 17.
21
HOW TO CONNECT THE INCLINE TRAINER TO
YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the incline trainer must be connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
22 and 23 for connecting instructions. To use iFIT.com
videocassettes, the incline trainer must be connected
to your VCR. See page 24 for connecting instructions.
To use iFIT.com programs directly from our Web
site, the incline trainer must be connected to your
computer. See page 23.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end into the included adapter. Plug the
adapter into an AUDIO OUT jack on your stereo.
A
HOW TO CONNECT YOUR PORTABLE CD PLAYER
AUDIO OUT
RIGHT
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into the LINE OUT jack
on your CD player. Plug your headphones into the
PHONES jack.
A
PHONES LINE OUT
LINE OUT
LEFT
Audio
Cable
Adapter
B. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into the LINE OUT jack
on your stereo.
PHONES
B
Headphones
Audio
Cable
LINE OUT
Audio
Cable
B. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
B
C. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
PHONES
C
PHONES
Audio
Cable
3.5mm
Y-adapter
PHONES
Audio
Cable
Headphones
3.5mm
Y-adapter
Headphones
22
HOW TO CONNECT YOUR HOME STEREO
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into the included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
A. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into the LINE OUT jack
on your computer.
A
A
CD
LINE OUT
VCR
Amp
LINE OUT
Audio
Cable
LINE OUT
Audio
Cable
Adapter
B. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
RCA Y-adapter. Plug the RCA Y-adapter into the
LINE OUT jack on your stereo.
B
B. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
B
PHONES
CD
Audio
Cable
VCR
Amp
3.5mm
Y-adapter
LINE OUT
Headphones/Speakers
Audio
Cable
RCA
Y-adapter
Adapter
Wire removed from
LINE OUT jack
23
HOW TO CONNECT YOUR VCR
HOW TO USE AN IFIT.COM CD OR VIDEO
PROGRAM
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 23.
To use iFIT.com CDs or videocassettes, the incline
trainer must be connected to your portable CD player,
portable stereo, home stereo, computer with CD
player, or VCR. See HOW TO CONNECT THE INCLINE TRAINER TO YOUR CD PLAYER, VCR, OR
COMPUTER on pages 22 to 24. Note: To purchase
iFIT.com CDs or videocassettes, call toll-free
1-888-825-2588.
A. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
Follow the steps below to use an iFIT.com CD or video
program.
A
ANT. IN
VIDEO AUDIO
IN
1
RF OUT
CH
3 4
OUT
AUDIO OUT
See HOW TO TURN ON THE POWER on page
13.
RIGHT
LEFT
Audio
Cable
Adapter
2
Select the iFIT.com mode.
To use an
iFIT.com CD or
video program,
first press the
iFIT.com button.
The iFIT.com indicator will light.
B. Plug one end of the audio cable into the jack on the
front of the incline trainer near the power cord. Plug
the other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
RCA Y-adapter. Plug the RCA Y-adapter into the
AUDIO OUT jack on your VCR.
3
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
B
4
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your personal trainer will begin guiding you through your
workout. Simply follow your personal trainer’s
instructions. Note: If the time is flashing in the
Time/Distance display, press the Start button or
the Speed + button on the console. The incline
trainer will not respond to a CD or video program
while the time is flashing in the Time/Distance display.
RCA Y-adapter
Audio
Cable
Insert the key into the console.
Adapter
Wire removed from
AUDIO OUT jack
24
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the console may not detect the program signals.
During the CD or video program, an electronic
“chirping” sound will alert you when the speed
and/or incline of the incline trainer is about to
change. CAUTION: Always listen for the “chirp”
and be prepared for speed and/or incline
changes. In some instances, the speed and/or
incline may change before the personal trainer
describes the change.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
• If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
• See the instructions on page 32.
5
To stop the walking belt at any time, press the
Stop button on the console. The time will begin to
flash in the Time/Distance display. To restart the
walking belt, press the Start button or the Speed +
button. After a moment, the walking belt will begin
to move at 1 mph. When the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
Follow your progress with the displays.
See step 5 on page 14.
6
Measure your heart rate if desired.
See step 6 on page 15.
7
Turn on the fans if desired.
See step 7 on page 15.
When the CD or video program ends, the walking
belt will stop and the time will begin to flash in the
Time/Distance. Note: To use another CD or video
program, press the Stop button or remove the key
and go to step 1 on page 24.
8
Use the upper body handles if desired.
See step 8 on page 15.
9
Note: If the speed and/or incline of the incline
trainer does not change when a “chirp” is
heard:
When you are finished exercising, remove the
key.
See step 8 on page 17.
• Make sure that the iFIT.com indicator is lit and
that the time is not flashing in the Time/
Distance display. If the time is flashing, press
the Start button or the Speed + button on the
console.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player or VCR
when you are finished using them.
25
“chirping” sound will alert you when the speed
and/or incline of the incline trainer is about to
change. CAUTION: Always listen for the “chirp”
and be prepared for speed and/or incline
changes.
HOW TO USE A PROGRAM DIRECTLY FROM
OUR WEB SITE
To use programs from our Web site, the incline trainer
must be connected to your home computer. See HOW
TO CONNECT YOUR COMPUTER on page 23. In
addition, you must have an internet connection and
an internet service provider. A list of specific system
requirements is found on our Web site.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the program.
Follow the steps below to use a program from our
Web site.
1
To stop the walking belt at any time, press the
Stop button on the console. The time will begin to
flash in the Time/Distance display. To restart the
walking belt, press the Start button or the Speed +
button. After a moment, the walking belt will begin
to move at 1 mph. When the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
2
Select the iFIT.com mode.
To use an
iFIT.com program
from our Web
site, first press
the iFIT.com button. The iFIT.com
indicator will light.
3
Go to your computer and start an internet
connection.
4
Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
5
Follow the desired links on our Web site to select a program.
When the program ends, the walking belt will stop
and the time will begin to flash in the Time/Distance
display. Note: To use another program, press the
Stop button and go to step 5.
Note: If the speed or incline of the incline
trainer does not change when a “chirp” is
heard, make sure that the iFIT.com indicator is
lit and that the time is not flashing in the
Time/Distance display. In addition, make sure
that the audio cable is properly connected, that
it is fully plugged in, and that it is not wrapped
around a power cord.
8
See step 5 on page 14.
Read and follow the on-line instructions for using a
program.
6
9
Follow the on-line instructions to start the
program.
Measure your heart rate if desired.
See step 6 on page 15.
10
When you start the program, an on-screen countdown will begin.
7
Follow your progress with the displays.
Turn on the fans if desired.
See step 7 on page 15.
Return to the incline trainer and stand on the
foot rails. Find the clip attached to the key and
slide the clip securely onto the waistband of
your clothes.
11
Use the upper body handles if desired.
See step 8 on page 15.
12
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
When you are finished exercising, remove the
key.
See step 8 on page 17.
26
THE INFORMATION MODE/DEMO MODE
THE OPTIONAL CHEST PULSE SENSOR
The console features an information mode that keeps
track of the total number of miles that the walking belt
has moved and the total number of hours that the incline trainer has been operated. The information mode
also allows you to switch the console from miles to
kilometers. In addition, the information mode allows
you to turn on and turn off the demo mode.
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor provides
hands-free operation and enables you to use the console’s heart rate programs. To purchase the
optional chest pulse sensor, call toll-free 1-888825-2588.
To select the information mode, hold down the Stop
button while inserting the key into the console. When
the information mode is selected, the following information will be shown:
The Incline/Elevation display
will show the total number of
miles or kilometers that the
walking belt has moved.
The Time/Distance display
will show the total number of
hours that the incline trainer
has been used.
An “E” for English miles or
an “M” for metric kilometers
will appear in the Speed/
Pace display. Press the
Speed + button to change
the unit of measurement.
IMPORTANT: The Fat Calories/Calories/Pulse display should be blank. If a “d” appears in the display,
the console is in the “demo” mode. This mode is intended to be used only when an incline trainer is displayed in a store. When the console is in the demo
mode, the power cord can be plugged in, the key can
be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence; the buttons on the console cannot be operated. If a “d” appears in the display when the information mode is selected, press the Speed – button
so the display is blank.
THE OPTIONAL INTERACTIVE STAND
The new NordicTrack®
Wireless Workout interactive stand features a built-in CD
player and a selection
of NordicTrack workout CDs that control
the settings of your
exercise equipment
without wires or
cables. While you work out, you can listen to coaching
from a virtual personal trainer as well as motivating
music through the stand’s ported 4” stereo speakers.
The stand even incorporates a CleanAire ionizer that
keeps airborne contaminants to a minimum in your
exercise room. Visit www.NordicTrack.com or call
1-888-825-2588 for more information or to order.
To exit the information mode, remove the key.
27
HOW TO FOLD AND MOVE THE INCLINE TRAINER
HOW TO FOLD THE INCLINE TRAINER FOR STORAGE
Before folding the incline trainer, adjust the incline to the
lowest position. If this is not done, the incline trainer may
be permanently damaged. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45
pounds (20 kg) to raise, lower, or move the incline
trainer.
1. Hold the incline trainer with your hands in the location
shown by the arrow at the right. CAUTION: To decrease
the possibility of injury, bend your legs and keep your
back straight. As you raise the incline trainer, make
sure to lift with your legs rather than your back. Raise
the incline trainer about halfway to the vertical position.
2. Move your right hand to the position shown and hold the
incline trainer firmly. Using your left hand, pull the latch
knob to the left and hold it. Raise the incline trainer until
the latch pin is aligned with the indicated hole in the catch.
Insert the latch pin into the hole. Make sure that the
latch pin is fully inserted into the hole.
To protect the floor or carpet from damage, place a
mat under the incline trainer. Keep the incline trainer
out of direct sunlight. Do not leave the incline trainer
in the storage position in temperatures above 85°
Fahrenheit.
Knob
Hole
HOW TO MOVE THE INCLINE TRAINER
Before moving the incline trainer, convert the incline trainer
to the storage position as described above. Make sure that
the latch pin is fully inserted into the hole in the side of
the incline trainer.
1. Hold the handrails as shown and place one foot against a
wheel.
2. Tilt the incline trainer back until it rolls freely on the wheels.
Carefully move the incline trainer to the desired location.
Never move the incline trainer without tipping it back.
To reduce the risk of injury, use extreme caution
while moving the incline trainer. Do not attempt to
move the incline trainer over an uneven surface.
Wheels
3. Place one foot against a wheel, and carefully lower the incline trainer until it is resting in the storage position.
28
Base
HOW TO LOWER THE INCLINE TRAINER FOR USE
1. Hold the upper end of the incline trainer with your right
hand as shown. Using your left hand, pull the latch knob to
the left and hold it. Pivot the incline trainer down until the
frame is past the pin on the latch knob.
Knob
2. Hold the incline trainer firmly with both hands, and lower
the incline trainer to the floor. To decrease the possibility
of injury, bend your legs and keep your back straight.
29
TROUBLESHOOTING
Most incline trainer problems can be solved by following the steps below. Find the symptom that applies,
and follow the steps listed. If further assistance is needed, please call our Customer Service Department
toll-free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 11). Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. Important: The incline trainer is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the incline trainer frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes and
then press the switch to the reset position.
c
Reset
Tripped
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch to the reset position.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the incline trainer still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Adjust the incline high enough to remove the two
Screws (3) and the two Belly Pan Screws (142) from
the locations shown. Do not remove the Screws
until you have removed the key from the console
and UNPLUGGED THE POWER CORD. Remove the
two Screws (3) and the two Belly Pan Screws (128).
a
142
Remove the four Screws (3) from the Hood (37), and
carefully remove the Hood.
3
37
3
3
30
Locate the Reed Switch (20) and the Magnet (8) on
the left side of the Pulley (7). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8”. If necessary, loosen the Screw
(21), move the Reed Switch slightly, and then retighten
the Screw. Reattach the Hood (37), making sure that
the Screws (3, 142) are inserted into the same holes
from which they were removed. Run the incline trainer
for a few minutes to check for a correct speed reading.
1/8”
21
20
7
8
Top
View
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.
b. If the walking belt is overtightened, incline trainer performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both rear
roller adjustment bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you should
be able to lift each side of the walking belt 3 to 4 inches
off the walking platform. Be careful to keep the walking
belt centered. Plug in the power cord, insert the key,
and run the incline trainer for a few minutes. Repeat
until the walking belt is properly tightened.
b
3”–4”
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-free.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD. If the walking belt
has shifted to the left, use the allen wrench to turn
the left rear roller bolt clockwise 1/2 of a turn; if the
walking belt has shifted to the right, turn the left
rear roller bolt counterclockwise 1/2 of a turn. Be
careful not to overtighten the walking belt. Plug in the
power cord, insert the key, and run the incline trainer
for a few minutes. Repeat until the walking belt is centered.
a
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and carefully walk on the
incline trainer for a few minutes. Repeat until the
walking belt is properly tightened.
b
31
PROBLEM: The incline of the incline trainer does not change correctly or does not change when
iFIT.com CDs and videocassettes are used
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, remove the key. After a few seconds, reinsert the key. The incline trainer will automatically rise to
the maximum incline level and then return to the minimum level. This will recalibrate the incline.
32
CONDITIONING GUIDELINES
WARNING:
Before beginning this
or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.
The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
handgrip pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the incline
trainer until your heart rate is near the lowest number
in your training zone.
For maximum fat burning, adjust the speed and incline
of the incline trainer until your heart rate is near the
middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the incline trainer until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
33
PART LIST—Model No. NTK14940
R1004B
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
2
1
28
2
2
2
1
1
2
2
2
2
9
1
1
1
1
1
1
1
5
1
1
1
2
2
2
1
2
2
1
14
1
4
1
1
1
1
2
1
2
4
1
4
4
4
1
18
2
1
2
Description
Key No. Qty.
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
Foot Rail
Left Front Endcap
Screw
Frame Pivot Bolt
Rear Roller Washer
Frame Cap
Front Roller/Pulley
Magnet
Frame Pivot Nut
Frame Spacer
Idler Arm Washer
Frame Pivot Washer
Nut
Idler Arm Pulley
Pulley Bolt
Idler Arm Bolt
Idler Arm Bushing
Idler Arm
Idler Arm Spring
Reed Switch
Small Screw
Sensor Clip
Lift Frame
Drive Motor
Motor Bolt
Lift Frame Pivot Bolt
Upright Pivot Washer
Controller
Controller Screw
Heat Sink Screw
Heat Sink
1/2” Screw
Power Board
Plastic Stand-off
Electronics Bracket
Hood Cover
Hood
Belly Pan
Belt Guide
Right Front Endcap
Front Walking Platform Screw
Walking Platform Screw
Frame
Belt Guide Screw
Isolator
Isolator Bolt
Latch Catch
latch Catch Screw
Endcap Plate
Left Rear Endcap
Rear Roller Adj. Bolt
34
2
4
4
4
1
1
1
1
4
1
1
4
1
1
4
2
1
1
1
22
1
2
2
1
1
2
6
2
2
6
2
4
1
1
1
2
1
1
2
1
1
4
10
1
1
2
2
2
2
1
2
Description
Rear Wheel
Rear Wheel Cover
Wheel Bolt
1” Bolt
Left Wheel Bracket
Right Rear Endcap
Rear Roller
Right Wheel Bracket
3/4” Bolt
Left Outer Cover
Latch Assembly
3/4” Screw
Pulse Assembly
Right Inner Cover
3/4” Screw
Lower Handrail
Upper Handrail
Console
Console Back
Screw
Access Door Screw
Upper Body Handle
Housing Insert
Top Housing
Housing Back
Pulley Guide
Pulley
Pulley Nut
Pulley Bolt
Inside Cover Bolt
Fan
Fan Screw
Key Clip
Power Cord
Power Cord Grommet
Upright Pivot Bushing
Right Outer Cover
Upright Pivot Shaft
Upright Pivot Bolt
Reset/Off Circuit Breaker
iFIT Wire
Base Pad
3/4” Tek Screw
Upright Base Belly Pan
Upright Base
Washer
3” Bolt
Front Wheel
Incline Motor Bolt, Top
Incline Motor
Incline Guide
Key No. Qty.
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
1
2
1
1
1
1
1
1
1
2
1
1
1
4
1
2
4
4
1
1
9
1
9
1
1
1
4
Description
Upright Base Pad
Incline Motor Bolt, Bottom
Base Hood
Left Outer Cover
Bottle Holder
Upright Cover, Back
Pulley Shaft
Upright
Bottle Holder Clamp
Upper Body Cord
Upper Body Mechanism
Resistance Motor
Upright Cover, Front
Small Star Washer
Small Nut
1” Bolt
Small Nut
Front Endcap Screw
Walking Belt
Allen Wrench
Cable Tie
Releasable Tie
Tie Block
iFIT Cable
iFIT Jack
Latch Warning Decal
Belly Pan Clips
Key No. Qty.
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
#
#
#
#
#
#
#
#
#
16
2
1
1
1
1
2
1
1
1
1
1
6
1
2
1
1
1
1
1
1
1
1
1
Description
Upright Cover Clip
Long Endcap Screw
Console Warning Decal
Tension Pulley
Resistor
Access Door
Rear Wheel Housing
Incline Wire Harness
Tension Motor Wire
Controller Wire
Power Bracket
Walking Platform
Belly Pan Screw
Static Warning Decal
Warning Decal
46” Wire Harness
45” Console Wire Harness
14” Red Wire, 2F
12” Red Wire, 2F
14” White Wire, 2F
8” Green Wire, F/Ring
4” Green Wire, F/Ring
4” Blue Wire, M/F
User's Manual
#These parts are not illustrated
Specifications are subject to change without notice.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
• the MODEL NUMBER OF THE PRODUCT (NTK14940)
• the NAME OF THE PRODUCT (NordicTrack X5 incline trainer)
• the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 34 and 35 and the
EXPLODED DRAWING attached in the center of this manual)
35
51
131
136
120
52
53 13
5
50
54
49
42
55
51
53
5
48
131
47
120
57
56
46
45
53
49
128
1
54
58
52
42
42
55
44
39
41
2
122
46
45
15
16
4
59
13
136
43
42
12
120
11
18
133
122
17
53
6
1
7
13
10
11
8
21
141
9
123
46
45
20
19
22
44
23
39
125
32
124
142
3
41
40
24
142
46
45
9
120
25
26
3
12
27
6
13
13
139
3
4
10
26
27
142
34
35
33
28
29
34
30
142
32
38
3
134
32
129
32
32
31
3
36
126
37
3
127
3
3
3
EXPLODED DRAWING—Model No. NTK14940
R1004B
54
97
93
98
60
3
94
93
99
67
61
63
94
96
66
62
93
13
3
94
3
99
93
95 94
3
54
67
3
93
3
87
94
90
3
97
3
66
98
100
65
64
94
90
87
13
93
94
103
140
116
89
88
63
68
116
92
117
48
101
94
94
48
60
94
91
137
143
86
85
82
13
69
144
83
84
102
70
104
71
82
105
144
71
71
83
81
71
106
71
107
108
109
78
71
71
135 72
71
71
132
3
111
119
138
78
78
80
112
110
73
74
114
48
77
75
79
113
81
80
78
77
74
118
115
71
76
21
71
21
66
130
71
EXPLODED DRAWING—Model No. NTK14940
R1004B
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack® X5 incline trainer (“Product”) is warranted to be free of all defects in material and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the drive motor for life. Parts and labor
are warranted for one year from the date of purchase.
WHAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or
component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized
service provider, or, at our option, we will replace the Product.
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, alterations, modifications without our written authorization or by failure on your part to
use, operate, and maintain as set out in your User’s Manual (“Manual”). This warranty does not extend to products used
for commercial or rental purposes.
WHAT YOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the
Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product.
Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your
continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them
your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if necessary, arrange for service where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack
your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the
product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the service is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the
use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or
profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature.
Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability
or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not
allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 214710 R1004B
Printed in USA © 2004 ICON IP, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
