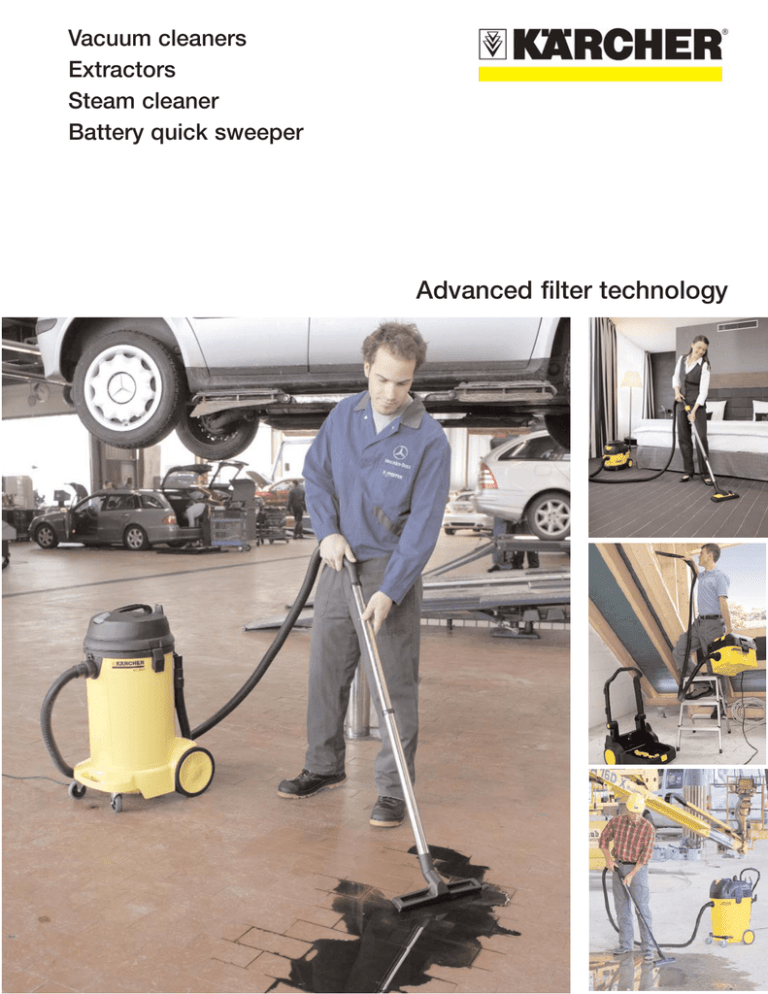

Vacuum cleaners

Vacuum cleaners

Vacuum cleaners

Extractors

Steam cleaner

Battery quick sweeper

Advanced filter technology

Dry vacuum cleaners

Convincing benefits

Kärcher continues to set performance standards with innovative filter and applications technology.

Kärcher dry vacuum cleaners have proven themselves thousands of times over in daily operation:

Be it commercial applications with contract cleaners, hotels, shops, offices, boutiques, and industry.

They always produce optimum results on all types of floor coverings.

Fleece filter bag (3-ply)

Paper filter bag (2-ply)

Cleaning capacity in m

2

Kärcher fleece filter technology

• Higher and more constant suction power.

• Extremely tear resistant. Impervious to stone chips, paper clips, etc.

• 10% better retention rate.

• More than twice the dust capacity compared to conventional paper filter bags.

• Filter bag costs can be reduced quite considerably.

Low sound level

The sound level is reduced to 59 dB(A) by sound-proofed motors and optimized air ducting to enable vacuums to be used in noise sensitive areas, such as hotels, or during normal office or shopping hours.

99.997%

The 6-stage filter system

The 6-stage filter system with three-ply fleece filter bag, permanent main filter and exhaust air filter provides an optimum dust retention rate of up to

99.997%.

2

Principle of brush-vacuuming

On upright carpet vacuum cleaners an electrically powered brush is used in addition to the suction air flow for greater efficiency in dislodging and collecting stubborn dirt, threads and hairs. The carpet pile is freshened up at the same time.

Hotels, shops, boutiques, offices

Sweeping, vacuuming and rejuvenating the carpet pile in a single pass, quick and flexible cleaning of furnished areas, whisper-quiet vacuuming – Kärcher dry vacuum cleaners satisfy your requirements.

Dry vacuum cleaners

For daily maintenance cleaning

EB 30 Quick Sweeper - for flexible and professional in-between cleanups. It operates so quietly and unobtrusively that it can be used during business hours. It is therefore ideal for restaurants, hotels, stores, medical professional facilities, theatres, elevators and offices.

High-speed charger recharges the battery within 50 minutes (optional).

Light weight combined with high suction performance best describes our BV 11/1 back vacuum. Features include a comfortable padded harness, low noise level, easy to reach on/off switch, heat transfer insulation along with right or left handed operation.

The powerful rechargeable battery provides up to 45 minutes of operation on hard floors and 30 minutes on commercial carpeting.

Battery is easily replaced in seconds.

Adjustable telescopic swivel

handle maneuvers around obstacles such as table and chair legs. Cleans right up to wall edges.

On board accessory storage

Technical data

Hopper capacity

Motor

Battery

Charger

Sound level

Weight

Dimensions (L x W x H)

Gal.

Volts

Volts

Volts dB/A lbs in.

Equipment

Battery

Charger

Black roller brush

EB 30/1

• Height adjustable handle

• Rechargeable battery

• Foot-operated on-off switch

EB 30/1

.26

7.2

7.2

7.2

59

4.4

10 x 12 x 43” included included included

Order No.

1.545-104

You will find the extensive range of original Kärcher accessories on page 7.

Technical data

Motor

Airflow

Waterlift

Tank Capacity

Sound level

Weight

Dimensions (L x W)

Equipment

Hose

HP

CFM

Qt.

dB/A lbs in.

Aluminum wand 2 piece

Floor tool

Crevice tool

Dusting brush

Upholstery tool

Synthetic filter insert

Order No.

BV 11/1

• Light weight

• Comfortable padded harness

• Low noise level

BV 11/1

1.7

112

104

10

67

22

23.7 x 8.8” included included included included included included included

1.014-012

3

Dry vacuum cleaners

Really quiet with excellent suction power

Designed specially to meet the requirements of contract cleaners: Small and maneuvrable vacuums for daily maintenance cleaning operations.

This dry vacuum has a number of convincing features and is ideal where quietness is appreciated: In hotels, restaurants, offices, stores, schools, etc.

Floor tool holder:

During work breaks, the floor tool can be secured in a holder provided on the container. Machine and tools can be stored where space is limited.

Foot switch:

Large, rugged ON/OFF foot switch positioned for ease of operation.

Main filter basket:

Large permanent main filter made of washable nylon guarantees optimal dust retention. The T 12/1 can be used with or without a filter bag.

61 d

B

(

A

)

Accessory Storage:

on-board storage for accessories so they are always at hand and easy to use.

(accessories not included)

Floor tool holder:

During work breaks, the floor tool can be secured in a holder provided on the container.

Machine and tools can be stored where space is limited.

4

Technical data

Air flow rate

Water lift

Container capacity

Max. power rating

Hose diameter

Power cord length

Sound level

Weight

CFM

Dimensions (L x W x H)

Equipment

Suction hose and grip

Suction tubes, metal

Filter bag

Permanent nylon filter (washable)

Combination floor tool

Order No.

Gal.

HP in.

ft.

dB/A lbs in.

T 10/1

• On-board accessory storage

• Foot operated on-off switch

• Large rear wheels with front swivel castors

T 10/1

129

88”

2.65

1.53

1 1/4 “

33’

63

13.2

14 x 12 x 15.1”

Technical data

Air flow rate

Waterlift

Container capacity

Max. power rating

Hose diameter

Power cord length

Sound level

Weight

Dimensions (L x W x H)

8’

2 x 19.6”

Fleece included

10”

1.527-113

CFM

Equipment

Suction hose with grip

Suction tubes, metal

Permanent nylon filter (washable)

Combination floor tool

Filter bag

Order No.

Gal.

HP in.

ft.

dB/A lbs in.

T 12/1

• Fleece filter technology

• Infinitely variable suction power control on handle

T 12/1

130

96”

3.1

1.7

1 1/4”

40’

61

14.5

16.1 x 12.4 x 13.3”

8’

2 x 19.6” included

11.2”

Fleece

1.355-105

Dry vacuum cleaners

Whisper-quiet for hotels and hospitals, daytime cleaning

The T 15/1 was designed for professional cleaners who expect the utmost performance and reliability from a premium quality canister vacuum. Operators will appreciate the convenient on-board tool storage, height-adjustable telescopic wand, comfortable hand grip and large rear wheels for exceptional stability and effortless mobility.

Accessory Storage:

On-board storage for accessories so they are always at hand and easy to use.

Only 59 dB (A):

The T 15/1 is so quiet that it can be used in noise sensitive areas like hotels, hospitals, restaurants, etc.

The 50’ power cord easily stores on the integrated cable hook.

HEPA filter technology

For hygenically clean, particle-free exhaust air in hotels, hospitals, shools, etc.

59 d

B

(

A

)

Easy transport The hose and wand store on board for easy transport

Technical data

Air flow rate

Waterlift

Container capacity

Max. power rating

Hose diameter

Power cord length

Sound level

Weight

Dimensions (L x W x H)

Equipment

CFM

Suction hose with comfort hand grip

Telescopic metal wand

Combination floor tool

Upholstery tool

Crevice tool

Filter bag

Order No.

Gal.

HP in.

ft.

dB/A lbs in.

T 15/1

• Very quiet; 59 dBA for cleaning in noise sensitive areas

• 6 stage filter system

• Variable suction power control on handle

T 15/1

129

98”

3.9

1.75

1 1/4”

50’

59

17.8

15.9 x 12.5 x 16.9”

8’ included

11.2” included included

Fleece

1.355-205

You will find the extensive range of original Kärcher accessories on page 7.

5

Upright vacuums

Brush action for thorough cleanliness

Kärcher upright carpet vacuums combine high suction power with an electrically driven brush. This means that stubborn dirt particles, threads and hairs are dislodged from carpet, while freshening the carpet pile at the same time. The CV 30/1,

CV 38/1 and the CV 38/2 have all earned The Carpet and Rug

Institute Seal of Approval/Green Label certification.

Replaceable brush strips:

Brush strips are available in soft and hard qualities and can be changed without the need for tools.

New fleece dust bags have a

much higher dust retention

rate than paper bags and reduce running costs considerably. The

patented removal system

guarantees convenient, dust-free replacement.

Unique patented centrifugal

clutch protects the brush head from overload and subsequent servicing costs.

HEPA filter (special option):

For hygienically clean exhaust air free from particulates.

6

Technical data

Working width

Air flow rate

Waterlift

Container capacity

Max. power rating

Hose diameter

Power cord length

Sound level

Brush motor

Weight

Dimensions (W x H)

Equipment

Crevice tool, upholstery tool

Detachable suction tube

Corrugated suction hose

Filter bag

Filter condition indicator

Dust brush

Order No.

in.

CFM

Gal.

Watt / HP in.

ft.

dB/A

W lbs in.

CV 30/1 & CV 38/1

• Height-adjustable handle

• Manual roller brush adjustment

CV 30/1 CV 38/1

12”

101

81”

1.45

1150

1 3/8”

39’3”

66

-

17.4

12x49”

15”

101

81”

1.45

1150

1 3/8”

39’3”

66

-

18.5

15x49” included included included paper included

-

1.023-105

included included included paper included

-

1.435-105

CV 38/2 & CV 48/2

• Electronic brush adjustment indicator

CV 38/2

15”

101.7

100”

1.45

1200 / 1.6

1 3/8”

39.3’

67

150

20.9

15.4x45” included included included fleece included included

1.033-318

CV 48/2

18.9”

100.7

100”

1.45

1200 / 1.6

1 3/8”

39.3’

67

150

22

19x46” included included included fleece included included

1.057-313

5

2

Accessories

3

Item Order No.

Suction tools

Carpet/hard floor tool (dry)

Plastic with stainless steel base plate, with changeover

Set of tools, Crevice tool, upholstery tool, round brush, clip holder

Turbo floor tool with reducing sleeve

Turbo upholstery tool, w reducing sleeve

All-purpose brush with plastic bristles

Suction brush with plastic bristles

Radiator brush, plastic

1

2

3

6

7

4

5

8

6.906-107

6.906-696

2.860-143

2.860-114

2.860-113

6.906-122

6.903-887

6.903-404

Suction tubes

Metal, telescopic tube

9 6.903-524

ID/

Qty.

Length/

Width

1 1/4”

1 1/4”

1 1/4”

1 1/4”

1 1/4”

1 1/4”

1

1

14.1”

11.2”

10.6”

6.3”

2.7”

4.7”

1 1/4” 2’-3.2’

Suction hoses

Suction hose, complete with bend

Suction hose, without connectors

Suction hose, clip system

10

11

12

4.440-774

6.389-838

4.440-890

1 1/4”

1 1/4”

1 1/4”

1 1/4”

1 1/4”

1 1/4”

10

13-15

23-25

Filters

Paper filter bags

Fleece filter bags

HEPA filter cassette, paper/synthetic

Fabric filter bag, cotton

Permanent main filter basket, nylon

13

14

15

20

21

22

23

16

17

18

19

24

25

26

27

28

6.904-294

6.906-097

6.904-312

6.907-017

6.904-305

6.904-311

6.904-315

6.414-760

6.414-801

2.641-229

6.904-301

6.906-098

6.904-316

5.731-619

5.731-640

5.731-624

10

10

10

1

1

1

1

10

10

10

10

1

1

1

1

1

20

Accessories for upright vacuums

Microfilter with holder

Microfilter without holder

Roller brush red (hard)

Roller brush black

(standard)

Brush strip black

(standard)

Brush strip red

(hard)

Roller brush (hard)

Roller brush (standard)

33

34

35

36

29

30

31

32

37

38

39

40

6.906-099

6.904-138

6.906-642

6.906-644

6.906-641

6.906-643

6.905-503

6.905-691

6.905-861

6.905-596

4.762-488

4.762-489

1

1

1

1

1

1

1

1

1

1

1

5

Special tools

Be it pipes, crevices, upholstery or radiators – Kärcher has the right suction tool for the job, even for problem areas. Kärcher upholstery tools have the gentle cleaning action necessary for sensitive textile materials.

7

Wet / Dry Vacuum Cleaners

Convincing selling points & a practical wet/dry vacuum

In terms of suction power, Kärcher is constantly setting the standards with its innovative filter and application technology.

Kärcher’s comprehensive range offers the machine to ideally suit every cleaning task in contract cleaning, the crafts and trades, commerce and industry – be it dry, damp or liquid.

Kärcher’s engineers have combined two things for which a tradesman should accept no compromises: maximum mobility and powerful suction. The NT 14/1 was designed with numerous practical details, such as a fold-up handle, parts and accessories on-board storage, semi-automatic filter cleaner, fluid level control for vacuuming liquids and the base unit separates from the cart with a single click for carrying.

TACT SYSTEM

Kärcher offers you unique and convincing benefits with the innovative and patented

TACT filter cleaning system:

Constant high suction power

Longer periods of uninterrupted operation

Low maintenance costs

Long machine life

No non-productive times for cleaning or replacing the filter

NT 14/1 Standard accessories

Vacuum can be easily removed for use without wheels

8

Filter cleaning: Powerful air pulses from above effectively clean the filter. The cleaning process is triggered automatically.

Coarse and damp dirt falls into the container while the intake air containing fine dust passes through the high level flat pleated filter. Fine dust is retained in the filter then cleaned via powerful air bursts (TACT).

Flat top for use as a seat, a table. Built in side hooks for securing tool boxes.

The Eco filter system

Like the TACT system, the Eco filter system is an innovative Kärcher development. Our vacuum cleaners are thus designed to better meet the performance and efficiency requirements of professional users.

NEW

NT 14/1

• Semi-automatic filter change

• Foldable handle for transporting & storing

• Accessory holders on unit

• Alternate wet and dry pickup is possible without having to stop to change filters.

• Full use is made of container capacity because filter does not project into the container.

• High rate of dust retention as a result of large surface area of filter.

• Convenient access to clean air side of main filter

Filters for every application

Cartridge or flat pleated filters, with rot-proof coating or specially for hazardous dusts: Kärcher’s line of filters covers all requirements, from standard filters to special filters with a retention rate of

99.995%.

Technical data

Air flow rate

Waterlift

Container capacity

Max. power rating

Hose diameter

Power cord length

Operating noise

Weight

Dimensions (LxWxH)

Equipment

CFM

Gal.

W in.

ft.

dB/A lbs.

in.

Suction hose with module and grip

Suction tubes, metal

Filter bag

NT floor tool

Crevice tool 9.8”

Order No.

NT 14/1

129

88.6”

3.7

1380

1 3/8 (35mm)

24’

68

33

21.5x18.5x16.5”

8’

3

Paper

11.8” included

1.510-114

Wet / Dry Vacuum Cleaners

Time-proven for very demanding cleaning tasks

Indispensable all-purpose vacuums for workshops and other areas in industry and commerce: They make short work of coarse, fine, dry and wet dirt and also pick up liquids.

Especially effective on fine particles such as drywall dust.

Electronic Vacuum Motor Shut Off

Most wet/dry vacuums block the vacuum intake with a float to protect the vacuum motor. Kärcher is the only wet/dry vacuum to electronically sense the water level in the tank and shut the vacuum motor off.

Accessories can be accommodated directly on the machine. The suction hose and the power cord can be wrapped around the two hooks.

This enables the unit, and accessories, to be carried comfortably and safely with one hand.

Locked quickly and reliably:

Suction hose is held securely by bayonet-type coupling.

Holders for all accessories:

All accessories can be accommodated on back of unit so that they are always at hand and easy to transport.

Technical data

Air flow rate

Waterlift

Container capacity

Max. power rating

Hose diameter

Power cord length

Operating noise

Weight

CFM

Gal.

HP in.

ft.

dB/A lbs.

Dimensions (LxWxH)

Equipment in.

Suction hose with module and grip

Suction tubes, metal

Filter bag

NT floor tool

Crevice tool 9.8”

Order No.

NT 35/1

• TACT system

• Electronic tank level monitoring

• Accessory holders on unit

NT 35/1

120

88”

9

1.7

1 3/8

25’

64

25

20.4x15x22.8”

8.2’

2 x 19.6”

Paper

11.8” included

1.184-804

NT 45/1

• TACT system

• Electronic tank level monitoring

• Accessory holders on unit

NT 45/1

120

88”

12

1.7

1 3/8

25’

63

27

19.8x14.5x27”

8.2’

2 x 19.6”

Paper

11.8” included

1.145-804

9

Wet and Dry Vacuum Cleaners

Application-matched vacuums

Non-combustible liquids, fine or coarse dust, wood chips and debris: the Kärcher wet and dry vacuums are ideal for dealing with all these different cleaning tasks.

Commercial

Kärcher wet and dry vacuums are much appreciated in workshops, production shops and showrooms. The machines’ engineering and ergonomics are designed for short set-up times and a long service life.

Industrial

Powerful motors, largecapacity, corrosion-proof containers, large-area filters, three-phase motors are only a few of the features that characterise the Kärcher industrial vacuums.

After wet pickup, container can be emptied without difficulty using the standard drain hose.

Automotive

Be it large, hard and dry surfaces in industry or hard-toreach corners inside your company vehicles, Kärcher vacuums – easy to operate and highly manoeuvrable – provide the required results.

Hospitality / Institutions

The high suction power and large capacity enable blocked drains to be cleared in washrooms and other areas – simply and effectively.

The four-stage filtration includes: a disposable bag, a machine washable cloth bag, two standard vacuum motor filters (HEPA filter optional) and an exhaust particle final filter.

Highly efficient cylindrical dust filter provides more vacuuming, fewer interruptions for cleaning.

Technical data

Air flow rate

Waterlift

Container capacity

Max. power rating

Hose diameter

Power cord length

Operating noise

Weight

Dimensions (LxWxH)

Equipment

CFM

Gal.

HP in.

ft.

dB/A lbs.

in.

Suction hose with module and grip

Suction tubes, metal

Filter bag

NT floor tool

Crevice tool 9.8”

Order No.

10

NT 48/1

• Cylindrical dust filter

• Accessory holders & cable hook

• Drain hose

NT 48/1

141

80”

12.6

1.74

1 3/8

25’

63

22

19.x15x30”

8’

2 x 19.6”

Paper

11.8” included

1.428-605

Above-the-floor vacuuming is simplified with attached, on demand wand and on-board tools.

Technical data

Working width

Air flow rate

Waterlift

Container capacity

Max. power rating

Hose diameter

Power cord length

Operating noise in.

CFM

Weight

Dimensions (LxWxH)

Equipment

Built-in compact extension hose

Onboard dusting brush

Upholstery tool

Crevice tool

Filter bags

Order No.

Gal.

HP in.

ft.

dB/A lbs.

in.

CV 71/2

• 4 Stage filtration

• Onboard accessory storage

• Built-in brush suspension

CV71/2

28”

224

63”

9

2 x 1.1 HP

1 3/8

75’

72

95

59x31x18”

26” to 6’ included included included paper and cloth

1.012-548

Spray-extractor & Steam Cleaner

Features at a glance

The principle of spray extraction

In spray-extraction, water and detergent are sprayed onto the carpet and picked up again immediately by the vacuum nozzle. Dirt is dissolved and removed in a single pass and the low residual moisture content ensures that carpets dry quickly ready for normal use. The result is a revitalized clean carpet in fresh colours, that shows no trace of cleaning agent, let alone matted fibres.

Cleaning cars and stairs

Car seats also need to be cleaned. A sprayextraction cleaner is recommended for cleaning the interiors of cars and even removes unpleasant tobacco smells. Lightweight spray-extraction cleaners are easy to manoeuvre on small areas of carpets such as staircase landings and steps.

Cleaning Upholstery

Without regular cleaning, upholstered furniture in offices, hotels or restaurants quickly loses its inviting appearance. Kärcher spray extraction units clean thoroughly and effectively, remove stains and restore freshness.

Puzzi 8/1C

Fold-out hook keeps power cord neatly stowed on the machine

DE 4002 Steam Cleaner

This all-round professional steam cleaner guarantees environmentally friendly and thorough cleaning of many different surfaces – fast, efficient and without the need for chemicals.

DE 4002 Cart

Optional storage cart for easy transportation.

Technical data

Puzzi 8/1C

• Fold-out cable hook

• Large foot operated switches

Vacuum motor

Pump motor

Air flow rating

Water-lift rating watt watt

CFM in.

Pump pressure PSI

Moisture recovery performance

Clean solution tank Gal.

Recovery solution tank Gal.

Sound level dB/A

Weight lbs.

Dimensions (LxWxH)

Equipment in.

Hose

9” Floor tool

4.33” Utility hand tool

Order No.

Puzzi 8/1C

1100

40

115

87”

44

Up to 96%*

2.1

1.85

68

20

21x13x17” included

1.100-211

Puzzi 100

• Removeable dirty water tank

• Rubber mounted pump/fan module

Puzzi 100

1100

40

115

87”

44

Up to 96%*

2.6

2.4

68

23

27x13x17”

8’ included included

1.100-105

Technical data

Voltage

Steam temperature

Steam Pressure amp

F

PSI

Water reservoir Gal.

Steam chamber reservoir Gal.

Weight

Dimensions (LxWxH)

Equipment lbs.

in.

Steam hose

Extension Tube

Floor tool

Hand tool

Power nozzle

Lengthening nozzle

Nozzle

Order No.

DE 4002

• Short heat up time

• Built-in pump for continuously filling the boiler

DE 4002

110

248 o

46.4

.63

.58

17

18x12x10.4

included included included included included included included

1.092-801

* Dependant upon type of carpet fiber or material being cleaned. Some fibers and textiles naturally retain moisture that requires additional drying time as the recover rate cannot be a efficient.

11

Vacuum cleaners

Canister, uprights & wet/dry

MODELS

Order No.

Technical data

EB 30/1 BV 11/1 T 10/1 T 12/1 T 15/1

CV 38/1

CV 38/2

CV 48/2

CV 71/2 NT 14/1 NT 48/1 NT 35/1 NT 45/1

1.545-104 1.042-012 1.527-113 1.355-105 1.355-205 1.023-105 1.033-318 1.012-548 1.510-114 1.428-605 1.184-804 1.145-804

1.435-105 1.057-313

Air flow rate CFM

Waterlift

Container capacity gal.

Max. power rating

Brush motor

Working width

Weight lbs.

Hose diameter

Power cord length

Dimensions LxWxH in.

ft.

in.

.26

7.2 Volts

10”

4.4

10x12x43

112

104”

10 qts

1.7 HP

129

88”

2.65

1.53 HP

130

96”

3.1

1.7 HP

22

23.7x8.8

13.2

1 1/4

33’

14x12x15

14.5

1 1/4

40

16x12x13

129

98”

3.9

1.75 HP

17.8

1 1/4

50

16x13x17

101/101

81”/81”

1.45/1.45

101.7/101.7

100”/100”

1.45/1.45

1150/1150W 1.6/1.6HP

150W/150W

12”/15”

17.4/18.5

15”/18.9”

20.9/22

1 3/8 / 1 3/8

39.3/39.3

1 3/8 / 1 3/8

39.3/39.3

12X49/15x49 15x45/19X46

224

63

9

2 x 1.1 HP

28”

95

75

59x31x18

129

88.6”

3.7

1380 W

33

1 3/8

24

21x19x17

141

80”

12.6

1.74

22

1 3/8

25

19x15x30

120

88”

9

1.7

25

1 3/8

25

20x15x22

120

88”

12

1.7

27

1 3/8

25

20x15x27

Equipment

Suction hose

Suction tube

2 piece metal

(8 ft.)

Telescopic suction tube

Detachable suction tube

Floor tool

Crevice tool in.

Upholstery tool

Radiator brush

Permanent main filter basket

Paper filter bag

Fleece filter bag

5’

14.0

10.0

11.0

11.0

•/•

•/•

•/•

•/•

•/•

•/•

•/•

•/•

3 pc

11.8

11.8

11.8

11.8

Please contact us for more information:

Head Office Germany

Alfred Kärcher GmbH & Co. KG

Alfred-Kärcher-Str. 28 – 40

71364 Winnenden

Tel. +49-7195-14-0

Fax +49-7195-14-2212 www.kaercher.com

Canada

Kärcher Canada Inc.

6535 Millcreek Drive, Unit 67

Mississauga, ON L5N 2M2

Tel. 1-888-705-9444

Fax 1-800-465-6013 www.karcher.ca

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
