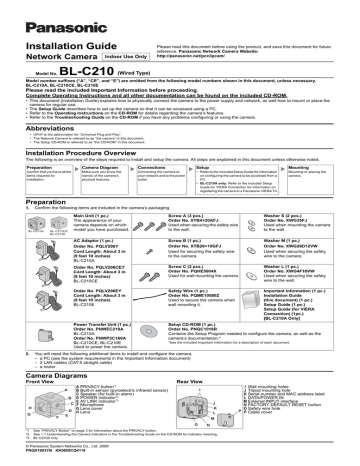

Installation Guide
Network Camera
Model No.
Indoor Use Only
BL-C210
Please read this document before using the product, and save this document for future
reference. Panasonic Network Camera Website:
http://panasonic.net/pcc/ipcam/
(Wired Type)
Model number suffixes (“A”, “CE”, and “E”) are omitted from the following model numbers shown in this document, unless necessary.
BL-C210A, BL-C210CE, BL-C210E
Please read the included Important Information before proceeding.
Complete Operating Instructions and all other documentation can be found on the included CD-ROM.
• This document (Installation Guide) explains how to physically connect the camera to the power supply and network, as well how to mount or place the
camera for regular use.
• The Setup Guide describes how to set up the camera so that it can be accessed using a PC.
• Refer to the Operating Instructions on the CD-ROM for details regarding the camera’s features.
• Refer to the Troubleshooting Guide on the CD-ROM if you have any problems configuring or using the camera.
Abbreviations
• UPnP is the abbreviation for “Universal Plug and Play”.
• The Network Camera is referred to as “the camera” in this document.
• The Setup CD-ROM is referred to as “the CD-ROM” in this document.
Installation Procedure Overview
The following is an overview of the steps required to install and setup the camera. All steps are explained in this document unless otherwise noted.
Preparation
Camera Diagram
Connections
Setup
Mounting
Confirm that you have all the
items required for
installation.
Make sure you know the
names of the camera’s
physical features.
Connecting the camera to
your network and to the power
outlet.
• Refer to the included Setup Guide for information
on configuring the camera to be accessed from a
PC.
• BL-C210A only: Refer to the included Setup
Guide for VIERA Connection for information on
registering the camera to a Panasonic VIERA TV.
Mounting or placing the
camera.
Preparation
1.
Confirm the following items are included in the camera’s packaging.
BL-C210A
2.
BL-C210CE
BL-C210E
Main Unit (1 pc.)
The appearance of your
camera depends on which
model you have purchased.
Screw A (3 pcs.)
Order No. XTB4+20AFJ
Used when securing the safety wire
to the wall.
Washer S (2 pcs.)
Order No. XWG35FJ
Used when mounting the camera
to the wall.
AC Adaptor (1 pc.)
Order No. PQLV206Y
Cord Length: About 3 m
(9 feet 10 inches)
BL-C210A
Screw B (1 pc.)
Order No. XTB26+10GFJ
Used for securing the safety wire
to the camera.
Washer M (1 pc.)
Order No. XWG26D12VW
Used when securing the safety
wire to the camera.
Order No. PQLV206CEY
Cord Length: About 3 m
(9 feet 10 inches)
BL-C210CE
Screw C (2 pcs.)
Order No. PQHE5004X
Used for wall mounting the camera.
Washer L (1 pc.)
Order No. XWG4F16VW
Used when securing the safety
wire to the wall.
Order No. PQLV206EY
Cord Length: About 3 m
(9 feet 10 inches)
BL-C210E
Safety Wire (1 pc.)
Order No. PQME10080Z
Used to secure the camera when
wall mounting it.
Important Information (1 pc.)
Installation Guide
(this document) (1 pc.)
Setup Guide (1 pc.)
Setup Guide (for VIERA
Connection) (1pc.)
[BL-C210A Only]
Power Transfer Unit (1 pc.)
Order No. PNWEC210A
BL-C210A
Order No. PNWP3C160A
BL-C210CE, BL-C210E
Used to power the camera.
Setup CD-ROM (1 pc.)
Order No. PNQC1016R
Contains the Setup Program needed to configure the camera, as well as the
camera’s documentation.*
*See the included Important Information for a description of each document.
You will need the following additional items to install and configure the camera.
– a PC (see the system requirements in the Important Information document)
– 2 LAN cables (CAT-5 straight cable)
– a router
Camera Diagrams
Front View
Rear View
A PRIVACY button*1
A
B Built-in sensor (pyroelectric infrared sensor)
C Speaker (for built-in alarm)
B D POWER indicator*2
E AV LINK indicator*3
C F Microphone
G Lens cover
D H Lens
H
G
F
I
J
K
L
E
M
O
*1
*2
*3
N
See “PRIVACY Button” on page 3 for information about the PRIVACY button.
See 1.1 Understanding the Camera Indicators in the Troubleshooting Guide on the CD-ROM for indicator meaning.
BL-C210A only
© Panasonic System Networks Co., Ltd. 2009
PNQX1993YB KK0809CQ4119
I Wall mounting holes
J Tripod mounting hole
K Serial number and MAC address label
L DATA/POWER IN
M External INPUT interface
N FACTORY DEFAULT RESET button
O Safety wire hole
P P Cable cover
Connections
Connect the camera to your router and to the power outlet as described below.
• Before proceeding, confirm that your PC is connected to your router and can access the Internet. Also confirm that your router’s UPnP™ feature is
enabled. (Most routers have UPnP™ turned off by default.) Refer to the operating instructions included with your router or to the Panasonic Network
Camera website (http://panasonic.net/pcc/ipcam/) for more information.
• Use a LAN cable that is no more than 30 m (98 feet 5 inches) long to connect the camera and the power transfer unit.
1
Connect the LAN cable to the
camera and the power transfer
unit.
3
LAN cable
(Cat-5 straight cable)
To the power
outlet
Power transfer unit
AC adaptor
2
Connect the AC adaptor to the power
transfer unit and plug the AC adaptor
into the power outlet.
• Confirm that the indicator turns
green after about 1 minute. If it does
not turn green, see 1.2 POWER
Indicator Issues in the
Troubleshooting Guide on the CDROM.
Connect the LAN cable to the
router and the power transfer unit.
Green
LAN cable
• When you operate the camera, the
power outlet should be near the
camera and easily accessible.
• Use only specified Panasonic AC
adaptor (Order No. PQLV206Y for
BL-C210A, PQLV206CEY for
BL-C210CE, and PQLV206EY for
BL-C210E).
• The camera may become warm.
This is normal.
Router
Modem
Internet
VIERA
(BL-C210A only)
PC
After the camera’s indicator turns green, you may set up the camera. Continue by following the procedure described
in the included Setup Guide.
• If the indicator does not turn green, see 1.2 POWER Indicator Issues in the Troubleshooting Guide on the included CD-ROM.
Connecting External INPUT interface
The camera’s external INPUT interface allows you to connect a device, such as a sensor or motion detector, that can be used to trigger the camera’s image
buffering and transferring features (see Section 2 Using Triggers to Buffer and Transfer Images in the Operating Instructions on the CD-ROM), as well as
the detection notification sound feature (see Section 1.2.11 Additional Features Available While Viewing Live Camera Images in the Operating Instructions
on the CD-ROM).
Circuit Diagram Example
Camera
External INPUT interface
Terminal
IN1
IN2
Description
1
External sensor input. The camera can be triggered by either an open
circuit or a GND short-circuit.
2
GND terminal.
3
External sensor input. The camera can be triggered by either an open
circuit or a GND short-circuit.
4
GND terminal.
Note
• If excessive force is used when disconnecting wires with pointed objects from
the external INPUT interface, terminals may become damaged or the interface
may be pushed inside the camera body and become unusable.
2
Door Sensor 2 (Alarm 2)
4
3
2
1
Door Sensor 1 (Alarm 1)
Caution
• The external INPUT interface is not capable of connecting directly to
devices that require large amounts of current. In some cases, a
custom interface circuit (customer-provided) may have to be used.
Serious damage to the camera may result if a device that exceeds
its electrical capability is connected to the external INPUT interface.
• Low voltage/current circuits and high voltage/current circuits are
used in the camera circuit. All wiring should be performed by a
qualified electrician. Incorrect wiring could damage the camera and
cause a fatal electric shock.
Choosing a Location to Mount the Camera
7.
The sensor may not perform properly in the following areas. Avoid
these kinds of locations when mounting the camera.
Notes About the Camera’s Built-in Sensor
Please read the following information about the camera’s built-in
pyroelectric infrared sensor before deciding where to mount the camera.
Refer to the Panasonic Network Camera website at
http://panasonic.net/pcc/support/netwkcam/ for further information
about the built-in sensor.
The camera’s built-in sensor is a pyroelectric infrared sensor, which means
it uses infrared rays to detect temperature differences within its range that
are emitted naturally by people, animals, etc. The sensor can be used to
trigger the camera to buffer (i.e., temporarily store) camera images in its
memory. You can view these images later as desired. The sensor can also
be used to trigger the camera to transfer images to someone or
somewhere, by FTP, E-mail, or HTTP.
• Where the camera or the object • In a greasy or humid place such
is exposed to direct sunlight
as a kitchen
Because the detection range is easily affected by the temperature of the
surrounding environment or how fast the objects in front of the camera are
moving, you should take the following into consideration when deciding
where to mount the camera.
1. The sensor’s active detection range is about 5 m (16 feet 5 inches) in
front of the camera, about 28° horizontally, and about 71° vertically,
when the camera is in a 20 °C (68 °F) environment.
About 5 m
(16 feet 5 inches)
• Where there are sharp
temperature changes such as
near an air conditioner
About 5 m
(16 feet 5 inches)
• Where there is an obstacle such
as glass in front of the camera
About 28°
About 71°
• Where the camera or the object is exposed to bright light
8.
Side View
Top View
2.
3.
4.
5.
If an object is within about 1 m (3 feet 3 inches) of the camera, the
sensor may detect the object even if it is outside of the sensor’s range.
If there is no temperature difference between objects in range of the
camera’s sensor and the surrounding environment, such as on a hot
summer day, the sensor may not be able to detect properly.
If the sensor is obstructed, the sensor is not able to make detections.
Remove any obstacles in front of the sensor.
As shown in the illustration below, the sensor can easily detect
temperature differences of objects moving sideways within the
detection range, but cannot easily detect objects moving slowly
towards the sensor. Mount the camera where objects often pass the
camera from the sides.
When deciding where to mount the camera, you can verify the
sensor’s ability to make detections that satisfy your needs by referring
to the camera’s indicator. See 7.5 Changing the Indicator Display in
the Operating Instructions on the CD-ROM, and configure the camera
to light the indicator in orange when the sensor makes a detection.
You can then adjust the sensitivity of the sensor (see 2.9 Adjusting
Sensor Sensitivity in the Operating Instructions on the CD-ROM) or
change the camera’s location if necessary. Note that if you increase
the sensitivity of the sensor, the sensor may make inaccurate
detections.
Note
• If you are not satisfied with the sensor’s ability to make detections,
we recommend using the camera’s motion detection feature. This
feature detects motion by detecting changes in the camera image.
For more information, see Section 2 Using Triggers to Buffer and
Transfer Images in the Operating Instructions on the CD-ROM.
• The built-in sensor and the motion detection feature are not
designed to be used for security or surveillance. No responsibility
will be taken by our company with respect to consequences
resulting from the use of these features.
PRIVACY Button
Easy to detect
Easy to detect
Difficult to detect
(The detection range
may be reduced)
6.
If the lens is aimed at an area outside of the sensor’s active detection
range, the objects that trigger the sensor may not be visible, and
therefore buffered or transferred images may not show the object that
triggered the sensor.
In the example below, the person has triggered the sensor, but the
person is not in the visible range of the camera.
We recommend that you limit the pan and tilt range of the camera to
the active detection range of the sensor, or that you limit other user’s
access to the pan and tilt features.
28°
Privacy mode allows you to protect your privacy by hiding the lens inside
the camera, preventing camera images from being seen. You can turn
privacy mode on by pressing the PRIVACY button on the front of the
camera.
When privacy mode is turned on, the PRIVACY button (which also serves
as the camera’s indicator) changes from green to red to let you know that
privacy mode is activated. To turn privacy mode off and allow the camera
to be accessed, simply press the PRIVACY button again. It should turn
green within a few seconds.
If users are accessing the camera when privacy mode is turned on, the
camera image area displayed in their web browsers turns gray or black. No
camera pages can be accessed by users while privacy mode is turned on.
Once privacy mode is turned off, users can press the refresh button in their
web browsers to view images again.
The camera’s administrator can also turn privacy mode on and off using a
PC or a mobile phone, and the PRIVACY button itself can be disabled so
that privacy mode cannot be turned on or off by pressing the PRIVACY
button.
For more information about privacy mode, see 7.6 Privacy Mode in the
Operating Instructions on the CD-ROM.
Note
• If you plan on using the PRIVACY button to turn privacy mode on
and off, make sure you mount the camera where you can reach the
button.
Other Notes
• Camera images can be viewed in relatively dark areas, however, image
quality decreases when viewing dark images. We recommend using
supplemental lighting for best results.
• Prolonged exposure to direct sunlight or halogen light may damage the
camera’s image sensor. Mount the camera appropriately.
58°
3
Mounting the Camera
4.
• The camera illustrations in this document depict the BL-C210A.
Caution
• Do not drive the screws into a soft material. Drive the screws into a
secure area of the wall, such as a wall stud, otherwise the camera
may fall and be damaged.
• Make sure you attach the safety wire when mounting the camera, to
prevent the camera from falling.
Note
• Use screws that are appropriate for the material of the wall.
• The included screws are for use with wooden walls only.
• The pull-out strength of the installation area must be at least 294 N
(30 kgf) per screw.
• The camera is intended for indoor use only and should not be
mounted outdoors.
• To ensure that camera images are displayed properly, do not mount
the camera on an incline. Mount the camera so that it is
perpendicular to the floor. Do not mount the camera upside down.
Secure the safety wire to the wall using screw A (included) and washer
L (included).
• Leave some slack in the safety wire, as shown.
• Attach the safety wire in a position so that if the camera were to
become detached, it would not fall on nearby people.
Screw A
Washer L
At least 25 mm
(1 inch)
4 mm
(3/16 inch)
Tripod Mount
Safety wire
• Do not use a tripod screw with a thread of 6 mm (1/4 inch) or more.
This may damage the tripod mounting hole.
• The camera cannot be mounted depending on the shape of the
camera platform.
Tripod
mounting hole
Tripod
(customer-provided)
Wall Mount
1.
Remove the cable cover, secure the safety wire to the camera using
screw B (included) and washer M (included).
• Make sure you attach the safety wire when mounting the camera, to
prevent the camera from falling.
When mounting on a mortar or concrete surface
• Prepare anchors for a 4 mm (3/16 inch) diameter screw for the safety
wire, and 3.5 mm (1/8 inch) diameter screws for the wall mounting.
1. Mark the points where you are going to make holes.
2. Make holes with an electric drill. Insert anchors (customer-provided)
into the holes and use a hammer to make them flush with the wall.
• Mortar walls break easily when drilling. Be careful of pieces of
mortar which may become loose and fall.
Drill for concrete (in case of tile, use a drill for tile)
3.
4.
Washer M
Screw B
Cable cover
Safety wire
Connecting to the power transfer unit
1.
2.
Mount the camera by following the instructions on this page.
Mark the point where you are going to make a hole for the safety wire,
follow step 2 and secure the safety wire.
Connect a LAN cable to the camera and attach the cable cover.
• Insert the LAN cable until it clicks into to place.
Connect a LAN cable to the power transfer unit and to the switching
hub, router, etc.
• The power transfer unit can be fixed in place with 2 pieces from
screw A (included) (4 mm x 20 mm [3/16 inch x 13/16 inch]).
LAN Cable
3.
2.
Connect a LAN cable from the camera to the power transfer unit.
3.
Connect the AC adaptor to the power transfer unit and plug the other
end into the power outlet.
• The camera will activate.
Mount the camera on the screws by inserting the screws into the
camera’s wall mounting holes, then sliding the camera down until it is
secure.
• Leave 2 mm (1/16 inch) of space between the screw heads and the
washers, as shown below.
Screw C
Washer S
29 mm
(1 1/8 inches)
To the power outlet
At least 25 mm
(1 inch)
9 mm
(3/8 inch)
3.5 mm
(1/8 inch)
To router
2 mm
(1/16 inch)
4
Hook for AC adaptor
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
