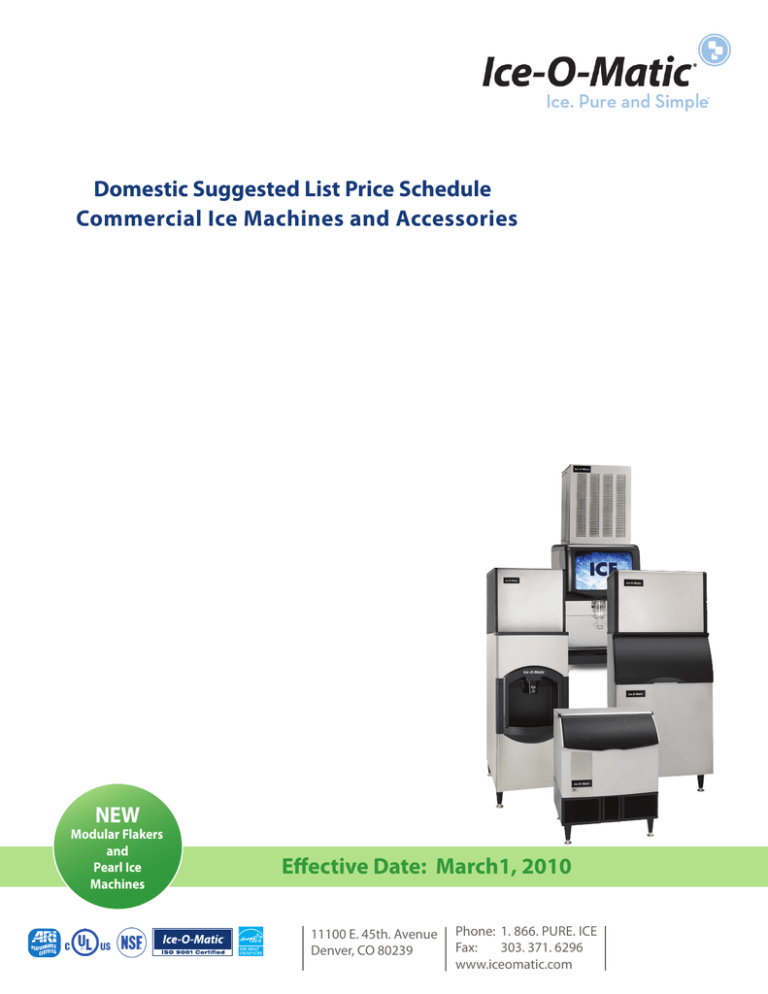

Domestic Suggested List Price Schedule

Commercial Ice Machines and Accessories

NEW

Modular Flakers and

Pearl Ice

Machines

Effective Date: March1, 2010

11100 E. 45th. Avenue

Denver, CO 80239

Phone: 1. 866. PURE. ICE

Fax: 303. 371. 6296 www.iceomatic.com

2

Sizing Your Ice-O-Matic Ice Maker

• Does the existing ice maker meet peak usage during the hottest part of the year?

• What are the various locations or stations in the establishment that will need ice? Will they be serviced from one or multiple ice makers?

• Planning for future growth? If not, consider building in 20% additional capacity on new installations.

Foodservice

Restaurant

Cocktail

Salad Bar

Quick Service

Lodging

Guest Ice

Restaurant

Cocktail

Catering

Healthcare

Patient Ice

Cafeteria

Convenience Store

Beverage

Cold Plate

Package Ice

Approximate Ice Usage Per Day

1.5 lbs per person

3 lbs per person/seat

40 lbs per cubic foot

5 oz. per 7- to 10-oz. drink

8 oz. per 12- to 16-oz. drink

12 oz. per 18- to 24-oz. drink

Approximate Ice Usage Per Day

5 lbs per room

1.5 lbs per person

3 lbs per person/seat

1 lb. per person

Approximate Ice Usage Per Day

10 lbs per bed

1 lb. per person

Approximate Ice Usage Per Day

6 oz. per 12-oz. drink

10 oz. per 20-oz. drink

16 oz. per 32-oz. drink

50% more ice usage per day

Weight per bag x number of bags sold per day

Ice-O-Matic Installation Considerations

Allow enough space for:

• The ice maker, bin and water filter

• Air flow

Note: If the ice maker is limited on space, consider a Top Air Discharge unit

Utilities:

• What are the voltage characteristics of the electrical outlet that will be used for this ice maker?

• Is there a floor drain?

• Water source with water shut-off?

• Are the utilities in close proximity to the ice maker location?

Remote installation:

• Is there an outdoor condenser location above the ice maker?

• Easy roof access and penetration?

• Maximum precharged tubing line run considerations?

Note: Ice-O-Matic includes a free sea salt corrosion protectant on cuber remote condensers

Ask about:

• The 7 year warranty on the evaporator if an Ice-O-Matic water filter is purchased with an Ice-O-Matic Cube ice maker and replaced every 6 months (U.S. & Canada only)

• Warranty program

• Preventive maintenance programs

All dimensions in inches

24

24

24

24

22

48

30

30

23

*

Available with top air discharge

20

26

26

Model

Number

ICE0320A

ICE0320W

ICE0520A

ICE0520W

ICE0806W

ICE0806R

**

ICE1006A

ICE1006W

ICE1006R

**

ICE1007A

ICE1007W

ICE1007R

**

ICE1406A

**

ICE1406W

ICE1406R

**

ICE1407A

ICE1407W

ICE1407R

**

ICE0250A/T*

ICE0250W

ICE0400A/T*

ICE0400W

ICE0406A

ICE0406W

ICE0500A/T*

ICE0500W

ICE0500R**

ICE0606A/T*

ICE0606W

ICE0606R**

ICE0806A

List

Price ($)

$4150

$4150

$4430

$4430

$5430

$5335

$6915

$6915

$6805

$7790

$7790

$7680

$7950

$7950

$7840

$9030

$9030

$8920

$9190

$9190

$9080

$3930

$3930

$4420

$4420

$4540

$4540

$4780

$4780

$4675

$5440

Ice Production lbs/24 hr @ 70°F Air

50°F Water

334

ARI Production lbs/24 hr @ 90°F Air

70°F Water

249

349

520

308

370

527

910

1469

1386

1391

1458

1425

1393

913

997

960

982

930

935

529

523

600

596

567

652

619

605

336

333

505

496

897

898

442

781

1136

1239

1150

1131

1270

1195

768

780

856

843

754

836

358

439

458

513

455

506

576

502

253

275

368

407

666

784

Condensing

Unit

Air

Water

Air

Water

Remote

Air

Water

Remote

Air

Water

Air

Air

Water

Remote

Air

Water

Remote

Air

Water

Air

Water

Air

Water

Air

Water

Remote

Air

Water

Remote

Air

Water

Approx.

Shipping

Weight lbs

150

160

165

175

230

310

280

300

310

280

300

220

230

225

235

230

230

165

165

170

170

170

175

175

170

150

150

165

165

220

210

Voltage

Characteristics

115/60/1

115/60/1

115/60/1

115/60/1

208-230/60/1

208-230/60/1

208-230/60/1

208-230/60/1

208-230/60/3

208-230/60/3

208-230/60/3

208-230/60/1

208-230/60/1

208-230/60/1

208-230/60/3

208-230/60/3

208-230/60/3

115/60/1

115/60/1

115/60/1

115/60/1

208-230/60/1

208-230/60/1

115/60/1

115/60/1

115/60/1

208-230/60/1

208-230/60/1

208-230/60/1

208-230/60/1

208-230/60/1

22

ICE1506R

**

(ICE1506 comes with bin thermostat kit)

$9380

1,432 1216 Remote

28

30

24

48

26

ICE1806W

ICE1806R

**

ICE1807W

ICE1807R

**

ICE2106W

ICE2106R

**

ICE2107W

ICE2107R

**

$11540

$11430

$11705

$11595

$14045

$13935

$14205

$14095

1832

1617

1779

1592

1856

1737

1814

1636

1628

1461

1603

1444

1692

1561

1650

1525

Water

Remote

Water

Remote

Water

Remote

Water

Remote

*

Available with top air discharge.

**

Remote condensers and line sets are required for remote-cooled ice makers. See Remote Condensers on page 7.

ENERGY STAR qualified machine. Please see our website www.iceomatic.com for the latest list of ENERGY STAR qualified machines and available rebates

ICE Series™ Accessories

KSF

Prison Kit applicable for all Ice-O-Matic

List Price

$210

208-230/1

208-230/60/1

208-230/60/1

208-230/60/3

208-230/60/3

208-230/60/1

208-230/60/1

208-230/60/3

208-230/60/3

300

310

335

310

335

310

340

310

340

Note: Please specify Half (H) or Full (F) Cube when ordering (see page 4 for details).

7/8" x 7/8" x 7/8" 7/8" x 7/8" x 3/8"

C U B E D I C E

3

4

All dimensions in inches

Model

Number

List

Price ($)

Ice Production lbs/24 hr @ 70°F Air

50°F Water

ARI Production lbs/24 hr @ 90°F Air

70°F Water

ARI Bin

Storage

lbs

Condensing

Unit

Voltage

Characteristics

Approx.

Shipping

Weight-lbs

34 ICEU070A $3285

84 66 27 Air 115/60/1 88

23

15

24

24

39

ICEU150A

ICEU150W

ICEU220A

ICEU220W

ICEU226A

ICEU226W

$3555

$3555

$3945

$3945

$4210

$4210

174

174

238

251

241

232

112

144

175

193

168

192

74

74

73

73

74

74

Air

Water

Air

Water

Air

Water

115/60/1

115/60/1

115/60/1

115/60/1

208-230/60/1

208-230/60/1

ICEU300A $4650

309 228

39

ICEU300W $4650

356 296

29

30

ENERGY STAR qualified machine.

Please see our website www.iceomatic.com for the latest list of ENERGY STAR qualified machines and available rebates

KCUC12

Caster kit for ICEU150 or ICEU220. (2" wheel, 2 ½" total height)

112

112

Air

Water

115/60/1

115/60/1

206

203

List Price

$205

ICE • 070 6 F • A • 1 • XX

Specific Designation

Design Revision Level

Condenser Type: A = Air, W = Water, R = Remote, T = Air/Top Air Discharge

Cube Size: F = Full Cube, H = Half Cube

Unit electrical characteristics: 0, 6, 7 (see voltage)

Basic Family Size: 025, 040, 050, 060, etc.

Model ICE = Modular Cuber Model Series, ICEU = Undercounter Cuber

ENERGY STAR Qualified Ice Makers

No.

1

2

3

4

5

Model Name

ICEU150HA

ICEU150FA

ICEU220HA

ICEU220FA

ICEU300HA

Harvest Rate

(Capacity)

112

112

175

175

228

Energy Use

11.8

11.8

8.80

8.80

8.60

Water Use

34

34

30.3

30.3

32.9

No.

Model Name

13

ICE0606HR*

14

ICE0606FR*

15

ICE0806HR**

16

ICE0806FR**

17

ICE1007HR**

Harvest Rate

(Capacity)

502

502

768

768

781

6

ICEU300FA 228 8.60

32.9

18

ICE1007FR** 781

7

ICE0400HA 368 6.10

24.4

19

ICE1406HA 1136

8

ICE0400FA

9

ICE0400HT

10

ICE0400FT

368

357

6.10

6.30

24.4

25

20

21

ICE1406FA

ICE1407HA

1136

1131

357 6.30

25

22

ICE1407FA 1131

11

ICE0520HA 370 5.90

23.1

23

ICE1506HR† 1216

12

ICE0520FA 370 5.90

23.1

24

ICE1506FR†

Please see our website www.iceomatic.com for the latest list of ENERGY STAR qualified machines and available rebates.

*In use with condensing unit 1061. **In use with condensing unit 2061. †In use with condensing unit 2661.

1216

7/8" x 7/8" x 7/8"

7/8" x 7/8" x 3/8"

C U B E D I C E

Energy Use

6.28

6.28

5.34

5.34

5.20

5.20

5.06

5.06

5.04

5.04

4.63

4.63

Water Use

24.9

24.9

21.5

21.5

21.9

21.9

20.5

20.5

19.6

19.6

19.5

19.5

160

160

160

160

160

160

All dimensions in inches

24"

21"

27"

Model

Number

GEM0450A

GEM0450W

GEM0650A

GEM0650W

GEM0650R

*

GEM0956A

GEM0956W

GEM0956R

*

List

Price ($)

$5750

$5750

$7350

$7350

$7245

$9215

$9215

$9110

Ice Production lbs/24 hr @ 70°F Air

50°F Water

464

508

717

715

684

1053

ARI Production lbs/24 hr @ 90°F Air

70°F Water

354

Condensing Unit

Air

429

522

633

582

753

Water

Air

Water

Remote

Air

1053

1011

877

833

Water

Remote

Voltage

Characteristics

115/60/1

115/60/1

115/60/1

115/60/1

115/60/1

208-230/60/1

208-230/60/1

208-230/60/1

Approx.

Shipping

Weight-lbs

205

220

205

220

220

290

290

290

34”

GEMD270A

26”

15”

*Note: See page 7 for Remote Condenser options.

$7085

273 198 Air 115/60/1 161

Pearl Ice ® Makers - Dispenser Application Chart

Dispenser Model

Ice-O-Matic IOD150

Ice-O-Matic IOD200 or IOD250

Cornelius ED or DF150

Cornelius ED or DF200

Cornelius ED or DF250

GEM0450

KBT15022 + KGEMDIV

KBT25022 + KGEMDIV + KGEBIOD

KBT15022 + R629088514 (Cornelius)

KBT25022 + KGEM200

KBT25022 + KGEM250

GEM0650

KBT15022 + KGEMDIV

KBT25022 + KGEMDIV + KGEBIOD

KBT15022 + R629088514 (Cornelius)

KBT25022 + KGEM200

KBT25022 + KGEM250

GEM0956

KBT15022 + KGEMDIV

KBT25022 + KGEMDIV + KGEBIOD

KBT15022 + R629088514 (Cornelius)

KBT25022 + KGEM200

KBT25022 + KGEM250

Pearl Ice

®

Makers Accessories (required per the following configurations)

Model Number

KBT19

KBT22

KBT23

KBT24

KBT15022*

KBT25030*

KBT25022*

KGEMDIV*

KGEMBIOD*

KGEM200*

KGEM250*

Description

Bin kit for 22” ICE and GEM Series on a 30” Bin

Bin Kit for (2) GEM0450, (2) GEM0650 or (2) GEM0956 on a 48” Bin

Bin Kit for (1) GEM0450, (1) GEM0650, or (1) GEM0956 on 48” Bin

Bin Kit for (1) GEM0450, (1) GEM0650 or (1) GEM0956 on a 22” Bin

Adapter and bin level kit for 22" cubers and GEM only ice makers on IOD150

Adapter and bin level kit for 30" cubers and GEM only ice makers on IOD200, 250

Adapter and bin level kit for 22" cubers and GEM only ice makers on IOD200, 250

Field installed Gem ice diverter kit for all IOD (ED and DF) dispensers

GEM Ice-level kit for all IOD dispensers with GEM ice maker

Kit, Ice Slide, Ice Level Control & KGEMDIV for Cornelius ED or DF 200

Kit, Ice Slide, Ice Level Control & KGEMDIV for Cornelius ED or DF 250

List Price ($)

$300

$455

$455

$125

$435

$435

$435

$105

$135

$395

$395

Approx. Shipping

Weight lbs

10

12

13

28

22

33

33

1

2

5

5

GEM • 095 • 6 • A

A=Air Cooled, W=Water Cooled, R=Remote Condenser

Voltage

Ice production Approximately 950 lbs.

Modular Pearl Ice

P E A R L I C E

®

5

6

All dimensions in inches

Model

Number

EF250A32S

List

Price ($)

Ice Production lbs/24 hr @ 70°F Air

50°F Water

Ice Production lbs/24 hr @ 90°F Air

70°F Water

Bin

Storage lbs

Voltage

Characteristics

$6590

400 319 143 115/60/1

Approx.

Shipping

Weight-lbs

240

41"

28"

32"

28"

38"

41"

EF450A32S $6770

EF250A38S $7060

EF450A38S $7315

EF800A38S $8595

EF450A48S $8015

472

400

472

772

472

360

319

360

616

360

143

213

213

213

315

115/60/1

115/60/1

115/60/1

115/60/1

115/60/1

41"

48"

28"

Note: All condensing units are AIR cooled.

EF800A48S $9475

All dimensions in inches

24"

21"

27"

Model

Number

MFI0500A

MFI0500W

MFI0800A

MFI0800W

MFI0800R

MFI1256A

MFI1256W

MFI1256R

772 616 315 115/60/1 325

List

Price ($)

$5600

$5600

$6990

$6990

$6885

$8815

$8815

$8710

Ice Production lbs/24 hr @ 70°F Air

50°F Water

540

541

768

859

819

1149

1137

1054

Ice Production lbs/24 hr @ 90°F Air

70°F Water

401

456

579

690

675

845

959

867

Condensing

Unit

Air

Water

Air

Water

Remote

Air

Water

Remote

Voltage

Characteristics

115/60/1

115/60/1

115/60/1

115/60/1

115/60/1

208-230/60/1

208-230/60/1

208-230/60/1

Approx.

Shipping

Weight-lbs

190

190

200

200

200

220

220

220

27" (686 mm)

MFI2406LS $13465

2365

2000

42"

(1067 mm)

*Note: Remote condensers and line sets are required for remote-cooled ice makers. See Remote Condensers on page 7.

Remote

Low Side

208-230/60/1

All dimensions in inches

Model

Number

255

List

Price ($)

Ice Production lbs/24 hr @ 70°F Air

50°F Water

Ice Production lbs/24 hr @ 90°F Air

70°F Water

Condensing

Unit

Voltage

Characteristics

Approx.

Shipping

Weight-lbs

EF450A $6205

472 360 Air 115/60/1 160

250

250

260

290

300

EF800A $7205

772 616 Air 115/60/1 160

EF • 80 0 A • 38 • S

Cabinet Finish: S = Stainless Steel

Cabinet Size: 32, 38 or 48

Condenser Type: A = Air, W = Water, R = Remote

Unit electrical characteristics: 0, 6, ...

Basic Family Size: (e.g.) 25, 45, 80, etc.

Model: EF = Self-Contained Flake Ice Maker, EMF = Modular Flake Ice Maker

F L A K E D I C E

All dimensions in inches

D W

H

Model

Number

VRC1001B

VRC1061B

VRC2061B

VRC2661B

VRC5061B

List

Price ($) Description

$1415

Remote Condenser for ICE0500

$1425

Remote Condenser for ICE0606

$1425

Remote Condenser for ICE0806, ICE1006, ICE1007

$1455

Remote Condenser for ICE1406, ICE1407, ICE1506

$2035

Remote Condenser for ICE1806, ICE1807, ICE2106,

ICE2107

Dimensions

WxD.H

inches

29½ x 293/16 x 39

29½ x 293/16 x 39

29½ x 293/16 x 39

29½ x 293/16 x 39

29½ x 293/16 x 39

Condenser

Voltage

115/60/1

208-230/60/1

208-230/60/1

208-230/60/1

Approx.

Shipping

Weight-lbs

122

124

124

126

208-230/60/1 145

H

GRC1001 $1190

Remote Condenser for GEM0650 or MFI0800 45 x 221/8 x 29½ 115/60/1 122

D

W

GRC1061 $1430

Remote Condenser for GEM0956 or MFI1256 45 x 221/8 x 29½ 208-230/60/1 124

Precharged Tubing Kits

Model Number List Price ($)

RT325 404

RT340 404

RT345 404

RT360 404

RT375 404

VRC

GRC • 26 6 • 1

$335

$420

$435

$510

$640

Description

25 ft. Precharged Tubing Kit for units using R-404A refrigerant

40 ft. Precharged Tubing Kit for units using R-404A refrigerant

45 ft. Precharged Tubing Kit for units using R-404A refrigerant

60 ft. Precharged Tubing Kit for units using R-404A refrigerant

75 ft. Precharged Tubing Kit for units using R-404A refrigerant

Indicates Single Circuit Condenser

Unit Electrical Characteristics: 0 or 6

Size: Condenser Family Size.

Model: Remote Condenser

All dimensions in inches

D

H

Model

Number

B25PP

B40PS

B42PS

B55PS

B100PS

B120SP†

B120SS†

B150SP†

B150SS†

B170SP†

B170SS†

List

Price ($)

$1220

$1445

$1535

$1690

$2370

$4795

$5900

$5510

$6790

$5910

$7140

Application Bin Storage lbs

242

344

351

510

854

1142

1142

1447

1447

1807

1807

Approx. Shipping Weight lbs (kg)

13

18

19

26

33

ARI Bin Storage lbs

190

270

275

400

670

896

896

1135

1135

1417

1417

Bin Dimensions

WxDxH inches

30 x 31 x 28

30 x 31 x 37

1

/

2

22 x 31 x 50

30 x 31 x 50

48 x 31 x 50

48 x 34 x 54

48 x 34 x 54

60 x 34 x 54

60 x 34 x 54

60 x 34 x 66

60 x 34 x 66

Approx.

Shipping

Weight-lbs

74

120

128

148

191

304

304

338

338

390

390

34"

CRT125

$1190

94 74 24 x 24 x 34 90

24"

24"

†Bin Top is included free of charge for each Flake or Cube Ice Maker if B120, 150 or 170 bin, Bin Top and ice maker accompanying the bin are ordered together and on the same order. An order that does not indicate a specific ice maker for each B120, 150 or 170 bin, and orders that consist of individual Bin Tops, are subject to List Pricing.

7

8

Bin Tops For combining wider bins with smaller models

Model Number

KBT5

KBT19

KBT22

KBT23

KBT24

KBT26

Description

Bin Kit for (1) 30” ICE Series™ Cuber on a 48” Bin

Bin kit for 22” ICE, MFI and GEM Series on a 30” Bin

Bin Kit for (2) GEM or (2) MFI Series on a 48” Bin

Bin Kit for (1) GEM or (1) MFI Series on 48” Bin

Bin Kit for (1) GEM or (1) MFI on a 22” Bin

Bin Kit for (1) MFI2406 on a 48” Bin

B • 55 • PS

PS/SP/S = Stainless Steel/Galvanized Exterior, SS = All Stainless Steel Exterior,

PP = Plastic Exterior

Approx. Size: 55= 550 lbs. capacity

Model B = Bin

List Price ($)

$410

$300

$455

$455

$125

$235

Approx. Shipping

Weight lbs

30

22

33

33

10

8

Kits for combining wider bins with smaller models

60Hz

Model No.

Capacity

Width

B25

255 lbs

30 in.

B40

365 lbs

30 in.

B42

374 lbs

22 in.

B55

556 lbs

30 in.

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

<

ICE0400

ICE0406

ICE0500

ICE0520

ICE0606

ICE0806

ICE1006

ICE1406

MFI0500

MFI0500 (2)

MFI0800

MFI0800 (2)

MFI1256

MFI1256 (2)

MFI2406LS

GEM0450

GEM0450 (2)

GEM0650

GEM0650 (2)

GEM0956

GEM0956 (2)

ICE0250

ICE0320

ICE1506

ICE1806

ICE2106

KBT19

N/A

KBT19

N/A

KBT19

N/A

N/A

KBT19

N/A

KBT19

N/A

KBT19

N/A

<<

KBT 19

<<

<<

<<

KBT 19

<<

<<

<<

N/A

N/A

N/A

N/A

KBT19

N/A

KBT19

N/A

KBT19

N/A

N/A

KBT19

N/A

KBT19

N/A

KBT19

N/A

<<

KBT 19

<<

<<

<<

KBT 19

<<

<<

<<

N/A

N/A

N/A

N/A

KBT24

N/A

KBT24

N/A

KBT24

N/A

N/A

KBT24

N/A

KBT24

N/A

KBT24

N/A

N/A

<<

N/A

N/A

N/A

<<

N/A

N/A

N/A

N/A

N/A

N/A

N/A

KBT19

N/A

KBT19

N/A

KBT19

N/A

KBT19

N/A

KBT19

N/A

KBT19

N/A

N/A

<<

KBT 19

<<

<<

<<

KBT 19

<<

<<

<<

N/A

<<

N/A

N/A

<<

Kit not required

<

Filler Kit Required

Note: 30” wide cubers combined with a B120, B150 or B170 must be specified when ordering.

B100

927 lbs

48 in.

KBT23

KBT22

KBT23

KBT22

KBT23

KBT22

KBT 5

N/A

KBT23

KBT22

KBT23

KBT22

KBT23

KBT22

KBT26

KBT 5

KBT 5

KBT 5

N/A

KBT 5

KBT 5

KBT 5

<<

N/A

<<

<<

<

<

<<

N/A

<<

<<

<<

N/A

N/A

N/A

N/A

N/A

N/A

B150

1499 lbs

60 in.

N/A

N/A

N/A

N/A

N/A

N/A

<<

N/A

<

<

<

N/A

<

<

<

<<

N/A

<<

<<

B120

1193 lbs

48 in.

KBT23

KBT22

KBT23

KBT22

KBT23

KBT22

<<

KBT23

KBT22

KBT23

KBT22

KBT23

KBT22

<

N/A

<

<

<

N/A

<

<

<

<<

N/A

<<

<<

<<

N/A

N/A

N/A

N/A

N/A

N/A

B170

1866 lbs

60 in.

N/A

N/A

N/A

N/A

N/A

N/A

<<

N/A

<

<

<

N/A

<

All dimensions in inches

Model

Number

List

Price ($)

Dispenser

Operated by

Dimensions

WxDxH-inches

ARI Bin

Storage lbs

Voltage

Characteristics

Approx.

Shipping

Weight-lbs

IOD150 $4590

Cup Activated 22¼ x 3011/16 x 355/8 150 115/60/1 139

IOD200 $5495

Cup Activated 30¼ x 3011/16 x 355/8 200 115/60/1 190

IOD250 $6600

Cup Activated 30¼ x 3011/16 x 395/8 250 115/60/1 195

Accessories: Ice Dispensers

Model

Number

KBT15022

KBT25030

KBT25022

Description

Adapter and bin level kit for 22" cubers and Pearl Ice makers on IOD150

Adapter and bin level kit for 30" cubers and Pearl Ice makers on IOD200, 250

Adapter and bin level kit for 22" cubers and Pearl Ice makers on IOD200, 250

KGEMDIV

Field installed Gem ice diverter kit for all IOD (ED and DF) dispensers

KGEMBIOD GEM Ice-level kit for all IOD dispensers with GEM ice maker

KWGFID

Water glass filler kit for IOD150, 200, 250 (Field installed only)

All dimensions in inches

24"

Model

Number

List

Price ($)

Dispenser

Operated by

List

Price ($)

$435

$435

$435

$105

$135

$300

Approx.

Shipping

Weight lbs

12

13

28

1

2

2

Dimensions

WxDxH inches

C U B E D I C E ™

ARI

Bin Storage-lbs

Voltage

Characteristics

P E A R L I C E ®

Approx.

Shipping

Weight-lbs

23"

CD40022 $4585

Push 22 x 33½ x 53¼ 120 115/60/1 200

53.25"

33.5"

24"

22"

CD40030

CD40130

CD40230

$5395

Push 30 x 33½ x 53¼

$5935

Push / Water 30 x 33½ x 53¼

$6015

Coin / Token 30 x 33½ x 53¼

180

180

180

115/60/1

115/60/1

115/60/1

230

230

230

33.5"

Accessories: Hotel Dispensers

Model Number

TKNS

Description

500 tokens for use with CD40230

List

Price ($)

$200

Approx. Shipping

Weight lbs (kg)

7

Model CD40030, 40130, 40230 Dispensers accept only 30” wide Ice Series™ Cube Ice Makers (excluding the ICE1506)

Model CD40022 Dispensers accept only 22” wide Ice Series™ Cube Ice Makers

Note #1: CD40022 and CD40030 Series units do not require an Adapter and Bin Level Kit

Note #2: Water dispensers and coin / token mechanisms cannot be field installed on the CD40130 or CD40230 Series Dispensers

Note #3: CD40130 and CD40230 Series Dispensers cannot have a water dispenser and coin / token mechanism on the same machine

Note #4: The CD40230 accepts 1 US Quarter or token only. Multiple coin / token mechanism can be special-ordered and field-installed at additional cost. Contact Ice-O-Matic for more details.

Note #5: No adaptor for 22" wide machine on 30" dispensers.

C U B E D I C E ™

9

All dimensions in inches

Model

Number List Price ($) Description

Flow Rate

Max gpm

Pressure

Max. psi

Max

Operating

Temp F˚

Micro

Rating

Approx

Shipping

Weight-lbs

IFQ1* $320

Single filter

IFQ1

15"H x 6"W X 4"D

IFQ2

16"H x 10"W X 6"D

IFI4C, IFI8C

11" x 2.5"

IOMQ

12.75" x 4"

1.5

IOMWFRC

11" x 2.5"

125 100 1 4

IFQ2* $780

Dual filter 3.0

125 100 1 8

IFQ1

15"H x 6"W X 4"D

IFQ2

16"H x 10"W X 6"D

IFI4C, IFI8C

11" x 2.5"

IFI4C*

IOMQ

12.75" x 4"

IOMWFRC

11" x 2.5"

$120

Single Inline

Cartridge

¼" Compression

1.0

100 100 10 2

IFQ1

15"H x 6"W X 4"D

10

IFI8C*

IOMQ

12.75" x 4"

$120

IOMWFRC

11" x 2.5"

Single Inline

Cartridge

3/8" Compression

IFQ2

16"H x 10"W X 6"D

IFI4C, IFI8C

11" x 2.5"

Optional water pressure gauges included with IFQ1 and IFQ2 filtration Systems

1.0

100 100 10 2

IOM Replacement Cartridges

Model Number

IOMQ

List Price ($)

$120

Description

Single quick-twist replacement cartridge for IFQ1 or IFQ2

Filter Cartridge Features:

• Inhibit the formation of scale

• Remove dirt and sediment

• Reduce chlorine and taste & odor

Ice-O-Matic recommends the use of water filtration with all ice making products. .

Filter System Sizing Chart

Ice-O-Matic Cube Ice Maker

ICEU070, 150, 220, 226, 300,

ICE0250, 0320, 0400, ICE0406, 0500,

0520, 0606

ICE0806

ICE1006, 1406,1506, ICE 1806, 2106

Ice-O-Matic Flake Ice Maker

EF250, EF450

MFI0800, EF800

MFI1256, MFI2406

Ice-O-Matic Pearl Ice® Maker

Recommended Ice-O-Matic

Water Filter

GEM0450

IFQ1 (Single Manifold cartridge Filter System)

IFI4C or IFI8C (Single inline Filter System)

GEM0650, GEM0956 IFQ1 (Single Manifold cartridge Filter System)

IFQ2 (Dual Manifold cartridge Filter System)

IFI • 4 • C

Fitting Type: C = Compression

Fitting Size: 4 = 1/4", 8 = 3/8"

Filter Type: IFI = Ice-O-Matic Filter, INLINE TYPE

IFQ • 1

Number of Cartridges: 1 = Single, 2 = Dual

Filter Type: IFQ = Ice-O-Matic Filtration System, IFQ Series

*7 year evaporator warranty!

(see page 11 for details)

General Information

Terms and Conditions

• Suggested list prices are F.O.B. Denver, Colorado.

• This price list is effective March 1, 2010 and supersedes all previous price schedules.

• Specifications and prices are subject to change without notice.

• ARI certification is based on 90 degrees air and 70 degrees water.

• All height dimensions of bins and ice makers with built-in storage include the height of the legs or caster where applicable.

• Domestic purchase of any Ice-O-Matic equipment shipping outside the United States will include a 6% up-charge.

Ice Maker Warranty

Every Ice-O-Matic Ice Maker is backed by a warranty that provides both parts and labor coverage.

Cube Ice Makers – ICE Series

• Three years Parts and Labor.

• Five years Parts coverage on the evaporator and the compressor.

Seven years Parts and Labor on the evaporator when you

purchase an Ice-O-Matic water filter with your cube ice maker and replace the filter every 6 months (available in the U.S.A. and Canada only).

Flake Ice Makers – EF and MFI Series

• EF Undercounter- Two years Parts and Labor.

• MFI Modular- Three years Parts and Labor.

• EF/MFI- Five years Parts coverage on the compressor.

Pearl Ice® Makers – GEM Series

• Modular- Three years Parts and Labor.

• Countertop Dispenser- Two years Parts and Labor.

• Modular/Dispenser- Five years Parts coverage on the compressor.

Dispensers – CD and IOD Series

• IOD Countertop Dispensers- Two years parts warranty and

One year labor warranty.

• CD Hotel Dispensers- Three years Parts and Labor warranty.

Storage Bins- B Series

• Two years Parts and Labor warranty.

Water Filter Manifold Systems

• One year Parts and Labor warranty (excluding cartridges).

Water Filtration System Extended Warranty Program

• Buy a new Ice-O-Matic IFQ Series Water Filtration System with a new ICE Series™ Cube Ice Maker, replace the filter cartridge every

6 months, and Ice-O-Matic will extend the limited cuber evaporator warranty to 7 years parts and labor.

• New ice maker and filter must be installed at the same time.

• Must send in both the ice maker and water filter registration cards within 10 days of installation. Registration card must include the filter serial number(s).

• Must send in additional registration card for each new replacement cartridge installed (replacement cartridges have individual serial numbers). This must be done every 180 days (6 months) or less.

• Program is available with all IFQ1, IFQ2, IFI4, and IFI8 filter systems.

• Replacement cartridge must be an Ice-O-Matic replacement cartridge IOMQ or IOMWFRC (See sizing chart for cartridge requirements).

• Available in the USA and Canada only.

11

ICE. PURE AND SIMPLE™ • 11100 E. 45TH AVENUE • DENVER, CO 80239 • 303.371.3737 • 1.866.PURE.ICE

www.iceomatic.com

About Ice-O-Matic

Located in Denver, Colorado, Ice-O-Matic manufactures a wide range of commercial ice making products including cube ice makers, flaked ice makers, storage bins, dispensers and water filters. Since 1952, we have been developing new technologies and programs, such as the introduction of AgION®

Antimicrobial Compound in our ICE Series cube ice makers and our extended warranty water filter program, which have resulted in the creation of products that are more efficient for business and safer for the environment.

Ice with a Clear Conscience

Plant-a-Tree Program

As part of our commitment to the global environment, Ice-O-Matic is devoted to sustainability in every aspect of our business. To ultimately offset the carbon footprint of our factory in Denver, we not only use recycled materials in our packaging and manufacturing, but also recycle our industrial and office waste products. More important, we plant a tree for every ice machine we sell to contribute to the reforestation of key regions throughout the world. Our goal is to plant 150,000 trees through our Global Sustainability program. In just a couple of months, we will plant enough trees to offset the entire carbon footprint of our factory, and by the end of our program, we will have planted enough trees to absorb the CO

2

emissions from more than 15 factories like Ice-O-Matic each year. Trees reduce topsoil erosion, prevent harmful land pollutants from getting into our waterways, and replace air pollutants with fresh, clean oxygen.

Now, you can do your part to help the environment when you buy an Ice-O-Matic ice machine.

ENERGY STAR

®

Many Ice-O-Matic models have earned an EPA ENERGY STAR® rating. This distinction is recognized by a growing number of states, municipalities, and energy companies in the form of incentives and rebates. To find out if you are eligible for tax credits, visit www.energystar.gov.

Pure Ice Program

1. 7-year Warranty—Utilize Ice-O-Matic water filters and change them every 6 months, and the evaporator warranty is

extended to 7 years—the only 7-year warranty in the industry.

2. Filter/Cleaning Reminders—Receive free reminders via mail every 6 months for filter changes to ensure that the

warranty is valid.

3. AgION® Antimicrobial Compound—A-naturally-occurring antimicrobial compound is used in materials for greater

food safety. AgION—Nature’s antimicrobial.

Made In America

Ice-O-Matic ICE Series cubers (except ICEU070), Pearl Ice machines (except GEMD270), flake ice machines, and bins are made in the U.S.A.

©2010 Ice-O-Matic. We reserve the right to make changes in design, specifications, and content at any time without obligation.

AgION® anitimicrobial is registered with the EPA and is a trademark of AgION Technologies.

ENERGY STAR is a registered trademark of the U.S. Government.

Part No. 2060

03/10 SD

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
