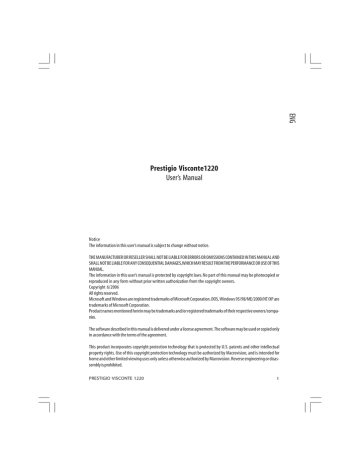

Prestigio Visconte1220

User’s Manual

Notice

The information in this user’s manual is subject to change without notice.

THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR OMISSIONS CONTAINED IN THIS MANUAL AND

SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE PERFORMANCE OR USE OF THIS

MANUAL.

The information in this user’s manual is protected by copyright laws. No part of this manual may be photocopied or reproduced in any form without prior written authorization from the copyright owners.

Copyright 6/2006

All rights reserved.

Microsoft and Windows are registered trademarks of Microsoft Corporation. DOS, Windows 95/98/ME/2000/NT/XP are trademarks of Microsoft Corporation.

Product names mentioned herein may be trademarks and/or registered trademarks of their respective owners/companies.

The software described in this manual is delivered under a license agreement. The software may be used or copied only in accordance with the terms of the agreement.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

PRESTIGIO VISCONTE 1220 1

2

Preface

Protecting Your Computer - Avoid Abusive Handling and Adverse

Environment

Follow the advice below will help ensure that you get the most out of your Investment.

Your computer will serve you well if you take good care of it.

Do not expose the computer to direct sunlight or place it near sources of heat.

Do not subject it to temperatures below 0oC (32oF) or above 35oC (95oF).

Do not expose the computer to magnetic fields.

Do not expose the computer to moisture or rain.

Do not spill water or liquid on the computer.

Do not subject the computer to adverse shock and vibration.

Do not expose the computer to dust and dirt.

Do not place objects on top of the computer to avoid damaging the computer.

Do not place the computer on rocky surfaces.

Here are some ways of taking care of your AC adapter.

Do not connect the adapter to any devices other than your computer.

Do not let water get into the adapter.

Do not block the ventilation airway of the adapter.

Keep the adapter in a cool and ventilated place.

Do not step on the power cord or place heavy objects on top of it.

Carefully tuck away the power cord and any cables away from pedestrian traffic.

When unplugging the power cord, do not pull on the cord itself but pull on the plug.

Keep the adapter away from children.

The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord.

The total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Do not connect other AC adapter to your notebook. This Notebook uses exclusively the AC adapter: Lishin 0335A2065

(65W), Lishin 0335C2065 (65W), Liteon PA-1650-01 (65W), Liteon PA-1650-02 (65W), EPS F10653-A(65W)

When cleaning the computer, observe these steps:

1. Power off the computer and remove the battery pack.

2. Disconnect the AC adapter.

3. Use a soft cloth dampened with water. Do not use liquid or aerosol cleaners.

Contact your dealer or see your service technician if any of the following occurs:

Computer has been dropped or the body has been damaged.

Liquid has been spilled into the product.

The computer does not operate normally.

PRESTIGIO VISCONTE 1220

Cleaning the Ventilation Grills:

It is suggested that you clean the ventilation grills regularly to maintain optimal thermal regulation of the notebook.

To do this, you may use a soft brush or a vacuum cleaner (with appropriate head adapter) to remove the dust buildup on the ventilation grills.

GETTING TO KNOW THE BASICS

This chapter introduces the features and components of the computer.

Performance Features

High Performance Processor with Intel 945GM Chipset

The notebook PC is equipped with a powerful Mobile Intel Yonah dual-core (Core Duo) or Mobile Intel Yonah singlecore (Core Solo) processor. Together with the latest Intel chipset and technologies, the system offers very advanced PC performances.

Advanced Graphic Engine

The Intel 945GM Express chipset is integrated with the next-generation Intel Graphics Media Accelerator GMA950. The new graphic engine provides enhanced multimedia MMX support and better performance than its previous generation.

Wide-Screen LCD Display

The computer is equipped with a wide-screen 12.1-inch TFT high-resolution display panel for the best cinematic viewing experience.

Digital TV Receiver (Optional DVB-T module)

The optional DVB-T (Digital Video Broadcast – Terrestrial) module allows you to watch high-quality digital broadcast

TV on your notebook computer.

Instant-On Multimedia Player (Optional)

With a touch of the button, you can quickly launch the unique Instant-On multimedia player that allows you to play video, view pictures, and listen to music without having to boot to Windows.

Mobile 3G Telecom Module (Optional Device)

The optional 3G communication module allows you to receive digital entertainment services on your notebook computer via the 3G telecom networks.

ExpressCard Technology

ExpressCard (type I, 34mm) is the next-generation of the PC Card standard. The bus interface is based on the two standards: PCI Express for high-performance I/O and USB2.0 for variety of devices.

Expandability

The system offers upgradeable hard disk drive and 2 DDRII SDRAM sockets for expansion, allowing the user to easily increase the storage and system capacities as the need arises.

PRESTIGIO VISCONTE 1220 3

Built-in Multiple Card Reader

There is built-in 4-in-1 card reader to access many of the portable media formats (SD Card, MS Card, MMC Card, and MS-

Pro Card).

Gigabit Ethernet Port

The system provides built-in 10/100/1000Mbps Ethernet network adapter for high bandwidth network connection.

Firewire (IEEE1394 / 1394a) and USB2.0 ports

In addition to a full array of built-in I/O ports, the computer offers IEEE1394 for ultra high-speed connection to high bandwidth digital video devices and USB2.0 ports to connect to any USB-based peripheral devices.

Wireless LAN

The internal Wireless LAN module allows your notebook to connect wirelessly to other 802.11-enabled systems, devices, or network.

System At A Glance

Top View

4 PRESTIGIO VISCONTE 1220

1. LCD Display

The panel is where the system content is displayed.

2. LED Status Indicator

The LED Status indicators reveal the status of the system power state, battery-charging state, Instant-On/Suspend state, and the WLAN switch enabling and disabling. See the LED Status Indicator Section for details.

3. Keyboard

The keyboard is used to enter data. (See Keyboard Section for details.)

4. Touch Pad

The touch pad is a built-in pointing device with functions similar to a mouse.

5. Built-in Microphone

The built-in microphone records sound.

6. Instant-On Multimedia Player Launch Button (Optional) / Silent Mode

Button

When the system is powered off, pressing the key launches Instant-On multimedia application that allows you to watch movies files, listen to music, or view photos in the optical drive, hard disk drive, or external storage without having to boot to Windows. Press the key again to turn off the notebook. Please go to Instant-On Multimedia Player Application section in this chapter for more information.

When the system is in Windows, pressing the key enables the system to lower its power usage; therefore the fan speed is reduced to achieve lowest operating noise.

When Silent Mode is enabled, the (Silent) LED status indicator shows steady green light.

7. Power / Suspend Button

The power/suspend button turns the notebook on and off and it also acts as a system suspend key. Press momentarily to turn on the system. Press and hold for at least 4 seconds to turn off the system. How this key behaves can be defined in [Start > Settings > Control Panel > Power Options > Advanced] menu. Press the power / suspend button again to return from the suspend mode. (See Chapter 3 for more details on system suspend function.)

When the system is in Suspend Mode, the (Silent) LED status indicator shows blinking green light.

PRESTIGIO VISCONTE 1220 5

Front View

Warning: Do not place any heavy objects on the top of notebook. This may damage the display

1. Wireless On/Off Switch

Use the Switch to disable or enable the Wireless function.

When Wireless LAN function is enabled, the (Wireless) LED status indicator shows steady blue light.

2. Built-in Stereo Speakers

The built-in speakers output the sound in stereo.

3. Ventilation Grill

The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely.

Side Views

6

Warning: Do not place any heavy objects on the top of notebook. This may damage the display

PRESTIGIO VISCONTE 1220

1. Optical Drive and Disk Eject Button and Manual Eject Key Hole

If your computer comes with the Combo drive, DVD-Dual or Super-Multi drive, you may save data onto a CD-R / CD-RW or DVD RW disc. Press the eject button to eject the disk tray. The manual eject keyhole allows you to manually eject a jammed disk.

2. External VGA Port

The VGA video output port is for connecting the external LCD monitor or projector.

3. Power Jack (DC-in)

The DC-out jack of the AC Adapter connects here and powers the computer.

4. Antenna Connector for DVB-T Digital Video Broadcast TV (Optional

Device)

There is an antenna connector on the left side of the notebook. If your system has the DVB-T option, you should plug the antenna into the connector. Please see DVB-T Digital Video Broadcast TV section later in this chapter for more information. Please see Chapter 4 if you are installing the DVB-T module by yourself.

5. Kensington Lock Key Hole

A Kensington-type security lock latches to this keyhole for anti-theft purpose.

6. USB2.0 Port (x3)

The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety of devices to your computer at a rate of up to 480 Mbps. This port conforms to the latest USB2.0 plug-and-play standards.

7. Firewire / IEEE1394 / 1394a Port

This is a high-speed serial data port. You may connect any Fire-wire-ready device to this port.

8. 4-in-1 Card Reader

The 4-in-1 Card Reader supports SD Card, MS Card, MMC Card, and MS-Pro Card.

9. ExpressCard Slot

The slot is where Express Card (Type I, 34mm) is inserted. ExpressCard integrates both the PCI-Express bus technology and

USB2.0 interface.

Press the card into the slot to insert. Press the card again to eject.

10. Stereo Headphone / SPDIF-out Jack

The stereo headphone jack (3.5-mm diameter) is where you connect the headphones or external speakers. Alternatively, you may connect the S/PDIF output to an external DTS, AC3, or PCM sound processor / decoder in your home stereo system.

PRESTIGIO VISCONTE 1220 7

11. Microphone/Audio Line-in Jack

The microphone/Audio Line-in jack (3.5-mm diameter) is where you connect a microphone or an external audio input source such as a CD Player..

12. Ethernet / LAN Port

The port connects to a network hub via the RJ-45 cable and also conforms to 10/100/1000Base-TX transmission protocol.

13. Ventilation Grill

The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely.

Bottom View

8

1. Battery Pack and Battery Latch

The battery pack is a built-in power source for the notebook. Slide the battery latch to release the battery pack.

PRESTIGIO VISCONTE 1220

2. Ventilation Grill

The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely.

Warning: Do not block the Fan Grill outlet. Place the machine on hard surface only. The bottom case may get very hot.

3. System Device Cover

The system’s processor with cooler assembly, Wireless LAN module, HDD, and DDR memory module are located under the case cover. The system memory can be upgraded to a larger capacity. (See Chapter 4 for instructions on the memory and

HDD upgrade.)

4. DVB-T Receiver Module Cover

The optional DVB-T Receiver module is installed under the cover. Please see Chapter 4 if you are installing the DVB-T module by yourself.

AC Adapter

1. DC-out Connector

The DC-out connector docks to the power jack (DC-in) on the computer.

2. Adapter

The adapter converts alternating current into constant DC voltage for the computer.

3. AC Plug

The AC plug plugs to the AC wall outlet.

PRESTIGIO VISCONTE 1220 9

LED Status Indicator

The LED Status Indicator displays the operating status of your notebook. When a certain function is enabled, an LED will light up. The following section describes its indication.

System & Power Status Indicators

LED Graphic Symbol Indication

Blue light indicates the WLAN module is active.

Persistent green light indicates the Silent Mode is enabled.

Blinking green light indicates the notebook is in the suspend mode.

Blinking orange light indicates the battery is being charged.

Blinking green light indicates the battery power is low when the system is turned

ON.

Persistent green light indicates the AC power is plugged in and the system is turned

ON.

10 PRESTIGIO VISCONTE 1220

OSD Status Indicator

The On-screen Status Display Indicator displays the operating status of your notebook. When a certain function is enabled, the symbol will show up on windows. The following section describes its indication.

OSD Status Indicators

Action

Fn + F3: Audio Mute

Fn + F5: Audio Volume Up

Fn + F6: Audio Volume Down

Fn + F7: Display Brightness Up

Fn+ F8: Display Brightness Down

Fn + Num Lock: Numeric Keypad is ON

Graphic Symbol

Caps Lock: Capitalization is On

Scroll Lock: Scroll Lock is On

Keyboard Features

Function Keys (Quick Keys)

Graphic Symbol Action

Fn + F1

System Control

Enters Suspend Mode.

Fn + F3

Fn + F4

Fn + F5

Fn + F6

Fn + F7

Fn + F8

Turns of the battery warning beep off or on.

Changes Display Mode: LCD-only, CRT-only and LCD&CRT.

Turns Speaker Volume up.

Turns Speaker Volume down.

Increases Display Brightness.

Decreases Display Brightness.

PRESTIGIO VISCONTE 1220 11

Graphic Symbol Action System Control

Fn+Num Lk Enables the embedded keypad to work in numeric mode. The keys act like numeric keypads in a calculator. Use this mode when you need to do a lot of numeric data entry. An alternative would be to connect an external numeric keypad.

Caps Lock

Scroll Lock

When Caps lock is enabled, all the characters you enter become capitalized.

Press the Scroll Lock key and then press ^or vto move one line up or down.

For various system controls, press the Fn (Function) key and the Fx key simultaneously.

Windows Keys

Your keyboard also has two Windows keys:

1. Start Key

This key allows you to pull up the Windows Start Menu at the bottom of the taskbar.

2. Application Menu Key

This key brings up the popup menu for the application, similar to a click of the right mouse button.

Embedded Numeric Keypad

Press Fn+Num Lk to enable the embedded numeric keypad. The numbers are printed in upper right corner of a key, in a color different from the alphabets. This key pad is complete with arithmetic operators (+, -, * , /).

Press Fn+Num Lk to revert to normal character keys.

12 PRESTIGIO VISCONTE 1220

Touch Pad

The built-in touch pad, which is a PS/2-compatible pointing device, senses movement on its surface. As you move your fingertip on the surface of the pad, the cursor responds accordingly.

The following items teach you how to use the touch pad:

1. Move your finger across the touch pad to move the cursor.

2. Press buttons to select or execute functions. These two buttons are similar to the left and right buttons on a mouse.

Tapping on the touch pad twice produces is similar to clicking the left button of a mouse.

Function

Execution

Left Button

Click twice quickly

Right Button

Selection

Drag

Click once

Click and hold to drag the cursor

Equivalent Tapping Action

Tap twice (at the same speed as doubleclicking the mouse button)

Tap once

Tap twice quickly and on the second tap hold finger to the touch pad to drag the cursor

Access Context Menu

Move One Page Up or Down

Click once

Tips on Using the Touch Pad:

1. The double-click speed is timed. If you double-click too slowly, your notebook responds as if you single-clicked twice.

2. Keep your fingers dry and clean when using the touch pad. Also keep the surface of touch pad clean and dry to prolong its life.

3. The touch pad is sensitive to finger movements. Hence, the lighter the touch, the better the response. Heavy touch does not produce better response.

Graphic Subsystem

Your computer uses a high performance 12.1-inch active matrix TFT panel with high resolution and multi-million colors for comfortable viewing. The Intel integrated GMA950 video graphics accelerator, which is Microsoft DirectX 9 compatible, performs graphic rendering at a lighting-fast speed.

Adjusting the Display Brightness

The notebook uses special key combinations, called hot keys, to control brightness.

Press Fn+F7 to increase the brightness.

Press Fn+F8 to decrease the brightness.

Note: To maximize your battery operating time, set the brightness to the lowest comfortable setting, so that the internal backlight uses less power.

PRESTIGIO VISCONTE 1220 13

Extending the Life of the TFT Display Device

Observe the following guidelines to maximize the life of the backlight in the display.

1. Set the brightness to the lowest comfortable setting (Fn+F8).

2. When working at your desk, connect your notebook to an external monitor and disable the internal display Fn+ F4.

3. Do not disable the suspend time-outs.

4. If you are using AC power and have no external monitor attached, change to suspend mode when not in use.

Opening and Closing the Display Panel

To open the display, lift up the lid. Then tilt it to a comfortable viewing position. The LCD panel has a maximum opening of 135 degrees. Do not push it down forcibly.

To close the display cover, fold it down gently.

Warning: To avoid damaging the display, do not slam it when closing. Do not place any object on top of the computer when the display is closed

DVB-T Digital Video Broadcast TV (Optional Device)

The optional DVB-T (Digital Video Broadcast – Terrestrial) module allows you to watch high-quality digital video broadcast TV on your notebook computer.

If your system has the DVB-T option, you should plug the antenna into the connector.

You may have to move the antenna close to the window and away from the building for best reception.

14 PRESTIGIO VISCONTE 1220

If this is the first time you use the DVB-T module to watch TV, you need to scan the available channels first. Follow the steps below to scan the channels.

1. Launch NewSoft Presto!PVR application. Click to open the Settings dialog box, and then click the Device tab.

2. Choose the DVB-T tuner on the Device list.

3. Click the Program tab on the Settings dialog box and click Scan to scan for available channels. If a program (channel) is found, it will be included in the program list. When finished, you can choose a program and edit its name.

4. Press Ok and close the Settings dialog box.

5. You are ready to watch TV.

If you system comes with the DVB-T Module already installed, you may use NewSoft Presto!PVR to watch and record the TV programs.

PRESTIGIO VISCONTE 1220 15

Audio Subsystem

Your computer’s audio subsystem is Sound Blaster Pro-compatible.

Adjusting the Volume Manually

To increase the volume, press Fn+F5.

To decrease the volume, press Fn+F6.

Adjusting the Audio Volume in Windows

1. Click the speaker symbol in the task tray in Windows.

2. Drag the volume control bar up or down to adjust the volume.

3. To temporarily silence the speaker without changing the volume setting, click Mute.

Voice Recording

A built-in microphone allows you to record sound. You will need to use audio processing software to enable the builtin microphone. For example, you may use Microsoft Sound Recorder.

Instant-On Multimedia Player (Optional)

Instant-On Multimedia Player is an easy way to play DVD disc or video clips, view pictures, listen to music, and watch digital broadcast TV (if the optional DVB-T Module is installed). Instant-On does not work under Windows.

Note: The following is an easy guide for Instant-On Player. For more information, please refer to its user guide or Help screen.

Note: Instant-On supports most of the popular media formats; however, it does not support

Animated GIF.

Instant-On Action Keys

Use the following keys to move through the Menu items.

Key Command

M Menu

F1 Instruction Menu

/\ \/ <>

Enter Selection

Description

Press to show the General Setup Menu.

Press again to exit the Menu.

Press to show the Instruction Menu and function keys.

Press again to exit the Menu.

Movement Moves through the Menu

Makes a selection

Note: Because Instant-On does not support touch pad movement, you need to use the keys on the keyboard to navigate to desired function. In media mode, always use F1 to display the function keys.

16 PRESTIGIO VISCONTE 1220

Media File Storage:

Using Instant-On to playback files, you need to store them in:

C:\Documents and Settings\All Users(and every created users)\Documents\My XXX (Example: Photo files under \My

Photo, Music files under\My Music and Video files under \My Video).

For example, the first time you are in the Video Mode, the system will ask to scan the files stored under the specified file directory and then create a playlist for future use.

Launching the Instant-On Player:

When the computer is powered off and the Instant-On Multimedia Player Launch Button is pressed, the system launches the Player application in a few seconds.

Note: When the computer is already in Windows and the Player Button is pressed, the system enables the Silent Mode to reduce fan noise.

Use the <> keys to select the Media Mode.

PRESTIGIO VISCONTE 1220 17

Use F1 to show the Instruction Menu for that Media Mode.

Shutting Down the Instant-On Player:

Press the Instant-On Player button to shut down the computer.

Ethernet

Your computer is equipped with a 10/100/1000Base-TX Fast Ethernet network adapter. Connect the active LAN cable to the RJ-45 LAN port located on the left side of the computer. This allows you to access and transmit data in the local area network.

Connecting to the Network

Use Unshielded Twisted Pair (UTP) Ethernet cable only.

1. Insert one end of the UTP cable into the network connector until the connector snaps securely into the receptacle.

2. Either connect the other end of the cable to an RJ-45 jack wall outlet or to an RJ-45 port on a UTP concentrator or hub in the network.

Cabling Restriction for Networks

The following restrictions should be observed for 10/100/1000BASE-TX networks:

. The maximum cable run length is 100 meters(m) (328 feet[ft]).

. For 100Mbps or 1000Mbps operations, use Category 5 wiring and connections.

Note: Consult Windows manual and / or Novell Netware user’s guide for the software installation, configuration, operation of the network.

18 PRESTIGIO VISCONTE 1220

BATTERY POWER & POWER MANAGEMENT

In this chapter, you will learn how to operate your notebook on battery power, how to handle and maintain the battery pack, and learn about the system’s power saving features.

TFT display, central processor, hard disk drive are the major hardware subsystems that consume the most power. Power management deals how these key components should behave to conserve power. For example, you can have the system turn off its display after 2 minutes of inactivity to save power. Efficient power management can help you work longer sessions before having to recharge the battery.

The Battery Pack

Lithium-Ion Battery

Your notebook uses a six-cell or four-cell Lithium-Ion battery pack that provides power when you don’t have access to an AC outlet.

Note: It is necessary that you charge the battery pack for at least 6 hours before using it for the first time.

Note: In the Standby Suspend mode, a fully charged battery loses its power in roughly 1/2 day or less. When not being used, the battery’s power will deplete in 1-2 month.

Battery Low-Power Warning

1. Low Battery Warning

Low battery condition occurs when battery power is reduced to 6%. The green battery status LED indicator blinks and the system beeps once every 16 seconds or so.

2. Very Low Battery Warning

Very Low battery condition occurs at 3 % power remaining. The green battery status LED indicator blinks and the system beeps at 4-second interval.

When the notebook warns you of its low battery condition, you will have about 3-5 minutes to save your current work.

Warning: Do not expose battery packs to temperatures below 0 degree Celsius (32 degree F) or above 60 degree C (140F). This may adversely affect the battery pack.

Note: Press Fn+F3 to turn off the battery warning beep.

PRESTIGIO VISCONTE 1220 19

Installing and Removing the Battery Pack

To Remove the Battery Pack:

1. Place the notebook bottom-side up on a flat and secured surface.

2. Push the latch and pull the battery’s hard case away from the notebook.

To Install the Battery Pack:

1. Place the notebook bottom-side up on a flat and secured surface.

2. Carefully insert the battery pack into the battery compartment of the notebook.

20 PRESTIGIO VISCONTE 1220

Charging the Battery and Charging Time

To charge the battery, while the battery pack is in the notebook, plug the AC adapter into the notebook and an electrical outlet.

The charging time is approximately 4-6 hours when the notebook is turned off and approximately 6-10 hours when the notebook is turned on.

When the battery is fully charged, the battery charge indicator becomes green.

Note: If system runs at heavy loading or in a high temperature environment, the battery may not be fully charged. You need to continue to charge it with the AC adapter plugged in until the charging LED turns green.

Checking the Battery Level

You can check the remaining battery power in the Windows battery status indicator, which is located at the lower righthand corner of the task bar. (If you do not see a battery or AC-in icon on the task tray, go to Power Options Properties box and click on the Advanced tab. Check off “Always show icon on the task bar“.)

Alternatively, you can access the power meter by clicking the Power Options icon in the Windows Control Panel.

Prolonging the Battery’s Life and Usage Cycles

There are ways you can do to prolong the use of battery.

. Use the AC adapter wherever AC wall outlet is available. This will ensure uninterrupted computing.

. Purchase additional battery pack.

. Store the battery pack in room temperature. Higher temperature tends to deplete the battery’s power faster.

. Make good use of the power management function. Save To Disk (Hibernate) saves the most energy by storing current system contents in a hard disk space reserved for this function.

. The life expectancy of the battery is approximately 300 recharges.

. See the notices section in the beginning of the user manual on how to care for the battery pack.

Note: Read Section Protecting Your Notebook in the beginning of this manual for tips about how to maintain the battery pack.

Note: To achieve optimal battery performance, you may need to do a battery calibration at a 3month interval. To do this:

1. Fully charge the battery.

2. Then discharge the battery by entering the BIOS setup screen. (Press F2 key as soon as you turn on the computer. And let it remain at the setup screen until the battery runs out.

3. Fully charge the battery again.

PRESTIGIO VISCONTE 1220 21

Using Windows Power Options

Windows Power Management provides basic power saving features. In the Windows Power Options Properties [Start

> Settings > Control Panel > Power Options] dialogue box, you may enter time-out values for display and hard disk drive. Windows power manager saves power by turning off hard drive after 1 minute of inactivity, for example.

Windows’ Power Schemes

The power management control panel in Windows XP, known as Power Schemes, is designed to provide the user with an easy-to-use interface. The Power Schemes tab can be found in the Power Options Properties panel that is accessible via the control panel window.

Schemes are easy to understand, based on notebook usage scenarios, and control not only processor power usage but other system peripherals as well.

Go to [Start > Settings > Control Panel] and double-click the Power Options icon.

Always on mode puts the processor into maximum performance mode, which provides no power saving. The other schemes control processor performance based on demand. For example, Max Battery mode lowers the processor’s speed and voltage to conserve power as much as possible.

In this dialog box, you can manually set the LCD and hard drive’s time-out values in the Plugged in column and in the

Running on batteries column. Lower time-out values will save more battery power.

Note: Also consult Windows user guide for more information on how to use Windows power management functions.

Note: Actual dialogue box shown above may appear slightly different.

22 PRESTIGIO VISCONTE 1220

Suspend Mode

Standby Suspend

The system automatically enters this mode after a period of inactivity, which is set in the Power Schemes dialog box. In

Standby mode, hardware devices, such as display panel and hard disk, are turned off to conserve energy.

Hibernate Suspend

In this mode, all system data are saved in the hard disk before powering down. When this mode is activated, all system state and contents are saved to the hard disk drive after a period of inactivity defined by the user. No power or very little power is drawn from the battery module under this mode.

However, depending on how much RAM that have been installed on your computer, the amount of time the system requires to restore all its previous contents can range from 5 to 20 seconds.

For Windows 2000 / XP users, hibernation is handled by the operating system; therefore, no special disk partition or disk file is necessary.

If you wish to activate Hibernate mode, you need enable Hibernate Support in the Hibernate tab of the Power Options menu.

Note: Do not install or remove the memory module when the system is in the suspend mode.

Note: Actual dialogue box shown above may appear slightly different.

Power Button Action

The notebook PC’s power button can be set to turn off the system or activate the suspend mode.

Go to [Start > Settings > Control Panel > Power Options] and click on the Advanced tab. In the pull-down menu, select how you wish the power button to work as.

PRESTIGIO VISCONTE 1220 23

Note: Actual dialogue box shown above may appear slightly different.

Warning: In the When I close the lid of my portable computer pull-down menu, DO NOT select

Do nothing – otherwise the system will still run at high speed while the processor’s fan grill is fully blocked by the closed LCD panel. The heat will damage the LCD panel.

Low Battery Warning

You can define when and how the system warns you of its battery-low condition.

Go to the Alarms tab in the Power Options Properties box. If you wish to hear audible beeps, click on the Alarm Action button and put a check on Sound Alarm.

24

Note: Consult Windows user guide for more information on how to use Windows power management functions.

Note: Actual dialogue box shown above may appear slightly different.

PRESTIGIO VISCONTE 1220

Power Menu Quick Access

Instead of making specific selections in the Power Options Properties box, you can quickly and easily specify which preset power saving function you desire by clicking on the Battery icon at the lower right-hand corner of the task bar. (If you do not see a battery or AC-in icon, go to Power Options Properties box and click on the Advanced tab. Check off

“Always show icon on the task bar“.) Select Max Battery if you want the system to enter suspend mode more often. Or, select Always On if your notebook PC is plugged into an AC power source.

Note: Actual dialogue box shown above may appear slightly different.

UPGRADING YOUR COMPUTER

Warning: We strongly recommend that you return the notebook to the dealer or the shop for the hardware upgrade.

Before you perform the hardware upgrade, please turn off the system, unplug the AC adapter, remove the battery pack and also disconnect the LAN and Modem cables first for your safety.

When the hardware upgrade is completed, please be sure to fasten all the screws before turning on the notebook.

TROUBLE SHOOTING

In this chapter, you will learn how to solve common hardware and software problems.

Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems.

This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter.

When you encounter a problem, you should first try to go through the recommendations in this chapter. Instead of returning the computer and waiting for repair, you may easily solve the problems by considering the following scenarios and possible solutions. If the error continues, contact your reseller for service information.

Before taking further actions, consider the following suggestions:

Check to see if the problem persists when all the external devices are removed.

Check to see that the green light indicator on the AC adapter is lit.

Check to see the power cord is properly plugged to the wall outlet and to the computer.

Check to see the power indicator of the computer is on.

Check to see if your keyboard is operational by pressing and holding any key.

Check for any incorrect or loose cable connections. Make sure the latches on the connectors latch securely on to the receptor end.

PRESTIGIO VISCONTE 1220 25

Be sure you have not performed an incorrect setting on the hardware devices in the BIOS Setup utility. A faulty setting may cause the system to misbehave. If you are not sure of the changes you made, try to restore all the settings to factory defaults.

Be sure all the device drivers are installed properly. For example, without the audio driver properly installed, the speakers and microphone will not work.

If external devices such as USB camera, scanner, printer do not function correctly when connected to the system, it is usually the device’s own problem. Consult the device’s manufacturer first.

Some software programs, which have not gone through rigorous coding and testing, may cause problems during your routine use. Consult the software vendor for problem solving.

Legacy peripheral are not plug-and-play capable. You need to restart the system with these devices powered up and connected first.

Be sure to go to BIOS SETUP and load DEFAULT SETTING after BIOS re-flash.

Be sure the Quick Key Lockout Switch on the bottom of the computer is not engaged; otherwise the quick keys will not work.

Audio Problems

No speaker output -

Software volume control is turned down in Microsoft Sound System or is muted. Double-click the speaker icon on the lower right corner of the taskbar to see if the speaker has been muted or turned down all the way.

Most audio problems are software-related. If your computer worked before, chances are software may have been set incorrectly.

Go to [Start > Settings > Control Panel] and double-click the Sounds and Audio Devices icon. In the Audio page, make sure that Realtek HD Audio is the default playback device.

Sound cannot be recorded -

You will need to plug-in an external microphone to the microphone connector to record sound.

Double-click the speaker icon on the lower right corner of the taskbar to see if the microphone has been muted.

1. Click Options and select Properties.

2. Select Recording and click the OK button.

3. After Click OK button, the recording volume control panel will appear.

Go to [Start > Settings > Control Panel] and double-click the Multimedia icon (or Sounds and Audio Devices icon). In the Volume or Audio page, make sure that Realtek HD Audio is the default recording device.

Hard Disk Problems

The hard disk drive does not work or is not recognizable -

If you had just performed a hard disk upgrade, make sure the hard drive connector is not loose and the hard disk drive is also correctly seated. Remove it and reinsert it firmly, and restart your PC. (Refer to Chapter 4 for details.)

The new HDD may need to be partitioned and reformatted. O/S and drivers will need to be re-installed as well.

Check the hard disk indicator LED. When you access a file, the LED lamp should light up momentarily.

The new HDD may be defective or is not compatible.

If your computer has been subjected to static electricity or physical shock, you may have damaged the disk drive.

The hard drive is making abnormal whining noises -

You should back up your files as soon as possible.

26 PRESTIGIO VISCONTE 1220

Make sure the source of noise is indeed from the hard drive and not the fan or other devices.

The hard disk drive has reached its capacity -

Run Disk Cleanup utility in Windows. [Start > All Programs > Accessories > System Tools > Disk Cleanup] The system will prompt you for what to do.

Archive files or programs that you had no longer used by moving them to an alternative storage medium (floppy disk, optical record-able disk, etc.) or uninstall programs that no longer use.

Many browsers store files in the hard drive as a cache to speed up the performance. Check the program’s Online Help for instructions on decreasing the cache size or on removing temporary Internet files.

Empty the Recycle Bin to create more disk space. When you delete files, Windows saves them to the Recycle Bin.

The hard disk takes longer to read a file -

If you have been using the drive for a period, the files may be fragmented. Go to [Start > Programs > Accessories >

System Tools > Disk Defragmenter] to perform a disk defragmentation. This operation may take a while.

Interrupt requests or problems with other hardware devices may have occupied the CPU and therefore slows down the system performance.

The files are corrupted -

Run the Error-checking utility in Windows to check the HDD. Double-click My Computer. Right-click C: and select

Properties. Click Check Now in Error-checking in Tools.

Optical Drive Problems

The optical drive does not work -

Try rebooting the system.

The disk is damaged or files are not readable.

After you have inserted a CD-ROM disk, it may take a moment before you can access its content.

The drive dose not read any disks -

The CD may not be properly seated in the tray. Make sure the disk is firmly seated onto the spindle.

The disk is damaged or not readable.

The disk cannot be ejected -

Normally, it takes a few seconds to eject the disk.

If the disk cannot be ejected, it may be mechanically jammed. Straighten out a paper clip and insert it to a tiny hole next to the eject button. This should reject the disk tray. If not, return the unit for repair. Do not forcefully pull on the disk tray.

The Combo or DVD Dual or Supermulti drive (optional device) cannot record -

You need to purchase and install a burner utility program to record files to a blank media.

Display Problems

The display panel is blank when the system is turned on -

Make sure the computer is not in the Standby or Hibernate suspend modes. The display is turned off to conserve energy in these modes.

PRESTIGIO VISCONTE 1220 27

The screen is difficult to read -

The display resolution should at least be set to at least1024x768 for optimal viewing.

1. Go to [Start > Settings > Control Panel] and double-click the Display icon.

2. Under the Settings page, set screen resolution to at least 1024x768 and choose at least 256 colors.

The screen flickers -

It is normal if the display flickers a few times during shutting down or powering up.

Keyboard and Mouse Problems

The built-in touch pad performs erratically -

Make sure there is no excess perspiration or humidity on your hand when using the touch pad. Keep the surface of the touch pad clean and dry.

Do not rest your palm or wrist on the surface of the touch pad while typing or using the touch pad.

The built-in keyboard accepts no input -

If you are connecting an external keyboard to the system, the built-in keyboard may not work.

Try restarting the system.

The characters on the screen repeat while I type.

You may be holding the keys down too long while you’re typing.

Keep the keyboard clean. Dust and dirt under the keys could cause them to stick.

Configure the keyboard to wait longer before the auto repeat feature starts. To adjust this feature, Go to [Start > Settings

> Control Panel], and double-click the Keyboard icon. A dialogue box shows up with the adjustable settings for the keyboard.

CMOS Battery Problem

A message “CMOS Checksum Failure” displays during the booting process or the time (clock) resets when booting -

Try to reboot the system.

If the message “CMOS Checksum Failure” appears during the booting procedure even after rebooting, it may indicate failure of the CMOS battery. If so, you need to replace the battery. This battery normally lasts two to five years. The battery is of type CR2032 (3V). You may replace it by yourself. The battery is located under the System Device Cover on the bottom of the notebook.

Memory Problems

The POST does not show an increased memory capacity when you have already installed additional memory -

Certain brands of memory module may not be compatible with your system. You should ask your vendor for a list of compatible DIMM.

The memory module may not be installed properly. Go back to Chapter 4 to review the details of this operation.

The memory module may be defective.

28 PRESTIGIO VISCONTE 1220

The O/S issues an insufficient memory error message during operation -

This is often a software or Windows-related problem. A program is draining the memory resources.

Close the application programs you’re not using and restart the system.

You need to install additional memory module. For instructions, go to Chapter 4 Upgrading Your Computer.

Network Adapter / Ethernet Problems

The Ethernet adapter does not work -

Go to [Start > Settings > Control Panel > System > Hardware > Device Manager]. Double-click on Network Adapters and check if Generic Marvell Yukon Chipset based Gigabit Ethernet Controller appears as one of the adapters. If it does not exist, Windows has not detected the Generic Marvell Yukon Chipset based Gigabit Ethernet Controller or the device driver has not been installed properly. If there is a yellow mark or red-cross on the network adapter, it may be a device or resource conflict. Replace or update the device driver from the factory CD-ROM disk or consult Windows manual on how to solve the resource conflict problem.

Make sure the physical connections on both ends of the cable are good.

The hub or concentrator may not be working properly. Check to see if other workstations connected to the same hub or concentrator is working.

The Ethernet adapter does not appear to operate in the 1000Mbps transmission mode -

Make sure the hub you are using supports 1000Mbps operation.

Make sure that your RJ-45 cable meets the 1000Base-TX requirements.

Make sure the Ethernet cable is connected to the hub .socket that supports 1000Base-TX mode. The hub may have both

100Base-TX and 1000Base-T sockets.

Performance Problems

The computer becomes hot -

In a 35oC environment, the certain areas of the computer’s back case are expected to reach 50 degrees.

Make sure the air vents are not blocked.

If the fan does not seem to be working at high temperature (50 degrees Celsius and up), contact the service center.

Certain programs that are processor-intensive may increase the computer temperature to a degree where the computer automatically slows down its CPU clock to protect itself from thermal damage.

The program appears stopped or runs very slowly -

Press CTRL+ALT+DEL to see if an application is still responding.

Restart the computer.

This may be normal for Windows when it is processing other CPU-intensive programs in the background or when the system is accessing slow-speed devices such the floppy disk drive.

You may be running too many applications. Try to close some applications or increase system memory for higher performance.

The processor may have been overheated due to the system’s inability to regulate its internal heat. Make sure the computer’s ventilation grills are not blocked.

Firewire (IEEE1394) and USB2.0 Problems

The USB device does not work -

Windows NT 4.0 does not support USB protocols

Check the settings in the Windows Control Panel.

PRESTIGIO VISCONTE 1220 29

Make sure you have installed the necessary device drivers.

Contact the device vendor for additional support.

The IEEE1394 port does not work -

Go to [Start > Settings > Control Panel > System > Hardware > Device Manager]. You should see an entry which reads

“OHCI Compliant IEEE 1394 Host Controllers”. If it does not exist, Windows has not detected the host controller or the device driver has not been installed properly. If there is a yellow mark or red-cross on the 1394 host controller, it may be a device or resource conflict. Replace or update the device driver from the factory CD-ROM disk or consult Windows manual on how to solve the resource conflict problem.

Make sure the cable is fully connected.

Make sure you have installed the necessary device drivers.

Contact the device vendor for additional support.

30 PRESTIGIO VISCONTE 1220

PRODUCT SPECIFICATION

Processor and Core Logic

Mobile Intel Dual-Core Processor (Yonah), up to 2.16GHz, 2 MB L2 cache or

Mobile Intel Single-Core Processor (Yonah), up to 1.66GHz, 2MB L2 cache

Intel Calistoga 945GM + ICH7-M chipset with audio, modem, and USB2.0 controllers integrated

667MHz Front Side Bus

533 / 667MHz DDR2 interface

System Memory

DDR2 SDRAM 533 / 667

256 / 512 / 1024MB

Two 200-pin DIMM sockets, Max 2 GB

Display

12.1-inch Wide-Viewing-Angle WXGA TFT LCD

Intel Integrated GMA950 Graphic Engine

Hardware Motion Compensation and IDCT Supported for MPEG1/2 Playback

DirectX compatible

Audio

Intel (ICH7M) integrated audio controller

Realtek Audio Codec

DirectSound 3D, EAX 1.0 & 2.0 compatible

A3D, I3DL2 compatible

AC97 V2.3 compatible

Azalia compatible

2 Stereo Speakers

Wireless LAN

Intel PRO/Wireless 3945ABG Card

Mini-Card Interface IEEE802.11 B&G

LAN / Ethernet

Marvell Ethernet function for 10/100/1000Base-TX network standards

Windows XP Plug and Play compatible

Automatic Jam and auto-negotiation for flow control

Auto Negotiation and Parallel detection for automatic speed selection (IEEE 802.3u)

High performance 32-bit PCI bus master architecture with integrated DMA controller for low CPU and bus utilization

Remote Wake-up Scheme supported

Hot Insertion supported

PRESTIGIO VISCONTE 1220 31

Firewire IEEE1394(a)

02 Micro 0Z128 IEEE1394 OHCI Host Controller

Up to 400 Mbps

Expandable up to 63 devices in chains

Storage

S-ATA 2.5-inch format hard disk drive

5.25-inch format (12.7mm height) fixed module (Optional Purchase)

5.25-inch format (12.7mm height) fixed module (Optional Purchase)

Keyboard & Touch pad

84-key QWERTY keyboard with numeric keypad and Windows keys, 19.05mm Pitch

Built-in Touch Pad

ExpressCard (NewCard) & Multiple Card Reader

02 Micro 0Z128 (Card Reader)

Single Slot, 34mm type I supported

Multimedia Card (MMC), Secure Digital Card (SD), Memory Stick (MS), and MS Pro Card

Ports and Connectors

One Microphone-in / Line-in jack

One Headphone / SPDIF-out jack

One Firewire (IEEE1394) host connector

Three USB2.0-compliant connectors

One standard network Ethernet connector (RJ-45)

One DVB-T Antenna connectors

One DC-in connector

One 15-pin VGA connector

One 4-in-1 Card Reader slot

One NewCard/ExpressCard Slot (type I)

Battery Pack / AC Adapter

Li-ion 6-Cell pack, 10.8V / 11.1V x 4000 mAH or

Li-ion 6-Cell pack, 10.8V / 11.1V x 4400 mAH or

Li-ion 6-Cell pack, 10.8V / 11.1V x 4800 mAH or

Li-ion 4-Cell pack, 14.8V / 14.4V x 2000 mAH

Low battery state with low battery warning beep

Smart Battery Compliant; low battery warning beep

Long Battery Life Mode and Silent Mode

Autosensing AC-in 100~240V, DC-out 20V, 65W

32 PRESTIGIO VISCONTE 1220

BIOS

AMI PnP BIOS

Power On Self Test

DRAM auto-detection, auto-sizing

L2 Cache auto-detection

Hard disk type auto-detection

APM 1.2 (Advanced Power Management) &

ACPI 2.0 (Advanced Configuration Power Interface)

Two Level Password Protections

32bit access, Ultra DMA, PIO5 Mode support

Multi-boot capability

Operating System

Compatible with Microsoft Windows XP Home Edition / Professional SP2

Physical Specification

296 (W) x 210 (D) x 33~38.3 (H) mm

1.9KG / 4.2lbs (with 12.1” LCD, DVD-ROM Drive and 6-cell battery pack)

Operating Temperature: 5 to 35 o C (41 to 95 o F)

Operating Humidity: 20 to 80 percent RH (5 to 35 o C)

Storage Temperature: -15 to 50 o

C (-5 to 122 o

F)

PRESTIGIO VISCONTE 1220 33

AGENCY REGULATORY NOTICES

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by the Manufacture may void the user’s authority to operate the equipment.

Connections to Peripheral Devices

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity

This device complies with Part 15( CLASS B)/68 the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/

23/EEC) and R&TTE Directive (1999/5/EC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

EN55022 : 1998+A1: 2000+A2: 2003, CLASS B

EN61000-3-2 : 2000

EN61000-3-3 : 1995+A1: 2001

EN55024 : 1998+A1 : 2001+A1: 2003

IEC61000-4-2: 2001

IEC61000-4-3:2002+A1:2002

IEC61000-4-4:1995+A1:2000+A2:2001

IEC61000-4-5:2001

IEC61000-4-6:2001

IEC61000-4-8:2001

IEC61000-4-11:2001

EN50082 (IEC801-2, IEC801-3, IEC801-4) Electro-magnetic Immunity

34 PRESTIGIO VISCONTE 1220

EN 300 328-2, EN 300 328-1, EN 301 489-1, EN 301 489-17 (ETSI 300 328, ETSI 301 489) Electro-magnetic Compatibility and Radio Spectrum Matter.

TBR21 ( ETSI TBR21) Terminal Equipment.

EN60950 (IEC60950) I.T.E. Product Safety

REN (Ringer Equivalent Numbers) Statement

NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

IC ID: 3409A-M30EI0

CAUTION: PRESTIGIO VISCONTE1220 IS DESIGNED TO USE WITH THE FLLOWING AC ADAPTER MODEL

ONLY

Manufacture: LITE-ON ELECTRONICS, INC

Model: P PA-1650-02 (65W), PA-1650-01 (65W)

Manufacture: LI SHIN INTERNATIONAL ENTERPRISE CORP.

Model: 0335A2065 (65W), 0335C2065 (65W)

Manufacture: EPSF

Model: 10653-A (65W)

Battery Pack Safety

. The battery pack is intended to use only with this notebook.

. Do not disassemble the pack.

. Do not dispose of the battery pack in fire or water.

. To avoid risk of fire, burns, or damage to your battery pack, do not allow a metal object to touch the battery contacts.

. Handle a damaged or leaking battery with extreme care. If you come in contact with the electrolyte, wash the exposed area with soap and water. If it contacts the eye, flush the eye with water for 15 minutes and seek medical attention.

. Do not charge the battery pack if the ambient temperature exceeds 45 (113)...

. To obtain a replacement battery, contact your local dealer.

. Do not expose the battery pack to high storage temperatures (above 60, 140)...

When discarding a battery pack, contact your local waste disposal provider regarding local restrictions on the disposal or recycling of batteries.

Use only supplied AC Adapter for charging.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions or local laws.

Lithium battery warning / Bridge battery warning

This computer contains a lithium battery to power the clock and calendar circuitry.

CAUTION: Danger of explosion if battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

PRESTIGIO VISCONTE 1220 35

Disposal of Old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

36 PRESTIGIO VISCONTE 1220

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
