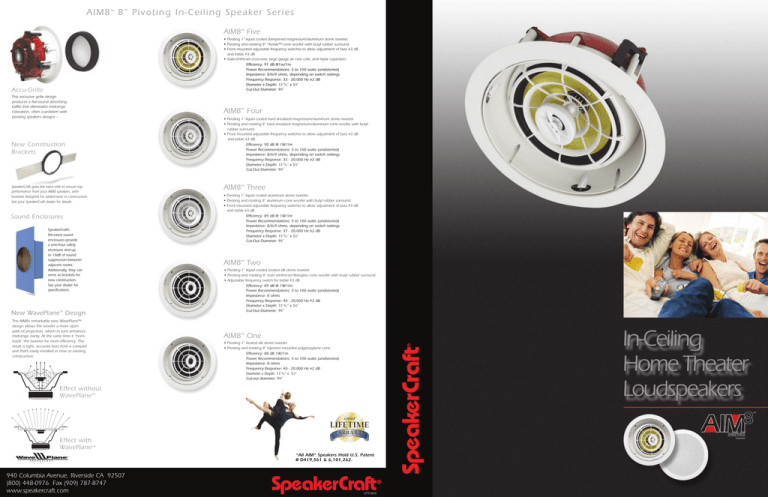

AIM8™ 8” Pivoting In-Ceiling Speaker Series
AIM8™ Five
• Pivoting 1” liquid cooled dampened magnesium/aluminum dome tweeter.
• Pivoting and rotating 8” *Kevlar™ cone woofer with butyl rubber surround.
• Front mounted adjustable frequency switches to allow adjustment of bass ±3 dB and treble ±3 dB.
• State-of-the-art cross-over, large gauge air core coils, and mylar capacitors.
Efficiency: 91 dB @1w/1m
Power Recommendations: 5 to 100 watts (undistorted)
Impedance: 8/6/4 ohms, depending on switch settings
Frequency Response: 33 - 20,000 Hz ±2 dB
Diameter x Depth: 1115⁄16” x 51⁄2”
Cut-Out Diameter: 93⁄4”
Accu-Grille
This exclusive grille design
produces a flat-sound absorbing
baffle that elliminates midrange
coloration, often a problem with
pivoting speakers designs ‑
New Construction
Brackets
SpeakerCraft goes the extra mile to ensure top
performance from your AIM8 speakers, with
brackets designed for added ease in construction.
See your SpeakerCraft dealer for details.
Sound Enclosures
SpeakerCraft’s
fire-rated sound
enclosures provide
a one-hour safety
enclosure and up
to 10dB of sound
suppression between
adjacent rooms.
Additionally, they can
serve as brackets for
new construction.
See your dealer for
specifications.
New WavePlane ™ Design
The AIM8’s remarkable new WavePlane™
design allows the woofer a more open
path of projection, which in turn enhances
midrange clarity. At the same time it “hornloads” the tweeter for more efficiency. The
result is tight, accurate bass from a compact
unit that’s easily installed in new or existing
construction.
AIM8™ Four
• Pivoting 1” liquid cooled hard anodized magnesium/aluminum dome tweeter.
• Pivoting and rotating 8” hard anodized magnesium/aluminum cone woofer with butyl
rubber surround.
• Front mounted adjustable frequency switches to allow adjustment of bass ±3 dB and treble ±3 dB.
Efficiency: 90 dB @ 1W/1m
Power Recommendations: 5 to 100 watts (undistorted)
Impedance: 8/6/4 ohms, depending on switch settings
Frequency Response: 35 - 20,000 Hz ±2 dB
Diameter x Depth: 1115⁄16” x 51⁄2”
Cut-Out Diameter: 93⁄4”
AIM8™ Three
• Pivoting 1” liquid cooled aluminum dome tweeter.
• Pivoting and rotating 8” aluminum cone woofer with butyl rubber surround.
• Front mounted adjustable frequency switches to allow adjustment of bass ±3 dB and treble ±3 dB.
Efficiency: 89 dB @ 1W/1m
Power Recommendations: 5 to 100 watts (undistorted)
Impedance: 8/6/4 ohms, depending on switch settings
Frequency Response: 37 - 20,000 Hz ±2 dB
Diameter x Depth: 1115⁄16” x 51⁄2”
Cut-Out Diameter: 93⁄4”
AIM8™ Two
• Pivoting 1” liquid cooled treated silk dome tweeter.
• Pivoting and rotating 8” resin reinforced fiberglass cone woofer with butyl rubber surround.
• Adjustable frequency switch for treble ±3 dB.
Efficiency: 89 dB @ 1W/1m
Power Recommendations: 5 to 100 watts (undistorted)
Impedance: 8 ohms
Frequency Response: 40 - 20,000 Hz ±2 dB
Diameter x Depth: 1115⁄16" x 51⁄2”
Cut-Out Diameter: 93⁄4”
AIM8™ One
• Pivoting 1” treated silk dome tweeter.
• Pivoting and rotating 8” injection moulded polypropylene cone.
Efficiency: 88 dB 1W/1m
Power Recommendations: 5 to 100 watts (undistorted)
Impedance: 8 ohms
Frequency Response: 40 - 20,000 Hz ±2 dB
Diameter x Depth: 1115⁄16” x 51⁄2”
Cut-out diameter: 93⁄4”
Effect without
WavePlane ™
TM
Limited
LIFETIME
Effect with
WavePlane ™
RANTY
WAR
*All AIM™ Speakers Hold U.S. Patent
# D419,561 & 6,101,262.
940 Columbia Avenue, Riverside CA 92507
(800) 448-0976 Fax (909) 787-8747
www.speakercraft.com
SpeakerCraft
®
LIT93800
A home theater audio system can boost the excitement and dynamics
of movies and concerts. But to make it work you need channel
separation, spatial imaging and dynamic response. The AIM8™ models
The architectural loudspeaker has had a gigantic influence on the evolution of today’s home.
let you aim the midrange drivers and/or tweeters, meaning the sound
Not surprisingly, it was SpeakerCraft that invented it. We knew the modern lifestyle would
from the front speakers can come together for better “imaging.”
alter the way that sound was experienced. And thanks to speaker designs like the new AIM8
Series, music and movies sound better than ever.
It’s the beauty of the AIM8™ speakers that they can do so much while
remaining hidden. Recessed behind flush-mount grilles, they deliver
Enter the new SpeakerCraft AIM8™ Series: a range of five high-performance models
incredible sound without the need for bulky speaker cabinets.
designed for ceiling installation, each with an 8" woofer. With the added benefit of our new
WavePlane™, the AIM8™ speakers deliver outstanding bass response, beautifully balanced
It’s a different story with rear-channel speakers. Most movie soundtracks
midrange and accurate high end.
direct background sounds such as rain, echoes, explosions and distant
events to the rear speakers. This requires crisp and accurate sound up
The AIM8 Series speakers are marvels of technology, with *Kevlar™ woofers and liquid-cooled
front and diffusion at the rear of the space. The AIM8™ models, with
magnesium/aluminum tweeters. In addition, the low-frequency driver and tweeter are fully
their pivoting tweeters and the unique WavePlane™ baffle, answer
aimable, directing their output toward you for better perspective. And should the room fur-
the call. While the high-frequency sound, being directional in nature,
nishings or layout change, it’s no problem. Fingertip control means the AIM8™ speakers can
bounces off adjacent walls, the WavePlane™ distributes the midrange
be re-aimed whenever and wherever you want.
frequencies evenly across a broad area.
Superior response across the frequency spectrum, greater clarity and richer, tighter bass are
SpeakerCraft has manufactured millions of in-wall and in-ceiling
all part of the new AIM8™ Series. Whether in a room-to-room stereo setup or a home theater
loudspeakers, and you have our pledge that each product we build
design, these models deliver unrivaled imaging for movies and music.
provides the highest level of workmanship and performance. It’s a
commitment to quality matched only by our warranty . . . LIFETIME.
Home Theater in difficult layouts
guestrooms, master suites, living rooms and even patios. Whether it’s background music, talk radio or a major sports event, you’ll
Frequency Equalization
Switches:
never have to miss out. From kitchen to poolside, SpeakerCraft brings concert sound to your private oasis.
Separate front-mounted EQ
We know you want to get the most out of each area in your home. That’s why the AIM8™ Series performs so well in tidy
switches for bass and treble on the AIM8™ Five, Four, Three and Two
The SpeakerCraft line also includes multi-room amplifiers, digital touch-screen/touch-pad control systems, volume controls and
models let you tailor frequency response plus or minus 3dB to suit
in-wall personal stereos. We offer the best powered in-wall, in-ceiling and freestanding subwoofers, plus the controls and relays
your room’s acoustics. You won’t find yourself wishing for more or less
that make everything work seamlessly. And those who like spending time outdoors will love SpeakerCraft. With our “rocks” in the
sound from the left or right speaker just because you don’t happen to
landscape, it’s like having your own amphitheater!
sit between them.
It’s easy to get the sound you want: Just flick a switch. Front-mounted
EQ and independent, pivoting driver and tweeter make the AIM8™
Series tops in user-friendly performance.
Independently Pivoting Woofer and Tweeter: The drivers and
tweeters in the AIM8™ models pivot independently, meaning you can
direct the low and high frequencies for a precise acoustical fit. It’s a feature
you won’t find in ordinary speakers. The AIM8™ Series is your assurance of
proper phase, accurate frequency response and enhanced stereo imaging.
And when placed overhead at the rear in a home theater configuration,
they can be directed away from the listener. This gives background sound
the critical degree of diffusion it needs.
*Kevlar is a registered trade mark of the Dupont™ Corporation
