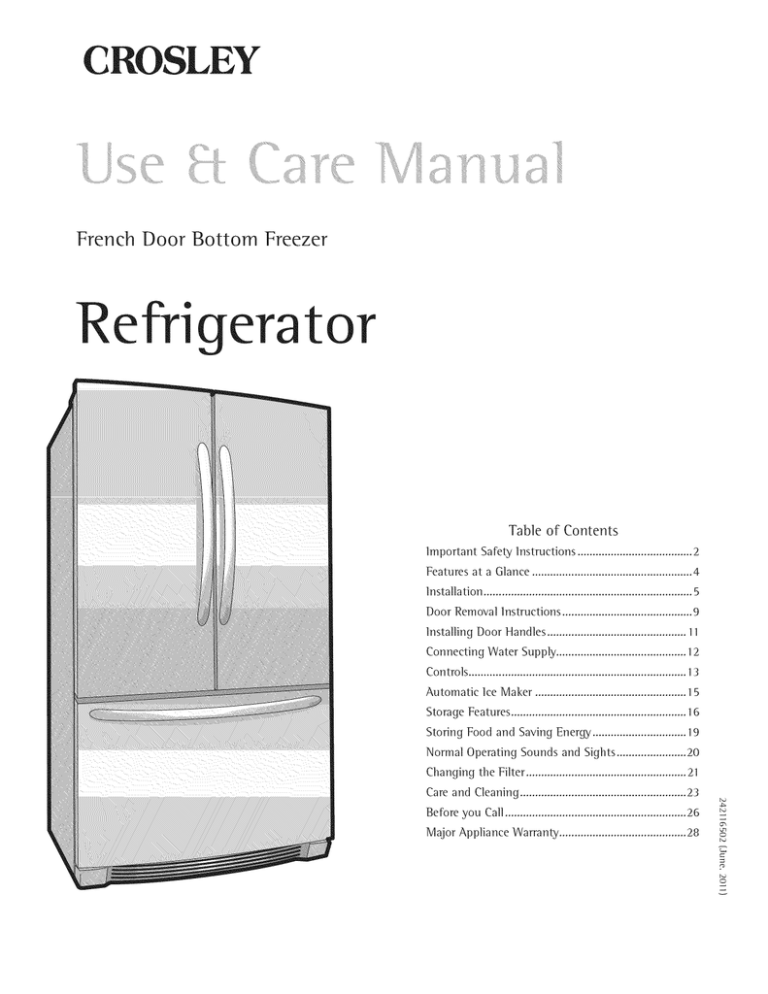

Refrigerator
CROSLEY
.......
iiii_
French Door Bottom Freezer
Refrigerator
Table of Contents
Important
Safety Instructions
Features
......................................
at a Glance .....................................................
Installation
.....................................................................
Door Removal
Installing
Connecting
Instructions
...........................................
4
5
9
Door Handles ..............................................
11
Water Supply ...........................................
12
Controls ........................................................................
Automatic
2
13
Ice Maker .....................................................
Storage
Features ..........................................................
16
Storing
Food and Saving Energy ...............................
19
Normal
Operating
20
Changing
Sounds
and Sights .......................
the Filter .....................................................
21
Care and Cleaning .......................................................
23
Before you Call ............................................................
26
Major Appliance
28
Warranty ..........................................
Z
Please read all instructions before using this
refrigerator,
For your
Safety
o DO NOT store or use gasoline, or other flammable
liquids in the vicinity of this or any other appliance.
Read product labels for warnings regarding
flammability and other hazards.
DO NOT operate the refrigerator in the presence of
explosive fumes.
Avoid contact with any moving parts of automatic
ice maker.
Remove all staples from the carton. Staples can
cause severe cuts, and also destroy finishes if they
come in contact with other appliances or furniture.
Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
13 Freezer drawer is level across the top
Leveling
Refrigerator is level, side-to-side and tilted ¼
inch (6 mm) front to back
13 Toe grille is properly attached to refrigerator
13 Cabinet is setting solid on all corners
Electrical Power
13 House power turned on
13 Refrigerator plugged in
Ice Maker
13 House water supply connected to refrigerator
13 No water leaks present at all connections recheck in 24 hours
13 Ice maker is turned ON
13 Ice & water dispenser operates correctly
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
Final Checks
t:3 Shipping material removed
I::3 Fresh food and freezer temperatures set
CI Crisper humidity controls set
I:3 Registration card sent in
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
Child Safety
Destroy or recycle the carton, plastic bags, and any
exterior wrapping material immediately after the
refrigerator is unpacked. Children should NEVER
use these items to play. Cartons covered with rugs,
bedspreads, plastic sheets or stretch wrap may become
airtight chambers, and can quickly cause suffocation.
Proper Disposal
Freezer
of your
Refrigerator
or
Risk of child entrapment
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators or freezers are
still dangerous - even if they will sit for "just a few days".
If you are getting rid of your old refrigerator or freezer,
please follow the instructions below to help prevent
accidents.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance recycling/
disposal methods. Check with your utility company or
visit www.energystar.gov/recycle
for more information on
recycling your old refrigerator.
Before you throw away
your old refrigerator/
freezer:
*
Remove doors.
o Leave shelves in place
so children may not
easily climb inside.
Have refrigerant
removed by a qualified
service technician.
These guidelines must be followed to ensure that
safety mechanisms in this refrigerator will operate
Fault Interrupter (GFI) circuit. Do not use an
extension cord or adapter plug.
If the power cord is damaged, it should be replaced
by an authorized service technician to prevent any
risk.
Never unplug the refrigerator by pulling on the
power cord. Always grip the plug firmly, and
pull straight out from the receptacle to prevent
damaging the power cord.
Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
Performance may be affected if the voltage varies
by 10% or more. Operating the refrigerator with
insufficient power can damage the compressor.
Such damage is not covered under your warranty.
Do not plug the unit into an electrical outlet
controlled by a wall switch or pull cord to prevent
the refrigerator from being turned off accidentally.
Pressing and holding the On/Off button for 3 seconds,
located on the left side of the temperature control
panel will disable your refrigerator's cooling system, but
does not disconnect the power to the light bulb and
other electrical components. To turn off power to your
refrigerator you must unplug the power cord from the
electrical
outle
t................
Grounding type
wall receptacle
fDo not, under
-'_
any circumstances,
cut, remove,
/
or bypass the
/
Power cord with
3-prong grounded plug
Electrical information
The refrigerator must be plugged into its
own dedicated 115 Volt, 60 Hz., 15 Amp, AC
only electrical outlet. The power cord of the
appliance is equipped with a three-prong grounding
plug for your protection against electrical shock
hazards. It must be plugged directly into a properly
grounded three prong receptacle. The receptacle
must be installed in accordance with local codes
and ordinances. Consult a qualified electrician.
Avoid connecting refrigerator to a Ground
To avoid personal injury or property damage, handle
tempered glass shelves carefully. Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperature change.
Features may vary according to model
Incandescent
FEpper Guide
Light (select models)
LED Light (select
Water
Filter
models)
Dairy
/Compartment
Air Filter
S|
Shelves
_====Flipper
! "u"'°°
Crisper
Drawer
=_==Crisper
Drawer
DeE
Drawer
Adjustable
Hinges
Door
_J
Freezer Baskets
Toe
GriHe
Features not included with your refrigerator can be purchased at
www.crosley.com or by calling 1-800-944-9044.
Bin
Required Tools
You will need the following tools:
Components
Provided:
Top Hinge
Cover Front
Tools Necessary:
Top Hinge
Cover Rear
Screw_
_Screw
_,_
L....
sHi%
This Use & Care Guide provides general installation and
operating instructions for your model. We recommend
using a service or kitchen contracting professional to
install your refrigerator. Use the refrigerator only as
instructed in this Use & Care Guide. Before starting
the refrigerator,
follow these important first steps,
Location
-
3/8" Fixed
Wrench
Head
Choose a place that is near a grounded, non-GFCI,
electrical outlet. Do Not use an extension cord or
an adapter plug.
-
If possible, place the refrigerator out of direct
sunlight and away from the range, dishwasher, or
other heat sources.
-
The refrigerator must be installed on a floor that is
level and strong enough to support a fully loaded
refrigerator.
•
Consider water supply availability for models
equipped with an automatic ice maker.
Do Not install the refrigerator where the temperature
will drop below 55°F (13°C) or rise above 110°F
(43°C). The compressor will not be able to maintain
proper temperatures inside the refrigerator.
Do Not block the toe grille on the lower front of your
refrigerator. Sufficient air circulation is essential for the
proper operation of your refrigerator.
Installation
-
Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrica! connections:
Sides & Top
Back
3/8 inch (9.5 mm)
1 inch (25.4 ram)
If your refrigerator is placed with the door hinge side
against a wall, you may have to allow additional space
so the door can be opened wider.
Door opening
The refrigerator doors are designed to shut by
themselves within a 20-degree opening.
Your refrigerator should be positioned to allow easy
access to a counter when removing food. For best use of
refrigerator drawers and freezer baskets, the refrigerator
should be in a position where both can be fully opened.
Leveling Freezer Drawer (ifn ry)
To level the cabinet using the front
models):
1
rollers (select
Slightly open freezer drawer. Lift the toe grille and
gently pull forward (see illustration).
Level Refrigerator
(if necessary)
Guidelines for final
._
I
\
[%
/
) i_71,_
, /'_7\_
Toe Grille Must _\
Fit In Slot On
/
Anti'tip Bracket
(
Screw/Washer
J_/
II _.
'
All four corners of the cabinet must rest firmly on
the floor.
-
The sides should tilt 1/4inch (6 mm) from front to
back (to ensure that doors close and seal properly).
_"_il
%1F_,_[L
Assembly
'_.
positioning of your refrigerator:
-
m
•
& Adjust Doors
Doors should align with each other and be level.
/
Most of these conditions can be met by raising
lowering the adjustable
front rollers,
To level the cabinet using the front
2
Check gasket sea! around top, bottom, and sides of
freezer drawer.
3
If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
Remove Hex
Head Drawer
Screw
Remove Hex
_Other
Head Drawer
:[ You can raise or lower each door. Use a 3/s inch
socket wrench to turn the adjustment screws (1
per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
2
Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that
cabinet is stable.
3
After unit is leveled, lower anti-tip leg until it
contacts the floor.
Head Drawer
Screw
Remove Hex
Head Drawer
)ii?:iiiii° i i
ill
4
rollers;
Do Not Remc
Screws
Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
5
Tighten four (4) drawer screws.
6
Recheck gasket sea!.
7
Install the toe grille by fitting into place.
or
i_ i
Door
Door
__
To adjust
the door stop:
5
Retighten screw.
Door stop is adjustable between 85 to 145 degrees.
View shown is looking up at the bottom of the
Screw
0
Retighten
6
Screw
Ensure door stops in desired location before
resuming normal use.
To level the doors using the adjustable
hinge (select models):
Adjustable
1
Remove all food items from door bins on door
being adjusted.
2
Open doors to 90 degrees.
3
Loosen or remove screw.
Door Stop
I
Open door to provide access to screw.
2
Loosen screw.
3
Adjust door to desired location.
lower
O Loosen or Remove
sCrew
©
Bottom of Door
Adjusting
4
Door
Loosen/Remove Screw (where applicable)
Rotate door stop until it makes contact with the
lower hinge.
Adjustable hinge should only be used after doors have
been leveled with rollers,
4
Lift the door while adjusting the washer. To raise
the door, rotate washer clockwise (when viewed
from the bottom). To lower door, rotate washer
counterclockwise (when viewed from the bottom).
To adjust the flipper
1
Loosen the screw located on the flipper mullion
hinge.
Adjusting
RaisinglLowering
Door
2
Retighten the screw (where applicable), ensuring
it is between the spokes of the washer. Screw will
not be tight, just insert until it is flush with the
hinge.
mullion"
Flipper Mullion Screw
Adjust flipper mullion height. Forproper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
Re,tighten Screw
Screw
Adjusting
3
If after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace with
the longer one supplied in the handle package.
Retighten screw.
Flipper Mullion
Height
Getting through
narrow spaces
If your refrigerator will not fit through an entrance area,
you can remove the doors. Check first by measuring the
entrance.
To remove the refrigerator
doors:
1
Trace lightly around the door's top hinges with a
pencil. This makes reinstallation easier.
2
Disconnect the harness by grasping both sides of
the connector firmly, depress the latch, and pull
apart. Remove the two (2) screws from the top
hinge. Lift the door off of the bottom hinge and set
it aside.
3
Detach the water tube from the connector
To prepare for removing the doors:
1
Make sure the electrica! power cord is unplugged
from the wall outlet.
2
Open the freezer drawer and remove the toe grille
(see "[nstallation" section).
3
Remove any food from the door shelves and close
the doors.
To remove the top hinge covers:
1
Remove the two (2) screws from each cover over
the top door hinges.
2
Lift inside edge of hinge cover and tilt back.
co,o, = w c0vo,
Top.!,ge
Hinge/
II /
_//_---:.\. sorow
"
located behind the refrigerator and pull the tube
back out to the front of the unit. The connector
releases when you press inward on the outer
sleeve while pushing the tube toward the
connector then while continuing to hold in the
sleeve, pull the tube away.
DO NOT remove the ground screw from hinge.
Installing
Freezer Drawer
1 With lower slides pulled out, hang drawer onto
slide brackets ensuring pins on each side are fully
inserted into slots on each side.
Youwill bepullingapproximately
three(3)feetof
watertubefromthe backofthe refrigerator.
............................................................................
4 Unscrew
thethree(3) lowerhingescrewsand
hingeif necessary.
Toreinstallthe rightdoor,reverse
the abovesteps.
il0
Drawer
Assembly
Lower Hinge Removal
Fully Extend
Drawer Slides
ii!!IIII:
i :!iii
iIo )
Cabinet
SIot_
2
i i
Once both doors are in place, ensure they are aligned
with each other and level (Please see the "Installation"
section for more details), and replace the top hinge cover.
Be sure doors are set aside in a secure position where
they cannot fall and cause personal injury, or damage
to the doors or handles,
Removing
Freezer Drawer
1
Open freezer drawer.
2
Remove drawer screws on right and left sides (two
(2) screws on each side).
Install Screws
(2) Each
ii_i
Hex
Check gasket sea! around top, bottom, and sides of
freezer drawer.
4
If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
5
Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
Remove Hex
Head Drawer
Screw
_ScreWHead
_'_"'L_Drawer
Not Remove
Other Screws
Push Against
Freezer Drawer
Remove Hex
Head Drawer
3
Other Screws
Lift drawer up and out to remove.
i
3
__m
Remove
Reinstall four (4) drawer screws (two (2) per side),
tighten down, and close drawer (C).
Remove Hex
Head Drawer
6
Tighten four (4) drawer screws.
7
Recheck gasket sea!.
8
Install the toe grille by fitting into place.
Door Handle
Mounting
Instructions
1
Remove handles from carton and any other protective packaging.
2
Position fresh food handle end over upper and lower pre-installed shoulder bolts (A) that are fastened into door,
ensuring the holes for the set screws are facing towards the opposite door.
3
While holding handle firmly against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench.
4
Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are facing towards the first door.
5
Position freezer handle end over left and right pre-installed handle mounts that are fastened to the door, ensuring
the holes for the set screws are facing down.
6
While holding handle firmly against door, loosely tighten far right Allen set screw (B) with supplied Allen wrench until there is
no gap between handle and door.
7
Still holding the handle firmly to the door, firmly tighten far left Allen set screw (B) with supplied Allen wrench.
8
Return to the far right Allen set screw (B) and firmly tighten with supplied Allen wrench.
All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Allen screw
makes installation easier.
The door handle may loosen over time or if it was installed improperly.
handles.
Mounting
Refrigerator
If this happens, tighten the set screws on the
Handles
Mounting
Wear gloves and safety goggles. Use extreme CAUTION
when installing these handles.
ii
Freezer
Handle
To Connect Water Supply Line To Ice Maker Inlet Valve
1. Disconnectrefrigerator from electric power source.
2.
To avoid electric shock, which can cause death or
severe personal injury, disconnect the refrigerator
from electrical power before connecting a water
supply line to the refrigerator.
3.
Placeend of water supply line into sink or bucket. Turn
ON water supply and flush supply line until water is clear.
Turn OFFwater supply at shutoff valve.
Remove plasticcap from water valve inlet and discard
cap.
4.
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing is
recommended for the water supply line. Water
supply tubing made of 1/4inch plastic is not
recommended to be used. Plastic tubing greatly
increases the potential for water leaks, and the
manufacturer will not be responsible for any
damage if plastic tubing is used for the supply line.
• DO NOT install water supply tubing in areas where
temperatures fall below freezing.
If you use copper tubing - Slide brass compression
nut, then ferrule (sleeve) onto water supply line. Push
water supply line into water valve inlet as far as it will
go (1/4inch/6 mm). Slide ferrule (sleeve) into valve inlet
and finger tighten compression nut onto valve. Tighten
another half turn with a wrench; DO NOT overtighten.
See Figure 1.
If you use stainless steel tubing - The nut and ferrule
are already assembledon the tubing.Slide compression
nut onto valve inletand finger tighten compression nut
onto valve. Tighten another half turn with a wrench; DO
NOT overtighten. See Figure 2.
5. With steel clamp and screw, secure water supply line
(copper tubing only) to rear panel of refrigerator as
shown.
• Chemicals from a malfunctioning water sol'tenor
can damage the ice maker. If your home has a
water se£cening system, ensure the soi_ener is
6. Coil excess water supply line (copper tubingonly), about
21/2turns, behind refrigerator as shown and arrange coils
so they do not vibrate or wear against any other surface.
7. Turn ON water supply at shutoff valve and tighten any
connections that leak.
Ensurethat your water supply line connections comply with all
8.
Reconnect refrigerator to electrical power source.
Before Insl_iling The Water Supply Line, You Will Need:
- BasicTools: adjustable wrench, fiat-blade screwdriver,
and Phillips_ screwdriver
- Accessto a household cold water line with water pressure
between 30 and 100 psi.
- A water supply line made of 1/4inch(6 mm) OD, copper
or stainless steel tubing.To determine the length of
tubing needed, measure the distance from the icemaker
inletvalve at the back of the refrigerator to your cold
water pipe. Then add approximately 7 feet (2.1 meters),
so the refrigerator can be moved out for cleaning (as
shown).
- A shutoff valve to connect the water supply line to your
household water system. DO NOT use a self-piercingtype
shutoff valve.
Stee!
Clamp
I
to
_ C
Fe_°M
,
Copper
--
Steel
tubing
refrigerator
Figure
in
out
_.
_
_of°.,°°
J
Lter line
enough
Clamp
Nce Maker
I
:.ate.,°oI
moving
Plastic Water Tubing
Compression
(Sleeve)
(include
Do not reusecompression fitting or use thread sealtape.
A compression nut and ferrule (sleeve) for connecting a
copper water supply line to the icemaker inletvalve.
_
Brass
for
loop
to
allow
cleaning,)
=--Wafer
1
6 fL Stainless
Figure
Steel
Valve
water
line
2
ii
Check with your local building authority for recommendations
on water lines and associated materials prior to installing
your new refrigerator. Depending on your local/state building
codes, Electroluxrecommends for homes with existing valves
its Smart Choice® water line kit 5305513409 (with a 6 fL
StainlessSteel Water Une) and for homes without an existing
valve, Electroluxrecommends its Smart Choicewatertb line kit
5305510264 (with a 20 f_. Copper Water Line with self-tapping
saddle valve). Pleaserefer to www.crosley.com/store for more
information.
Alter connecting the water supply, refer tD "How to Prime
the Water Supply System" for important information about
priming an empty water supply system.
Your refrigerator'swater supply system includes severaltubing
lines, a water filter, a water valve, and a water tank. To ensure
that your water dispenser works properly,this system must
be completely filled with water when your refrigerator isfirst
connected to the household water supply line.
IQ-Touch
TM
A red indicator light will be illuminated above most active features.
Touch the icon to activate the options below.
quick ice
Increases the production of ice
water filter
Press and hold for three (3) seconds to reset after filter change.
C/F
Touch to toggle display from Fahrenheit to Celsius.
default
settings
Resets all refrigerator settings such as temp, temp display and tones
to their factory default settings.
Power on-off
Press and hold for three (3) seconds to turn off the cooling system to
clean the refrigerator. It also turns off the ice maker. The temperature
displays will read OFF.
Energy Saver
Keep thisswitchseton energy saver (light
on) forlowestenergy
usage.Ifmoistureappearson thecabinetbetween the doors,
pressing this button will turn the light off and enable an electric heater
used to reduce moisture on the cabinet between the doors.
Pressing
the system
on-off
icon does
not outlet.
turn off power to your refrigerator.
must unplug
the power
cord from
the wall
Setting
You
cooling temperatures
Press the "A" or "v" indicator to adjust the temperature to the desired setting.
The temperature display will begin to blink with the first touch. The display will time out
after 10 seconds and return to the basic display.
Alarms
Door
Ajar
If the door has been left open for an extended period of time, an
alarm will sound and the door ajar indicator will display on the bottom display of the control panel. The alarm is turned off by closing the
door. The mute sounds key will blink to prompt the reset of any active
alarms. Press this key to reset any system alarms.
High Temp
In the event of a high temperature condition, the temperature display
will blink and display "HI". After 20 minutes, the alarm will sound and
the high temp indicator will be red on the bottom of the control panel. The mute sounds icon will illuminate until pressed, acknowledging the alarm, at which time the highest temperature reached will be
displayed and the refrigerator will resume normal operation. In case
the high temp alarm is not acknowledged at the first alarm sound time
out, when the door is first opened, the alarm sound will be repeated.
Power Fail
In the event of a power failure, the power fail alert will be displayed
and the temperature display will blink until the mute sounds icon is
pressed, acknowledging the alarm. Other modes may be turned off
until the alarm is acknowledged. The power fail alert is turned off
and the refrigerator will resume normal operation. The high temp
alarm may also be illuminated until a safe operating range
temperature
has been reached,
TQ-Touch
TM
"Sabbath
Hode"
The Sabbath Mode is a feature that disables portions
of the refrigerator and its controls in accordance with
observance of the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by pressing
and holding both the freezer "v" and refrigerator "A"
indicators for five (5) seconds. The display shows "Sb"
while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is active for
health reasons. If a high temperature alarm
is activated during this time, for example
due to a door left ajar, the alarm will sound
intermittently for about 10 minutes. The
alarm will then silence on its own and a red
high temperature icon will display. The high temp icon
will continue to display, even if the door is closed, until
the Sabbath mode is exited and the icon reset. The
refrigerator will function normally once the door is closed,
without any violation of the Sabbath/Holidays.
For further assistance, guidelines for proper usage and a
complete list of models with the Sabbath feature, please
visit the web at http:\\www.star-k.org.
While in Sabbath Mode, neither the lights nor
the
control panel will work until Sabbath Mode is
deactivated.
Refrigerator stays in Sabbath Mode after power failure
recovery. It must be deactivated with the buttons on
Ice maker operation & care
-
After the refrigerator is installed properly, the ice maker
can produce ice within 24 hours. It can completely fill an
ice bin in about three (3) days.
When using the ice maker for the first time and in order
for the ice maker to work properly, it is necessary to
clear air from water filter tubing. Once ice maker begins
making ice, allow the bucket to fill completely, then
discard the first TWO (2) FULL buckets of ice. It will
take at least two (2) days to completely fill the bucket on
regular ice making mode or 1 1/2days on fast ice mode.
The ice maker produces approximately four (4) pounds of
ice every 24 hours depending on usage conditions.
The following sounds are normal when the ice
maker is operating:
Motor running
Ice dropping into ice bin
Water valve opening or closing
Running water
-
Ice cubes stored too long may develop an odd
flavor. Empty the ice bin as explained below.
Quick Ice Function
Your refrigerator is equipped with a Quick Ice Function,
that increases ice production. This function terminates
automatically.
Cleaning the ice maker
Your ice maker is turned on at the factory so it can
work as soon as you install your refrigerator. If you
cannot connect a water supply, lift the ice maker's wire
If the water supply to your refrigerator is softened, be
signal arm to turn it off. Otherwise, the ice maker's
sure the softener is properly maintained. Chemicals
fill valve may make a loud chattering noise when it
from a water softener can damage the ice maker,
attempts to operate without water. .......................................................................................................................................
Turning the ice maker on and off
Ice production is controlled by lifting/lowering the ice
maker's wire signal arm. To gain access to the ice
maker, pull the freezer drawer out. Lift the wire signal
arm to turn the ice maker OFF and lower the wire signal
arm to turn it ON.
....
Clean the ice maker and ice bin at regular intervals,
especially prior to vacation or moving.
1
Turn off the ice maker.
2
Remove the ice bin.
3
Empty and carefully clean the ice bin with mild
detergent. Do not use harsh or abrasive cleaners.
Rinse with clean water.
4
Allow the ice bin to dry completely before replacing
in the freezer,
S
Replace the ice bin. Turn the ice maker on.
ON
Remove and empty the ice bin if:
o An extended power failure (one hour or longer)
causes ice cubes in the ice bin to melt and freeze
together,
f
/
/
Signal Arm
Ice maker tips
o If your refrigerator is not connected to a water
supply or the water supply is turned off, turn off
the ice maker by lifting wire signal arm.
Remove the ice bin and shake to loosen the cubes or
clean as explained above.
NEVER use an ice pick or similar sharp instrument to
break up the ice. This could damage the ice bin and
dispenser mechanism.
To loosen stuck ice, use warm water. Before replacing
.........
the ice b!n, makesu
.........................................
Crispers
Toavoidinjuryfrombreakage,
handletemperedglass
shelvescarefully.
Crisper drawers are designed for storing fruits,
vegetables, and other flesh produce.
Features
mayvaryaccording
to model.
Yourrefrigeratorincludes
SpillSafe
TM glass
shelves that
are designed to catch and hold accidental spills.
You can easily adjust shelf positions in the fresh food
compartments to suit your needs. The shelves have
mounting brackets that attach to slotted supports at the
rear of each compartment.
Opening
To change the position of a shell:
Crisper Drawer
1
Remove all food from shelf.
Crisper humidity
2
Lift the front edge up and pull the shelf out.
3
Replace by inserting the mounting bracket hooks
into the desired support slots.
4
Lower the shelf and lock into position.
Crisper drawers include a sliding contro! for adjusting the
humidity inside the crisper. Leafy vegetables keep best
when stored with the Humidity Control set on Higher
Humidity. Fresh fruits keep best when stored with the
Humidity Control set on Lower Humidity.
control
Shelf features
Vegetables
Fruits
hi .............
humidity
control
to
/
'g e
Hum dity
Adjusting
Full SpilISafe
Drawers
Half SpilISafe
TM
TM
Shelf
Lower
Hum dty
Crisper Humidity
To remove the Crisper Drawer
for denning;
1
Pu!l the drawer out until it stops.
2
Lift the front slightly and remove the drawer.
Shelf
Your refrigerator includes a variety of storage drawers.
These drawers are located in fixed positions at the
bottom of the fresh food compartment.
Removing
Crisper Drawer
6
Deli drawer
Idea! for storage
of deli meats
Place bin liner into bin.
and cheese.
Accessories
Dairy
Doors
Storage bins
The doors to your fresh food compartment use a system
of modular storage bins. All of these bins are removable
for easy cleaning. Some of them have fixed positions,
while others can be adjusted to your needs.
(varies
by model)
compartment
Use the dairy compartment, at the top of the fresh food
compartment door, for short-term storage of cheese,
spreads, or butter. The dairy compartment is designed
to be warmer than the open area and includes a lift-up
cover and a dairy divider (select models).
Door bins are ideal for storing jars, bottles, cans, and
large drink containers. They also enable quick selection of
frequently used items.
To change the position of an adjustable
door bin:
1
Remove all food from bin.
2
Grip the bin firmly with both hands and lift it
upward.
3
Remove the bin.
4
Place the bin just above desired position.
5
Lower the bin onto supports until locked in place.
Dairy Compartment
Freezer
Features
(varies by model)
m
Stabilizer Bar
=
ii
t_
Adjustable
Door Bin
Retainer
Clips
Two Freezer
Baskets
To Remove
Upper
Dividers Removal
Basket
1
Remove all items from basket.
2
Remove basket by pulling baskets out to their full
extension and lift out.
Lift up on the front of the middle divider and pull out.
Middle Basket
Divider_
Hiddle
Basket
Divider
Lift up on the rear of the lower divider and pull out.
Removing
Upper Basket
Lower Basket
Divider_
To reinstall upper basket, position basket onto the
retainer clips making sure the front of the basket rests in
the retainer clips on the stabilizer bar.
If basket is not resting on stabilizer bar retainer clips,
the drawer will not close properly.
To Remove
Lower
Basket
....
Lower Basket Divider &
Spill Guard Tray
To reposition the pivoting divider (some models), lift up
and slide to desired location. The pivoting divider is not
designed to be removed.
1
Remove all items from basket.
2
Remove the basket by tilting it forward and lifting it
from the retainer clips.
_"
_p
Tra
ill ""
L_ua rC
Q
y--
Lower Basket
Plvohng Divider
_,
iiii!I:
iiii
i
Lower Basket Pivoting
(some models)
Removing
Divider
Lower Basket
To reinstall lower basket, insert basket into retainer clips.
Spill Guard Tray should be hand washed in warm water.
Ideas for storing foods
Fresh
food
Avoid adding too much warm food to the freezer at
one time. This overloads the freezer, slows the rate
of freezing, and can raise the temperature of frozen
foods.
storage
= Keep the fresh food compartment between 34 ° F
and 40 ° F with an optimum temperature of 37 ° E
o Avoid overcrowding the refrigerator shelves, which
reduces air circulation and causes uneven cooling.
o Leave a space between packages, so cold air can
circulate freely, allowing food to freeze as quickly
as possible.
Ideas for saving energy
Fruits and vegetables
= Store fruits and vegetables in crisper drawers,
where trapped moisture helps preserve food quality
for longer time periods.
Installation
Locate the refrigerator in the coolest part of the
room, out of direct sunlight, and away from heating
ducts or registers.
Wash items and remove excess water.
Wrap any items that have strong odors or high
moisture content.
Do not place the refrigerator next to heatproducing appliances such as a range, oven, or
dishwasher. If this is not possible, a section of
cabinetry or an added layer of insulation between
the two (2) appliances will help the refrigerator
operate more efficiently.
Meat
Wrap raw meat and poultry separately and securely
to prevent leaks and contamination of other foods
or surfaces.
Use the deli drawer to store meat/poultry for shortterm storage. Any meat to be kept longer than two
(2) days should be frozen.
Frozen
food
for
settings
at 0° F or lower.
A freezer operates most efficiently when it is at
least 2/3full.
foods
Temperature
= Refer to the "Controls" section for procedures on
temperature settings.
storage
= Keep the freezer compartment
Packaging
Level the refrigerator so that the doors close
tightly.
freezing
To minimize food dehydration and quality
deterioration, use aluminum foil, freezer wrap,
freezer bags, or airtight containers. Force as much
air out of the packages as possible and seal them
tightly. Trapped air can cause food to dry out,
change color, and develop an off-flavor (freezer
burn).
Wrap fresh meats and poultry with suitable freezer
wrap prior to freezing.
Do not refreeze meat that has completely thawed.
Loading the freezer
= Prior to grocery shopping, activate "quick freeze"
so that on your return you can ensure your newly
purchased food designated for the freezer will be
preserved as quickly as possible.
Activating "quick freeze" also will help your freezer
more efficiently maintain the selected temperature
after placing new purchases with pre-existing
frozen foods.
Food
storage
= Avoid overcrowding the refrigerator or blocking cold
air vents. Doing so causes the refrigerator to run
longer and use more energy.
Cover foods and wipe containers dry before
placing them in the refrigerator. This cuts down on
moisture build-up inside the unit.
Organize the refrigerator to reduce door openings.
Remove as many items as needed at one time and
close the door as soon as possible.
Do not place a hot container directly on a cold
shelf. Remember, such an extreme temperature
change may damage the glass.
Understanding
may hear
the sounds you
Your new, high-efficiency refrigerator may introduce
unfamiliar sounds. These sounds normally indicate
your refrigerator is operating correctly. Some surfaces
on floors, walls, and kitchen cabinets may make these
sounds more noticeable.
Energy efficient foam in your refrigerator is not a sound
insulator.
The following is a list of major components in your
refrigerator and the sounds they can cause:
A
Evaporator Refrigerant through the evaporator
may create a boiling or gurgling sound.
B
Evaporator fan You may hear air being forced
through the refrigerator by the evaporator fan.
C
Defrost heater During defrost cycles, water
dripping onto the defrost heater may cause a
hissing or sizzling sound. After defrosting, a
popping sound may occur.
D
Automatic ice maker When ice has been
produced, you will hear ice cubes falling into the
ice bin. Ice maker fan, water valve activation, and
refrigerant gas fluid may create sounds from its
operation.
E Electronic control & automatic
defrost
control These parts can produce a snapping or
clicking sound when turning the cooling system on
and off.
F
Condenser fan You may hear air being forced
through the condenser.
G
Compressor
Modern, high-efficiency compressors
run much faster than older models. The
compressor may have a high-pitched hum or
pulsating sound.
H
Water valve Makes a buzzing sound each time it
opens to fi!l the ice maker.
I
Drain pan (not removable) You may hear water
dripping into the drain pan during the defrost cycle.
J
Condenser
forced air.
M
May create minimal sounds from
Motorized damper May produce a light
humming during operation.
During automatic defrost cycle, a red glow in the back
wall vents of your freezer compartment is normal.
Locating
the
More about your Advanced Water Filter
Filters
Your refrigerator is equipped with water filtering system.
The water filter system filters all dispensed drinking
water, as well as the water used to produce ice.
Water
Filter
The water filter is located at the top right side of the
flesh food compartment.
Replacing
The PureSource Ultra TM ice and water filter
/system is tested and certified to NSF/ANSI
/Standards 42 and 53 for the reduction of claims
lspecified on the performance data sheet.
the
Water
Filter
In general, you should change the water filter every six
months to ensure the highest possible water quality. The
Water Filter Status light on the user interface prompts
you to replace the filter after a standard amount of water
(200 gallons/757 liters for PureSource Ultra TM) has
flowed through the system. The water filter status light
on this model is not performance tested or certified by
NSR
If your refrigerator has not been used for a period of time
(during moving for example), change the filter before
reinstalling the refrigerator.
Filter Cartrid
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
Test & certification
results,"
o Rated Capacity - 200 gallons/757 liters for
PureSource Ultra TM ice and water filter
Rated service flow - .50 gallons per minute
Operating Temp.: Min. 33°1=, Max. 100°F
-
Maximum Rated Pressure - 100 pounds per square
inch
Recommended Minimum Operating Pressure: 30
pounds per square inch
To replace
your
PureSource
Ultra
TM
water
filter=
It is not necessary to turn the water supply off to change
the filter. Be ready to wipe up any small amounts of water
released during the filter replacement.
:[ Turn Off the ice maker by raising the wire signal
arm.
Ordering Replacement
2
Remove the filter by pushing on the end/face of the
filter.
3
Slide the old water filter cartridge straight out of the
housing and discard it.
4
Unpackage the new filter cartridge. Using the
alignment guide, slide it gently into the filter housing
until it stops against the snap-in connector at the
back of the housing.
5
Push firmly until the cartridge snaps into
place (you should hear a click as the cartridge
engages the snap=in connector),
6
Turn On the ice maker by lowering the wire signal
arm.
7
Press and hold the Water Filter button on the Ice
& Water Dispenser control panel for three seconds.
When the display changes from Red to Green, the
status has been reset.
8
After replacing the water filter and in order for the
ice maker to work properly, it is necessary to clear
air from water filter tubing. Once ice maker begins
making ice, allow the bucket to fill completely, then
discard the first TWO FULL buckets of ice. It will
take at least two days to completely fill the bucket
on regular ice making mode or 1 1/2days on fast ice
mode.
Filters
To order your replacement filters, please visit our online
store at www.frigidaire.com/store,
by calling toll-free
at 877-808-4195, or by visiting the dealer where you
purchased your refrigerator. Frigidaire recommends
that you order extra filters when you first install your
refrigerator, and that you replace your filters at least once
every six months.
Here is the product number to request when ordering:
PureSource Ultra TM Water Filter
Part #ULTRAWF
Air filter
The air filter is located under the utility bin.
Replacing
your
PureAdvantage
TM
air filter
To ensure optimal filtering of refrigerator odors, you
should change the air filter every six (6) months (the
filter status light on the Touch Panel prompts you to
replace the filter after six (6) months).
1
Open the air filter door.
2
Remove the old filter and discard it.
3
Unpack the new filter and slide it into the housing.
4
To close the air filter door, push the top and bottom
to lock the door closed.
Press and hold the Air Filter Reset button on
the control panel for three (3)seconds. When the
display changes from "Replace" to "Good," the
status has been reset.
The Air Filter Reset will turn itself off after a few
seconds.
:ill!
Ordering replacement
filters
Order new filters by calling 877-808-4195, online
at www.frigidaire.com/store,
or through the dealer
where you bought your refrigerator. You may want to
consider ordering extra filters when you first install your
refrigerator.
Air Filter Replacement cartridge, part #PAULTI_
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately
and clean the freezer and fresh food compartments at least twice a year.
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors,
gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.
o Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.
Never use CHLORIDE or cleaners with bleach to clean stainless steel.
Do not wash any removable parts in a dishwasher.
Always unplug the electrical power cord from the wall outlet before cleaning.
If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue
until you unplug the power cord from the wall outlet.
Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the
appliance surface.
Do not remove the serial plate. Removal of your serial plate voids your warranty.
Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly.
floor from being damaged.
This will prevent the
Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be careful not to
move the refrigerator beyond the plumbing connections.
Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply
system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service
Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.
Care and cleaning tips
Interior &
• Soap and water
Door Liners
- Baking soda and
water
Be sure to wring excess water out of sponge or cloth before cleaning around
controls, light bulb or any electrical part.
Drawers &
Bins
- Soap and water
Use a soft cloth to clean drawer runners and tracks.
Toe Grille
• Soap and water
Remove toe grille (see Installation Instructions).
o Mild liquid sprays
Vacuum
Vacuum both sides and wipe with sudsy cloth or sponge.
• Soap and water
Never use CHLORIDE or cleaners with bleach to clean stainless steel.
Exterior &
Handles
(Stainless
Steel Models
Only)
• Use two (2) tablespoons of baking soda in one (1) quart of warm water.
Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Rinse and dry.
Clean stainless steel front and handles with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth.
• Stainless steel
cleaners
Use a non-abrasive stainless steel cleaner. These cleaners can be purchased
at most home improvement or major department stores. Always follow
manufacturer's instruction. Do not use household cleaners containing ammonia
or bleach.
NOTE: Always clean, wipe and dry with grain to prevent scratching.
Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.
Vacation and moving tips
Short Vacations
Leave refrigerator operating during vacations of three (3) weeks or less.
Use all perishable items from refrigerator compartment.
Turn automatic
Moving
ice maker off and empty ice bucket, even if you will only be gone a few days.
• Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
Replacing
LED Lights (select
mode=s)
The fresh food compartments of your refrigerator
may have LED lights. Always use Frigidaire parts for
replacement.
To replace
LED
Lights:
1
Unplug your refrigerator's power cord.
2
Remove light cover by pushing up and out.
3
Hold the LED cover with one hand and pull the
connector with the other hand while pressing the
connector latch.
4
Wear gloves when replacing incandescent light bulbs to
Replace LED light and snap in place assuring the
light is facing in toward the unit (inside fresh food)
or facing outward on bottom of fresh food doors.
To replace
light
bulbs =
1
Unplug your refrigerator's
power cord.
2
Wear protective gloves.
3
Remove light cover, if necessary.
4
Unscrew and replace old bulb with an appliance
bulb of the same type and wattage (normally 40
watts).
5
Replace light cover, if necessary.
6
Plug in the refrigerator's power cord.
Lighi sOCketS I
Located Behind
i
i iiiiiiiiiiiiiiiiiiiiiiii
_
LED Light Removal
Light cover
Refrigerator
Light
Light Socket
Located in Upper
Freezer Section
LED Light
Harness Removal
Light Cover
Freezer Light
LED lights are in series so if one is bad or unplugged,
several lights may not light up.
Replacing Light Bulbs (sele models)
Both the freezer and fresh food compartments of your
refrigerator include incandescent light bulbs that will
need replacing from time-to-time.
Some lights have
covers that need to be removed before replacing the
bulbs. Always use bulbs that are designed for appliance
lighting.
Ordering
Replacement
LED
Lights
Order new LEDs by calling 877=808-4195, online at www.
frigidaire.corn/store, or through the dealer where you
bought the refrigerator. Here is the product number to
request when ordering:
LED Light, Part #241891102
Incandescent
Lights (40=watt
#5305514148
bulb), Part
1-800=944=9044
1=800-265-8352
(Canada)
CONCERN
AUTOMATIC
Visit our web site at
www.crosley.com
(United States)
POTENTIAL
CAUSE
Ice maker is not making any ice.
• Ice maker is turned off.
• Refrigerator is not connected to water line or water valve is not open.
• The water supply line is kinked.
• The water filter is not seated
properly.
• Ice maker has small cube caught
in mechanism.
• Freezerice maker wire signal arm is
being held up by an item not allowing
it to go in the ON or DOWN position.
Ice maker is not mak.
ing enough ice (select
models),
,Ice maker is producing !ess ice
than you expect.
,The water filter may be clogged
with
foreign material:
, The water Supply !ine is kinked.
Ice maker will not stop
making ice (select
models).
• Ice maker wire signal arm is being held
down by some item inthe freezer that
hasfallen against the icemaker
Zce cubes are freezing
together,
• Ice cubes aren- ot being
Usmd
frequently enough or interruption
of power for prolonged time.
, Ice cubes are ho!low (shells of
ice with water inside). The hollow
cubes break open in the bin and
COHHON
u
,
OPENING/CLOSING
• Turn on ice maker. For the fresh food ice maker, press and hold
the "Ice Off" button for three (3) seconds until the indicator
light is off. For the freezer ice maker, lower the wire signal arm.
• Connect the unit to the household water supply and ensure
the water valve is open.
• Ensure the supply line does not kink when the refrigerator is
pushed into place against the wall.
• Remove and reinstall the water filter. Be sure to push the
filter firmly so you hear it lock solidly into position.
• Remove small cube from ice maker. The ice and water filter
cartridge may be clogged. Replace filter cartridge.
• Move any item or frozen ice cubes that may block the signal
arm from being in the ON or DOWN position. See Automatic
Ice Maker=Freezer section in the manual.
• Move any item or frozen ice cubes that may block the signal
arm from being in the OFF or upward position. See Automarie Ice Maker=Freezer
section in the manual.
Re--=--=-move
'
ice c0ntainer and ediscard
maker wil! produce fresh supply.
ice
• Th s generally occurs when the ce maker does not get
enough
water. This is usually the result of a clogged water
filter or restricted water supply. Replace the water filter and
if the condition still occurs, check for a saddle valve, water
ValVenot turned on al! the wayor kinked water supply linel
• Set freezer control to colder setting: Allow 24 hours for temperature to stabilize.
' Door was el0sed too hard, causing
other door to open slightly.
• Refrigerator is not level It rocks
on the floor when moved slightly.
, Refrigerator is touching a wall or
cabinet.
- c!0se both doors gentiyl
' Ensure fl00r isleVel and
the refrigerator. Contact
sloping floor.
• Ensure floor is level and
the
refrigerator. Contact
sloping
are difficult
from€_ntainer.
OF DOORS/DRAWERS
not close,
I
Drawers
move.
SOLUTION
, The ice maker produces approximately four (4)pounds Of ice
every 24 hours depending on usage conditions.
, If water dispenses slower than normal, or if the filter is six
(6) months o!d or older, it should be replaced.
, Ensure the Supply line does not kink when the refrigerator is
pushed into place against the wall.
, Saddlevalveon coldwater pipe is
, Turn off household water line va!ve.Removevalve. Ensurevalve isnot
dogged _ restrictedby foreign materia!.
a self-piercing saddlevalve. Cleanvalve. Replacevalve if _ry:
, Check to see if water dispenser is
"!f it is, replace the ice and water filter cartridge.
dispensing slower than normal:
,Heavy traffic, opening or c!osing if " ,Press Fast Freeze to temporad!y increase ice production,
the doors excessively.
leak
whichtheir
causes
waterit to
onto
freeze
existing
together,
ice,
, Freezer control is set too warm:
Door(s) will
i
ICE MAKER
to
• Food is touching shelf on top of
drawer.
• Track that drawers slide on is
dirty.
s01idl and can adequately support
a carpenter to correct a sagging or
solid, and can adequately support
a carpenter to correct a sagging or
floor,
• Remove top layer of items in drawer.
• Ensure drawer is properly installed on track.
• Clean drawer, rollers, and track. See Care & Cleaning.
CONCERN
RUNNING
Compressor
run,
I POTENTIAL
CAUSE
I
COMMON
SOLUTION
OF REFRIGERATOR
• Freezer control is set to "OF" or
"0':
• Refrigerator is in defrost cycle.
does not
• Plug at electrical outlet is disconnected.
• House fuse blown or tripped
circuit breaker.
• Power outage.
- Room or outside weather is hot.
- Doors are opened too frequently
or too long.
- Fresh Food/freezer door may be
slightly open.
Refrigerator
runs too
much or too long.
• Freezercontrolissettoocold,
• Fresh Food/freezer gasket is dirty,
worn, cracked, or poorly fitted.
• Condenser is dirty.
Compressor goes off
and on frequently,
• Thermostat keeps the refrigerator
at a constant temperature,
• Set freezer control.
• This is normal for a fully automatic defrost refrigerator. The
defrost cycle occurs periodically, lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15-amp time-delay fuse.
circuit breaker.
• Check house lights. Call local electric company.
Reset
- It's normal for the refrigerator to work longer under these
conditions.
• Warm air entering the refrigerator causes it to run more.
Open doors less often.
• Ensure refrigerator is level. Keep food and contains from
blocking door. See CONCERN column in OPENING/CLOSING OF DOORS/DRAWERS
section.
- Set Fresh Food control to warmer setting until refrigerator
temperature is satisfactory. Allow 24 hours for temperature to
stabilize.
• Clean or change gasket. Leaks in door seal will cause refrigerator to run longer in order to maintain desired temperatures.
• Clean condenser. See Care & Cleaning,
• This is normal. Refrigerator goes on and off to keep temperature constant.
DIGITAL TEM PEI:beffUREDISPLAY
Digital temperature
I" Electronic control system has
displays are flashing,
/
WATER/MOISTURE/FROST
detected a performance
INSIDE
problem,
•
Call your Frigidaire service representative,
who can inter-
pret any messages or number codes flashing on the digital
displays.
REFRIGERATOR
Moisture collects on
insideof refrigerator
walls.
• Weather is hot and humid.
• Door isslightly
open.
• The rate of frost buildup and internal sweating increases.
• See CONCERN
column inOPENINGICLOSING
OF
DOORS/DRAWERS
section,
Water collects on bob
tom side of drawer
cover,
• Vegetables contain and give off
moisture:
• It is not unusual to have moisture on the bottom side of the
cover.
,Move humidity control (some models)to lower setting:
• Washed vegetables and fruit drain
while in the drawer,
• Dry items before putting them in the drawer. Water collecting
in bottom of drawer is normal.
Water collects in hot=
tom of drawer,
WATER/MOISTURE/FROST
Moisture collects on
outside of refrigerator
or between doors.
i
OUTSIDE
REFRIGERATOR
• Weather is humid.
• Door is slightly open, causing
cold air from inside refrigerator to
meet warm air from outside.
• This is normal in humid weather. Press Energy Saver icon to
reduce exterior moisture on the cabinet between the doors.
When humidity is lower, the moisture should disappear and
the Energy Saver icon can be pressed again to turn it off.
• See CONCERN
column in OPENINGICLOSING
OF
DOORS/DRAWERS
section,
REFRIGERATOR
Your refrigerator
is protected
WARRANTY
FULL ONE-YEAR
WARRANTY
WARRANTY
PERIOD
One year from original
purchase date
by this warranty
THROUGH
OUR AUTHORIZED
WE WILL:
THE CONSUMERWILL
BE RESPONSIBLE FOR:
SERVICERS,
Pay all costs for repairing or replacing any parts of
i this appliance which prove to be defective in materials
or workmanship.
Excludes original and replacement
Ice & Water filter cartridges (if equipped). Original
and replacement cartridges are warranted for 30 days
(parts only).
*in addition to warranty shown above, ask your dealer about Crosley
charge for the 2rid through 1Oth years.
Extended
Limited Warranty
Costs of service calls that are listed
under NORMAL RESPONSIBILITIES OFTHE CONSUMER.*
that comes
to you at no extra
In the U.S.A., your appliance is warranted by Crosley Corporation. We authorize no person to change or add to any of our obligations under
this warranty. Our obligations for service and parts under this warranty must be performed by an authorized Crosley Corporation servicer. In
Canada, your appliance is warranted by Crosley Canada Corp.
*NORMAL
RESPONSiBiLiTiES
OFTHE CONSUMER
This warranty applies
items listed below:
1.
2.
3.
4.
5.
6.
EXCLUSIONS
only to products in ordinary
household
use, and the consumer
is responsible
for the
Proper use of the appliance in accordance with instructions provided with the product.
Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it was shipped from the factory.
Damages to finish after installation.
Replacement of light bulbs and/or fluorescent tubes (on models with these features).
This warranty does not cover the following:
1.
2.
3.
4.
CONSEQUENTIAL
OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in
ordinary household use. The consumer shall pay for such service calls.
Damages caused by services performed by servicers other than Crosley Corporation, Crosley Canada Corp. or
its authorized servicers; use of parts other than genuine Crosley Corporation parts; obtained from persons other
than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all
receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by contacting Crosley Corporation or Crosley Canada Corp.
IFYOU NEED
SERVICE
This warranty only applies in the 50 States of the U.S.A., in Puerto Rico, and in Canada. Product features or specifications as described or
illustrated are subject to change without notice. All warranties are made by Crosley Corporation. In Canada, your appliance is warranted by
Crosley Canada Corp.
Rev. 01/2006
FOR WARRANTY
USA
Canada
iNFORMATiON
800-944-9044
800-668-4606
CONTACT:
FOR PRODUCT iNFORMATiON CONTACT:
336-781-1212
Crosley Corporation
111 Cloverleaf Dr.
Suite 200
Winston-Salem,
NC 27103
www.crosJe.y.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
