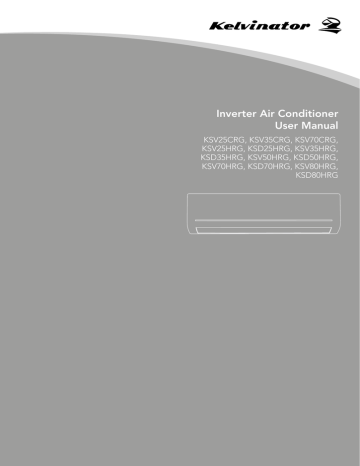

Inverter Air Conditioner

User Manual

KSV25CRG, KSV35CRG, KSV70CRG,

KSV25HRG, KSD25HRG, KSV35HRG,

KSD35HRG, KSV50HRG, KSD50HRG,

KSV70HRG, KSD70HRG, KSV80HRG,

KSD80HRG

Congratulations Contents

Congratulations and thank you for choosing our Inverter split system room air conditioner. We are sure you will find your new air conditioner a pleasure to use. Before you use the air conditioner, we recommend that you read through the entire user manual, which provides the description of the air conditioner and its functions.

To avoid the risks that are always present when you use an electrical appliance, it is important that the air conditioner is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Conditions of use

This appliance is intended to be used in household and similar applications such as :

• staff kitchen areas in shops, offices and other working environments.

• farm houses.

• by clients in hotels, motels and other residential type environments.

• bed and breakfast type environments.

This air conditioner is designed for and intended to be used in normal domestic applications only.

Record model and serial number here:

Model number: ..................................................................................

Serial number: ...................................................................................

Safety Instructions

Warnings .......................................................................................... 3

Product description

Installation drawing ......................................................................... 5

Remote control specifications ....................................................... 6

Operating instructions

Using the remote control ............................................................... 6

Indoor unit display .......................................................................... 7

Indicators on LCD ........................................................................... 9

How to use the buttons ................................................................ 10

Timer operation ............................................................................ 12

Special functions ........................................................................... 14

Airflow directional control ............................................................ 15

Care and maintenance

Before maintenance...................................................................... 17

Cleaning the unit ........................................................................... 17

Cleaning the air filter and air freshening filter ........................... 17

Preparation for extended non-operation ................................... 18

Pre season inspection ................................................................... 18

Troubleshooting tips

Troubleshooting tips ..................................................................... 19

Warranty

...................................................................................... 23

Information on disposal for users

• Most of the packing materials are recyclable.

Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.

• If you wish to discard this air conditioner, please contact your local authorities and ask for the correct method of disposal.

This product uses R32 difluoromethane refrigerant, which is a mildly flammable gas class 2.2 according to AS 1677 and must be handled by a refrigeration mechanic with appropriate Australian refrigerant handling licence.

2

Contents

Safety instructions

Meanings of symbols used in this manual are shown below:

This symbol indicates information concerning your personal safety or information on how to avoid damaging the air conditioner

This symbol indicates tips and information about use of the appliance

This symbol indicates tips and information about economical and ecological use of the appliance

• Contact an authorised installer for installation of this unit.

• Installation work must be performed in accordance with the national wiring standards by authorised personnel only.

• This air conditioner may need to be installed on it's own separate circuit. Please refer to AS/NZS3000 and local wiring regulations for requirements.

• Contact an authorised service technician for repair or maintenance of this unit.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the air conditioner.

• If the system is to be moved to another location or disposed of, only a suitably qualified person is permitted to undertake such work.

• Take care not to catch fingers on the fan blade when adjusting vertical louvres.

• This air conditioner uses R32 refrigerant.

• Do not use this air conditioner for non-specified special purposes ( e.g. preserving precision devices, food, pets, plants, and art objects). Usage in such a manner could damage your property.

• Always insert the filters securely. Clean the filters every

3 months, or as required.

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

• Do not store the appliance in a room with continuously operating ignition sources (for example open flames, an operating electric heater or an operating gas appliance with a continuously lit pilot flame).

• Do not pierce or burn any part of the air conditioner.

• Be aware that the refrigerant is odourless and any gas leak is not detectable by smell.

• Ensure the unit is properly connected to the power. Excess heat generation caused by incorrect connection may result in an electric shock or fire.

• Do not operate or stop the unit by switching on or off at the power source. This may cause an electric shock or fire due to excess heat generation.

• Do not operate with wet hands or in damp environment. This may cause an electric shock.

• Always ensure that the unit is correctly earthed.

No earthing may cause electric shock.

• Do not allow water to run into electric parts. It may cause failure of the unit or electric shock.

• Use a correctly rated circuit breaker or fuse. There is risk of fire or electric shock.

• Disconnect the power if strange sounds, smells, or smoke come from the unit. It may cause fire and electric shock.

• Do not drink water drained from the air conditioner. It may contain contaminants that could make you sick.

• Do not open the unit during operation. It may cause electric shock.

• Ventilate room before operating the air conditioner if there has been or may have been a flammable gas leak from another appliance. It may cause an explosion, fire and burns.

• Do not disassemble or modify unit. It may cause failure and electric shock.

• When the air filter is to be removed, do not touch the metal parts of the unit. It may cause an injury.

• Do not clean the air conditioner with water. Water may enter the unit and degrade the insulation. It may cause an electric shock.

• Ventilate the room well when used together with a stove or other combustion heating device. An oxygen shortage may occur.

• Exposure of direct airflow to occupants, pets or plants for an extended period of time could be a health hazard.

Safety instructions

3

Safety instructions

• Do not place obstacles around air inlets or inside of air outlet. It may cause failure of appliance or accident.

• Turn off at the main power switch if the unit will not be used for a long period of time. It may cause failure of the unit or fire.

• Do not use strong chemical cleaners such as detergents, abrasive cleaners or thinners, as they may damage the appliance causing scratches, discolouration or deteriorate the surface finish. Use a soft cloth for cleaning.

• Where the airconditioned is installed on an external wall bracket ensure that the installation bracket of the outdoor appliance is not damaged due to prolonged exposure. If bracket is damaged, the unit may fall and damage may occur.

• Use caution when unpacking and installing. Sharp edges could cause injury.

• If water enters the unit, turn the unit off and disconnect the power, contact a qualified service technician.

Troubleshooting

You'll find many answers to common problems in the chart of troubleshooting tips on page 21. If you review the chart of

Troubleshooting Tips first, you may not need to call for service.

Service

For repair and maintenance, contact your authorised service dealer.

Refer to the contact numbers in the warranty section on the back page of this manual.

4

Important safety instructions

Installation drawing

Fig. 1

4

Installation plate fixing screw

ST3.9x25(5)

3

15cm or more

1

12cm or more

5

12cm or more

Remote control

Air filter

200cm or more

Additional drain pipe

Before screwing the remote controller holder to the wall, make sure that control signals are properly received by indoor unit.

6

2x AAA batteries

7

A

30cm or mor e

2

Air outlet

60cm or more

Wrapping tape (wrap the insulation pipe with the tape from bottom to top)

30cm or mor e

B

200cm or mor

In sites with poor drainage, use block bases for outdoor unit. Adjust its height until the unit is leveled. Otherwise, water leakage or pooling of water may occur.

e

60cm or mor e

C

Allow two of A, B and

C directions to be free from obstructions.

Where there is a danger of the unit falling, use foot bolts to fix.

8

Air Conditioner

1

Indoor unit

2

Outdoor unit

3

4

5

6

Seal

Drain elbow

Indoor unit mounting plate

Mounting plate fixing screws, ST3.9x25

Remote controller

Remote controller holder (optional)

9

Flare nuts

1

5

1

1

Qty.

1

1

7

Battery (AAA 1.5V)

8

Drain elbow & seal

9

Flare nuts

10

Installation Manual

11

User manual

NOTE: Appearance of outdoor unit and indoor unit may differ from some models. The actual shape shall prevail.

2

1

1

Qty.

2

1

Installation drawing

5

Remote control specifications

Rated voltage

Signal receiving range

3.0V (2x 1.5V AAA)

8m

Using the remote control

ON/OFF

MODE

FAN

TEMP

SILENCE

FP

TIMER

ON

TIMER

OFF

SLEEP

TURBO SELF CLEAN

SWING DIRECT

LED FOLLOW ME

MOD

E

SWIN

G

SLEE

P

H

DIRE

CT

TEM

P

SELF

CLE

RE

SET

ON R

O

AN

LO

CK

TIM

ER

L

ED

E

SHO

RTCU

T

FA

N

D

Location of the remote controller

• Use the remote controller within a distance of 8 meters from the appliance, pointing it towards the receiver. Reception is confirmed by a beep.

• The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit.

• Prevent any liquid from falling into the remote controller. Do not expose the remote controller to direct sunlight or heat.

• If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner may not function properly.

• Use curtains to prevent the sunlight from falling on the receiver.

• If other electrical appliances react to the remote controller, either move these appliances or consult your local dealer.

• Do not drop the remote controller. Handle with care.

• Do not place heavy objects on the remote controller, or step on it.

Location of the remote controller

• The remote controller can be attached to a wall or pillar by using a remote controller holder (not supplied, purchased separately).

• Before installing the remote controller, check that the air conditioner receives the signals properly.

• Install the remote controller holder with two screws.

• For installing or removing the remote controller, move it up or down in the holder.

6

Remote control specifications

Indoor unit display

Replacing batteries

The following cases signify exhausted batteries.

Replace old batteries with new ones.

• Receiving beep is not emitted when a signal is transmitted.

• Indicator fades away.

The remote controller is powered by two dry batteries (2x AAA

1.5V)housed in the back rear part and protected by a cover.

1. Remove the cover in the rear part of the remote controller.

2. Remove the old batteries and insert the new batteries, placing the(+) and (-) ends correctly.

3. Put the cover back on.

NOTE: When the batteries are removed, the remote controller erases all programming. After inserting new batteries, the remote controller must be reprogrammed.

Digital display

• Displays the temperature settings when the air conditioner is operational.

• Displays the room temperature in FAN mode.

• Displays the self-diagnostic codes.

• Displays ' ' for three seconds when Timer ON, Swing, Turbo or Silence feature is activated.

• Displays ' ' for three seconds when Timer OFF is set.

• Displays ' ' for three seconds when Swing, Turbo or Silence feature is cancelled.

• Displays ' ' under defrosting operation.

• Displays ' ' when anti-cold air feature is activated under heating mode.

• Displays ' ' during self clean operation (if applicable).

• Displays ' ' during self clean operation (if applicable).

• Displays ' ' under 8°C heating operation (if applicable).

• If you want to turn off the indoor unit display (for example to make the room dark for sleeping), press the LED button on the remote control.

• Do not mix old and new batteries or batteries of different types.

• Do not leave the batteries in the remote controller if they are not going to be used for 2 or 3 months.

• Do not dispose batteries as unsorted general waste. Collection of such waste separately for special treatment is necessary.

Using the remote control

7

1

2

3

4

5

6

Operation of buttons

ON/OFF

MODE

FAN

SLEEP

SILENCE

FP

TIMER

ON

TEMP

TIMER

OFF

SWING DIRECT

TURBO SELF CLEAN LED FOLLOW ME

7

8

9

10

11

12

13

1. ON/OFF Button

This button turns the air conditioner ON and OFF.

2. MODE Button

Press this button to modify the air conditioner mode in a sequence of following:

AUTO > COOL > DRY > HEAT > FAN

NOTE: Please do not select HEAT mode if the machine you purchased is cooling only type. Heat mode is not supported by the cooling only appliance.

3. FAN Button

Used to select the fan speed in four steps:

AUTO > LOW > MED > HIGH

NOTE: You can not switch the fan speed in AUTO or DRY mode.

4. SLEEP Button

Active/Disable sleep function. It can maintain the most

comfortable temperature and save energy. This function is available on COOL, HEAT or AUTO mode only.

For the detail , see sleep operation on page.

NOTE: While the unit is running under SLEEP mode, it will be cancelled if MODE, FAN SPEED or ON/OFF button is pressed.

5. TURBO Button

Active/Disable Turbo function. Turbo function enables the unit to reach the preset temperature at cooling or heating operation in the shortest time.

6. SELF CLEAN Button

Active/Disable Self Clean function

7. UP Button ( )

Push this button to increase the indoor temperature setting in 1°C increments to 30°C.

DOWN Button ( )

Push this button to decrease the indoor temperature setting in 1°C increments to 17°C.

8 SILENCE/FP Button (FP frost protection - when selected prevents the room temperature from dropping below 8°C)

• Active/Disable SILENCE function. If pushing more than

2 seconds, the FP function will be activated, pushing more than 2 seconds again to disable.

• When the Silence function is activated, the compressor will operate at low frequency and the indoor unit will bring faint breeze, which will reduce the noise to the lowest level and create a quiet and comfortable room for you. Due to low frequency operation of compressor, it may result in insufficient cooling and heating capacity.

• The FP function can only be activated during the heating operation (only when the setting mode is HEAT). The unit will operate at a setting temperature of 8°C. The display window of indoor unit will display FP. Press the buttons of

ON/OFF, SLEEP, FP, MODE, FAN SPEED,UP or DOWN while operating will cancel the FP function.

8

Operation of buttons

Operation of buttons

9. TIMER ON Button

Press this button to initiate the auto-on time sequence.

Each press will increase the auto-timed setting in 30 minute increments. When the setting time displays 10.0, each press will increase the auto timed setting by 60 minute increments.

To cancel the auto-timed program, simply adjust the auto-on time to 0.0.

10. TIMER OFF Button

Press this button to initiate the auto-off time sequence.

Each press will increase the auto-timed setting in 30 minute increments. When the setting time displays 10.0, each press will increase the auto-timed setting 60 minute increments.

To cancel the auto timed program, simply adjust the auto-off time to 0.0

11. Swing Button

Used to stop or start horizontal louver auto swing feature.

DIRECT Button

Used to change the louver movement and set the desired up/ down air flow direction. The louver changes 6° in angle for each press.

12. FOLLOW ME Button

Push this button to initiate the Follow Me feature, the remote display is actual temperature at its location. The remote control will send this signal to the air conditioner every

3 minutes interval until press the Follow Me button again.

The air conditioner will cancel the Follow Me feature automatically if it does not receive the signal during any

7 minutes interval.

13. LED Button

Disable/Active indoor screen Display. When pushing the button, the indoor screen display is cleared, press it again to light the display.

NOTE: pressing LED button also disables the beep sound.

Operation of buttons

9

Indicators on LCD

Information are displayed when the remote controller is powered up.

Mode display

AUTO

HEAT

COOL

FAN

DRY

Icon Function

Displayed when data transmitted

Displayed when remote controller is ON

Battery display (low battery detection)

ON

Displayed when TIMER ON time is set

OFF Displayed when TIMER OFF time is set

Show set temperature or room temperature, or time under TIMER setting

Displayed in Sleep Mode operation

Indicated that the air conditioner is operating in follow me mode

Displayed when silence feature is activated

Fan speed indication

FAN Low speed

FAN

FAN

Medium speed

High speed

FAN AUTO

Auto fan speed

NOTE: All indicators shown in the figure are for the purpose of clear presentation. But during the actual operation only the relative functional signs are shown on the display window.

10

Indicators on LCD

How to use the buttons

NOTE: In the FAN mode, the setting temperature is not displayed in the remote controller and you are not able to control the room temperature either. In this case, only step 1, 3 and 4 may be performed.

2

3

1

ON/OFF

MODE

FAN

SLEEP

TEMP

SILENCE

FP

TIMER

ON

TIMER

OFF

SWING DIRECT

TURBO SELF CLEAN LED FOLLOW ME

Auto operation

Ensure the unit is plugged in and power is available.

The OPERATION indicator on the display panel of the indoor unit starts flashing.

3

1

ON/OFF

MODE

FAN

SLEEP

SILENCE

FP

TIMER

ON

TEMP

TIMER

OFF

SWING DIRECT

TURBO SELF CLEAN LED FOLLOW ME

2

The temperature can be set within a range of 17°C–30°C in 1°C increments.

Dehumidifying operation

Ensure the unit is plugged in and power is available. The

OPERATION indicator on the display panel of the indoor unit starts flashing.

1. Press the MODE button to select DRY mode.

Press the UP/DOWN buttons to set the desired temperature.

The temperature can be set within a range of 17°C–30°C in 1°C increments.

NOTE:

1. In the Auto mode, the air conditioner can logically choose the mode of Cooling, Fan, and Heating by sensing the difference between the actual ambient room temperature and the setting temperature on the remote controller.

2. In the Auto mode, you can not adjust the fan speed. It has already been automatically controlled.

3. If the Auto mode is not comfortable for you , the desired mode can be selected manually.

NOTE: In the Dehumidifying mode, you can not adjust the fan speed. It has already been automatically controlled.

2

4

1

3

ON/OFF

MODE

FAN

SLEEP

SILENCE

FP

TIMER

ON

TEMP

TIMER

OFF

SWING DIRECT

TURBO SELF CLEAN LED FOLLOW ME

Cooling/Heating/Fan operation

Ensure the unit is plugged in and power is available.

Press the MODE button to select COOL, HEAT (cooling & heating models only) or FAN mode.

Press the UP/DOWN buttons to set the desired temperature.

The temperature can be set within a range of 17°C–30°C in 1°C increments.

Auto, Low, Med, or High.

4. Press the ON/OFF button to start the air conditioner.

How to use the buttons

11

Timer operation

ON/OFF

MODE

FAN

SLEEP

TEMP

SILENCE

FP

TIMER

ON

TIMER

OFF

SWING DIRECT

TURBO SELF CLEAN LED FOLLOW ME

1

2

Press the TIMER ON button can set the auto-on time of the unit.

Press the TIMER OFF button can set the auto-off time of the unit.

To set the Auto-ON time

1. Press the TIMER ON button. The remote controller shows

TIMER ON, the last Auto-on setting time and the signal "H" will be shown on the LCD display area. Now it is ready to reset the Auto-on time to START the operation.

2. Push the TIMER ON button again to set desired Auto-on time.

Each time you press the button, the time increases by half an hour between 0 and 10 hours and by one hour between 10 and

24 hours.

3. After setting the TIMER ON ,there will be a one second delay before the remote controller transmits the signal to the air conditioner. Then, after approximately another 2 seconds, the signal "H" will disappear and the set temperature will re-appear on the LCD display window.

To set the Auto-OFF time

1. Press the TIMER OFF button. The remote controller shows

TIMER OFF, the last Auto-off setting time and the signal "H" will be shown on the LCD display area. Now it is ready to reset the Auto-off time to stop the operation.

2. Push the TIMER OFF button again to set desired Auto-off time.

Each time you press the button, the time increases by half an hour between 0 and 10 hours and by one hour between 10 and

24 hours.

3. After setting the TIMER OFF, there will be a one second delay before the remote controller transmits the signal to the air conditioner. Then, after approximately another 2 seconds, the signal "H " will disappear and the set temperature will

reappear on the LCD display window.

• When you select the timer operation, the remote controller automatically transmits the timer signal to the indoor unit for the specified time. Therefore, keep the remote controller in a location where it can transmit the signal to the indoor unit properly.

• Timer setting is in half hourly intervals up to 10 hours then hourly intervals to 24 hours

12

Timer operation

Examples of timer operation

Timer on (Auto-on Operation) Combined timer

(Setting both ON and OFF timers simultaneously)

Timer off/Timer on (On/Stop/Start operation)

Start

Off

Set 6 hours later

The TIMER ON feature is useful when you want the unit to turn on automatically before you return home. The air conditioner will automatically start operating at the set time.

Example

To start the air conditioner in 6 hours.

1. Press the TIMER ON button, the last setting of starting operation time and the signal "H" will show on the display area.

2. Press the TIMER ON button to display "6.0H " on the TIMER

ON display of the remote controller.

3. Wait for 3 seconds and the digital display area will show the temperature again. The "TIMER ON" indicator remains on and this function is activated.

Timer off (Auto-off Operation)

Stop

On

Set 2 hours later after setting

10 hours later after setting

This feature is useful when you want to stop the air conditioner after you go to bed, and start it again in the morning when you wake up or when you return home.

Example

To stop the air conditioner 2 hours after setting and start it again

10 hours after setting.

1. Press the TIMER OFF button.

2. Press the TIMER OFF button again to display 2.0H on the

TIMER OFF display.

3. Press the TIMER ON button.

4. Press the TIMER ON button again to display 10H on the TIMER

ON display.

5. Wait for 3 seconds and the digital display area will show the temperature again. The "TIMER ON OFF" indicator remains on and this function is activated.

Timer off/Timer on (On/Stop/Start operation)

On

Set 10 hours later

The TIMER OFF feature is useful when you want the unit to turn off automatically after you go to bed. The air conditioner will stop automatically at the set time.

Example

To stop the air conditioner in 10 hours.

1. Press the TIMER OFF button, the last setting of stopping operation time and the signal "H" will show on the display area.

2. Press the TIMER OFF button to display "10H " on the TIMER

OFF display of the remote controller.

3. Wait for 3 seconds and the digital display area will show the temperature again. The "TIMER OFF" indicator remains on and this function is activated.

This feature is useful when you want to start the air conditioner before you wake up and stop it after you leave the house.

Example

To start the air conditioner 2 hours after setting, and stop it 5 hours after setting.

1. Press the TIMER ON button.

2. Press the TIMER ON button again to display 2.0H on the

TIMER ON display.

3. Press the TIMER OFF button.

4. Press the TIMER OFF button again to display 5.0H on the

TIMER OFF display.

5. Wait for 3 seconds and the digital display area will show the temperature again. The "TIMER ON & TIMER OFF" indicator remains on and this function is activated.

Timer operation

13

Special functions

SLEEP operation

SLEEP operation

Continuous run

1°C

Set temp.

1°C

1 hour

Cooling

1 hour

SLEEP operation

Set temp.

Continuous run

1°C

1°C

1 hour

Heating

1 hour

When selected, the set temperature will increase (cooling) or decrease (heating) by 1°C per hour for the first 2 hours. Until new settings are entered or the air conditioner is shut down.

Sleep function saves energy and improves night time by optimising sleeping temperature.

Refrigerant leakage detection

When refrigerant leakage is detected, the indoor unit will display

EC code.

Louvre angle memory function

Within the scope of safety angle, the horizontal louver angle is memorised and will return to the position last selected by user. If it exceeds, it will memorize the boundary of safety angle. This will not happen when Turbo or manual control buttons are pressed or after a power interruption. So we strongly suggest that the open angle of the horizontal louver should not be set too small, in case the condensed water forms and drips from the horizontal louver.

SELF CLEAN function

• Airborne bacteria use the moisture on the indoor heat exchanger to grow. Regular drying of the exchanger prevents this growth. By simply pressing the SELF CLEAN button, the system will automatically manage the process. This cleaning action may be done as frequently as desired.

• For cooling models, only the indoor fan is active in low speed for 30 minutes and the unit turns off automatically.

• For cooling & heating models, the unit will operate as in the following sequence : FAN mode at Low fan speed--Heating operation with LOW fan speed ---FAN operation--Stop

Operation---Turn off.

NOTE:

Activating self clean function does not replace the need to clean the filters. The filters must be cleaned at least every

3 months, or as required to maintain good cleanliness and performance of this air conditioner.

Before activation the air conditioner, it is recommended to run the air conditioner under cooling operation for about

30 minutes.

Pressing the SELF CLEAN or ON/OFF button again during the cleaning cycle will cancel the operation and turn the unit off.

Auto-restart function

In event of power interruption such as a blackout, the air conditioner stops once. But it restarts automatically and performs previous operation when the power supply is resumed.

Mute operation

Press the LED button on the remote controller can turn off the indoor screen display, and also turn off the Air conditioner buzzer, which create a comfortable and quiet environment.

14

Special functions

Airflow directional control

The direction of airflow can be adjusted for maximum comfort.

Range

Deflector rod

Range

Adjusting vertical air flow (Up/Down)

The vertical airflow direction is controlled by using the remote control. This can be set to a fixed direction or to automatically swing up and down for even air distribution. Refer to Remote

Control section page 9 for operation details .

Adjusting horizontal air flow (Left/Right)

• The airflow can be directed horizontally (left to right) by manually adjusting the deflector rod.

Do not put your fingers into the panel of the blower and suction side. The high-speed fan inside may cause injury.

• Do not operate the air conditioner for long periods with the air flow direction set downward in cooling or dehumidifying mode. Otherwise, condensation may occur on the surface of the horizontal louver causing moisture to drop on to the floor or on furnishings.

• After a quick restart, the horizontal louver may remain static for approximately 10 seconds.

• Open angle of the horizontal louver should not be set too small, as COOLING or HEATING performance may be reduced due to too restricted air flow area.

• Do not move the vertical (up/down) louver manually, otherwise the vertical louver will be out of sync. But if this happens, please cease operating, switch off power for a few seconds, then restart the air conditioner.

Optimal operation

To achieve optimal performance, please note the following:

• Adjust the air flow direction correctly so that it is not towards people.

• Adjust the temperature to achieve moderate comfort levels.

Excessively low or high temperature waste energy.

• Improve performance by keeping windows and doors closed.

• Limit energy usage (run time) by using the TIMER function.

• Do not put any object near air inlet or air outlet, as the efficiency of the air conditioner may be reduced and may cause the air conditioner to stop running.

• Inspect and clean the filters every 3 months or as required.

Ensure that the filters are correctly inserted after cleaning.

Airflow directional control

15

Operating temperature

Temperature

Room temperature

Cooling operation

17°C – 48°C

Outdoor temperature 0°C – 48°C

Mode

Heating operation

0°C – 30°C

-15°C – 30°C

The Air conditioner temperature can be set between the range of

17°C to 30°C.

NOTE:

1. Optimum performance will be achieved within these operating temperatures. If air conditioner is used outside of the above conditions, certain safety protection features might come into operation and cause the unit to function abnormally.

2. If the air conditioner runs for a long time in cooling mode and the humidity is high (over 80%) , condensed water may drip out of the unit. Please set the vertical air flow louvre to its maximum angle (vertically to the floor), and set HIGH fan mode.

Low temperature protection

This air conditioner incorporates an automatic electric heater to prevent the outdoor unit temperature dropping below 0°C and freezing. It is strongly recommended to keep the power supply connected to the air conditioner to prevent freezing.

Manual operation

• This switch is used for testing purposes only. Please do not use it unless necessary.

• To restore the remote controller operation, use the remote controller directly.

This air conditioner is equipped with a manual switch to allow operation should the remote control fail to work. It can be accessed by opening the front panel.

Manual switch

AUTO/COOL

NOTE: The unit must be turned off before operating the manual control button. If the unit is operational, continue pressing the manual control button until the unit is off.

• Open the front panel until it locks. There is a "click" when the mechanism engages.

• One press of the manual control switch will lead to the forced

AUTO operation. Press the switch twice within 5 seconds to operate in COOL mode.

• Close the panel after manual operation has been started.

• Press the button again while the air conditioner is running to turn off.

16

Operating temperature

Care and maintenance

Filter tab

Air freshening filter

Before maintenance

• Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives.

NOTE: Power supply must be disconnected before attempting to clean or service.

Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. For more details, please refer to the Information on servicing on installation manual.

• Do not use a chemically treated cloth or duster to clean the unit.

• Do not use benzine, thinner, polishing powder, or similar solvents for cleaning. These may cause the plastic surface to crack or deform.

• Never use water hotter than 40°C to clean the front panel, it could cause deformation or discoloration.

Cleaning the unit

Wipe the unit with a soft dry cloth only. If the unit is very dirty, wipe it with a cloth soaked in warm water.

Cleaning the air filter and air freshening filter

A clogged air filter reduces the efficiency of this unit. Please clean the filter every 3 months, or as required..

1. Open the front panel by carefully lifting both ends at the same time. At a certain angle, a clicking sound is heard and it becomes self-supporting. For some models, please use the suspension bars to prop up the panel.

2. Use the tab provided to move the filter first up a little, then slightly towards you. Now extract the filter by gently drawing downwards.

3. Unclip the small air freshening filter from the large air filter.

Clean it with vacuum, and replace it occasionally.

4. Clean the large air filter with soapy water. Rinse with fresh water. Shake off excess water and dry it up in cool place, replace it occasionally.

Care and maintenance

17

Care and maintenance

Panel buckles

5. After the filters are dry, refit the small filters onto the large air filter.

6. Re-insert the filters back into the unit following the reverse order as described in steps 1 & 2.

7. Close the front panel. Make sure the buckles are fully fit and the panel is completely closed.

Preparation for extended non-operation

If you plan not to use unit for a long time, perform the following:

1. Clean the indoor unit and filters.

2. Operate the fan for about half a day to dry the inside of the unit.

3. Stop the air conditioner and disconnect power.

4. Remove the batteries from the remote controller. The outdoor unit requires periodic maintenance and cleaning. Do not attempt to do this yourself. Contact your dealer or service provider.

Pre-season inspection

• Damaged or disconnected wires.

• Clean the indoor unit and filters.

• Check water or oil leaks.

• Check that the outdoor unit is clear of leaves, rubbish and other objects that may block the air inlet or outlet.

• Check if the remote control batteries are flat, replace as required.

• Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges.

• Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.

• When cleaning the unit, first make sure that the power and circuit breaker are turned off.

• Do not wash air filter with hot water at more than 40°C . Shake off moisture completely and dry it in the shade. Do not expose it directly to the sun, it may shrink.

18

Care and maintenance

Troubleshooting

Troubleshooting tips

The following events may occur during normal operation, and may not indicate malfunction

Symptom

Operation is delayed after restart

Fan speed changes from off, to very slow and then normal

Cause

To prevent blowout of the fuse, the compressor will not operate while the protection circuit is working for about 3 minutes after sudden OFF/ON operation of the power supply, this is normal operation and designed to protect the compressor.

Automatically happens in heating mode :

• prevents cold air blowing onto occupants when the heating operation is start,

• perform automatic defrosting operation,

• perform low temperature heating operation

Heating operation stops suddenly and defrost-light blinks

Mist coming out of the indoor unit

Low volume sounds are emitted by the air conditioner

Dust discharges from the unit

Emits a peculiar odour

Changes to fan only while cooling or heating mode

Operation is erratic, unpredictable or unresponsive

In HEAT mode, the indoor unit temporarily stops for maximum of 10 minutes to perform the automatic defrosting operation.

In COOL mode, a mist generated by condensation formed with sudden cooling process may be emitted.

Mist may generate due to moisture generated from defrosting process when the air conditioner restarts in HEAT mode operation after defrosting

Hissing sound-- during operation or immediately after stopping the air conditioner, refrigerant flowing sound may be head.

Squeaking sound-- normal expansion and contraction of plastic and metal parts caused by temperature change during the operation.

Rushing air-- when louver resets its position.

May occur when air conditioner is used for the first time or has not been used for a long time.

Various smells generated from interior textile, furniture, or cigarette smoke absorbed into the air conditioner may be emitted. If not the case call an authorised service contractor.

Room temperature reaches the temperature setting of the remote control. If not the case call your suitable contractor.

Interference from cell phone towers and remote boosters may cause the unit to malfunction

Disconnect the power and then re-connect.

Press the ON/OFF button on the remote controller to restart operation.

NOTE: If the problem is not resolved, please contact a local dealer or the nearest customer service center. Be sure to inform them of the detailed malfunctions and unit model number.

Troubleshooting

19

Troubleshooting

Before you call for or request servicing, troubleshoot a problem by performing following checks:

Symptom

Unit will not operate

Poor cooling or heating performance

Indicator lamps continue flashing

Error code appears in the indoor unit, such as: E0,E1,E2....

P1,P2,P3.....or F1, F2,F3.....

Diagnostic

Is there a power failure?

Has a switch been turned off, a circuit breaker tripped or a fuse blown?

Is the timer operating?

Are the batteries used in the remote controller exhausted?

Are the batteries used in the remote controller loaded properly?

Are the air filters dirty?

Is air flow unrestricted in & out of indoor & outdoor units?

Are the temperature and mode settings correct?

Are the windows or doors left opened?

Is fan speed on high and louvers allowing maximum flow?

Is direct or strong sunlight shinning into the room in cooling operation?

Are there other heating apparatus or computers operating, or too many people in the room in cooling operation?

Is the SILENCE function is activated? Under SILENCE operation, noise reduction is prioritized and the air-conditioning performance may become lower.

The unit may stop operation or continue to run in a safety condition (depending on models).

Waiting for about 10 minutes, the fault may be recovered automatically, if not, disconnect the power and then connect it in again. If the problem still exists, disconnect the power and contact the nearest customer service center.

If the problem persists even if you perform these checks or diagnostics, immediately stop operation and contact the authorized service center. Be sure to inform them of the detailed malfunctions and unit model number.

In the case of ANY of the following, turn off the unit immediately

• Power cord is damaged or abnormally warm.

• Burning odours are smelled.

• Loud or abnormal sounds are heard.

• A power fuse blows or a circuit breaker trips frequently.

• Water or other objects fall into or out of the unit.

Do not attempt to correct these items yourself. Contact a authorized service provider.

20

Troubleshooting

Notes

Notes

21

Notes

22

Notes

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: KELVINATOR SPLIT SYSTEM AIR CONDITIONER

This document sets out the terms and conditions of the product warranties for Electrolux Appliances. It is an important document.

Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. In this warranty:

‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;

(b) ‘ACL’ means Schedule 2 to the Competition and Consumer

Act 2010;

‘Appliance’ means any Electrolux product purchased by you and accompanied by this document;

(d) ‘ASC’ means Electrolux authorised service centres;

‘Electrolux’ means Electrolux Home Products Pty Ltd of 163

O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited

(collectively ‘Electrolux’) of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;

‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an

Appliance cannot be repaired or it is uneconomic for Electrolux, at its discretion, to repair an Appliance during the Warranty Period;

(g) ‘Warranty Period’ means the Appliance is warranted against manufacturing defects in Australia and New Zealand for the period of

60 months, subject to this warranty and to the customer meeting the

Warranty Condition.

(h) ‘Warranty Condition’ means:

(i) evidence by the customer that the Appliance was installed by a

licensed air conditioner installer in Australia and in accordance with

Electrolux installation guidelines as set out in the installation manual;

(ii) the Appliance rating is correct for the size and thermal

characteristics of the room;

(iii) the Appliance has been regularly maintained in accordance

with Electrolux guidelines set out in the user manual;

(iv) the Appliance is designed for providing human comfort and

should be used under ambient conditions as set out in the

product specifications and general air quality conditions.

(i) ‘you’ means the purchaser of the Appliance not having purchased

the Appliance for re-sale, and ‘your’ has a corresponding meaning.

This warranty only applies to Appliances purchased and used in Australia or

New Zealand in normal domestic appliactions and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand.

During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux or its ASC may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux. This warranty does not apply to light globes, batteries, filters or similar perishable parts.

Parts and Appliances not supplied by Electrolux are not covered by this warranty.

5. To the extent permitted by law, you will bear the cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Electrolux or its ASC.

In all instances, unless the Appliance is transported by Electrolux or an Electrolux authorised representative, the Appliance is transported at the owner’s cost and risk while in transit to and from Electrolux or its ASC.

Proof of purchase is required before you can make a claim under this warranty.

You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with the

Appliance;

(b) the Appliance is modified without authority from Electrolux in writing; the Appliance’s serial number or warranty seal has been removed or defaced;

(d) the Appliance was serviced or repaired by anyone other than Electrolux, an authorised repairer or ASC.

This warranty, the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable where the Appliance was purchased. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

To the extent permitted by law and subject to your non-excludable statutory rights and warranties, Electrolux excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.

10. For Appliances and services provided by Electrolux in Australia, the

Appliances come with a guarantee by Electrolux that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the Appliance repaired or replaced if the

Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates.

11. At all times during the Warranty Period, Electrolux shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.

12. For Appliances and services provided by Electrolux in New Zealand, the

Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair

Trading Act.

13. To enquire about claiming under this warranty, please follow these steps: carefully check the operating instructions, user manual and the terms of this warranty;

(b) have the model and serial number of the Appliance available;

(c) have the proof of purchase (e.g. an invoice) available;

(d) telephone the numbers shown below.

14. You accept that if you make a warranty claim, Electrolux and its ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice

Before calling for service, please ensure that the steps listed in clause 13 above have been followed.

FOR SERVICE

or to find the address of your nearest state service centre in Australia

PLEASE CALL 13 13 49

For the cost of a local call (Australia only)

SERVICE AUSTRALIA

ELECTROLUX HOME PRODUCTS

electrolux.com.au

FOR SPARE PARTS

or to find the address of your nearest state spare parts centre in Australia

PLEASE CALL 13 13 50

For the cost of a local call (Australia only)

FOR SERVICE

or to find the address of your nearest authorised service centre in New Zealand

FREE CALL 0800 10 66 10

(New Zealand only)

KSSAC_Warr_Sep15

SERVICE NEW ZEALAND

ELECTROLUX (NZ) Limited

electrolux.co.nz

FOR SPARE PARTS

or to find the address of your nearest state spare parts centre in New Zealand

FREE CALL 0800 10 66 20

(New Zealand only)

Warranty

23

For more information on all Kelvinator appliances, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website:

AUSTRALIA

phone: 1300 363 640 fax: 1800 350 067 email: [email protected]

web: kelvinator.com.au

NEW ZEALAND

phone: 0800 436 245 fax: 0800 225 088 email: [email protected]

web: kelvinator.co.nz

Kelvinator. We are part of the Electrolux Family.

To add a touch of professional inspiration to your home, visit electrolux.com.au

Part No. 66129913264

© 2016 Electrolux Home Products Pty Ltd.

ABN 51 004 762 341

KMAN_AirCare_Jun16

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
