Multi-Function Laser(All-in-One) | Business

Multi-Function Laser(All-in-One) | Business
210
297

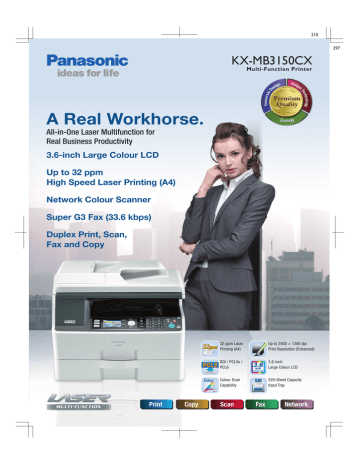

KX-MB3150CX
Multi-Function Printer
A Real Workhorse.
All-in-One Laser Multifunction for
Real Business Productivity
3.6-inch Large Colour LCD
Up to 32 ppm
High Speed Laser Printing (A4)
Network Colour Scanner
Super G3 Fax (33.6 kbps)
Duplex Print, Scan,
Fax and Copy
Print
Copy
32 ppm Laser
Printing (A4)
Up to 2400 × 1200 dpi
Print Resolution (Enhanced)
GDI / PCL5e /
PCL6
3.6-inch
Large Colour LCD
Colour Scan
Capability
520-Sheet Capacity
Input Tray
Scan
Fax
Network
KX-MB3150CX
True All-in-One Business Performer
for Printing, Scanning,
Faxing and Copying
Print
Copy
Multi-Function Printer
Scan
Fax
Network
Advanced Features
32 ppm Laser Printing
(A4)
GDI / PCL5e / PCL6
33.6 kbps
Super G3 Fax
3.6-inch
Large Colour LCD
Up to 2400 × 1200 dpi
Print Resolution
(Enhanced)
Print from Email Server
(PDF, JPEG or TIFF)
Colour Scan Capability
520-Sheet Capacity
Input Tray
Print
Specifications
•
•
•
•
•
General
Paper Handling
High speed printing at speeds of up to 32 pages per minute (A4)
High quality reproduction up to 2400 x 1200 dpi resolution
Print Email attachments in PDF*1, JPEG or TIFF
Standard automatic duplex printing to reduce paper consumption
GDI / PCL5e / PCL6 Compatible
Copy
• High volume copying with high speed output up to 32 copies per
minute (A4)
• High volume paper handling with 50-page Reverse Automatic
Document Feeder and 520-sheet capacity input tray
• Standard Duplex Copying capability
• Versatile Copying Features
(Quick ID, Easy Repeat, N-in-1, Separate N-in-1, Poster and Booklet
copy)
Scan
• Colour scanning from document flatbed or ADF
• High resolution scanning up to 9600 x 9600 dpi (Interpolated) with up to
600 x 2400 dpi optical resolution (Flatbed)
• Scan and send documents via Email or store them on an FTP server
• High speed network duplex colour scanning capability
Fax
•
•
•
•
Efficient fax transmission at speeds up to 33.6 kbps
Preview received faxes on 3.6" large colour LCD without printing them first
Built-in document memory of approx. 780 pages*3
Caller ID compatible*4
Network
• Standard 10Base-T / 100Base-TX network Interface
• Configuration Web Page for device status and configuration
A4 / Letter / Legal / 216 x 330 mm (8.5"x 13") /
216 x 340 mm (8.5" x 13.4")
Paper Capacity
520 sheets (Max 1,040 sheets with Option)
Automatic Document Feeder 50 sheets
LCD Display
3.6-inch Large Colour LCD
Supported OS
Microsoft® Windows® 98 / Me / 2000 / XP / Windows Vista®
Memory Size
128 MB
Printer
Print Speed
Print Resolution
Duplex Print
Supported OS
Copier
Copy Speed
Copy Resolution
Multi-Copy
Reduction / Enlargement
Duplex Copy
Scanner
Scan Resolution
Up to 32 ppm (A4)
Maximum: 2400 x 1200 dpi (Enhanced)
Yes
Microsoft® Windows® 98 / Me / 2000 / XP / Windows Vista®,
Mac OS 10.2-10.5*5
Up to 32 cpm (A4)*2
600 x 600 dpi (ADF / Flatbed)
99 pages
25 - 400% (1% step)
1 to 2, 2 to 2, 2 to 1
Up to 600 x 2400 dpi (Optical)
Up to 9600 x 9600 dpi (Interpolated)
Fax
Compatibility
Memory Size
Transmission Speed
Phonebook
Duplex Fax
33.6 kbps Super G3
10 MB (approx. 780 pages*3)
Approx. 4 sec. per page*3
300 stations
Transmission: Yes, Reception: No
Interfaces
Local
Network
High-Speed USB 2.0
10Base-T / 100Base-TX Ethernet
Dimensions / Weight
Dimensions (W x D x H)
Weight
533 x 459 x 478 mm
Approx. 22.3 kg (excluding toner and drum)
Consumables
KX-FAT401E (5,000 pages / ISO/IEC 19752 standard)
KX-FAD402E (15,000 pages)
Option Tray
KX-FAP106E (520 pages, A4 / Letter / Legal / 216 x 330 mm (8.5" x 13") /
216 x 340 mm (8.5" x 13.4"))
*1 Only PDF file created with scanned image data.
*2 Continuous copy of a single original.
*3 Based on ITU-T No.1 test chart in Standard resolution with original mode.
*4 Requires subscription to fee-based telephone company service.
*5 Printer Driver for Mac OS is provided by web download.
Microsoft®, Windows® and Windows Vista® are registered trademarks of
Microsoft Corporation in the United States and/or other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.
Design and specifications are subject to change without notice.
OM0911UA-KX-MB3150CX
