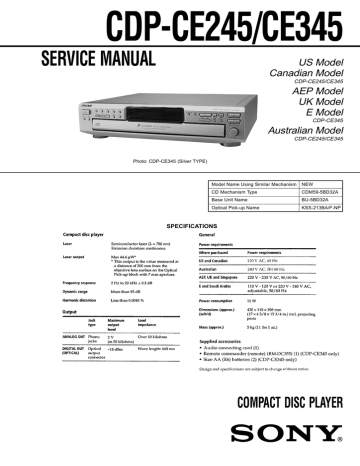

CDP-CE245/CE345
SERVICE MANUAL
US Model
Canadian Model
CDP-CE245/CE345
AEP Model
UK Model
E Model
CDP-CE345
Australian Model
CDP-CE245/CE345
Photo: CDP-CE345 (Silver TYPE)
Model Name Using Similar Mechanism
NEW
CD Mechanism Type
CDM59-5BD32A
Base Unit Name
BU-5BD32A
Optical Pick-up Name
KSS-213BA/F-NP
SPECIFICATIONS
COMPACT DISC PLAYER
TABLE OF CONTENTS
1.
SERVICING NOTES ............................................... 3
2.
GENERAL ................................................................... 4
3.
DISASSEMBLY ......................................................... 5
4.
TEST MODE .............................................................. 10
5.
ELECTRICAL CHECKING .................................. 14
6.
DIAGRAMS
6-1. Note for Printed Wiring Boards
and Schematic Diagrams ................................................
6-2. Printed Wiring Board – BD Board – .............................
6-3. Schematic Diagram – BD Board – ................................
6-4. Printed Wiring Boards – JUNCTION/SENSOR/
LOADING MOTOR Boards – .......................................
6-5. Schematic Diagram – JUNCTION/SENSOR/
LOADING MOTOR Boards – .......................................
6-6. Printed Wiring Board – MAIN Board – ........................
6-7. Schematic Diagram – MAIN Board – ...........................
6-8. Printed Wiring Boards – PANEL Section – ..................
6-9. Schematic Diagram – PANEL Section – .......................
6-10. IC Pin Function Description ...........................................
17
18
19
20
21
22
23
24
25
29
7.
EXPLODED VIEWS ................................................ 33
8.
ELECTRICAL PARTS LIST ............................... 39
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A)
To Exposed Metal
Parts on Set
0.15 µF
1.5 kΩ
AC
voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED
LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ
DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES
NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
2
SECTION 1
SERVICING NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
HOW TO OPEN THE DISC TABLE WHEN POWER
SWITCH TURNS OFF
Insert a tapering driver into the aperture of the unit bottom, and
turn it in the direction of the arrow (to OUT direction).
table
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation exposure.
tapering driver
* To close the disc table, turn the tapering
driver in the reverse direction (to IN direction).
This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the rear exterior.
MODEL IDENTIFICATION
– BACK PANEL –
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
Carry out the “S curve check” in “CD section adjustment” and
check that the S curve waveforms is output three times.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 ˚C during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
Part No.
Model
CDP-CE245: US model
Part No.
4-224-877-0s
CDP-CE245: Canadian model
4-224-877-1s
CDP-CE245: Australian model
4-224-877-2s
CDP-CE345: US model
4-224-878-0s
CDP-CE345: Canadian model
4-224-878-1s
CDP-CE345: AEP model
4-224-878-2s
CDP-CE345: UK model
4-224-878-3s
CDP-CE345: Australian model
4-224-878-4s
CDP-CE345: E model
4-224-878-5s
CDP-CE345: Singapore model
4-224-878-6s
CDP-CE345: Saudi Arabia model
4-224-878-7s
3
SECTION 2
GENERAL
• LOCATION OF CONTROLS
– Front panel –
1 POWER button
2 DISC1 – DISC5 button
8
1
2
3
4 5 67
9
3 Fluorescent indicator tube display
4 MUSIC SCAN button
5 FADER button
6 H button
7 X button
8 x button
9 A OPEN/CLOSE button
0 DISC SKIP button
wd ws w; qk
wf
wa ql
qj
qh qf qs 0
qg qd qa
qa l AMS L control
qs EX-CHANGE button
qd CLEAR button
qf CHECK button
qg M button
qh m button
qj Disc table
qk TIME button
ql REPEAT button
w; PROGRAM button
wa SHUFFLE button
ws CONTINUE button
wd PEAK SEARCH button
wf EDIT/TIME FADE button
– Rear panel –
1 Voltage selector switch (E and Saudi Arabia models only)
2 DIGITAL OUT OPTICAL connector
3 ANALOG OUT
1
4
23
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
COVER (409537)
3 cover (409537)
2 two screws
(BVTP3 × 8)
1 two screws
(case3 TP2)
1 two screws
(case3 TP2)
FRONT PANEL SECTION
2 two connectors
(CN601, 602)
4 claw
1 wire (flat type) (37 core)
(CN301)
3 three screws
(BVTP3 × 8)
4 claw
5 front panel section
5
CD MECHANISM DECK (CDM59-5BD32A)
9 CD mechanism deck
(CDM59-5BD32A)
3 three screws
(BVTP3 × 8)
5 screw
(BVTP3 × 8)
a
2 three screws
(BVTP3 × 8)
4 Slide the tray until the screw
that fixes the table ass’y can be
seen through around hole a
in the table ass’y.
6
7 wire (flat type) (21 core)
(CN302)
8 connector
(CN311)
1 Insert a tapering driver from the bottom of the chassis,
and turn it in the direction of the arrow until the base unit
goes down to the lowest position.
MAIN BOARD
3 two screws
(PTTWH3 × 6)
2 two screws
(BVTP3 × 8)
1 two screws
(BVTP3 × 8)
5 MAIN board
4 two PC board holders
6
BASE UNIT (BU-5BD32A)
3
4 two screws
(PTPWH M2.6)
Note: When installing the BU
on the chassis, set the
lever (lifter) in free
position, the gear (U/D)
in UP position, and insert
the shaft b into the
groove of gear (U/D).
4 two screws
(PTPWH M2.6)
BU section
5 base unit (BU-5BD32A)
b
gear (U/D)
6 four compression springs (932)
1 wire (flat type) (21 core)
(CN101)
2 two screws
(PTPWH M2.6)
7 holder (BU) ass’y
lever (lifter)
TABLE ASS’Y
q; clamp
7 two screws
(BTTP M2.6)
qa bracket (guide)
9 three screws
(BTTP M2.6)
8 bracket (guide 2)
gear
(loading C)
4 wire (flat type)
(6 core) (CN15)
e
qs table ass’y
5 screw
(BTTP M2.6)
3
2 two screws
(BTTP M2.6)
Note: When installing the table ass’y
on the chassis ass’y, engage
the gear (loading C) with the groove
by looking into the gear through
a hole e in the table ass’y.
d
6 bracket (guide)
1 Slide the tray until the screw
that fixes the bracket (guide)
can be seen through a round
hole c , d in the table ass’y.
c
7
TRAY, BELT (ROTARY), SENSOR BOARD
1 screw
(PTPWH M2.6)
3 belt (rotary)
2 tray
5 SENSOR board
4 two screws
(BTTP M2.6)
BELT (LOADING ), LOADING MOTOR BOARD
3 two screws
(BTTP M2.6)
4 LOADING MOTOR board
1 belt (loading)
2 connector
(CN13)
8
4 two screws
(BTTP M2.6)
ADJUSTING PHASE OF SWING GEAR AND GEAR (U/D)
Note: Follow the assembly procedure in the numerical order given.
5 stopper washer (FR)
4 Push fully the shaft of shaft gear and
align the hole shape of gear (loading B).
3 Let the swing gear through under the
chassis h and engage its dowel g
with the groove f of rotary encoder.
6 screw
(PTPWH M2.6)
g
2 Install the rotary encoder so that
its groove f comes to the position
shown in the figure.
f
h
1 Insert the shaft gear up to the
position where its shaft comes
out by 5 mm.
circle mark
gear (U/D)
circle mark
8 screw
(PTPWH M2.6)
gear (RV)
swing gear
Fig. A
7 gear (U/D)
q; screw
(PTPWH M2.6)
9 gear (RV)
Note: Align swing gear, a circle mark
on the gear (U/D), and the teeth
of gear (RV) to the position
showing in the Fig. A.
9
SECTION 4
TEST MODE
ADJ MODE
FLUORESCENT INDICATOR TUBE, LED ALL LIT,
AND KEY CHECK MODE
NOTE: This mode cannot be performed without a general remote commander.
1. Chuck the CD first, and then turn OFF the power.
2. Short-circuit the test point TP1 (ADJ) of the MAIN board and
ground with a lead wire.
3. Press the [POWER] button to turn ON the power.
The CD is playback automatically and the ADJ mode is set.
4. To exit the mode, press the [POWER] button to turn OFF the
power.
1. Short-circuit the test TP2 (AFADJ) of the MAIN board and
ground with a lead wire.
2. Press the [POWER] button to turn ON the power.
The whole fluorescent indicator tube lights up.
3. All buttons have individual button numbers.
When a button is pressed, the button number is counted up
and displayed.
• Prohibits high speed search during accessing
• Ignores even if GFS becomes “L”
1
0
ADJ Mode Special Function Table
Count up display
Button
Displays button number
Function
PROGRAM
Auto gain display
(Focus, Tracking and Sledding)
CONTINUE
Servo average display 1
(VC, FE and RF)
SHUFFLE
Servo average display 2
(TE and Traverse)
FADER
RFCK → GFS → Error rate display
When remote controller signals are received, “RM **” will
be displayed.
(** are the numbers corresponding to the remote controller
buttons.)
When using the remote controller, switch the [CD1/2/3] switch
to CD1.
4. To exit the mode, press the [POWER] button to turn OFF the
power.
Checking Location:
– MAIN BOARD (Conductor Side) –
TP2
(AFADJ)
JW63
JW64
TP1
(ADJ)
(GND)
IC301
10
Buttons and Corresponding Button Numbers
Button
CONTINUE
Button Number or Display
12
SHUFFLE
11
PROGRAM
10
REPEAT
9
DISC1
20
DISC2
19
DISC3
18
DISC4
17
DISC5
16
H (PLAY)
Partial lighting 1
X (PAUSE)
Partial lighting 2
x (STOP)
All lit (LED lighting)
EX-CHANGE
25
DISC SKIP
24
A OPEN/CLOSE
32
AMS (button)
AMS (knob)
FADER
All lit
ALL1DISCS
REPEAT 1
EDIT
TIME
FADE
A B
PROGRAM
SHUFFLE
DISC
TRACK
PEAK
MIN STEP SEC
1
2 3
4
6
7 8
9 10
5
11 12 13 14 15
16 17 18 19 20
Partial lighting 1
TRACK
MIN
SEC
R Light altemately
r
26
When rotated clockwise: The music calendar
numerals light up in ascending order.
When rotated counterclockwise: The music
calendar numerals light up in descending
order.
ALL1DISCS
DISC
PEAK
STEP
1
2 3
6
7 8
4
5
36
MUSIC SCAN
37
CLEAR
27
CHECK
28
M
29
m
30
PEAK SEARCH
21
TIME
8
TIME/TEXT
22
Partial lighting 2
1
3
7
11
5
9
13
17
15
19
R Light altemately
r
2
6
4
8
12
16
10
14
18
20
11
AGING MODE
For the aging mode, three modes of all mode, disc table mode, and loading mode are available.
This set has the Aging mode for operation check of the mechanism deck.
• If a failure occurred
The aging operation stops and a faulty status is displayed on the fluorescent indicator tube.
• If no failure occurs
The aging operation continues repeatedly.
Note: Do not use the test disc when performing aging.
Aging will not be performed properly if discs with tracks shorter than 4 seconds are used.
Aging method 1
(When using the aging remote controller (J-2501-123-A):
1. Set the remote controller [CD1/2/3] switch to CD1.
2. Press the [POWER] button and turn ON the power.
3. Set discs on all trays.
(More than two discs if five are not available.)
4. Press the [AGING START] button of the aging remote controller.
5. Aging starts, and the fluorescent indicator tube will display the following.
6. To exit the mode, press the [POWER] button to turn OFF the power.
Aging method 2
(When no aging remote controller):
1. Press the [POWER] button and turn ON the power.
2. Set discs on all trays.
(More than two discs if five are not available.)
3. All mode:
Press the [CONTINUE], x and [CHECK] buttons at the same time.
Disc table mode:
Press the [CONTINUE], x and [DISC SKIP] buttons at the same time.
Loading mode:
Press the [CONTINUE], x and [EX-CHANGE] buttons at the same time.
4. Aging starts, and the fluorescent indicator tube will display the following.
5. To exit the mode, press the [POWER] button to turn OFF the power.
Code No.
Status
All mode
Disc table
mode
Loading
mode
Display in
Normal operation
Display in
case of failure
a
A-0
Err 0
a
a
A-1
Err 1
Err 2
0
CLOSE (Tray closed)
a
1
TOC reading
a
2
Access to last track
a
A-2
3
Play of last track (3 sec)
a
Counter display
Err 3
4
EX OPEN (Tray opened while chucking)
a
A-4
Err 4
5
EX SKIP (Disc tray rotated)
a
A-5
Err 5
6
EX CLOSE (Tray closed)
a
7
Access to first track
8
a
a
A-6
Err 6
a
A-7
Err 7
Play of first track (3 sec)
a
Counter display
Err 8
9
OPEN (tray opened)
a
A-9
Err 9
A
DISC SKIP (Disc tray rotated,
and next disc was selected)
a
A-A
Err A
a
a
The discs are selectie in the order of DISC1 →DISC2 → DISC3 → DISC4 → DISC5 → DISC1 → .... Empty trays are skipped.
12
MECHANISM DECK CHECK MODE
For the mechanism deck check mode, two modes of disc table mode and loading mode are available.
In the mechanism deck check mode, the disc table turning time and the loading time in each section are measured and displayed.
1. Disc table mode:
Press the [POWER] switch while pressing [CHECK], [ A OPEN/CLOSE] and [REPEAT] buttons simultaneously.
Loading mode:
Press the [POWER] switch while pressing [CHECK], [ A OPEN/CLOSE] and [TIME] buttons simultaneously.
Display contents
Mode
Disc table mode
(
Table turning
time measurement
)
Check command
Display
0: Right one turn
r 12.5
1: Left one Turn
L 10.2
2: Measurement end
r 12.5
3: Undefined
Table mode
(
Loading time
measurement
)
4: Star position
Sta – –.–
5: Open → Close
CLo 10.2
6: Close → BU up
UP
0.7
7: BU up → EX open
EoP
6.2
8: EX open → EX close
ECL 10.3
9: EX close → BU down
don
1.2
A: BU down → Open
oPn
9.3
FF: Measurement end
CLo 10.2
13
SECTION 5
ELECTRICAL CHECKING
Note:
1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given.
2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10 MΩ impedance.
4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specified value with the following checks.
E-F Balance (1 Track Jump) Check
oscilloscope
BD board
TP (TE)
TP (VC)
+
–
S-Curve Check
oscilloscope
BD board
TP (FE)
TP (VC)
+
–
Procedure:
1. Connect oscilloscope to TP (FE) and TP (VC) on the BD board.
2. Connect between TP (FE1) and TP (VC) with lead wire.
3. Connect between TP (AGCCON) and TP (GND) with lead
wire.
4. Turned power switch ([POWER] button) on.
5. Load a disc (YEDS-18) and actuate the focus search. (In consequence of open and close the disc tray, actuate the focus
search)
6. Cofirm that the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within
4 ± 1 Vp-p.
Procedure :
1. Connect oscilloscope to TP (TE) and TP (VC) on BD board.
2. Turned power switch ([POWER] button) on.
3. Load a disc (YEDS-18) and playback the number five track.
4. Press the H button. (Becomes the 1 track jump mode)
5. Confirm that the level B and A (DC voltage) on the oscilloscope waveform.
1 track jump waveform
center of
waveform
B
A (DC voltage)
0V
level = 1.3 ± 0.6 Vp-p
Specified level:
S-curve waveform
symmetry
symmetry
A
× 100 = less than ± 22%
B
6. After check, remove the lead wire connected in step 1.
A
within 4 ± 1 Vp-p
B
RF PLL Free-run Frequency Check
Procedure :
1. Connect frequency counter to TP (PLCK) with lead wire.
7. After check, remove the lead wire connected in step 2 and 3.
Note: • Try to measure several times to make sure than the ratio of A : B
or B : A is more than 10 : 7.
• Take sweep time as long as possible and light up the brightness to
obtain best waveform.
RF Level Check
BD board
+
–
Procedure:
1. Connect oscilloscope to TP (RF) and TP (VC) on BD board.
2. Connect between TP (AGCCON) and TP (GND) with lead
wire.
3. Turned power switch ([POWER] button) on.
4. Load a disc (YEDS-18) and playback.
5. Confirm that the oscilloscope waveform is clear and check RF
signal level is correct or not.
6. After check, remove the lead wire connected in step 2.
Note: Clear RF signal waveform means that the shape “◊” can be clearly
distinguished at the center of the waveform.
VOLT/DIV: 200 mV
TIME/DIV: 500 ns
level:
1.45 ± 0.3 Vp-p
14
TP (PLCK)
+
–
2. Turned power switch ([POWER] button) on.
3. Put the disc (YEDS-18) in to play the number five track.
Confirm that reading on frequency counter is 4.3218 MHz.
oscilloscope
TP (RF)
TP (VC)
frequency counter
BD board
Checking Location:
– BD BOARD (Conductor Side) –
TP (VC)
TP
(PLCK)
TP (RF)
TP
(AGCCON)
TP (FE)
TP (GND)
IC101
TP (TE)
TP
(FE1)
CN102
15
MEMO
16
SECTION 6
DIAGRAMS
6-1.
• Circuit Boards Location
NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• b : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• Indication of transistor
Q
B C
E
These are omitted.
Q
B
C
E
These are omitted.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
f
: internal component.
•
• C : panel designation.
Note:
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part
number specified.
SENSOR board
LOADING MOTOR board
BD board
JUNCTION board
POWER SW board
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce por tant le numéro
spécifié.
• U : B+ Line.
• V : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD PLAY
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J : CD PLAY
KEY board
MAIN board
DISPLAY board
17
17
CDP-CE245/CE345
6-2.
PRINTED WIRING BOARD – BD Board –
• See page 17 for Circuit Boards Location.
(CONDUCTOR SIDE)
(COMPONENT SIDE)
(SPINDLE)
TP
(VC)
(LIMIT)
(SLED)
TP
(RF)
TP
(PLCK)
TP
(GND)
TP
(AGCCON)
TP
(FE)
TP
(TE)
A
TP
(FE1)
(Page 22)
05
05
• Semiconductor
Location
Ref. No.
Q101
• Semiconductor
Location
Location
Ref. No.
C-3
IC101
IC102
IC103
18
18
Location
C-2
B-1
B-1
CDP-CE245/CE345
6-3.
SCHEMATIC DIAGRAM – BD Board –
• See page 26 for Waveforms.
• See page 26 for IC Block Diagrams.
PIN FUNCTION
(Page 23)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
19
19
Les composants identifiés par une marque 0 sont
critiques pour la sécurité. Ne les remplacer que
par une pièce portant le numéro spécifié.
CDP-CE245/CE345
6-4.
PRINTED WIRING BOARDS – JUNCTION/SENSOR/LOADING MOTOR Boards – • See page 17 for Circuit Boards Location.
(Page 22)
TO
JUNCTION
BOARD
TO
SENSOR
BOARD
TO LOADING
MOTOR BOARD
TO JUNCTION
BOARD
20
20
CDP-CE245/CE345
6-5.
SCHEMATIC DIAGRAM – JUNCTION/SENSOR/LOADING MOTOR Boards –
• See page 26 for IC Block Diagram.
(Page 23)
21
21
CDP-CE245/CE345
6-6.
PRINTED WIRING BOARD – MAIN Board –
• See page 17 for Circuit Boards Location.
(Page 18)
(Page 20)
(Page 24)
(Page 24)
• Semiconductor Location
Ref. No.
Location
D350
D351
D353
D601
D602
D603
D604
D605
D606
D607
D608
D609
A-5
A-5
C-3
C-6
D-6
D-6
D-6
E-6
E-6
C-5
C-5
C-5
IC301
IC303
C-9
B-1
Ref. No.
Location
IC350
IC601
IC602
IC603
B-3
E-7
D-7
E-7
Q301
Q307
Q352
Q353
Q356
Q402
Q405
Q502
Q505
Q601
C-10
B-8
A-5
A-4
C-2
B-1
B-1
A-1
A-1
E-7
22
22
CDP-CE245/CE345
6-7.
SCHEMATIC DIAGRAM – MAIN Board –
• See page 26 for Waveform.
• See page 26 for IC Block Diagrams.
(Page 25)
(Page 19)
PIN FUNCTION
(Page 21)
(Page 25)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
23
23
Les composants identifiés par une marque 0 sont
critiques pour la sécurité. Ne les remplacer que
par une pièce portant le numéro spécifié.
CDP-CE245/CE345
6-8.
PRINTED WIRING BOARDS – PANEL Section –
• See page 17 for Circuit Boards Location.
TO KEY
BOARD
(Page 22)
(Page 22)
TO
DISPLAY
BOARD
24
24
CDP-CE245/CE345
6-9.
SCHEMATIC DIAGRAM – PANEL Section –
(Page 23)
(Page 23)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont
critiques pour la sécurité. Ne les remplacer que
par une pièce portant le numéro spécifié.
25
25
3.1 Vp-p
• IC Block Diagrams
– BD BOARD –
1 IC301 es (XTAL)
IC101
VDD
VSS
AVDD3
PCO
FILI
FILO
CLTV
AVSS3
RFAC
BIAS
ASYI
ASYO
AVDD0
IGEN
AVSS0
ADIO
RFDC
CE
TE
CXD2587Q
60
59 58 57
56 55 54 53
52
51 50 49 48
47
46 45
44
43 42 41
4.2 Vp-p
0.5 Vp-p
DIGITAL
OUT
LRCK 61
10 MHz
16.9344 MHz
PCMD 62
D/A
INTERFACE
INTERNAL BUS
5 IC101 el (FE) (CD Play Mode)
1 IC101 yj (XTAO)
– MAIN Board –
DOUT
• Waveforms
– BD Board –
ERROR
CORRECTOR
DIGITAL
PLL
16K
RAM
40 SE
39 FE
38 VC
ASYMMETRY
CORRECTION
OPERATIONAL
AMPLIFIER
ANALOG SWITCH
EFM
DEMODULATOR
A/D
CONVERTER
BCK 63
EMPH 64
6 IC101 wh (MDP) (CD Play Mode)
XTAI
XTAO
XVSS
AVDD1
AOUT1
AIN1
2.5 Vp-p
66
67
68
69
70
71
TIMING
LOGIC
CLOCK
GENERATOR
SERVO DSP
LOUT1 72
PWM
AVSS1 73
AVSS2 74
7.8 µs
LOUT2 75
3 IC101 rd (RF DC),
IC103 qh (RFO) (CD Play Mode)
PWM
3rd ORDER
NOISE SHAPER
OVER SAMPLING
DIGITAL FILTER
AIN2 76
AOUT2 77
AVDD2 78
RMUT 79
LMUT 80
SUBCODE
PROCESSOR
FOCUS PWM
GENERATOR
TRACKING
SERVO
TRACKING
PWM GENERATOR
SLED
SERVO
SLED PWM
GENERATOR
SERVO AUTO
SEQUENCER
CPU
INTERFACE
4 IC101 ra (TE) (CD Play Mode)
0.2 Vp-p
26
26
37 XTSL
36 TES1
35 TEST
34 VSS
33
32
31
30
29
28
FRDR
FFDR
TRDR
TFDR
SRDR
SFDR
27 SSTP
SERIAL IN
INTERFACE
1.3 Vp-p
PWM GENERATOR
FOCUS
SERVO
SERVO
INTERFACE
DIGITAL
CLV
26 MDP
25 LOCK
MIRR, DFCT,
FOK
DETECTOR
24 FOK
23 DFCT
22 MIRR
3
4
5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20
XRST
SYSM
DATA
XLAT
CLOK
SENS
SCLK
VDD
ATSK
C2PO
SCOR
1 2
SQSO
SQCK
21 COUT
WFCK
XUGF
XPCK
GFS
1.2 Vp-p
XVDD 65
SPOA
SPOB
XLON
2 IC101 ta (RF AC) (CD Play Mode)
IC103
CXA2568M-T6
VCC
HOLD 1
VCC
APC PD AMP
+
–
24 VCC
23 LC/PD
APC LD AMP
VEE
22 LD ON
+
–
+
–
+
–
21 HOLD SW
20 AGC CONT
VEE
AGC VTH 2
50µA
LD 3
VCC
+
–
PD 4
19 RF BOT
VC
+
–
+
–
+
–
VC
A 5
+
–
B 6
VEE
18 RFTC
RF SUMMING AMP
C 7
+
–
VC
RF EQ AMP
VC
D 8
+
–
17 RF I
16 RF O
15 RFE
VC
FOCUS ERROR AMP
VEE
VEE 9
+
–
14 FE
VC
VC
+
–
F 10
–
+
–
+
E 11
VC
VC
VC BUFFER
VC 12
13 TE
TRACKING
ERROR AMP
+
–
VC
VEE
VCC
VC
27
– JUNCTION Board –
– MAIN Board –
IC11 BA6780
IC601
V IN
VREF
5
VCC
7
OUT1+
8
OUT1
9
-
6
+
VREG
VCC
COVERNER DRIVER
FWD/REV CONTROLLER
VEE
4
1
VIN2
REFERENCE
VOLTAGE
17
FIN2
16
RIN2
15
CT2
ERROR
AMP
OVER CURRENT
LIMITTER
OVER HEAT
PROTECTION
EN
2
ON/OFF
CDEL
3
RESET
GEN
GND
4
14 VEE
COVERNER
LOAD CURRENT
DETECTION
AMPLIFIER
IOUT
COVERNER
OUTPUT
3
REVERSIBLE DRIVER
FWD/REV CONTROLLER
RIN1
VEE
2
18
REFERENCE
VOLTAGE
OUTPUT
FIN1
1
LOW VOLTAGE
OUTPUT
VIN1
LA5602
13
FBIN-
RES
CN
5
6
12
FBIN+
V OUT
7
11 OUT2+
10
OUT2-
IC603
GND
M5293L
2
5k
5
REFERENCE
VOLTAGE
3
OUT
27k
+
ON/OFF
4
REFERENCE
VOLTAGE
–
OVERHEAT
PROTECTION
IN
28
1
OVERCURRENT
LIMITTER
6-10.
IC PIN FUNCTION DESCRIPTION
• BD BOARD IC101 CXD2587Q
(DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, DIGITAL FILTER, D/A CONVERTER)
Pin No.
Pin Name
I/O
Description
1
SQSO
O
Subcode Q data output to the system controller (IC301)
2
SQCK
I
Subcode Q data reading clock signal input from the system controller (IC301)
3
XRST
I
System reset signal input from the system controller (IC301) “L”: reset
4
SYSM
I
Analog line muting on/off control signal input terminal “H”: line muting on
Not used (fixed at “L”)
5
DATA
I
Command serial data input from the system controller (IC301)
6
XLAT
I
Command latch pulse input from the system controller (IC301)
7
CLOK
I
Command serial data transfer clock signal input from the system controller (IC301)
8
SENS
O
Internal status monitor output to the system controller (IC301)
9
SCLK
I
SENSE serial data reading clock input from the system controller (IC301)
10
VDD
—
Power supply terminal (+5V) (digital system)
11
ATSK
I/O
Input pin for anti-shock Not used (fixed at “L”)
12
SPOA
I
Microcomputer escape interface input A terminal Not used (fixed at “L”)
13
SPOB
I
Microcomputer escape interface input B terminal Not used (fixed at “L”)
14
XLON
O
Microcomputer escape interface output to the CXA2568M (IC103)
15
WFCK
O
WFCK output terminal
16
XUGF
O
Not used (open)
17
XPCK
O
Not used (open)
18
GFS
O
Not used (open)
19
C2PO
O
Not used (open)
20
SCOR
O
Subcode sync (S0+S1) detection signal output to the system controller (IC301)
21
COUT
I/O
Numbers of track counted signal input/output terminal Not used (open)
22
MIRR
I/O
Mirror signal input/output terminal Not used (open)
23
DFCT
I/O
Defect signal input/output terminal Not used (open)
24
FOK
I/O
Focus OK input/output terminal Not used (open)
25
LOCK
I/O
GFS is sampled by 460 Hz “H” when GFS is “H” Not used (open)
26
MDP
O
Spindle motor (M101) servo drive signal output to the BA5974FP (IC102)
27
SSTP
I
Limit in detect switch (S101) input terminal
28
SFDR
O
Sled servo drive PWM signal (+) output to the BA5974FP (IC102)
29
SRDR
O
Sled servo drive PWM signal (–) output to the BA5974FP (IC102)
30
TFDR
O
Tracking servo drive PWM signal (+) output to the BA5974FP (IC102)
31
TRDR
O
Tracking servo drive PWM signal (–) output to the BA5974FP (IC102)
Not used (open)
32
FFDR
O
Focus servo drive PWM signal (+) output to the BA5974FP (IC102)
33
FRDR
O
Focus servo drive PWM signal (–) output to the BA5974FP (IC102)
34
VSS
—
Ground terminal (digital system)
35
TEST
I
Input terminal for the test (fixed at “L”)
36
TES1
I
Input terminal for the test (fixed at “L”)
37
XTSL
I
Input terminal for the system clock frequency setting “L”: 45.1584 MHz, “H”: 22.5792 MHz
(fixed at “L” in this set)
38
VC
I
Middle point voltage (+2.5V) input from the CXA2568M (IC103)
39
FE
I
Focus error signal input from the CXA2568M (IC103)
40
SE
I
Sled error signal input from the CXA2568M (IC103)
41
TE
I
Tracking error signal input from the CXA2568M (IC103)
42
CE
I
Command chip enable signal input from the CXA2568M (IC103)
29
Pin No.
Pin Name
I/O
43
RFDC
I
RF signal input from the CXA2568M (IC103)
44
ADIO
O
Monitor output of the A/D converter input signal Not used (open)
45
AVSS0
—
Ground terminal (digital system)
46
IGEN
I
47
AVDD0
—
Power supply terminal (+5V) (digital system)
48
ASYO
O
Playback EFM full-swing output terminal
49
ASYI
I
Playback EFM asymmetry comparator voltage input terminal
50
BIAS
I
Playback EFM asymmetry circuit constant current input terminal
51
RFAC
I
EFM signal input from the CXA2568M (IC103)
52
AVSS3
—
53
CLTV
I
Internal VCO control voltage input of the playback master PLL
54
FILO
O
Filter output for master clock of the playback master PLL
55
FILI
I
Filter input for master clock of the playback master PLL
30
Description
Stabilized current input for operational amplifiers
Ground terminal (digital system)
56
PCO
O
Phase comparison output for master clock of the playback EFM master PLL
57
AVDD3
—
Power supply terminal (+5V) (digital system)
58
VSS
—
Ground terminal (digital system)
59
VDD
—
Power supply terminal (+5V) (digital system)
60
DOUT
O
Digital audio signal output to the DIGITAL OUT OPTICAL (IC303)
61
LRCK
O
L/R sampling clock signal (44.1 kHz) output terminal Not used (open)
62
PCMD
O
D/A interface serial data output terminal Not used (open)
63
BCK
O
Bit clock signal (2.8224 MHz) output terminal Not used (open)
64
EMPH
O
De-emphasis control signal output terminal Not used (open)
65
XVDD
—
Power supply terminal (+5V) (crystal oscillator system)
66
XTAI
I
System clock input terminal (16.9344 MHz)
67
XTAO
O
System clock output terminal (16.9344 MHz)
68
XVSS
—
Ground terminal (crystal oscillator system)
69
AVDD1
—
Power supply terminal (+5V) (analog system)
70
AOUT1
O
L-ch analog audio signal output terminal
71
AIN1
I
L-ch operational amplifiers input terminal
72
LOUT1
O
L-ch line output terminal
73
AVSS1
—
Ground terminal (analog system)
74
AVSS2
—
Ground terminal (analog system)
75
LOUT2
O
R-ch line output terminal
76
AIN2
I
R-ch operational amplifiers input terminal
77
AOUT2
O
R-ch analog audio signal output terminal
78
AVDD2
—
Power supply terminal (+5V) (analog system)
79
RMUT
O
R-ch line muting on/off control signal output terminal
80
LMUT
O
L-ch line muting on/off control signal output terminal
• MAIN BOARD IC301 CXP84648-066Q
(SYSTEM CONTROLLER, FLUORESCENT INDICATOR TUBE DRIVER, KEY CONTROL)
Pin No.
Pin Name
I/O
1
BUSIN
I
Sircs remote control signal input terminal Not used (pull up)
Description
2
RMIN
I
Remote control signal input from the remote control receiver (IC802)
3
ADJ
I
Setting terminal for the test mode “L” active
4
XLT
O
Serial data latch pulse signal output to the CXD2587Q (IC101)
5
HOLD
O
Laser power control signal output to the CXD2587Q (IC101) “H” active
6
TSENS
I
Detect signal input from the table sensor (D10)
7
NC
O
Not used (open)
8
CLK
O
Serial data transfer clock signal output to the CXD2587Q (IC101)
9
NC
O
Not used (open)
10
DATA
O
Serial data output to the CXD2587Q (IC101)
11
SQCK
O
Sub-code Q data reading clock signal output to the CXD2587Q (IC101)
12
SUBQ
I
Sub-code Q data signal input from the CXD2587Q (IC101)
13
NC
O
Not used (open)
14
OUT.SW
I
Detect signal input from the open/close detect switch (S11)
15, 16
S1, S2
I
Detect signal input from the tray address detect switch (S200)
17
NC
O
Not used (open)
18
TBLL
O
Table motor drive signal (counterclockwise) output to the BA6780 (IC11)
19
TBLR
O
Table motor drive signal (clockwise) output to the BA6780 (IC11)
20
LOAD IN
O
Loading motor (M11) drive signal output to the BA6780 (IC11) *1
21
LOAD OUT
O
Loading motor (M11) drive signal output to the BA6780 (IC11) *1
22
NC
O
Not used (open)
23
KEY1
I
Key input terminal (A/D input) (S820 to S824)
TIME, REPEAT, PROGRAM, SHUFFLE, CONTINUE keys input
24
KEY2
I
Key input terminal (A/D input) (S813 to S819)
DISC 5 to DISC 1, PEAK SEARCH, EDIT/TIME FADE keys input
25
KEY3
I
Key input terminal (A/D input) (S807 to S821, S825)
DISC SKIP, EX-CHANGE, CLEAR, CHECK, M, m, l AMS L keys input
26, 27
NC
O
Not used (open)
28
KEY6
I
Key input terminal (A/D input) (S801 to S806)
A OPEN/CLOSE, x, X, H, FADER, MUSIC SCAN keys input
29
NC
O
Not used (open)
30
RST
I
System reset signal input from the reset signal generator (IC601) “L”: reset
For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H”
31
EXTAL
I
Main system clock input terminal (10 MHz)
32
XTAL
O
Main system clock output terminal (10 MHz)
33
VSS
—
Ground terminal
34 to 37
NC
O
Not used (open)
*1 Loading motor (M11) control
Operation
OFF
OUT
IN
BRAKE
LOAD IN (pin w;)
“L”
“L”
“H”
“H”
LOAD OUT (pin wa)
“L”
“H”
“L”
“H”
Terminal
31
Pin No.
Pin Name
I/O
38 to 57
P1 to P20
O
58 to 62
NC
O
Not used (open)
63 to 70
G1 to G8
O
Grid drive signal output to the fluorescent indicator tube (FL801)
71
VG
—
Power supply terminal (–30V) (for fluorescent indicator tube drive)
72, 73
VDD
—
Power supply terminal (+5V)
74, 75
NC
O
Not used (open)
76
AFADJ
I
Setting terminal for the test mode “L” active
77
BUSOUT
O
Sircs remote control signal output terminal
78
DSENS
I
Detect signal input from the disc sensor (D11)
79
SENS
I
Internal status (SENSE) signal input from the CXD2587Q (IC101)
80
SCOR
I
Sub-code sync (S0+S1) detection signal input from the CXD2587Q (IC101)
32
Description
Segment drive signal output to the fluorescent indicator tube (FL801)
Not used (open)
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑
↑
Parts Color Cabinet's Color
• Abbreviation
AUS : Australian model
CND : Canadian model
EA : Saudi Arabia model
SP : Singapore model
(1)
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference number in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
COVER SECTION
3
4
2
1
2
Front panel section
4
Ref. No.
1
1
2
2
Part No.
Description
4-224-867-01
4-224-867-21
4-210-291-01
4-210-291-11
PANEL, LOADING (BLACK)
PANEL, LOADING (SILVER)
SCREW (CASE 3 TP2) (BLACK)
SCREW (CASE 3 TP2) (SILVER)
Remark
Ref. No.
3
3
4
Part No.
Description
Remark
4-224-875-11 COVER (409537) (BLACK)
4-224-875-31 COVER (409537) (SILVER)
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
33
(2)
FRONT PANEL SECTION
62
61
63
62
64
57
60
62
65
62
58
59
56
55
not supplied
EXCEPT US,
CND
66
54
51
53
52
Ref. No.
Part No.
Description
51
51
51
52
53
4-224-861-01
4-224-861-11
4-224-861-31
3-354-981-01
4-224-868-01
PANEL, FRONT (CE245)
PANEL, FRONT (CE345: BLACK)
PANEL, FRONT (CE345: SILVER)
SPRING (SUS), RING
KNOB (AMS) (BLACK)
53
54
4-224-868-11 KNOB (AMS) (SILVER)
4-977-593-01 RING (DIA. 50), ORNAMENTAL
(EXCEPT US, CND)
4-978-398-21 CUSHION
4-996-698-41 EMBLEM, SONY
4-224-866-01 WINDOW (FL) (CE245)
* 55
56
57
57
58
34
Remark
4-224-866-11 WINDOW (FL) (CE345)
4-224-864-01 BUTTON (PLAY) (H. X. x. A OPEN/CLOSE.
EX-CHANGE. DISC SKIP) (BLACK)
Ref. No.
58
Part No.
Description
Remark
59
59
60
60
4-224-864-11 BUTTON (PLAY) (H. X. x. A OPEN/CLOSE.
EX-CHANGE. DISC SKIP) (SILVER)
4-224-862-01 BUTTON (DISC) (BLACK)
4-224-862-11 BUTTON (DISC) (SILVER)
4-224-863-01 BUTTON (MODE) (BLACK)
4-224-863-11 BUTTON (MODE) (SILVER)
61
61
62
63
64
3-931-429-21
4-227-979-01
4-951-620-01
1-676-540-11
1-676-539-11
65
66
A-4725-007-A DISPLAY BOARD, COMPLETE
1-792-486-11 WIRE (FLAT TYPE) (37 CORE)
BUTTON (POWER) (!) (BLACK)
BUTTON (POWER) (!) (SILVER)
SCREW (2.6X8), +BVTP
POWER SW BOARD
KEY BOARD
(3)
CHASSIS SECTION
US, CND
CDM59-5BD32A
108
110
E
110
106
108
111
T601
105
110
108
104
EA
AEP, UK, EA, SP
AUS
103
107
110
108
UK
111
101
108
not supplied
102
108
108
109
101
102
not supplied
108
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
Part No.
Description
109
109
109
109
109
4-224-878-21
4-224-878-31
4-224-878-41
4-224-878-52
4-224-878-61
PANEL, BACK (CE345: AEP)
PANEL, BACK (CE345: UK)
PANEL, BACK (CE345: AUS)
PANEL, BACK (CE345: E)
PANEL, BACK (CE345: SP)
MAIN BOARD, COMPLETE (E, EA)
WIRE (FLAT TYPE) (21 CORE)
SCREW, S TIGHT, +PTTWH 3X6
BUSHING (S) (FBS002), CORD (E)
BUSHING (FBS001), CORD (EXCEPT E)
109
0 110
0 110
0 110
0 110
4-224-878-71
1-558-943-41
1-575-651-21
1-590-926-11
1-696-845-11
PANEL, BACK (CE345: EA)
CORD, POWER (E)
CORD, POWER (AEP, UK, EA, SP)
CORD, POWER (CND)
CORD, POWER (AUS)
SCREW +BVTP 3X8 TYPE2 N-S
PANEL, BACK (CE245: US)
PANEL, BACK (CE245: CND)
PANEL, BACK (CE245: AUS)
PANEL, BACK (CE345: US)
0 110
0 111
0 111
0 T601
0 T601
1-783-531-31
1-569-008-31
1-770-019-11
1-435-342-11
1-435-343-11
CORD, POWER (US)
ADAPTOR, CONVERSION (EA)
ADAPTOR, CONVERSION PLUG 3P (UK)
TRANSFORMER, POWER (US, CND)
TRANSFORMER, POWER (AEP, UK, SP, AUS)
0 T601
1-435-344-11 TRANSFORMER, POWER (E, EA)
Ref. No.
Part No.
Description
Remark
101
* 102
103
104
104
4-977-591-11
4-978-398-21
4-943-687-01
A-4725-005-A
A-4725-009-A
FOOT (F50150S)
CUSHION
HOLDER, PC BOARD
MAIN BOARD, COMPLETE (US, CND)
MAIN BOARD, COMPLETE (AEP, UK, SP, AUS)
104
105
106
107
107
A-4725-010-A
1-792-130-11
3-703-249-01
3-703-571-11
4-966-267-11
108
109
109
109
109
7-685-646-79
4-224-877-01
4-224-877-11
4-224-877-41
4-224-878-01
109
4-224-878-11 PANEL, BACK (CE345: CND)
Ref. No.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Remark
35
(4)
CD MECHANISM DECK SECTION-1
(CDM59-5BD32A)
206
210
not supplied
209
207
206
211
202
206
208
202
205
203
203
not
supplied
204
202
211
203
M11
201
202
Ref. No.
Part No.
Description
201
202
* 203
204
205
1-676-245-11
4-218-253-01
X-4947-960-1
4-224-602-01
4-224-617-01
SENSOR BOARD
SCREW (M2.6), +BTTP
ROLLER ASSY
TABLE
GEAR (RM-E)
206
36
202
4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
Remark
Ref. No.
Part No.
Description
207
208
209
210
211
4-224-616-01
4-224-615-01
4-225-328-01
4-224-603-01
4-224-619-01
GEAR (RM-M)
GEAR (RM-B)
BELT (ROTARY)
TRAY
BRACKET (GUIDE)
M11
A-4672-867-A MOTOR ASSY, ROTARY (TRAY)
Remark
(5)
CD MECHANISM DECK SECTION-2
(CDM59-5BD32A)
269
263
251
251
262
261
251
270
266
265
260
268
not supplied
259
S200
251
267
264
258
not supplied
257
M10
271
272
255
251
251
256
251
258
BU-5BD32A
254
253
253
252
Ref. No.
Part No.
Description
251
252
253
254
255
4-985-672-01
X-4952-312-1
4-959-996-21
4-225-885-01
4-225-844-01
SCREW (+PTPWH M2.6), FLOATING
HOLDER (BU) ASSY
SPRING (932), COMPRESSION
BELT (LOADING)
GEAR (LOADING A)
256
257
258
259
260
4-224-613-01
1-676-244-11
4-218-253-01
4-224-607-01
4-224-609-01
GEAR (SHAFT)
LOADING MOTOR BOARD
SCREW (M2.6), +BTTP
GEAR, SWING
GEAR (LOADING C)
261
262
263
4-224-608-01 COLLAR, SWING
4-224-611-01 GEAR (LOADING B)
3-016-533-21 WASHER (FR), STOPPER
Remark
251
Ref. No.
Part No.
Description
* 264
265
266
267
268
4-951-619-21
4-224-606-01
4-224-605-01
X-4952-019-1
1-471-061-11
CUSHION (A)
GEAR (RV)
GEAR (U/D)
PULLEY (A) ASSY, CHUCKING
MAGNET ASSY
Remark
269
270
271
272
M10
4-221-688-01
4-224-618-01
1-791-930-11
1-676-246-11
A-4672-879-A
PULLEY (B), CHUCKING
LEVER (LIFTER)
WIRE (FLAT TYPE) (6 CORE)
JUNCTION BOARD
MOTOR ASSY, LOADING
S200
1-418-746-11 ENCODER, ROTARY
(BU, TABLE ADDRESS DETECT)
37
(6)
BASE UNIT SECTION
(BU-5BD32A)
306
305
307
M101
308
304
303
M102
303
309
302
301
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
Ref. No.
Part No.
Description
301
* 302
303
304
0 305
4-951-620-01
A-4724-494-A
4-951-940-41
4-917-565-01
8-848-379-31
SCREW (2.6X8), +BVTP
BD BOARD, COMPLETE
INSULATOR (BU)
SHAFT, SLED
OPTICAL PICK-UP KSS-213BA/F-NP
306
38
1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
Remark
Ref. No.
307
308
309
M101
M102
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Part No.
Description
3-713-786-51
4-917-567-21
4-917-564-01
X-4917-523-3
X-4917-504-1
SCREW +P 2X3
GEAR (M)
GEAR (P), FLATNESS
MOTOR ASSY (SPINDLE)
MOTOR ASSY (SLED)
Remark
SECTION 8
ELECTRICAL PARTS LIST
NOTE:
•
• Due to standardization, replacements in the
parts list may be different from the parts specified in the diagrams or the components used
on the set.
•
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
•
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
•
F: nonflammable
• Abbreviation
EA : Saudi Arabia model
AUS : Australian model
SP : Singapore model
CND : Canadian model
Ref. No.
Part No.
*
A-4724-494-A BD BOARD, COMPLETE
*******************
BD
Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when ordering these items.
SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. .
uPA. . : µPA. .
uPB. . : µPB. .
uPC. . : µPC. .
uPD. . : µPD. .
CAPACITORS
uF: µF
COILS
uH: µH
Description
Remark
< CAPACITOR >
C101
C102
C103
C104
C108
1-163-005-11
1-164-004-11
1-163-005-11
1-163-009-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
470PF
0.1uF
470PF
0.001uF
0.1uF
10%
10%
10%
10%
10%
50V
25V
50V
50V
25V
C109
C110
C111
C112
C113
1-163-011-11
1-164-182-11
1-163-251-11
1-163-038-00
1-163-038-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0015uF 10%
0.0033uF 10%
100PF
5%
0.1uF
0.1uF
50V
50V
50V
25V
25V
C114
C115
C116
C117
C118
1-163-038-00
1-126-607-11
1-126-607-11
1-126-209-11
1-163-009-11
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
0.1uF
47uF
47uF
100uF
0.001uF
25V
4V
4V
4V
50V
C119
C121
C122
C123
C124
1-163-235-11
1-163-038-00
1-126-206-11
1-163-021-11
1-107-823-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
22PF
0.1uF
100uF
0.01uF
0.47uF
C125
C126
C127
C128
C129
1-163-038-00
1-163-038-00
1-117-681-11
1-163-038-00
1-163-031-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
100uF
0.1uF
0.01uF
C130
C131
C133
C140
C141
1-164-346-11
1-124-779-00
1-164-346-11
1-164-346-11
1-164-346-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1uF
10uF
1uF
1uF
1uF
C143
C151
C153
C154
C156
1-163-038-00
1-163-235-11
1-163-038-00
1-110-501-11
1-163-235-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
22PF
0.1uF
0.33uF
22PF
10%
5%
25V
50V
25V
16V
50V
C157
C159
C161
C162
C163
1-163-009-11
1-163-019-00
1-126-206-11
1-126-205-11
1-126-206-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
0.001uF
0.0068uF
100uF
47uF
100uF
10%
10%
20%
20%
20%
50V
50V
6.3V
6.3V
6.3V
Ref. No.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
Part No.
Description
Remark
C165
C167
C168
C171
C172
1-163-038-00
1-163-235-11
1-163-235-11
1-163-009-11
1-163-123-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
22PF
22PF
0.001uF
180PF
5%
5%
10%
5%
25V
50V
50V
50V
50V
C181
C182
1-163-009-11 CERAMIC CHIP
1-163-123-00 CERAMIC CHIP
0.001uF
180PF
10%
5%
50V
50V
< CONNECTOR >
20%
20%
20%
10%
5%
20%
10%
10%
50V
25V
6.3V
50V
16V
CN101
CN102
< FERRITE BEAD >
FB101
FB103
20%
20%
5%
16V
16V
16V
16V
16V
1-500-445-21 FERRITE
1-500-445-21 FERRITE
0uH
0uH
< IC >
IC101
IC102
IC103
8-752-386-85 IC CXD2587Q
8-759-549-28 IC BA5974FP-E2
8-752-085-51 IC CXA2568M-T6
< TRANSISTOR >
Q101
25V
25V
16V
25V
50V
1-784-360-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P
1-777-937-11 CONNECTOR, FFC/FPC 16P
8-729-010-08 TRANSISTOR
MSB710-RT1
< RESISTOR >
R101
R102
R103
R104
R105
1-216-077-00
1-216-097-00
1-216-077-00
1-216-085-00
1-216-097-00
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
15K
100K
15K
33K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R106
R107
R108
R109
R110
1-216-049-11
1-216-073-00
1-216-061-00
1-216-121-00
1-216-025-00
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
1K
10K
3.3K
1M
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R111
R113
R114
R116
R117
1-216-121-00
1-216-121-00
1-216-073-00
1-216-001-00
1-216-049-11
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
1M
1M
10K
10
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R119
R123
1-216-041-00 METAL CHIP
1-216-073-00 METAL CHIP
470
10K
5%
5%
1/10W
1/10W
39
BD
Ref. No.
DISPLAY
Part No.
JUNCTION
Description
Remark
R124
R131
R143
1-216-097-00 RES-CHIP
1-216-037-00 METAL CHIP
1-216-103-00 METAL CHIP
100K
330
180K
5%
5%
5%
1/10W
1/10W
1/10W
R144
R147
R148
R149
R158
1-216-103-00
1-216-069-00
1-216-001-00
1-216-001-00
1-216-111-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
180K
6.8K
10
10
390K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R159
R161
R162
R171
R172
1-216-101-00
1-216-308-00
1-216-101-00
1-216-680-11
1-216-675-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
150K
4.7
150K
16K
10K
5%
5%
5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R173
R181
R182
R183
R184
1-216-679-11
1-216-680-11
1-216-675-11
1-216-679-11
1-216-025-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
15K
16K
10K
15K
100
0.5%
0.5%
0.5%
0.5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R185
1-216-025-00 RES-CHIP
100
5%
1/10W
Ref. No.
Part No.
Description
R817
R818
R819
R820
1-249-415-11
1-249-417-11
1-249-419-11
1-249-421-11
CARBON
CARBON
CARBON
CARBON
680
1K
1.5K
2.2K
5%
5%
5%
5%
Remark
1/4W
1/4W
1/4W
1/4W
R821
R822
R823
R851
R852
1-247-843-11
1-249-427-11
1-249-431-11
1-247-807-31
1-247-807-31
CARBON
CARBON
CARBON
CARBON
CARBON
3.3K
6.8K
15K
100
100
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
< SWITCH >
S801
S802
S803
S804
S805
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
SWITCH, KEYBOARD (A OPEN/CLOSE)
SWITCH, KEYBOARD (x)
SWITCH, KEYBOARD (X)
SWITCH, KEYBOARD (H)
SWITCH, KEYBOARD (FADER)
S806
S807
S808
S809
S810
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
SWITCH, KEYBOARD (MUSIC SCAN)
SWITCH, KEYBOARD (DISC SKIP)
SWITCH, KEYBOARD (EX-CHANGE)
SWITCH, KEYBOARD (CLEAR)
SWITCH, KEYBOARD (CHECK)
< NETWORK RESISTOR >
RN101
RN102
S811
S812
S825
1-771-349-21 SWITCH, KEYBOARD (M)
1-771-349-21 SWITCH, KEYBOARD (m)
1-475-543-11 ENCODER, ROTARY
(l AMS L PUSH ENTER)
**************************************************************
1-233-412-11 RES, CHIP NETWORK 1.0K (3216)
1-233-576-11 RES, CHIP NETWORK 100
< SWITCH >
S101
1-572-085-11 SWITCH, LEAF (LIMIT)
1-676-246-11 JUNCTION BOARD
***************
< VIBRATOR >
< CAPACITOR >
X101
1-767-408-21 VIBRATOR, CRYSTAL (16.9344MHz)
**************************************************************
C10
C11
1-124-589-11 ELECT
1-161-494-00 CERAMIC
A-4725-007-A DISPLAY BOARD, COMPLETE
************************
CN11
CN13
* CN14
CN15
< CAPACITOR >
1-126-968-11 ELECT
100uF
20%
20%
16V
25V
10K
5.6K
4.7K
12K
1.2
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/6W
1.2
5%
1/6W
< CONNECTOR >
4-224-880-01 HOLDER (FL)
C851
47uF
0.022uF
1-573-911-11
1-506-481-11
1-568-941-11
1-784-767-11
PIN, CONNECTOR 13P
PIN, CONNECTOR 2P
PIN, CONNECTOR 3P
CONNECTOR, FFC 6P
6.3V
< IC >
< CONNECTOR >
IC11
CN810
CN811
< RESISTOR >
< FLUORESCENT INDICATOR TUBE >
FL801
1-517-946-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC802
8-759-648-23 IC RPM6940-H4
R21
R22
R23
R24
R25
1-249-429-11
1-249-426-11
1-249-425-11
1-249-430-11
1-249-382-11
R26
1-249-382-11 CARBON
< RESISTOR >
CARBON
CARBON
CARBON
CARBON
CARBON
< SWITCH >
R811
R812
R813
R814
R815
1-249-415-11
1-249-417-11
1-249-419-11
1-249-421-11
1-247-843-11
CARBON
CARBON
CARBON
CARBON
CARBON
680
1K
1.5K
2.2K
3.3K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R816
1-249-427-11 CARBON
6.8K
5%
1/4W
40
8-759-356-03 IC BA6780
1-784-798-11 CONNECTOR, FFC 37P
1-750-194-11 CONNECTOR, BOARD TO BOARD 4P
S11
1-771-836-11 SWITCH, LEVER (SLIDE)
(OPEN/CLOSE DETECT)
**************************************************************
KEY
Ref. No.
Part No.
Description
Remark
1-676-539-11 KEY BOARD
**********
< CONNECTOR >
CN812
1-750-185-11 CONNECTOR, BOARD TO BOARD 4P
Ref. No.
LOADING MOTOR
Part No.
MAIN
Description
Remark
C603
1-126-942-61 ELECT
1000uF
20%
16V
C604
C605
C606
C607
C608
1-126-963-11
1-126-963-11
1-126-963-11
1-126-941-11
1-104-666-11
ELECT
ELECT
ELECT
ELECT
ELECT
4.7uF
4.7uF
4.7uF
470uF
220uF
20%
20%
20%
20%
20%
50V
50V
50V
6.3V
10V
C609
C610
C611
C612
C613
1-128-552-11
1-126-964-11
1-126-767-11
1-161-494-00
1-126-941-11
ELECT
ELECT
ELECT
CERAMIC
ELECT
47uF
10uF
1000uF
0.022uF
470uF
20%
20%
20%
20%
63V
50V
16V
25V
6.3V
C616
C619
0 C620
C622
1-161-494-00
1-104-664-11
1-113-924-11
1-161-494-00
CERAMIC
ELECT
CERAMIC
CERAMIC
0.022uF
47uF
20%
0.0047uF 20%
0.022uF
25V
16V
250V
25V
< RESISTOR >
R824
R825
R826
R827
R828
1-249-415-11
1-249-417-11
1-249-419-11
1-249-421-11
1-247-843-11
CARBON
CARBON
CARBON
CARBON
CARBON
680
1K
1.5K
2.2K
3.3K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R829
R830
R831
R832
R833
1-249-427-11
1-249-415-11
1-249-417-11
1-249-419-11
1-249-421-11
CARBON
CARBON
CARBON
CARBON
CARBON
6.8K
680
1K
1.5K
2.2K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
< SWITCH >
< CONNECTOR >
CN301
CN302
CN311
CN603
S813
S814
S815
S816
S817
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
SWITCH, KEYBOARD (DISC5)
SWITCH, KEYBOARD (DISC4)
SWITCH, KEYBOARD (DISC3)
SWITCH, KEYBOARD (DISC2)
SWITCH, KEYBOARD (DISC1)
S818
S819
S820
S821
S822
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
SWITCH, KEYBOARD (PEAK SEARCH)
SWITCH, KEYBOARD (EDIT/TIME FADE)
SWITCH, KEYBOARD (TIME)
SWITCH, KEYBOARD (REPEAT)
SWITCH, KEYBOARD (PROGRAM)
1-784-798-11
1-784-782-11
1-573-911-11
1-792-131-11
CONNECTOR, FFC 37P
CONNECTOR, FFC 21P
PIN, CONNECTOR 13P
LEAD (WITH CONNECTOR)
< DIODE >
S823
1-771-349-21 SWITCH, KEYBOARD (SHUFFLE)
S824
1-771-349-21 SWITCH, KEYBOARD (CONTINUE)
**************************************************************
1-676-244-11 LOADING MOTOR BOARD
*********************
D350
D351
D353
D601
D602
8-719-991-33
8-719-991-33
8-719-991-33
8-719-200-82
8-719-200-82
DIODE
DIODE
DIODE
DIODE
DIODE
1SS133T-77
1SS133T-77
1SS133T-77
11ES2-TA1B
11ES2-TA1B
D603
D604
D605
D606
D607
8-719-200-82
8-719-200-82
8-719-200-82
8-719-923-60
8-719-991-33
DIODE
DIODE
DIODE
DIODE
DIODE
11ES2-TA1B
11ES2-TA1B
11ES2-TA1B
MTZJ-T-77-9.1
1SS133T-77
D608
D609
8-719-921-40 DIODE MTZJ-T-77-4.7B
8-719-991-33 DIODE 1SS133T-77
**************************************************************
< GROUND TERMINAL >
A-4725-005-A MAIN BOARD, COMPLETE (US, CND)
A-4725-009-A MAIN BOARD, COMPLETE (AEP, UK, SP, AUS)
A-4725-010-A MAIN BOARD, COMPLETE (E, EA)
**********************
7-685-871-01 SCREW +BVTT 3X6 (S)
< CAPACITOR >
C301
C302
C303
C304
C325
1-161-494-00
1-104-664-11
1-161-494-00
1-164-159-11
1-161-494-00
CERAMIC
ELECT
CERAMIC
CERAMIC
CERAMIC
0.022uF
47uF
0.022uF
0.1uF
0.022uF
C326
C351
C401
C404
C407
1-104-664-11
1-126-963-11
1-126-965-11
1-104-665-11
1-162-290-31
ELECT
ELECT
ELECT
ELECT
CERAMIC
47uF
4.7uF
22uF
100uF
470PF
20%
20%
20%
20%
10%
16V
50V
50V
10V
50V
C501
C504
C507
C602
1-126-965-11
1-104-665-11
1-162-290-31
1-126-936-11
ELECT
ELECT
CERAMIC
ELECT
22uF
100uF
470PF
3300uF
20%
20%
10%
20%
50V
10V
50V
16V
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
20%
25V
16V
25V
50V
25V
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
EB601
1-537-770-21 TERMINAL BOARD, GROUND
< IC >
IC301
IC303
IC350
IC601
IC602
8-752-912-66
8-749-921-12
8-759-145-58
8-759-061-65
8-749-011-78
IC
IC
IC
IC
IC
CXP82324-091Q
GP1F32T (DIGITAL OUT OPTICAL)
BA4558
LA5602
BA17807T
IC603
8-759-633-42 IC M5293L
< JACK >
J301
1-785-868-11 JACK, PIN 2P (ANALOG OUT)
< COIL >
L601
L602
1-412-473-41 INDUCTOR
1-414-151-21 INDUCTOR
0uH
470uH
< TRANSISTOR >
Q301
8-729-119-78 TRANSISTOR
2SC2785-HFE
41
MAIN
Ref. No.
POWER SW
SENSOR
Part No.
Description
Q307
Q352
Q353
Q356
8-729-029-66
8-729-029-56
8-729-029-56
8-729-029-56
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
DTC114ESA
DTA144ESA
DTA144ESA
DTA144ESA
Remark
Q402
Q405
Q502
Q505
Q601
8-729-141-26
8-729-141-26
8-729-141-26
8-729-141-26
8-729-119-76
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC3622A-LK
2SC3622A-LK
2SC3622A-LK
2SC3622A-LK
2SA1175-HFE
Ref. No.
Description
Remark
< SWITCH >
0 S602
1-572-675-11 SWITCH, POWER VOLTAGE CHANGE
(VOLTAGE SELECTOR) (E, EA)
< VIBRATOR >
X301
1-579-175-11 VIBRATOR, CERAMIC (10MHz)
**************************************************************
1-676-540-11 POWER SW BOARD
*****************
< RESISTOR >
R301
R302
R306
R308
R313
1-249-429-11
1-249-429-11
1-249-429-11
1-249-441-11
1-249-429-11
CARBON
CARBON
CARBON
CARBON
CARBON
10K
10K
10K
100K
10K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R320
R321
R322
R323
R324
1-249-427-11
1-249-427-11
1-249-427-11
1-249-427-11
1-249-429-11
CARBON
CARBON
CARBON
CARBON
CARBON
6.8K
6.8K
6.8K
6.8K
10K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R325
R326
R327
R329
R352
1-249-417-11
1-249-425-11
1-249-425-11
1-249-425-11
1-249-441-11
CARBON
CARBON
CARBON
CARBON
CARBON
1K
4.7K
4.7K
4.7K
100K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R353
R356
R401
R402
R403
1-249-441-11
1-249-441-11
1-215-453-00
1-215-425-00
1-215-425-00
CARBON
CARBON
METAL
METAL
METAL
100K
100K
22K
1.5K
1.5K
5%
5%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R404
R405
R406
R414
R415
1-215-445-00
1-215-443-00
1-215-469-00
1-215-405-00
1-215-405-00
METAL
METAL
METAL
METAL
METAL
10K
8.2K
100K
220
220
1%
1%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R419
R420
R422
R501
R502
1-249-421-11
1-215-405-00
1-249-421-11
1-215-453-00
1-215-425-00
CARBON
METAL
CARBON
METAL
METAL
2.2K
220
2.2K
22K
1.5K
5%
1%
5%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R503
R504
R505
R506
R514
1-215-425-00
1-215-445-00
1-215-443-00
1-215-469-00
1-215-405-00
METAL
METAL
METAL
METAL
METAL
1.5K
10K
8.2K
100K
220
1%
1%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R515
R519
R520
R522
R601
1-215-405-00
1-249-421-11
1-215-405-00
1-249-421-11
1-249-435-11
METAL
CARBON
METAL
CARBON
CARBON
220
2.2K
220
2.2K
33K
1%
5%
1%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R602
R603
R604
R605
R607
1-249-429-11
1-249-438-11
1-249-429-11
1-249-411-11
1-249-389-11
CARBON
CARBON
CARBON
CARBON
CARBON
10K
56K
10K
330
4.7
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
< CAPACITOR >
0 C601
1-113-924-11 CERAMIC
0.0047uF 20%
250V
< CONNECTOR >
* CN601
* CN602
1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P
1-568-226-11 PIN, CONNECTOR 2P
< SWITCH >
0 S601
1-572-267-51 SWITCH, PUSH (AC POWER) (1 KEY)
(POWER)
**************************************************************
1-676-245-11 SENSOR BOARD
**************
< CONNECTOR >
CN10
1-750-243-11 SOCKET, CONNECTOR 6P
< DIODE >
D10
D11
8-749-924-18 PHOTO INTERRUPTER RPI-1391
8-749-017-45 IC RPR-220CIN
< RESISTOR >
R10
1-249-416-11 CARBON
820
5%
1/4W
R11
1-249-407-11 CARBON
150
5%
1/4W
R12
1-249-429-11 CARBON
10K
5%
1/4W
**************************************************************
MISCELLANEOUS
**************
66
105
0 110
0 110
0 110
1-792-486-11
1-792-130-11
1-558-943-41
1-575-651-21
1-590-926-11
WIRE (FLAT TYPE) (37 CORE)
WIRE (FLAT TYPE) (21 CORE)
CORD, POWER (E)
CORD, POWER (AEP, UK, EA, SP)
CORD, POWER (CND)
0 110
0 110
0 111
0 111
268
1-696-845-11
1-783-531-41
1-569-008-31
1-770-019-11
1-471-061-11
CORD, POWER (AUS)
CORD, POWER (US)
ADAPTOR, CONVERSION (EA)
ADAPTOR, CONVERSION PLUG 3P (UK)
MAGNET ASSY
271
0 305
306
M10
M11
1-791-930-11
8-848-379-31
1-769-069-11
A-4672-879-A
A-4672-867-A
WIRE (FLAT TYPE) (6 CORE)
OPTICAL PICK-UP KSS-213BA/F-NP
WIRE (FLAT TYPE) (16 CORE)
MOTOR ASSY, LOADING
MOTOR ASSY, ROTARY (TRAY)
M101
42
Part No.
X-4917-523-3 MOTOR ASSY (SPINDLE)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
Ref. No.
M102
S200
0 T601
0 T601
Part No.
Description
Remark
X-4917-504-1 MOTOR ASSY (SLED)
1-418-746-11 ENCODER, ROTARY
(BU, TABLE ADDRESS DETECT)
1-435-342-11 TRANSFORMER, POWER (US, CND)
1-435-343-11 TRANSFORMER, POWER (AEP, UK, SP, AUS)
0 T601
1-435-344-11 TRANSFORMER, POWER (E, EA)
************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
1-476-132-11
1-558-271-11
4-226-518-11
4-226-518-21
REMOTE COMMANDER (RM-DC355) (CE345)
CORD, CONNECTION
MANUAL, INSTRUCTION (ENGLISH) (US, AUS)
MANUAL, INSTRUCTION (ENGLISH, FRENCH,
SPANISH) (AEP, UK, E, EA, SP)
4-226-518-31 MANUAL, INSTRUCTION (GERMAN, DUTCH,
ITALIAN, PORTUGUESE) (AEP)
4-226-518-41 MANUAL, INSTRUCTION (CHINESE) (E, SP)
4-226-518-51 MANUAL, INSTRUCTION (ARABIC) (EA)
4-226-518-61 MANUAL, INSTRUCTION (SWEDISH, DANISH,
FINNISH) (North European)
4-226-518-71 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
(CND)
4-981-643-01 COVER, BATTERY (for RM-DC355) (CE345)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
43
CDP-CE245/CE345
9-929-204-11
Sony Corporation
Home Audio Division Company
44
2000C0585-1
Printed in Japan C 2000. 3
Published by Quality Assurance Dept.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
