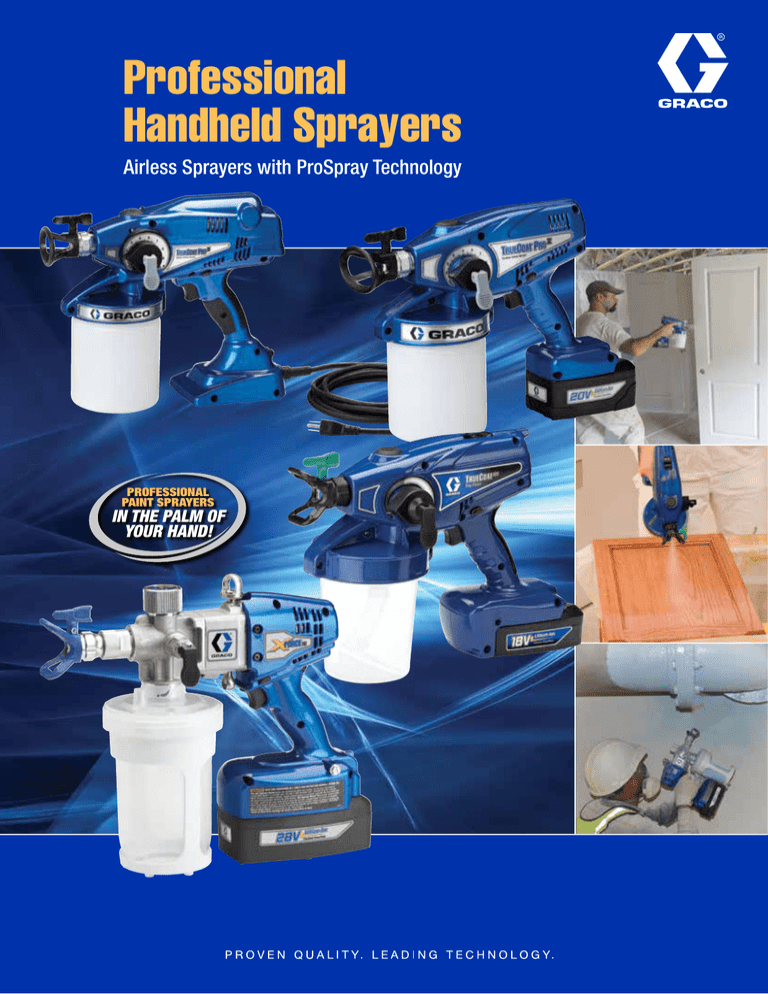

Professional

Handheld Sprayers

Airless Sprayers with ProSpray Technology

PROFESSIONAL

PAINT SPRAYERS

IN THE PALM OF

YOUR HAND!

Graco has the Right Solutions for all your Handheld Spraying Applications

How have thousands of contractors been more profitable with a Graco handheld sprayer?

• They have eliminated material waste by avoiding wetting out their big rig and hose to do small jobs

• They have saved labor by eliminating set-up and clean-up time of using their big sprayer

• They save labor by increasing their speed by 4 to 5 times versus doing small jobs with a brush or roller

• They get the finish their customers demand

HANDHELD AIRLESS SPRAYING

SOLUTIONS GUIDE

TYPICAL APPLICATIONS

TYPICAL MATERIALS

TIP PERFORMANCE

MATERIAL & SOLVENT COMPATIBILITY

KEY FEATURES

3

*See Operating Manual for detailed list of compatible cleaning fluids.

Walls, Ceilings, Doors, Siding,

Garage Doors, Fences,

Shutters, Decks

Interior/Exterior Latex Paints, Oil-Based Paints and

Primers, Acrylics, Enamels, Solid Stains

Latex Paints and Primers, Acrylic Paints and Primers,

Oil-Based Paints and Primers

.011 – .017 TrueCoat Pro Reversible Tips

Most materials that can be cleaned with water, mineral spirits or paint thinner. Do not use materials which state “flammable” on packaging.*

ProControl

Pressure Control System

Variable Pressure: 1000 – 2000 psi (69-138 bar)

Two–20V Lithium-Ion Battery Packs

(Cordless Model)

15 ft (4.57 m) SuperFlex

Power Cord

(Electric Model)

32 oz (.95 l) Tilt-N-Spray Material Cup

Pendulum Suction Tube Design

Fully Repairable

Pump Armor

Storage/Start-up Kit

1-800-690-2894

WWW.GRACO.COM

Graco has the Right Solutions for all your Handheld Spraying Applications

Trim, Cabinets, Bookcases, Molding, Doors,

Furniture, Stair Railings

Lacquers, Varnishes, Urethanes, Sealers,

Stains and Enamels

.008 – .012 TrueCoat Pro Fine Finish Reversible Tips

Sprays all materials including “flammables”.

Compatible with “hot” solvents.

ProControl

Pressure Control System

Variable Pressure: 500 – 1500 psi (34-103 bar)

Two–18V SlimLine Power Pack Batteries

24 oz (.71 l) Multi-Spray Material Cup

Adjustable Suction Tube

Fully Repairable

Pump Armor Storage/Start-up Kit

Optimized for Protective and Marine Coatings

Protective coating applied on metal surfaces such as: Nuts, Bolts, Flanges, Pipes, Valves, Electrical Boxes,

Conduit, Doors, Frames, Ladders, Rails, Structural

Steel Components and Tanks

High Solids Epoxy Primers and Coatings–up to 100% solids

content, Solvent-borne Coatings, Water-borne Coatings,

High Solids Polyurethane Top Coatings, Fire Retardant

Coatings, Plural Component Coatings, Elastomerics and more

.009 – .025 Reverse-A-Clean

®

Standard Graco RAC

®

Tips

All materials compatible with most protective and high performance coatings and solvents

FullFlo

Pressure Control

Variable Pressure: 1000 – 4000 psi (69-276 bar)

Two–28V High Power Lithium-Ion Power Pack Batteries

44 oz (1.3 l) Spray-N-Throw

Cup System

Fully Repairable

ProConnect

Pump Removal System

ProGuard

Sprayer Protection System

FastClean

Design

4

TrueCoat Pro

Electric

II

PART NO: 16N673

SPECIFICATIONS:

TIP SUPPORT: .011 – .017

MATERIAL

CUP (OZ/LITER): 32 (.95)

MAX PSI (BAR): 1000-2000 (69-138)

ELECTRIC

CORD (FT/METER): 15 (4.57)

INCLUDES:

TrueCoat Pro II Electric Airless Sprayer

515 TrueCoat Pro Reversible Tip

32 oz (.95 l) Cup with Cover and 5 Cup Liners

Pump Armor Storage/Start-up Tool

Instructional DVD

Sprayer Storage Case

TrueCoat Pro

Cordless

II

PART NO: 16N657

SPECIFICATIONS:

TIP SUPPORT: .011 – .017

MATERIAL

CUP (OZ/LITER): 32 (.95)

MAX PSI (BAR): 1000-2000 (69-138)

BATTERY: 20V Lithium-Ion

INCLUDES:

TrueCoat Pro II Cordless Airless Sprayer

515 TrueCoat Pro Reversible Tip

Two 20V Lithium-Ion Power

Pack Batteries

Lithium-Ion Battery Charger

32 oz (.95 l) Cup with Cover and 5 Cup Liners

Pump Armor Storage/Start-up Tool

Instructional DVD

Sprayer Storage Case

The choice is yours! The

new

TrueCoat Pro II is available in cordless or electric models. Both sprayers now include a ProControl Pressure Control System that allows you to adjust the pressure to spray a wider variety of applications. Also included in the next generation TrueCoat Pro II sprayers is a full motion of spraying with the new Tilt-N-Spray pendulum suction tube design, a new, powerful 20V lithium-ion battery, and the TrueCoat Pro II sprayers are now fully repairable to extend the life of your sprayer! You’ll get maximum performance, reliability and finish quality that you’d expect from a Graco sprayer.

ProControl Pressure

Control System

Achieve the best spray finish with thin and thick materials by simply adjusting the pressure

Expands the type of jobs that can be sprayed with a wider range of materials

More control and reduced overspray with thinner coatings

Graduated ProControl label allows repeatable settings for common applications

Low Pressure

Improves quality of finish and less overspray with thin materials

Part No. 16N673

High Pressure

High production rate with thick materials

TrueCoat Reversible Tips

Reverse-A-Clean (RAC) tips are high precision tips designed for use with

ProSpray Technology

Integrated tip and guard shuts fluid off at the tip – no spits. Available in four tip sizes to spray a variety of materials and applications

Sprayers supports .011 – .017 tips

Part No. 16N657

1-800-690-2894

WWW.GRACO.COM

TrueCoat Pro

FineFinish

PART NO: 16H240

SPECIFICATIONS:

TIP SUPPORT: .008 – .012

MATERIAL

CUP (OZ/LITER): 24 (.71)

MAX PSI (BAR): 500-1500 (34-103)

BATTERY: 18V Lithium-Ion

SlimLine

INCLUDES:

TrueCoat Pro Fine Finish Cordless

Airless Sprayer

210 & 312 Fine Finish Reversible Tips

Two 18V SlimLine Power Pack Batteries

• Lithium-Ion Battery Charger

Exclusive Fine Finish Repair Kit

24 oz (.71 l) Multi-Spray Cup with

Cover and 5 Disposable Cup Liners

FREE Pump Armor Storage/Start-up Kit

Sprayer Storage Case

The TrueCoat Pro Fine Finish cordless sprayer is designed specifically for small fine finish projects. This sprayer features a ProControl Pressure Control System that allows you to optimize the pressure setting for spraying a full range of fine finish materials – from stains to lacquers to enamels. Innovative design features make this a unique sprayer that is fully compatible with solvent-based materials including “hot” solvents.

Fine Finish Reversible Tips

– Use with TrueCoat Pro Fine Finish sprayer only.

Fine Finish RAC tips are high precision tips designed exclusively for use with

ProSpray Technology

Integrated tip and guard shuts fluid off at the tip for a clean pattern – no spits

Pre-orifice tips provide finer atomization resulting in a better finish

Tip Filter (100 Mesh) – threads directly into guard and filters paint for less tip plugs

(filter has reverse threads – turn clockwise to remove)

Multiple tip sizes available to spray a variety of material in narrow and wide fan widths

Lightweight, Compact Design

Smaller, compact design is ideal for fine finish applications

Allows user to spray tight areas with ease

Sprayer Storage Case

Extra room for tips, rags, filters and paint supplies

Convenient carrying from job-to-job

Durable all-in-one storage case protects all components inside

ProControl Pressure

Control System

Allows for independent adjustment of pressure and flow rate to optimize spraying for each tip, material and application resulting in unmatched results

Pressure Control Knob

Allows user to optimize pressure setting

Reduce pressure for smaller tips and lighter weight materials

Increase pressure for larger tips and heavier materials

High/Low Switch

Allows user to change the motor speed, changing flow rate

I = Low Setting – Reduces the motor speed for lower flow – ideal for detailed work

II = High Setting – Increases the motor speed for higher flow – ideal for high production spraying

SPRAYS ALL

SOLVENT-BASED

MATERIALS!

1-800-690-2894

WWW.GRACO.COM

XForce

PART NO:

HD

HEAVY-DUTY

16N654

SPECIFICATIONS:

TIP SUPPORT: .009 – .025

MATERIAL

CUP (OZ/LITER): 44 (1.3)

MAX PSI (BAR): 1000-4000 (69-276)

28V High Power

Lithium-Ion

INCLUDES:

XForce HD Heavy-Duty Cordless

Airless Sprayer

RAC X

517 SwitchTip

and Guard

Two 28V Lithium-Ion Power Packs

28V Lithium-Ion Battery Charger

Six Spray-N-Throw Lids

Six Spray-N-Throw Liners

HD Storage Case

Ground Strap

Carry Strap

Twist-N-Seal Plug

Two Cups

30 Mesh Filter

Optimized for Protective and Marine Coatings

Whether you’re doing touch-up to complete your punch list items, performing spot repair or simply have a small area or part to paint, the job just got easier! The

new

XForce HD heavy-duty cordless sprayer is the industry’s first cordless airless sprayer designed to spray the toughest protective coatings and corrosion control materials.

Standard RAC X

SwitchTip and Guard

Accepts standard Graco RAC tips, guards and extensions

Easy Out

Tip Filter keeps you spraying with less tip plugs

30

60

100

Easy Out Filters

Designed to keep you spraying with less tip plugs

Available in 30, 60, or 100 mesh sizes

Thread-less design for easy removal

ProGuard Sprayer

Protection System

Automatically shuts sprayer down due to over pressurization, low battery or overheating –

extending the life of the sprayer!

LED’s provide four modes of instant feedback for the operator –

keeps you spraying!

Twist-N-Seal Plug

Allows you to stage multiple cups for larger jobs

Protects from contamination and spills

Spray-N-Throw Cup System

Disposable 44 oz (1.3 l) lid and liner system virtually eliminates cleanup

Sealed cup protects material while minimizing spills

Spray at any angle – even upside down!

1-800-690-2894

WWW.GRACO.COM

The most

POWERFUL

handheld yet!

FullFlo Pressure Control

Fully adjustable to achieve the finish you need

Optimized for both thick and thin coatings

Easy to read dial

Carry Strap with 360° ProSwivel

Allows for easy carrying from job to job

Balanced design

HD Brushless Motor

Delivers the highest performance and longest life

ProConnect Pump

Removal System

No-tools Pump Removal and

Installation System

Allows you to remove and replace the pump in

seconds!

A must-have when dealing with high performance coatings

FastClean Design

Allows cleanup in seconds – using only ounces of solvent!

28V High Power

Lithium-Ion Power Packs

Designed for maximum power to spray the most demanding materials

Able to spray up to 1 gal (3.78 l) per battery charge

Ground Strap

25 ft (7.6 m)

Dispose of cup liner and lid.

Attach cup with solvent, set to

“Clean” and run upside down.

Patent Pending

Part No. 16N654

12

13

HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD

ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES •

Accessories for

MUST HAVES!

Maximize your productivity from the start!

16P168

XFORCE HD STARTUP KIT

Allows you to have up to 2 gallons (7.6 liters) of material ready-to-go for uninterrupted spraying.

Startup Kit Includes:

Filters (x6)

Lids (x25)

Liners (x25)

Cups (x5)

Plugs (x6)

Eliminates downtime by having an extra pump on hand.

It even fits into the storage case!

Pump Replacement Includes:

Complete pump section without tip

LIDS, LINERS, PLUGS

AND

CUP

16P165 Spray-N-Throw Lids and Liners (25 of each)

16P166 Spray-N-Throw Lids (25 pack)

16P167 Twist-N-Seal Plugs (6 pack)

16P169 Cup

FILTERS

16P170 Filter – 30 Mesh (10 pack)

16P171 Filter – 60 Mesh (10 pack)

16P172 Filter – 100 Mesh (10 pack)

100

BATTERY

AND

CHARGER

16P173 28V Lithium-Ion Power Pack Battery

16P177 28V Power Pack Battery Charger, 120 vac

60

EXTENSIONS

287019 10 in Tip Extension with RAC X HandTite

235486 Easy Turn 180° Directional Spray Nozzle

Guard

30

1-800-690-2894

WWW.GRACO.COM

HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD

ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES •

RAC X TIPS

AND

GUARDS

LTXxxx

RAC X SwitchTips, Blue (Odd #)

• It has the longest-lasting fan pattern on the market.

Maximum Working Pressure: 4050 psi (279 bar, 27.9 MPa)

WRxxxx

RAC X Wide RAC SwitchTips, Blue (Odd #)

• 24 in (610 mm) spray fan for maximum coverage and productivity.

Maximum Working Pressure: 4050 psi (279 bar, 27.9 MPa)

246215

RAC X HandTite

Guard

7/8 in (22 mm) thread size, standard Graco thread

11/16 in (17 mm) thread size, older-style Graco pole guns, fits competitive guns with 11/16 in (17 mm) threads

248936

RAC X Solvent Seal Kit – 5 Pack

RAC X TIP CHART

IN (MM) .009 .011 .013 .015 .017 .019 .021 .023 .025

2-4 (51-102) 109

111

115

4-6 (102-152) 209

211

213 215 217

219 221 225

6-8 (152-203) 309

311

313 315 317

319 321 323 325

8-10 (203-254) 409

411

413 415 417

419 421 423 425

10-12 (254-305) 509

511

513 515 517

519 521 523 525

12-14 (305-356)

14-16 (356-406)

611

613 615 617

619 621 623 625

721 723

16-18 (406-457) 817

819 821

Flow Rate (gpm) .09

.12

.18

.24

.31

.38

.47

.57

.67

Flow Rate (lpm) .33

.49

.69

.91

1.17 1.47 1.79 2.15 2.54

Water @ 2000 psi (138 bar, 13.8 MPa) - paints with a higher viscosity will decrease the flow rate

Example: for a tip with a .015 orifice and a 6 in (152 mm) pattern, order LTX315

F

PUMP REPAIR KITS

16P179

A – Pump Rebuild Kit

16P180

B – Accumulator Replacement Kit

16P181

C – Prime Valve Replacement Kit

16P182

D – Front Shutoff Valve Replacement Kit

D

16P451

E – Inlet Ball Repair Kit

16P452

F – Outlet Ball Repair Kit

24P203

G – Wobble Drive Replacement Kit

A

B

Opposite Side

C

E

G

14

15

HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD

ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES •

Accessories for and

QUART CAN ADAPTER

24U163 CanConnect

Connect any quart can directly to sprayer

Easy clean-up – just close the can!

PACK

PORTABLE SPRAY PACK

Expands your ability to spray small projects without interruptions.

Longer spray times with less refills and less wait!

24F893

ProPack Portable Spray Pack

– For use with TrueCoat Pro and TrueCoat Pro II sprayers only.

Removable 1 gal (3.78 l) Paint Container

Makes filling and cleaning simple and easy

Includes disposable liners to reduce clean-up time

Holds up to 1 gal (3.78 l) of material for continuous spray with one battery charge

Comfortable, Ergonomic Backpack

Removes the weight of the material from your hand to spray with less fatigue

Extra large pockets for storing tips, batteries and tools

Softback design rests comfortably and evenly distributes the weight on your back

Integrated Air Compressor

Pressurizes the material container for maximum spray pressure at the gun

Operates up to 5 hours on a 9V battery

Quick Clean-up

Ability to power flush the hose and gun with direct hook-up

• to a utility sink or garden hose

Entire system cleans up in less than

10 minutes

SPRAY EXTENSIONS

The TrueCoat Pro Spray Extensions extend your reach while spraying ceilings and floors. A patented integrated needle shuts the fluid off at the tip for a crisp pattern with no spitting.

FIXED EXTENSIONS

– For use with TrueCoat Pro and TrueCoat Pro II sprayers only.

24F897

12 in (30 cm) Fixed TrueCoat Pro Spray Extension

24F898

24 in (60 cm) Fixed TrueCoat Pro Spray Extension

Exclusive, two-way pivot point design allows you to angle the pole 180° to spray ceilings, walls and floors with a consistent, even spray pattern.

Tip and guard not included.

FLEXIBLE EXTENSION

– For use with TrueCoat Pro and TrueCoat Pro II sprayers only.

24F899

12 in (30 cm) Flexible TrueCoat Pro Spray Extension

Articulating extension can easily flex in any direction for hard-to-reach areas and small projects with many angles.

Tip and guard not included.

1-800-690-2894

WWW.GRACO.COM

HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD

ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES •

Accessories for and

Extend your capabilities by adding accessories to complete the job faster.

TRUECOAT PRO REVERSIBLE TIPS

– For use with TrueCoat Pro and TrueCoat Pro II sprayers only.

NAR311

NAR315

XWD515

XWD517

XWDMC1

TrueCoat Pro RAC spray tips are a uniquely designed tip and guard combination that is optimized for use with ProSpray Technology. TrueCoat Pro RAC tips are available in narrow and wide fan sizes for thin to heavy, unthinned material. TrueCoat Pro multicolor tip is designed for small projects and touch-ups for multi-color spec finishes.

TRUECOAT PRO MATERIALS & TIP SIZES

THIN MEDIUM HEAVY SPECIALTY

Multi-Color

Coatings

Stains

Narrow (Green)

Enamels,

Thin Latex

Narrow (Green)

Wide (Black)

Heavy Latex

Wide (Black)

311 315, 515 517

Use with water and oil-based materials that can be cleaned with water, mineral spirits or paint thinner. Do not use materials which state “flammable” on the packaging.

Wide (Black)

MC1

FINE FINISH REVERSIBLE TIPS

– For use with TrueCoat Pro Fine Finish sprayer only.

FNS208

FNS308

FNS210

FNS310

Fine Finish tips are a uniquely designed tip and guard combination that is optimized for use with the TrueCoat Pro Fine Finish sprayer. Pre-orifice tips provide finer atomization resulting in a better finish. These Fine Finish tips are available in a variety of sizes and fan widths, covering all of your fine finish needs.

FNS410

FNS312

FNS412

TRUECOAT PRO FINE FINISH MATERIALS & TIP SIZES

THIN MEDIUM HEAVY

Stains Lacquers, Clears Enamels

.008

208, 308

.010

210, 310, 410

.012

Use with all fine finish materials including “hot” solvents.

312, 412

TIP FILTERS

24E376

60 Mesh – 1 Pack

24F039

60 Mesh – 3 Pack

24F640

100 Mesh – 1 Pack

24F641

100 Mesh – 3 Pack

Threads directly into the guard and filters paint for less tip plugs.

MATERIAL CUPS

AND

LINERS

16H618

24 oz (.71 l) Material Cup and Cover

24E374

32 oz (.95 l) Material Cup and Cover

24E375

48 oz (1.42 l) Material Cup and Cover

For larger applications and less cup fills; includes a cover for storage or use to shake cup for fast clean-up without a cup liner. Quick and easy twist-on cup assembly.

24H365

1 gal (3.78 l) Reservoir and Cover

16D562

Material Cup Liners – 10 Pack

Fits 24 oz, 32 oz or 48 oz cups; disposable cup liner makes clean-up fast and easy.

24H366

ProPack 1 gal (3.78 l) Liners – 5 Pack

Fits 1 gallon ProPack reservoir, disposable liner makes clean-up fast and easy.

17

HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD

ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES •

Accessories for and

18V

AND

20V LITHIUM-ION BATTERIES

16G610

18V Lithium-Ion SlimLine Power Pack Battery

SlimLine Power Pack battery is half the size and weight of the TrueCoat Pro battery.

Charge time for 80% performance is 25 minutes. Compatible with TrueCoat Pro

Fine Finish sprayer only.

16D558

20V Lithium-Ion Power Pack Battery

Add another battery to spray larger than 2 gal (7.57 l) jobs. One fully charged battery is able to spray 1 gal (3.78 l) for continuous spraying. Charge time for

80% performance is 45 minutes. Compatible with TrueCoat Pro and TrueCoat

Pro Fine Finish sprayers.

18V

AND

20V LITHIUM-ION BATTERY CHARGERS

16F628

Plugs directly into a 12V port and charges your battery on the way to the job site!

Charges when electrical power is not available – great for emergency situations as a backup power source. Compatible with all 18V and 20V lithium-ion batteries.

16D559

Add a charger to reduce down time by charging two batteries at once. Light indicator monitors and displays charging progress. Compatible with all 18V and

20V lithium-ion batteries.

MISCELLANEOUS

16P151

TrueCoat Pro II Repair Kit

Simple repair extends the life of the sprayer.

16H641

TrueCoat Pro Fine Finish Repair Kit

Simple repair extends the life of the sprayer.

Solvent resistant design withstands “hot” solvents.

243103

Pump Armor – 1 qt (.95 l)

Protects airless pump during storage. Fill sprayer pump with Pump Armor and leave it in until you use it again.

16M816

Pump Armor Storage/Start-up Kit

Clears intake valve at start-up to provide reliable priming every time.

1-800-690-2894

WWW.GRACO.COM

HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

• HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES • HANDHELD ACCESSORIES

HANDHELD SPRAYER SPECIFICATIONS

Part Number

“Hot” Solvent Capable

Pressure Control

Pressure Adjustment

Tip Support

Tip(s) Included

Paint Cup/Suction Tube

Power/Battery

Filter Mesh Included

Fully Repairable

Storage/Start-up Tool

Storage Case

Manual

TRUECOAT PRO II

ELECTRIC

16N673

No

Yes

1000 – 2000 psi

.011 – .017 Tips

TrueCoat Pro Tip (515)

32 oz Tilt-N-Spray with Pendulum

Suction Tube Design

SuperFlex

15 ft Electric Cord

60 Mesh

Yes

Pump Armor

Storage/Start-up Kit

Yes

3A2587

TRUECOAT PRO II

CORDLESS

16N657

No

Yes

1000 – 2000 psi

.011 – .017 Tips

TrueCoat Pro Tip (515)

32 oz Tilt-N-Spray with Pendulum

Suction Tube Design

(2) 20V Lithium-Ion

Power Packs

60 Mesh

Yes

Pump Armor

Storage/Start-up Kit

Yes

3A2589

TRUECOAT PRO

FINE FINISH

CORDLESS

16H240

Yes

Yes

500 – 1500 psi

.008 – .012 Tips

Fine Finish Tips

(210 & 312)

24 oz Multi-Spray Cup with Adjustable

Suction Tube

XFORCE HD

CORDLESS

16N654

Yes

Yes

1000 – 4000 psi

.009 – .025

Graco RAC Tips

Graco RAC X Tip (517)

44 oz Spray-N-Throw Cup with Siphon-Less,

Multi-Directional Spray

(2) 18V Lithium-Ion

SlimLine Power Packs

100 Mesh

Yes

Pump Armor

Storage/Start-up Kit

Yes

3A1698

(2) 28V High Power

Lithium-Ion Power Packs

30 Mesh

Yes

N/A

Yes

3A2308

HANDHELD SPRAYER WARRANTY

We stand behind every piece of equipment we manufacture with the industry’s strongest warranty.

Spray with the confidence that you will probably never need to use Graco’s warranty, but if you do... we will be there.

NOBODY ELSE BUILDS

SPRAYERS LIKE THIS

1-YEAR BATTERY WARRANTY

If the battery no longer takes a charge from normal use, we’ll replace it under warranty to the original owner for 1 year.

30-DAY “JUST ADD PAINT”

REPLACEMENT GUARANTEE

Dissatisfied? Simply return the sprayer to the place you bought it

R

30

N

T

JUST ADD PAINT

G

U

ARANTEE

within 30 days. They’ll either exchange it for an identical sprayer or you can trade-up to a larger sprayer at an additional cost.

1-YEAR DEFECT WARRANTY

Coverage against defects in materials and workmanship on the entire sprayer.

CONVENIENT SERVICE

Graco offers more than 5,500 authorized distributor locations in

North America and over 700 locations to administer warranty repair.

18

ABOUT GRACO

Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in vehicle lubrication, commercial and industrial settings.

The company’s success is based on its unwavering commitment to technical excellence, world-class manufacturing and unparalleled customer service. Working closely with qualified distributors, Graco offers systems, products and technology that set the quality standard in a wide range of fluid handling solutions. Graco provides equipment for spray finishing, protective coating, paint circulation, lubrication, and dispensing sealants and adhesives, along with power application equipment for the contractor industry. Graco’s ongoing investment in fluid management and control will continue to provide innovative solutions to a diverse global market.

GRACO LOCATIONS

MAILING ADDRESS

P.O. Box 1441

Minneapolis, MN 55440-1441

Tel: 612-623-6000

Fax: 612-623-6777

AMERICAS

MINNESOTA

Worldwide Headquarters

Graco Inc.

88-11th Avenue N.E.

Minneapolis, MN 55413

EUROPE

BELGIUM

European Headquarters

Graco N.V.

Industrieterrein-Oude Bunders

Slakweidestraat 31

3630 Maasmechelen,

Belgium

Tel: 32 89 770 700

Fax: 32 89 770 777

ASIA PACIFIC

AUSTRALIA

Graco Australia Pty Ltd.

Suite 17, 2 Enterprise Drive

Bundoora, Victoria 3083

Australia

Tel: 61 3 9468 8500

Fax: 61 3 9468 8599

INDIA

Graco Hong Kong Ltd.

India Liaison Office

Room 443, Augusta Point

Regus Business Centre 53

Golf Course Road

Gurgaon, Haryana

India 122001

Tel: 91 124 435 4208

Fax: 91 124 435 4001

CHINA

Graco Hong Kong Ltd.

Shanghai Representative Office

Building 7

1029 Zhongshan Road South

Huangpu District

Shanghai 200011

The People’s Republic of China

Tel: 86 21 649 50088

Fax: 86 21 649 50077

JAPAN

Graco K.K.

1-27-12 Hayabuchi

Tsuzuki-ku

Yokohama City, Japan 2240025

Tel: 81 45 593 7300

Fax: 81 45 593 7301

KOREA

Graco Korea Inc.

Shinhan Bank Building

4th Floor #1599

Gwanyang-Dong, Dongan-Ku,

Anyang-si, Korea 431-060

Tel: 82 31 476 9400

Fax: 82 31 476 9801

SALES/

DISTRIBUTION/

SERVICE

Call today for product information or to request a demonstration.

800-690-2894

or visit us at www.graco.com.

Graco Inc. is registered to I.S. EN ISO 9001

©2013 Graco Inc. 342355 Rev. C 10/13 All written and visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. Blue is a trademark of Graco Inc. for Contractor Equipment Sprayers.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
