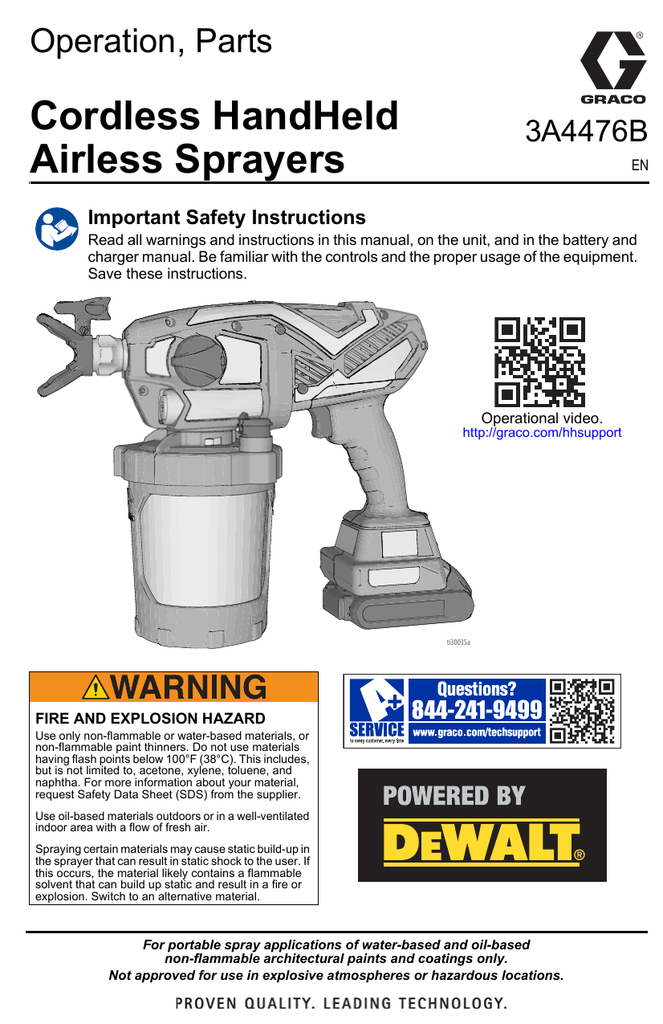

Graco TC Pro Cordless Airless Paint Sprayer Troubleshooting guide

Operation, Parts
Cordless HandHeld
Airless Sprayers
3A4476B
EN
Important Safety Instructions
Read all warnings and instructions in this manual, on the unit, and in the battery and
charger manual. Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Operational video.
http://graco.com/hhsupport
ti30035a
FIRE AND EXPLOSION HAZARD
844-241-9499
Use only non-flammable or water-based materials, or
non-flammable paint thinners. Do not use materials
having flash points below 100°F (38°C). This includes,
but is not limited to, acetone, xylene, toluene, and
naphtha. For more information about your material,
request Safety Data Sheet (SDS) from the supplier.
Use oil-based materials outdoors or in a well-ventilated
indoor area with a flow of fresh air.
Spraying certain materials may cause static build-up in
the sprayer that can result in static shock to the user. If
this occurs, the material likely contains a flammable
solvent that can build up static and result in a fire or
explosion. Switch to an alternative material.
For portable spray applications of water-based and oil-based
non-flammable architectural paints and coatings only.
Not approved for use in explosive atmospheres or hazardous locations.
Models – Cordless Airless HandHelds
Models – Cordless Airless HandHelds
Model
17M363
17P515
17N164
17P516
17N165
17N166
17N518
Sprayer Name Charger Voltage
Tip Family
Ultra
120V
FFLPxxx
Ultimate
120V
FFLPxxx
TC Pro
120V
TCPxxx
Tip Size
0.008 – 0.016 in. (0.20 – 0.41 mm)
Operating pressure range: 500 – 2000 psi (35 – 138 bar, 3.5 MPa – 14 MPa)
3A4476B
3
Important User Information
Important User Information
Thank You for Your Purchase!
Before using your sprayer read this Owners Manual for complete instructions on proper use and
safety warnings.
Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc.
This sprayer is designed to provide superior spray performance with water-based and
oil-based (mineral spirit-type) architectural paints and coatings. This user information is
intended to help you understand the types of materials that can be used with your sprayer.
Please read the information on the material container label to determine if it can be used
with your sprayer. Ask for a Safety Data Sheet (SDS) from your supplier. The container
label and SDS will explain the contents of the material and the specific precautions related
to it.
Paints, coatings and clean-up materials generally fit
into one of the following 3 basic categories:
WATER-BASED: The container label should indicate that the material can be
cleaned up with soap and water. Your sprayer is compatible with this type of
material. Your sprayer is NOT compatible with harsh cleaners such as chlorine
bleach.
OIL-BASED: The container label should indicate that the material is
COMBUSTIBILE and can be cleaned up with mineral spirits or non-flammable
paint thinner. The SDS must indicate that the flash point of the material is above
100°F (38°C). Your sprayer is compatible with this type of material. Use oil-based
material outdoors or in a well-ventilated indoor area with a flow of fresh air. See
the safety warnings in this manual.
FLAMMABLE: This type of material contains flammable solvents such as xylene,
toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol, and
turpentine. The container label should indicate that this material is
FLAMMABLE. This type of material is NOT compatible with your sprayer
and CANNOT be used.
4
3A4476B
Warnings
Warnings
The following warnings are for the setup, use, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to
procedure-specific risks. When these symbols appear in the body of this manual or on warning
labels, refer back to these Warnings. Product-specific hazard symbols and warnings not
covered in this section may appear throughout the body of this manual where applicable.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
prevent fire and explosion:
• Sprayer generates sparks. Do not spray or flush with flammable materials.
• Do not spray or clean with materials having flash points lower than 100°F (38°C).
• Use only non-flammable or water-based materials, or non-flammable paint thinners. For
complete information about your material, request the Safety Data Sheet (SDS) from the
material distributor or retailer.
• Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.
• When spraying oil-based material, use outdoors or in a well-ventilated indoor area with a
flow of fresh air.
• Do not spray combustible materials near an open flame or sources of ignition such as
cigarettes, motors, and electrical equipment.
• Paint or solvent flowing through the equipment is able to result in static electricity. Static
electricity creates a risk of fire or explosion in the presence of paint or solvent fumes.
• Keep sprayer at least 10 in. (25 cm) away from objects while spraying or flushing.
• Do not use a paint or a solvent containing halogenated hydrocarbons.
• Verify that all containers and collection systems are grounded to prevent static discharge.
• Do not smoke in the spray area or spray where sparks or flame is present.
• Do not operate light switches, engines, or similar spark producing products in the spray
area.
• Keep area clean and free of paint or solvent containers, rags, and other flammable
materials.
• Know the contents of the paints and solvents being sprayed. Read all Safety Data Sheet
(SDS) and container labels provided with the paints and solvents. Follow the paint and
solvents manufacturer’s safety instructions.
• Fire extinguisher equipment shall be present and working.
3A4476B
5
Warnings
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the
event that injection occurs, get immediate surgical treatment.
• Do not aim the gun at, or spray any person or animal.
• Keep hands and other body parts away from the discharge. For example, do not try to stop
leaks with any part of the body.
• Always use the spray tip guard. Do not spray without spray tip guard in place.
• Use Graco spray tips.
• Use caution when cleaning and changing spray tips. In the case where the spray tip clogs
while spraying, follow the Pressure Relief Procedure for turning off the unit and relieving
the pressure before removing the spray tip to clean.
• Do not leave the equipment energized or under pressure while unattended. Remove
battery and follow the Pressure Relief Procedure when the equipment is unattended or
not in use, and before servicing, cleaning, or removing parts.
• Check parts for signs of damage. Replace any damaged parts.
• This system is capable of producing 2000 psi (138 bar, 14 MPa). Use Graco replacement
parts or accessories that are rated a minimum of 2000 psi (138 bar, 14 MPa).
• Verify that all connections are secure before operating the unit.
• Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the
controls.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Always wear appropriate gloves, eye protection, and a respirator or mask when painting.
• Do not operate or spray near children. Keep children away from equipment at all times.
• Do not overreach or stand on an unstable support. Keep effective footing and balance at
all times.
• Stay alert and watch what you are doing.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
• Use only in dry locations. Do not expose to water or rain.
• Use in well-lit areas.
• Make sure all equipment is rated and approved for the environment in which you are using it.
BATTERY AND CHARGER COMPATIBILITY HAZARD
• Only use DEWALT brand 20V Max batteries and battery chargers with this tool. • READ ALL INSTRUCTIONS included with this tool regarding the safety and usage of
DEWALT batteries and battery chargers.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result in death,
serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. Contact your
material supplier for compatibility.
6
3A4476B
Warnings
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
• Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
• Protective eye-wear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
CALIFORNIA PROPOSITION 65
This product contains a chemical known to the State of California to cause cancer, birth defects
or other reproductive harm. Wash hands after handling.
3A4476B
7
Troubleshooting
Spray Pattern Diagnostics
Problem
Spray pattern is uneven:
Cause
Operator is moving too
fast while spraying.
Spray tip is clogged.
Material difficult to
atomize.
Outlet valves are dirty or
worn.
Spray pattern has tails:
Pump has reached the
end of its life.
Speed control is set too
low.
Material may need to be
thinned.
Incorrect spray tip for
application of material.
Spray pattern has
dripping/sagging:
Spray pattern is too narrow:
Material not compatible
with sprayer.
Spray tip is worn or
damaged.
Operator is moving too
slowly while spraying.
Sprayer is too close to
target surface.
Holding trigger while
changing spray direction.
Speed control switch is set
too high.
Spray tip is worn or
damaged.
Sprayer is too close to
target surface.
Incorrect spray tip for
application of material.
Spray tip is worn or
damaged.
3A4476B
Solution
Slow speed of movement.
Unclog spray tip or clean spray
tip see Clear Tip Clog, page 15.
Increase speed until desired
pattern is achieved.
Hold sprayer farther away from
surface.
Switch to different spray tip. See
Tip and Pressure Selection,
page 13.
Remove two pump plugs and
front valve to gain access to the
three outlet valves, see
Cleaning Outlet Valves, page
27. Clean outlet valves.
Replace if necessary.
Replace pump assembly.
Increase speed until desired
pattern is achieved.
Thin material follow paint
manufacturer’s
recommendations.
Install different size spray tip.
See Tip and Pressure
Selection, page 13.
Switch material.
Replace spray tip. See Spray
Tip Installation, page 22.
Move sprayer faster while
spraying.
Move sprayer away from
surface 10 in. (25 cm)
Release trigger when changing
directions.
Decrease speed until desired
pattern is achieved.
Replace spray tip. See Spray
Tip Installation, page 22.
Move sprayer away from
surface 10 in. (25 cm)
Install different size spray tip.
See Spray Tip Installation,
page 22.
Replace spray tip. See Spray
Tip Installation, page 22.
33
Troubleshooting
Problem
Spray pattern is too wide:
Spray pattern “spits” at the
beginning or end of pattern:
Spray tip continues to drip or ooze
material after trigger is released:
Cause
Solution
Sprayer is too far away
from target surface.
Incorrect spray tip for
application of material.
Move sprayer closer to surface.
Excess material has
accumulated on spray tip
guard assembly or spray
tip is partially clogged.
Spray tip not inserted
completely into spray tip
guard.
Spray tip is worn.
Clean spray tip guard. See
Clear Tip Clog, page 15.
Sprayer is dirty
Front valve has reached
the end of its life.
Spray tip is worn.
Spray tip not inserted
completely into spray tip
guard.
Install different size spray tip.
See Spray Tip Installation,
page 22.
See Spray Tip Installation,
page 22.
Replace spray tip. See Spray
Tip Installation, page 22.
Flush sprayer.
Replace front valve assembly.
Replace spray tip. See Spray
Tip Installation, page 22.
See Spray Tip Installation,
page 22.
ti30016a
Material leaks around spray tip
guard or spray tip handle
34
Spray tip seal and seat are
damaged or not properly
installed.
See Spray Tip Installation,
page 22.
3A4476B
Technical Specifications
Technical Specifications
Cordless HandHeld Sprayer
Max Working Pressure
Weight
Dimensions:
Length
Width
Height
Storage Temperature Range 
Operating Temperature Range 
Storage Humidity Range
Sound Power Level
Charger Power Source
Battery
Voltage (DC)
Maximum tip orifice
U.S.
Metric
2000 psi
5.25 lb
14 MPa, 138bar
2.4 kg
14.0 in.
36.1 cm
5 in.
12.7 cm
10.5 in.
26.7 cm
32° to 113° F
0° to 45° C
40° to 90° F
4° to 32° C
0% to 95% relative humidity, non-condensing
88 dBa†
120 Vac, 60 Hz, 15A, 1 Ø
20 V MAX* 2.0 Ah Li-ion
Compact Battery Pack DEWALT
0.016 in.
0.41mm
 Pump damage will occur if fluid freezes in pump.
 Damage to plastic parts may result if impact occurs in low temperature conditions.
 Changes in paint viscosity at very low or very high temperatures can affect sprayer
performance.
† per EN60745-1/EN50580 measured at 3.3 feet (1m)
* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage
is 18.
3A4476B
35
Graco Limited Warranty
Graco Limited Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing
its name to be free from defects in material and workmanship on the date of sale to the original purchaser
for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will,
for a period of twelve months from the date of sale, repair or replace any part of the equipment
determined by Graco to be defective. This warranty applies only when the equipment is installed,
operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction,
damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or
improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts.
Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco
equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper
design, manufacture, installation, operation or maintenance of structures, accessories, equipment or
materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an
authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco
will repair or replace free of charge any defective parts. The equipment will be returned to the original
purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material
or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of
parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above.
The buyer agrees that no other remedy (including, but not limited to, incidental or consequential
damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential
loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH
ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED
BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose,
etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with
reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from
Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other
goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or
otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents,
notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or
indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du
présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés,
donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures
concernées.
36
3A4476B
Graco Limited Warranty
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call 1-888-541-9788 to identify the nearest
distributor.
3A4476B
37
Notes
Notes
38
3A4476B
Notes
Notes
3A4476B
39
DEWALT®and the DEWALT Logo are trademarks of DEWALT Industrial Tool Co.
and are used under license
All written and visual data contained in this document reflects the latest
product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A4476
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2016, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision B, January 2017

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
