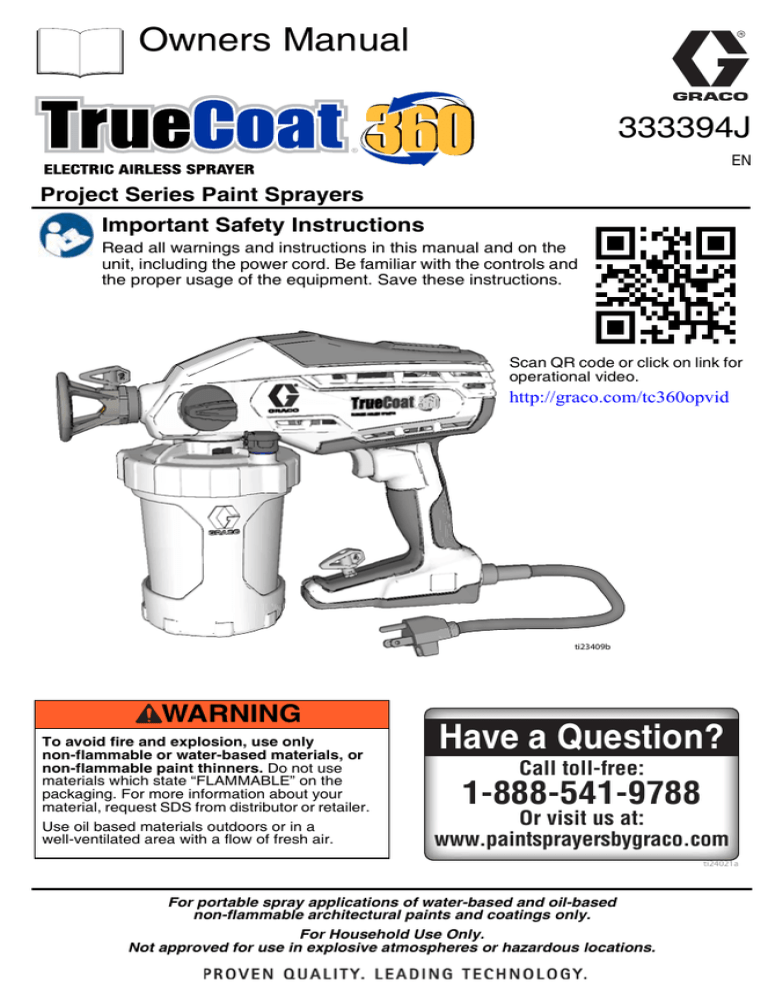

Owners Manual

Project Series Paint Sprayers

Important Safety Instructions

Read all warnings and instructions in this manual and on the unit, including the power cord. Be familiar with the controls and the proper usage of the equipment. Save these instructions.

333394J

EN

Scan QR code or click on link for operational video.

http://graco.com/tc360opvid ti23409b

WARNING

To avoid fire and explosion, use only non-flammable or water-based materials, or

non-flammable paint thinners. Do not use materials which state “FLAMMABLE” on the packaging. For more information about your material, request SDS from distributor or retailer.

Use oil based materials outdoors or in a well-ventilated area with a flow of fresh air.

Have a Question?

Call toll-free:

1-888-541-9788

Or visit us at: www.paintsprayersbygraco.com

ti24021a

For portable spray applications of water-based and oil-based non-flammable architectural paints and coatings only.

For Household Use Only.

Not approved for use in explosive atmospheres or hazardous locations.

2

Contents

Contents

Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Starting a New Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Refilling FlexLiner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Dual Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Variable Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Spray Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Triggering Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Spray Pattern Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning VacuValve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Common Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Installing Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Unclogging Spray Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Flushing a New Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Models 16Y385, 16Y386, 17A466 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Parts List- Models 16Y385, 16Y386, 17A466 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Model 17D889 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Parts List- Model 17D889 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Graco Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Model Name Voltage

16Y385 TrueCoat 360 120V

17A466 TrueCoat 360 DS 120V

16Y386 TrueCoat 360 DSP 120V

17D889 TrueCoat 360 VSP 120V

Tip

Size Description Maximum Working Pressure

0.015 Single Speed

0.015 Dual Speed

0.015 Dual Speed

Premium

0.015 Variable

Speed

Premium

1200 psi (8.3 MPa, 83 bar)

900-1300 psi

(6.2 MPa, 62 bar - 8.9 MPa,

89 bar)

900-1300 psi

(6.2 MPa, 62 bar - 8.9 MPa,

89 bar)

500-1300 psi

(3.5 MPa, 34.5 bar - 8.9 MPa,

89 bar)

110474

Certified to CAN/CSA C22.2 No. 68

Conforms to UL 1450

333394J

Important User Information

Important User Information

Thank You for Your Purchase!

Before using your sprayer read this Owners Manual for complete instructions on proper use and safety warnings.

Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc.

This sprayer is designed to provide superior spray performance with water-based and oil-based (mineral spirit-type) architectural paints and coatings. This user information is intended to help you understand the types of materials that can be used with your sprayer.

Please read the information on the material container label to determine if it can be used with your sprayer. Ask for a Safety Data Sheet (SDS) from your supplier. The container label and SDS will explain the contents of the material and the specific precautions related to it.

Paints, coatings and clean-up materials generally fit into one of the following 3 basic categories:

WATER-BASED: The container label should indicate that the material can be

cleaned up with soap and water. Your sprayer is compatible with this type of material. Your sprayer is NOT compatible with harsh cleaners such as chlorine bleach.

OIL-BASED: The container label should indicate that the material is

COMBUSTIBILE and can be cleaned up with mineral spirits or paint thinner.

The SDS must indicate that the flash point of the material is above 100° F.

Your sprayer is compatible with this type of material. Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air. See the safety warnings in this manual.

FLAMMABLE: This type of material contains flammable solvents such as

xylene, toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol, and turpentine. The container label should indicate that this material is

FLAMMABLE. This type of material is NOT compatible with your sprayer and CANNOT be used.

333394J 3

4

Important Safety Information

Important Safety Information

The following warnings are for the setup, use, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.

WARNING

GROUNDING INSTRUCTIONS

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper installation of the grounding plug is able to result in a risk of electric shock.

When repair or replacement of the cord or plug is required, do not connect the grounding wire to either flat blade terminal.

The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire.

Check with a qualified electrician or serviceman when the grounding instructions are not completely understood, or when in doubt as to whether the product is properly grounded.

Do not modify the plug provided; if it does not fit the outlet, have the proper outlet installed by a qualified electrician.

This product is for use on a nominal 120V circuit and has a grounding plug similar to the plug illustrated in the figures.

Only connect the product to an outlet having the same configuration as the plug.

Do not use an adapter with this product.

WARNING

Extension Cords:

Use only a 3-wire extension cord that has a grounding plug and a grounding receptacle that accepts the plug on the product.

An undersized cord results in a drop in line voltage and loss of power and overheating.When in doubt use the next heavier gauge.

The smaller the gauge number the heavier the cord.

When using the sprayer outdoors, use an extension cord suitable for outdoor use.

Make sure your extension cord is not damaged. When using an extension cord, be sure to use a cord heavy enough to carry the current that your sprayer draws. See chart for appropriate sizes and lengths:

Extension Cord

Conductor Size

Metric AWG (American

Wire Gauge)

18

16

14

1.0 mm

1.5 mm

2.5 mm

2

2

2

Length

Maximum

50 ft (15 m)

100 ft (30 m)

200 ft (61 m) ti3509b

333394J

WARNING

FIRE AND EXPLOSION

HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:

Sprayer generates sparks. Do not spray or flush with flammable liquids.

Use only non-flammable or water-based materials, or non-flammable paint thinners.

Keep spray area well-ventilated.

Keep a good supply of fresh air moving through the area.

When spraying oil-based material, use outdoors or in a well-ventilated indoor area with a flow of fresh air.

Do not spray or flush with combustible materials near an open flame or sources of ignition.

Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity creates a risk of fire or explosion in the presence of paint or solvent fumes.

Keep sprayer at least 10 in. (25 cm) away from objects while spraying or flushing.

Verify all containers and collection systems are grounded to prevent static discharge.

Connect to a grounded outlet and use grounded extension cords. Do not use a 3 to

2 adapter.

Do not use paints or solvents containing halogenated hydrocarbons.

Do not smoke in the spray area.

Do not operate light switches, engines, or similar spark producing products in the spray area.

Keep area clean and free of paint or solvent containers, rags, and other flammable materials.

Know the contents of the paints and solvents being sprayed. Read all Safety

Data Sheets (SDS) and container labels provided with the paints and solvents.

Follow the paint and solvents manufacturer’s safety instructions.

Fire extinguisher equipment shall be present and working.

Important Safety Information

WARNING

SKIN INJECTION HAZARD

High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that injection occurs, get immediate surgical

treatment.

Do not aim the sprayer at, or spray any person or animal.

Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body.

Disconnect power when not spraying.

Always use the spray tip guard. Do not

• spray without spray tip guard in place.

Use caution when cleaning and changing spray tips. In the case where the spray tip

clogs while spraying, follow the Pressure

Relief Procedure, page 14 for relieving

the pressure before removing the spray tip to clean.

Do not leave the unit energized or under pressure while unattended. When the unit is not in use, unplug the sprayer and follow the

Pressure Relief Procedure, page 14.

Check parts for signs of damage.

Replace any damaged parts.

This system is capable of producing 2000 psi. Use replacement parts or accessories that are rated a minimum of

2000 psi.

Do not carry the unit with a finger on the trigger.

Verify that all connections are secure before operating the unit.

Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.

ELECTRIC SHOCK HAZARD

This equipment must be grounded.

Improper grounding, setup, or usage of the system can cause electric shock.

Turn off and disconnect power cord before servicing equipment.

Connect only to grounded electrical outlets.

Use only 3-wire extension cords.

Ensure ground prongs are intact on power and extension cords.

Do not expose to rain or wet conditions.

Store indoors.

333394J 5

6

Important Safety Information

WARNING

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

Always wear appropriate gloves, eye protection, and a respirator or mask when painting.

Do not operate or spray near children. Keep children away from equipment at all times.

Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.

Stay alert and watch what you are doing.

Do not operate the unit when fatigued or under the influence of drugs or alcohol.

Use only in dry locations. Do not expose to water or rain.

Use in well-lit areas.

Do not spray outdoors on windy days.

TOXIC FLUID OR FUMES

HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.

Read SDS’s to know the specific hazards of the fluids you are using.

Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

WARNING

PRESSURIZED ALUMINUM

PARTS HAZARD

Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.

Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents.

Do not use chlorine bleach.

Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for compatibility.

PERSONAL PROTECTIVE

EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is not limited to:

Protective eye wear, and hearing protection.

Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

CALIFORNIA PROPOSITION 65

This product contains a chemical known to the

State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.

333394J

Component Identification

Component Identification

P N

R

A

B

C

M

F

D

E

L

J

Prime Pump

Spray

G

A Cup Cover

B FlexLiner

C Cup Support

D VacuValve Cap

E VacuValve Air Hole

F VacuValve Reservoir

G Strainer

H Spray Tip Holder

J Prime Pump/Spray Knob

K Power Cord

H

S

K

ti25736a

L Sprayer Trigger

M Dual Speed Control, HIGH/LOW

Switch (DS and DSP models only)

N Spray Tip, Black (12-inch pattern)

Spray Tip, Gray (4-inch pattern)

P Spray Tip Guard

R Variable Speed Control (VSP models only)

S Kickstand

333394J 7

8

Start Up

Start Up

Use only water-based or oil-based

(mineral spirit-type) materials with a

flash point greater than 100° F (38° C).

Do not use materials which state

“FLAMMABLE” on the packaging. For more information about your material, request SDS from distributor or retailer.

When spraying oil-based material, use outdoors or in a well-ventilated indoor area with a flow of fresh air.

Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.

Previously opened paint may contain dried paint or other debris. To avoid priming problems and tip clogs it is advisable to strain the paint before using. Paint strainers are available where paint is sold. Stretch a paint strainer over a clean pail and pour the paint through the strainer to capture any dried paint and debris before spraying.

1.

Install FlexLiner in the cup support.

NOTICE

Your sprayer is NOT compatible with harsh cleaners such as chlorine bleach. Using these cleaners will cause damage to the sprayer.

Starting a New Job

If you are using the sprayer for the very first

time, see Flushing a New Sprayer, page 20.

Strain the Paint

ti23361a

2.

Fill FlexLiner with material. Securely tighten cup cover onto cup support.

Tighten so the arrow on the cup cover is within range of the indicator on the cup support.

ti26894a ti24279a

3.

Align VacuValve on cup cover with

Prime Pump/Spray knob. Push cup assembly onto sprayer and twist to lock.

333394J

Start Up

ti23258b

4.

The VacuValve is an important part of your new sprayer. It is used to evacuate the air out of the FlexLiner. Open

VacuValve cap.

ti23355a

7.

Plug sprayer into power source.

8.

Turn Prime Pump/Spray knob down to

Prime Pump position. To fill sprayer with fluid, point sprayer into a waste area and hold the trigger in for 5–10 seconds.

Prime Pump

ti23285a ti23343a

5.

Tilt the sprayer so the VacuValve is the highest point, causing any air in the

FlexLiner to rise to the VacuValve.

Gently squeeze the FlexLiner to evacuate all air through the VacuValve air hole. Once you see material enter the

VacuValve reservoir, all air should be evacuated from the FlexLiner.

ti23354a

9.

Turn Prime Pump/Spray knob forward to spray position.

Spray

ti23345a

6.

Stop squeezing the FlexLiner and snap the VacuValve cap closed. You will hear the cap click when it is closed properly.

333394J

ti23288a

9

Start Up

10. Make certain spray tip is in the spray position.

Make certain the Prime Pump/Spray knob is in the Spray position.

Spray

SPRAY UNCLOG

ti23290a

11. You are now ready to spray.

NOTE: For best results; to evacuate all material from the FlexLiner when the material is nearly gone, gently squeeze the bottom of the FlexLiner to push the last of the material up to the cup lid.

If sprayer does not spray, try one of the steps below:

Make certain there is only one FlexLiner in cup support. It is possible for two liners to nest tightly together and appear as only one.

Make certain the cup cover is properly threaded to the cup support. If threads are visible below the cup cover when tight, then the cover is cross-threaded.

Fully remove the cup cover and reinstall to the cup support so no threads are visible when tight.

ti23288a

If sprayer still does not spray, perform

steps10 and 11 on page 21. If material

sprays while upside down there is air in the cup. Repeat steps above.

Refilling FlexLiner

If sprayer runs out of paint simply separate the cup support from the cup cover/sprayer and refill the FlexLiner.

1.

Unplug sprayer from power source.

2.

Separate the cup support from the cup cover/sprayer. Set the sprayer upside down on a flat surface. This will keep the wet paint in the cup cover.

ti24454a

Repeat steps 2 – 6 on pages 8 – 9 to

ensure all the air is evacuated from the

FlexLiner.

ti23369a

3.

Follow steps 2 - 11 in Starting a New

Job, page 8 procedure.

10 333394J

How to Spray

How to Spray

Take a few moments prior to spraying and review these simple tips to ensure your spraying project is a success.

Dual Speed Control

(Not available on all units)

The dual speed control feature allows you to slow down or speed up when spraying.

Turn the dual speed control to LOW to slow down the speed of application when first learning to spray or when spraying small items that require more control.

The LOW setting delivers more control and will reduce overspray when spraying thinner materials such as stain.

Turn the dual speed control to HIGH when you want to get to job done fast and when spraying large surfaces.

To reduce overspray, always spray at lowest speed that results in an acceptable spray pattern.

Variable Speed Control

(Not available on all units)

The variable speed control feature allows you infinite speed control to slow down or speed up to best suit your material and project.

Turn the variable speed control to lower speed settings to slow down the speed of application when first learning to spray or when spraying small items that require more control.

The lower speed settings deliver more control and will reduce overspray when spraying thinner materials such as stain.

Turn the variable speed control to higher speed settings when you want to get the job done fast and when spraying large surfaces.

To reduce overspray, always start at lowest speed setting and increase speed to the minimum setting that results in an acceptable spray pattern.

333394J

Spray Techniques

Use a piece of scrap cardboard to practice these basic spraying techniques before you begin spraying the surface.

Hold sprayer 10 in. (25 cm) from surface and aim straight at surface. Tilting the sprayer to direct the spray angle causes an uneven finish.

Flex wrist to keep sprayer pointed straight. Fanning sprayer to direct spray at angle causes uneven finish.

NOTE: How fast you move the sprayer will affect spray application. If material is pulsating, you are moving too fast. If material drips, you are moving too slow. See

Troubleshooting, page 26.

EVEN

FINISH

(25 cm)

10 in.

THICK

UNEVEN

FINISH

THIN

ti23374a

11

How to Spray

EVEN FINISH

Aiming Sprayer

Aim sprayer at bottom edge of previous stroke, overlapping each stroke by half.

THIN THICK THIN

ti23378a ti23375a

Triggering Sprayer

Pull trigger after starting stroke. Release trigger before end of stroke. Sprayer must be moving when trigger is pulled and released.

Rotating the spray tip guard changes the pattern to either the vertical or horizontal orientations.

When spraying vertical corners turn spray tip guard to the horizontal orientation and move sprayer up and down.

ti23376a

12 333394J

Spray Pattern Quality

A good spray pattern is evenly distributed as it hits the surface. If tails persist, material may need to be thinned.

If material needs to be thinned follow manufacturers recommendations.

How to Spray

If you see pulsations in the pattern, try the following:

On the dual speed models turn the dual speed control to HIGH

On the variable speed models turn the variable speed control to higher setting

Slow down your speed of movement

Hold sprayer farther away from surface

Switch to black (12") spray tip

GOOD PATTERN

TAILS

TAILS

BAD PATTERN

ti23382a

Spray Pattern is Pulsating

333394J 13

Cleanup

Cleanup

1.

Disconnect power (unplug power cord).

2.

Turn Prime Pump/Spray Knob down to

PRIME PUMP position to relieve pressure.

Use only water-based or oil-based

(mineral spirit-type) materials with

flash point greater than 100° F (38° C).

Do not use materials which state

“FLAMMABLE” on the packaging. For more information about your material, request SDS from distributor or retailer.

Clean in a well-ventilated area. Keep a good supply of fresh air moving through the area.

To avoid serious injury or damage to equipment, do not expose the sprayer electronics to cleaning fluids. Keep sprayer at least 10 in. (25 cm) above the rim of the container when cleaning.

Prime Pump

ti23408a

Pressure Relief Procedure

Follow the Pressure Relief

Procedure whenever you see this symbol.

ti23285a

Cleaning Sprayer

Cleaning your sprayer properly and after every spray job is of the utmost importance! Proper care and maintenance will make your paint sprayer last and work for you trouble free.

1.

Turn Prime Pump/Spray knob to Prime

Pump to relieve pressure.

2.

Separate the cup support with FlexLiner from the cup cover/sprayer.

This sprayer builds up an internal pressure of 2000 psi (14 MPa, 138 bar) during use. Follow this Pressure Relief

Procedure whenever you stop spraying and before cleaning, checking, servicing, or transporting equipment to prevent serious injury.

14

ti23385a

333394J

3.

Set the sprayer upside down on a flat surface. This will keep the wet paint in the cup cover. Return excess material to original container. Hold the FlexLiner in place when pouring.

Cleanup

8.

Make certain the Prime Pump/Spray knob is in the Prime Pump position

(pointed down). On models with a dual speed control switch, set speed control to HIGH. On variable speed models set speed control to 10.

ti23387a

4.

You can either dispose of the used

FlexLiner and install a new FlexLiner or clean a used FlexLiner.

5.

To clean the sprayer, fill FlexLiner approximately half-full with appropriate cleaning fluid (water or mineral spirits).

6.

Securely tighten cup cover onto cup support.

ti23384a

9.

Turn the sprayer upside down and point the sprayer into a waste pail. Pull the trigger for ten seconds.

ti23383a

7.

To clean the cup cover and strainer, secure the cup assembly to the sprayer and shake the entire sprayer for ten seconds.

333394J

ti23388a

10. Turn Prime Pump/Spray knob forward to

SPRAY position. Reverse spray tip to

UNCLOG position.

11. While holding the sprayer upside down point the sprayer into a waste pail. Pull the trigger for five seconds. Release the trigger.

12. If second spray tip was used, remove cleaned spray tip from spray tip guard and install second spray tip. See

Installing Spray Tips, page 18. Repeat

steps 10 and 11 to clean second spray

tip.

15

Cleanup

16. Use a soft cloth to clean the cup support and cup cover.

ti23372a ti23389a

13. Remove cup assembly and discard used fluid. Dispose of used cleaning fluid properly.

14. Replace cleaning fluid and repeat steps

1- 13 until spray output is clean.

IMPORTANT! For best results, do not spray more than one cup of water through the tip while cleaning. If more flushing is needed, remove the tip from the sprayer to avoid excessive wear.

15. Remove spray tip and strainer, see

Remove Spray Tip, page 18. Clean with

appropriate cleaning fluid (water or mineral spirits). A soft brush can be used to loosen and remove dried material if needed.

NOTICE

The spray tip guard is permanently attached to the sprayer. Removal for cleaning is not necessary and will result in damage to the sprayer.

Cleaning VacuValve

The VacuValve is an important part of your sprayer and it should be cleaned after every use.

1.

Remove VacuValve cap from cup cover and clean it.

2.

Clean VacuValve reservoir in lid.

3.

Clean VacuValve air hole. If VacuValve air hole becomes clogged, use a paper clip to clean the hole. ti23404a ti23406a

16 333394J

Storage

Storage

NOTICE

Failure to store sprayer with Pump Armor will result in operational problems the next time you spray. Always circulate Pump

Armor through the sprayer after cleaning.

Water or solvents other than mineral spirits left in the sprayer will corrode and damage the pump.

Pump Armor fluid protects the sprayer while in storage. It helps protect sprayer against freezing and corrosion when not in use.

1.

Clean the sprayer and cup assembly.

See Cleanup, page 14.

2.

Turn Prime Pump/Spray knob down to the Prime Pump position. Remove cup support and FlexLiner. Make certain that

VacuValve cap is closed.

ti23707b

7.

With sprayer upside-down attach cup support with FlexLiner to sprayer.

8.

Holding sprayer upside-down over a waste container, pull sprayer trigger for three seconds.

Prime Pump

ti23285a

3.

Separate the cup support with FlexLiner from the cup cover/sprayer. Set the sprayer upside down on a flat surface.

4.

Remove strainer from pump opening.

5.

With the sprayer upside-down pour approximately 2 oz. (60 ml) Pump Armor into pump opening.

6.

Install strainer into pump opening.

ti23388a

9.

Turn Prime Pump/Spray knob forward to spray position. Remove cup assembly and pour any remaining Pump Armour back into Pump Armor bottle. Replace child-resistant cap and tighten securely for storage.

10. Store sprayer indoors in a cool, dry place. Store in an upright position

only. Never store sprayer with material in the cup.

333394J 17

Common Procedures

Common Procedures

Installing Spray Tips

Do not put your hand in front of the spray tip.

Two spray tips are available for use with this sprayer. The black tip produces a 12-inch wide spray pattern. The gray tip produces a

4-inch wide spray pattern.

Either spray tip may be used to spray materials that are recommended to be sprayed with a 0.015 tip size. See material container for spray tip size recommendations.

LOCKING TAB SLOT

Install Spray Tip

1.

While holding the spray tip 90 degrees from either the SPRAY or UNCLOG position, align spray tip locking tab with the locking tab slot in the spray tip guard.

2.

Push the spray tip all the way into the spray tip guard.

3.

Rotate the spray tip to the SPRAY position.

NOTE: Make certain spray tip locking tab is pushed all the way into the slot in the spray tip guard. You should not be able to remove the spray tip from the spray tip guard when it is in the Spray or Unclog positions.

NOTE: If the locking tab slot in the spray tip guard is blocked, preventing installation of the spray tip, rotate the spray tip guard until it is visually aligned with the internal hole, then install the spray tip.

LOCKING

TAB

ROTATE

SPRAY TIP 90 o

REMOVE

SPRAY TIP

NOTICE

The spray tip guard is permanently attached to the sprayer. Removal for cleaning is not necessary and will result in damage to the sprayer.

Spray tips wear with use and abrasive paint and need periodic replacement.

If the spray pattern is poor, you may have a worn spray tip. Replace spray tip. See

Spray Pattern Diagnostics, page 28.

ti23563a

Remove Spray Tip

1.

Perform Pressure Relief Procedure, page 14.

2.

Rotate the spray tip 90 degrees from either the SPRAY or UNCLOG position.

3.

Pull the spray tip straight out of the spray tip guard.

18

NOTICE

Spray tips must be cleaned or stored in appropriate cleaning fluid (water or mineral spirits) immediately after use to ensure material is not allowed to dry in spray tip.

Failure to do so will result in damage to the

spray tip. See Cleanup, page 14.

333394J

Common Procedures

Unclogging Spray Tip

In the event that particles or debris clog the spray tip, this sprayer is designed with a reversible spray tip that quickly and easily clears the particles without disassembling the

sprayer. See for Strain the Paint, page 8 for

additional information.

1.

Perform Pressure Relief Procedure, page 14.

2.

To unclog spray tip, turn Prime

Pump/Spray knob down to Prime Pump position.

5.

Variable speed models:

Set speed control to 10.

10

Prime Pump

ti23359a ti25737a

6.

Aim sprayer at waste area, turn Prime

Pump/Spray knob forward to spray position. Pull trigger to clear clog.

Spray

ti23285a

3.

Reverse spray tip to UNCLOG position. ti23290a

SPRAY UNCLOG

4.

Dual speed models:

Move speed control switch to HIGH setting. ti23288a

7.

Turn Prime Pump/Spray knob down to

Prime position. Rotate spray tip back to

SPRAY position. Turn Prime

Pump/Spray knob forward to SPRAY position, and resume spraying.

8.

If spray tip is still clogged, you may have

to repeat steps 2 - 7, or replace with new

spray tip assembly. See Installing

Spray Tips, page 18.

333394J 19

Common Procedures

Flushing a New Sprayer

This sprayer arrives from the factory with a small amount of test material in the system.

It is important that you flush this material from the sprayer before using it for the first time.

1.

Remove cup assembly from the sprayer by turning and pulling down.

4.

Fill FlexLiner with water. ti23361a ti23249b

2.

Unscrew cup cover from the cup support.

ti23676a

3.

Make certain FlexLiner is in the cup support.

ti23383a

5.

Securely tighten cup cover onto cup support. Tighten so the arrow on the cup cover is within range of the indicator on the cup support.

ti24279a

20 333394J

6.

Align VacuValve on cup cover with

Prime Pump/Spray knob. Push cup assembly onto sprayer and twist to lock.

Common Procedures

ti23258b

7.

Plug sprayer into power source.

8.

Make certain the Prime Pump/Spray knob is in the Prime Pump position

(pointed down). On models with a dual speed control switch, set speed control to HIGH. On variable speed models set speed control to 10.

9.

Turn the sprayer upside down and point the sprayer into a waste pail. Pull the trigger for three seconds.

10. Turn Prime Pump/Spray knob forward to

SPRAY position. Rotate spray tip 180 degrees to UNCLOG position.

ti23389a

11. While holding the sprayer upside down point the sprayer into a waste pail. Pull the trigger for three seconds.

IMPORTANT! For best results, do not spray more than one cup of water through the tip while cleaning. If more flushing is needed, remove the tip from the sprayer to avoid excessive wear.

12. Sprayer is now flushed and ready for

use. See Start Up, page 8.

IMPORTANT! The motor has a built-in feature to protect itself from overuse. If the motor stops, the thermal switch has tripped.

Do not return sprayer to store. The motor will operate normally after cooling for 20-30 minutes.

ti23388a

333394J 21

Replacement Parts

Replacement Parts

Models 16Y385, 16Y386, 17A466

4

8

9

15

5 1

3

13b

13a

19

10

12

6

2

24

16

18

17

22 7

8

19

20

14 ti23460a ti23568a

26

22 333394J

Replacement Parts

Parts List- Models 16Y385, 16Y386, 17A466

Ref.

If you have this model sprayer

Order

Part

Number

Description

1

8

9

6

7

4

5

2

3

10

12

Kit, pump

16Y385, 17A466 17A217 Complete pump assembly includes 2, 3, 4, 5, 6, 7, 8

16Y385, 17A466 17A218 Pump housing includes 2, 3, 5

16Y386 17B415 Complete pump assembly includes 2, 3, 4, 5, 6, 7, 8

16Y386

All models

All models

All models

17B416 Pump housing includes 2, 3, 5

16Y425 O-ring

16W849 Strainer

17A219 Kit, needle assembly includes 5 and spray tip 17A222

All models

All models

All models

All models

17A220 Kit, pump outlet

17A402 Prime Pump/Spray valve

17A221 Kit, Prime Pump/Spray knob includes qty. 1 of ref. 8

119236 Screw, T-15 (torque 8-10 in-lb / 0.9-1.1 N

• m)

17A223 Spray tips, (black/12-inch pattern, gray/4-inch pattern) All models

All models 16X880 Reciprocator assembly

Control, electronic includes motor, power cord and switch

16Y385 17A224 Single speed, 120 V (not shown)

16Y386, 17A466 17B653 Dual speed, 120 V

13a 16Y386, 17A466 16X868 Switch, dual speed control

13b 16Y385 16X869 Plug

14

15

All models

All models

16W846 Support, 32 oz. cup

17A226 Kit, 32oz., FlexLiner (3-pack)

16

17

18

19

All models

All models

17B636 Cover, cup

115719 O-ring

All models 16X806 VacuValve cap

16Y385, 17A466 17A227 Kit, enclosure blue includes qty. 13 of ref. 8,

20

22

16Y386

All models

All models

23  All models

17A649 Kit, enclosure gray includes qty. 13 of ref. 8,

16Y680 Label, USA

16Y678 Label, control

16Y636 Label, warning and model number, side (not shown)

24

25  All models

26

16Y385

16Y386

17A466

16Y386

All models

- - -

Label, brand

16Y677 TrueCoat 360

17A473 TrueCoat 360 DSP

16Y679 TrueCoat 360 DS

17A198 Label, warning, cord (not shown)

17C468 Case, storage

17F518 Kit, 42 oz. cup (not shown)

243104 Pump Armor, not shipped with sprayer 32 oz (not shown)

Replacement Danger and Warning labels, tags, and cards are available at no cost.

333394J 23

Replacement Parts

Replacement Parts

Model 17D889

8

13

19

10

12

29

27

9

4

15

5

1

2

3

6

18

17

22

7

16

28

14

20

24

8

19

26

24

ti25730a

333394J

Replacement Parts

Parts List- Model 17D889

Ref.

If you have this model sprayer

Order

Part

Number

Description

1

8

9

6

7

4

5

2

3

10

12

17D889

17D889

All models

All models

All models

All models

All models

All models

All models

All models

All models

17D889

Kit, pump

17B415 Complete pump assembly includes 2, 3, 4, 5, 6, 7, 8

17B416 Pump housing includes 2, 3, 5

16Y425 O-ring

16W849 Strainer

17A219 Kit, needle assembly includes 5 and spray tip 17A222

17A220 Kit, pump outlet

17A402 Prime Pump/Spray valve

17A221 Kit, Prime Pump/Spray knob includes qty. 1 of ref. 8

119236 Screw, T-15 (torque 8-10 in-lb / 0.9-1.1 N

• m)

17A223 Spray tips, (black/12-inch pattern, gray/4-inch pattern)

16X880 Reciprocator assembly

17F068 Control, electronic includes motor, power cord and switch

Variable speed, 120 V

17

18

19

20

13

14

15

16

22

23  All models

24

25  All models

26

27

17D889

17D889

17D889

All models

All models

All models

17D889

All models

All models

17D889

17D889

17D889

17D844 Adapter, variable speed control

17D850 Support, cup, 42 oz.

17F005 Kit, 42 oz., FlexLiner (3-pack)

17B636 Cover, cup

115719 O-ring

16X806 VacuValve cap

17A649 Kit, enclosure gray includes qty. 13 of ref. 8

16Y680 Label, USA

16Y678 Label, control

16Y636 Label, warning and model number, side (not shown)

17F154 Label, brand, TrueCoat 360 VSP

17A198 Label, warning, cord (not shown)

17C468 Case, storage

17F069 Kit, enclosure, variable speed includes sight glass,

includes 13, 29, qty. 2 of ref 8

28

29

17D889

17D889

All models

- - -

17F364 Kickstand

17D843 Sight glass

17F518 Kit, 42 oz. cup includes 14, 15, 28

243104 Pump Armor, not shipped with sprayer 32 oz (not shown)

Replacement Danger and Warning labels, tags, and cards are available at no cost.

333394J 25

Troubleshooting

Troubleshooting

Check everything in this Troubleshooting

Table before you bring the sprayer to an authorized service center.

Sprayer Diagnostics

Have a Question?

Call toll-free:

1-888-541-9788

Or visit us at: www.paintsprayersbygraco.com

ti24021a

Problem

Sprayer makes no sound when trigger is pulled

Sprayer makes sound but no material is sprayed when trigger is pulled

Cause Solution

Power supply.

Motor has overheated.

Electronic control failure.

Sprayer is not primed.

Verify power to sprayer.

Wait 20-30 minutes for motor to cool.

Replace electronic control.

Prime the pump. See Starting a

New Job, page 8.

Make certain there is only one

FlexLiner in the cup support.

Make certain the cup cover is properly threaded to the cup support. If threads are visible below the cup cover when tight, fully remove and reinstall to the cup support so no threads are visible when tight.

Make certain the cup cover is tightened to cup support so the arrow on cup cover is within range of indicator on cup support.

Make certain the cup assembly is properly locked on the sprayer.

Make certain all the air is out of the FlexLiner and the VacuValve is properly closed.

Clean VacuValve reservoir and

air hole. See , page 16.

Clean Sprayer. See Cleanup, page 14.

Prime Pump/Spray knob is in PRIME

PUMP position.

Turn Prime Pump/Spray knob forward to SPRAY position.

Spray tip is not in SPRAY position.

Turn spray tip to SPRAY position.

Spray tip is clogged.

See Unclogging Spray Tip, page 19.

Debris in paint.

See Strain the Paint, page 8.

26 333394J

Troubleshooting

Problem

Sprayer makes sound but no material is sprayed when trigger is pulled (cont’d)

Sprayer sprays with poor results

Cause Solution

Speed control is set too low.

No or low material in material cup.

Refill FlexLiner with material and

prime the pump. See Refilling

FlexLiner, page 10.

Spray tip is partially clogged.

On models with a dual speed control switch, set speed control switch to HIGH. On variable speed models, increase speed until unit sprays.

Spray tip is not in correct position

See Unclogging Spray Tip, page 19.

Rotate spray tip to SPRAY position.

Incorrect spray tip for application of material.

Spray tip is worn or damaged

Install different size spray tip.

See Installing Spray Tips, page

18.

Replace spray tip. See

Installing Spray Tips, page 18.

Material being sprayed is aerated because it was shaken.

Do NOT shake material. Stir the material or check the manufacturer’s recommendation for the material being sprayed.

Material being sprayed is too cold to spray.

Warm material.

Pump has reached its maximum life. Replace pump. Paint leaks from sprayer trigger area.

Paint leaks out of the cup threads.

Cup not properly seated.

Make certain that there is only one FlexLiner in cup support.

Make certain the cup cover is properly threaded to the cup support. If threads are visible below the cup support when tight, fully remove the cup cover and reinstall to the cup support so no threads are visible when tight.

Make certain the cup cover is tightened to the cup support so the arrow on the cup cover is within range of the indicator on the cup support.

Avoid flexing or pushing on the cup support when you evacuate the air out of the FlexLiner.

Avoid pulling down on the

FlexLiner when you evacuate the air out of the FlexLiner.

Make certain there is no damage to the FlexLiner lip or the cup cover gasket.

Make certain that the FlexLiner lip and cup cover gasket is free of debris and dried paint.

Replace FlexLiner.

333394J 27

Troubleshooting

Spray Pattern Diagnostics

Problem

Spray pattern is pulsating:

Cause

Operator is moving too fast while spraying.

Solution

Slow speed of movement.

Spray pattern has tails:

Spray pattern has dripping/sagging: ti15526a

Spray tip is clogged.

Material difficult to atomize.

Speed control is set too low.

Material may need to be thinned.

Incorrect spray tip for application of material.

Material not compatible with sprayer.

Spray tip is worn or damaged.

Operator is moving too slowly while spraying.

Sprayer is too close to target surface.

Holding trigger while changing spray direction.

Speed control switch is set too high.

Spray tip is worn or damaged.

Unclog spray tip or clean spray

tip see Unclogging Spray Tip, page 19.

On models with a dual speed control switch, set speed control to HIGH. On variable speed models, increase speed until desired pattern is achieved.

Hold sprayer farther away from surface.

Switch to black (12”) spray tip.

See Installing Spray Tips, page 18.

On models with a dual speed control switch, set speed control to HIGH. On variable speed models, increase speed until desired pattern is achieved.

Thin material follow paint manufacturer’s recommendations.

Install different size spray tip.

See Installing Spray Tips, page 18.

Switch material.

Replace spray tip. See

Installing Spray Tips, page 18.

Move sprayer faster while spraying.

Move sprayer away from surface 10 in. (25 cm)

Release trigger when changing directions.

On models with a dual speed control switch, set speed control to LOW. On variable speed models, decrease speed until desired pattern is achieved.

Replace spray tip. See

Installing Spray Tips, page 18.

28 333394J

Problem

Spray pattern is too narrow:

Spray pattern is too wide:

Troubleshooting

Cause

Sprayer is too close to target surface.

Incorrect spray tip for application of material.

Spray tip is worn or damaged.

Sprayer is too far away from target surface.

Incorrect spray tip for application of material.

Solution

Move sprayer away from surface 10 in. (25 cm)

Install different size spray tip.

See Installing Spray Tips, page 18.

Replace spray tip. See

Installing Spray Tips, page 18.

Move sprayer closer to surface.

Install different size spray tip.

See Installing Spray Tips, page 18.

Spray pattern “spits” at the end or beginning:

Spray tip continues to drip or ooze material after trigger is released:

Excess material has accumulated on spray tip guard assembly or spray tip is partially clogged.

Spray tip not inserted completely into spray tip guard.

Spray tip is worn.

Clean spray tip guard. See

Unclogging Spray Tip, page

19.

See Installing Spray Tips, page 18.

Spray tip is worn.

Replace spray tip. See

Installing Spray Tips, page 18.

Replace spray tip. See

Installing Spray Tips, page 18.

Spray tip not inserted completely into spray tip guard.

See Installing Spray Tips, page 18.

If above solutions do not solve the problem, replace the needle assembly.

ti15552a

333394J 29

Technical Data

Technical Data

Hand-Held Sprayer

U.S.

Metric

Max Working Pressure

TrueCoat 360

TrueCoat 360 DS/DSP/VSP

Maximum Amperage

Weight

TrueCoat 360, 360 DS/DSP

TrueCoat 360 VSP

Dimensions:

1200 psi

1300 psi

2.5 Amps

3.5 lb (18 in.cord)

3.75 lb (18 in.cord)

8.3 MPa, 83 bar

9 MPa, 90 bar

2.5 Amps

1.6 kg (45 cm cord)

1.7 kg (45 cm cord)

Length (All models)

Width (All models)

Height 360, 360 DS/DSP

Height 360 VSP

12.50 in.

5.25 in.

9.75 in.

11.8 in.

31.75 cm

13.34 cm

24.77 cm

29.97 cm

Storage Temperature Range 

Operating Temperature Range 

Storage Humidity Range

Power Cord

Electrical Power Requirement

Duty Cycle

Maximum tip orifice

32° to 113° F

40° to 90° F

0% to 95% relative humidity, non-condensing

18 AWG, 3-wire, 18 in.

0° to 45° C

4° to 32° C

0% to 95% relative humidity, non-condensing

1.0 mm

2

, 3-wire, 45 cm

120 Vac, 60 Hz, 15A, 1 phase

50% 50%

0.015 in.

0.38mm

 Pump damage will occur if fluid freezes in pump.

 Damage to plastic parts may result if impact occurs in low temperature conditions.

 Changes in paint viscosity at very low or very high temperatures can affect sprayer performance.

30 333394J

Graco Limited Warranty

Graco Limited Warranty

Graco warrants to the original purchaser that this product will be free from defects in material and workmanship for one (1) year from the date of purchase when operated and maintained in accordance with Graco's written recommendations and instructions. This product is designed and intended for personal, non-income producing, household purposes only. This warranty is void if the product is used for any other purposes, including but not limited to commercial, institutional, industrial, agricultural, rental or income producing purposes. This warranty does not cover general wear and tear or any malfunction, damage or wear caused by misapplication, abrasion, corrosion, inadequate or improper maintenance, abuse, negligence, misuse, accident, tampering, substitution of non-Graco component parts, or alterations, service or repairs by anyone other than a Graco authorized service center, or any use, maintenance or repairs not specifically described in Graco's written recommendations and instructions.

In addition, this warranty specifically excludes general wear and tear of the pump, valves, needle assembly and spray tips.

This warranty is conditioned upon the prepaid return of the product claimed to be defective and proof of purchase to a Graco authorized service center for verification of the claimed defect. To find a Graco authorized service center, please call 1-888-541-9788 or visit us online at www.graco.com. If the claimed defect is verified, Graco will repair or replace the product free of charge. The product will be returned to the original purchaser transportation prepaid. If inspection of the product does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge to you, which charges may include the costs of parts, labor and transportation. Repair or replacement of the product under this warranty will not interrupt or extend the warranty period or create a new warranty period.

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSES

IS LIMITED TO ONE (1) YEAR FROM THE DATE OF PURCHASE. SOME STATES AND PROVINCES

DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE

LIMITATION MAY NOT APPLY TO YOU.

To the extent permitted by law, Graco's sole obligation and buyer's sole remedy for any breach of warranty shall be as set forth above. IN NO EVENT WILL GRACO BE LIABLE FOR ANY INDIRECT,

INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE SALE OR USE

OF THIS PRODUCT. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR

EXCLUSION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER

RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com

.

For patent information, see www.graco.com/patents .

TO PLACE AN ORDER, contact your Graco distributor or call 1-888-541-9788 to identify the nearest distributor.

333394J 31

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

Original instructions. This manual contains English. MM 333394

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Copyright 2014, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

www.graco.com

Revision J, July 2015

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
