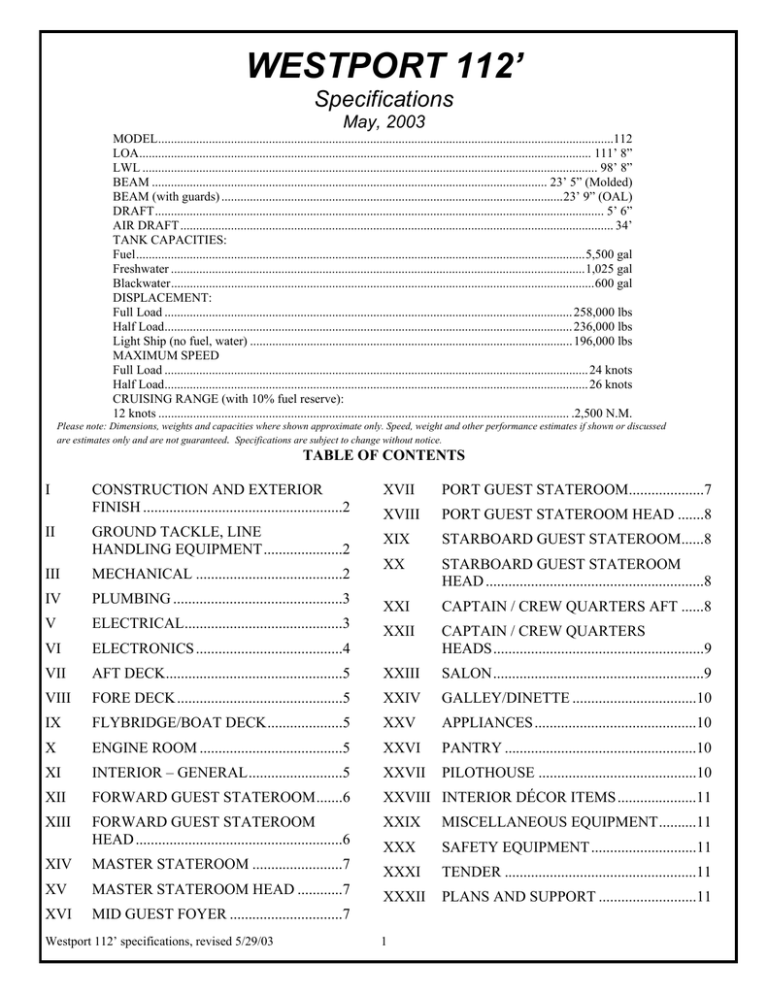

WESTPORT 112’

Specifications

May, 2003

MODEL................................................................................................................................................112

LOA............................................................................................................................................... 111’ 8”

LWL ................................................................................................................................................ 98’ 8”

BEAM ............................................................................................................................. 23’ 5” (Molded)

DRAFT.............................................................................................................................................. 5’ 6”

Fuel..............................................................................................................................................5,500 gal

Freshwater ...................................................................................................................................1,025 gal

Blackwater......................................................................................................................................600 gal

DISPLACEMENT:

Light Ship (no fuel, water) ...................................................................................................... 196,000 lbs

CRUISING RANGE (with 10% fuel reserve): knots .................................................................................................................................. .2,500 N.M.

Please note: Dimensions, weights and capacities where shown approximate only. Speed, weight and other performance estimates if shown or discussed are estimates only and are not guaranteed

.

Specifications are subject to change without notice.

TABLE OF CONTENTS

I CONSTRUCTION AND EXTERIOR

FINISH .....................................................2

XVIII PORT GUEST STATEROOM HEAD .......8

HANDLING EQUIPMENT.....................2

VIII FORE DECK ............................................5

INTERIOR GENERAL.........................5

HEAD ..........................................................8

XXI CAPTAIN / CREW QUARTERS AFT ......8

XXII CAPTAIN / CREW QUARTERS

HEADS........................................................9

XXIII SALON........................................................9

XXIV GALLEY/DINETTE .................................10

XXV APPLIANCES ...........................................10

XXVI PANTRY ...................................................10

XXVII PILOTHOUSE ..........................................10

XXVIII INTERIOR DÉCOR ITEMS .....................11

XXIX MISCELLANEOUS EQUIPMENT..........11

XIII FORWARD GUEST STATEROOM

HEAD .......................................................6

XIV MASTER STATEROOM ........................7

XV MASTER STATEROOM HEAD ............7

XVI MID GUEST FOYER ..............................7

XXXI TENDER ...................................................11

XXXII PLANS AND SUPPORT ..........................11

Westport 112’ specifications, revised 5/29/03 1

I CONSTRUCTION AND EXTERIOR

FINISH

1) GENERAL: Hull to be fiberglass mat and roving with

Airex PVC core. Hull to include an outer layer of fiberglass laminated with an anti-blister type resin. Engine stringers and hull stiffeners to be laid up with fiberglass and foam type construction. House structure to be fiberglass and foam construction. Interior deck and bulkheads to be fiberglass sandwich type construction (core material will vary, determined by engineering).

2) RUBRAIL: Molded-in fiberglass and high-density foam lower and middle guards with stainless half-oval rub strip. Solid PVC sheer (upper) guard with stainless halfoval rub strip.

3) HATCHES:

a) 24” round Freeman for forward guest stateroom. b) One stainless sliding hatch to flybridge. c) One Freeman cast aluminum round bow deck hatch to chain locker. d) One hatch from aft deck to flybridge. e) One hatch from crew quarters companionway to lazarette.

4) HULL (BOTTOM): 2 layers of anti-blister epoxy and two coats of Micron 66 black bottom paint.

5) VESSEL NAME: Nameboards with halogen projectors installed on house sides. Vinyl lettering includes vessel name and hailing port on transom.

6) PAINT: Awlgrip high gloss polyurethane. Hull, house, and weather deck color to be Westport White.

7) WINDOWS: Frameless, bonded with Ultra Glaze, ¼”

Solar Gray tempered glass. Forward pilothouse windows will be

3

/

8

” clear.

8) STAINLESS RAILS: Transom stairs port and starboard, stern, flybridge, bow, and boat deck sides, boat deck aft. Railings to be 1 ½” mirror polished stainless steel.

9) MAIN DECK (EXTERIOR): Aft deck, steps to aft deck from swimstep, and swimstep are teak over composite, all other exterior decks are non-skid over composite.

10) EXTERIOR DECK SETTEES: To be molded fiberglass with cushions and covers. a) Flybridge horseshoe seat b) Boat deck “L” seat c) Aft deck lounge d) Fore deck keyhole seat e) Fore deck bow locker/lounge

11) THRU-HULLS: All thru-hull fittings below waterline to be bronze with bronze valves and bonding.

12) BULWARKS: Fiberglass with polyurethane finish.

13) CAPRAIL: Fiberglass with polyurethane finish.

Westport 112’ specifications, revised 5/29/03 2

14) INSULATION: The hull is cored with PVC foam which serves as insulation. The house is also cored with various materials which provide insulation. Overhead surfaces will have 3M thinsulate insulation for both thermal and acoustic properties. The engine room shall include a combination of fiberglass and barrier materials with perforated, white powder-coated aluminum liner on ceiling, forward, and aft bulkhead.

15) PORTLIGHTS: Freeman oval, opening with screens and privacy covers.

II GROUND TACKLE, LINE

HANDLING EQUIPMENT

1) BOW:

a) Dual Poole style 300 lb. unpainted, galvanized anchors with anchor plates. b) One 250’, One 350’

5 c)

5

/

8

/

8

” chain for two anchors.

” chain roller stoppers. d) Two VWC 4500# Maxwell, hydraulic winches with hand brakes and devil’s claws. e) Anchor chain wash-down system.

2) STERN:

a) Two Maxwell 2200# 24V DC capstans

3) GENERAL:

a) Dock lines: 6 - 60’

3

/

4

”, braided nylon with 36” eye splice. b) Bitts: 8 – 1’-7” stainless steel. c) Hawse eyes: 6 stainless hawse eyes forward, 2 stainless steel hawse eyes at swim grid, plus 2 additional cleats at stern for shore boat tie-off. d) Fenders: 4 - 15” inflatable type with ½” nylon line. e) Fender cleats: 8 (4 per side) with stainless steel rub rail.

III MECHANICAL

1) MAIN ENGINES: Two MTU/DDC 16V2000 engines, rated at 2000 hp, four-station DDEC controls, integrated station selection and shifter control, DDEC synchronizer and underwater exhaust.

2) GENERATORS: One 50 KW 1200 rpm and one

65KW 1800 rpm Northern Lights with hydro-elastic double mounts, sound shields, water lift mufflers, exhaust/water separator cyclones, and water temperature, oil pressure and hour meters installed on main distribution panel in crew quarters. Both generators to have remote start/stop in pilothouse.

3) AIR COMPRESSOR: 220V 2 hp compressor, to operate air horn with in-line water separator and regulator.

4) BOWTHRUSTER: 16” Wesmar, 40 hp hydraulic with four-station controls.

5) FUEL AND WATER FILL PIPES: Fuel fills with dual fill/vent pipes vented overboard for fast filling. A second, smaller vent, vented overboard is provided for normal operation. Three fills for water tanks.

6) FUEL TANK: ¼” 5086 alloy aluminum with dual fills and standard vents. V.I.C. monitoring system and sight tube level indicators. Approximate capacity: 5500 gallons.

7) GAS TANK: 100-gallon gas tank under hatch on swimstep. Includes air dispensing pump and hose.

8) FUEL FILTERS: One Sea Pro 300 for each main engine and one Separ 2005MK for each generator.

9) FUEL GAUGES: Sight tubes located in engine room, and V.I.C. monitoring system.

10) FUEL TRANSFER SYSTEM: Fuel transfer pump with a flow meter and timer.

11) FIRE SUPPRESSION: Halon engine room fire suppression system with manual/automatic controls. Small

Halon on electrical distribution panel.

12) LUBE OIL CHANGE SYSTEM: 60-gallon lube oil tank with deck fill, fill spigot, 50-gallon lube oil waste tank with drain spigot and portable extraction pump with quick disconnects on pump and all engines.

13) RUDDERS: Cast urethane foil-shape rudders with stainless stocks; 7.6 square feet.

14) RUDDER BEARINGS/SEALS: Fiberglass sleeves with Tides bearings, dripless seals, and spare seals in carrier.

15) PROPELLERS: 48” Michigan Nibral 5-blade custom wheels.

16) SHAFTS: Four-inch Aquamet 22-H.S.

17) SHAFT LOG AND PACKING GLANDS: Shaft logs to be one-piece fiberglass construction with Tides dripless packing gland with water crossover cooled from engines.

Shaft log to be bonded into hull.

18) STRUTS: Cast bronze of Vee design.

19) STABILIZER SYSTEM: Naiad model #353 with 9 sq. ft. fins, single-station control, with oil level warning, unloading valve kits and dual pumps with gauge kits.

20) WINDSHIELD WIPERS/WASHERS: Exalto windshield wipers with electronic control panel with synchronization and washers for three wipers.

21) STEERING: Jastram power steering with dual enginedriven pumps. Four stations – pilothouse, flybridge, and port and starboard wing stations on flybridge. Stations include indicator, start/stop buttons, and covers.

22) VIBRATION DAMPERS: Engines are mounted on

Detroit Diesel vibration mounts. All motors and pumps are to be mounted with shock/isolation mountings.

23) BONDING: All thru-hulls to be bonded with #8 or heavier wire and connected to transom zincs and shaft wipers.

Westport 112’ specifications, revised 5/29/03 3

24) ZINC ANODES: Will be installed on hull at transom and secured on stainless steel studs and tied to the bonding system. Included are shaft zincs.

25) AIR CONDITIONING: 15-ton chilled water system with air handlers in salon, pilothouse, galley and all staterooms.

26) BILGE PUMPS: Eight remote mounted, 24V electric bilge pumps with manual/automatic switches and alarms on all pumps except the lower engine room pump and the graywater boxes.

27) EMERGENCY BILGE PUMP: Emergency fixed bilge pump system includes two electric 120V AC pumps with 1 ¼” PVC lines to each major compartment with check valves and strainers.

IV PLUMBING

1) WATER TANKS: Aluminum with interior epoxy coating. Approximate capacity of 1,025 gallons. V.I.C. monitoring system and sight tube level indicators.

2) WATERMAKER: Two Sea Recovery SRC 1200

(1,200 gallons per day).

3) WATER FILTERS: Two Aqua-Pure.

4) FRESHWATER SYSTEM: Two 220V AC pumps and one 24V DC backup pressure pump with tank.

5) HOT WATER HEATER: One 120-gallon.

6) HOT AND COLD WATER SHOWER: In port locker on the swimstep.

7) FRESHWATER WASH-DOWN: With quick disconnects on fore deck, boat deck and aft deck.

8) BELOW DECKS GRAYWATER SYSTEMS: Two graywater boxes fitted with screen and supply and discharge lines for all showers. Forward sump tank to have a sump pump and a 24V DC backup pump. Aft tank to only have

24V DC backup pump.

9) HOLDING TANK: Composite construction with inspection hatch. 240V AC diaphragm type pump with 24V

DC backup pump for pump-out. Tank capacity of 600 gallons.

V ELECTRICAL

1) VESSEL INFORMATION CONTROL SYSTEM:

Westport proprietary Vessel Information and Control (VIC) system displayed on 15” LCD Monitor in Pilothouse and 3”

LCD Panelview touch pad at Stb. entry and Crew galley/lounge. Items on safety control panel as follows: a) All eight automatic bilge pumps monitored for operation. 2 gray water pumps monitored for operation.

Black water tank alarmed at 75% and 98% full levels.

b) Fourteen heat sensors: 6 in crew quarters, captain’s quarters, engine room and crew lounge. 3 in forward guest stateroom and guest staterooms. 3 in galley, salon and master. 2 in pilothouse and doghouse. c) Thirteen smoke alarms: 5 in crew quarters, captain’s quarters, and crew lounge. 3 in forward guest stateroom and guest staterooms. 3 in galley, salon and master stateroom. 2 in pilothouse and doghouse. d) Four CO alarms in crew staterooms, Capt. stateroom, and crew galley. e) Security system: Aft door, crew door, salon door, port and starboard doors, flybridge hatch, and forward guest stateroom hatch monitored for unauthorized entry. f) Control of AC supply switching from all available sources with Volts, Line 1/Line 2 Amps & KW monitored for each generator. g) Tank levels monitored; 3 fuel tanks and 3 fresh water tanks. h) Flybridge grill lid closed alarm.

2) BATTERIES: All gel cell type batteries. Two banks of two 8-D, 225-amp batteries, wired in series for starting main engines (total of four) and two 8-D, 225-amp batteries, one for each generator starting. One 24V battery bank for ship’s service and one 12V DC 2 8-D 225-amp battery bank for electronics.

3) BATTERY CHARGERS: Two McCarron chargers.

One 75-amp 12V DC for electronics, one 75-amp 24V DC for ship’s service bank. One McCarron 10-amp 24V DC charger for main engine bank and one McCarron 12V 20amp charger for generator bank.

4) DEFROSTERS: Three (3) King heater/defrosters on pilothouse console.

5) PILOTHOUSE CHART LIGHTS: Two 24V DC chart lights, at navigator’s area and captain’s desk.

6) COMPASS: One Ritchie Globe Master F-600 in pilothouse, one B&G display on flybridge.

7) DISTRIBUTION PANELS: Panels to have engraved faceplates.

8) EXTERIOR LIGHTING: Lighting at house sides, foredeck, aft deck stairs, aft deck overhead, flybridge deck lights.

9) ISOLATION TRANSFORMER: Two 100-amp

WestportAcme/WPSY isolation transformers with one step automatic voltage adjustment.

10) LIGHTNING PROTECTION: With hull Dyna plate and lightning antenna.

11) READING LIGHTS: All staterooms have 110V reading lights and 110V receptacles for table lamps.

12) RECESSED LIGHT FIXTURES: Halogen fixtures.

13) INDIRECT LIGHTING: 24V DC and 110V AC rope lighting.

14) SEARCHLIGHT: One ACR-RCL-100 located on mast with dual controls.

Westport 112’ specifications, revised 5/29/03 4

15) SHORE POWER: One 100-amp receptacle in aft deck and one 100-amp Glendenning reel in engine room starboard side. One 100’ shore cord. TV and phone outlets and one 100’ TV/phone cord, also located at Glendenning outlet.

16) SHOWER LIGHTS: 24V DC with white trim.

17) MAIN DISTRIBUTION PANEL: Located in crew area. Design to be functional with all necessary circuit breakers and transfer switches to provide proper operation of AC and DC circuits.

18) GENERAL LIGHTING: Vimar and Leviton receptacle and switching throughout.

19) NAVIGATION LIGHTS: Perko (or equal).

VI ELECTRONICS:

(All equipment as listed or equal)

1) TELEPHONE SYSTEM: Panasonic KXTD1232 16station telephone system with 10 programmable phones.

Eighteen (18) jack locations, midship shore inlet with 100’ combo CATV/telephone shore cord.

2) SATELLITE TELEPHONE: KVH TracPhone 25

3) SATELLITE TELEVISION SYSTEM: Sea Tel 2494 satellite TV system with dual Sony RF remote satellite receivers.

4) RADAR: Two Furuno FR 1200-BB w/ 18.1” LCD display and repeater on flybridge.

5) CELLULAR PHONE: Tellular cellular phone system.

6) DEPTH SOUNDER: Furuno FCV1200BB-P with 15”

LCD monitor.

7) GPS: Northstar 941XD in pilothouse and flybridge.

8) NAVIGATION/ELECTRONIC CHART SYSTEM:

Transas ECS with 18.1” LCD display.

9) RADIOS: a) VHF – three Icom M602 VHF radios, two in pilothouse and one on flybridge. b) VHF – Raytheon 53 VHF radio installed in tender. c) SSB – Icom M802

10) LOUD HAILERS: Two hailer horns, integrated with

VHF radios.

11) WIND, DEPTH AND SPEED: B & G with HS2000 full function display.

12) AUTOPILOT SYSTEM: Robertson AP20 in pilothouse, Robertson AP22 on flybridge.

13) SECURITY SYSTEM: Westport’s V.I.C. system.

14) CAMERA SYSTEM: Elbex 12V DC hi-resolution color, fixed camera on the aft deck, port and starboard side decks, and full pan zoom tilt camera in the engine room.

15) WEATHER FAX: Furuno Fax 207.

16) G.P.I.R.B.: Northern Airborne Technology NA-S1520

VII AFT DECK

1) AFT DECK BAR: Whirlpool icemaker

#EC5100XFW, Whirlpool refrigerator #ELO5CCXFW,

Corian Magna Savannah top, sink with hot and cold water, with storage. Barware cabinet in portside bulwarks.

2) AFT DECK FURNITURE: One fixed rotating dining table with Corian top. Molded-in settee with cushions, 6

Sutherland Teak dining chairs, three Sutherland Teak bar stools.

3) STORAGE LOCKERS: Located in bulwarks.

4) SPIRAL STAIRCASE: Down to crew quarters. Teak treads up to flybridge.

5) AUDIO/VIDEO: a) Hitachi 37” CMP307XU-513 gas plasma display TV b) Mitsubishi HS-U778 VCR c) Sony DVP-NS325B DVD player d) DVDO I-Scan video line doubler e) Stereo volume control from salon stereo. f) 2 pr SpeakerCraft 8.2 CRS speakers

All equipment as listed or equal.

VIII FORE DECK

1) BOW SUN LOUNGE: With vinyl cushions and cover.

2) KEYHOLE SEAT: Molded keyhole settee with cushion and cover.

3) AUDIO/VIDEO: Niles volume control WVC-2 and 1 pr Polyplanar MA 6600 speakers from main system. All equipment as listed or equal.

IX FLYBRIDGE/BOAT DECK

1) MAST: Welded aluminum and composite with electronics, anchor light and deck lighting.

2) WET BAR: Swanstone Arctic white sink, Corian

Magna Savannah top, TV/phone jacks, U-Line Combo 29FF refrigerator/icemaker, Jenn-Aire#JED7430 30” grill with cover and four bar stools.

3) WHEEL (FLYBRIDGE): One 24” stainless steel,

Destroyer type.

4) TENDER LIFTING BRIDLE: Novurania or equal.

5) DAVIT: Nautical Structures CEZ-2000-EX davit (or equal) with power telescoping hydraulic boom and rotation.

6) CHOCKS: Removable, for life raft and tender.

7) RAILS: Stainless rails around boat deck.

8) HELM SEATS: Two Crown helm chairs with footrests.

9) AIR HORN: Kahlenberg T2-figure 372, with ½” air strainer #2-2513.

Westport 112’ specifications, revised 5/29/03 5

10) HOT TUB: Molded-in spa with sun pad top and storage below.

11) SUN PAD: With cushions and covers.

12) SETTEE: Molded settee with cushions and hinged seating for storage below on flybridge and without storage on boat deck.

13) TABLES: Three (3) fixed oval tables with Cameo white (or equal) Corian tops.

14) FLAGSTAFF: Stern flagstaff with 5’ x 8’ U.S. flag.

15) WING STATIONS: Port and starboard wing stations on flybridge. Stations include electronic engine controls with synchronizer, jog lever, bowthruster control, rudder angle indicator, main engine start/stop and covers.

16) HELM STATION: With engine controls, engine instrumentation and electronics.

17) AUDIO/VIDEO: Clarion white stereo XMD2, Planet

Audio P300.4S amplifier, 2 pr Polyplanar MA6600 speakers. All equipment as listed or equal.

18) WINDSHIELD: Custom Venturi ¼” Perspec in stainless frame.

X ENGINE ROOM

1) ENGINE ROOM FLOOR: Removable wood floorboards with black Roppe tile vinyl floor covering.

2) TOOL BOX: Sears 12-drawer painted white (with tools).

3) PAINT PACKAGE: Bright white.

4) CABINETS: Storage cabinets.

5) SINK: With hot and cold water, hose bib.

6) WORK BENCH: Stainless steel work bench with 4” vise.

7) AIR HOSE: 18’ self coiling with quick disconnect.

XI INTERIOR – GENERAL

1) SHOWER DOORS: Euro-style frameless with clear tempered glass, except crew and captain’s quarters.

2) WALLCOVERINGS: To be covered with Majilite (or equal).

3) HEADLINERS: To be insulated with 3M Thinsulate and sheathed with vinyl headliner, Majilite (or equal) material. Whisper Wall system for easy removal.

4) CARPETING: High quality stain-resistant with lead foam sound pad on main deck over engine room.

5) HEADS: Wall surfaces – vinyl covered and vinyl overheads except for shower and tubs which shall be highgloss fiberglass, equipped with ¼” wall mirror, paper holder, towel bar and soap dish. Vanity tops to be marble or granite, as specified by interior designer.

6) HEAD FLOORS: Marble or granite, as specified by interior designer.

7) WARDROBES: Sheathed with aromatic cedar on ceilings (headliner material in master and forward guest) and walls with automatic light fixture, stainless closet rod, and shelf lined with aromatic cedar with cedar keeper.

8) DOOR HARDWARE: GSV German hardware.

9) DOORS: Interior doors 1

3

/

8

” solid cherry framed with

Madrona burl veneer panels.

10) COUNTER TOPS: a) Galley counter tops: Granite with waterfall edge. b) Main salon: Cherry waterfall edge with recessed madrona burl band and granite insert. c) Dresser tops and nightstands: Cherry waterfall edge with recessed madrona burl top. d) Crew quarters counters: Corian Sierra Aurora with simple bullnose edge.

11) STAIRWAYS: Stairway to flybridge is rubber treads with cherry trim. All other interior stairs are carpeted.

Small oval lights are inset for safety. Pilothouse stairs are carpeted, with cherry trim incl. nonskid insert.

12) HANDRAILS: One at each stairway, 1½” stainless steel mirror polished.

13) VALANCES/BLINDS: Valances and blinds in all staterooms.

14) HVAC: Salon, galley, dining area, pilothouse and all staterooms are air-conditioned. Master stateroom, salon and guest staterooms will have linear diffusers for even temperature control.

15) VENTILATION: Eight exhaust fans, one for each head.

16) BUILT-IN FURNITURE: Doors, drawers, trim, dressers, nightstands, vanities, are all to be cherry veneer with acrylic polyurethane finish in a satin sheen. Doors to have locksets, furniture to have have Actron latches.

17) SINKS: Kohler china bowls under-counter type. Bates

& Bates sink in forward guest stateroom. Captain and crew are Bolero stainless.

18) MATTRESSES: Innerspring except captain and crew, which are 6” U.S. foam.

XII FORWARD GUEST STATEROOM

1) BERTH: Queen berth with upholstered headboard and custom recess for lighting and single drawer below.

2) LIGHTING: Recessed Halogen room and reading lights. Indirect rope accent lighting under berth and above soffit.

3) MIRRORS: Bronze mirrors on forward bulkhead above headboard. Clear full-length mirror on wardrobe door.

Westport 112’ specifications, revised 5/29/03 6

4) WARDROBE: Walk-in wardrobe, lined with aromatic cedar, automatic light, stainless closet rod and cedar shelf with keeper.

5) DOORS: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

6) COUNTERS: Recessed Madrona burl veneer top, with solid cherry waterfall edge.

7) HATCH: Over berth, 24” round hatch.

8) TRIM: Cherry.

9) JOINERY: a) Soffit for lighting. b) Two – nightstands with built-in bookcase at headboard. c) Vanity/desk. d) Entertainment center with cherry doors and four-drawer dresser below. e) Cabinet in stairwell locker.

10) SETTEE: Custom upholstered.

11) AUDIO/VIDEO: Toshiba 20AF42 flat tube 20” TV,

Sony STR-DE 185 A/V receiver, Sony DVP-NS500V

CD/DVD player, and 1 pr Speakercraft CRS-Two speakers.

All equipment as listed or equal.

XIII FORWARD GUEST STATEROOM

HEAD

1) TOILET: Headhunter Royal Flush Hydro Vac.

2) SHOWER: Custom molded fiberglass with Euro-style frameless tempered glass door and Grohe fixtures. Sealed shower light.

3) SINK: Bates & Bates Teri sink with Jado Oriental fixtures, silver nickel/gold finish.

4) MIRROR: Framed mirror above vanity.

5) LIGHTING: Recessed Halogen room lights. Vanity lighting.

6) FLOORING: Marble or granite as specified by interior designer.

7) COUNTERS: Crema Marfil (or equal) marble with waterfall edge.

8) BATH ACCESSORIES: Jado Oriental accessories, silver nickel/gold finish. One each: soap dish, covered toilet paper holder, towel bar, tumbler holder, towel ring, robe hook.

9) DOOR: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

10) JOINERY: Vanity and linen cabinet.

XIV MASTER STATEROOM

1) BERTH: California King (72” x 84”) with innerspring mattress and upholstered headboard and overhead treatment.

Recess for lighting and two-drawer storage under.

2) LIGHTING: a) Recessed Halogen room and reading lights. b) Two reading lights c) Indirect rope accent lighting under berth and above soffits. d) Special lighting outboard at hull side. e) Overhead lights (rope lights) above berth.

3) MIRRORS: Bronze mirrors on bulkhead above headboard and at dressers. Clear mirror on inside wardrobe door. Lighted vanity make-up mirror above vanity.

4) WARDROBE: Walk-in wardrobe, lined with aromatic cedar, automatic light, stainless closet rod and cedar shelf with keeper.

5) DOORS: Double door entryway with 1

3

/

8

cherry framed with Madrona burl veneer panels.

6) COUNTERS: Recessed Madrona burl veneer top, with solid cherry waterfall edge.

7) BLINDS: Duettes (or equal) with a fixed Roman shade valance.

8) PORTLIGHTS: Opening with screens and privacy covers.

9) TRIM: Cherry

10) JOINERY:

a) Soffit with cherry trim for lighting. b) Two – nightstands with drawer. c) One – 14-drawer dresser. d) Custom sofa between two cabinets on port side.

11) AUDIO/VIDEO: Sony PFM-32C1 32” plasma TV,

Mitsubishi HS-U778 VCR, Sony STR-DE 485 A/V receiver, Sony DVP-C650V 5-disc CD/DVD changer, with

SpeakerCraft CRS-Three surround sound speakers, and a

Polk Audio subwoofer. All equipment as listed or equal.

12) FURNITURE: Sofa and desk chair.

13) SAFE: Digital safe in walk-in closet.

XV MASTER STATEROOM HEAD

1) TOILETS: Two Headhunter Royal Flush Hydro Vac.

2) SHOWER: Crema Marfil (or equal) marble with

Grohe thermostat and Grohe fixtures. Tempered glass partition between tub and shower, Euro-style frameless tempered glass doors and chrome latches.

3) TUB: Kohler whirlpool tub with waterfall spout and

Jado Oriental tub handles. Silver nickel/gold finish. Tub surround and pillars faux-painted to match marble.

Westport 112’ specifications, revised 5/29/03 7

4) SINKS: Two – Kohler Vintage sinks with Jado

Oriental fixtures. Silver nickel/gold finish.

5) MIRROR: Four mirrored medicine cabinets.

6) HEADLINER: A-look mirror headliner.

7) LIGHTING: Recessed Halogen room lights. Vanity lights.

8) FLOORING: Crema Marfil (or equal) marble tile.

9) COUNTERS: Crema Marfil (or equal) marble with waterfall edge.

10) BATH ACCESSORIES: Jado Oriental accessories, silver nickel/gold finish. Two each: soap dish, covered toilet paper holder, towel bar, tumbler holder, towel ring, robe hook.

11) DOORS: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

12) JOINERY:

a) Full-width vanities port and starboard. b) Linen lockers port and starboard. c) Clothes hampers port and starboard.

XVI MID GUEST FOYER

1) OVERHEAD MIRROR: With cherry trim.

2) CONSOLE: Cherry cabinet, with cherry waterfall edge, recessed burl band and Crema Marfil (or equal) marble insert center. Lower wings to be cherry waterfall edge with burl insert only. Artwork or framed mirror above cabinet per interior designer.

3) FLOORING: Crema Marfil (or equal) marble tile.

4) LIGHTING: Overhead lighting.

XVII PORT GUEST STATEROOM

1) BERTH: Queen berth with innerspring mattress, upholstered headboard, custom recess for lighting and fourdrawer storage under.

2) LIGHTING: Recessed Halogen room and reading lights. Indirect rope accent lighting under berth and above soffit.

3) MIRRORS: Bronze mirrors on aft bulkhead above headboard and above dresser. Clear full length mirror on inside wardrobe door.

4) WARDROBE: Lined with aromatic cedar, automatic light, stainless closet rod and cedar shelf with keeper.

5) DOOR: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

6) COUNTERS: Recessed Madrona burl veneer top, with solid cherry waterfall edge.

7) BLINDS: Duettes (or equal) with fixed Roman shade valances.

8) PORTLIGHTS: Opening with screen and privacy cover.

9) TRIM: Cherry

10) JOINERY: a) Soffit with cherry trim for lighting. b) Two – three-drawer nightstands. c) One – six-drawer dresser. d) Entertainment center with cherry doors and 5-drawer dresser below.

11) AUDIO/VIDEO: Toshiba 20AF42 flat tube 20” TV,

Sony STR-DE 185 A/V receiver, Sony DVP-NS500V

CD/DVD player, and 1 pr Speakercraft CRS-Two speakers.

All equipment as listed or equal.

XVIII PORT GUEST STATEROOM HEAD

1) TOILET: Headhunter Royal Flush Hydro Vac.

2) SHOWER: Custom-molded fiberglass with Euro-style frameless tempered glass doors with chrome latch and

Grohe fixtures. Sealed shower light.

3) SINK: Kohler Vintage sink with Jado Oriental fixtures.

Silver nickel/gold finish.

4) MIRROR: Wall mirror above vanity.

5) LIGHTING: Recessed Halogen room lights. Vanity lighting.

6) FLOORING: Marble or granite tile as specified by interior designer.

7) COUNTERS: Crema Marfil marble (or equal) with backsplash, with waterfall edge.

8) BATH ACCESSORIES: Jado Oriental accessories, silver nickel/gold finish. One each: soap dish, covered toilet paper holder, towel bar, tumbler holder, towel ring, robe hook.

9) DOOR: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

10) JOINERY: Vanity.

XIX STARBOARD GUEST STATEROOM

1) BERTHS: Twin berths with innerspring mattress and upholstered headboard. Custom recess for lighting. Onedrawer storage under outboard berth.

2) LIGHTING: Recessed Halogen room and reading lights. Indirect rope accent lighting under berth and above soffit.

3) MIRRORS: Bronze mirrors on aft bulkhead above headboard. Clear full-length mirror on inside wardrobe door.

4) WARDROBE: Aromatic cedar-lined, with automatic light, stainless closet rod and cedar shelf with keeper.

Westport 112’ specifications, revised 5/29/03 8

5) DOOR: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

6) COUNTERS: Recessed Madrona burl veneer top, with solid cherry waterfall edge.

7) BLINDS: Duettes (or equal) with a fixed Roman shade valance.

8) PORTLIGHTS: Opening with screen and privacy cover.

9) TRIM: Cherry.

10) JOINERY:

a) Soffit with cherry trim for lighting. b) One – three-drawer movable nightstand. c) Entertainment center with cherry doors and 5-drawer dresser below.

11) AUDIO/VIDEO: Toshiba 20AF42 flat tube 20” TV,

Sony STR-DE 185 A/V receiver, Sony DVP-NS500V

CD/DVD player, and 1 pr Speakercraft CRS-Two speakers.

All equipment as listed or equal.

XX STARBOARD GUEST STATEROOM

HEAD

1) TOILET: Headhunter Royal Flush Hydro Vac.

2) SHOWER: Custom-molded fiberglass with Euro-style frameless tempered glass doors with chrome latch and

Grohe fixtures. Sealed shower light.

3) SINK: Kohler Vintage sink with Jado Oriental fixtures, silver nickel/gold finish.

4) MIRROR: Wall mirror above vanity.

5) LIGHTING: Recessed Halogen room lighting. Vanity lighting.

6) FLOORING: Marble or granite tile as specified by interior designer.

7) COUNTERS: Crema Marfil marble (or equal) with backsplash, with waterfall edge.

8) BATH ACCESSORIES: Jado Oriental accessories, silver nickel/gold finish. One each: soap dish, covered toilet paper holder, towel bar, tumbler holder, towel ring, robe hook.

9) DOOR: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

10) JOINERY: Vanity.

XXI CAPTAIN / CREW QUARTERS AFT

1) BERTHS: Captain is full-size and crew is three twin berths with U.S. foam mattress and storage below.

2) LIGHTING: Low-voltage 24V AC recessed room lights. 24V AC reading lights.

3) MIRRORS: Clear full-length mirror on inside wardrobe door.

4) WARDROBE: Aromatic cedar-lined, with automatic light, double doors, stainless closet rod and cedar shelf with keeper.

5) DOORS: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

6) COUNTERS: Corian Sierra Aurora with simple bullnose.

7) BLINDS: Duettes (or equal).

8) TRIM: Cherry.

9) JOINERY: a) Captain’s built-in nightstand. b) Captain’s desk with Corian top. c) Captain’s drawer under berth. d) Captain’s dresser e) Captain’s bookcase f) Crew drawers under berth. g) Crew lounge entertainment center h) Crew lounge galley upper and lower cabinets

10) APPLIANCES: Built-in Sub Zero 249RP refrigerator,

GE microwave, two upright, under-counter GE freezers, 1 each GE washer and dryer.

11) CREW LOUNGE: Upholstered settee, Toshiba

MV20FL4 20” TV/VCR combo, and Pioneer DEH-4400 stereo, with 1 pr Speakercraft CRS-One speakers. Cameo white Corian table. All equipment as listed or equal.

12) CAPTAIN’S QUARTERS: Panasonic TC-15LV1

TV/DVD player, Pioneer DEH-4400 stereo, and 1 pr

Speakercraft CRS-One speakers. All equipment as listed or equal.

XXII CAPTAIN / CREW QUARTERS

HEADS

1) TOILETS: Galley Maid. Freshwater plumbed.

Discharged to holding tank.

2) SHOWER: Custom-molded fiberglass with tempered glass doors and Grohe fixtures. Sealed shower light.

3) SINKS: Kohler Bolero with Grohe fixtures.

4) MIRROR: Wall mirror above vanity.

5) LIGHTING: Low-voltage recessed room lights.

Vanity lighting.

6) FLOORING: Azrock or Amtico commercial vinyl flooring with vinyl base molding.

7) COUNTERS: Corian Sierra Aurora with simple bullnose.

8) BATH ACCESSORIES: Ginger hardware. One each: soap dish, toilet paper holder, towel bar, tumbler holder, towel ring, robe hook.

Westport 112’ specifications, revised 5/29/03 9

9) DOORS: 1

3

/

8

” solid cherry framed with Madrona burl veneer panels.

JOINERY:

Vanity and medicine cabinet.

XXIII SALON

1) DAY HEAD: Headhunter Royal Flush Hydro Vac, mirrored overhead, vanity light, marble vanity top with black Kohler Caxton undermount sink, Jado Oriental gold finish accessories: faucet, towel ring, soap dish, and covered toilet paper holder. Ceiling light fixture. Crema

Marfil (or equal) marble tile flooring and stone wainscoting.

2) SALON CABINETRY: End tables. Raised buffets port and starboard, center buffet: cherry waterfall edge with recessed burl band and stone insert. Lower side buffets: cherry waterfall edge with recessed burl top.

3) FURNITURE: Sofa to starboard with game table and

4 chairs portside. Cocktail table and one lounge chair with ottoman.

4) SALON BAR: Includes a walk-up bar (visual extension of aft deck bar), U-Line Combo 29FF refrigerator/ice maker, and storage. Bar top has cherry waterfall edge with recessed burl top, with inlayed stone behind doors. Mirror polished stainless round sink, and chrome faucet.

5) ENTERTAINMENT CENTER: 42” plasma flat screen television with custom lift-up elevator and Crema

Marfil or equal top.

6) FORMAL DINING: Veneered table base with oval

¾” tempered glass top. 8 dining chairs.

7) CHINA/STEMWARE STORAGE: Lucite storage case for Builder-provided 12 place settings china, stemware and formal silverware.

8) OVERHEAD DETAIL: Perimeter soffit with crown molding and rope light. Domed overhead ceiling feature

(oval) over the dining area, with dining pendant.

9) AUDIO/VIDEO STORAGE: Storage for CD’s, videotapes and DVDs.

10) HEADLINER: Majilite (or equal) vinyl headliner.

11) BLINDS: Silhouette blind with fixed Roman shade valance in custom blind pocket. Vertiglide blinds in aft salon.

12) AFT DOOR: Stainless steel framed glass sliding door, installed as tonnage door with J-bolts.

13) MAIN DECK FOYER: Large entry in foyer on starboard side. Niche to have stone with waterfall edge.

14) COMPANIONWAY FLOORING: Crema Marfil (or equal) marble tile in port and starboard companionways and aft salon entry.

15) AUDIO/VIDEO:

a) Fujitsu PDS-4229 42” gas plasma display television b) Mitsubishi HS-U778 VCR c) Denon AVR-2803 A/V receiver d) Sony DVP-NC650V 5 disc CD/DVD changer e) Speakercraft CRS-Three surround sound speaker system f) Polk Audio PSW650 powered subwoofer g) DVDO I-Scan video line doubler h) Niles Switcher SPS4

All equipment as listed or equal.

Pantry:

Refrigerator SubZero 249RP

Crew Quarters:

Refrigerator SubZero 249RP

Upright Freezer (2) GE FUM5SAARWH

XXIV GALLEY/DINETTE

XXVI PANTRY

1) SINK: Stainless Kohler extra deep with Kohler K-3294 cutting board and Grohe soap dispenser.

2) FAUCET: Grohe LadyLux.

3) STOVE FIDDLES: Cooktop pan holders.

4) GALLEY FLOORING: Azrock commercial vinyl flooring with inlay.

5) OVERHEAD DETAIL: Perimeter soffit with crown molding and rope light.

6) CABINETS: Cherry.

7) DINETTE SETTEE AND DINING TABLE: Builtin, fabric as specified by interior designer. Surround to be cherry waterfall edge with recessed burl top. Table to be cherry waterfall edge with recessed burl band and stone insert.

8) COUNTERTOPS: Granite with waterfall edge.

9) AUDIO/VIDEO: 20” flat tube TV, Niles volume control WVC-2, and 1 pr Speakercraft CRS-One speakers.

All equipment as listed or equal.

1) Walk-in pantry with storage under pilothouse

XXVII PILOTHOUSE

1) HELM STATION WHEEL: Stainless steel 24”

Destroyer.

2) ENGINE CONTROLS: Electronic Detroit Diesel.

3) ENGINE INSTRUMENTATION: Detroit Diesel

DDEC panel.

4) FLOORING: Stain resistant carpeting.

5) BULKHEADS: Majilite (or equal).

6) HEADLINER: Majilite (or equal).

7) CONTROL CONSOLE: Black Spinneybeck leather with leather dash hoods.

8) DRAWERS: Chart drawers adjacent to console.

9) SETTEE: Fabric or leather as specified by interior designer.

10) SETTEE TABLE: Cherry waterfall edge with recessed madrona burl top.

11) HELM CHAIR: Crown Classic. Fabric or leather to match settee.

XXV APPLIANCES

: (All equipment as listed or equal)

Galley:

Cooktop Dacor 5 Burner

Touch Top ETT3658

Convection CPS130S

Microwave/

Insta-hot Franke Little Butler LB280

Salon:

Refer/Icemaker U-Line

Aft Deck:

Refrigerator Whirlpool ELO5CCJW

Flybridge:

Refer/Icemaker U-Line

Westport 112’ specifications, revised 5/29/03 10 burl top. With swing-out stool.

13) SLIDING HATCH: To flybridge.

14) COUNTER: Recessed laminate top with cherry waterfall edge.

15) BRONZE MIRROR: Aft bulkhead.

16) BOOKCASE: Built-in.

17) FAX CABINET:

18) HVAC: With custom diffuser on aft bulkhead.

19) AUDIO/VIDEO: NEC LCD 1550M 15” monitor,

Pioneer DEH-4400 AM/FM/CD stereo with 1 pr

SpeakerCraft CRS-One speakers. All equipment as listed or equal.

XXVIII INTERIOR DÉCOR ITEMS

Some of the following items may be changed from standard décor if selected prior to the dates outlined in the Schedule of Décor Decisions. If you wish to change these items, your décor budget will be adjusted accordingly. Up to 50 hours of interior design time for fabric and décor selections are included.

1) HEADLINER: Majilite Finesse (or equal).

2) WALL COVERINGS: Majilite Finesse (or equal).

3) SETTEE VINYL: Majilite Finesse (or equal).

4) FABRICS: Headboards, master settee, forward guest settee, bunk rails and beds (or equal).

5) CARPET: Fabrica stain-resistant synthetic (or equal).

6) FORMAL DINING: Twelve (12) place settings china, formal silverware, stemware and table linens.

7) CASUAL DINING: Twelve (12) place settings Mikasa

(or equal) dinnerware, flatware and stemware.

8) BARWARE: Twelve (12) highball glasses, twelve

(12) double old-fashioned glasses.

9) COOKWARE: 12-piece All-Clad stainless cookware,

Henkel cutlery, KitchenAid mixer, Cuisinart, blender and accessories.

10) FURNITURE: Master sofa, master vanity stool, upholstered forward guest settee, forward guest vanity stool, eight (8) dining chairs, dining table, one (1) lounge chair, four (4) game chairs, one (1) game table, salon sofa, cocktail table, end table, two (2) galley bar stools and six (6) aft deck chairs, three (3) aft deck bar stools.

11) LINENS: Bed and bath includes 2 sets of towels, 2 sets of sheets, pillows, comforters and blankets.

12) ART AND ACCESSORIES: Art, art lights, and accessories included.

XXIX MISCELLANEOUS EQUIPMENT

1) BOARDING STAIR: 7-step deluxe Marquipt 24” with brackets at port and starboard gates, stored on starboard bulwark.

2) SWIM LADDER: Stainless steel ladder powdercoated white, bottom painted black to match hull. 24” mounted on transom.

3) BOAT HOOK: One 1

1

/

2

” x 8’ with chrome plated hook end.

4) COVERS: Sunbrella snap-on covers for flybridge bar, tables, settee, 4 bar stools, 2 helm chairs, instrument console, shore boat, bow seat and aft deck seating, and boarding stair in stowed position.

5) CUSHIONS: Aft deck settee, bow seat, flybridge settee and sun pad. Sunbrella fabric with dry fast foam fill.

6) SHORE ADAPTERS: One Charles smart “y” 100.

Westport 112’ specifications, revised 5/29/03 11

7) SPARE PARTS: a) MTU/DDC spare parts kit b) Northern Lights spare parts kit c) Sea Recovery spare parts kit d) Ship spares kit

8) PROVISIONS: a) Fuel tank will be full upon delivery. b) Engines will have oil and coolant. c) Oil and filters will be provided for a complete oil change. d) Cleaning supplies, towels, etc.

9) WHEEL PULLER: Built to pull vessel’s propellers.

10) FLAGSTAFFS: Stern flagstaff rigged with

1

/

8

” nylon line, and bow jack staff rigged with

1

/

8

” nylon line; both rigged per standard yacht practice.

11) PASSERELLE: Marquipt, manual

XXX SAFETY EQUIPMENT

1) LIFE RAFT: 16-man Zodiac life raft.

2) LIFE PRESERVERS: Thirteen Coast Guard-approved adult life preservers with water lights. Six Coast Guardapproved child life preservers with water lights.

3) RING BUOYS: Two 24” diameter secured on exterior of vessel.

4) FLARES: Flare kit included.

5) BELL: Perko 179 (or equal) ship’s bell per Coast

Guard regulations, stored in doghouse.

6) FIRE EXTINGUISHER: Dry chemical type to be installed in suitable locations; three - 10 lb., five - 5 lb., and four 2½ lb.

7) GPIRB: Northern Airborne Technology NA-S1520 (or equal).

8) MEDICAL KIT: Zee #155 with soft case.

9) SAFETY TETHERS: Track and car system under soffit, above salon windows.

XXXI TENDER

1) NOVURANIA: 17’ 530 Deluxe with 90 HP Honda outboard motor, VHF, compass, and transom ladder.

XXXII PLANS AND SUPPORT

Vessel will be provided with a complete vessel owner’s plan package including:

1) Docking plan

2) Electrical schematic

3) Equipment informational packages

4) Plumbing plan

5) Outboard profile

6) Fuel oil system diagram

7) Freshwater and drain diagram

8) Air-conditioning arrangement

9) Lighting arrangement

10) Main switchboard diagram

11) Tank capacity curves

12) SHIPYARD SUPPORT: In addition to customer/crew orientation (approximately 16 hours) on the vessel while at the Shipyard and during sea trials, Shipyard will provide a support person to travel with the vessel during the first 5 days of use. Shipyard will also provide a contact person to provide ongoing support in all areas (mechanical, parts, etc.)

Westport 112’ specifications, revised 5/29/03 12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement

Table of contents
