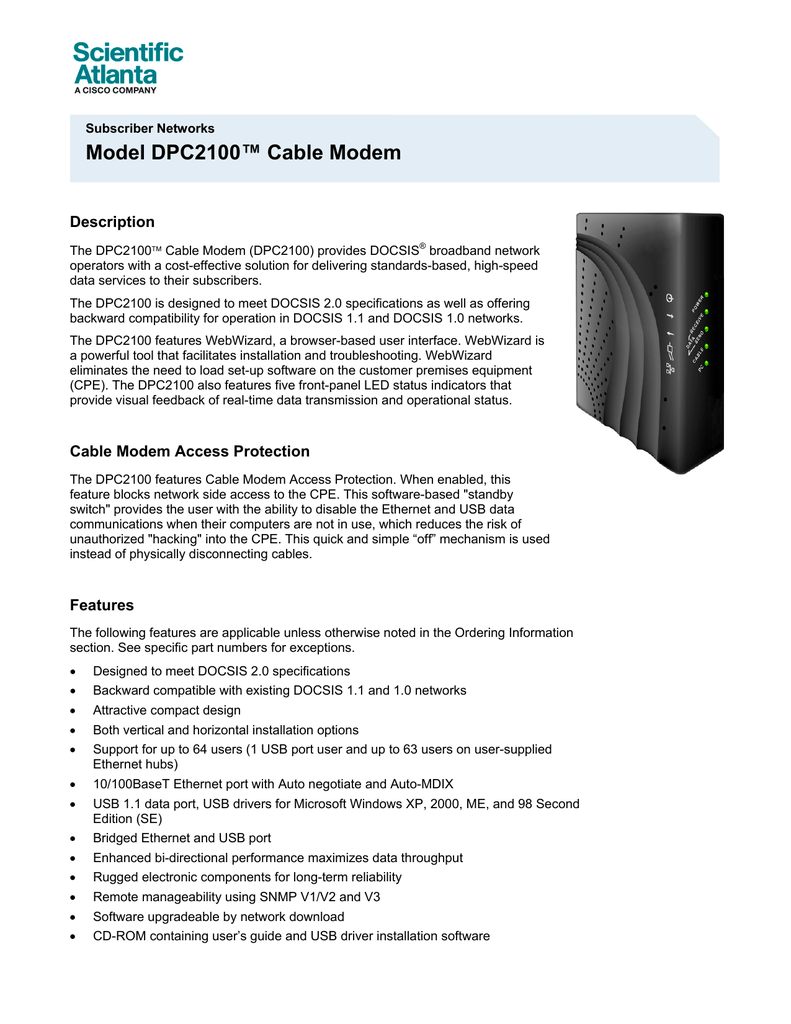

Data Sheet-Model DPC2100 Cable Modem

Subscriber Networks
Model DPC2100™ Cable Modem
Description
The DPC2100™ Cable Modem (DPC2100) provides DOCSIS® broadband network
operators with a cost-effective solution for delivering standards-based, high-speed
data services to their subscribers.
The DPC2100 is designed to meet DOCSIS 2.0 specifications as well as offering
backward compatibility for operation in DOCSIS 1.1 and DOCSIS 1.0 networks.
The DPC2100 features WebWizard, a browser-based user interface. WebWizard is
a powerful tool that facilitates installation and troubleshooting. WebWizard
eliminates the need to load set-up software on the customer premises equipment
(CPE). The DPC2100 also features five front-panel LED status indicators that
provide visual feedback of real-time data transmission and operational status.
Cable Modem Access Protection
The DPC2100 features Cable Modem Access Protection. When enabled, this
feature blocks network side access to the CPE. This software-based "standby
switch" provides the user with the ability to disable the Ethernet and USB data
communications when their computers are not in use, which reduces the risk of
unauthorized "hacking" into the CPE. This quick and simple “off” mechanism is used
instead of physically disconnecting cables.
Features
The following features are applicable unless otherwise noted in the Ordering Information
section. See specific part numbers for exceptions.
•
Designed to meet DOCSIS 2.0 specifications
•
Backward compatible with existing DOCSIS 1.1 and 1.0 networks
•
Attractive compact design
•
Both vertical and horizontal installation options
•
Support for up to 64 users (1 USB port user and up to 63 users on user-supplied
Ethernet hubs)
•
10/100BaseT Ethernet port with Auto negotiate and Auto-MDIX
•
USB 1.1 data port, USB drivers for Microsoft Windows XP, 2000, ME, and 98 Second
Edition (SE)
•
Bridged Ethernet and USB port
•
Enhanced bi-directional performance maximizes data throughput
•
Rugged electronic components for long-term reliability
•
Remote manageability using SNMP V1/V2 and V3
•
Software upgradeable by network download
•
CD-ROM containing user’s guide and USB driver installation software
Model DPC2100 Cable Modem
Ordering Information
Contact your Sales Representative for product availability in your area.
DPC2100 Hardware Revision 2.1
Description
Part Number
DPC2100 Cable Modem for North American NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 120 V AC / 60 Hz In-line power supply with attached power cord
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
Standard part number for North America
4012460
DPC2100 Cable Modem for North American NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 100-120 V AC / 50-60 Hz Plug-in high efficiency linear-switching power supply
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
North America
4018546
DPC2100 Cable Modem with International tuning plan. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 230 V AC / 50 Hz In-line power supply with attached power cord with 2-pin connector for
continental Europe
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
4013700
DPC2100 Cable Modem with International tuning plan. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 230 V AC / 50 Plug-in high efficiency linear-switching power supply with Euro-style 2-pin
connector for continental Europe
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
4017977
DPC2100 Cable Modem with International tuning plan. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 120 V AC / 60 Hz In-line power supply with attached power cord
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
4013701
2
Model DPC2100 Cable Modem
Ordering Information, continued
DPC2100 Hardware Revision 2.1, continued
Description
Part Number
DPC2100 Cable Modem with International tuning plan. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 100-240 V AC / 50-60 Hz, 12 V DC / 1A In-line switching mode power supply (order
power cord separately)
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
4013702
DPC2100 Cable Modem with International tuning plan. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 230 V AC / 50 Hz, 12 V DC / 1A In-line linear power supply with attached cord and BS1363 style 3-pin United Kingdom style power connector
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
Etisalat configuration
4013703
DPC2100 Cable Modem for North American NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 100-240 V AC / 50-60 Hz, 12 V DC / 1A In-line switching mode power supply (order
power cord separately)
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
4013706
DPC2100 Cable Modem for North American NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 120 V AC / 60 Hz In-line power supply with attached power cord
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
Comcast configuration
4013709
DPC2100 Cable Modem with International tuning plan. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 220 V AC / 50 Hz, 12 V DC / 1A In-line linear power supply with attached power cord for
Argentina
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
Cablevision Argentina configuration
4013710
DPC2100 Cable Modem with International tuning plan. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 220 V AC / 50 Hz, 12 V DC / 1A In-line linear power supply with attached power cord for
Argentina
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
Argentina configuration
4013711
3
Model DPC2100 Cable Modem
Ordering Information, continued
DPC2100 Hardware Revision 2.1, continued
Description
Part Number
DPC2100 Cable Modem for Korean NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• 220 V AC / 60 Hz, 12 V DC / 1A In-line power supply with attached power cord for Korea
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
4013730
DPC2100 Cable Modem for Korean NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• No AC power supply
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
CoreComm/Powercomm configuration
4013729
DPC2100 Cable Modem for Korean NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.1
• Ethernet cable
• Power supply not included
• USB cable not included
• CD-ROM containing user’s guide and USB drivers not included
Hanaro configuration
4018775
DPC2100 Hardware Revision 2.11
Description
Part Number
DPC2100 Cable Modem for Japan NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.11 with 5 MHz to 55 MHz / 88 MHz to 860 MHz
diplexer
• 100-120 V AC / 50-60 Hz, 12 V DC / 1A Plug-in switching power supply for Japan
• No USB Port
• Ethernet cable
• Printed Japanese user’s guide (Does not include CD-ROM)
ICS configuration
4013704
DPC2100 Cable Modem for Japan NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.11 with 5 MHz to 55 MHz / 88 MHz to 860 MHz
diplexer
• 100-120 V AC / 50-60 Hz, 12 V DC / 1A Plug-in switching power supply for Japan
• No USB Port
• Ethernet cable
• Printed Japanese user’s guide (Does not include CD-ROM)
NOS configuration
4019913
4
Model DPC2100 Cable Modem
Ordering Information, continued
DPC2100 Hardware Revision 2.11, continued
Description
Part Number
DPC2100 Cable Modem PCB Assembly
• DOCSIS 2.0, Hardware Revision 2.11 with 5 MHz to 55 MHz / 88 MHz to 860 MHz diplexer
• Modem PCB only, no USB port, no LEDs, PCB pins replace connectors for Ethernet and
DC powering
• No user’s guide (Does not include CD-ROM)
KDDI configuration
4013705
DPC2100 Cable Modem for North American NTSC systems. Includes:
• DOCSIS 2.0, Hardware Revision 2.11 with 5 MHz to 55 MHz / 88 MHz to 860 MHz diplexer
• 220 V AC / 60 Hz, 12 V DC / 1A In-line power supply with attached power cord for Korea
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB drivers
Korean configuration
4013728
Replacement Parts
AC Power Supplies 12 V DC
Part Number
12 V DC High Efficiency Linear-Switching, Class 2
100-120 V AC / 50-60 Hz, 12 V DC / 1A In-line linear-switching power supply with attached
power cord and connector for North America and Japan
4018777
100-120 V AC / 50-60 Hz, 12 V DC / 1A Plug-in linear-switching power supply for North
America and Japan
4015452
220 V AC / 50-60 Hz, 12 V DC / 1A Plug-in linear-switching power supply for Argentina
4015457
230 V AC / 50-60 Hz, 12 V DC /1A Plug-in linear-switching power supply for Australia
4018797
230 V AC / 50-60 Hz, 12 V DC /1A Plug-in linear-switching power supply with
Euro-style connector
4015453
220 V AC / 50-60 Hz, 12 V DC / 1A Plug-in linear-switching power supply for Korea
4015458
230-240 V AC / 50-60 Hz, 12 V DC /1A Plug-in linear-switching power supply with BS-1363
United Kingdom style 3-pin connector
4018794
12 V DC Universal Switching Mode, Class 2
100-240 V AC / 50-60 Hz, 12 V DC / 1A In-line universal switching mode power supply,
Class II, C7 AC connector, 2 conductor power cord
(power cord not included, order power cord separately)
4009116
12 V DC, Linear, Class 2
120 V AC / 60 Hz, 12 V DC / 1A In-line linear power supply with attached power cord and
connector for North America
749826
220 V AC / 50 Hz, 12 V DC / 1A In-line linear power supply with attached power cord and
connector for Argentina
4012871
220 V AC / 60 Hz, 12 V DC / 1A In-line linear power supply with attached power cord and
connector for Korea
4004222
230 V AC / 50 Hz, 12 V DC / 1A In-line linear power supply with attached power cord and
CEE7/16 Euro plug connector
4002193
230-240 V AC / 50 Hz, 12 V DC / 1A In-line linear power supply with attached power cord
and BS-1363 United Kingdom style 3-pin connector
4004768
5
Model DPC2100 Cable Modem
Replacement Parts, continued
Power Cords
Part Number
Class 2
Power cord, 2 conductor, North America, NEMA 1-15 to C7, non-polarized
1002239
Power cord, 2 conductor, Japan, NEMA 1-15 to C7, non-polarized
207586
Power cord, 2 conductor, European, Euro plug CEE7/16 to C7
503414
Power cord, 2 conductor, United Kingdom, BS1363 to C7
1002798
Power cord, 2 conductor, Brazil Euro plug CEE7/16 to C7, INMETRO
4009115
Power cord, 2 conductor, Korea
4010439
Power cord, 2 conductor, Argentina
4012938
Cables
Part Number
Ethernet cable, standard length, 48 inches long
740580
Ethernet cable, 2 meters long
4018790
USB cable
740579
Description
Part Number
CD-ROM with user’s guide and USB drivers
4001911
Scientific Atlanta is a registered trademark of Scientific-Atlanta, Inc.
DPC2100 is a trademark of Scientific-Atlanta, Inc.
Cisco, Cisco Systems, and the Cisco Systems logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates
in the U.S. and certain other countries.
DOCSIS is a registered trademark of Cable Television Laboratories, Inc.
All other trademarks shown are trademarks of their respective owners.
Specifications and product availability are subject to change without notice.
© 2007 Scientific-Atlanta, Inc. All rights reserved.
Scientific-Atlanta, Inc.
1-800-722-2009 or 770-236-6900
www.scientificatlanta.com
Part Number 7007012 Rev E
May 2007
