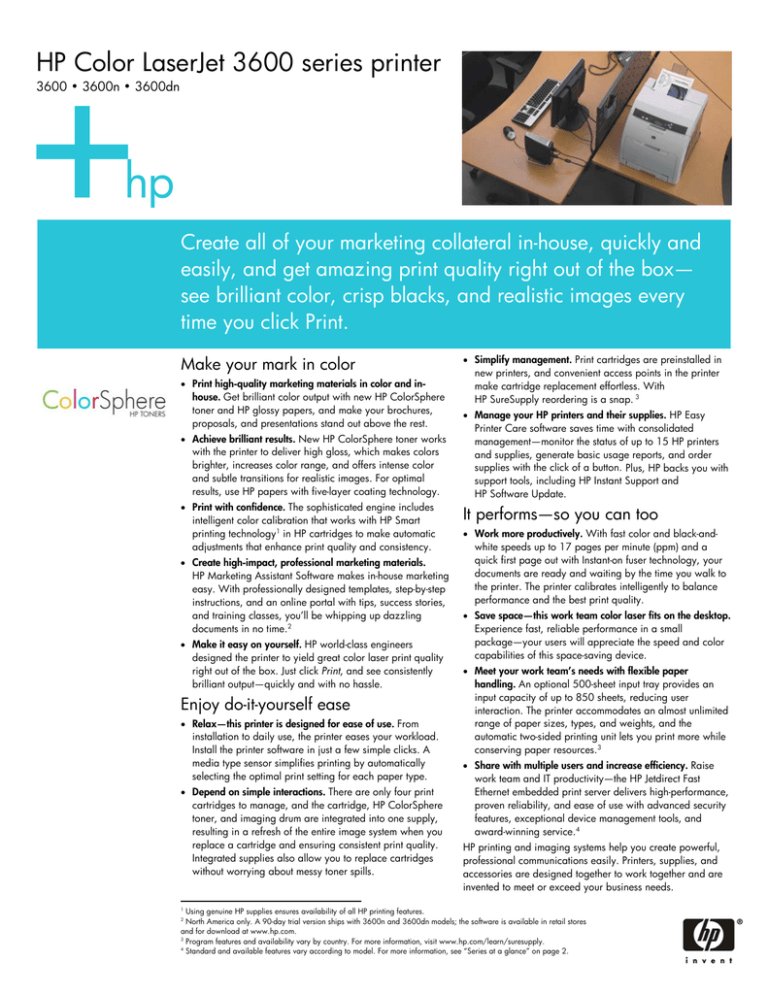

HP Color LaserJet 3600 series printer
3600 • 3600n • 3600dn
Create all of your marketing collateral in-house, quickly and
easily, and get amazing print quality right out of the box—
see brilliant color, crisp blacks, and realistic images every
time you click Print.
Make your mark in color
• Print high-quality marketing materials in color and inhouse. Get brilliant color output with new HP ColorSphere
toner and HP glossy papers, and make your brochures,
proposals, and presentations stand out above the rest.
• Achieve brilliant results. New HP ColorSphere toner works
with the printer to deliver high gloss, which makes colors
brighter, increases color range, and offers intense color
and subtle transitions for realistic images. For optimal
results, use HP papers with five-layer coating technology.
• Print with confidence. The sophisticated engine includes
intelligent color calibration that works with HP Smart
printing technology1 in HP cartridges to make automatic
adjustments that enhance print quality and consistency.
• Create high-impact, professional marketing materials.
HP Marketing Assistant Software makes in-house marketing
easy. With professionally designed templates, step-by-step
instructions, and an online portal with tips, success stories,
and training classes, you’ll be whipping up dazzling
documents in no time.2
• Make it easy on yourself. HP world-class engineers
designed the printer to yield great color laser print quality
right out of the box. Just click Print, and see consistently
brilliant output—quickly and with no hassle.
Enjoy do-it-yourself ease
• Relax—this printer is designed for ease of use. From
installation to daily use, the printer eases your workload.
Install the printer software in just a few simple clicks. A
media type sensor simplifies printing by automatically
selecting the optimal print setting for each paper type.
• Depend on simple interactions. There are only four print
cartridges to manage, and the cartridge, HP ColorSphere
toner, and imaging drum are integrated into one supply,
resulting in a refresh of the entire image system when you
replace a cartridge and ensuring consistent print quality.
Integrated supplies also allow you to replace cartridges
without worrying about messy toner spills.
• Simplify management. Print cartridges are preinstalled in
new printers, and convenient access points in the printer
make cartridge replacement effortless. With
HP SureSupply reordering is a snap. 3
• Manage your HP printers and their supplies. HP Easy
Printer Care software saves time with consolidated
management—monitor the status of up to 15 HP printers
and supplies, generate basic usage reports, and order
supplies with the click of a button. Plus, HP backs you with
support tools, including HP Instant Support and
HP Software Update.
It performs—so you can too
• Work more productively. With fast color and black-andwhite speeds up to 17 pages per minute (ppm) and a
quick first page out with Instant-on fuser technology, your
documents are ready and waiting by the time you walk to
the printer. The printer calibrates intelligently to balance
performance and the best print quality.
• Save space—this work team color laser fits on the desktop.
Experience fast, reliable performance in a small
package—your users will appreciate the speed and color
capabilities of this space-saving device.
• Meet your work team’s needs with flexible paper
handling. An optional 500-sheet input tray provides an
input capacity of up to 850 sheets, reducing user
interaction. The printer accommodates an almost unlimited
range of paper sizes, types, and weights, and the
automatic two-sided printing unit lets you print more while
conserving paper resources.3
• Share with multiple users and increase efficiency. Raise
work team and IT productivity—the HP Jetdirect Fast
Ethernet embedded print server delivers high-performance,
proven reliability, and ease of use with advanced security
features, exceptional device management tools, and
award-winning service.4
HP printing and imaging systems help you create powerful,
professional communications easily. Printers, supplies, and
accessories are designed together to work together and are
invented to meet or exceed your business needs.
Using genuine HP supplies ensures availability of all HP printing features.
North America only. A 90-day trial version ships with 3600n and 3600dn models; the software is available in retail stores
and for download at www.hp.com.
Program features and availability vary by country. For more information, visit www.hp.com/learn/suresupply.
Standard and available features vary according to model. For more information, see “Series at a glance” on page 2.
HP Color LaserJet 3600 series printer
1 Intuitive, two-line
display with a built-in
help function
HP Color LaserJet 3600dn shown
2 250-sheet top output
bin with long paper
3 One-door access to the
preinstalled, easy-toreplace print cartridges
4 100-sheet multipurpose
tray enables automatic
and manual feeding for
specialty papers
5 250-sheet input tray for
350-sheet total
standard input capacity
6 Built-in automatic
two-sided printing
7 On/off switch
8 USB Hi Speed port
provides simple
9 Up to 128 MB SDRAM
memory and a powerful
360 MHz processor
10 HP Jetdirect Fast
Ethernet embedded
print server for easy
network sharing
Series at a glance
HP Color LaserJet 3600 printer
HP Color LaserJet 3600n printer
HP Color LaserJet 3600dn printer
• 64 MB RAM (not user
• 64 MB RAM (not user
• 128 MB RAM
• HP Jetdirect Fast Ethernet
embedded print server
• HP Jetdirect Fast Ethernet
embedded print server
• Built-in automatic two-sided
Promote your business—simply and effectively.
Vivid color and powerful performance
New HP ColorSphere toner
If you want brilliant print quality that exceeds your
expectations every time you print, but you don’t want
to make a lot of adjustments or sacrifice fast printing
speed, then the HP Color LaserJet 3600 series printer
is just what you’ve been looking for.
Your prints will shine with uniform gloss and a
dynamic range of color. The new HP ColorSphere
toner features gloss levels that are significantly
improved over previous HP color toners when printing
on glossy paper. Improved melting and fusing
technologies work in sync with the new
HP ColorSphere toner to enable superior toner release
and flow. The result is brilliant, intense colors every
time you print.
Building on 20 years of laser experience, HP
improves its award-winning color laser printing
products with every generation. HP’s out-of-the-box
color laser print quality leads the industry. Without
bothering with printer settings, you’ll get great results
each time you click Print. And because performance
and print quality work hand-in-hand with this printer,
you’ll enjoy fast printing speeds that won’t slow you
In-house color marketing
Print short-run color collateral in-house, quickly and
affordably. When you print materials in-house, you
have control over the process: you ensure that printing
is effective, efficient, and affordable, and that any
private company information stays safe. Printing
frequently updated materials on-demand, such as
promotional flyers or brochures, means that you can
make changes at a moments notice and never waste
printed material due to obsolete information. You also
save the time and cost of inventory management.
Companies ranging from small to large report that
HP’s affordable, best-in-class color solutions deliver
money to their bottom line. Some ways, such as
improving your image and adding impact to
marketing publications, are indirect, while others are
direct and measurable, such as productivity gains and
tangible cost savings with in-house color printing.
Award-winning HP support
HP’s expert knowledge will help you make the most of
your printer and ensure your equipment is running at
peak efficiency. Start with a one-year, next day,
on-site, limited hardware warranty, backed by free
telephone and Web support from the award-winning
HP Customer Care (warranty and availability vary
according to region). To further guarantee trouble-free
operation, upgrade with service and support options
such as installation, network configuration, and
extended warranty support.
HP’s new color toner enables a wider range of colors
because each toner particle conforms to an extremely
consistent size and shape. This consistency allows
toner particles to be placed on the page with the
precision needed to produce a wide range of colors
with the most subtle differences of shade.
HP ColorSphere toner is also designed to enable
faster printing time. The toner particles are chemically
grown around an optimally sized wax core,
producing particle sizes that are designed to work
with the fuser’s Instant-on technology for faster image
processing with optimum results.
HP printer management tools
Who says you can’t do it all? With a little help, HP
knows you can. HP makes printer management and
supplies reordering trouble-free.
• View printer and supplies status, perform simple
troubleshooting, and manage printing functions for
an individual printer from your computer, rather
than the printer control panel or through the print
driver Services tab (for end users).
• Manage groups of printers from a single access
point. For IT professionals, HP Web Jetadmin helps
you install, configure, and remotely manage all of
your network peripherals through a simple Web
interface. For end users and office managers,
HP Easy Printer Care Software helps you manage
up to 15 HP printers from your computer to keep
them running at their best.
HP Color LaserJet 3600 series printer
Technical specifications
HP Color LaserJet 3600 printer (Q5986A)
Network connectivity
Client operating systems
Network operating systems4
Network protocols
Dimensions (w by d by h)
Weight (includes print cartridge)
What’s in the box
Print cartridges
Also includes
HP Color LaserJet 3600n printer (Q5987A)
Up to 17 ppm
Less than 14 seconds
HP ImageREt 3600, 600 by 600 dpi
360 MHz Fujitsu FR555 FRV
64 MB SDRAM (not customer upgradeable)
One available 144-pin SDRAM slot
1,000 to 3,000 pages
50,000 pages
Print speed3
First page out
Image enhancement, resolution
Memory, standard
Available memory slots
Memory, maximum
Recommended monthly volume
Maximum monthly duty cycle
Duplex printing
HP Color LaserJet 3600dn printer (Q5988A)
100-sheet multipurpose tray, 250-sheet tray 2, and optional 500-sheet tray 3
250-sheet top output bin
Manual two-sided printing
Built-in automatic two-sided printing
Multipurpose tray: 3 by 5 to 8.5 by 14 in (76 by 127 to 216 by 356 mm); letter, legal, 8.5 by 13 inches, executive, A4, A5, B5 (JIS), envelopes;
tray 2 and optional tray 3: letter, legal, 8.5 by 13 inches, executive, A4, A5, B5 (JIS); automatic two-sided printing: letter, legal, A4
Multipurpose tray: 16 to 58 lb bond (60 to 220 g/m2); Manual two-sided printing, 250-sheet and 500-sheet input trays: 16 to 32 lb bond (60 to 120 g/m2);
envelope printing from multipurpose tray: 16 to 24 lb (60 to 90 g/m2)
Paper (plain, preprinted, letterhead, prepunched, bond, recycled, tough, color, gloss, rough), transparencies, labels, envelopes, cardstock, user-defined
USB 2.0 Hi-Speed port
HP Jetdirect Fast Ethernet embedded print server, optional 802.11b/g Wireless LAN and other networking accessories
Note: Networking accessories must be added via an external unit
HP JetReady 4.2 (for HP postscript emulation printing HP recommends the HP Color LaserJet 3800 series printer)
Not applicable (Based on installed typefaces on host computer. Print engine only has fonts for internal pages and ASCII.)
Microsoft Windows 98, Me, 2000, XP Home, XP Professional, Server 2003; Mac OS X version 10.2, 10.3 and 10.4
Via HP Jetdirect print servers: Microsoft Windows 95, 98, Me, 2000, XP Home, XP Professional, Server 2003; Mac OS X version 10.2, 10.3 and 10.4;
Red Hat Linux 6.x and later
Via HP Jetdirect print servers: DHCP, Auto IP, BOOTP, SLP, WINS, RARP, Telnet, TFTP, TCP/IPv4, UDP, LPD, Port9100, SNMP v1, DNS, CUPS/Linux
15.7 by 17.7 by 15.7 in (400 by 450 by 400 mm)
15.7 by 17.7 by 16.7 in (400 by 450 by 423 mm)
59.6 lb (27.1 kg)
61.6 lb (28 kg)
Printer, 100-sheet multipurpose tray, 250-sheet input tray, power cable, drivers and documentation on CD-ROM, in-box documentation (Getting Started Guide)
Preinstalled, full-capacity 6,000-page black and 4,000-page cyan, magenta, and yellow HP Color LaserJet print cartridges with HP ColorSphere toner5
USB Hi-Speed cable
HP Jetdirect Fast Ethernet embedded print server
HP Jetdirect Fast Ethernet embedded print server,
built-in automatic two-sided printing
Ordering information
Environmental ranges
Operating temperature
Operating: 50 to 81 degrees F (10 to 27 degrees C)
Recommended: 63 to 77 degrees F (17 to 25 degrees C)
Storage: 32 to 95 degrees F (0 to 35 degrees C)
Relative humidity
Operating: 10 to 70 percent
Recommended: 20 to 60 percent
Non-operating: 10 to 90 percent
0 to 8530 ft (0 to 2600 m)
Power: active: 6.9 B(A); Ready: 5.3 B(A)
Pressure (bystander): active: 55 dB(A), standby: 39 d(B)A
Required input voltage
110 to 127 V (±10 percent), 50/60 Hz (±2 Hz)
220 to 240 V (±10 percent), 50/60 Hz (±2 Hz)
Power consumption (Energy Star® compliant)6
335 watts
48 watts
15 watts
0.5 watts
Power certifications
EMC: CISPR 22: 1993/EN 55022: 1994 Class B, EN 61000-3-2: 2000, EN 61000-3-3:
1995, EN 55024: 1998, FCC Title 47 CFR, Part 15 Class B (US), ICES-003, Issue 4
(Canada), GB9254-1998, EMC Directive 89/336/EEC with CE Marking (Europe), other
EMC approvals as required by individual countries
Safety: IEC 60950-1 (International), EN 60950-1 (EU), IEC 60825-1, UL/cUL Listed
(US/Canada), GS License (Europe), EN 60825-1 Class 1, 21 CFR Ch. 1/SubCh. J (Class 1
Laser/LED Device) GB4943-2001, Low Voltage Directive 73/23/EEC with CE Marking
(Europe), other safety approvals as required by individual countries.
One-year, next day, on-site limited hardware warranty with phone and e-mail support
Exact speed varies depending on the system configuration, software application, driver, and document complexity.
Not all protocol and operating system combinations are supported. For more information, go to: www.hp.com/support/net_printing.
All print cartridge page yields are based on five percent page coverage.
Values subject to change. See www.hp.com/support/clj3600 for current information. Power reported is the highest value measured using all standard
Energy Star and the Energy Star logo are U.S. registered marks of the United States Environmental Protection Agency. Linux is a
U.S. registered trademark of Linus Torvalds. HP and the invent signature are trademarks of the Hewlett-Packard Company.
Microsoft, Windows, Windows NT, and Windows XP are U.S. registered trademarks of Microsoft Corporation.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For more information visit our website at www.hp.com
0000-0000ENUC, 11/2005
HP Jetdirect 175x Fast Ethernet external print server (USB)
HP Jetdirect en3700 Fast Ethernet external print server (USB Hi Speed)
HP Jetdirect ew2400 802.11g Wireless and Fast Ethernet external
print server (USB Hi Speed)
HP Jetdirect 380x 802.11b Wireless external print server (USB)
500-sheet paper input feeder and tray
Print cartridges with HP ColorSphere toner
Black print cartridge (6,000 pages)
Cyan print cartridge (4,000 pages)
Yellow print cartridge (4,000 pages)
Magenta print cartridge (4,000 pages)
USB Hi-speed printer cable (2-meter [6.5-foot] standard)
Service and support
On-site installation
On-site installation and network configuration
3-year, next day on-site
3-year, 9x5 same day on-site
3-year, 13x5 same day onsite
North America: www.hp.com/go/everydaypapers
Europe: www.hp.com/go/supplies
Asia Pacific: www.hp.com/apac/printingsupplies
Latin America: contact HP via phone:
USA: 1-800-477-5010, Europe : +800 7644 7644, Asia: 65-6253-8500,
Australia and New Zealand: 61-2997-2299LAR, Brasil: sac 0800 70 300 70
Printer software
HP Web Jetadmin: www.hp.com/go/webjetadmin
HP Easy Printer Care Software: www/hp.com/go/easyprintercare
HP Install Network Printer Wizard: www.hp.com/go/inpw_sw
Third-party solutions
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
