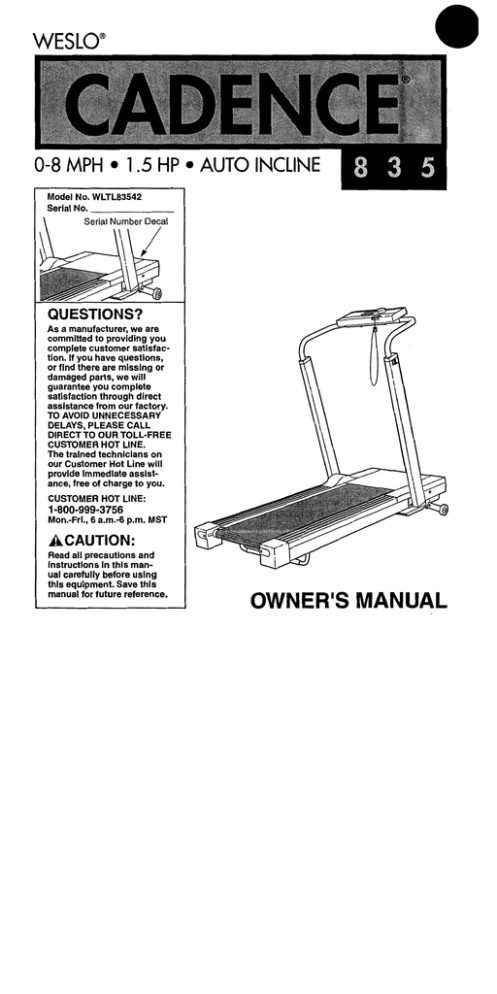

 WESLO"
0-8 MPH * 1.5 HP © AUTO INCUINE ЕТУ
Model No. WLTL83542
Serial No.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are
committed to providing you
complete customer satisfac-
tion. If you have questions,
or find there are missing or
damaged parts, we will
quarantee you complete
satisfaction through direct
assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL
DIRECT TO OUR TOLL-FREE
CUSTOMER HOT LINE.
The trained technicians on
our Customer Hot Line will
provide immediate assist-
ance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.-Fri., 6 a.m.-6 p.m. MST
A CAUTION:
Read all precautions and
instructions in this man-
ual carefuliy before using
this equipment. Save this
manual for future reference. OWN E R I S M A NU A L
LIMITED WARRANTY
`
ICON Health & Fitness, Inc. ("ICON"), warrants this product to be free from defects in workman-
ship and material, under normal use and service conditions, for a period of ninety (90) days from
the date of purchase. This warranty extends only to the original purchaser. ICON's obligation
under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its
authorized service centers. All products for which warranty claim is made must be received by
ICON at one of its authorized service centers with all freight and other transportation charges
prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by
ICON. This warranty does not extend to any product or damage to a product caused by or attrib-
utable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by
an ICON authorized service center or for products used for commercial or rental purposes. No
other warranty beyond that specifically set forth above is authorized by ICON.
ICON 15 NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE
OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS,
LOSS OF PROPERTY, LOSS OF REVENUES OR PROFITS, LOSS OF ENJOYMENT OR
USE, COSTS OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES OF
WHATSOEVER NATURE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITA-
TION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. ACCORDINGLY, THE ABOVE LIM-
ITATION MAY NOT APPLY TO YOU.
THE WARRANTY EXTENDED HEREUNDER IS IN LIEU OF ANY AND ALL OTHER WAR-
RANTIES AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE 15 LIMITED IN ITS SCOPE AND DURATION TO THE TERMS SET
FORTH HEREIN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS. ACCORDINGLY, THE ABOVE LIMITATION MAY NOT APPLY
TO YOU.
This warranty gives you specific legal rights. You may also have other rights which vary from
state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN UT 84321-9813
I!
ue
EL,
0-8 MPH e 1.5 HP « AUTO INCLINE
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ........0.202002 02 a ana a aa aa aa aa aa aa
BEFORE YOU BEGIN ................220000000
ASSEMBLY ...........emeosrcoorecacao
OPERATION AND ADJUSTMENT ©. ott tee eee eee eee a aa ana aa a ane aa 27
TROUBLE-SHOOTING AND STORAG 10
CONDITIONING GUIDELINES ...........2222000 ae aa a nana aa nan nana a aa aan 12
PART LIST © ttt 14
EXPLODED DRAWING 0202220020 15
ORDERING REPLACEMENT PARTS ............eereorerecoccori:erere:eres... Back Cover
NO Ob
A WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all Instructions before using. ICON assumes no responsibility for personal
injury or property damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
A WARNING: To reduce the risk of burns, fire, electric shock or Injury to persons,
read the following Important precautions and information before operating the treadmill.
1.
10.
11.
12.
13.
Position the treadmlil on a level surface, with at least 8 feet of clearance behind the tread-
mill. Do not place the treadmill near water, outdoors or on a surface that blocks any air
opening. Do not operate where aerosol products are used or where oxygen 15 being admin-
Istered.
. When connecting the power cord (see PLUGGING IN THE POWER CORD on page 7), plug
the power cord directly Into a grounded circuit capabie of carrylng 12 or more amps. No
other appliances shouid be on the same circuit. Keep the power cord away from heated sur-
faces. If an extension cord is needed, use only a 14-gauge general-purpose cord of five feet
or less in length with a three-wire conductor.
. Never move the walking belt while the power is turned off. Do not operate the treadmill if the
power cord or plug is damaged, or if the treadmill is not working properly. (See the BEFORE
YOU BEGIN section on page 5 if the treadmill is not working properly.)
. The roller guards must be 1/8 inch from the rear roller. Turn the power off and adjust the
roller guards, if necessary.
. Wear appropriate exercise attire when using the treadmill. Do not wear loose clothing that
could become caught in the treadmill. Always wear running shoes. Never use the treadmill
with bare feet, wearing only stockings or in sandals. Athletic support clothes are recom-
mended for both men and women.
. Never allow more than one person on the treadmill at a time. The treadmill should be used
only by persons weighing 250 pounds or less.
. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails when exercising on the treadmill.
. Keep small children away from the treadmill at all times. Never leave the treadmill unattend-
ed while it is running. Always remove the safety key when the treadmill is not in use.
. Never drop or insert any object into any opening.
To reduce the possibility of overheating, do not operate the treadmill continuously for longer
than 1 hour.
The treadmill is capable of high speeds. Adjust the speed slowly to avoid sudden jumps in
speed.
Use the treadmill only as described in this manual.
Always unplug the power cord before performing the maintenance and adjustment proce-
dures described In this manual. Never remove the motor hood unless instructed to do so by
an authorized service representative. Servicing other than the procedures in this manual
should be performed by an authorized service representative only.
a SAVE THESE INSTRUCTIONS
+À
BEFORE YOU BEGIN В:
Thank you for selecting the WESLO CADENCE® 835 treadmill. The CADENCE 835 treadmill blends
advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exer-
cise in the convenience and privacy of your home.
For your benefit, read thls manual carefully before using the treadmill. If you have additional
questions, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the
product model number and serial number before calling. The model number of the treadmill is
WLTL83542. The serial number can be found on a decal attached to the treadmill (see the front cover
of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the parts that are
labeled.
Speed Control Knob
Console
Incline Control Lever
Handrail Uprights
FRONT
Motor Hood
Circuit Breaker
Walking Belt
Foot Rail
BACK RIGHT SIDE Power Cord
Rear Roller
Adjustment Bolts
Rear Leg Pad
Note: The rear leg pad may mark some types of linoleum. Mild household cleaning agents will remove any marks. 5
ASSEMBLY
Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing
materials until assembly is completed. TOOLS REQUIRED FOR ASSEMBLY: An adjustable wrench
(not included).
1. Raise the Left Upright (75) and Right Upright (21) to the
vertical position.
2. Insert an Upright Bolt (37) with an Upright Washer (39)
through the plate on the lower end of the Right Upright
(21) and tighten the Bolt into the Frame (46). Tighten the
Upright Bolt that is already in the plate.
3. Insert an Upright Bolt (37) with an Upright Washer (39)
through the plate on the lower end of the Left Upright (75)
and tighten the Bolt into the Frame (46). Tighten the
Upright Bolt that is already in the plate.
4. Remove the paper backing from the Wrench Clip (61).
Press the Wrench Clip onto the Right Endcap (57) in the
indicated location. Press the Allen Wrench (59) into the
Wrench Clip.
Make sure that all parts are tightened before using the tread-
mill. Note: Cover the floor underneath the treadmill for
protection.
OPERATION AND ADJUSTMENT
APPLYING SILICONE LUBRICANT
To reduce the friction of the walking belt and minimize wear, a
non-oil-, non-petroleum-base silicone lubricant must be
applied to the walking platform before the treadmill is used.
Failure to apply lubricant will reduce treadmill performance.
WITH THE POWER CORD UNPLUGGED, lift each side of
the walking belt and spray lubricant generously onto the indi-
cated area. Reapply lubricant after every ten hours of use, or
whenever performance decreases. Lubricant is available at
most hardware and automotive stores. UnieSport™ silicone
spray is recommended.
PLUGGING IN THE POWER CORD
Apply lubricant
to the entire
shaded area.
Silicone Lubricant
This product must be grounded. If it should malfunction or break down, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This product is equipped with a
cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
A DANGER: Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the plug provided with the product—if it will not fit the out-
let, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug
illustrated in Drawing 1. A temporary adapter that looks like the adapter illustrated in Drawing 2 may be
used to connect this plug to a 2-pole receptacle as shown in Drawing 2 if a properly grounded outlet is
not available. The temporary adapter should be used only until a properly grounded outlet (Drawing 1)
can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from
the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not grounded. Contact a qualified electrician to
determine if the outlet box cover is grounded before using an adapter.
| Grounding Pin
Grounded Outlet
2
Grounded Outlet Box AC Grounded Outlet Box
Grounding Plug Adapter
Grounding Pin
Grounding Plug
DIAGRAM OF THE CONSOLE
Battery Cover —
A >
ACCUSMART MOTIVATIONAL FITNESS MONITOR
| 0 Speed Control Knob
Motivational Fitness Monitor —
in
ET
SPEED CONTROL
Power Indicator Da
ower Switch
INSTALLING BATTERIES
Battery Cover
The motivational fitness monitor requires two "AA" batteries Battery Clip
(not included); alkaline batteries are recommended. Slide the
battery cover open. Remove the battery clip from the con-
sole. Find the markings inside the battery clip showing which
direction the batteries should be turned. Press the batteries
into the battery clip. Replace the battery clip in the console
and close the battery cover. Note: If there is a sheet of pro-
tective plastic on the face of the console, peel it off
before operating the console.
TURNING ON THE POWER
Step onto the foot rails of the treadmill. Locate the clip attached by a cord to the safety key, and slide
the clip onto the waistband of your clothing.
A CAUTION: Do not stand on the walking belt while turning on the power. Always wear
the clip while operating the treadmill; if you fall, the safety key will be pulled from the power
switch, instantly turning off the power.
Insert the safety key into the power switch. The power indicator will light. The four displays of the moti-
vational fitness monitor will not appear until the ON/CLEAR button is pressed, or the walking belt
begins to move (see CONTROLLING THE SPEED). Note: If batteries were just installed, the four dis-
plays will already appear.
CONTROLLING THE SPEED
To start the walking belt, first turn the speed control knob to "RESET." Then, turn the knob slowly clock-
wise until the walking belt begins to move at slow speed.
A CAUTION: After the knob Is turned, there will be a pause before the walking belt
begins to move. Adjust the speed slowly until you are familiar with the operation of the tread-
mill.
Carefully step onto the walking belt and begin exercising. Change the speed of the walking belt as
8 desired by turning the speed control knob. To stop the walking belt, turn the knob to "RESET.
INCLINE ADJUSTMENT
To vary the intensity of your exercise, the incline of the
treadmill can be adjusted, using the lever on the right
upright. Do not adjust the incline while you are walking
or running on the treadmill. To increase the incline, stand
toward the back of the foot raiis and pull up on the lever.
When the desired incline is reached, release the lever. To
decrease the incline, stand toward the front of the foot
rails, lean forward if necessary, and pull up on the lever until
the desired incline is reached.
Incline
Control Lever
MOTIVATIONAL FITNESS MONITOR
The four displays of the motivational fitness monitor provide continuous exercise feedback. The dis- _
plays can be reset by pressing the ON/CLEAR button. The four displays are described below:
TIME—This display shows the elapsed time. Note: When the walking belt is stopped, the TIME display
will go into a pause mode after a few seconds.
CALORIE—This display shows the approximate number of nutritional Calories you have burned.
SPEED—This display shows the current speed of the walking belt.
DISTANCE—This display shows the total distance that you have walked or run.
Note: If the walking belt is stopped and remains stationary for about four minutes, the four displays of
the motivational fitness monitor will be reset and will darken, although the power will remain on. The
four displays will appear again when the ON/CLEAR button is pressed, or the walking belt is restarted.
TURNING OFF THE POWER
To turn off the power, remove the safety key from the console. The power indicator will darken. Store
the safety key in a secure location.
10
TROUBLE-SHOOTING AND STORAGE
Most treadmill problems can be solved by following the simple steps below. Find the symptom
that applies to your treadmill and follow the steps listed. If further assistance Is needed, please
call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a. Make sure that the power cord is plugged into a properly grounded outlet. (See PLUGGING IN
THE POWER CORD on page 7.) If an extension cord is needed, use only a 14-gauge general-
purpose cord of five feet or less in length.
b. After the power cord has been plugged in, make sure that the safety key is fully inserted into the
console. Various indicators on the console should light. (See OPERATION AND ADJUSTMENT in
this manual.)
c. Check the circuit breaker located on the treadmill frame
near the power cord. If the switch protrudes as shown,
the circuit breaker has tripped. To reset the circuit Г
breaker, wait for five minutes and then press the switch
back in.
Tripped Reset
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a. Check the circuit breaker located on the treadmill frame near the power cord. If the circuit breaker
has tripped, the switch will protrude. (See the drawing above.) To reset the circuit breaker, wait for
five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the safety key from the console. Reinsert the safety key fully into the console. Various
indicators on the console should light.
3. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Apply silicone lubricant to the walking platform before use. Reapply lubricant after every 10 hours
of use, and whenever a decrease in performance is noticed. (UnieSport silicone spray is recom-
mended.) CAUTION: UNPLUG THE POWER CORD WHEN APPLYING LUBRICANT. (See
APPLYING SILICONE LUBRICANT on page 7 for application instructions.)
b. If an extension cord is needed, use only a 14-gauge general-purpose cord of five feet or less in length.
c. If the walking belt is overtightened, treadmill performance 7
may decrease and the walking belt may be permanently ; "4"
damaged. Remove the safety key and UNPLUG THE 7
POWER CORD. Using the allen wrench, turn both rear >
roller adjustment bolts counterclockwise, 1/4 of a turn. A |
When the walking belt is properiy tightened, you should <A A
be able to lift each side of the walking belt 3-4 inches off Fa
the walking platform. The center of the walking belt <<< Za
- Should just touch the walking platform. Be careful to keep Np М
the walking belt centered. Plug in the power cord, insert Rear Roller
the safety key and run the treadmill for a few minutes. ‘Adjustment Bolts
Repeat until the walking belt is properly tightened.
4. SYMPTOM: THE WALKING BELT IS OFF-CENTER OR SLIPS WHEN WALKED ON
a. If the walking belt has shifted to the left, first remove the
safety key and UNPLUG THE POWER CORD. Using the
allen wrench, turn the left rear roller adjustment bolt
clockwise, and the right bolt counterclockwise, 1/4 of a
turn each. Be careful not to overtighten the walking belt.
Plug in the power cord, insert the safety key and run the
treadmill for a few minutes. Repeat until the walking belt
is centered.
b. If the walking belt has shifted to the right, first remove the
safety key and UNPLUG THE POWER CORD. Using the
allen wrench, turn the left rear roller adjustment bolt coun-
terclockwise, and the right bolt clockwise, 1/4 of a turn
each. Be careful not to overtighten the walking belt. Plug
in the power cord, insert the safety key and run the tread-
mill for a few minutes. Repeat until the walking belt is cen-
tered.
c. If the walking belt slips when walked on, first remove the
safety key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts clock-
wise, 1/4 of a turn. When the walking belt is correctly tight-
ened, you should be able to lift each side of the walking
belt 3-4 inches off the walking platform. The center of the
walking belt should just touch the walking platform. Be
careful to keep the walking belt centered. Plug in the power
cord, insert the safety key and run the treadmill for a few
minutes. Repeat until the walking belt is properly tightened.
il
oY
Al
4
A
5. SYMPTOM: THE MOTIVATIONAL FITNESS MONITOR DOES NOT FUNCTION PROPERLY
a. Check the batteries in the console. (See INSTALLING BATTERIES on page 8.) Most problems
are the result of drained batteries.
STORAGE
Unplug the power cord when the treadmill is not in use.
Remove one bolt and washer from the lower ends of the left
and right uprights. Loosen the other bolt on each side.
Carefully lay the console on the treadmill. Keep the bolts and
washers in a secure location.
It is recommended that the treadmill be covered during extend-
ed periods of storage.
Remove —
11
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
AWARNING: Before beginning this or any exercise program, consult your physician.
This Is especlally Important for Individuals over the age of 35 or Individuals with pre-existing
health problems. | a
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important to exercise with the proper intensity. The proper
intensity can be found by using your heart rate as a guide. For effective aerobic exercise, your heart
rate should be maintained at a level between 70% and 85% of your maximum heart rate as you exer-
cise. This is known as your training zone. You can find your training zone in the table below. |
Training zones are listed for both unconditioned and conditioned persons according to age.
UNCONDITIONED| CONDITIONED UNCONDITIONED| CONDITIONED
TRAINING ZONE | TRAINING ZONE TRAINING ZONE | TRAINING ZONE
AGE | (BEATS/MIN) | (BEATS/MIN) AGE | (BEATS/MIN) | (BEATS/MIN)
20 138-167 133-162 55 127-155 122-149
25 136-166 132-160 60 126-153 121-147
30 135-164 130-158 65 125-151 119-145
35 134-162 129-156 70 123-150 118-144
40 132-161 127-155 75 122-147 117-142
45 131-159 125-153 80 120-146 115-140
50 129-156 124-150 85 118-144 114-139
During the first few months of your exercise program, keep your
heart rate near the low end of your training zone as you exercise.
After a few months, your heart rate can be increased gradually
until it is near the middie of your training zone as you exercise. To
measure your heart rate, stop exercising and place two fingers on
your wrist. Take a six-second heartbeat count, and multiply the
result by 10 to find your heart rate. For example, if your six-second
heartbeat count is 14, your heart rate is 140 beats per minute. (A
six-second count is used because your heart rate will drop rapidly
when you stop exercising.) Adjust the intensity of your exercise
until your heart rate is at the proper level.
WORKOUT GUIDELINES
Each workout should consist of three basic parts: a warm-up, 20 to 30 minutes of training zone exer-
cise, and a cool-down. Warming up prepares the body for exercise by increasing circulation, delivering
more oxygen to the muscles and raising the body temperature. Begin each workout with 5 to 10 min-
utes of stretching and light exercise to warm up. Then, increase the intensity of your exercise to raise
your heart rate to your training zone for 20 to 30 minutes. Breathe regularly and deeply as you exer-
cise—never hold your breath. Finish each workout with 5 to 10 minutes of stretching to cool down. This
will increase the flexibility of the muscles, and reduce soreness and other post-exercise problems.
To maintain or improve your condition, complete three workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
12 week, if desired. The key to success is CONSISTENCY.
SUGGESTED STRETCHES
The following stretches can provide a good warm-up or cool-down. Correct form for each stretch is
shown in the drawings below. Move slowly as you stretch—never bounce.
TOE TOUCH STRETCH
Stand with your knees bent slightly and slowly bend for-
ward from your hips. Allow your back and shoulders to
relax as you reach down toward your toes as far as possi-
ble. Hold for 15 counts, then relax. Repeat 3 times.
Stretches: Hamstrings, back of knees and back.
HAMSTRING STRETCH
Sit with one leg extended. Bring the sole of the opposite
foot toward you and rest it against the inner thigh of your
extended leg. Reach toward your toes as far as possible.
Hold for 15 counts, then relax. Repeat 3 times for both
legs. |
Stretches: Hamstrings, lower back and groin.
CALF/ACHILLES STRETCH
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight
and your back foot flat on the floor. Bend your front leg,
lean forward and move your hips toward the wall. Hold for
15 counts, then relax. Repeat 3 times for both legs. To
cause further stretching of the achilles tendons, bend
your back leg as well.
Stretches: Calves, achilles tendons and ankles.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as
close to your buttocks as possible. Hold for 15 counts,
then relax. Repeat 3 times for both legs.
Stretches: Quadriceps and hip muscles.
INNER THIGH STRETCH
Sit with the soles of your feet together and your knees
outward. Pull your feet toward your groin area as far as
possible. Hold for 15 counts, then relax. Repeat 3 times.
Stretches: Quadriceps and hip muscles.
14
PART LIST—Model No. WLTL83542
Key
No. Qty.
ASSAAARARAROOODVOVOOOOUONNNNNNNNNN = = = = tt =a
NOUAUNSASO0ONOGUEÉUONSOOONQUARNONSOODONQOGUU NON -00O0C®D9NOOUARAON-
Description
Left Handrail
Handrail Cage Nut
Console Bolt
Safety Key/Clip
Console
Console Screw
Console Plate
Speed Control Knob
Incline Control Cable
Shock Release
E-Clip
Shock Bracket
Shock Spacer
Incline Shock
Cotter Pin
Right Handrail
Handrail Bolt
Plastic Spacer
Shock Pin
Incline Control Lever
Right Upright
Ground Washer
Small Screw
Power Cord
Circuit Breaker
Screw
Hood Anchor
Grommet
Safety Cover Screw
Front Roller Adjustment Bolt
Roller Adjustment Washer
Front Wheel
Lock Nut
Incline Leg Washer
Front Wheel Bolt
Incline Leg Bolt
Upright Bolt
Belt Guide
Upright Washer
Front Roller Tab
Safety Cover
Front Roller/Pulley
Walking Platform
Walking Belt
Foot Rail
Frame
J-Bolt
Key
No.
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
#
Qty.
sr NN) = — N PDP = 4 6 ss NWN) = № A Al A a © AA N = —© № A = № A a N NN) =
R395A
Description
Motor Swivel Shaft
Motor Bolt
Controller
Motor Swivel Bolt
Choke
Motor
Motor Nut
Pulley/Flywheel/Fan
Rear Leg Pad
Right Endcap
Rear Roller Adjustment Bolt
Allen Wrench
Left Endcap
Wrench Clip
Rear Roller
Roller Guard
Platform Screw
Motor Hood
Reed Switch/Lower Sensor Wire
Magnet
Belt
Wire Clip
Tension Spring
Tension Washer
Tension Nut/Wheel Nut
Upright Cap
Incline Leg
Left Upright
Motor Swivel Washer
Hood Screw/Tie Block Screw
12” Cable Loom
6” Cable Loom
Ground Wire
Power Switch Wire
Reed Switch Extension Wire
Reed Switch Mounting Bracket
Cable Tie Wrap
Tie Block
4" Cable Tie
8" Cable Tie
Foam Block
Hood Support Bracket
Controller-Choke Bracket
Platform Shim
Roller Guard Screw
Owner's Manual
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the
back cover for information about ordering replacement parts.
R395A -
EXPLODED DRAWING—Model No. WLTL83542
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts,
please be prepared to give the following information:
* The MODEL NUMBER of the product (WLTL83542).
The NAME of the product (WESLO CADENCE* 835 treadmill).
The SERIAL NUMBER of the product (see the front cover of this manual).
The KEY NUMBER of the part(s) from page 14 of this manual.
The DESCRIPTION of the part(s) from page 14 of this manual.
If possible, place the treadmill near your telephone for easy reference when calling.
Part No: 122096 R395A Printed in USA © 1995 ICON Health & Fitness, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
