Discover in detail, the camera that
revolutionized the world of digital
medium-format photography

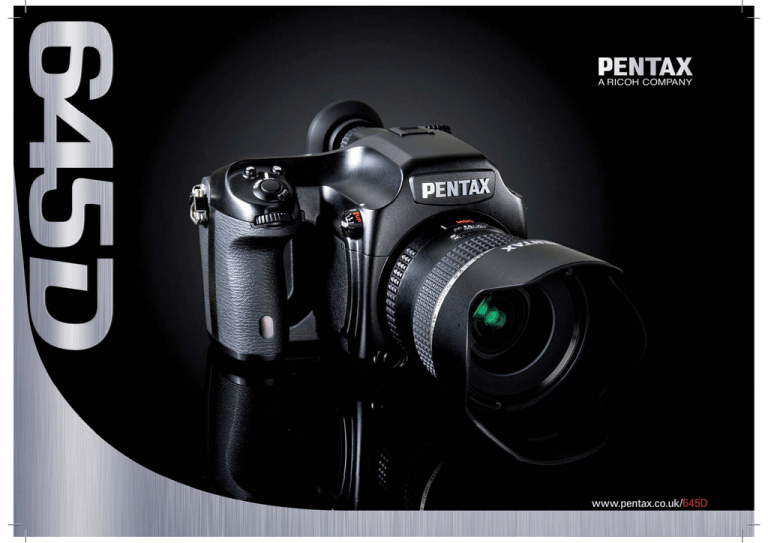

The PENTAX 645D is the first digital medium-format camera developed
by PENTAX. It is designed for versatile use and allows the image to
incorporate exceptional quality previously reserved for fashion and
advertising.
The 645D incorporates a large, high-performance, 40 megapixels
CCD image sensor (33 x 44mm) approximately 2 times larger
than that of 35mm-format models. Due to this, it provides
superb image detail beyond your expectations and gives a
boost to the creative aspirations of all photographers. It
also features a rugged, weather-resistant construction, a
large viewfinder and compatibility with a lens range of
almost 20 models.
Thanks to its size, its manoeuvrability and
outstanding reliability, outdoor photography is
effortless and studio shooting easy. The 645D
is designed for professionals as well as
advanced amateurs.
The 645D has received many awards:
EISA awarded ‘2011-2012
Best Professional SLR’
TIPA awarded ‘2011 Best
Professional SLR of the year’
2011 Japan Camera GP in
the ‘Best Camera of the year’
02
Summary
06
08
10
Unprecedented image quality
40 megapixel sensor for super-high-resolution images
High-performance, high-speed PRIME II imaging engine
Sensitivity up to ISO 1600 with noise reduction
Weather resistant body
Ease of use
Intuitive & practical ergonomics
Large, bright and clear optical viewfinder
Large 3.0-inch LCD monitor
User friendly
12
Fast and precise
14
Advanced functions
20
Lens and accessories range
Precision autofocus
Accurate light metering
Fast images transfer (SDXC)
Dual SD/SDHC memory card slots
White balance
Connectivity
DNG & RAW formats built-in
36 customizable functions
Time-lapse
Customizable buttons
Advanced bracketing
03
04
© Kerrick James D-FA645 55mm
© Kerrick James D-FA645 55mm
05
06
© Nicolas Claris DA645 25mm Beneteau Sense 55
Exceptional image quality
Sensor 1.7 times
larger than a full
format.
33x44mm
24x36mm
Cécile Cée 645D D-FA 55mm ISO 1600
40 MP sensor for
super-high-resolution images
The PENTAX 645D incorporates a high-performance CCD
image sensor. It measures 33mm by 44mm, and is 1.7 times
larger than 35mm format sensors and 3.9 times larger
than APS-C sensors. Thanks to approximately 40 effective
megapixels, it provides a wide dynamic range for faithful
reproduction of the ambience and the sense of depth in
super-high-resolution images that are rich in tonal gradation
and accurate in texture detail. This 40 megapixel CCD sensor
provides a top resolution of 7264 x 5440 pixels, which is ideal
for ultra-high resolution imaging, exceptionally large printing
applications, and outstanding cropping flexibility. The pictures
reach a resolution of 7264 x 5440 pixels, which allows large
poster size prints without loss of quality. They also have large
tone range and colour space.
14-bit A/D converter for faithful
conversion of image data to digital files
High-performance,
high-speed, PRIME II
imaging engine
The PENTAX 645D features the
acclaimed, PENTAX-original
PRIME (PENTAX Real Image
Engine) II as its imaging engine.
Thanks to its high-speed data
processing and new algorithm,
exclusively programmed for
medium-format digital SLR
cameras, this high-performance
imaging engine produces superhigh quality images rich in tonal
gradation and faithful colour
reproduction, while allowing
speedy data transmission. Even
with RAW-format images as large
as 50MB per file.
Sensitivity up to ISO 1600
with excellent noise management
The sensor displays a remarkable dynamic and fully respects the delicacy
of artificial light. Entire speed range (200-1000 standard ISO and from
100 up to 1600 in extended mode) can be used. With its excellent noise
management, the grain remains under control even at ISO 1600.
The Pentax 645D is comfortable to use not only in studio with light
controlled but also during externally with different light.
The PENTAX 645D features a high-performance A/D converter,
which faithfully converts the large volume of analogue image
data, output by the large CCD sensor (16384 levels), to digital
files carrying an impressive amount of image data, including
resolution and tonal gradation.
07
08
© Cécile Cée DA645 25mm
Weather resistant body
The PENTAX 645D is one of the few digital medium-format cameras to be protected against rain
and dust. With its 70 weather-proof seals and outstanding cold-resistant performance, you can
be sure of reliable operation even at a temperature as low as –10°C.
The PENTAX 645D’s main housing is made of lightweight but strong magnesium-steel alloy,
while the chassis is made of die cast aluminium to minimize the expansion and distortion
caused by heat and also to optimize kinematic accuracy and thermal stability.
The LCD panels, one on the camera’s top panel and second on the back panel, are covered with
tempered glass for extra protection. One touch of the PENTAX 645D impresses with its sturdy
construction.
09
Easy to use
Intuitive and practical ergonomics
The PENTAX 645D offers exceptional ergonomics. The
grip provides comfortable handling and use, especially
while shooting handheld.
The 645D has many easily accessible shortcut controls
on the body. This allows access to different controls
without need to access the menus. ISO sensitivity,
bracketing, focusing, light measurement, flash, white
balance, recording format, dual slot SD/SDHC/SDXC
memory card selection. A truly comfortable luxury.
10
User friendly
The 645D offers an intuitive interface with clear and
comprehensive menus to easily configure settings on the body.
Navigation throughout the menus is instantaneous and the image
rotated automatically with rotation of the body. The PENTAX
645D has multiple exposure modes for faithful reproduction of
creative intentions:
Large, bright and clear
optical viewfinder
Large, easy-to-view 3.0-inch
LCD monitor with 921,000 dots
Incorporated into the PENTAX 645D’s
viewfinder, a trapezoid-shaped glass
prism not only assures a field of view
of approximately 100%, but also greatly
contributes to the compactness of the
camera body. Coupled with a bright, easyto-focus Natural-Bright-Matte focusing
screen, the PENTAX 645D’s viewfinder
offers a large, clear view of the subject.
Positioned on the camera’s rear panel, a
large 3.0-inch colour LCD monitor with
approximately 921,000 dots provides a clear,
bright view of displayed images and menus.
Its wide-view design allows quick, effortless
confirmation of the displayed image from
approximately 170 degrees both horizontally
and vertically, meaning the photographer
has little difficulty shooting images from low
and high angles. The LCD monitor is also
treated with an exclusive AR (Anti-Reflection)
coating to minimize reflections on the screen,
even in the outdoor locations and under
bright sun light.
Hyper Program function allows the user to instantly switch
from Programmed AE mode to Shutter- or Aperture-Priority AE
mode Hyper Manual enables instant return back to auto mode
when the camera is set on Manual mode with a single push on
the green button.
~
~
~
Sensitivity-Priority mode
Shutter/Aperture-Priority mode
Manual mode
11
12
© Cécile Cée D-FA645 55mm - 1600 ISO
Fast and sharp
Precision autofocus
Accurate light metering
Fast image transfer
The PENTAX 645D’s new SAFOX
IX+ wide frame autofocus system
features 11 sensor points (nine crosstype sensors positioned in the middle)
to ensure the extra-high-precision
focusing demanded on medium-format
cameras. To develop this sophisticated
AF system, the entire optical system
was redesigned with the simultaneous
addition of the new functionality to
analyse and make use of the light
sources data in the field of view.
The PENTAX 645D employs a state-of-the-art, 77-segment
multi-pattern metering system to ensure super-highaccuracy metering. The exposure accuracy is further
enhanced by collecting such additional data as image
orientation (horizontal or vertical) and the distance to and
magnification of the subject, using the sensors installed
inside the camera body. With the data obtained and
incorporated into exposure calculations.
With the latest firmware 1.13, the 645D is compatible
with all SDXC cards for faster transfer and a bigger
writing capacity (>32 GB)
© Maksim Chicherin D-FA645 55mm
© Maksim Chicherin D-FA645 55mm
13
14
© Lili Renée D-FA645 55mm
Advanced functions
The Pentax 645D offers clear and comprehensive menus
Dual SD/SDHC/SDXC
memory card slots
In order to have maximum image
control, the 645D is equipped with two
independent SD slots. Both slots can be
individually managed allowing the user to
store, for example, RAW files on one and
JPEG files on the other. It is also possible
to set slot No 2 to take over when
the No 1 is full. The settings for these
two memory card slots are accessible
from dedicated buttons, located on the
camera body. By downloading the latest
firmware, you can use SDXC cards which
benefit from an even faster transfer rate.
White balance
Advanced bracketing
36 customizable
functions
Which allow full customizing
of the cameras settings. Even the
program line characteristic can be
customized.
Versatile white balance control system:
automatic, daylight, shade, cloudy,
fluorescent light, tungsten, flash, CTE,
manual or colour temperature. Option to
save 3 customized white balance.
Choose from 6 bracketing modes
including; white balance, saturation,
shade, dark/light adjustments, contrast
and sharpness.
Interval shooting
Universal DNG format
and built-in RAW image
development
The 645D allows you to program a series
of shots from 2 to 999 images, with a
shooting interval from 1 second to 24
hours.
Connectivity
The 645D has many slots available: USB
port, HDMI port to enable immediate
viewing of your pictures on a HDTV, a
plug for AC adaptor, a X-synchronization
socket for studio flash and a cable switch.
Control of many settings: type of file
(JPEG or TIFF), resolution, compression,
image customization, white balance,
sensitivity, shadow corrections, colour
space, etc…
Batch processing possible.
Customizable buttons
It is possible to assign a range of
functions to the RAW/Flex button :
choose from recording format (JPEG,
RAW, RAW+JPEG), exposure bracketing,
digital preview, digital level function,
composition adjustment. AF button and
the 2 dials are also fully customized.
15
Advanced functions
Adjustable brightness
and colour
Brightness and colour of the LCD
screen can be calibrated; a crucial
1st step for image processing.
Multiple exposure
HDR
Multiple exposure of up to 9
images with automatic exposure
option.
HDR (high dynamic range) function creates
one composite image with an extra-wide
gradation range from three images with
different exposures.
Automatic lens
correction
Lens Correction function
automatically compensates for
lateral chromatic aberration, as
well as barrel and pincushion
distortion common to wideangle lens photography.
The PENTAX 645D bayonet is
compatible with the analogue
645 medium format lenses and
also accepts 67 lenses via an
optional adapter.
Mirror lock-up
Mirror Lock-up function
prevents blur caused by
the movement of the mirror
during the exposure, ensuring
the sharpest possible image
capture for professional level
applications. This large button
can be used with a cable
release. The first press locks the
mirror up, the second takes the
picture.
Copyrights management
Attaches copyright credits
on recorded images (name of
photographer, copyright holder) in
the Exif file.
Dynamic range
enlargement
DRE (Dynamic Range Enlargement)
makes it possible to expand the
contrast range, while shooting, in
order to obtain better definition in
shadow and high light areas.
Advanced flash functions
~
~
~
~
16
X-synchronization : 1/125 sec.
With the high-speed-sync
function (HS), available on 540
FGZ and 360 FGZ flashes, it
is possible to have maximum
synchronisation speed equivalent
to 1/4000 sec shutter speed.
X-synchronization socket for
studio flash
Wireless function : with the 540
FGZ flash mounted on the 645D,
you can remotely and wireless
control other Pentax flashes in
P-TTL mode.
Custom image
and digital filters
The PENTAX 645D’s Custom Image
function lets the user easily control
an image’s ‘feeling’ to more precisely
reflect the user’s creative intentions,
or to more faithfully reproduce the
ambience of the scene. All parameters
- such as saturation, hue, contrast,
sharpness and highlight/shadow
contrast - can be easily adjusted to
desired levels, so that the photographer
can shoot images with great ease. 9
pre-set options are available, such as
monochrome for taking pictures in
Black & White. Feel free to use one
the 18 digital filters : Toy Camera,
Monochrome, Retro, Colour, High
Contrast, Soft, Extract Colour,
Star Burst, Sketch, Water Colour,
Fish-Eye, Pastel, Slim, Miniature,
HDR, Posterization, Base Parameter
Adjustment, Custom Filter.
Preview button
AF fine adjustment
Either, test the depth of field, or virtual
release with display on the LCD screen,
3 channel histogram and possible
zooming. Useful to check the exposure
and the depth of field before shooting.
This function enables fine tuning of
the focus accuracy in front or behind
the point calculated by the AF module.
When mounting a new lens, this
procedure is essential to bring out the
best lens performance.
Image comparison
Digital level function
Compare the details of two different
images side by side (zooming by picture
or simultaneous, scrolling of photos).
Pixel mapping
The dead pixel detection system that
collects information about the adjacent
pixels. This function is often only
found on external software but has
been included within the 645D internal
program.
A Digital Level function displays the
vertical and horizontal inclination of
the camera, helping ensure captured
photos remain level to the horizon.
Digital Camera
Utility Software
Dust removal system
DRII and Dust alert
By vibrating UV/IR-cut filters
placed in front of the CCD image
sensor at supersonic speed
using a piezoelectric element,
this mechanism effectively and
efficiently shakes dust off the
image sensor. Thanks to the userfriendly Dust-Alert system, the
photographer can check at a
glance for dust adhering to the
image sensor and remove the dust
with the optional sensor cleaning
kit.
Including a RAW-data processing
application (based on the popular
SILKYPIX RAW-data processing engine
developed by Ichikawa Soft Laboratory)
and browser application.
17
18
© Lili Renée FA645 55-110mm
© Wolfgang Baus D-FA645 55mm
19
20
Lenses and accessories line-up
LENS LINE-UP
645 LENSES
STRAP
DATA STORAGE
FLASH SYSTEM
SD
SDHC
CONVERTER
DA 645
D-FA 645
Series
External battery
pack III
0-ST107
Séries
AF540
FGZ
AF360
FGZ
AF200
FG
SDXC
A645 2x
or
Hot shoe adaptater F
645
Reversal set
FA 645
Series
Hot shoe adaptater FG
Synchrocord F5P
(extension 0,5m or 3m)
VIEWFINDER ACCESSORIES
A645 1.4x
Lens compatibility table
Large Eye cup
O-EC107
67 lens
Magnifying Eye cup
645 adaptator for 67 lenses
Focusing screen AF
standard DF-80
OTHERS ACCESSORIES
Focusing screen rule
of golden section DK-80
Focusing screen
DG-80 divided
REMOTE CONTROL
Remote control E
GPS unit
O-GPS1
Photo loupes 5,5X
Photo loupes 5-11X
INTERFACES
Remote control F
Sensor cleaning
kit 0-ICK1
Weather resistant
remote control O-RC1
Cable switch
CS-205
POWER SUPPLY
Lens cleaning kit
Software S-SW107
Digital
spotmeter
USB cable
I-USB107
HDMI cable
Type C mini
PENTAX Digital TM
Camera Utility 4
Image transmitter
S-SW123
Protection films for 3'' LCD screen
Quick Shoe
Adapter QS-20
Battery
D-LI90
Battery charger
K-BC90
AC adapter
kit K-AC120
21
Lenses optimized for digital 645D
smc DA645 25mm F/4 AL [IF] SDM AW
~3TbXV]TSU^adbTfXcW?4=C0GSXVXcP[%#$3RP\TaP
~Dustproof and Weather Resistant (AW) - 11 seals
~Super Direct-drive Motor (SDM) for fast and silent focusing
~2 aspherical lenses for sharp pictures
~Quick-Shift focus system
~Aero-Bright and SP (Super Protect) coatings
~Built-in filter holder
© Cécile Cée DA645 25mm
This ultra wide angle lens offers a focal length of approximately 19.5mm in the the 24x36mm
format, providing the widest perspective of all the lenses compatible with PENTAX 645D. It is ideal
for both landscape photography and studio photography.
Incorporating two high performance aspherical lens elements in its optics, this ultra wide
angle lens provides exceptional resolving power with outstanding brightness levels even at the
edges, while keeping aberrations to a minimum. All lens characteristics are optimized for digital
photography: for instance, exclusive lens coatings are applied to lens elements, while antireflection materials are also applied to the interior of the lens barrel. As the newest model of the
dependable AW (All Weather) series, the lens features a highly dependable dustproof, weatherresistant construction with 11 special seals to effectively prevent the intrusion of dust and water
into the lens.
22
smc D-FA645 55mm F/2.8 AL [IF] SDM AW
~3TbXV]TSU^adbTfXcWP]P[^VdTP]SSXVXcP[?4=C0G%#$\TSXd\U^a\PcbRP\TaPb~~
~Dustproof and Weather Resistant (AW) - 7 seals
~Super Direct-drive Motor (SDM) for fast and silent focusing
~2 aspherical lenses for sharp pictures
~Quick-Shift focus system
~Aero-Bright and Super Protect coatings
© Maksim Chicherin D-FA645 55mm
It features not only new optics, optimized for high-quality digital photography to assure
exceptional image detail performance while also providing an image circle suitable for existing
PENTAX 645-format film cameras.
This fixed focal length standard lens also comes with a dependable, dust-proof, weather-resistant
construction for active outdoor photography. With its 7 seals its prevents the intrusion of dust
and water within the lens. By combining this objective with the PENTAX 645D body, the user is
assured of a reliable and sustainable digital imaging, even when shooting outdoors in the rain or
fog.
23
645 lenses compatible with digital 645D
Fixed focal lens
smc DA645
smc FA645
smc FA645
smc D-FA645
smc FA645
smc FA645
smc FA645
smc FA645
smc FA645
25mm f/4 AL IF SDM AW
35mm f/3.5 AL IF
45mm f/2.8
55mm f/2.8 AL IF SDM AW
75mm f/2.8
150mm f/2.8 IF
200mm f/4 IF
300mm f/4 ED IF
400mm f/5.6 ED IF
Equivalence
in 24 X 36mm
20mm
28mm
36mm
44mm
60mm
120mm
160mm
240mm
320mm
Angle of View
(degres)
95
90
76
53-65
50
26
20
13.5
10
Lens Construction
(groups / elements)
8/12
7/10
8/9
7/9
5/6
7/7
5/6
8/8
6/7
Maximum aperture
f/4
f/3.5
f/2.8
f/2.8
f/2.8
f/2.8
f/4
f/4
f/5.6
Minimum Aperture
f/32
f/32
f/22
f/22
f/22
f/22
f/32
f/32
f/45
Minimum Focusing
Distance
0.4m
0.3m
0.45m
0.5m
0.6m
1.2m
1.5m
3m
3m
Filter Diameter
-
82mm
67mm
67mm
58mm
67mm
58mm
77mm
77mm
Maximum
magnification
0.11X
0.25X
0.15X
0.17X
0.18X
0,15X
0.16X
0.11X
0.14X
Diameter and
maximum length
90mm x 148.5mm
88 x 90mm
76.5 x 66.5mm
81.3×68.2 mm
74.5 x 37.5mm
74,5 x 96mm
74.5 x 119mm
83 x 207.5mm
83 x 252mm
Weight
1040g
545g
475g
416g
215g
500g
625g
1490g
1260g
Rear converter
(A 645 1.4X)
-
-
-
-
-
X
X
X
X
Rear converter
(A 645 2X)
-
L
X
-
X
X
X
X
X
Lens hood
included
38733
Flower-type hood
included
Flower-type hood
included
38701
38730
Flower-type hood w/ window to handle PL filter
included
included
included
Case
37752
37727
inclus
inclus
33927
37727
33925
33922
33942
Other
features
AF is SDM only
Aerobright coating
Rounded aperture
Built-in, pull-out-type
filter holder in its
barrel (normal and
C-PL)
AF/MF switch by
shifting the focus
ring front/backward
F2.8 for smooth
defocus
AF is SDM only
AeroBright Coating
Light and compact
High reflective index low
dispersion lens
Tripod collar with
vertical/horizontal switch
Tripod collar with
vertical/horizontal switch
Lenses
Optical construction
Icons
24
DA : AF lenses compatible only with 645D
D-FA : AF lenses for 645D, compatible with 645, 645N and 645NII
FA : AF film format lenses compatible with 645D
A : AF film format lenses compatible with 645D with exposure control in Position A.
Convertors do not allow automatic AF with 645D
PENTAX made all its PENTAX 645 SMC lenses to deliver the highest quality (sharpness, contrast, color reproduction, reduction of indication scattering). Each lens have specific features so that it can deliver unique image quality.
The 645D is compatible not only with all film medium format lenses but also with digital lenses to meet the needs of professionnals.
Macro
Zoom
Telephoto
Glossary
Converter
smc FA645
smc FA645
smc FA645
smc FA645
smc FA645
smc FA645
Macro 120mm f/4
33-55mm f/4.5 AL
45-85mm f/4.5
55-110mm f/5.6
80-160mm f/4.5
150-300mm f/5.6 ED IF
A645 1,4X
A645 2X
SMC (super multi coating) Super multi
coating is standard for all PENTAX lenses. smc
describes seven microscopically thin layers of
high quality coatings that are applied to the lens
elements. smc coatings significantly increase the
amount of light transmitted by the lens.
AL (Aspherical Lens elements) Unlike
spherical lens elements, aspherical elements
do not have a uniformly curved spherical
shape. The form of an aspherical lens is adapted
to a specific task and the curvature of each is
individually calculated. The production of these lenses
is accordingly complex.
-
-
96mm
26,5-44mm
36-68mm
44-88mm
64-128mm
120-240mm
-
-
32.5
93-65
76-44.5
65-35
47-24.5
26-13.5
-
-
7/9
8/11
9/11
9/9
10/11
13/15
4/5
4/8
f/4
f/4.5
f/4.5
f/5.6
f/4.5
f/5.6
-
-
f/32
f/32
f/32
f/45
f/32
f/45
-
-
0.39m
0.4m
0.5m
0.8m
1m
2m
-
-
67mm
82mm
77mm
82mm
77mm
67mm
-
-
1X
0.21X
0.22X
0.16X
0.17X
0.18X
-
-
82.5 x 110mm
88 x 104mm
85 x 99.5mm
88 x 104mm
85 x 130.5mm
80 x 201mm
77 x 31mm
77 x 60mm
735g
585g
815g
500g
1010g
920g
265g
350g
X
-
-
-
-
X
-
-
X
X
X
X
X
X
-
-
37639
Flower-type hood w/ window to handle PL filter
38725
Flower-type hood w/
window to handle
PL filter
Flower-type hood w/ window to
handle PL filter
included
-
-
33925
33924
33940
37727
33929
37728
-
-
High reflective index low
dispersion lens
AF limitation
High reflective index low
dispersion lens
Ghost-less coating
AF/MF switch by
shifting the focus ring
front/backward
F4.8 for smooth
defocus
Ghost-less coating
Compact design
Ghost-less coating
AF/MF switch by shifting the focus ring
front/backward
F5.6 for smooth defocus
To calculate the equivalent in 645 film format multiply the focal length by 1.3
To calculate the equivalent in 24x36mm film format multiply the focal length by 0.8
ED (Extra-low dispersion glass) Normal
glass lens elements tend to divide the incident
light into its various colour components,
just like a prism would. This happens particularly at
the edges, adding unwanted colour fringing to the
image. The longer the focal length of the lens the
more apparent the fringing effect. ED glass is an
exceptionally high-quality specialty glass that greatly
reduces this chromatic aberration.
IF (Inner Focusing) Each lens is composed
of several groups of lens elements. With an
Inner Focusing design only one of these
groups is moved. Inner Focusing brings a number
of advantages compared to a conventional focusing
design where all the lens groups are moved. Firstly
it works faster, and secondly, the overall length of
the lens remains unchanged so the centre of balance
remains constant. Additionally, since the front lens
element doesn’t rotate, filters do not have to be
readjusted every time the focus point changes.
SDM (Supersonic Direct-drive Motor)
Small motors manage the actual focusing of
an autofocus system. With the “Supersonic
Direct-drive Motor” PENTAX has developed a
technology that drives the focusing mechanism with
an ultrasonic motor. PENTAX SDM lenses drive the
autofocus system significantly faster and operate
more quietly than conventionally driven AF lenses.
Quick Shift Focus System The PENTAX
The PENTAX Quick Shift Focus System allows
instant switching between Auto Focus and
Manual Focus simply by turning the focusing ring
on the lens. A clever clutch mechanism takes care of
the rest.
SP Coating Based on a fluoride bonding the
coating prevents the contamination of the lens
by water-based or oily substances. SP coated
lenses are much more easily cleaned of finger marks,
smears or other substances than may come in contact
with the lens.
Water and dust protection
Humidity and dirt are the natural
enemies of high performance
electronics and precision optics. So that neither water
nor dust can penetrate, the latest PENTAX lenses are
protected by a comprehensive system of seals for
thorough protection..
25
Other accessories
Flash
O-GPS1 GPS unit
AF-360 FGZ
AF-200 FG
AF-540 FGZ
Type
ELECTRONIC FLASH WITH ZOOM HEAD
Type
ELECTRONIC FLASH WITH ZOOM HEAD
Type
ELECTRONIC FLASH
Guide number
36 at 85mm, 30 at 50mm (ISO 100)
Guide number
54 at 85mm, 45 at 50mm (ISO 100)
Guide number
20 at 28mm (35mm film format) (at ISO 100)
Compensation
Flash exposure -3.0 to +1.0 EV, in 0.5 EV steps
Compensation
Flash exposure -3.0 to +1.0 EV, in 0.5 EV steps
Compensation
Flash exposure -0.5 and 1 EV
Functions
P-TTL, A- TTL, Automatic , Manual (6 steps 1/1–1/32),
Slave, Wireless, Flash with 1st and 2nd curtain sync,
SB function for distance measurement,
Contrast Control, High-Speed-Synchronisation
Functions
P-TTL, A- TTL, Automatic , Manual (7 steps 1/1–1/64),
Slave, Wireless, Flash with 1st and 2nd curtain sync,
SB function for distance measurement,
Contrast Control, High-Speed-Synchronisation
Flash functions
PTTL, ATTL, automatic, Manual (Full)
Head
Focal length 28 mm/24 mm (with builtin
diffuser) (values given refer to focal lengths for 35mm film
format) vertical: 30°/39°; horizontal: 26.5°/35°
Auto zoom, manual zoom,
vertical bounce: -10°, 0°, 45°, 60°, 75°, 90°
Head
Auto zoom, manual zoom, vertical bounce: -10°, 0°, 45°, 60°,
75°, 90°
horizontal rotation: right: 0°, 30°, 60°, 90°, 120°, 150°, 180°
left: 0°, 30°, 60°, 90°, 135°
Flash range
0.7 - 3.6m at f 5.6 / ISO 100
Power requirements
4x AA batteries (or rechargeable)
Battery life
Head
Flash range
0.7 – 5.4m at f/5.6 / ISO 100
Flash range
0.8 – 8m at f/5.6 / ISO 100
Power requirements
4x AA batteries (or rechargeable)
Power requirements
4x AA batteries (or rechargeable)
Battery life
Recycle time
No. of flashes
6 s approx.
250 approx.
Battery life
Alkali-Manganese (LR6)
Recycle time
No. of flashes
6 s approx.
250 approx.
Nickel Metal Hydrid
Recycle time
No. of flashes
4 s approx.
300 approx.
4 s approx.
400 approx.
4 s approx.
450 approx.
(Ni-MH 2,700 mAh)
Alkali-Manganese (LR6)
Alkali-Manganese (LR6)
AA Lithium
Nickel Metal Hydrid
(Ni-MH)
6 s approx.
Nickel Metal Hydrid
(Ni-MH)
160 approx.
6 s approx.
160 approx.
Compatibility
Digital, 35mm, 645, 67 (medium format)
Compatibility
Digital, 35mm, 645, 67 (medium format)
Dimensions
76 x 142 x 107mm (W x H x D)
Dimensions
76 x 142 x 107mm (W x H x D)
Compatibility
Digital, 35mm, 645, 67 (medium format)
Weight
270g (without batteries)
Weight
380g (without batteries)
Dimensions
68 x 83.5 x 93mm (W x H x D)
Accessories
Soft case
Accessories
Soft case
Weight
190g (without batteries)
TR Power Pack 3 for the AF-54 0 FGZ
The ultimate power
source for independent
photography.
Professional photography
demands sufficient
power. This means the
TR Power Pack 3 for the
AF-540 FGZ (not for
use with AF-360 FGZ).
The use of 6 C- type
batteries extends the
shooting capacity and
shortens the recycling
time.
26
Adaptater
Compatible
AF-540 FGZ
Battery
6x C- type alkaline
batteries (NiCd batteries
are not usable)
Number of flashes
approx. 700
Recycling time
approx. 4.5sec.
Size (W x H x D)
Weight
95 x 190 x 40mm
340g (without batteries)
740g (with batteries)
Standard
accessories
Connecting cable (1.5m),
case, strap
The flash must have batteries installed when using the Power Pack.
HOT SHOE ADAPTER FG
SYNCHROCORD F5P
The Hot Shoe FG is designed so
that the camera’s built-in flash
can be used in conjunction
with the adapter. The top of the
adapter has a socket for the
sync cable.
This cord allows you
to control a flash to a
distance of 0.5m or 3m.
The O-GPS1 unit enables to record
shooting location data. It mounts on
the hot shoe and records the latitude,
longitude, altitude, universal time
coordinated (UTC) and direction of the
shooting location into captured images
Exif data. Using mapping software
such as Google Earth™, the user can
easily recall shooting locations and
directions on a map. The O-GPS1
offers a Simple Navigation function,
which calculates the direction and
distance to a given destination from
the current position. The user can,
either locate destinations using
location data stored on recorded
images, or register and/or assign them
by uploading location data created on
a PC. The O-GPS1 comes equipped
with an Electronic Compass function,
which displays the camera’s direction
on its LCD monitor with great
precision. With its weather-resistant
construction, it can also be used in
light rain.
645 Magnifier
HOT SHOE ADAPTER F
The Hot Shoe Adapter F is
particularly suitable for the SF- and
Z-series cameras and the flash
units of the FTZ- and FGZ ranges.
It connects a flash unit to a
sync cable. Up to 4 units can be
connected together.
This accessory is magnifies by 2x the
viewfinder image to allow precise
focusing in close-up shooting or copy
applications.
Rear converter
A645 1.4X or 2X
645 adapter
for 67 lenses
It allows you to multiply the
focal length by 1.4X or 2X
(Autofocus is not available)
This adapter is designed to
allow use of 67 lenses on
the 645D (Autofocus is not
available)
Weather resistant Remote control F
remote control
Allows shooting from a
O-RC1
distance.
Allows shooting from a
distance. Can be used in
bad weather (rain, drizzle).
645 reversal set
This bayonet allows you
to use lenses in reverse
for the Macro shooting
for magnifications greater
than 1:1. For all lenses with
58mm filter.
Cable switch
CS-205 (0.5m)
This cable is used to trigger
the shutter without causing
movement of the camera.
Particularly useful for
macro photography or long
exposures.
SMC PENTAX
5,5X and 5-11X
Photo loupe
These large diameter photo
loupes are equipped with
treated lenses to produce a
clear and uniform image.
Battery D-LI90
Digital spotmeter
Focusing screens
With an angle of
measurement of one degree
and measuring range of
1 to 20 EV, this compact
spotmeter is useful in
situations where an even
sharper measure of
light is necessary. The
measurement appears
on a digital display in the
viewfinder.
For very specific needs
(Macro, Architecture ...), you
can replace the standard
focusing screen with a AF
standard, golden section
rule or divided model.
AC adapter kit
K-AC120
Quick shoe
adapter QS-20
This accessory allows
quick and easy mounting
or removal of the camera
on or from a tripod.
Large eye cup
PENTAX image
transmitter
S-SW123
Enables shooting via
computer and transfer
of images backup on
a computer (either on
a file on a computer or
simultaneously on SD card
in the body).
Lens cleaning kit
Sensor cleaning
kit O-ICK1
Dust is removed and
collected from the sensor
with a specially coated
cleaning head. Adhesive
papers are provided that
carefully remove dust
particles.
Set of protective
films for LCD
screen 3’’
27
CCD SENSOR
Number of pixels
Sensor type
Pixel size
Convertor A/N
Image size
FOCUSING
Approx. 40 megapixels - effective
33 x 44mm CCD sensor with primary colour filter
6.0 μm x 6.0 μm
14 bits
JPEG: L - 40M (7264x5440),
M - 32M (6528x4896), 21M (5376x4032),
S - 13M (4224x3168), 7M (3072x2304),
RAW: 40M (7264x5440)
PENTAX 645AF2 bayonet mount
PENTAX 645AF2, 645AF and 645A mount lenses
VIEWFINDER
Type
Focusing screen
Field of view
Magnification
Diopter adjustement
Digital preview
Other features
Trapezoid-shaped glass prism
Natural Bright Matte focusing screen
100 %
approx. 0.62 x (w. D-FA645 55mm f/2.8 at infinity),
approx. 0.85 x (w. FA645 75mm f/2.8 at infinity)
-3.5 to +2.0
Continuous shooting
Sensitivity range
Exposure compensation
Auto Exposure Lock
TTL open-aperture 77-segment metering
Multi-segment, center-weighted or spot metering
EV 2 - EV 21 (at Standard ISO 200 with 55mm f/2.8)
Program, Sensitivity-Priority, Shutter-Priority,
Aperture-Priority, Shutter and Aperture-Priority,
Metered Manual, Bulb, X speed, User
Electronically controlled vertical-run focal plane
Auto and manual: from 1/4000 to 30 sec
(1/3 EV steps or 1/2 EV steps), bulb
ISO Auto, from 200 to 1000, extended: from 100 to
1600 (1/3, 1/2 or 1EV steps)
± 5EV (1/3EV steps)
Available
FLASH
Hot shoe, X-sync socket, sync-speed: 1/125 sec.,
P-TTL, high-speed-sync, wireless control mode with
PENTAX dedicated external flash
POWER SUPPLY
Battery
Capacity
Other sources
Mirror Lock-up
White balance
Dust Removal II
One shot, Self-timer (2 or 12 sec), Continuous
shooting, Remote control (0 or 3 sec),
Remote continuous shooting, Interval, Exposure
bracketing, Multiple exposure, Extended bracketing
approx 1.1fps on both Slot 1 and Slot 2
RAW(PEF)+JPEG(40M at
) until 13 frames
RAW (PEF at DNG) until approx. 13 frames
JPEG (40M at
) until 13 frames
Bright, Natural, Portrait, Landscape, Vibrant,
Muted, Reversal Film, Monochrome
For vibration free shooting. Can be enabled via
dedicated dial or infrared remote control
Auto, Daylight, Shade, Cloudy, Fluorescent light
(D, N, W, L), Tungsten light, Flash, CTE, Manual
settings 1, 2 or 3, Colour temperature setting (3 types)
with WB fine adjustement
Image sensor cleaning function by supersonic
vibration, with dust alert function
OTHER FEATURES
World time
Folder names
File names
Digital filters
HDR
Others
Rechargeable D-LI90 Lithium-ion battery
Approx. 800 shots and 440 min in play mode
Optional AC adapter also available
75 cities, 28 time zones
Date (100_MMDD…), PENTX (100PENTX...)
Standard, User customize
Monochrome, Extract colour, Colour,
Base Tweaking, Soft
Available (1 composite picture out of 3 images)
Dynamic Range Expansion, Digital level function,
Automatic compensation of distortion and late-ral
chromatic abberration with D-FA645- and
FA 645-series, Versatile White Balance control
system, including the CTE mode, attachment of
copyrights credit on recorded images, compatible
with the SDM autofocus mechanism
INTERFACES
RAW (PEF, DNG), JPEG (Exif 2.2), DCF 2.0
3 Quality levels of JPEG (good, better, best)
RAW 14bit (PEF, DNG), RAW+JPEG
MEMORY
External memory
Metering system
Metering mode
Operational range
Modes
Synchronization
3’’ (7.6cm) colour LCD, approx. 921k dots,
wide-angle viewing, adjustable brightness and
colours, scratch resistant, reinforced glass with AR
coating
for confirming WB and exposure
Index view (1, 2, 4, 9, 16, 36 or 81 images),
Enlargement (up to 32X, scroll available), Image
Rotation, Folder view, Slideshow, Histogram, Resize,
Cropping, Bright/Dark area, Calendar view
FILE FORMATS
Photo format
Drive modes
EXPOSURE CONTROL
Shutter type
Shutter speeds
LCD SREEN
Type
Options
Focus points
Superimpose
TTL phase difference detection autofocus, 11-point AF
system (SAFOX IX+) with indication in finder
AF-Single, AF-Continuous
Auto, Select or Center
Available, up to 9 pictures
Custom Image
LENS
Mount
Usable lenses
Type
RECORDING PARAMETERS
Video outputs
USB
Other
Mini-HDMI, Mini-phone type (NTSC or PAL)
USB 2.0 mini-B (Hi-Speed)
Cable switch, X-sync socket, DC power input
OS
Compatible with SD and SDHC memory cards
Dual slot
PC
Mac
DIMENSIONS AND WEIGHT
Dimensions
Weight
156 × 117 × 119 mm (WxHxD)
1400 g unloaded
1480 g with battery and 2 SD cards
SOFTWARE INCLUDED
Windows XP SP2, VistaTM and 7
OS X 10.3.9 or most recent
PENTAX RICOH IMAGING FRANCE S.A.S - 112 quai Bezons - BP 204 - 95106 ARGENTEUIL CEDEX - WWW.PENTAX.CO.UK/645D - HOTLINE 0870 7368 299
2012 - graphic design degresfahrenheit.com - Photo credits : Cécile Cée, Kerrick James, Nicolas Claris (Bénéteau Sense 55), Wolfgang Baus, Maksim Chicherin, Lili Renée
Software
PENTAX Digital Camera Utility 4 (v 4.20)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
