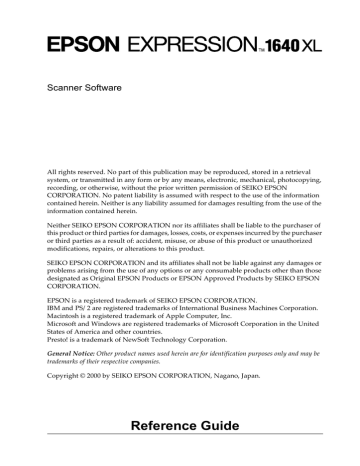

EPSON EXPRESSION 1640XL

EPSON EXPRESSION 1640XL
Scanner Software
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of SEIKO EPSON
CORPORATION. No patent liability is assumed with respect to the use of the information
contained herein. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of
this product or third parties for damages, losses, costs, or expenses incurred by the purchaser
or third parties as a result of: accident, misuse, or abuse of this product or unauthorized
modifications, repairs, or alterations to this product.
SEIKO EPSON CORPORATION and its affiliates shall not be liable against any damages or
problems arising from the use of any options or any consumable products other than those
designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON
CORPORATION.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
IBM and PS/2 are registered trademarks of International Business Machines Corporation.
Macintosh is a registered trademark of Apple Computer, Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States of America and other countries.
Presto! is a trademark of NewSoft Technology Corporation.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective companies.
Copyright © 2000 by SEIKO EPSON CORPORATION, Nagano, Japan.
Reference Guide
Contents
Introduction
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter 1 Scanning Basics
Main Window and Preview Window. . . . . . . . . . . . . . . . . . . . . . . 1-2
Main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Preview window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Optimizing Image Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Manually optimizing images . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Displaying a preview image . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Adjusting the Highlight Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Adjusting the Shadow Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Adjusting the Gamma Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Applying a Preset Tone Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Adjusting the Gray Balance Intensity Setting . . . . . . . . . . . . . . . . 1-13
Adjusting the Saturation Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Using the Tone Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Saving your own tone curve . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
Deleting a customized tone curve . . . . . . . . . . . . . . . . . . . . . 1-19
Closing the Tone Correction dialog box . . . . . . . . . . . . . . . . 1-19
Optimizing OCR Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Scanning text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Improving character recognition . . . . . . . . . . . . . . . . . . . . . . 1-20
If you still have problems.... . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Text difficult to recognize . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
Contents
1
Chapter 2 Understanding EPSON TWAIN Pro Features
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EPSON TWAIN Pro Main Window . . . . . . . . . . . . . . . . . . . . . . .
Document Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Image Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Image Type list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Image Type button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destinations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Source and Target image sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preview Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preview Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Zoom preview button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Return to full preview button . . . . . . . . . . . . . . . . . . . . . . . .
Return to zoom preview button . . . . . . . . . . . . . . . . . . . . . .
Marquees and Marquee Buttons . . . . . . . . . . . . . . . . . . . . . . . . . .
Making and modifying marquees . . . . . . . . . . . . . . . . . . . .
Delete marquee button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Duplicate marquee button . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto locate button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Marquee number indicator . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Image Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tone Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Color Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Settings Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scan Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scan All Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Contents
2-3
2-4
2-5
2-7
2-7
2-8
2-12
2-13
2-14
2-16
2-16
2-19
2-21
2-21
2-22
2-22
2-23
2-23
2-25
2-26
2-26
2-28
2-29
2-30
2-30
2-33
2-35
2-36
2-37
2-37
2-40
2-42
2-45
2-45
Chapter 3 Calibrating Your System
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Calibrating Your Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
For Windows 2000 and 98 users. . . . . . . . . . . . . . . . . . . . . . . 3-3
For Windows 95 and NT 4.0 users: . . . . . . . . . . . . . . . . . . . . 3-5
For Macintosh users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Using ICM (For Windows 2000, 98, and 95 Users) . . . . . . . . . . . . 3-8
For Windows 2000 and 98 users. . . . . . . . . . . . . . . . . . . . . . . 3-8
For Windows 95 users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Using ColorSync (For Macintosh Users) . . . . . . . . . . . . . . . . . . . . 3-10
Chapter 4 Maintenance and Troubleshooting
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Cleaning the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Replacing the fluorescent lamp . . . . . . . . . . . . . . . . . . . . . . . 4-3
Transporting the Scanner and the Transparency Unit. . . . . . . . . 4-4
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Error indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Operating problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Quality problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Software setup problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Scanning problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Software operation problems . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Paper jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Changing the SCSI ID number or SCSI board . . . . . . . . . . . 4-16
Changing USB connections ports. . . . . . . . . . . . . . . . . . . . . . 4-18
Recovering from scanner software installation problems
on Windows 2000 and Windows 98 . . . . . . . . . . . . . . . . . 4-19
Sizing up your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Contents
3
Appendix A Technical Specifications
Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CE marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SCSI Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Option Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initialization Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transparency Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Document Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IEEE 1394 Scanner I/F Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix B Contacting Customer Support
Glossary
Index
4
Contents
A-2
A-4
A-4
A-5
A-5
A-6
A-7
A-8
A-9
A-10
A-11
A-12
Introduction
Features
The CD-ROM that comes with your scanner contains the EPSON
scanner software suite, including EPSON TWAIN Pro and
TWAIN Pro Network (The network version of EPSON TWAIN
Pro). The software suite is the perfect companion for your EPSON
scanner. Using your scanner and the software on the CD-ROM,
you can scan images in color, grayscale, or black and white, and
save them as files or print them out. Other software such as
EPSON Scanner Monitor and PageManager for EPSON support
the Start Button feature to make scanning much easier. EPSON
Scan Server allows your scanner to be used over a network.
❏ The software supports the following EPSON scanners:
EPSON EXPRESSION 1640XL
❏ EPSON TWAIN Pro and EPSON TWAIN Pro Network
directly control all of the features of your EPSON scanner.
This program is the standard cross-platform interface for
other applications.
The CD-ROM also contains other applications that let you use
your scanner in exciting new ways. For detailed information, refer
to the supporting documentation.
❏ EPSON Scanner Monitor allows your scanner to access
software that supports the Start Button feature.
❏ EPSON Screen Calibration utility allows you to calibrate your
scanner and monitor to reproduce images identical to the
originals.
Introduction
1
❏ PageManager for EPSON is TWAIN-compliant software that
supports the Start Button feature. This feature allows you to
scan and send data to a target application with a single push
of the Start button. For more information on PageManager,
see your PageManager documentation.
About This Guide
The information in this guide is divided into six chapters, with a
glossary and index provided for your reference.
❏ Chapter 1 explains the basic steps of scanning.
❏ Chapter 2 provides a complete description of EPSON TWAIN
Pro and TWAIN Pro Network features. Refer to Chapter 2
when making scanning settings.
❏ Chapter 3 explains how to calibrate your monitor to match
your EPSON scanner. If you notice that colors on your screen
or in your printout do not match the original image, see this
chapter.
❏ Chapter 4 contains maintenance and troubleshooting
information. If your software does not operate properly or
scanned images are not what you expect, see this chapter.
❏ Appendix A contains various specification information.
❏ Appendix B contains customer support information.
Notes contain important information and useful tips about your
scanner and software.
To set up and use the scanner, see your scanner’s User’s Guide.
EPSON TWAIN Pro and EPSON TWAIN Pro Network online
help can also provide you with information on making settings
in EPSON TWAIN Pro or EPSON TWAIN Pro Network.
2
Introduction
Chapter 1
Scanning Basics
Main Window and Preview Window. . . . . . . . . . . . . . . . . . . . . . . 1-2
Main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Preview window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Optimizing Image Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Manually optimizing images . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Displaying a preview image . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Adjusting the Highlight Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Adjusting the Shadow Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Adjusting the Gamma Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Applying a Preset Tone Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Adjusting the Gray Balance Intensity Setting . . . . . . . . . . . . . . . . 1-13
Adjusting the Saturation Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Using the Tone Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Saving your own tone curve . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
Deleting a customized tone curve . . . . . . . . . . . . . . . . . . . . . 1-19
Closing the Tone Correction dialog box . . . . . . . . . . . . . . . . 1-19
Optimizing OCR Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Scanning text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Improving character recognition . . . . . . . . . . . . . . . . . . . . . . 1-20
If you still have problems.... . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Text difficult to recognize . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
Scanning Basics
1-1
Main Window and Preview Window
EPSON TWAIN Pro and EPSON TWAIN Pro Network have two
main windows. The EPSON TWAIN Pro window or the EPSON
TWAIN Pro Network window (main window) and the Preview
window.
Note:
All settings and functions available from the two main windows are the
same for both EPSON TWAIN Pro and EPSON TWAIN Pro Network.
Although most of the illustrations and explanations in this guide are for
the EPSON TWAIN Pro, they also apply to EPSON TWAIN Pro
Network.
Main window
1-2
Scanning Basics
The main window gives you access to the controls, where you can
make basic settings, such as Document Source, the type of the
material you are scanning, how you are scanning, output
destination, scanned image size, and so on. If you want to specify
the areas of the images to scan or you want to see the effects of
your settings before scanning, click Preview to open the Preview
window and display the preview images in the window.
Preview window
In the Preview window, there are more options available to give
you greater controls over your scanning image. Powerful tools are
available to help you adjust tones, colors, focus and other
elements to optimize your images.
Scanning Basics
1-3
Optimizing Image Scanning
EPSON TWAIN Pro can automatically adjust and optimize the
exposures and colors of scanned images during scanning. You can
also make adjustments manually with the image quality
adjustment tools in EPSON TWAIN Pro’s Preview window. This
section provides general information on optimizing images with
these tools.
EPSON TWAIN Pro Preview window
Note for Macintosh users:
Most illustrations shown in this section are for Windows, so they may
vary in appearance from what actually appears on your screen. The
instructions are the same, except as noted.
1-4
Scanning Basics
Manually optimizing images
To optimize images manually, adjust the following EPSON
TWAIN Pro settings in the order specified below:
Adjust the brightness and contrast
1. Adjust the Highlight and Shadow settings in the Image
Controls dialog box. See “Adjusting the Highlight Setting” on
page 1-7 and “Adjusting the Shadow Setting” on page 1-8.
2. Adjust the Gamma setting in the Image Controls dialog box.
See “Adjusting the Gamma Setting” on page 1-9.
3. Adjust the tone curve with a predefined tone correction
setting in the Tone Correction dialog box. See “Applying a
Preset Tone Curve” on page 1-10.
Make color adjustments
4. Adjust the Gray Balance Intensity setting in the Color
Adjustment dialog box. See “Adjusting the Gray Balance
Intensity Setting” on page 1-13.
5. Adjust the Saturation setting in the Color Adjustment dialog
box. See “Adjusting the Saturation Setting” on page 1-15.
6. Manually adjust the tone curve for individual colors in the
Tone Correction dialog box. See “Using the Tone Curve” on
page 1-15.
To make the following adjustments in EPSON TWAIN Pro, you
need to display a preview image in the Preview window. See the
following section for details.
Scanning Basics
1-5
Displaying a preview image
The EPSON TWAIN Pro Preview window shows you how your
adjustments will affect the image as you make them. The Preview
window is also the starting point for accessing the Image Controls,
Tone Correction, and Color Adjustment dialog boxes that contain
tools for optimizing your image.
Note:
See “Preview Window” on page 2-19 for Preview window options, and
“Configuration Button” on page 2-42 for information about how to
control preview image quality.
1. After selecting the Document Source, Image Type, and
Destination in the main window, click Preview to start
prescanning. If the Preview window is not open, it opens and
begins prescanning. A preview image of the document
appears on your screen.
Note:
Make sure the Fast Preview check box is clear in the Configuration
dialog box to ensure a high-quality preview.
2. Click one of the buttons below to open the dialog box with the
image optimization tools you need.
Image Controls button
Color Adjustment button
Tone Correction button
1-6
Scanning Basics
Adjusting the Highlight Setting
Highlights are the brightest areas of an image.
1. In the Image Controls dialog box, click the eyedropper button
under Highlight.
The pointer changes to an eyedropper, with movement
restricted to within the Preview window.
2. Move the eyedropper to the location you want to select as the
highlight point and click it.
The brightness of the pixel at the point you click is set as the
highlight level, and the other parts of the image are adjusted
accordingly.
3. To change the highlight level (brightness) of the point you
selected, move the Highlight slider left or right, or enter a
value in the text box. You can enter a value between 61 and
490 for the highlight.
Scanning Basics
1-7
Note:
See “Image Controls” on page 2-30 for further information on
adjusting the highlight level.
Adjusting the Shadow Setting
Shadows, the darkest areas of an image, are the opposite of
highlights.
1. In the Image Controls dialog box, click the eyedropper button
under Shadow.
The pointer changes to an eyedropper, with movement
restricted to within the Preview window.
2. Move the eyedropper to the location you want to select as the
shadow point, and then click.
1-8
Scanning Basics
The brightness of the pixel at the point you click is set as the
shadow level, and the other parts of the image are adjusted
accordingly.
3. To change the shadow level (darkness) of the point you
selected, move the Shadow slider left or right, or enter a value
in the text box. You can enter a value between 0 and 60 for the
shadow.
Note:
See “Image Controls” on page 2-30 for further information on
adjusting the shadow level.
Adjusting the Gamma Setting
Gamma is the difference in contrast between the light tones and
dark tones of an image. Any change you make in the gamma level
only affects the mid-tones of the image.
To change the gamma level of the image, move the Gamma slider
left or right, or enter a value in the text box.
Scanning Basics
1-9
You can enter a value between 50 and 500 for the gamma.
Note:
See “Image Controls” on page 2-30 for further information on adjusting
the gamma level.
Applying a Preset Tone Curve
You can finely adjust the contrast within an image by applying
one of the preset tone curves. This allows more control over the
image when used in conjunction with the Auto Exposure function
or settings in the Preview Window. The Tone Curve Name list in
the Tone Correction dialog box provides the six most common
tone correction curves, described below.
Linear
A linear tone curve has no tone correction. Use this setting if you
are satisfied with the tone of the preview image.
1-10
Scanning Basics
Lighten
Adjusts darker images (like underexposed film) to make them
slightly brighter.
Darken
Adjusts brighter images (like overexposed film) to make them
slightly darker.
Scanning Basics
1-11
Flat Contrast
Flattens high contrast images to make them look more natural.
High Contrast
Increases the contrast of dull images.
1-12
Scanning Basics
Open Shadow
Improves details in the dark areas of images.
Note:
See “Using the Tone Curve” on page 1-15 and “Tone Correction” on
page 2-33 for more information on tone correction.
Adjusting the Gray Balance Intensity Setting
Gray balance makes it possible to remove a cast (tint) from a
specific color.
Scanning Basics
1-13
1. In the Color Adjustment dialog box, click the eyedropper
button under Gray Balance Intensity.
The pointer changes to an eyedropper, with movement
restricted to within the Preview window.
2. Move the eyedropper to a location that contains the color
whose gray balance intensity you want to adjust, and then
click.
The color you selected appears in the two boxes below the
Gray Balance Intensity slider.
3. To change the gray balance intensity level of the color you
selected, move the slider left or right, or enter a value in the
text box.
You can enter a value between 0 and 100. Changing the value
causes the color in the right hand box to change accordingly.
Your changes are also reflected in the image in the Preview
window.
Note:
See “Color Adjustment” on page 2-35 for more information on
adjusting the gray balance intensity level.
1-14
Scanning Basics
Adjusting the Saturation Setting
Saturation is the density of a color. Higher saturation makes the
color appear richer, while lower saturation makes it appear paler.
To change the saturation level of the image, move the Saturation
slider left or right, or input a value in the text box.
You can enter a value between -100 (lowest color density) and 100
(highest color density).
Note:
See “Color Adjustment” on page 2-35 for more information on adjusting
the saturation level.
Using the Tone Curve
The tone curve provides you with a versatile means for adjusting
the intensity of the colors of the image being scanned. You can
adjust the shadow, mid-tone, and highlight values, which helps
to ensure well-balanced coloring of the image.
Scanning Basics
1-15
Note:
❏ Use of the tone curve is recommended for fine adjustments after you
have previewed the image and adjusted the highlights and the
shadows using Auto Exposure and the Image Controls dialog box.
Use of the tone curve to make initial settings is not recommended.
❏ The Tone Correction button is unavailable whenever Black &
White is selected as the Pixel Depth and None is selected for the
Halftone.
The tone curve is located in the Tone Correction dialog box, which
appears when you click the Tone Correction button in the EPSON
TWAIN Pro’s Preview Window. How to use each of the controls
in the Tone Correction dialog box is described below.
Tone Correction button
Tone Correction dialog box
1-16
Scanning Basics
Tone Curve Name list
Use this list box to select a preset tone curve. There are six preset
tone curves shown below, and you can add your own curves to
the list using the procedure in the next section, “Saving your own
tone curve.”
Curve
Name
Highligh
t
1/4
Tone
Midtone
3/4
Tone
Shadow
Description
Linear
245
192
128
64
8
Default curve
Lighten
245
193
133
74
4
Lightens dark
Darken
245
152
82
38
11
Darkens
bright image
Flat
Contrast
245
182
129
72
2
Reduces
contrast
High
Contrast
245
204
129
51
2
Increases
contrast
Open
Shadow
245
193
129
80
5
Lightens dark
shadows
When you select a curve from the Tone Curve Name list, the
settings in the Tone Correction dialog box change accordingly.
Channels
Click an option button under channels to select the color whose
tone curve you want to adjust. When the master channel at the
top is selected, your adjustments affect all three colors. Selecting
one of the other channels allows you to adjust red, green, or blue
only.
Tone curve editor
Moving the mouse pointer into the tone curve editor causes it to
change to a finger. Use this pointer to drag any of the five points
in the curve and change its shape. The x-axis of the curve is the
brightness of the original (input values) while the y-axis is the
brightness of the scanned image (output values).
Scanning Basics
1-17
To change the tone curve back to its default, select Linear in the
Tone Curve Name list.
Output values
These are the current values for output data in accordance with
the current locations of the points inside the tone curve editor.
These values change when you drag points in the tone curve
editor, or you can enter in values here to change the shape of the
tone curve. Each value can be adjusted within the range of 0 to 255.
Note:
❏ Each output value name has a check box to the left of it. Highlight
and Shadow are always selected, but you can select or clear 1/4 Tone,
Midtone, and 3/4 Tone by clicking their check boxes.
❏ When a value’s check box is clear, its point on the tone curve editor
automatically shifts to smooth out the tone curve when one of the
other points is moved.
❏ When a value’s check box is selected, it means that its point is fixed
and it will not shift when other points are moved.
Saving your own tone curve
Use the following procedure to assign a name to a tone curve you
customized and to save it for later use:
1. Make the tone curve settings you want. This causes the name
shown in the Tone Curve Name list to change to User
Defined.
2. After customizing the tone curve, enter a name for the new
curve (up to 32 characters) in the list box.
3. Click Save to save your new tone curve settings under the
name you specified.
1-18
Scanning Basics
Deleting a customized tone curve
Use the following procedure to delete a custom tone curve. You
cannot delete the six preset tone patterns.
1. Use the Tone Curve Name list to select the custom tone curve
you want to delete.
2. Click Delete.
3. In the confirmation dialog box that appears, click Yes to
delete the curve.
Closing the Tone Correction dialog box
You can close the Tone Correction dialog box by clicking either
OK or Cancel.
❏ Clicking OK applies the current Tone Correction dialog box
settings and closes the dialog box.
❏ Clicking Cancel closes the dialog box without applying the
current dialog box settings.
Optimizing OCR Scanning
This section gives you suggestions and recommended settings in
order to improve OCR (optical character recognition) scanning
results.
Scanning text
Make sure you select OCR for both Image Type and Destination
in the EPSON TWAIN Pro main window.
Scanning Basics
1-19
If the recognition rate is not satisfactory with the default settings,
follow these steps to change settings:
Improving character recognition
1. In the EPSON TWAIN Pro main window, make sure OCR is
selected in both the Image Type and Destination list boxes.
Then click the Image Type button. The Image Type dialog
box appears.
2. In the Image Type dialog box, select None for B/W Option,
and then click OK.
3. In the EPSON TWAIN Pro window, click Preview. Then click
the Image Controls button to display the Image Controls
dialog box.
Image Controls button
1-20
Scanning Basics
Image Controls dialog box
4. Use the Threshold slider to change the threshold value,
monitoring the results of your changes in the Preview
window. Adjusting the threshold value can make it easier for
OCR to recognize characters.
If you still have problems...
1. In the EPSON TWAIN Pro window, increase the Resolution
value to 400. Remember that scanning at higher resolution
takes longer and may not greatly increase the recognition rate.
2. If you still have problems, try using the enhancement tools in
your OCR software to make adjustments.
Scanning Basics
1-21
Text difficult to recognize
The quality of the text in your original document greatly effects
OCR results.
The following types of originals can make recognition difficult
and should be avoided if possible:
❏ Items that have been copied from other copies
❏ Faxes
❏ Text with tightly-spaced characters or line pitch
❏ Text that is in tables or underlined
❏ Cursive or italic fonts, and font sizes less than 8 points
Remember that OCR software cannot recognize handwritten
characters.
1-22
Scanning Basics
Chapter 2
Understanding EPSON TWAIN Pro
Features
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
EPSON TWAIN Pro Main Window . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Document Sources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Image Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Image Type list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Image Type button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Destinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Destination list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Destination button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Changing Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Source and Target image sizes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Preview Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Preview Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Zoom preview button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Return to full preview button . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Return to zoom preview button . . . . . . . . . . . . . . . . . . . . . . . 2-22
Marquees and Marquee Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
Making and modifying marquees . . . . . . . . . . . . . . . . . . . . . 2-23
Delete marquee button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
Duplicate marquee button . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26
Auto locate button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26
Marquee number indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
Adjust Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29
Auto Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30
Image Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30
Tone Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33
Understanding EPSON TWAIN Pro Features
2-1
Color Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-35
2-36
2-37
2-37
Settings Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-40
Configuration Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-42
Scan Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-45
Scan All Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-45
2-2
Understanding EPSON TWAIN Pro Features
Overview
When you start EPSON TWAIN Pro or EPSON TWAIN Pro
Network through a TWAIN-compliant application, the following
window appears on the screen:
Note for Macintosh users:
Most illustrations shown in this section are for Windows, so they may
vary in appearance from what actually appears on your screen. The
instructions are the same, except as noted
Note for EPSON TWAIN Pro Network users:
Although most illustrations and explanations of settings and functions
in this guide are for EPSON TWAIN Pro, they also apply to EPSON
TWAIN Pro Network.
The following sections describe the features of EPSON TWAIN
Pro and EPSON TWAIN Pro Network.
Note:
Some settings may appear dimmed depending on your choice of settings
and the features supported by your scanner.
Understanding EPSON TWAIN Pro Features
2-3
EPSON TWAIN Pro Main Window
The main window
The main window is the starting point to make detailed settings.
You can select parameters for a setting or select special functions
provided with EPSON TWAIN Pro to attain the highest quality
scanned images.
Note:
❏ Online help also provides you with information on settings. Click
the ? button to access online help.
❏ You cannot scan an image that exceeds the available memory or disk
space. If you attempt to scan an image that is too large, an alert
appears on the screen.
❏ Before you begin scanning, you should calibrate your screen. For
details, see Chapter 3, “Calibrating Your System.”
2-4
Understanding EPSON TWAIN Pro Features
❏ After an image is scanned, be sure to save or export it.
Document Sources
When scanning a reflective document placed on the document
table of the scanner, leave the Document Source set to Flatbed.
Other selections are available depending on what options are
installed. These are the optional Automatic Document Feeder,
and TPU for Neg. Film, or TPU for Pos. Film.
Note:
Uninstalled options are not displayed.
Flatbed:
Choose this setting to use the document table of the scanner.
ADF-Single-sided, ADF-Double-sided:
Select one of these settings when using the optional
Automatic Document Feeder. If you are scanning single sided
documents, select ADF-Single-sided, and if you are scanning
double sided documents, select the ADF-Double-sided
setting.
Multi-page support with the Automatic Document Feeder
Understanding EPSON TWAIN Pro Features
2-5
If you select Auto Document Feeder as the Document Source
and click the Scan button, the following dialog box appears.
If you select Single Page, only one page is fed from the
Automatic Document Feeder and scanned.
If you select All Pages (default), all the pages are fed from the
Automatic Document Feeder and scanned. The All Pages
option may not work with some applications.
TPU for Neg. Film, TPU for Pos. Film:
Select one of these settings when using the Transparency Unit.
If you are scanning negative film, select TPU for Neg. Film,
and if you are scanning positive film (or slides), select the TPU
for Pos. Film setting.
2-6
Understanding EPSON TWAIN Pro Features
Image Types
Use the Image Type list or button to select the type of image to be
scanned.
Image Type list
The Image Type list provides the following predefined settings.
EPSON recommends you use the predefined settings first, then
later improve the quality of the scanned image manually by
making the detailed settings described in the following pages, if
necessary. Click the arrows on the right to view all of the available
settings.
42-bit Color (HiFi):
42-bit colors, best quality
Note:
This setting is available only with certain applications, such as
Adobe® Photoshop®.
24-bit Color (Std):
24-bit colors, high quality
24-bit Color De-screening:
24-bit colors, high quality with de-screening to remove moiré
patterns
Understanding EPSON TWAIN Pro Features
2-7
Note:
A moiré is a cross-hatch pattern that appears on scanned images
when scanning printed material. It is a result of interference that
occurs due to the difference between the pitches of the scanning and
the halftone screens.
14-bit Gray (HiFi):
14-bit gray, best quality
Note:
This setting is available only with certain applications, such as
Adobe Photoshop.
8-bit Gray (Std):
256 grays, high quality
Line Art:
Black and white, draft quality
OCR:
Black and white, best quality, Text Enhancement Technology
Copy & Fax:
Black and white, hard halftone, draft quality, Auto Area
Segmentation
Image Type button
The Image Type button allows you to customize the Image Type
settings. If you want to make detailed settings manually, use this
feature.
2-8
Understanding EPSON TWAIN Pro Features
Click the Image Type button. The following dialog box appears.
Image Type Name:
The names of predefined settings and any custom settings you
have saved appear in the Image Type Name list.
Pixel Depth:
Select the scanning depth from:
42-bit Color, 24-bit Color, 14-bit Gray, 8-bit Gray, and
Black & White.
Scanning Mode:
Use this setting to select between speed and quality. Best
provides the best quality image, while Draft provides faster
scanning with some loss of quality. Note that you can also
change the scanning mode of the preview image using the
procedure under "Configuration".
Understanding EPSON TWAIN Pro Features
2-9
De-screening:
Select either On or Off. When On is selected, moiré patterns
are automatically removed from scanned images, but
scanning takes longer.
Note:
❏ A moiré is a cross-hatch pattern that appears on scanned images
when scanning printed material. It is a result of interference
that occurs due to the difference between the pitches of the
scanning and the halftone screens.
❏ This setting is available when the resolution is less than 800 dpi.
❏ When On is selected, it takes longer to scan.
Dropout:
Select a color to subtract from a black and white scan of a
colored original. Proper use of dropout can improve the
quality of your black and white scans. Available dropout
options are:
None, Red, Green, and Blue.
Note:
❏ Dropout is available only when Pixel Depth is set to 8-bit Gray
or Black & White.
❏ Depending on the image you scan, you may need to adjust the
Threshold setting in the Image Controls dialog box to enable
this feature.
B/W Options:
Select from:
Text Enhancement Technology, Auto Area Segmentation,
or None.
2-10
Understanding EPSON TWAIN Pro Features
Text Enhancement Technology
To improve recognition accuracy during OCR (Optical
Character Recognition) scanning, select this option. This
function eliminates the document background from scans.
Auto Area Segmentation
To make grayscale images clearer and text recognition more
accurate, select this option. This function separates text from
graphics.
Note:
❏ The B/W Option setting is available only when Black & White
is selected as the Pixel Depth setting.
❏ When you need neither TET nor AAS, select None.
❏ Default is set to None.
Halftone:
Select a halftone or dither setting to reproduce images using
special dot patterns:
Mode A (Hard Tone), Mode B (Soft Tone), Mode C (Net
Screen), Dither A (4 × 4 Bayer), Dither B (4 × 4 Spiral),
Dither C (4 × 4 Net Screen), Dither D (8 × 4 Net Screen), or
None.
Note:
Halftone is available only when Pixel Depth is set to Black &
White.
To cancel the settings, click Cancel.
To save the settings you made as a group of custom settings, type
a new name in the Image Type Name box, then click Save.
To delete an Image Type setting, select the setting name to be
deleted in the Image Type Name menu, then click Delete.
Understanding EPSON TWAIN Pro Features
2-11
To apply the settings you made, click OK. The Preview window
displays the effects of the current settings except for TET (Text
Enhancement Technology) and AAS (Auto Area Segmentation)
settings.
Destinations
Select the destination, or output device, where the scanned image
is to be printed or displayed using the Destination list or button.
2-12
Understanding EPSON TWAIN Pro Features
Destination list
The Destination list contains the following predefined settings
and any custom settings you have saved in the Destination dialog
box. Click the arrows on the right to view all the available settings.
Resolution
Unsharp
Mask
Line drawings and
halftone images
Photos
Screen/
Web
96 dpi (for Windows)
72 dpi (for Macintosh)
96 dpi (for Windows)
72 dpi (for Macintosh)
on
Prepress
175 lpi
350 dpi
350 dpi
off
Prepress
150 lpi
300 dpi
300 dpi
off
Prepress
133 lpi
266 dpi
266 dpi
off
Prepress
120 lpi
240 dpi
240 dpi
off
LineWork
Scan
1200 dpi
600 dpi
on
EPSON
Stylus
Printer (Fine)
360 dpi
150 dpi
on
EPSON
Stylus
Printer
(Photo)
720 dpi
300 dpi
on
Laser Printer
600 dpi
200 dpi
on
Fax
200 dpi
200 dpi
off
OCR
300 dpi
300 dpi
off
Destination
name
Understanding EPSON TWAIN Pro Features
2-13
If you are using an EPSON Stylus printer and are printing scanned
images with the Economy, Normal, or Fine Print Quality settings
in your printer software, selecting EPSON Stylus Printer (Fine) is
recommended. If you are printing with the SuperFine or Photo
Print Quality settings, select EPSON Stylus Printer (Photo).
Note:
The effects of the Destination settings cannot be viewed in the Preview
window.
Destination button
The Destination button allows you to customize the Destination
settings. To make your own settings, such as scanning resolution,
click this button. The following dialog box appears.
Destination Name:
Predefined and custom setting names appear in the
Destination menu.
Resolution:
Specify a scanning resolution for line drawing and halftone
images, or photos.
2-14
Understanding EPSON TWAIN Pro Features
Note:
❏ When the Pixel Depth setting in the Image Type dialog box is
set to Black & White, the Drawing/Halftone setting takes
effect and the Photo setting becomes irrelevant. For other Pixel
Depth settings, the Photo setting takes effect and the
Drawing/Halftone setting becomes irrelevant.
❏ To print your scanned document when Resolution is set to
Drawing/Halftone, select the same resolution setting from the
list as you select in the printer driver. To print your scanned
document when Resolution is set to Photo, select a resolution
between 150 and 300 dpi. If you select a higher resolution, the
Photo setting requires longer to print, but does not improve
the output quality.
❏ The Resolution setting is closely related to the Image Size and
Scale settings. If you change them arbitrarily, the resulting
image may not be what you expected.
❏ The range of resolution values depends on your scanner.
Unsharp Mask
You can select or deselect the Unsharp Mask setting. Selecting
the check box improves image sharpness.
To apply the settings you made, click OK. To cancel the settings,
click Cancel.
To save the settings you made, type a new name in the Destination
Name box, and then click Save.
To delete a Destination setting, select the target setting name to
be deleted in the Destination Name menu, then click Delete.
Understanding EPSON TWAIN Pro Features
2-15
Changing Resolution
The resolution for the current scanning operation can be changed
by selecting a resolution or typing in the value. This setting
overrides the resolution setting you make in the Destination
dialog box.
Source and Target image sizes
The Source fields indicate the size of the image that is displayed
or selected in the Preview window.
The Target fields indicate what size the image will be when it is
output.
Note:
The image size setting is closely related to the Resolution. If you change
either setting arbitrarily, the resulting image may not be what you
expect.
2-16
Understanding EPSON TWAIN Pro Features
Width and Height menu:
The width and height of an image are indicated in the selected
unit of measure. You can type new values directly in the
indicator fields, or you can change the image area in the
Preview window by creating a marquee, or frame. Do this by
dragging the mouse over the desired area. See“Preview
Window” on page 2-19 for more information on marquees.
Units menu:
Select a unit of measurement. You can select either pixels,
inches, or cm.
Storage size indicator:
The storage size of an image is indicated in KB or MB. As you
change the image area in the Preview window, this value also
changes.
Understanding EPSON TWAIN Pro Features
2-17
Lock button:
locked
unlocked
The current size of width-to-height of the target image can be
locked, allowing the ratio of width-to-height of the Source
image to change according to the scale value, or the scale
value to change according to the ratio of width-to-height of
the Source image. This is especially useful in cases where the
size of an image does not fit the size of the paper on which
you want to print the image, but you want to keep the image’s
original proportions. Enter the size of the paper in the Width
and Height fields of the Target box and then click the lock
button. The scale value is automatically changed, maintaining
the current ratio of width-to-height to fit the paper.
Scale slider:
An image can be reduced or enlarged by moving the Scale
slider. You can also click the left or right arrow to change the
image size in 1% increments.
The range of possible reduction or enlargement varies
depending on the current resolution setting.
Scale indicator:
The percentage of enlargement or reduction is shown in the
Scale indicator field. You can type a new value directly into
this field, or use the Scale slider to determine the value.
2-18
Understanding EPSON TWAIN Pro Features
Preview Window
Before you scan and save an image, you can preview it in the
Preview window. The Preview feature displays your image in the
Preview window and allows you to see the effects of your settings
before scanning. You can also use the Preview feature to
determine the width and height of the scanning image and the file
size of the image to be saved. See the section on Image Size in this
chapter.
Note:
You cannot preview an image that exceeds available memory or disk
space.
To preview an image, click Preview in the EPSON TWAIN Pro
main dialog box.
Understanding EPSON TWAIN Pro Features
2-19
The window shown below appears.
preview window
You can see the effects on the preview image of any of the
following settings.
❏ Pixel Depth, Halftone, and Dropout in the Image Type dialog
box
❏ Unsharp Mask in the Destination dialog box
❏ Exposure, Gamma, Highlight, Shadow, and Threshold in the
Image Controls dialog box
❏ Tone Correction in the Tone Correction dialog box
2-20
Understanding EPSON TWAIN Pro Features
❏ Gray Balance Intensity, and Saturation in the Color
Adjustment dialog box
❏ Focus position on the Preview window when zoom preview
is carried out
Note:
Although the image in the Preview window changes as you make
settings, the settings do not affect the real image until you scan or rescan
the image.
For more information on image settings, see “Image Controls” on
page 2-30, “Tone Correction” on page 2-33, “Color Adjustment”
on page 2-35, and “Configuration Button” on page 2-42.
Preview Buttons
Zoom preview button
To preview a part of the image that is already in the Preview
window, click and drag the mouse to create a marquee over the
area you want to see in detail, then click the zoom preview button.
See “Marquees and Marquee Buttons” on page 2-23 for
information about marquees.
Understanding EPSON TWAIN Pro Features
2-21
Return to full preview button
Clicking the return to full preview button restores the image to a
full preview. This button is available only when the marquee is
zoomed as described above.
Return to zoom preview button
Clicking the return to zoom preview button restores the image to
the previous zoom. This button is available only when a marquee
has been previously zoomed. This restores the zoom preview
from memory, which is quicker than rescanning the same zoomed
area by clicking the zoom preview button again.
2-22
Understanding EPSON TWAIN Pro Features
Marquees and Marquee Buttons
There are buttons available on the preview window to help you
manage the marquees.
A marquee is a frame around an image, or a part of an image.
Marquees are often used in scanning and image-editing software
to select only the most important part of an image.
Making and modifying marquees
Move the pointer over the image in the Preview window. The
pointer becomes a set of cross-hairs. Drag (move the mouse while
holding down the mouse button) the cross-hairs over any area of
the image, and a dotted frame appears. The point where you first
clicked is anchored, but the rest of the frame is sizable and
movable. After you finish creating a marquee, you can resize and
move it as described below.
Multiple marquees
You can make multiple marquees in one image to scan the most
important parts while ignoring the rest. It is also useful to set
several items on the document table and scan all of them in one
time. Marquees can be different sizes, and they can overlap. Extra
marquees can be made anywhere except on the frame of another
marquee. You can make settings on each marquee.
Understanding EPSON TWAIN Pro Features
2-23
You can begin a marquee anywhere the pointer appears as crosshairs. To distinguish the active marquee from other marquees,
look at the marquee frames. The active marquee has moving
dotted line of the frame as shown below. If you created multiple
marquees and want to make a inactive marquee active, just point
the cursor at the edge of the marquee and click. The marquee
becomes active.
Resizing marquees
When you move the pointer over the edge of the active marquee,
the pointer will change to a double-headed arrow as shown
below. You can then resize the marquee to the direction of the
arrow is pointing, up, down, sideways, or diagonally, by
dragging the arrow. The double-headed arrows only appear on
the active marquee.
If you drag an arrow while pressing the Shift key, the marquee
will be resized proportionally.
2-24
Understanding EPSON TWAIN Pro Features
Moving marquees
To move an active marquee, move the pointer in the frame of the
marquee, and when the pointer changes into a hand, drag the
marquee to move it.
If you drag the marquee while pressing the Shift key, the marquee
will be limited to vertical or horizontal movement.
Note:
If you want to create a marquee inside the active marquee, first make a
marquee outside the active marquee. The newly created marquee becomes
the active marquee and you can move it inside the other marquee.
Delete marquee button
Clicking the delete marquee button removes the active marquee.
Note:
You can also delete the active marquee by pressing the Delete key on
your keyboard.
Understanding EPSON TWAIN Pro Features
2-25
Duplicate marquee button
Clicking the duplicate marquee button creates another marquee
the same size as the active marquee. Use this button to make
multiple marquees.
Clicking the duplicate marquee button while holding down the
keys noted in the table below causes the duplicate marquee(s) to
appear in a specific direction next to the original marquee.
Horizontal
Vertical
Windows
Ctrl key
Alt key
Macintosh
Command key
option key
Auto locate button
2-26
Understanding EPSON TWAIN Pro Features
Click the Auto Locate button to make the scanner automatically
locate and select the target image. The image appears without
white borders in the Preview window.
entire preview area
located image
Note:
The Auto Locate feature is automatically activated when scanning
without previewing.
If a document contains more than one image, select a target image
by placing the mouse pointer over the image and clicking the
Auto Locate button. The selected target image is located
automatically.
target image and other image
located and
non-located images
Understanding EPSON TWAIN Pro Features
2-27
Note:
Create a marquee only on the target image. If the marquee covers other
images, the Auto Locate feature is disabled.
Marquee number indicator
This shows the number of marquees in the Preview window. To
create more marquees, see “Duplicate marquee button” on page
2-26.
2-28
Understanding EPSON TWAIN Pro Features
Adjust Buttons
Before you scan an image, you can make adjustments manually
with the powerful image quality adjustment tools on the Preview
window. The following adjust buttons are available.
Auto Exposure button
Image Controls button
Tone Correction button
Color Adjustment button
Auto Focus button
Manual Focus button
Understanding EPSON TWAIN Pro Features
2-29
Auto Exposure
Click the Auto Exposure button on the Preview window to
automatically optimize the exposure for an image. The Gamma,
Highlight and Shadow settings in the Image Controls dialog box
are automatically set.
Note:
❏ The Auto Exposure button appears dimmed and is not available
when the Pixel Depth is set to Black & White and AAS is not
selected in the Image Type dialog box.
❏ The Auto Exposure feature is automatically activated when
scanning without previewing.
Image Controls
2-30
Understanding EPSON TWAIN Pro Features
Click the Image Controls button on the Preview window to view
the following dialog box.
Note:
❏ The Image Controls button appears dimmed and is not available
when TET (Text Enhancement Technology) is selected in the Image
Type dialog box.
❏ The Image Controls settings are optimized automatically when you
scan without previewing.
❏ If Pixel Depth is set to Black & White and Halftone is set to None
in the Image Type dialog box, all the settings except Threshold
appear dimmed and cannot be selected.
❏ You can see the effects of the Image Controls settings in the Preview
window.
Exposure:
The Exposure setting lightens or darkens an image. You can
select from -10 (darkest) to 20 (brightest) by moving the slider.
Understanding EPSON TWAIN Pro Features
2-31
The Exposure and Highlight controls are related. When the
Exposure setting is changed, the Highlight value is
automatically set.
Gamma:
The Gamma control allows you to adjust the mid-tones in an
image. You can select from 50 (darkest) to 500 (brightest) by
moving the slider.
Highlight:
The Highlight control allows you to adjust the brightness
level of the brightest parts of an image. You can select from
61 to 490 by moving the slider.
Click the eyedropper button beneath the slider, and the
mouse pointer changes to an eyedropper. Move the
eyedropper over the preview image, and click a bright area.
The eyedropper “picks up” the color from that area, and uses
it as the highlight for the entire image. This effect appears
immediately in the preview image. Click Cancel to restore
the original image.
Shadow:
The Shadow control allows you to adjust the darkness level
of the darkest parts of an image. You can select from 0 to 60
by moving the slider.
Click the eyedropper button beneath the slider, and the
mouse pointer changes to an eyedropper. Move the
eyedropper over the preview image, and click a dark area.
The eyedropper “picks up” the color from that area, and uses
it as the shadow for the entire image. This effect appears
immediately in the preview image. Click Cancel to restore
the original image.
2-32
Understanding EPSON TWAIN Pro Features
Threshold:
Available only when Pixel Depth is set to Black & White and
Halftone is set to None in the Image Type dialog box. The
scanner scans gray shades as either black or white using this
setting.
You can select from 0 (lightest) to 255 (darkest) by moving the
slider.
Tone Correction
Click the Tone Correction button in the Preview window to view
the following dialog box.
Note:
❏ The default Tone Correction settings are the Linear.
Understanding EPSON TWAIN Pro Features
2-33
❏ The Tone Correction button appears dimmed and is not available
when Pixel Depth is set to Black & White, Halftone is set to None,
and TET (Text Enhancement Technology) is selected in the Image
Type dialog box.
❏ You can see the effects of the Tone Correction settings in the Preview
window.
The tone value represents the contrast in the tonal relationship
between an original image and its reproduction on a monitor or
printer.
Tone Curve Name list:
Select a tone correction setting from this list. The custom
settings you have saved appear in this list.
Tone Curve editor:
The editor allows you to customize tone correction. Drag
points on the tone curve to adjust the tone value. You can edit
up to five tonal elements.
Output options:
If you select the check box for a specific point, such as 1/4
Tone or Midtone, you can move that point and it will remain
where you leave it; it will not be affected by the movement of
other points on the curve. If the check box is cleared, the point
will be affected by the movement of other points.
Channels options:
You can select the combined red, green, and blue (RGB)
channel to modify all colors, or select these colors separately.
2-34
Understanding EPSON TWAIN Pro Features
Note:
If Pixel Depth is set to Black & White or 8-bit Gray in the Image
Type dialog box, you can only select the combined RGB channel
option.
OK/Save/Delete/Cancel buttons:
To accept the defining Tone Correction or close the dialog box,
click OK.
After you correct tone, type a name for your custom settings
in the tone correction list and click Save.
To delete a setting, select the name of the setting you want to
delete in the tone correction list and click Delete.
To cancel the operation, click Cancel.
Color Adjustment
Click the Color Adjustment button in the Preview window to
view the following dialog box.
Understanding EPSON TWAIN Pro Features
2-35
Note:
❏ If Image Type setting is not 24-bit Color (Std) or 24-bit Color
De-screening, or Pixel Depth is set to 8-bit Gray or Black &
White, the Color Adjustment button appears dimmed and these
settings cannot be selected.
❏ You can see the effects of the Color Adjustment settings in the
Preview window.
Gray Balance Intensity:
Gray Balance Intensity removes unwanted color casts and
tints by balancing color saturation.
Click the eyedropper button beneath the slider. The mouse
pointer changes to an eyedropper. Click the color you want
to represent gray. The eyedropper “picks up” the color and
displays it in the box beside the eyedropper button. You can
then correct the cast level for that color from 0 to 100 by
moving the slider. The corrected color appears in the box on
the right, and the effect shows up immediately in the preview
image. Click Cancel to restore the original image.
Saturation:
Saturation is the property that defines color depth. Select a
saturation level from -100 (less color) to 100 (more color) by
moving the slider.
Reset Button
Use the Reset Button to return any image control settings you
made back to their default settings. If you did not alter any
image control settings, this button appears dimmed and is not
available.
2-36
Understanding EPSON TWAIN Pro Features
Auto Focus
Click the Auto Focus button on the Preview window to set the
focus position.
Manual Focus
Click the Manual Focus button on the Preview window to
determine where the focus should be. This may help improve the
quality of your image. When you click this button, the following
window appears.
Understanding EPSON TWAIN Pro Features
2-37
Auto Focus:
Clicking this button adjust the focus position automatically.
This works exactly the same way the Auto Focus button in
the Adjust dialog box works.
Focus Position:
You can select from-3.0 (Lowest) to 9.0 (highest) by moving
the slider, clicking the left or right arrow, or typing a value
from -3.0 to 9.0 in increments of 0.1 in the Focus Position box.
By adjusting the focus position, you can reduce the occurrence
of moire patterns when scanning.
Note:
❏ If TPU (for Neg. Film or for Pos. Film) is selected as the
Document Source, the value of the focus position is
automatically set to 2.5. If Flatbed or ADF (Single-sided or
Double-sided) is selected, the value is automatically set to 0.
❏ If you set the film to be scanned using film holders, you do not
need to change the focus setting. If you set the film directly on
the scanner’s document table, it is recommended to change the
focus position to 0.0.
Selected area for focusing window:
This window shows a preview image of the active marquee.
If there is no marquee in the Preview window, the focus
marquee window shows a full preview image. To change the
image in the focus marquee window, change the marquee or
the image in the Preview window.
2-38
Understanding EPSON TWAIN Pro Features
Focus Line:
The focus line appears at the center of the focus marquee
window (default). If you move the cursor over the focus line,
the cursor will change to a “hand” cursor. You can then move
the focus line by clicking and dragging the “hand” cursor to
a new part of the image.
Confirm:
Click this button to compare the new image that you just
modified image (shown in the Result window) with the
unmodified image (shown in the Before window).
Result window:
This window shows the image whose focus line position you
just modified.
Before window:
This window shows the image with the focus line in the
default position. The focus line determines what point of the
image is used.
Understanding EPSON TWAIN Pro Features
2-39
Settings Button
Click the Settings button on the main window to view the
following dialog box. You can view all the settings for the current
preview image in this dialog box. Also, you can save all of the
currently selected settings as a group of custom settings with a
name you specify. Later, you can apply any custom settings you
have saved. Note that only user defined settings related to the
Document Source currently selected will appear in the User
defined settings field.
Depending on your scanner model, the preset settings for using
film holders with positive films may appear in the User defined
settings field when the optional Transparency Unit is installed.
To save the currently selected settings, type a new name in the
User defined settings field, then click Save.
To apply saved settings, select a setting name from the list, then
click OK. The preview image will reflect the settings you saved.
2-40
Understanding EPSON TWAIN Pro Features
To restore the previous settings, click Cancel.
To delete a setting, select the setting name in the list, then click
Delete.
Understanding EPSON TWAIN Pro Features
2-41
Configuration Button
Click the Configuration button on the main window to view the
following dialog box. You can make settings that affect the
Preview window.
Windows
Macintosh
2-42
Understanding EPSON TWAIN Pro Features
Preview Window Size:
Select the size of the Preview window. Your choices are Large,
Medium, and Small.
Save Preview Image and Settings:
Select this check box to automatically save the preview image
and all the image settings when you exit EPSON TWAIN (quit
scanning). The next time you restart EPSON TWAIN, the
image and settings will reappear.
Fast Preview:
Enables high-speed loading of the preview image. If this is
selected, the preview image is scanned in Draft mode. If this
is not selected, the preview image is scanned in Best mode,
and you can get accurate values for the Highlight, Shadow,
and Gray Balance Intensity by sampling with the eyedropper
in the preview image.
Do not select the check box when quality is more important
than speed.
Auto Exposure on Preview:
Displays the preview image with automatically optimized
exposure settings. The result is the same as if you clicked the
Auto Exposure button.
ICM (for Windows 2000, 98, and 95 Users):
Depending on your Windows version, this setting may not be
available or may have options. Select ICM to reproduce the
colors in your image using the Windows ICM color
management system.
Understanding EPSON TWAIN Pro Features
2-43
For Windows 2000 and 98 users:
When the sRGB option is selected, the sRGB profile is used to
reproduce colors. When the Display option is selected, the
color profile selected for your monitor in the Display
Properties dialog box is used to reproduce colors.
Note:
❏ If your printer and monitor do not support ICM, be sure this
check box is cleared.
❏ See “Using ICM (For Windows 2000, 98, and 95 Users)” on
page 3-8 for more details.
ColorSync (for Macintosh):
Reproduces the colors in your image using ColorSync color
management system. ColorSync uses a special color matching
scheme to make sure the colors in your output match the
colors in the original image. This setting appears only in
Macintosh.
Note:
If your printer and monitor do not support ColorSync, leave this
check box clear.
Eyedropper Sampling Area:
Allows you to select one of the three following size settings
for the Eyedropper Sampling Area: 1 × 1 pixel, 3 × 3 pixel, and
5 × 5 pixel. The Eyedropper feature can sample the average
Highlight, Shadow, and Gray Balance Intensity values of the
target area.
2-44
Understanding EPSON TWAIN Pro Features
Scan Button
Clicking the Scan button scans the image or active marquee in
the Preview window. The scanned image is transferred to the
application software you used to open EPSON TWAIN Pro so that
you can work with the image from within that application.
While scanning, a progress indicator appears. If necessary, click
the Cancel button to cancel the operation.
Note:
❏ You cannot scan an image whose size exceeds available memory or
disk space. If you attempt to scan an image that is too large, an error
message appears on the screen.
❏ Before you begin scanning, you should calibrate your display
monitor. For more information, see Chapter 3, “Calibrating Your
System.”
❏ After an image is scanned, be sure to save it.
Scan All Button
Clicking the Scan All button scans all of the marquees as separate
images, one at a time. This button is available only when there are
multiple marquees.
Understanding EPSON TWAIN Pro Features
2-45
Chapter 3
Calibrating Your System
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Calibrating Your Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
For Windows 2000 and 98 users. . . . . . . . . . . . . . . . . . . . . . . 3-3
For Windows 95 and NT 4.0 users: . . . . . . . . . . . . . . . . . . . . 3-5
For Macintosh users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Using ICM (For Windows 2000, 98, and 95 Users) . . . . . . . . . . . . 3-8
For Windows 2000 and 98 users. . . . . . . . . . . . . . . . . . . . . . . 3-8
For Windows 95 users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Using ColorSync (For Macintosh Users) . . . . . . . . . . . . . . . . . . . . 3-10
Calibrating Your System
3-1
Overview
When you install EPSON TWAIN Pro, the EPSON Screen
Calibration utility is automatically installed.
EPSON Screen Calibration calibrates your monitor to ensure the
tone and contrast on your screen match the original image. Be sure
to calibrate your screen before using your scanner.
For more information regarding color and output device
calibration, see the Color Guide.
3-2
Calibrating Your System
Calibrating Your Screen
You need to calibrate your screen when you first install the
scanner software, and anytime you switch to a different monitor.
For Windows 2000 and 98 users
1. Double click the Scanners and Cameras icon in Control
Panel. The Scanners and Cameras Properties dialog box
appears. Click the Properties button.
Calibrating Your System
3-3
2. Click the Utility tab, then click the Screen Calibration Utility
icon. The Screen Calibration dialog box appears.
3-4
Calibrating Your System
The gray stripes will not blend together perfectly; however,
try to make the different tones match as closely as possible.
3. Click OK to finish calibrating your scanner and monitor.
The setting is automatically saved as the Screen profile in the
Calibration list in EPSON TWAIN’s Destination dialog box. The
screen profile contains calibration information for the preview
image as well as the scanned image.
For Windows 95 and NT 4.0 users:
1. Double-click the EPSON TWAIN Pro icon in the Control
Panel window. The EPSON TWAIN Pro setup dialog box
appears.
Calibrating Your System
3-5
2. Click Screen Calibration Utility. The following screen
appears:
3. Look at the screen and move the slider to the right or left until
the two tones almost match.
4. Click OK to finish calibrating your scanner and monitor.
Note:
The gray stripes will not blend together perfectly; however, you should
try to make the different tones match as closely as possible.
3-6
Calibrating Your System
For Macintosh users
1. Click the EPSON Screen Calibration icon in the EPSON
Scanner folder to view the Screen Calibration dialog box.
2. Look at the screen from a distance and move the slider right
or left until the two tones almost match.
3. Click OK to finish calibrating your scanner and monitor.
Note:
The gray stripes will not blend together perfectly; however, you should
try to make the different tones match as closely as possible.
Calibrating Your System
3-7
Using ICM (For Windows 2000, 98, and 95
Users)
If you use Windows 2000, 98 or 95 and your output devices
(printer and monitor) support the ICM color management system,
you can use the ICM calibration method.
For Windows 2000 and 98 users
Note:
If your output devices do not support sRGB, leave the check box empty.
Follow the steps below:
1. Run PageManager for EPSON or TWAIN-compliant software
and select Acquire or similar command from the File menu
to start EPSON TWAIN Pro.
2. Click Configuration. Select ICM in the Configuration dialog
box.
3. Select either the sRGB or Display option.
When the sRGB option is selected, the sRGB profile is used to
reproduce colors. When the Display option is selected, the
color profile selected for your monitor in the Display
properties dialog box is used to reproduce colors.
4. Make any other settings you want.
5. Click Scan.
3-8
Calibrating Your System
For Windows 95 users
Note:
If your output devices do not support ICM, leave the check box empty.
Follow the steps below:
1. Run PageManager for EPSON or TWAIN-compliant software
and select Acquire or similar command from the File menu
to start EPSON TWAIN Pro.
2. Click Configuration. Select ICM in the Configuration dialog
box.
3. Make any other settings you want.
4. Click Scan. The scanner scans an image using the ICM profile.
Calibrating Your System
3-9
Using ColorSync (For Macintosh Users)
If your output devices (printer and monitor) support the Apple
ColorSync color management system, you can use the ColorSync
calibration method.
Note:
If your output devices do not support ColorSync, leave the check box
empty.
Follow the basic steps below:
1. Run PageManager for EPSON or TWAIN-compliant software
and select Acquire or a similar command to start EPSON
TWAIN Pro.
2. Click Configuration. Select the ColorSync check box in the
Configuration dialog box.
3. Make any other settings you want.
4. Click Scan. The scanner scans an image using the ColorSync
profile.
When the scanned image is printed or displayed with an output
device calibrated for the scanner, the image reproduced is
identical to the original.
3-10
Calibrating Your System
Chapter 4
Maintenance and Troubleshooting
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Cleaning the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Replacing the fluorescent lamp . . . . . . . . . . . . . . . . . . . . . . . 4-3
Transporting the Scanner and the Transparency Unit. . . . . . . . . 4-4
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Error indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Operating problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Quality problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Software setup problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Scanning problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Software operation problems . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Paper jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Changing the SCSI ID number or SCSI board . . . . . . . . . . . 4-16
Changing USB connections ports. . . . . . . . . . . . . . . . . . . . . . 4-18
Recovering from scanner software installation problems
on Windows 2000 and Windows 98 . . . . . . . . . . . . . . . . . 4-19
Sizing up your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Maintenance and Troubleshooting
4-1
Maintenance
Cleaning the scanner
To keep your scanner operating at its best, you should clean it
periodically, as described below.
1. Unplug the power cord.
2. Clean the outer case with mild detergent and water.
3. If the glass of the document table gets dirty, clean it with a
soft dry cloth. If the glass is soiled with grease or some other
hard-to-remove substance, use a small amount of glass
cleaner and a soft cloth to remove it. Wipe off all remaining
liquid.
Be sure that there is no dust on the glass of the document table.
Dust can cause spots in your scanned image.
w
Warning:
❏ Be careful not to scratch or damage the glass of the document
table, and do not use a hard or abrasive brush to clean it. A
damaged glass surface can decrease scanning quality.
❏ Never use alcohol, thinner, or corrosive solvent to clean the
scanner. These chemicals can damage the scanner
components as well as the case.
❏ Be careful not to spill liquid into the scanner mechanism or
electronic components. This could permanently damage the
mechanism and circuitry.
❏ Do not spray lubricants inside the scanner.
❏ Never open the scanner case.
4-2
Maintenance and Troubleshooting
Replacing the fluorescent lamp
The luminosity of the fluorescent lamp declines over time. If the
lamp breaks or becomes too dim to operate normally, the scanner
stops working and both the READY and ERROR lights flash
rapidly. When this happens, the lamp assembly must be replaced.
For details, contact your dealer.
c
Caution:
Never open the case of the scanner. If repairs or adjustments are
necessary, consult your dealer.
Maintenance and Troubleshooting
4-3
Transporting the Scanner and the
Transparency Unit
When transporting the scanner or the Transparency Unit a long
distance, or storing them for an extended period, lock the scanner
carriage and the Transparency Unit’s lamp assembly to prevent
damage. Follow the procedures below.
For the scanner
1. Turn on the scanner and wait until the carriage moves left to
the home position.
2. Turn off the scanner.
3. Turn the transportation lock to the locked position by using
a coin or similar disc and secure the carriage.
For the optional Transparency Unit
1. With the Transparency Unit attached, turn on the scanner and
wait until the unit’s lamp assembly moves to its home
position. Turn off the scanner and remove the Transparency
Unit.
2. Install the shipping screw in its original shipping hole.
4-4
Maintenance and Troubleshooting
Problems and Solutions
This section divides problems into seven categories:
Error indicator . . . . . . . . . . . . . . . page 4-6
Operating problems . . . . . . . . . . page 4-7
Quality problems . . . . . . . . . . . . . page 4-8
Software setup problems . . . . . . page 4-12
Scanning problems . . . . . . . . . . . page 4-14
Software operation problems. . . page 4-15
Paper jams. . . . . . . . . . . . . . . . . . . page 4-16
See the table in “Error indicator” on page 4-6 first, then go to the
appropriate section for your problem and follow the
recommended steps.
Note:
If some settings appear dimmed in EPSON TWAIN Pro, they cannot be
selected because of the capability of your scanner or your choice of other
settings.
If you cannot solve a problem after reading and following the
information in this section, contact your dealer or a qualified
customer support person for assistance.
Maintenance and Troubleshooting
4-5
Error indicator
When an error occurs, the scanner stops operating and the
ERROR and READY lights indicate the error type as described
below.
ERROR Light
READY Light
Error Type
On
On
Command error
Flashing
Off
Interface error
Flashing
Flashing
Fatal error
Off
Off
Option error
Command error
Rescan the document. The scanner returns to normal when it
receives correct commands. Normally you do not need to reset
the scanner when this type of error occurs.
Interface error
Check the interface connection and then press the RESET button
or OPERATE button to turn the scanner off and then back on
again to reset it.
P
Fatal error
❏ Check the fluorescent lamp, and replace it if needed.
❏ Make sure that the transportation lock is released.
❏ Check that the scanner is malfunctioning.
❏ Check that the transportation lock lever is released and check
any installed options for problems. Next, turn the scanner off
and then back on again. If this does not correct the problem,
consult your dealer.
4-6
Maintenance and Troubleshooting
Option error
Check the option and correct the cause of the problems such as;
❏ paper jam
❏ an empty document feeder
❏ an open cover
Operating problems
Problems you may have while using the scanner often involve the
operation of your software and computer. Operation problems
usually occur because of:
❏ Incorrect setup of the interface.
❏ Inappropriate selection of the scanner functions.
❏ Incorrect setup of your computer or software.
❏ Incorrect operation of your software.
See the documentation that came with your computer and
software for possible solutions.
The OPERATE light does not come on
❏ Make sure the scanner is turned on. Press the
button.
P OPERATE
❏ Make sure the power cord is connected to the scanner and
plugged into a power outlet.
The scanner does not scan
❏ Make sure the scanner is ready for scanning. Wait until the
READY light stops flashing and remains on.
Maintenance and Troubleshooting
4-7
❏ Make sure your interface port and software settings are
correct. Also make sure that your computer’s interface board
is installed properly.
❏ For SCSI interface Users
Make sure the scanner’s SCSI ID and terminator are set
correctly. Also if you have other expansion boards in your
computer, make sure that their interrupt settings are not
interfering with your SCSI board. See your computer’s
documentation for details.
❏ For USB interface users
Try connecting the scanner directly to the computer’s USB
port, or use an EPSON USB cable.
Try connecting your scanner to a different port on your
hub, or a different hub, if one is available.
❏ For Macintosh and IEEE 1394 interface users
Make sure that the following Extensions are selected in
the Extensions Manager.
EPSON FW Scanner Enabler
EPSON FW Scanner Expert
EPSON FW Scanner Lib
Quality problems
The entire image is distorted or blurred
❏ Make sure the document is flat against the document table.
❏ Make sure you do not accidentally move the document
during scanning.
❏ Make sure the scanner is on a flat, stable surface.
4-8
Maintenance and Troubleshooting
Part of the image is distorted or blurred
make sure the document is uniformly flat against the document
table. A document that is wrinkled or warped may not scan well.
c
Caution:
Do not place heavy objects on the document table.
Edge of the document are not scanned
Position the document so the area you want to scan is within the
edge guide limits of the document table.
Colors are patchy or distorted at the edge of the image
❏ A document that is very thick or warped at the edges can
cause discoloration. Cover the edges of the document with
paper to block outside light.
❏ Make sure the document is flat against the document table.
The image is faint or out of focus.
❏ Make sure the document is flat against the document table.
❏ Adjust your software’s Exposure setting. See“Image
Controls” on page 2-30.
❏ Adjust your software’s Gamma setting. See “Adjusting the
Gamma Setting” on page 1-9.
The image is too dark.
❏ Check your software’s Brightness setting.
❏ Check the brightness and contrast settings of your computer
display.
Maintenance and Troubleshooting
4-9
Straight lines in the image come out jagged
Make sure the document orientation is perfectly straight on the
document table. Align vertical and horizontal lines with the scales
at the top and side of the document table.
The image does not look the same as the original
❏ Try different image setting combinations on your scanner
software.
❏ Your software may not have sufficient color matching and
color management features, or these components may not be
installed correctly. See the documentation that comes with
your software and computer.
❏ If you are importing an image file, make sure the file format
is one your software can read. Also, make sure the image
settings of your software are appropriate for the type of image
you want to scan.
A line of dots is always missing from the scanned image
❏ See your printer manual. Print head malfunction is indicated
when a line is missing on printouts only.
❏ Scanner sensor malfunction is indicated when a line is
missing on both screen images and printouts. Contact your
dealer.
Moiré (cross-hatch) patterns appear in the scanned image
❏ Change the Image Type settings. Turn the De-screening
setting On in the Image Type dialog box.
❏ Place a transparency sheet between the document and
document table.
❏ Reposition the document slightly.
4-10
Maintenance and Troubleshooting
❏ Make the Image Size setting slightly smaller.
❏ Change the focus position setting.
Colors differ from the original.
❏ Calibrate the screen. See “Calibrating Your Screen” on page
3-3.
❏ Change the Image Type and Destination settings. See “Image
Types” on page 2-7 and “Destinations” on page 2-12 to make
sure your settings are correct.
❏ Printed colors will not exactly match the colors on your
monitor, since printers and monitors use different color
systems: monitors use RGB (red, green, and blue), while
printers typically use CMYK (cyan, magenta, yellow, and
black).
Colors on your monitor are different from those in the
original image
❏ Check the image settings of your scanner software, especially
data format (bits, pixel, color), gamma correction, and color
correction. Try different combinations of these settings.
❏ Check the color matching and color management capabilities
of your computer, display adapter, and software. Some
computers can change the color palette to adjust the colors on
your screen.
❏ Exact color matching is very difficult. Check your software
and monitor documentation for information on color
matching and calibration. Also see your Color Guide.
Printed colors are different from those in the original image
Exact color matching is very difficult. Check your software or
contact your printer company for information on color matching
and calibration.
Maintenance and Troubleshooting
4-11
The printed image is larger or smaller than the original
The image size settings of your software determine the size of the
printed image. Do not use the size of the monitor image to judge
the printed size.
Scanned images cannot be printed or come out garbled
when printed
❏ Make sure your printer is properly connected to the
computer, correctly set up, and maintained. See your printer
manual for details.
❏ Check that your software is properly installed and set up for
your printer.
The colors of negative film preview images look strange
❏ Make sure the EPSON TWAIN Pro Document Source setting
is TPU for Neg. Film.
❏ The dark area around the film, such as the frame of the film
holder, is perceived as white, which alters the exposure of the
scanning area and causes scans to appear darker. See the
correct color by clicking and dragging the mouse over an area,
and then clicking the zoom preview button.
Software setup problems
You cannot install EPSON TWAIN Pro
❏ Check if your computer and operating system meet the
system requirements. See your scanner manual.
❏ Make sure your computer has enough memory to run the
application.
4-12
Maintenance and Troubleshooting
The scanner does not appear in the Port list of the EPSON
TWAIN Pro dialog box in the Control Panel when you
connect your scanner using the SCSI interface to your PC
running Windows other than Windows 98 or 2000
❏ Turn off the computer and scanner and check the connection
between your hardware.
❏ Change the SCSI ID number to one that is not being used by
any other SCSI devices.
❏ When the scanner is connected in a daisy chain, check the
connections of all the devices in the chain, and make sure that
the scanner’s terminator switch is set appropriately for its
position in the chain.
The Scanner Status does not indicate “Device Ready” after
you click Test in the EPSON TWAIN Pro dialog box
(Windows 95 and NT 4.0) or the Scanner’s Properties dialog
box (Windows 98 and Windows 2000) in the Control Panel
❏ Make sure the interface cable meets the requirements of your
interface board. See the manual that comes with the interface
board.
❏ Turn off the scanner and computer and check the connection
between the scanner and computer.
❏ Make sure the SCSI interface board is installed correctly.
❏ Make sure the power on sequence is correct.
❏ Make sure the SCSI driver is properly installed.
❏ Change the scanner’s SCSI ID number to one that is not being
used by any other SCSI device.
❏ When the scanner is connected in a daisy chain, check the
connections of all the devices in the chain, and make sure that
the scanner's terminator switch is set appropriately for its
position in the chain.
Maintenance and Troubleshooting
4-13
Scanning problems
Image is dark, with little or no detail.
❏ Calibrate the screen as described in “Calibrating Your Screen”
on page 3-3.
❏ Change the Destination setting. Select Screen/Web as the
“Destination”. Selecting a printer may cause on-screen colors
to be different from the colors of the original, however colors
will be reproduced correctly when it is printed.
You cannot scan an image or you only get a few dots for the
scanned image
❏ Make sure you have placed a document on the document
table of the scanner.
❏ Change the Threshold setting. When OCR is selected as the
Image Type, change Text Enhancement Technology to None
from the B/W Option in the Image Type dialog box. Then
change the Threshold setting in the Image Controls dialog
box.
Or change OCR to Line Art, then change the Threshold setting
in the Image Control dialog box. See “Image Controls” on
page 2-30.
Scanned image is too large.
Change the Destination setting. Select Screen/Web as described
in “Destinations” on page 2-12. If you select a printer as the
Destination setting, the print size will be correct, although the
image may appear enlarged on the screen of some applications.
Poor character recognition during OCR scanning.
❏ Change the Image Type setting. Select OCR as described in
“Image Types” on page 2-7.
4-14
Maintenance and Troubleshooting
❏ Try adjusting the Threshold setting in the Image Controls
dialog box.
❏ Select Text Enhancement Technology from B/W Option in
the Image Type dialog box to eliminate background noise.
❏ See “Optimizing Image Scanning” on page 1-4 for more
information.
Software operation problems
You cannot start EPSON TWAIN Pro.
❏ Make sure the scanner is turned on.
❏ Make sure the interface cable meets the requirements of your
interface board. See the manual that comes with the interface
board.
❏ Turn off the scanner and computer and check the connection
between the scanner and the computer.
❏ Make sure the interface board is installed correctly.
❏ Make sure that EPSON TWAIN Pro is selected in your
application.
❏ For Windows 2000 and 98 users
Check if your scanner name appears under Imaging Device
hardware type without a ? or ! mark in the Device Manager
menu. To view this menu, right-click the My Computer icon on
the Desktop, click Properties, then click the Device Manager
tab. If your scanner appears with a ? or ! mark, or appears as an
Unknown devices hardware type, click Remove while your
scanner is connected and turned on to remove it from the Device
Manager menu. Then reinstall EPSON TWAIN Pro.
Maintenance and Troubleshooting
4-15
Pressing the Start button does not start Scanning.
❏ For Windows 2000 and 98
Click the Events tab in your scanner’s Properties dialog box
and make sure the Disable device events check box is clear.
And make sure the Start button is selected as the Scanner
events, and at least one scanner event recognizable
application in the Send to this application box is selected.
❏ For Windows 95, NT 4.0, and Macintosh
Make sure the Scanner Monitor software is running and check
the Scanner Monitor’s Launch Application path is set
correctly.
You can’t select optional equipment (Auto Document Feeder
or Transparency Unit).
Make sure the optional equipment is installed correctly. See your
scanner manual.
Paper jams
Remove the jammed paper. See your scanner manual.
Changing the SCSI ID number or SCSI board
If you are using your scanner with Windows 98 or 2000 and you
want to change the scanner’s SCSI ID number or replace the SCSI
board with a new one, follow the steps below.
4-16
Maintenance and Troubleshooting
1. Click the Start menu, point to Settings and click Control
Panel, then double-click the Scanners and Cameras icon.
2. Select your scanner in the installed devices list, then click
Remove.
3. Click OK and close the dialog box.
4. Shut down Windows 98 or 2000 and turn off your PC and
scanner.
5. Change the SCSI ID number, or replace the SCSI board. See
your scanner manual.
6. Turn on your scanner and then your PC.
Maintenance and Troubleshooting
4-17
7. Follow the instructions on the screen.
Note:
If the EPSON Scanners Driver Disk is requested, insert the Scanner
Software CD in the CD-ROM drive and make sure to specify the correct
drive letter, the EPSON folder, the folder of your preferred language,
and the Win98 or Win2000 folder as the location respectively.
Changing USB connections ports
When you want to change the scanner to a different USB port (on
your computer or hub), for example when you are adding other
USB devices, follow the procedure below.
1. Connect the scanner to your computer.
2. Turn on the scanner and then your computer.
Note:
❏ Before turning on your computer, if you have any other
scanners, in addition to EPSON Expression 1640XL, or
cameras listed in the Control Panel’s Scanner and Cameras
Properties dialog box, be sure to connect them to your
computer or hub and turn them on.
❏ If you do not follow these steps, your scanner or computer may
not operate correctly.
3. Click the Start menu, point to Settings and click Control
Panel, then double-click the Scanners and Cameras icon.
4. Select EPSON Expression1640XL and click Remove.
Note:
❏ Be sure you have selected the correct device to remove. Since
there is no Cancel button, there is no way to stop removal of a
device once you click the Remove button.
4-18
Maintenance and Troubleshooting
❏ If other devices listed in the Scanners and Cameras Properties
dialog box are not connected to the computer when you remove
the scanner, you may not be able to properly remove them at a
later time. Be sure to connect and turn on all the devices listed
in the Scanners and Cameras Properties dialog box before
turning on your computer and removing the scanner.
5. Click OK to close the dialog box, then close the Control Panel.
6. Shut down Windows98 or Windows 2000 and turn off your
computer, but leave the scanner on.
7. Connect the USB cable to the new USB port.
8. Turn on your computer.
9. Follow the instructions on the screen to reinstall EPSON
TWAIN Pro.
Recovering from scanner software installation
problems on Windows 2000 and Windows 98
If you cancelled the plug-and play driver installation before the
procedure was completed, EPSON TWAIN Pro may be
incorrectly installed.
Follow the steps below to check the installation.
Note for Windows 2000 users:
The screen shots shown in this section are for Windows 98, so they may
vary in appearance from the actual dialog boxes that appear on your
screen. The instructions are the same, however, except as noted.
1. Plug the interface cable into your scanner and the computer.
2. Turn your scanner and then computer on.
3. Right-click the My computer icon on your desktop, then click
Properties.
Maintenance and Troubleshooting
4-19
❏ For Windows 2000 users:
In the System Properties dialog box, select the Hardware
tab then click Device Manager.
❏ For Windows 98 users:
Click the Device Manager tab.
4. If your EPSON TWAIN Pro is correctly installed, EPSON
Expression 1640XL should appear under Imaging Device
when you click the plus (+) sign next to Imaging Device.
If EPSON Expression 1640XL appears under Other Devices
with a question (?) mark or under Imaging Device with an
exclamation (!) mark, the EPSON TWAIN Pro file is not installed
correctly.
If EPSON Expression 1640XL
appears under Other Devices with a ?
If EPSON Expression 1640XL
appears under Imaging Device with
If EPSON Expression 1640XL appears under Other Devices
with a question (?) mark, see “If EPSON Expression 1640XL
appears under other Devices” on page 4-21, if EPSON
Expression 1640XL appears under Imaging Device with an
exclamation (!) mark, “If EPSON Expression 1640XL appears
under Imaging Device” on page 4-21.
4-20
Maintenance and Troubleshooting
If EPSON Expression 1640XL appears under other Devices
Note:
Make sure your scanner is on and connected to your computer. If your
scanner is off or not connected to your computer, you cannot reinstall
the driver properly.
1. For Windows 2000 users, right-click ? EPSON Expression
1640XL and select Uninstall.
For Windows 98 users, click ? EPSON Expression 1640XL,
then click Remove and OK.
2. Click Close to close the System Properties window.
3. Turn off your computer.
4. Make sure your scanner is on and restart your computer.
5. When the message prompts you to install the driver appears,
install the driver again. See your Setup Guide
If EPSON Expression 1640XL appears under Imaging Device
Note:
Make sure your scanner is on and connected to your computer. If your
scanner is off or not connected to your computer, you cannot reinstall
the driver properly.
1. For Windows 2000 users, right-click ! EPSON Expression
1640XL and select Uninstall.
Maintenance and Troubleshooting
4-21
For Windows 98 users, click ! EPSON Expression 1640XL,
then click Remove and OK.
2. Click Close to close the System Properties window.
3. Turn off your computer.
4. Make sure your scanner is on and restart your computer.
5. When the message prompts you to insert the scanner software
CD appears, insert the scanner software CD in the CD-ROM
drive, then click OK.
d
If the following dialog appears, click , then browse and
select or type in the CD-ROM drive letter, EPSON folder, the
folder of your preferred language, and Win2000 or Win98
folder as the location, as shown below, then click OK.
6. The Screen Calibration window appears. Follow the
instruction on the screen.
4-22
Maintenance and Troubleshooting
Sizing up your system
Your scanner is sufficient for most scanning needs, but if you are
not satisfied with the quality of the images on your monitor or
with the speed of image processing, read this section. While it
does not contain specific recommendations, it describes various
possibilities for improving your scanning system. For further
information, seek advice from your dealer or an experienced
scanner user.
RAM and hard disk size
Scanned images use much more memory than text files, so you
may need more RAM (Random Access Memory) in your
computer and a larger hard disk than you have used previously.
Accelerator boards
In addition to memory, processing speed is important because
large files take longer to process than small ones. Therefore, you
may want to add an accelerator board to your computer.
Video cards
A video card that is sufficient for text may not be good enough
for displaying graphic images, especially in color. If all your
scanned images look coarse on your monitor, you may want to
upgrade your video card. You will need 24-bit color, also called
true color or millions of colors, to make the highest quality image
reproductions.
Monitors
The resolution of your monitor affects the quality of the image
you see. Consider a high resolution monitor if you do precise color
work, but also be sure you have a high quality video card.
Maintenance and Troubleshooting
4-23
File compression software
Many different programs are available to make image files
smaller for storage or transmission. For example, some
compression software can store a 3 MB image file on a 1.44 MB
floppy disk, and compress images and restore them with no loss
of data or quality; others compress images more, but the restored
file is not exactly the same as the original. The difference between
the original and restored files is, however, almost unnoticeable.
4-24
Maintenance and Troubleshooting
Appendix A
Technical Specifications
Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
Safety Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
CE marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
SCSI Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
Option Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8
Initialization Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9
Transparency Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10
Automatic Document Feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11
IEEE 1394 Scanner I/F Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12
Technical Specifications
A-1
Scanning
Scanner type:
Flatbed, color
Photoelectric device:
Color CCD line sensor
Effective pixels:
19520 × 27520 pixels at 1600 dpi, 100%
Document size:
310 mm × 437 mm (12.2 inches × 17.2
inches)
A3 or US letter size
(The reading area can be specified from
your software.)
Scanning resolution:
1600 dpi (main scan)
3200 dpi with Micro Step (sub scan)
Output resolution:
50 dpi to 9600 dpi
(50 to 4800 dpi in 1 dpi increments,
7200 dpi, and 9600 dpi. 7200 dpi and
9600 dpi performed with zoom
function)
Color separation:
RGB color filters on CCD
Reading sequence:
Monochrome
One-pass scanning
Color page sequence Three-pass scanning (R, G, B)
(This sequence is not supported by
EPSON TWAIN Pro)
A-2
Color byte sequence
One-pass scanning (R, G, B)
Color line sequence
One-pass scanning (R, G, B)
Zoom:
50% to 200% in 1% increments
Image data:
14 bits per pixel per color internal
1 to 14 bits per pixel per color external
Technical Specifications
Brightness:
7 levels
(In EPSON TWAIN Pro, Gamma
correction controls Brightness)
Line Art settings:
Fixed threshold
Text Enhancement Technology
(enable/disable selectable)
Halftoning process:
AAS (Auto Area Segmentation)
Enable/disable selectable
3 halftoning modes (A, B, and C) and
4 dither patterns (A, B, C, and D) for
bi-level and quad-level data
(2 downloadable dither patterns)
Gamma correction:
2 types for CRT display
3 types for printer
1 type for user-defined
Color correction:
1 type for CRT display
3 types for printer output (available in
color byte sequence mode and color line
sequence mode)
1 type for user-defined
(Only user-defined Color correction is
available in EPSON TWAIN Pro)
Interface:
SCSI (50 pin half pitch connectors),
USB (Type B Receptacle Connector), and
optional IEEE 1394 Serial Bus Interface
Light source:
Xenon gas fluorescent lamp
Reliability:
100,000 cycles of carriage movement
(main unit MCBF)
Dimensions:
Width: 656 mm (25.8 inches)
Depth: 458 mm (18 inches)
Height: 176 mm (6.9 inches)
Weight:
Approx. 22 kg (46.2 lb)
Technical Specifications
A-3
Electrical
Input voltage range
100 to 120 V AC
220 to 240 V AC
AC 90 to 132 V
AC 198 to 264 V
Rated frequency
Rated current
Power consumption
50 to 60 Hz
1.2 A
0.7 A
Approx. 45 W (operating without option unit)
Approx. 55 W (operating with option unit)
Approx. 10 W (standby without option unit)
Note:
Check the label on the back of the scanner for voltage information.
Environmental
Temperature:
Operation
5°C to 35°C (41°F to 95°F)
Storage
-25°C to 60°C (-13°F to 140°F)
Humidity:
Operation
10% to 80%, without condensation
Storage
10% to 85%, without condensation
Operating conditions:
A-4
Technical Specifications
Ordinary office or home conditions.
Extreme dust should be avoided.
Operation under direct sunlight or near
a strong light source should be avoided.
Note:
Specifications are subject to change without notice.
Safety Approvals
Safety standards
UL 1950
CSA C22.2 No. 950
EN 60950
EMC
FCC part 15 Subpart B Class B
CSA C108.8 Class B
EN 55022 (CISPR Pub 22) Class B
AS/NZS 3548 Class B
CE marking
Low Voltage Directive 73/23/EEC
EMC Directive 89/336/EEC
EN 60950
EN 55022 Class B
EN 61000-3-2
EN 61000-3-3
EN 50082-1
IEC 60801-2
IEC 60801-3
IEC 60801-4
Technical Specifications
A-5
SCSI Interface
Interface type:
ANSI X3T9.2/375R Revision 10L (SCSI 2)
Functions:
BUS FREE phase
ARBITRATION phase
SELECTION/RESELECTION phase
COMMAND phase
(Logical Unit Number is fixed to 0
and command link function is not
supported.)
DATA phase
Data in phase
Data out phase
STATUS phase
MESSAGE phase
MESSAGE IN phase
MESSAGE OUT phase
ATTENTION condition
RESET condition
Logic level:
TTL compatible
Electrical standard: ANSI X3T9.2/375R Revision 10L (SCSI 2)
ID Setting:
Selectable from 0 to 7
Terminator:
Internal terminator selectable
(enable/disable)
Connector type:
Two half pitch 50-pin connectors
Connector pin arrangement:
A-6
Technical Specifications
USB Interface
Interface type:
Universal Serial Bus Specification
Revision 1.0
Configuration:
Element
Description
Device
Full Speed mode (12 Mbit/s)
Class: Vendor-specific
Vendor ID: 0x04B8 (SEIKO EPSON Corp.)
Product ID: 0x01xx
Configuration
Characteristics: Self-powered
Remote wake up feature: Not supported
Maximum power consumption from VBUS: 2 mA (5 V)
Interface
No alternate setting
Number of endpoints used by this interface
(excluding endpoint 0): 2
Class: Vendor specific
Endpoint 1
Bulk IN transfer
Maximum data transfer size: 64 byte
Endpoint 2
Bulk OUT transfer
Maximum data transfer size: 64 byte
String
Descriptor
Language ID: US English
1: iManufacturer: “EPSON”
2: iProduct: “Expression 1640XL”
Electrical standard: Full Speed mode (12 Mbit/s) of Universal
Serial Bus Serial Bus Specification
Revision 1.0.
Connector type:
One receptacle (Type B)
Technical Specifications
A-7
Option Interface Connector
Interface type:
For use with the optional Automatic
Document Feeder (B81321✽) and
Transparency Unit (B81320✽) only.
Electrical specifications:
Output voltage
A-8
Technical Specifications
DC 21.6 to 26.4V
DC 4.75 to 5.25V
Initialization Methods
The scanner can be initialized (returned to a fixed set of
conditions) in the following ways:
SCSI
Hardware
initialization
The scanner is turned on.
The scanner receives a SCSI Reset signal
from the SCSI interface.
Software
initialization
Software sends the ESC @ (initialize the
scanner) command.
The scanner receives a SCSI Bus Device
Message.
Hardware
initialization
The scanner is turned on.
The USB cable is unplugged from the USB
port on the scanner.
Software
initialization
Software sends the ESC @ (initialize the
scanner) command.
The scanner receives a Bus Reset from the
USB interface.
USB
Technical Specifications
A-9
Transparency Unit
The specifications below apply to the optional Transparency Unit
(B81320✽).
Electrical Specifications:
Supplied Voltage:
Rated Current:
DC 5 V
1.3 A
0.3 A
Reliability:
100,000 cycles for the MCBF
Document:
35 mm strip film
35 mm slide
120/220 size (6 × 9 cm) strip film
4 × 5 inch film
Transparencies up to 11.4 × 16.5 inch film
Manuscript:
Up to 11.4 × 16.5 inches
Readable area:
290 × 420 mm
Dimensions:
Width:
Depth:
Height:
Weight:
A-10
DC 24 V
324 mm (12.8 inches)
540 mm (21.3 inches)
92 mm (3.6 inches)
Approx. 6 kg (11 lb)
Technical Specifications
Automatic Document Feeder
The specifications below apply to the optional Automatic
Document Feeder (B81321✽).
Electrical specifications:
Supplied Voltage:
Rated Current:
DC 24 V
DC 5 V
1.3 A
0.3 A
General specifications:
Paper supply:
1 to N, Face up load
Paper out:
Face down eject
Paper setting quantity: 100 pcs (55 g/m² paper, maximum
total thickness under 12 mm)
Reliability:
Dimensions:
Width:
Depth:
Height:
Weight:
100,000 sheets (Load/Eject MCBF)
605 mm (23.8 inches)
488 mm (19.2 inches)
134 mm (5.3 inches)
Approx. 13 kg (28.7 lb)
Technical Specifications
A-11
IEEE 1394 Scanner I/F Card
Interface type:
IEEE 1394-1995 compatible
Data transfer method:
Half-duplex Data/Strobe differential
serial
Synchronization method:
Clock synchronization with DS-Link
Encoding/decoding:
DS-Link
Logic level:
3.3 V
Compatible connectors:
IEEE 1394-1995 compatible
Connector pin signal layout:
Pin number
Signal name
1
VP
Cable power supply
2
VG
Cable ground
3
TPB*
4
TPB
5
TPA*
6
TPA
Power class:
A-12
Technical Specifications
Function
Strobe during receipt, data during
transmission (differential pair)
Data during receipt, strobe during
transmission (differential pair)
Power class code 100
No power supply from external sources
Fitted with a repeat function with bus
power
Appendix B
Contacting Customer Support
If your scanner is not operating properly and you cannot solve
your problem using the troubleshooting information in this guide
or online help, contact customer support services for assistance.
We will be able to help you more quickly if you are able to give
the exact information indicated below.
Serial number of your scanner:
(The serial number label is on the back of the scanner.)
Brand and model of your computer:
Scanner software version:
(Click the About button on the Help menu in your application
for the version number.)
Version of Windows (2000, 95, 98, NT 4.0, and so on):
Software application(s) you normally use with your scanner
and their version number(s):
You will find the telephone number and further important
information for your country in the Service and Support brochure
provided with your scanner.
Contacting Customer Support
B-1
Glossary
additive primary colors
The colors of red, green and blue (RGB) - which give the perception of white when
combined equally. These are the colors of the color system used by monitors and
scanners.
application
A software program that helps you carry out a particular task, such as word
processing, image editing, or financial planning.
bi-level data
Image data that is composed of 1 bit per pixel. A pixel is represented by a single
bit of digital data that can be expressed as only 1 (light) or 0 (dark).
bit
Short for binary digit. The smallest unit of data in computer processing. A bit can
represent one of two values: on, represented by a 1, or off, represented by a 0.
bit/pixel
The unit that indicates the number of bits allocated for a pixel. The larger the bit
value, the more detail of a pixel will be reproduced.
brightness
A scanner function to lighten or darken the output image data.
byte
A unit of information consisting of eight bits. A byte can represent a control code
or character.
carriage
A component of the scanner that contains the optical sensor and light source for
scanning.
color correction
A method of adjusting the color image data for a particular type of device so that
the reproduction results are as close as possible to the original colors.
color separation
A process of converting full-color images into a limited number of primary colors.
Additive primary colors (red, green, and blue) are used by the scanner, and the
subtractive primary colors (cyan, magenta, and yellow) plus black are used for
printing press separation.
daisy chain
A SCSI bus arrangement that allows several devices to be connected
simultaneously in a line to a single computer. See SCSI.
Glossary
1
default
A set of values used when no other selections have been made. These are
sometimes called factory defaults if the original values have not been changed
since the scanner left the factory.
dithering
A process in which software or an output device simulates continuous tones with
groups of dots.
document
The item, such as a sheet of paper or a book, that is placed on the document table
for the scanner to read.
dpi
Short for dots per inch. A unit of measurement for resolution. The higher the
value, the higher the resolution.
dropout color
A color the scanner does not recognize and ignores. You can select and deselect
dropout colors in the scanner software.
ESC/I
Abbreviation for EPSON Standard Code for Image scanners. A system of
commands that allows you to control image scanners from your software.
ESC/P
Abbreviation for EPSON Standard Code for Printers. A system of commands that
allows you to control printers from your software.
gamma
Gamma is a value that expresses the relationship between the input and output
of a device. By adjusting the gamma, the brightness of the mid-tones of an image
can be changed without affecting the shadows and highlights.
grayscale
Images represented with various shades of gray in addition to black and white.
halftoning
A method of reproducing images with patterns of dots to improve the quality of
the output.
home position
The position at the rear (nearest the cover hinge position) of the scanner where
the carriage rests before a scanning operation.
imagesetter
A device that uses computer files to produce high-resolution text and graphics
output on film or paper. These are usually found in service bureaus and printing
companies.
2
Glossary
impact dot printer
A printer that transfers ink onto the paper by striking an ink ribbon with a number
of small pins.
ink jet printer
A printer that transfers ink onto the paper by spraying the ink through a number
of small nozzles.
interface
A piece of hardware, a method, or a standard used for connection between or
among computer devices.
line sequence
A type of color scanning that separates primary colors line by line. The carriage
makes only one pass.
moiré
A moiré is a cross-hatch pattern that appears on scanned images when scanning
printed material. It is a result of interference that occurs due to the difference
between the pitches of the scanning and the halftone screens.
monochrome
Black and white images, or images represented only by the intensity of
luminosity.
OCR
Optical Character Recognition.
The technology that allows computers to "read" text from physical objects. OCR
requires a graphical representation of text to interpret, which usually comes from
a scanned image.
page sequence
The type of color scanning in which the entire image is scanned once for each
separate color.
pixel
Short for picture element. Each image is composed of a number of pixels. Pixels
are also counted in units of dots.
plain bi-level
Bi-level image data without the halftoning process.
port
An interface channel through which data is transmitted between devices.
primary colors
Basic colors. See additive primary colors and subtractive primary colors.
resolution
Indication of how finely an image is resolved into pixels. Can be measured in
dots per inch (dpi), pixels per inch (ppi), or samples per inch (spi).
Glossary
3
scan
An operation performed by the sensor and the carriage. The image is divided
into pixels by scanning.
scanning area
The physical size of the image that can be scanned by the scanner.
SCSI
Small Computer System Interface. This is one method used to connect your
computer to peripherals such as scanners, hard disk drives, CD-ROM drives, and
others.
SCSI ID
The numbers that all devices in a SCSI connection (see daisy chain) use to identify
each other. If the same ID number is used by two devices in the same daisy chain,
the devices cannot operate properly.
subtractive primary colors
The colors of cyan, magenta, and yellow (CMY) which produce black when mixed
in certain amounts. In printing, black is often added to give more definition as
mixing of actual inks cannot produce pure black.
terminator
A device that stops electronic signals, and prevents them from proceeding or
returning to other devices. This is necessary to stop a signal from continuously
reflecting between devices.
threshold
A reference point that is used to determine whether data will be processed as
"on" or "off". In the case of color image data, "on" means that a certain color will
appear in a pixel or dot, and "off" means that color will not appear there.
tone correction
A method of adjusting the tone curve so that the reproduction results on different
types of output devices have gradations similar to the original image.
tone curve
The graph that shows the contrast ratio between the input (original image) and
output (image data) in image processing.
unsharp mask
Originally a photographic process in which a sharply focussed and a slightly outof-focus image are combined to produce a sharper image. This process is
simulated by software to produce the same effect.
4
Glossary
Index
Numerics
image type 2-8
locking image size 2-16, 2-18
manual focus 2-37
preview 2-19
reset 2-36
return to full preview 2-22
return to zoom preview 2-22
scan 2-45
scan all 2-45
settings 2-40
tone correction 2-33
zoom preview 2-21
14-bit Gray (HiFi) 2-7, 2-8
24-bit Color (Std) 2-7
24-bit Color De-screening 2-7
42-bit Color (HiFi) 2-7
8-bit Gray (Std) 2-7, 2-8
A
AAS 2-10
Active marquee 2-23
Adjusting
focus 2-37
Gamma 1-9
Gray Balance Intensity 1-13
Highlight 1-7
Saturation 1-15
Shadow 1-8
Applying preset tone curve 1-10
Auto area segmentation 2-11
Auto exposure 2-30
Auto Exposure on Preview 2-43
Auto locate 2-27
Automatic Document Feeder
document source 2-5
specifications A-11
B
B/W Options 2-8, 2-10
Button
auto exposure 2-30
auto focus 2-37
auto locate 2-27
color adjustment 2-35
configuration 2-42
delete marquee 2-25
destination 2-14
duplicate marquee 2-26
image controls 2-31
C
Calibration utility 3-2
CE marking specifications A-5
Channels 1-17
Channels options 2-33, 2-34
Cleaning the scanner 4-2
Color adjustment 2-35
Color cast (tint) 1-13
Color management system
macintosh 3-10
windows 2-43, 3-8
ColorSync 3-10
Command error 4-6
Copy & Fax 2-7, 2-8
Cross hatch patterns 4-10
Curve name 1-17
D
Darken 1-10, 1-17
Delete marquee 2-25
De-screening 2-8, 2-10
Destination 2-12
Destination Name 2-14
Destination name 2-14
Dialog
color adjustment 2-35
Index
1
configuration 2-42
destination 2-14
image controls 2-31
image type 2-8
settings 2-40
Display 2-43, 3-8
Displaying the preview images 1-6
Document source 2-5
Dropout 2-8, 2-10
Duplicate marquee 2-26
E
Electrical specifications A-4
Environmental specifications A-4
EPSON Stylus Printer (Fine) 2-13
EPSON Stylus Printer (Photo) 2-13
EPSON TWAIN Pro 2-3
EPSON TWAIN Pro main window 2-4
EPSON TWAIN Pro Network 2-3
EPSON TWAIN Pro Network
window 1-2
EPSON TWAIN Pro window 1-2
Error
command 4-6
fatal 4-6
indicator 4-6
interface 4-6
option 4-7
Exposure 2-31
Eyedropper Sampling Area 2-44
F
Fast Preview 2-43
Fatal error 4-6
Fax 2-13
File Compression 4-24
File size 2-17
Flat Contrast 1-10, 1-17
Flatbed 2-5
Fluorescent lamp, replacing 4-3
Focus position 2-37
2
Index
G
Gamma 1-9, 2-31, 2-32
Gray balance intensity 1-13, 2-35, 2-36
H
Halftone 2-8, 2-11
Hard Disk 4-23
Height 2-17
High Contrast 1-10, 1-17
High resolution 4-23
Highlight 1-7, 2-31, 2-32
I
ICM 2-43, 3-8
IEEE 1394, specifications A-12
Image Controls 2-31
Image quality adjustment tools 2-29
Image sizes 2-16
Image Type 2-7
Image Type Name 2-8, 2-9
Indicator
error 4-6
focus position 2-37
marquee number 2-28
scale 2-18
storage size 2-17
Initialization, methods A-9
Interface
IEEE specifications A-12
SCSI specifications A-6
USB specifications A-7
Interface error 4-6
L
Laser Printer 2-13
Lighten 1-10, 1-17
Line Art 2-7, 2-8
Linear 1-10, 1-17
LineWork Scan 2-13
List
destination 2-13
document source 2-5
image type 2-7
user defined settings 2-40
Lock button 2-18
Previewing images 1-6, 2-19
Problems and solutions 4-5
M
RAM 4-23
Replacing, fluorescent lamp 4-3
Reset 2-36
Resetting image control settings 2-36
Resizing marquees 2-24
Resolution 2-14, 2-16
Return to full preview 2-22
Return to zoom preview 2-22
Main window 1-3, 2-4
Maintenance 4-2
Manually optimizing images 1-5
Marquee
active 2-23
making and modifying 2-23
moving 2-25
resizing 2-24
Marquee number indicator 2-28
Moiré 4-10
Monitors 4-23
Moving marquees 2-25
Multiple marquees 2-23
O
OCR (Optical Character Recognition)
1-19, 2-7, 2-8, 2-13
OCR scanning
improving character
recognition 1-20
scanning text 1-19
Open Shadow 1-10, 1-17
Optimizing image 1-4
Option error 4-7
Output options 2-33, 2-34
Output values 1-18
P
Pixel Depth 2-8, 2-9
Prepress 120 lpi 2-13
Prepress 133 lpi 2-13
Prepress 150 lpi 2-13
Prepress 175 lpi 2-13
Preview button 2-19
Preview window 1-3
Preview Window Size 2-43
R
S
Safety Approvals specifications A-5
Saturation 1-15, 2-35, 2-36
Save Preview Image and Settings 2-43
Scale 2-16, 2-18
Scale bar 2-18
Scale indicator 2-18
Scan 2-45
Scan All 2-45
Scanner specifications A-2–A-9
Scanning
negative film 2-6
positive film (or slides) 2-6
specifications A-2–A-9
text 1-19
Scanning Mode 2-8, 2-9
Screen Calibration utility 3-2
Screen/Web 2-13
SCSI interface, specifications A-6
Shadow 1-8, 2-31, 2-32
Source image size 2-16
Specifications
automatic document feeder A-11
electrical A-4
environmental A-4
IEEE 1394 A-12
scanning A-2–A-9
SCSI interface A-6
transparency unit A-10
USB interface A-7
Index
3
Specificationsce marking A-5
sRGB 2-43, 3-8
Storage size 2-16, 2-17
T
Target image size 2-16
TET 2-10
Text enhancement technology 2-11
Threshold 2-31, 2-33
Tone Correction 2-33
Tone Correction dialog box 1-16
Tone curve 1-10, 1-15, 1-19
Tone curve editor 1-17, 2-33
Tone Curve Name list 1-17, 2-33, 2-34
TPU for Neg. Film 2-5, 2-6
TPU for Pos. Film 2-5, 2-6
Transparency unit 2-5
Transparency Unit,
specifications A-10
Transporting the Scanner 4-4
True color 4-23
U
Unit 2-16
Unit of measurement 2-17
Unsharp mask 2-14, 2-15
USB interface, specifications A-7
Using tone curve 1-15
V
Video cards 4-23
W
Width 2-17
Width and height of image 2-16
Window
EPSON TWAIN Pro 1-2
EPSON TWAIN Pro Network 1-2
main 1-3
preview 1-3
4
Index
Z
Zoom preview 2-21
