hp business desktop d325
hp business desktop d325
© 2003 Hewlett-Packard Development Company, L.P.

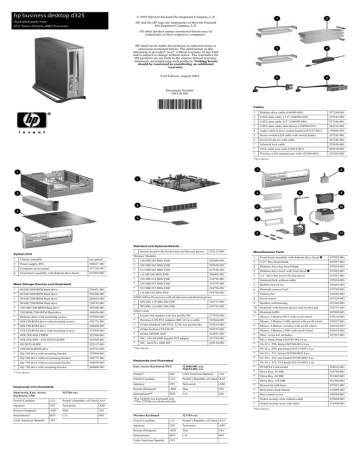

illustrated parts map
Slim Tower Chassis, AMD Processor
HP and the HP logo are trademarks of Hewlett-Packard
Development Company, L.P.
All other product names mentioned herein may be
trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided “as is” without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
warranty.
First Edition, August 2003
Document Number
344316-001
Cables
1
Diskette drive cable (168999-005)
337244-001
2
UATA data cable, 13.5” (108950-045)
337247-001
3
UATA data cable, 8.6” (108950-044)
337246-001
*
UATA data cable, dual device (108950-051)
342254-001
4
Audio cable (CD to system board) (387527-001)
149806-001
5
Power switch/LED cable with switch holder
337243-001
6
Front I/O device with cable
337242-001
*
Solenoid lock cable
255438-001
*
VGA cable (use with 335814-001)
285379-001
*
Wireless LAN antenna (use with 333364-001)
333365-001
*Not shown
Standard and Optional Boards
1
System Unit
1
System board with alcohol pad and thermal grease
322122-001
Memory Modules
Chassis assembly
not spared
2
128 MB/266 MHz FSB
285648-001
2
Power supply, PFC
308617-001
*
256 MB/266 MHz FSB
285649-001
3
Computer access panel
337238-001
*
512 MB/266 MHz FSB
257526-001
*
1.0 GB/266 MHz FSB
286403-001
*
128 MB/333 MHz FSB
314795-001
*
256 MB/333 MHz FSB
314793-001
*
512 MB/333 MHz FSB
314796-001
*
1.0 GB/333 MHz FSB
314794-001
4
Front bezel assembly with diskette drive bezel
337022-001
Mass Storage Devices (not illustrated)
*
40 GB\5400 RPM Hard drive
236921-001
*
80 GB\5400 RPM Hard drive
292208-001
*
40 GB\7200 RPM Hard drive
286692-001
*
80 GB\7200 RPM Hard drive
250185-001
*
160 GB/7200 RPM Hard drive
325306-001
*
250 HGB/7200 RPM Hard drive
344058-001
*
Diskette drive with mounting screws
333505-001
*
48X CD-ROM drive with mounting screws
326773-001
*
48X CD-ROM drive
340430-001
AMD Athlon Processors with alcohol pad and thermal grease
3
XP2200, 1.8 GHz/266 FSB
345752-001
*
XP2400, 2.0 GHz/266 FSB
345753-001
Other Cards
*
Lucent 56k modem with low profile bkt
277918-001
*
Wireless LAN PCI Adapter (802.11) w/o cable
333364-001
*
nVidia Quadro4 100 NVS, 32 M, low profile bkt
335814-001
*
nVidia GeForce FX128 M
342253-001
*
nVidia MX440 AGP
322891-001
*
NIC, 10/100/1000 Gigabit PCI adapter
321793-001
*
NIC, Intel Pro 1000 MT
338154-001
Miscellaneous Parts
1
Front bezel assembly with diskette drive bezel 3
337022-001
*
5.25” Bay bezel blank
335937-001
2
Diskette drive bay bezel blank
337019-001
3
Diskette drive bezel with front bezel 1
337022-001
4
3.5” drive bay bezel (for Zip drive)
337021-001
*
Solenoid lock without cable
335810-001
5
Rubber foot (4 ea)
336445-001
6
Heatsink removal tool
337599-001
7
Chassis fan
342685-001
8
Hood sensor
267529-001
9
Speaker with housing
337249-001
10
Heatsink with thermal grease and alcohol pad
326771-001
11
Heatsink baffle
347099-001
*
Mouse, 2-Button, PS/2 with scroll wheel
323614-001
*
Mouse, 2-Button, USB, optical with scroll wheel
323617-001
*
Mouse, 2-Button, wireless with scroll wheel
323616-001
*
Mouse, 2-Button, USB, with scroll wheel
323615-001
*
Misc. screw kit, includes:
337237-001
*
M3 x 5mm, hitop (263585-001) 4 ea
*
52X CD-ROM drive with mounting screws
333969-001
*
48X/24X/48X CDRW
325308-001
*
48X/24X/48X +16X DVD/CD-RW
325309-001
*
4X DVD+R/RW
325317-001
*
16X DVD-ROM drive
325313-001
*
Zip 250 drive with mounting bracket
333504-001
*
#6-32 x .312, hitop (262508-002) 4 ea
*
Zip 250 drive without mounting bracket
326772-001
*
#6-19 x .312, pan head (101346-068) 2 ea
*
Zip 750 drive without mounting bracket
344059-001
*
#6-19 x .315, T15 head (331310-001) 2 ea
*
Zip 750 drive with mounting bracket
344060-001
*
PCMCIA Card reader
338616-001
*
Drive Key, 16 MB
324780-001
*
Drive Key, 64 MB
331465-001
*
Drive Key, 128 MB
331466-001
*
Return kit with buns
337911-001
Real-time-clock battery
153099-001
* Not shown
Keyboards (not illustrated)
Easy Access Keyboard, PS/2
323686-001-xxx
324634-001-xxx
#6-32 x .250, hitop (262508-001) 8 ea
*
#6-32 x .250, pan head (101517-037) 3 ea
-021
Latin American Spanish
French Canadian
-121
People’s Republic of China -AA1
Japanese
-291
Taiwanese
-AB1
Korean (Hanguel)
-AD1
Thai
-281
*
323746-xxx
International**
-B31
U.S.
-001
*
Port control cover
340399-001
*For 324634-xxx keyboard only
**For 323686-xxx keyboard only
*
Nobel security lock without cable
335808-001
*
Nobel security lock with cable
335809-001
French Canadian
-121
People’s Republic of China -AA1
Japanese
-291
Taiwanese
-AB1
Korean (Hanguel)
-AD1
Thai
-281
International
-B31
U.S.
-001
Latin American Spanish
-161
-161
*
Europe*
Keyboards (not illustrated)
Smartcard, Easy Access
Keyboard, USB
*Not shown
*Not shown
Wireless Keyboard
323745-xxx
French Canadian
-121
People’s Republic of China -AA1
Japanese
-291
Taiwanese
-AB1
Korean (Hanguel)
-AD1
Thai
-281
International
-B31
U.S.
-001
Latin American Spanish
-161
Clearing CMOS
1.
2.
3.
4.
5.
6.
Turn off the computer and any external devices, then disconnect the power cord from the power outlet.
Remove the access panel.
Locate the switch SW50 and press the button, holding it down for 5 seconds.
Replace the access panel.
Connect the power cord to the power outlet.
Turn on the computer, allow it to start.
Setting the Setup and Power-On Passwords
1.
2.
3.
4.
5.
6.
Turn off the computer and any external devices, then disconnect the power cord from the power outlet.
Remove the access panel.
Locate the header labeled E49.
Move the jumper from pins 1 & 2 to pins 2 & 3.
Replace the access panel.
Connect the power cord to the power outlet.
NOTE: Placing the jumper on pins 2 & 3 clears the current passwords and disables the password features.
7.
8.
To re-enable the password features, repeat steps 1-3, then replace the jumper on pins 1 & 2 (safe position).
Repeat steps 5-6, then establish new passwords.
Boot Block
System Board Connectors and Jumpers
1.
2.
3.
4.
5.
6.
7.
Turn off the computer and any external devices, then disconnect the power cord from the power outlet.
Remove the access panel.
Locate switch E14.
With the jumper on, the boot block is write-enabled.
With the jumper off, the boot block is write-disabled.
Replace the access panel.
Connect the power cord to the power outlet. Turn on the system and allow it to start.
E14
Boot block jumper
P21
Secondary IDE
E49
Password jumper
P23
Audio
J20
PCI expansion slot 1
P24
Front USB
J21
PCI expansion slot 2
P29
SCSI LED
J22
PCI expansion slot 3
P52
Serial port
J40
AGP connector
P70
CPU fan
P1
Main power connector
P124
Hood lock
P3
CPU 12V reg input
P125
Hood sensor
P5
Power button/LED
SW3
Safe Mode jumper (default = 1-2)
LED
Color
Beeps
LED Activity
State/Message
P6
Internal speaker
SW50
CMOS reset
Power
Red
none
2 blinks 1 every second,
then 2 second pause
CPU thermal shutdown
P7
CD audio
XBT1
Real-time clock battery
P8
Chassis fan
XMM1
Memory
Power
Red
none
On
Processor not installed
P10
Diskette drive
XMM2
Memory
Power
Red
1
1 blink every 2 seconds
P11
Aux audio
XU1
Processor
P20
Primary IDE
Power supply overload (crowbar) or 4-pin power cable from
power supply not plugged into
P3
Power
Red
5
5 blinks 1 every second,
then 2 second pause
Pre video memory error
Power
Red
6
6 blinks 1 every second,
then 2 second pause
Pre video graphics error
Power
Red
7
7 blinks 1 every second,
then 2 second pause
PCA failure (ROM detected failure prior to video)
Power
Red
8
8 blinks 1 every second,
then 2 second pause
Invalid ROM based on bad
checksum
Diagnostic LEDs
Interrupts
IRQ
System Resource
IRQ
System Resource
0
Reserved, interval timer
12
Onboard mouse port
1
Reserved, keyboard buffer full
13
Reserved, numeric data coprocessor
4
Serial Port (COM 1)
14
Primary IDE controller
5
PCI system management
15
Secondary IDE controller
6
Diskette drive controller
19
Integrated graphics (GPU)
8
Real-time clock
21
Integrated audio/USB host controller
9
ACPI-compliant system
22
Network interface card (NIC)
Keyboard Diagnostic LEDs
Computer Setup (F10) Utility Features (not all features may be available)
File
System Information
About
Set Time and date
Save to Diskette
Restore From Diskette
Set defaults and Exit
Storage
Device Configuration
Options
IDE DPS Self-Test
Controller Order
Boot Order
Security
Setup Password
Power-On Password
Password Options
Smart Cover
Smart Sensor
DriveLock
Master Boot Record Security
Save Master Boot Record
Restore Master Boot Record
Device Security
Network Service Boot
System IDs
Advanced
Power-On Options
Onboard devices
PCI Devices
Bus Options
Device Options
PCI VGA Configuration
Note: See Computer Setup (F10) Utility Guide on the Documentation Library CD.
Ignore Changes and Exit
Save Changes and Exit
LED
Color
LED Activity
State/Message
Num, Caps,
Scroll Lock
Green
Flash On-Off 2 times (Beeps 1L, 3S)
Invalid system ROM detected. ROM forces
reflash.
Num, Caps,
Scroll Lock
Green
On (Rising Tone)
ROM reflashed successfully
Num Lock
Green
On
ROMPaq diskette not present, is bad, or drive
not ready.*
Caps Lock
Green
On
Enter password.
Num, Caps,
Scroll Lock
Green
Blink On in sequence, one at a
time - N, C, SL
Keyboard locked in network mode
* Insert valid ROMPaq diskette in drive A. Turn power switch off, then on to reflash ROM. If ROM flash is successful, all
three keyboard LEDs will light up, and you will hear a rising tone series of beeps. Remove diskette and turn power off,
then on to restart the computer. For more information about flashing the ROM, refer to the Troubleshooting guide.
Heatsink Removal
