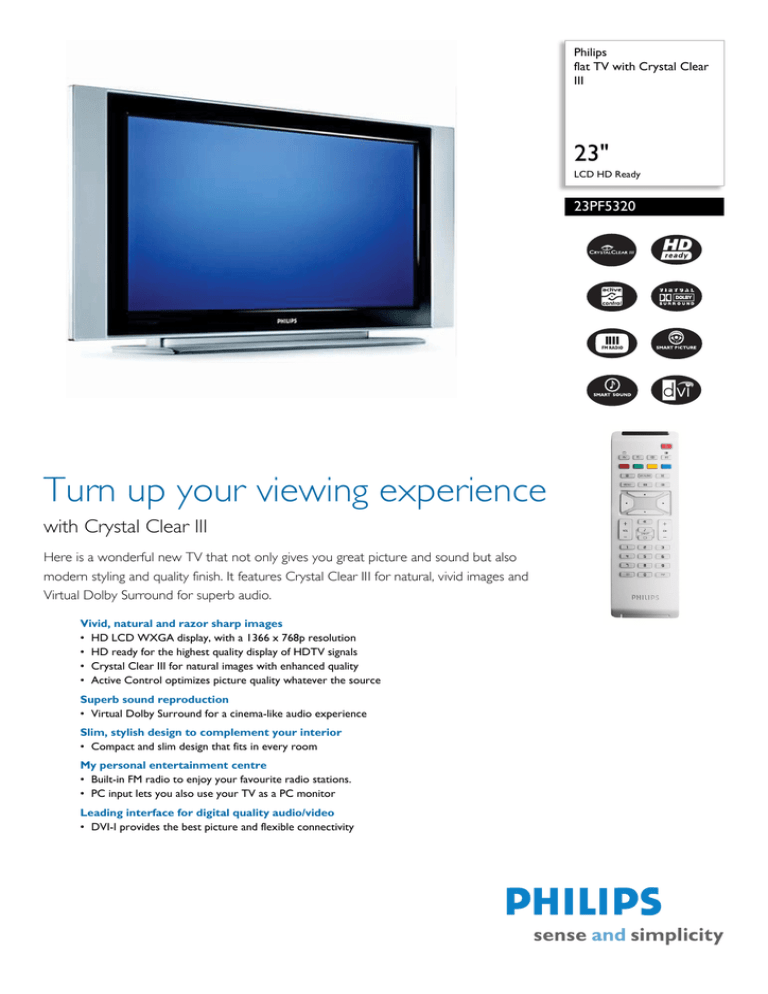

23PF5320/01 Philips flat TV with Crystal Clear III

23PF5320/01 Philips flat TV with Crystal Clear III
Philips
flat TV with Crystal Clear
III
23"
LCD HD Ready
23PF5320
Turn up your viewing experience
with Crystal Clear III
Here is a wonderful new TV that not only gives you great picture and sound but also
modern styling and quality finish. It features Crystal Clear III for natural, vivid images and
Virtual Dolby Surround for superb audio.
Vivid, natural and razor sharp images
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD ready for the highest quality display of HDTV signals
• Crystal Clear III for natural images with enhanced quality
• Active Control optimizes picture quality whatever the source
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
My personal entertainment centre
• Built-in FM radio to enjoy your favourite radio stations.
• PC input lets you also use your TV as a PC monitor
Leading interface for digital quality audio/video
• DVI-I provides the best picture and flexible connectivity
23PF5320/01
Flat TV with Crystal Clear III
23" LCD HD Ready
Specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
Aspect ratio: Widescreen
Brightness: 450 cd/m²
Contrast ratio (typical): 450:1
Diagonal screen size: 23 inch / 58 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: Crystal Clear III,
Progressive Scan, 2D Combfilter, Active Control,
Sharpness Adjustment, Colour Temperature
Adjustment
Screen enhancement: Anti-Reflection coated
screen
Viewing Angle (H / V): 140 / 120 degree
Panel resolution: 1366 x 768p
Response time (typical): 16 ms
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
720 x 400
70Hz
800 x 600
56, 60, 72, 75Hz
832 x 624
75Hz
1024 x 768
60, 70, 75Hz
1280 x 768
60Hz
• Video Formats
Resolution
Refresh rate
640 x 480i
1Fh
640 x 480p
2Fh
720 x 576i
1Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
• Sound Enhancement: Dynamic Bass Enhancement
• Sound System: Mono, Nicam Stereo, Virtual
Dolby Surround
• Output power (RMS): 2 x 5W
• Equalizer: 5-bands
Convenience
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning, PLL
Digital Tuning, Plug & Play, Program Name,
Sorting
• Ease of Use: Auto Volume Leveller (AVL), FM
Radio, Menu Control, On Screen Display,
Program List, Smart Picture Control, Smart Sound
Control
Remote control type: RCFE05SMU00
Teletext: 10 page Smart Text
Picture in Picture: Twin page text
Remote Control: TV
Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Clock: Sleep Timer
• VESA Mount: 100 x 100 mm
•
•
•
•
•
Tuner/Reception/Transmission
• Tuner bands: FM, Hyperband, S-Channel, UHF,
VHF
• TV system: PAL, PAL B/G, PAL D/K, PAL I,
SECAM, SECAM B/G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner Display: PLL
• Number of Preset Channels: 100
Connectivity
• Number of Scarts: 1
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Other connections: Antenna IEC75, DVI-I, FM
Antenna, PC Audio in
• Front / Side connections: Audio in, CVBS in,
Headphone out, S-video in
Power
•
•
•
•
Power consumption: 92 W
Standby power consumption: < 1W
Ambient temperature: +5°C/+45°C
Power supply: AC 90-240
Dimensions
• Product weight: 8.8 kg
• Set dimensions (W x H x D): 716 x 375 x 98 mm
• Dimensions (with base) (W x H x D):
716 x 420 x 195 mm
• Box dimensions (W x H x D):
780 x 551 x 210 mm
• Set weight: 8.8 kg
• Weight incl. Packaging: 11.64 kg
• Colour cabinet: Silver Frost
Accessories
• Included Accessories: Power cord, Quick start
guide, Registration card, Remote Control, Table
top stand, User Manual
• FM antenna: FM antenna
• Cables: DVI-I to YPbPr cable
•
23PF5320/01
Flat TV with Crystal Clear III
23" LCD HD Ready
Product highlights
HD Ready
Enjoy the exceptional picture quality of a true High
Definition TV signal and be fully prepared for HD sources
like HDTV broadcast, Blu-ray DVD or HD-DVD. HD
ready is a protected label that offers picture quality
beyond that of progressive scan. It conforms to strict
standards laid out by EICTA to offer a HD screen that
displays the benefits of resolution and picture quality of a
High Definition TV signal. It has a universal connection for
both analogue YPbPr and uncompressed Digital
connection of DVI or HDMI, supporting HDCP. It can
display 720p and 1080i signals at 50 and 60Hz.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They include a
2D Comb filter, Dynamic contrast, Blue stretch and
Green enhancement so that you always get the most
natural looking colours.
Active Control
Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture setting
over 3,000 times per minute, Active Control Plus ensures
that the viewing experience is optimized.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
FM Radio
An FM radio capable of storing 40 preset stations in built
in. On-screen station naming makes navigation simple,
and a handy Clock Screensaver is also included for use
while listening.
PC input
With PC input you can connect your TV to a computer
and use the TV as a PC monitor.
DVI-I Input
A DVI-I input connects the non-compressed highbandwidth digital RGB signal from source to screen. By
eliminating the conversion of the digital signals to
analogue, it delivers an unblemished and noise free
image, that is clear and flicker free. The DVI input
supports HDCP copy protection that allows viewing of
copy protected programs from Digital Set top boxes,
DVD players and HD recorders. DVI-I is future proof as
it can be connected to all HDMI devices (a converter
cable is required). The DVI-I input also supports analogue
PC-VGA signals.
Issue date 2007-12-01
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 15.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 22258
EAN: 87 10895 87551 6
www.philips.com
