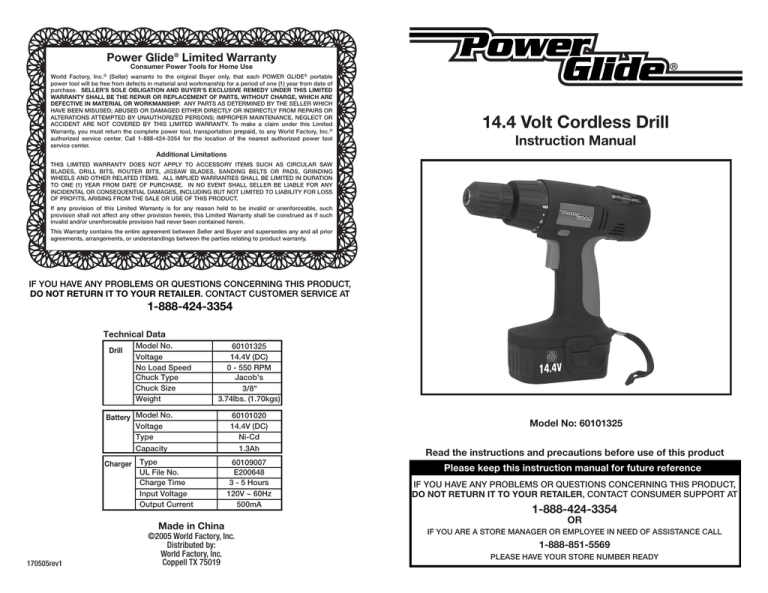

14.4 Volt Cordless Drill
Power Glide® Limited Warranty
Consumer Power Tools for Home Use
World Factory, Inc.® (Seller) warrants to the original Buyer only, that each POWER GLIDE® portable
power tool will be free from defects in material and workmanship for a period of one (1) year from date of
purchase. SELLER’S SOLE OBLIGATION AND BUYER’S EXCLUSIVE REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE THE REPAIR OR REPLACEMENT OF PARTS, WITHOUT CHARGE, WHICH ARE
DEFECTIVE IN MATERIAL OR WORKMANSHIP. ANY PARTS AS DETERMINED BY THE SELLER WHICH
HAVE BEEN MISUSED; ABUSED OR DAMAGED EITHER DIRECTLY OR INDIRECTLY FROM REPAIRS OR
ALTERATIONS ATTEMPTED BY UNAUTHORIZED PERSONS; IMPROPER MAINTENANCE, NEGLECT OR
ACCIDENT ARE NOT COVERED BY THIS LIMITED WARRANTY. To make a claim under this Limited
Warranty, you must return the complete power tool, transportation prepaid, to any World Factory, Inc.®
authorized service center. Call 1-888-424-3354 for the location of the nearest authorized power tool
service center.
14.4 Volt Cordless Drill
Instruction Manual
Additional Limitations
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW
BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS OR PADS, GRINDING
WHEELS AND OTHER RELATED ITEMS. ALL IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION
TO ONE (1) YEAR FROM DATE OF PURCHASE. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS
OF PROFITS, ARISING FROM THE SALE OR USE OF THIS PRODUCT.
If any provision of this Limited Warranty is for any reason held to be invalid or unenforceable, such
provision shall not affect any other provision herein, this Limited Warranty shall be construed as if such
invalid and/or unenforceable provision had never been contained herein.
This Warranty contains the entire agreement between Seller and Buyer and supersedes any and all prior
agreements, arrangements, or understandings between the parties relating to product warranty.
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER. CONTACT CUSTOMER SERVICE AT
1-888-424-3354
Technical Data
Drill
Model No.
Voltage
No Load Speed
Chuck Type
Chuck Size
Weight
60101325
14.4V (DC)
0 - 550 RPM
Jacob's
3/8"
3.74lbs. (1.70kgs)
Battery Model No.
Voltage
Type
60101020
14.4V (DC)
Ni-Cd
1.3Ah
Capacity
Charger
Type
UL File No.
Charge Time
Input Voltage
Output Current
Made in China
170505rev1
60109007
E200648
3 - 5 Hours
120V ~ 60Hz
500mA
©2005 World Factory, Inc.
Distributed by:
World Factory, Inc.
Coppell TX 75019
Model No: 60101325
Read the instructions and precautions before use of this product
Please keep this instruction manual for future reference
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER, CONTACT CONSUMER SUPPORT AT
1-888-424-3354
OR
IF YOU ARE A STORE MANAGER OR EMPLOYEE IN NEED OF ASSISTANCE CALL
1-888-851-5569
PLEASE HAVE YOUR STORE NUMBER READY
GENERAL SAFETY RULES
WARNING! ELECTRICAL SHOCK. Read and understand all instructions. Failure to follow all
instructions listed below, may result in electrical shock, fire and/or serious personal injury.
NOTE: This portable tool has been manufactured in accordance with the applicable standards and
equipment safety legislation. When using electrical appliances, it is important to take safety
precautions to avoid possible injury and damage. For that reason, you should carefully read and
store these instructions so that this information is available at all times.
SAVE THESE INSTRUCTIONS.
Work Area
1. Keep your work area clean and well lit. Cluttered and dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presences of flammable
liquids, gases, or dust. Power tools create sparks, which can ignite dust or fumes.
3. Keep bystanders, children and visitors away while operating a power tool.
Distractions can cause you to loose control.
Electrical Safety
1. Do not abuse the power cord. Never use the cord to carry the charger or pull the plug from
the outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged
cords immediately. Damaged cords increase the risk of electrical shock.
2. A battery operated tool with integral batteries or a separate battery pack must be
recharged only with the specified charger for the battery. A charger that may be suitable
for one type of battery may create a risk of fire when used with another battery.
3. Use battery operated tool only with specifically designated battery pack. Use of any other
batteries may create a risk of fire.
Personal Safety
1. Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use tool while tired or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
3. Avoid accidental starting. Be sure switch is in the locked or off position before inserting
battery pack. Carrying tools with your finger on the switch or inserting the battery pack into
a tool with the switch on invites accidents.
4. Remove adjusting keys or switches before turning the tool on. A wrench or a key that is left
attached to a rotating part of the tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes,
hardhat or hearing protection must be used for appropriate conditions.
Tool Use and Care
1. Use clamps or other practical way to secure and support the work piece to a stable
platform. Holding the work by hand or against your body is unstable and may to loss of control.
2. Do not force tool. Use the correct tool for your application. The correct tool will do the job
better and safer at the rate for which it is designed.
3. Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
1
4. Disconnect battery pack from tool or place the switch in the locked or off position before
making adjustments, changing accessories, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool accidentally.
5. Store idle tools out of reach of children and other untrained persons. Tools are dangerous
in the hands of untrained users.
6. When battery pack is not in use, keep it away from other metal objects like: paper clips,
coins, keys, nails, screws, or other small metal objects that can make a connection from
one terminal to the another. Shorting battery terminals together may cause sparks,
burns, or a fire.
7. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools,
with sharp edges are less likely to bind and are easier to control.
8. Check for misalignment or binding of moving parts, breakage of parts and any other
condition that affect the tools operation. If damaged, have the tool serviced before using.
Many accidents are caused by poorly maintained tools.
9. Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may become hazardous when
used on another tool.
MAINTENANCE
WARNING! RISK OF PERSONAL INJURY. Always remove the battery before performing
maintenance, making any adjustment, installing or changing accessories.
1. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with
sharp edges are less likely to bind and are easier to control.
2. Always keep your drill surface free from oil, dust and dirt.
3. Remove the battery pack before cleaning the drill.
4. Do not use caustic cleaning agents or solvents to clean the plastic housing.
5. Do not submerge or pour water on the tool at any time.
BATTERY RECYCLING
Service
1. Tool service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instructions in the
Maintenance section of this manual. Use of unauthorized parts or failure to follow
Maintenance instructions may create a risk of shock or injury.
SPECIFIC SAFETY RULES
Drill Safety Warning
WARNING! PERSONAL INJURY RISK Never touch the drill bit or other tool while it is
moving. Do not touch the drill bit after operation. Drill bit will be very hot.
1. If the drill bit jams in the work piece or if the drill stalls, stop immediately. Remove the bit
from the work piece and correct the reason for stall before continuing.
2. If tool speed drops abnormally low, begins to make abnormal noise, vibrations, or if the
motor housing produces smoke or burning odor; turn the tool off immediately and do not
operate, until repaired.
3. Hold tool by insulated gripping surfaces when performing an operation where the cutting
tool may contact hidden wiring. Contact with a "live" wire will also make exposed metal
parts of the tool "live" and shock the operator.
Safety Rules For Battery And Charger
Before using the charger and battery pack, read the Instruction Manual carefully.
WARNING! CHEMICAL HAZARD. Do not open battery pack casing. Protect the battery
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.
WARNING! CHEMICAL HAZARD. Do not open battery pack casing. Protect the
battery pack from impacts. If electrolyte leakage occurs from the battery, it is essential
to avoid contact with skin. If electrolyte does come into contact with your skin, rinse off
with water immediately. In the event of electrolyte contact with your eyes, consult
a physician immediately.
NOTE: This cordless power tool is supplied with a battery pack and charger.
Please adhere to the following guidelines:
Ambient temperature maximal 40°C (105°F)
Do not dispose of Ni-Cd batteries in household waste!
Do not throw Ni-Cd batteries into water!
Protect Ni-Cd batteries against heat and fire risk of explosion!
The battery must be returned, in accordance with legislation on batteries, to the dealer
or to the service center.
Consult your local telephone listings for a battery recycling center in your area.
Battery Recycling Symbols
Ambient
temperature
maximal
40°C (105°F)
Do not dispose of
Ni-Cd batteries in
household waste
Do not throw
Ni-Cd batteries
into water!
pack from impacts. If electrolyte leakage occurs from the battery, it is essential to avoid
contact with skin. If electrolyte does come into contact with your skin, rinse off with water
immediately. In the event of electrolyte contact with your eyes, consult a physician immediately.
Verify the available current corresponds to current required by battery charger.
Verify correct polarity (+/-) before inserting the battery pack into the charger.
Do not use battery charger outdoors. Never let moisture, rain, or splashed water reach
the charging location.
Do not charge battery pack when the temperature is below 10°C (50°F) or
above 40°C (105°F). Charging battery at extreme temperatures can cause shorter battery life.
2
7
Protect Ni-Cd
batteries against
heat and fire
risk of explosion
Recycling
OPERATING INSTRUCTIONS (cont.)
WARNING! HEARING HAZARD Drilling
in some materials can produce dangerous
noise levels (exceeding 85 dB) causing
physical damage to inner ear or loss of
hearing. Wear hearing protection.
Torque Adjustments: (SEE FIGURE 5)
Figure 5
The tightening power of your drill/driver is
adjustable to various levels of driving power.
Select the torque setting based on the
material or screw size. See Table 1,
Torque Settings below.
NOTE: Generally, for a larger screw diameter
select a higher torque setting to drive the
screw until it is properly seated.
1
5
4
3
To Adjust Torque:
Rotate the torque adjustment ring (2)
until the desired setting number is
aligned with the indicator arrow (1).
(1) 16-Stage Torque Indicator Arrow
(2) Torque Adjustment Ring
Operating Tips:
Table 1 (Torque Settings)
Always start on the lowest setting.
If the correct setting has been chosen,
the override clutch opens once the screw
has been turned flush into the material.
Torque
Setting
1 to 2
3 to 4
When removing screws, select a higher
setting or set to drill symbol. The proper
settings are best determined in
practical trials.
5 to 10
11 to 14
To drill into metal: If possible, punch the
drilling position first, to prevent drill-bit
run away. Use a suitable coolant and/or
cutting oil. Coolants and cutting oils are
generally available at most Hardware
Stores and Home Centers.
15 to 16
Screw Size or Material
For driving small screws.
For driving screws into soft
materials or plastics.
For driving screws into soft woods.
For driving screws into medium or
hard woods.
For powerful screw driving.
For drilling metal, wood or using
spade (hole) bits.
ACCESSORIES
13 Piece Accessory Kit
Replacement Battery Pack
Replacement Battery Charger
2
(Included with most models)
Model No. 60101020
Model No. 60109007
5. Damaged battery packs or batteries no longer accepting a charge must be disposed of as
hazardous waste. Do not throw the battery pack into the trash, into fire, or into water. See
Battery Recycling section for disposal information.
6. Do not operate charger with a damaged electrical cable or housing. Charger with damaged
electrical cable is non-serviceable and must be replaced with a new one.
7. Use only battery packs and chargers approved by manufacturer for use in tools. Approved
battery packs and chargers are listed in the Accessories section of this manual.
8. Always keep the charger free from dust and dirt.
9. Always remove battery pack before working on the tool.
10. Cover the battery pack contacts to avoid short-circuiting.
11. Avoid the risk of explosion! Do not throw Ni-Cd batteries into water or fire.
12. NO SMOKING in battery charging or storage areas. Damaged NiCAD or NiMH Batteries may
vent the explosive gas hydrogen that can ignite on exposure to any naked flame or spark.
13. FIRE CONTROL In the event of fire, smother flames with earth or sand.
CALIFORNIA PROPOSITION 65
WARNING!: BREATHING HAZARD 1) Use of this tool may cause exposure to chemicals
that are known to the state of California to cause cancer, birth defects or other reproductive
harm. 2) Dust and debris created during cutting, drilling, grinding or sanding on some
materials may contain chemicals known to the State of California to cause cancer or birth
defects or other reproductive harm. To reduce exposure to these chemicals, always use
approved safety equipment, work in a well-ventilated area and wear dusk mask that
filters out microscopic particles.
WARNING!: CHEMICAL HAZARD. Battery post, terminals and related accessories contain
lead and lead compounds, a chemicals known to the state of California to cause cancer,
and birth defects or other reproductive harm. Wash hands after handling.
FUNCTIONAL DESCRIPTION
14.4 VOLT CORDLESS TRIGGER DRILL
Parts Detail
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
Cordless Drill
16-stage Torque Adjustment Ring
Jacob's Keyless Drill Chuck
Forward / Reverse Switch
On-Off Switch with Speed Control
Battery Pack
AC Adapter
Charger Base
DC Pin Plug
Indicator Light
Drill Driver and Storage
(included with Drill)
5
4
9
8
4
5
6
7
6
2
3
10
3
1
11
OPERATING INSTRUCTIONS
Battery Pack Installation & Removal
1. (SEE FIGURE 1) Insert charged battery
pack (2) into tool handle (1) and secure
with release buttons (3).
Inserting Drill and Screwdriver Bits (SEE FIGURE 3)
WARNING! PERSONAL INJURY HAZARD.
Figure 1
2
1
NOTE: There are release buttons on both sides
of the battery. The spring must snap into place
before the battery is safely secured.
2. Separate the battery (2) from the tool handle (1)
by pressing the release buttons (3) and pulling
the battery away from the tool.
Using Battery Charger and Battery Pack
NOTE: The battery pack must be charged
before first time use. The battery pack only
reaches its full capacity after several charges.
1. (SEE FIGURE 2) Plug the AC adapter (1) into
a standard 110/120v ~ 60Hz power outlet.
2. Plug the DC connector plug (4) from the
AC adapter into the charging base (2).
3. Carefully insert the battery pack (5) into the
charger base (2). The battery pack fits in one
direction, do not force the battery pack
into the base.
4. Verify indicator light (3) is lit, if indicator light
does not turn on, ensure AC adapter and
DC connector plug are securely connected.
Battery Charger Operation
3
(3) Release Button
(1) Tool Handle
(2) Battery Pack
Figure 2
5
Ensure the drill is turned off and the battery
is removed before changing bits or making
any adjustments to the tool.
NOTE: To avoid damage to screw heads,
select screwdriver bits appropriate to the
size of screw head
1
2
1. To insert a drill bit, screwdriver bit or other
accessory, grasp the back section of the
chuck (2) and rotate front section (1) counter
clockwise to open drill chuck.
2. Insert the bit into the drill chuck opening
until it stops.
3. Firmly rotate the front section (1) clockwise
to secure the bit. Ensure bit is firmly seated
in the drill chuck before operation.
(1) Front Section of Chuck
(2) Back Section of Chuck
Forward & Reversing Switch (SEE FIGURE 4)
3
2
1
4
(4) DC Connector plug
(1) AC Adapter
(2) Charger Base (5) Battery Pack
(3) Indicator Light
1. The indicator light will come on and remain on until power is removed from adapter
or battery pack is removed from charger base.
2. If the battery pack reaches a temperature over 40 C (+105 F), the battery charger
indicator light will turn off for self-protection. The indicator light will turn back on
when battery pack temperature cools down.
Charging Battery Pack
1. Charge battery pack for 3-5 hours to reach a full charge. The battery pack and power
supply unit will warm up during the charging process. This is not a malfunction.
CAUTION: Do not charge the battery for more than 7 hours. Overcharging may shorten
life of the battery pack.
2. After battery pack is fully charged, unplug the charger base (2) by disconnecting
the AC adapter from the outlet.
3. Remove the battery pack from the charger base.
4. Store unused battery away from heat sources.
Recharging Battery Pack
Charge the battery for 3-5 hours from a fully discharged condition. Follow steps 1 - 4
for charging battery. Do not repeatedly recharge battery pack after using briefly
(15 minutes or less).
4
Figure 3
Figure 4
CAUTION: Always check the direction of
rotation before use. Do not attempt to change
rotation direction while the tool is in operation.
NOTE: When the On/Off switch is activated,
rotation direction switch is locked.
The rotation direction switch (1) is a two
position switch and controls the drills
forward and reverse rotation.
Forward Rotation - Place switch in the left
position for clockwise rotation.
Reverse Rotation - Place switch in the right
position for counter clockwise rotation.
Variable Speed On/Off Switch
5
4
1
2
(1) Forward & Reverse Switch
(2) On/Off Switch with Speed Control
First set the rotation direction switch (1)
to desired position.
To start the drill: Press On/Off switch (2).
Rotation speed will increase as the
trigger is pressed.
To stop the drill: Release On/Off switch (2).
Varying the Drill Speed
CAUTION: Drilling with the lowest rotation
speed for an extended period, increases the
danger of overheating the drill's motor. Allow
cooling time of approximately 15 minutes
between extended drilling periods.
To increase the drill speed: apply pressure to
the On/Off switch by slowly squeezing inward.
To decrease the drill speed: release the
pressure on the On/Off switch.
5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
