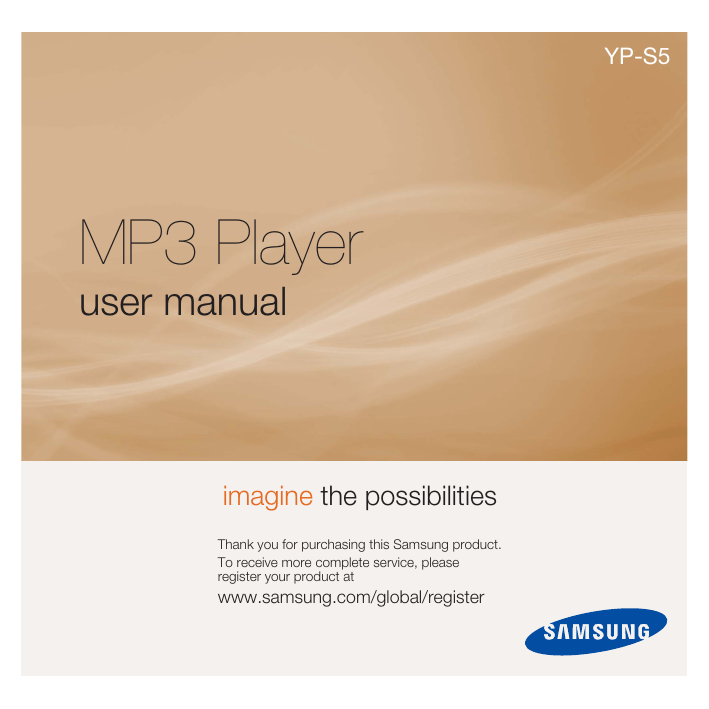

YP-S5
MP3 Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/global/register
features of your new MP3 Player
Good looking. Smart. Reliable. And lots of fun. Your new MP3 player
is all this and more. Its state-of-the-art technology delivers rich sound,
vibrant pictures, and action-packed games. You’ll love your new MP3
player, whether you’re exercising, downloading your favorite tunes,
watching videos, playing games, or even listening to FM Radio.
Use it once, and you’ll wonder how you ever lived without it.
HIGH-QUALITY STEREO SPEAKERS!
The player comes with stereo speakers that
slide out from the player.
PUTTING THE “MULTI” IN MULTIMEDIA
We call it an MP3 player, but it’s much more
than that. It allows you to view pictures, text,
and videos and listen to FM radio.
The built-in Bluetooth wireless technology
turns your MP3 player into your own
personal network.
TOUCH NAVIGATION!
You can tap on the touch pad to navigate
through the menus.
WHERE FORM MEETS FUNCTION
Sure, it’s sleek and good-looking. But it’s
easy to hold and use, too.
LONGER PLAY TIME AND SHORTER
DOWNLOADING!
A fully charged battery can play up to 24
hours of music or 4 hours of video(when
using the earphones).
Download times are shorter. Because of its
USB 2.0 capability, the player is much faster
than models with USB 1.1.
ACOUSTIC WONDER
Your new MP3 player has built-in DNSe™
(Digital Natural Sound engine), Samsung’s
unique sound technology created to deliver
richer, deeper sound for an unbelievable
listening experience.
safety information
What the icons and signs in this user manual mean :
Means that death or serious personal injury is a risk.
WARNING
CAUTION
Means that there is a potential risk for personal injury or
material damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or
personal injury when using your MP3 Player, follow
these basic safety precautions:
NOTE
Means hints or referential pages that may be helpful to
operate the player.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
safety information
This manual describes how to properly use your new mp3 player.
Read it carefully to avoid damaging the player and injuring yourself.
Pay particular attention to the following serious warnings:
PROTECT YOURSELF
ƒ Do not disassemble, repair, or modify this product on your own.
CAUTION
CAUTION
ƒ Do not get the product wet or drop it in water. If the product gets wet, do
not switch it on because you could get an electric shock. Instead, contact
a Samsung Customer Service Center at 1-800 SAMSUNG.
ƒ Do not use the earphones while you are driving a bicycle, automobile or
motorcycle.
It can cause a serious accident, and furthermore, is prohibited by law in some
areas.
Using the earphones while walking or jogging on a road, in particular, on a
crosswalk can lead to a serious accident.
ƒ For your safety, make sure the earphone cable does not get in the way of
your arm or other surrounding objects while you are taking exercise or a
walk.
WARNING
ƒ Do not place the product in damp, dusty, or sooty areas because these
environments could lead to fire or electric shock.
PROTECT YOURSELF
WARNING
ƒ Using earphones or headphones for an extended time may cause serious
damage to your hearing.
If you are exposed to sound louder than 85db for an extended time, you may
adversely affect your hearing. The louder the sound is, the more seriously damaged
your hearing may be (an ordinary conversation is between 50 to 60db and road
noise is approximately 80db). You are strongly advised to set the volume level to
medium (the medium level is usually less than 2/3 of the maximum).
ƒ If you feel a ringing in the ear(s), lower the volume or stop using the
earphones or headphones.
PROTECT YOUR MP3 PLAYER
ƒ Do not leave the player in temperatures above 95°F (35°C), such as a
sauna or a parked car.
ƒ Do not cause excessive impact on the player by dropping it.
ƒ Do not place heavy objects on top of the player.
ƒ Prevent any foreign particles or dust from entering into the product.
ƒ Do not place the product near magnetic objects.
ƒ Be sure to backup important data. Samsung is not responsible for data loss.
ƒ Use only accessories provided by or approved by Samsung.
CAUTION
CAUTION
NOTE
ƒ Do not spray water on the product. Never clean the product with chemical
substances such as benzene or thinner, as it may cause fire, electric
shock or deteriorate the surface.
ƒ Failure to follow these instructions may lead to physical injuries or damage to
the player.
ƒ When printing this user manual, we recommend that you print in color and
check “Fit to Page” in the print option for better viewing.
SAFETY INFORMATION
FCC
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Caution: Any changes or modifications in construction of this device which are
not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications, However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
SAFETY INFORMATION (Continued)
Declaration of Conformity
We, Samsung Electronics Co.,Ltd., declares under its sole responsibility that
the product, Trade name Samsung & Model name YP-S5, has been tested
according to the part 15 of the FCC Rules.
Party responsible for Product Compliance
Samsung Electronics America QA Lab.
18600 Broadwick Street, Rancho Dominguez, CA 90220
contents
THE BASICS
12
12
13
16
19
19
20
21
21
22
22
23
23
24
25
25
26
27
28
29
30
32
SAMSUNG MEDIA STUDIO
33
33
34
35
What’s included
Your MP3 Player
Screen displays
Using the touch button
Using the speakers
Charging the battery
Caring for the battery
Turning the Power on & off
Playing music
Controlling the volume
Disabling the buttons
Browsing for files using
“File Browser”
Deleting files with “File Browser”
Changing the settings and
preferences
Menu Style Settings
Sound Settings
Display Settings
Language Settings
Time Settings
System Settings
Resetting the system
PC requirements
Installing Samsung Media Studio
Transferring files to the player with
Samsung Media Studio
contents
LISTENING TO MUSIC
40
38
40
40
40
44
45
46
46
47
Listening by category
Pausing
Searching within a track
Playing from the beginning of the
current track
Playing the previous track
Playing the next track
Creating a playlist using Samsung
Media Studio
Creating a playlist
Adding music files to a playlist you’ve
created
Transferring a playlist to your player
using Media Studio
Creating a playlist on your mp3 player
Playing a playlist
Deleting a file from the playlist
Deleting all files from the playlist
Using the music menu
56
57
57
57
58
Pausing
To move to a specific frame
To play the previous video file
To play the next video file
Using the video menu
40
40
41
41
42
43
WATCHING A VIDEO
56
contents
VIEWING PICTURES
60
LISTENING TO
FM RADIO
65
75
USING THE DATACAST
ENJOYING
THE PRIME PACK
78
60
61
Viewing pictures
Using the picture menu
65
66
67
To use the mute function
To search for FM stations
Using the FM radio menu
75
76
76
Registering a channel
Creating a new channel group
Transferring a datacast from
<Media Studio>
Viewing Datacasts
77
78
79
82
83
84
86
89
90
Reading text
Using the text menu
Voice recording
Using the voice recording menu
Playing video games
Setting the alarm
Viewing the world clock
Using the speakers to listen to music
from an external device
contents
USING BLUETOOTH
91
UPGRADING FIRMWARE
110
112
TROUBLESHOOTING
APPENDIX
116
91
93
96
102
What is Bluetooth?
Using a Bluetooth stereo headset
Using a Bluetooth mobile phone
Transferring files to/from a Bluetooth
device
107 Using the Bluetooth menu
108 Bluetooth settings
110 Upgrading firmware
112 Troubleshooting
116
117
119
120
Menu Tree
Product Specifications
License
Warranty
the basics
WHAT’S INCLUDED
Your new mp3 player comes with these accessories. If you’re missing any of these
items, contact Samsung Customer Service at 1-800-SAMSUNG (1-800-726-7864).
Earphones
Black : AH59-01883A
White : AH59-01885A
Player
USB Cable
AH39-00899A
Audio in Cable
AH39-00900A
Installation CD
AH46-00048B
The accessories in your box may look slightly different than these.
12 _ the basics
YOUR MP3 PLAYER
Power & Hold switch
Slide and hold in the opposite
direction of the arrow for power
on/off.
Slide in the direction of the arrow
to lock the button functions.
Screen display
Speakers
the basics _ 13
YOUR MP3 PLAYER (Continued)
These buttons are ‘Touch’ buttons.
Back button
Tap to move to the previous
screen.
Press and briefly hold to move to
the main menu screen.
Up volume button
Tap to increase the volume or
move to an upper item/menu.
Left file browser button
Tap to move to the previous track/
menu or play the current track
from the beginning.
Press and briefly hold to quickly
scan tracks.
Play/Pause, Select button
Tap to select the play/pause and
function, move to the next screen.
Down volume button
Tap to reduce the volume or move
to a lower item/menu.
Right file browser button
Tap to move to next track/menu.
Press and briefly hold to quickly
scan tracks.
Menu button
Tap to display the menu.
14 _ the basics
YOUR MP3 PLAYER (Continued)
Earphone connection jack
USB connection port
Earphones
Labeled “L” for the left earpiece
and “R” for the right earpiece.
Also serves as an antenna for FM
Radio in the MP3 player.
Microphone
Reset Hole
If a player malfunction occurs,
press the reset hole with a pointed
object to re-initialize the system.
the basics _ 15
SCREEN DISPLAYS
Music
8
1
9
2
3
Music
15/20
1
Parent Menu Indicator
2
Bluetooth/Lock/Alarm/
Sleep Timer Indicator
3
Battery Status
4
Current track playing / Total
number of tracks Indicator
5
Play Speed Indicator
6
Current Time
7
Total Play Time
8
Play/Pause, Search Indicator
9
Music Mode Indicator
10
Play Mode Indicator
11
DNSe Mode Indicator
12
Music Play Screen
13
Music Title
14
Play Status Bar
15
Current Play Time
4
10
5
11
6
12
13
1.Life is cool
14
15
02:13
04:28
7
ƒ The screen pictures are for illustration purposes only. The actual screen may differ.
NOTE
16 _ the basics
SCREEN DISPLAYS (Continued)
Video
1
5
6
2
Video Track 1
3
7
8
9
4
1
Bluetooth/Lock/Alarm/
Sleep Timer Indicator
6
Video Mode Indicator
2
Battery Status
7
File Name
3
Current Time
8
Play Status Bar
4
Total Play Time
9
Current Play Time
5
Play/Pause, Search
Indicator
the basics _ 17
SCREEN DISPLAYS (Continued)
5
1
Bluetooth/Lock/Alarm/
Sleep Timer Indicator
2
Battery Status
3
Current file /
Total number of files Indicator
4
Current Time
5
Music Play Status
6
Picture Mode Indicator
7
Parent Menu Indicator
8
File Name
1
1
Current Time
2
2
Battery Status
3
Bluetooth/Lock/Alarm/
Sleep Timer Indicator
4
Radio Mode Indicator
5
Manual/Preset Indicator
6
Current Frequency(MHz) Indicator
7
Frequency Location Indicator
1
6
7
Pictures
1/8
Picture Image 1.jpg
2
3
4
8
[Preview Screen]
FM Radio
3
4
5
6
7
18 _ the basics
USING THE TOUCH BUTTON
Tap on touch screen with your fingertip.
NOTE
ƒ To avoid damage to the touch screen, do not use any object other than your fingers
to operate it.
ƒ Do not tap on the touch screen if your fingers are not clean.
ƒ Do not tap on the touch screen with gloves on.
ƒ The touch screen may not function if you use a fingernail or other instruments such
as a ballpoint pen.
USING THE SPEAKERS
Slide the middle of the player in the arrow
direction while listening to music or the radio.
ƒ You can listen to music through the speakers.
As the earphone wires functions as FM
antennas, make sure that the earphones are
connected to the player if you want to listen to
the radio through the speakers.
Music
03:28 PM
15/20
1.Life is cool
02:13
04:28
ƒ If you want to use the earphones to listen to
music, close the speakers panel by sliding it
back to the original position.
If you close the slide panel, the speakers will
shut off.
ƒ Please position the player horizontally when
using the speakers.
the basics _ 19
CHARGING THE BATTERY
Charge it before using the player for the first time and when you haven’t used it
for a long time.
The battery for your mp3 player will fully charge in about 3 hours, although total
charging time varies depending on your PC environment.
Screen Display
ƒ USB Connected
ƒ Charging...
ƒ Fully Charged
1
2
1. Connect the other (larger) end of the USB cable to the USB Connection Port
on the bottom of the player.
) on your PC.
2. Connect the USB cable to the USB port (
20 _ the basics
CARING FOR THE BATTERY
Your battery will last longer if you follow these simple guidelines for caring and
storing it.
• Recharge and store the battery within the temperature range of 40°F~95°F
(5°C~35°C ).
• Do not overcharge (longer than 12 hours).
Excessive charging or discharging may shorten the battery’s life.
• Battery life naturally shortens slowly over time.
NOTE
ƒ If you are charging the player while it is connected to a laptop computer, make sure
the laptop’s battery is also fully charged or that the laptop is plugged into its power
source.
TURNING THE POWER ON & OFF
Turning the Power on
Slide and hold the
direction of the arrow.
switch in the opposite
ƒ Power is turned on.
Turning the Power off
Slide and hold the
direction of the arrow again.
switch in the opposite
ƒ Power is turned off.
NOTE
ƒ Your mp3 player will be automatically turned off when none of the buttons have
been pressed for a specific length of time in the pause mode. The factory setting for
<Auto Power Off> is 1 minute, but you can change this length of time. See page 31
for more information.
the basics _ 21
PLAYING MUSIC
Load music files onto your new mp3 player using Samsung Media Studio.
Learn more about Media Studio on pages 35~37.
1. Press and briefly hold [
screen.
2. Tap [
] to select <Music> and tap [
] and [
3. Use [
4. Tap [
] to move to the main menu
15/20
].
] to select a music file of your choice.
].
1.Life is cool
ƒ The music file will begin playing.
ƒ Tap [
NOTE
Music
] to move to the previous screen.
ƒ Press and briefly hold [
02:13
04:28
] to move to the main menu screen.
CONTROLLING THE VOLUME
Tap [
].
Music
15/20
ƒ You will see a volume control icon.
ƒ The range of volume is set between 0 to 30.
ƒ Tap [
] to increase the volume or [
] to decrease it.
1.Life is cool
02:13
22 _ the basics
04:28
DISABLING THE BUTTONS
The hold function disables all the other buttons on the mp3 player, so that if
you accidentally bump one-while working out, for example-your music won’t be
interrupted.
1. Slide the
in the direction of the arrow.
Music
15/20
2. Slide the
in the opposite direction of the arrow
to release the Lock function.
1.Life is cool
02:13
04:28
BROWSING FOR FILES USING “File Browser”
Search easily for files using the “File Browser” function.
1. Press and briefly hold [
screen.
2. Tap [
] to move to the main menu
] to select <File Browser> and tap [
].
ƒ The <File Browser> folder list containing “Music, Playlists, Video,
Pictures, Datacasts, Texts, Recorded Files and Received Files ”
appears.
3. Tap [
4. Tap [
ƒ Tap [
5. Tap [
6. Tap [
] to select a desired folder.
] to bring up the file list in the selected folder.
] to move to the previous screen.
] to select a desired file.
].
ƒ The file will start playing.
the basics _ 23
DELETING FILES WITH “File Browser”
1. Press and briefly hold [
screen.
2. Tap [
] to move to the main menu
] to select <File Browser> and tap [
].
ƒ The <File Browser> folder list containing appears.
3. Tap [
] to select a desired folder.
] to select <Delete> and tap [
].
ƒ The confirmation window will appear.
6. Tap [
] to select <Yes> and tap [
].
ƒ The file will be deleted
ƒ Once files are deleted, they cannot be recovered.
CAUTION
24 _ the basics
Playlists
Video
Pictures
Datacasts
4. Tap [
] to select the file that you want to delete
and tap [ ].
5. Tap [
File Browser
Music
Texts
Recorded Files
Received Files
CHANGING THE SETTINGS AND PREFERENCES
Your mp3 player comes with settings and preferences that were set up at the
factory, but you can change these pre-set values to truly customize your player.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
Menu Style Settings
You can change the menu design and font and delete the background
image of the main menu.
1. Press and briefly hold [ ] to move to the main
Settings
menu screen.
Menu Style
Sound
] to select <Settings> and tap [ ].
2. Tap [
ƒ The <Settings> menu appears.
3. Tap [
] to select <Menu Style> and tap [
].
ƒ The <Menu Style> menu appears.
4. Use the [
ƒ Tap [
ƒ Tap [
] and [
Display
Language
Time
System
] to set functions.
] to move to the next item/select the menu.
] to move up or down through the current menu.
Menu Style Setting Options
ƒ Menu Design : You can change the style of the main menu screen. Select from
<Crystal>, <My Skin>, <Stella>.
ƒ Font : You can change the font type of the menu language. Select one from 3
font types. In some menu languages, <Font> will be disabled.
ƒ Reset My Skin : Initializes the background image of the screen display to its
default image.
the basics _ 25
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Sound Settings
You can set the master EQ, beep sound, volume limit.
1. Press and briefly hold [
menu screen.
2. Tap [
] to move to the main
] to select <Settings> and tap [
ƒ The <Settings> menu appears.
3. Tap [
] to select <Sound> and tap [
].
ƒ The <Sound> menu appears.
4. Use the [
] and [
].
Settings
Menu Style
Sound
Display
Language
Time
System
] to set functions.
Sound Setting Options
] to select the
ƒ Master EQ : You can optimize sound settings. Tap [
frequency you want to adjust. The frequencies that can be adjusted are <60Hz>,
<125Hz>, <250Hz>, <500Hz>, <1KHz>, <2KHz>,<4KHz>, <8KHz>, and
] to adjust the selected frequency’s level and then tap [ ].
<16KHz>.Tap [
ƒ Beep Sound : Sets the beep sound for button operations to on or off. Select
from <Off> and <On>.
ƒ Volume Limit : You can avoid hearing damage by setting the limit of the volume
when using the earphone. <On> will limit the maximum volume level to 15.
The maximum volume level when volume limit is set to <Off> is 30. Even if you
have selected <Off>, the volume will be set back to 15 to avoid hearing damage
when you turn the player back on.
26 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Display Settings
Change the display off time, the screen saver and brightness of your
screen.
1. Press and briefly hold [
menu screen.
2. Tap [
] to move to the main
] to select <Settings> and tap [
ƒ The <Settings> menu appears.
3. Tap [
] to select <Display> and tap [
ƒ The <Display> menu appears.
4. Use the [
] and [
].
].
Settings
Menu Style
Sound
Display
Language
Time
System
] to set functions.
Display Setting Options
ƒ Display Off : If no button is tapped within the time set shown below, the screen
display will automatically be turned off. Select either <15 sec>, <30 sec>,
<1 min>, <3 min>, <5 min>, or <Always On>. Press any button to turn it back on.
ƒ Screen Saver : You can set an image to use as a screen saver. Select either
<Analog Clock>, <Digital Clock>, <Animation 1>, <Animation 2>,< Animation 3>
and set the wait time. You can select from <Off>, <15sec>, <30sec>, <1min>,
<3min> and <5min>. If no button is tapped within the time set shown above, the
player will display the screen saver image.
ƒ Brightness : You can adjust the brightness of the display screen. Select a level
from <0-10>, where 10 is the brightest.
the basics _ 27
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Language Settings
The menus on your new mp3 player can be set to appear in any one of
multiple languages. You can change your preference language easily.
1. Press and briefly hold [
menu screen.
2. Tap [
] to move to the main
Settings
] to select <Settings> and tap [
Menu Style
Sound
].
Display
Language
ƒ The <Settings> menu appears.
3. Tap [
] to select <Language> and tap [
].
ƒ The <Language> menu appears.
4. Use the [
] and [
Time
System
] to set functions.
Language Setting Options
ƒ Menu : Set the menu language. Select from <English>, <한국어>, <Français>,
<Deutsch>, <Italiano>, <日本語>, <ㅔԧЁ᭛>, <㐕储Ё᭛>, <Español>,
<Ɋɭɫɫɤɢɣ>, <Magyar>, <Nederlands>, <Polski>, <Português>, <Svenska>,
<ѳъѕ>, <ýeština>, <ƧnjnjLjǎNJNjƽ>, <Türkçe>, <Norsk>, <Dansk>, <Suomi>,
<Español (Sudamérica)>, <Português (Brasil)>, <Indonesia>, <TiӃng ViӋt>,
<Bulgarian>, <Română>, <ɍɤɪɚʀɧɫɶɤɚ>, <Slovenšþina> or <Slovenský>.
ƒ Contents : Set the language in which the track information and Text will
appear. Select from <English>, <Korean>, <French>, <German>, <Italian>,
<Japanese>, <Simplified Chinese>, <Tranditional Chinese>, <Spanish>,
<Russian>, <Hungarian>, <Dutch>, <Polish>, <Portuguese>, <Swedish>,
<Thai>, <Finnish>, <Danish>, <Norwegian>, <Farsi>, <Afrikaans>, <Basque>,
<Catalan>, <Czech>, <Estonian>, <Greek>, <Hrvatski>, <Icelandic>,
<Rumanian>, <Slovak>, <Slovene>, <Turkish> or <Vietnamese>.
ƒ The supported languages can be changed or added.
NOTE
28 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Time Settings
Setting the time allows you to use the date/time set, date type and even
time zone.
1. Press and briefly hold [
menu screen.
2. Tap [
] to move to the main
] to select <Settings> and tap [
ƒ The <Settings> menu appears.
3. Tap [
] to select <Time> and tap [
].
ƒ The <Time> menu appears.
4. Use the [
] and [
].
Settings
Menu Style
Sound
Display
Language
Time
System
] to set functions.
Time Setting Options
] to move to
ƒ Date & Time : You can set the current time and date. Tap [
] to set each item.
<Year, Month, Date, Hour, Min, AM/PM> and tap [
ƒ Date Type : You can set the time display type for the World Clock. Select from
<YY-MM-DD>, <MM-DD-YY> and <DD-MM-YY>.
ƒ Time Zone : You can change the current time by selecting an international cityspecific time zone. You must set the time zone before you can display the world
time information. See page 89.
the basics _ 29
CHANGING THE SETTINGS AND PREFERENCES (Continued)
System Settings
Choose the sleep timer, start mode, auto power off, default setting that’s
right for you.
1. Press and briefly hold [
menu screen.
2. Tap [
] to move to the main
] to select <Settings> and tap [
].
ƒ The <Settings> menu appears.
3. Tap [
] to select <System> and tap [
ƒ The <System> menu appears.
4. Use the [
30 _ the basics
] and [
Settings
Menu Style
] to set functions.
].
Sound
Display
Language
Time
System
CHANGING THE SETTINGS AND PREFERENCES (Continued)
System Setting Options
ƒ Sleep : Turns off power automatically after the preset time. Select either <Off>,
<15 min>, <30 min>, <60 min>, <90 min>, or <120 min>.
ƒ Start Mode : You can set the start screen displayed when you turn on the
player. Select from <Home> and <Last State>. Select <Home> to start the
system with the main menu screen while <Last State> will use the last used
menu screen.
ƒ Auto Power Off : Automatically turns power off when there is no button
operation after the preset time in the pause mode. Select either <15sec>,
<30sec>, <1min>, <3min>, <5min> or <Always On>.
ƒ Default Set : Returns all settings to the default value. Select either <Yes> or
<No>. <Yes> initializes all settings to default. <No> cancels default settings.
ƒ Format : Formats the internal memory. Select either <Yes> or <No>.
Selecting <Yes> will format the internal memory and delete all files on the
player. Selecting <No> does not format the internal memory.
Check before formatting it.
ƒ About : Checks the firmware version and memory capacity.
<Firmware Version> displays the current firmware version.
<Used> indicates the usage, <Available> indicates the remaining capacity and
<Total> indicates the total memory capacity.
NOTE
ƒ Regarding the Built-In Memory
1GB=1,000,000,000 bytes : actual formatted capacity may be less as the
internal firmware uses a portion of the memory.
the basics _ 31
RESETTING THE SYSTEM
If your mp3 player won’t turn on, won’t play music, or isn’t recognized by your
computer when you connect it, you may have to reset the system.
Press the Reset hole at the rear of the
player with a pointed object such as a
safety clip.
ƒ The system will be initialized.
ƒ Your settings and files will not be affected.
32 _ the basics
samsung media studio
Samsung Media Studio is the easy-to-use software application that
helps you organize your files on your PC. With your files already sorted
and organized in Media Studio, you can quickly transfer them to your
mp3 without searching your entire hard drive for the right file.
PC REQUIREMENTS
Your PC system must meet the following minimum specifications in order to
install and run Media Studio:
• Pentium 500MHz or higher
• USB Port 2.0
• Windows XP Service Pack 2 or higher
• DirectX 9.0 or higher
• 100MB of free hard disc space
• CD Rom Drive (2X or higher)
• Windows Media Player 10.0 or higher
• Resolution 1024 X 768 or higher
• Internet Explorer 6.0 or higher
• 512 MB RAM or higher
samsung media studio _ 33
INSTALLING SAMSUNG MEDIA STUDIO
CAUTION
ƒ Ensure that you run the <Media Studio> installer in your PC’s administrator account.
Otherwise, <Media Studio> will not be installed. To find the administrator account,
please refer to your PC’s user manual.
1. Insert the Installation CD provided
with the player into the CD-ROM drive.
2. Click <Install Now>.
3. Click <Next>.
ƒ <Media Studio> installation starts and then
creates an
icon on your desktop when
installation is complete.
Next >
34 _ samsung media studio
TRANSFERRING FILES TO THE PLAYER WITH
SAMSUNG MEDIA STUDIO
<Media Studio> enables you to select and organize files and folders before
transferring them to your player. This will make scanning files on your mp3
player easier and faster. <Media Studio> file transfer is the easiest way to get
files from your PC to your mp3 player.
1
2
1. Connect the other (larger) end of the USB cable to the USB Connection Port
on the bottom of the player.
) on your PC.
2. Connect the USB cable to the USB port (
ƒ <USB Connected> appears on the screen display of the player.
ƒ <Media Studio> will automatically start when the player is connected to your PC.
ƒ If the program does not start automatically, double click the <Media Studio> icon
on the desktop.
NOTE
ƒ Music recognition technology and related data are provided by Gracenote and
Gracenote CDDB® Music Recognition ServiceSM.
ƒ CDDB is a registered trademark of Gracenote. The Gracenote logo and logotype,
the Gracenote CDDB logo and logotype, and the “Powered by Gracenote CDDB”
logo are trademarks of Gracenote. Music Recognition Service and MRS are service
marks of Gracenote.
samsung media studio _ 35
TRANSFERRING FILES TO THE PLAYER WITH
SAMSUNG MEDIA STUDIO (Continued)
3. Click the icon for the type of file you want to
transfer.
ƒ Click
to display music list.
ƒ Click
to display video list.
ƒ Click
to display picture list
to display etc list. The ETC list includes
ƒ Click
file types (ex: TXT, etc) other than music, picture,
and video files.
4. Click <Add File> on the bottom of
<Media Studio>.
3
[YP-S5 [MTP]]
Portable [YP-S5[MTP]]
4
ƒ The <Open> window will appear.
5. Select the files to add and click <Open>.
ƒ The files are added to the list on the left side the
<Media Studio> Screen.
5
6. Select the file to transfer from the list on the left
side.
7. Click the
icon.
ƒ The file you selected is transferred to the player.
6
[YP-S5 [MTP]]
Portable [YP-S5[MTP]]
7
36 _ samsung media studio
TRANSFERRING FILES TO THE PLAYER WITH
SAMSUNG MEDIA STUDIO (Continued)
CAUTION
ƒ Do not disconnect the USB cable during file transfer. Disconnecting during transfer
may damage the player or your PC.
ƒ Connect the player to the computer directly rather than through a USB hub to avoid
an unstable connection.
NOTE
ƒ When transferring a video file to the player using Media Studio, it is automatically
converted into .svi format before transfer. The file size is automatically adjusted, too.
A video file that is not converted into .svi format cannot be played on your player.
ƒ Samsung Media Studio supported video files
- Mpeg Files (.mpg, .mpeg), AVI Files (.avi), WMV Files (.wmv), ASF Files (.asf),
SVI Files (.svi), MP4 Files (.mp4), Real Media Files (.rm, .rmvb), MOV Files
(.mov), SMF Files (.smf).
- Files that Media Studio supports may change in the future.
ƒ When transferring a picture file to the player using Media Studio, it is automatically
converted into JPG format before transfer. The file size is automatically adjusted,
too.
G picture that is transferred to the player without using <Media Studio> can look
ƒA
different on the screen from the original picture.
ƒ All functions are disabled during connection.
ƒ If you connect the USB cable to the PC in the Low Battery condition, the player will
be charged for several minutes before connecting to the PC.
ƒ Samsung Media Studio has a thorough Help function. If you can’t find the answer to
your question about Media Studio, click <MENU> ĺ <Help> ĺ <Help> on the top
of the <Media Studio> program.
ƒ An audio book with DRM (Digital Rights Management) is not supported.
ƒ What is SVI?
Samsung Audio Video interleaving(SVI) is a new video format developed and
controlled by Samsung.
samsung media studio _ 37
listening to music
ƒ Before you start - Connect the earphones, then turn on the player, and check the battery.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
LISTENING BY CATEGORY
Music
Music
Now Playing
Artists
Albums
Songs
Genres
Playlists
Recorded Files
Music Browser
1. Press and briefly hold [
2. Tap [
1.Life is cool
02:13
] to move to the main menu screen.
] to select <Music> and tap [
].
ƒ The <Music> list appears.
3. Tap [
] to select the desired list and tap [
].
ƒ The music files appears.
4. Tap [
] to select the file to play and tap [
ƒ The music will start playing.
38 _ listening to music
15/20
].
04:28
LISTENING BY CATEGORY (Continued)
Music List
File information including the artist name, album name, music title and genre will be
displayed according to the ID3 Tag information on the appropriate music file. A file without
an ID3 Tag is displayed as [Unknown].
Now Playing : Plays a recently played file or moves to the playback screen of the current file.
Artists : To play by artist
Albums : To play by album
Songs : To play in numeric or alphabetical order
Genres : To play by genre
Playlists : To play by Playlist.
Recorded Files : Shows all recorded files.
Music Browser : Shows all the music files stored in the Music Folder.
NOTE
ƒ MP3 and WMA music files are compatible with the player.
ƒ MP1 or MP2 files which only have a changed extension to MP3 may not play on the
player.
ƒ Disconnecting the earphones during music playback will pause the playback.
ƒ What is an ID3 Tag?
This is what is attached to an MP3 to carry information relevant to the file such as
the title, artist, album, year, genre and a comment field.
listening to music _ 39
PAUSING
1. Tap [
] while the music is playing.
ƒ The music playback will be paused.
2. Tap [
] again.
ƒ The music will play from the point where it stopped.
SEARCHING WITHIN A TRACK
1. Press and briefly hold [
] while the selected track is playing.
ƒ It searches to the beginning or the end of the track.
2. Release the button at the point you wish to start.
ƒ It starts playing from the point you release the button.
PLAYING FROM THE BEGINNING OF THE CURRENT TRACK
1. Tap [ ] after 3 seconds of play.
ƒ The current track starts playing from the beginning.
PLAYING THE PREVIOUS TRACK
Tap [ ] within 3 seconds of play.
Tap [ ] twice after 3 seconds of play.
ƒ The previous track will start playing.
PLAYING THE NEXT TRACK
Tap [ ].
ƒ The next track will start playing.
CAUTION
ƒ When playing VBR files, the previous track may not play even if you tap [
3 seconds.
40 _ listening to music
] within
CREATING A PLAYLIST USING
SAMSUNG MEDIA STUDIO
With <Media Studio>, you can create your own collection, or playlist, of audio files.
ƒ Before you start - Connect the player to your PC.
Media Studio must be installed on your PC.
Creating a Playlist
[YP-S5 [MTP]]
1
OK
Portable [YP-S5[MTP]]
3
2
1. Click <Playlists> on the top of <Media Studio>.
ƒ The <Playlists> window appears.
2. Click <New Playlists> on the bottom.
ƒ The <Create Playlists> window appears.
3. Type in the playlist title and click [OK].
ƒ A new playlist will be named and stored in the <Playlists> section
of <Media Studio>.
listening to music _ 41
CREATING A PLAYLIST USING
SAMSUNG MEDIA STUDIO (Continued)
Adding music files to a Playlist you’ve created
1
[YP-S5 [MTP]]
2
4
5
3
1. Click <My PC> on the top of <Media Studio>.
ƒ The <My PC> window appears.
2. Click <Playlists> in the right corner of the window.
ƒ The <Playlists> window appears.
3. Double click on a playlist in the right window.
4. Select files that you want to transfer in the <My PC> window.
5. Click
.
ƒ The selected files will be added to the playlist.
42 _ listening to music
CREATING A PLAYLIST USING
SAMSUNG MEDIA STUDIO (Continued)
Transferring a Playlist to your player using Media Studio
[YP-S5 [MTP]]
Portable [YP-S5[MTP]]
1
2
3
1. Click <Playlists> on the top of <Media Studio>.
ƒ The <Playlists> window appears.
2. Select a playlist in the <Playlists> section.
3. Click
.
ƒ The selected playlist will be transferred to the player folder by folder in
<File Browser> ĺ <Playlists>.
ƒ GThe player can play up to 999 music files for each playlist.
NOTE
listening to music _ 43
CREATING A PLAYLIST ON YOUR MP3 PLAYER
If you’ve already downloaded files to your mp3 player, you can create a
“Favorites” playlist without Media Studio or your PC.
1. Press and briefly hold [
screen.
] to move to the main menu
2. Tap [
] to select <File Browser> and tap [
3. Tap [
] to select <Music> and tap [
].
].
Music
Life is cool
My love
Add to Playlist
Delete from Pla..
Delete
ƒ The music file appears.
4. Tap [
] to select a file to add to the playlist list and
tap [ ].
ƒ The Playlist menu appears.
5. Tap [
] to select <Add to Playlist> and tap [
].
ƒ <Playlist 1> to <Playlist 5> appears.
6. Tap [
] to select a playlist number to add the selected file
and tap [ ].
ƒ The selected file will be added to the playlist.
ƒ You can check the playlist in <Music> ĺ <Playlists> ĺ
<Playlist 1> to <Playlist 5> in the main menu.
NOTE
ƒ You can add up to 100 music files to each playlist (<Playlist 1>
to <Playlist 5>).
44 _ listening to music
Music
Life is cool
My love
Playlist 1
Playlist 2
Playlist 3
Playlist 4
Playlist 5
PLAYING A PLAYLIST
1. Press and briefly hold [
screen.
2. Tap [
] to move to the main menu
] to select <Music> and tap [
].
ƒ The music list appears.
3. Tap [
] to select <Playlists> and tap [
].
ƒ The playlist(s) appear.
4. Tap [
tap [
] to select the playlist of your choice and
].
ƒ Music files stored in the selected playlist appear.
Playlists
ƒ If there is no playlist found, you will see a <No file> message on
the screen.
5. Tap [
] to select a music file to play and tap [
].
ƒ The music file will start playing.
NOTE
Music
Now Playing
Artists
Albums
Songs
Genres
Playlists
Recorded Files
Music Browser
Playlist 1
Playlist 2
Playlist 3
Playlist 4
Playlist 5
ƒ See pages 41 and 43 to see how to transfer the playlist using
<Media Studio>.
listening to music _ 45
DELETING A FILE FROM THE PLAYLIST
1. Press and briefly hold [ ] to move to the main menu
screen.
] to select <Music> and tap [ ].
2. Tap [
Playlist 1
Life is cool
My love
Delete from Playlist
Delete All from ..
ƒ The music list appears.
3. Tap [
] to select <Playlists> and tap [
].
ƒ The playlist(s) appear.
4. Tap [
] to select the playlist of your choice and tap [
].
ƒ Music files stored in the selected playlist appear.
5. Tap [
] to select a file to delete from the playlist and tap [
].
ƒ The Playlist menu appears.
6. Tap [
] to select <Delete from Playlist> and tap [
].
ƒ The delete confirmation window appears.
7. Tap [
] to select <Yes> and tap [
].
ƒ The selected file is deleted from the playlist.
DELETING ALL FILES FROM THE PLAYLIST
Follow the steps 1-4 above.
5. Tap [ ].
Playlist 1
Life is cool
My love
ƒ The playlist menu appears.
6. Tap [
tap [
] to select <Delete All from Playlist> and
].
ƒ The delete confirmation window appears.
7. Tap [
] to select <Yes> and tap [
ƒ All files are deleted from the playlist.
46 _ listening to music
].
Delete from Playlist
Delete All from ..
USING THE MUSIC MENU
The Music menu allows you manage all facets of listening - from repeating
tracks and albums to choosing the background on the screen as you listen.
To set the sound effect
You can enjoy clearer sound.
1. Tap [
] while listening to music.
Music
15/20
ƒ The music menu appears.
2. Tap [
] to select <Sound Effect> and tap [
ƒ The <Sound Effect> menu appears.
3. Tap [
tap [
] to select the desired sound effect and
].
].
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
PlayisSpeed
1.Life
cool
Skip Interval
02:13
04:28
Sound Effect Options
ƒ Street Mode : Allows you to hear the music outdoors clearly by filtering out
some of the street noise. Select either <Off> or <On>.
ƒ Clarity: You can enjoy clearer sound with improved quality. Select from <0 - 2>.
ƒ To exit the menu, tap [
].
NOTE
listening to music _ 47
USING THE MUSIC MENU (Continued)
To set the Digital Natural Sound engine (DNSe)
Select the right sound for each music genre.
1. Tap [
] while listening to music.
Music
15/20
ƒ The music menu appears.
2. Tap [
] to select <DNSe> and tap [
].
ƒ The <DNSe> menu appears.
3. Tap [
] to select a desired DNSe and tap [
].
ƒ Select from <Normal>, <Rock>, <Vocal>, <Bass Boost>,
<Classical>, <Studio>, <Concert Hall>, and <User>.
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
PlayisSpeed
1.Life
cool
Skip Interval
02:13
ƒ You can set <EQ> and <3D&BASS> when you have
selected <User>. See page 49.
NOTE
ƒ What is DNSe?
Digital Natural Sound Engine (DNSe) is a sound effect function for MP3
players developed by Samsung. It provides various sound settings to
enhance the type of music you’re listening to.
48 _ listening to music
04:28
USING THE MUSIC MENU (Continued)
To set the Digital Natural Sound engine (DNSe) (Continued)
<EQ>
You can adjust individual frequencies to adjust the sound to your preference.
1 Tap [
] in the DNSe menu to select <User> and
Music
tap [ ].
] to select <EQ> and tap [ ].
2. Tap [
EQ
15/20
ƒ The <EQ> setting screen appears.
3. Tap [
] to select the frequency you want
to adjust and tap [
] to adjust the selected
frequency’s level.
3D & BASS
1.Life is cool
02:13
ƒ The frequencies that can be adjusted are <60Hz>,
<125Hz>,<250Hz>, <500Hz>, <1KHz>, <2KHz>,
<4KHz>, <8KHz>, <16KHz>.
ƒ You can select from –10 to +10 for the selected frequency’s level.
4. Tap [
04:28
].
ƒ The setting is completed.
<3D&BASS>
You can set the 3D surround sound and bass boost level.
1. Tap [
] in the DNSe menu to select <User> and
tap [ ].
] to select <3D & BASS> and tap [ ].
2. Tap [
ƒ The <3D & Bass> setting screen appears.
3. Tap [
[
].
15/20
EQ
3D & BASS
] to select <3D> or <Bass> and tap
ƒ You can select a <3D> level from 0 to 4, and <Bass>
from 0 to 4.
4. Tap [
Music
1.Life is cool
02:13
04:28
].
ƒ The setting is completed.
listening to music _ 49
USING THE MUSIC MENU (Continued)
To set the play mode
Select playback mode such as repeat settings.
1. Tap [
] while listening to music.
Music
15/20
ƒ The music menu appears.
2. Tap [
] to select <Play Mode> and tap [
ƒ The <Play Mode> menu appears.
3. Tap [
tap [
] to select the desired mode and
].
].
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
PlayisSpeed
1.Life
cool
Skip Interval
02:13
Play Mode Options
ƒ Normal : To play all the tracks in order one time.
ƒ Repeat : To repeat all files in the current folder.
ƒ Repeat One : To repeat one file.
ƒ Shuffle : To play files at random.
50 _ listening to music
04:28
USING THE MUSIC MENU (Continued)
To select the music play screen
Choose a background image from those provided, or choose an image
of your own to be displayed as you listen to music.
1. Tap [
] while listening to music.
Music
15/20
ƒ The music menu appears.
2. Tap [
tap [
] to select <Music Play Screen> and
Sound Effect
DNSe
Play Mode
Music Play Screen
Add to Alarm
PlayisSpeed
1.Life
cool
Skip Interval
].
ƒ The <Music Play Screen> menu appears.
3. Tap [
] to select a desired music play screen
and tap [ ].
02:13
04:28
Music Play Screen Options
ƒ Type 1 ~ Type 3 : You can select a desired music play screen.
ƒ Album Info. : Information on the artist name, album and genre displays if ID3
Tag information is stored on the music file.
ƒ Album Art : The album cover image displays if an album cover image is
included in the ID3 Tag information of the music file.
Album cover images less than 200 pixel (horizontal) x 200
pixel(vertical) in size are supported.
ƒ Auto : Automatically switches <Type 1> through <Type 3> each time a different
music file is played.
NOTE
ƒ What is an ID3 Tag?
This is what is attached to an MP3 to carry information relevant to the file
such as the title, artist, album, year, genre and a comment field.
listening to music _ 51
USING THE MUSIC MENU (Continued)
To add to alarm sound
You can add your favorite music file to the alarm sound list, so it can
be heard the next time the alarm goes off. See page 86 to set the alarm.
1. Select a musc file to add to the alarm sound and
tap [ ].
ƒ The music menu appears.
2. Tap [
tap [
] to select <Add to Alarm> and
].
ƒ The selected music will be added to the alarm sound list.
ƒ One music file can be added to the alarm sound.
Music
15/20
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
PlayisSpeed
1.Life
cool
Skip Interval
02:13
04:28
To set the play speed
Speed up or slow down your favorite music by adjusting the play speed.
1. Tap [
] while listening to music.
Music
15/20
ƒ The music menu appears.
2. Tap [
] to select <Play Speed> and tap [
].
ƒ The <Play Speed> menu appears.
3. Tap [
[ ].
] to select a desired play speed and tap
ƒ Select from <X 0.7>, <X 0.8>, <X 0.9>,
<X 1.0 (Normal)>, <X 1.1>, <X 1.2>, <X 1.3>.
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
PlayisSpeed
1.Life
cool
Skip Interval
02:13
04:28
ƒ The higher the number is, the faster the speed is.
NOTE
ƒ The adjusted play speed may differ from the actual speed, depending on
the file.
52 _ listening to music
USING THE MUSIC MENU (Continued)
To set the skip interval
You can fast forward through a file at various intervals. Skip a whole
track or skip several seconds at a time.
1. Tap [
] while listening to music.
Music
15/20
ƒ The music menu appears.
2. Tap [
] to select <Skip Interval> and tap [
].
ƒ The <Skip Interval> menu appears.
3. Tap [
[ ].
] to select a desired skip interval and tap
ƒ Select from <1 Song>, <5 sec>, <10 sec>, <30 sec>
and <1 min>.
NOTE
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
PlayisSpeed
1.Life
cool
Skip Interval
02:13
04:28
ƒ If the file was developed with a variable bit rate, the actual length of the
skip interval may not be exactly what you select.
listening to music _ 53
USING THE MUSIC MENU (Continued)
To set a bookmark
Once you set a bookmark, you can easily find that position later.
1. Tap [ ] at the point you want while listening to
Music
music.
15/20
ƒ The music menu appears.
2. Tap [
] to select <Bookmark> and tap [
].
ƒ The <Bookmark> menu appears.
3. Tap [
tap [
] to select <Add Bookmark> and
].
DNSe
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
SkipisInterval
1.Life
cool
Bookmark
02:13
04:28
ƒ The current play / stop point will be added to the
bookmark.
ƒ You will see the [ Ň ] symbol on the play status bar.
ƒ The Overwrite window appears if there is a bookmark previously set. If you
select <Yes>, the previously set bookmark is deleted and a new bookmark
NOTE
is added.
ƒ The bookmark can be set one for each music file, and a maximum number
of 50 bookmarks can be set.
To move to (play) / remove the bookmark
1. Tap [
] while listening to music.
Music
ƒ The music menu appears.
2. Tap [
] to select <Bookmark> and tap [
].
Add Bookmark
Go to Bookmark
Delete Bookmark
ƒ The <Bookmark> menu appears.
3. Tap [
] to select <Go to Bookmark> or <Delete
Bookmark> and tap [ ].
ƒ When you selected <Go to Bookamrk> then the player
will move to the selected bookmark and start playback.
ƒ <Delete Bookmark> will remove the selected bookmark
from the music file.
54 _ listening to music
15/20
1.Life is cool
02:13
04:28
USING THE MUSIC MENU (Continued)
ƒ Before you start - Use only the Bluetooth-certified stereo headset.
Check if your Bluetooth stereo headset has been registered. <Connect to
Stereo Headset> appears when there is a registered headset.
For more information, refer to <Using a Bluetooth Stereo Headset.>.
See page 93.
To connect a Bluetooth stereo headset
You can connect directly to the registered Bluetooth stereo headset
during music playback.
1. Tap [
] while listening to music.
Music
15/20
ƒ The music menu appears.
2. Tap [
] to select <Connect to Stereo Headset>
and tap [ ].
ƒ If <Bluetooth Mode> is set to <Off>, it will be changed
to <On>.
ƒ When the connection is successfully done, you will see
the [ ] icon on the screen.
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Skip Interval
Bookmark
1.Life
is cool
Connect to Ster..
02:13
04:28
ƒ You can listen to music through the stereo headset.
To disconnect the Bluetooth stereo headset
1. Tap [
] while listening to music.
Music
15/20
ƒ The music menu appears.
2. Tap [
tap [
] to select <Disconnect Headset> and
].
ƒ The headset is disconnected.
NOTE
ƒ Some menu will not be selected while the player is
connecting to the Bluetooth stereo headset.
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Skip Interval
Bookmark
1.Life
is cool
Disconnect Heads...
02:13
04:28
listening to music _ 55
watching a video
ƒ Before you start - Connect the earphones, then turn on the player, and check the
battery.
Transfer a video file to the player. See pages 35~37.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
screen.
2. Tap [
] to move to the main menu
] to select <Videos> and tap [
].
ƒ The video list appears.
3. Tap [
] to select a video to play and tap [
].
ƒ The selected video file starts to play horizontally.
PAUSING
1. Tap [
] during a video playback.
ƒ The player pauses playing.
2. Tap [
] again.
ƒ The player resumes playing from the last played point.
NOTE
ƒ When transferring a video file to the player using <Media Studio>, it is automatically
converted into SVI format before transfer. The file size is automatically adjusted, too.
56 _ watching a video
TO MOVE TO A SPECIFIC FRAME
1. In horizontal view, press and briefly hold [
].
ƒ This enables you to move backwards or forwards in current
video file.
Video Track 1
2. Release the button when you have moved to the
position you want.
ƒ The video starts playing from the position.
TO PLAY THE PREVIOUS VIDEO FILE
Tap [ ] within 3 seconds after the current file started
playing.
Video Track 1
Tap [ ] twice 3 seconds after the current file started
playing.
ƒ This will return to the previous video.
TO PLAY THE NEXT VIDEO FILE
Tap [
].
ƒ This will move to the next video.
Video Track 2
watching a video _ 57
USING THE VIDEO MENU
To set a bookmark
Once you set a bookmark, you can easily find that position later.
1. Tap [ ] at the desired scene you want
during video playback.
ƒ The video menu appears.
2. Tap [
tap [
] to select <Add Bookmark> and
].
Add Bookmark
Go to Bookmark
Delete Bookmark
DNSe
Brightness
ƒ The current play / stop point will be added to the
bookmark.
ƒ You will see the [ Ň ] symbol on the play status bar.
NOTE
ƒ The Overwrite window appears if there is a bookmark previously set. If you
select <Yes>, the previously set bookmark is deleted and a new bookmark
is added.
ƒ A bookmark can be set one for each video file, and a maximum number of
50 bookmarks can be set.
To move to (play) / remove the bookmark
1. Tap [
] during video playback.
ƒ The video menu appears.
2. Tap [
] to select <Go to Bookmark> or
<Delete Bookmark> and tap [ ].
ƒ When you selected <Go to Bookmark> then the
player will move to the selected bookmark and
start playback.
Add Bookmark
Go to Bookmark
Delete Bookmark
DNSe
Brightness
ƒ <Delete Bookmark> will remove the selected bookmark from the video file.
ƒ To exit the menu, tap [
NOTE
58 _ watching a video
].
USING THE VIDEO MENU (Continued)
To set the Digital Natural Sound engine (DNSe)
Select the right sound for each video genre.
1. Tap [
] during video playback.
ƒ The video menu appears.
2. Tap [
] to select <DNSe> and tap [
].
ƒ The <DNSe> menu appears.
3. Tap [
[ ].
] to select a desired DNSe and tap
Add Bookmark
Go to Bookmark
Delete Bookmark
DNSe
Brightness
ƒ Select from <Normal>, <Drama> and <Action>.
NOTE
ƒ What is DNSe?
Digital Natural Sound Engine (DNSe) is a sound effect function for MP3
players developed by Samsung. It provides various sound settings to
enhance the type of music you’re listening to.
To adjust the brightness
You can adjust the screen brightness.
1. Tap [
] during video playback.
ƒ The video menu appears.
2. Tap [
tap [
] to select <Brightness> and
].
ƒ The <Brightness> menu appears.
3. Tap [
tap [
Add Bookmark
Go to Bookmark
Delete Bookmark
DNSe
Brightness
] to adjust the brightness and
].
ƒ Select from <0~10>.
watching a video _ 59
viewing pictures
ƒ Before you start - Connect the earphones, then turn on the player, and check the battery.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
screen.
] to move to the main menu
] to select <Pictures> and tap [
2. Tap [
].
ƒ The picture preview window appears.
3. Tap [
tap [
] to select the picture you want to look at and
].
ƒ The selected picture will be displayed.
ƒ Tap [
] to move to the preview window.
To move to the previous/next picture
In horizontal view, tap [
].
ƒ The previous/next picture will be displayed.
ƒ A JPG file including incorrect thumbnail data will be displayed in
NOTE
.
ƒ Some pictures can be displayed slowly.
ƒ When transferring a picture to the player using <Media Studio>, it is automatically
converted into JPG format before transfer. The file size is automatically adjusted,
too.
ƒ You can also use the <File Browser> to search for a picture. See page 23.
60 _ viewing pictures
USING THE PICTURE MENU
To listen to music while viewing your picture
You can listen to the music that you last played while viewing your
picture.
1. Tap [
] while viewing a picture.
ƒ The picture menu appears.
2. Tap [
] to select <Music> and tap [
].
ƒ The <Music> menu appears.
3. Tap [
[ ].
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
] to select a desired mode and tap
ƒ <Off> : No background music is played while viewing a picture.
ƒ <On> : You can listen to the music that you last played while viewing your
picture.
To watch a slideshow
How To 1
1. Tap [ ] while viewing a picture.
Pictures
] on the screen and then the player will
ƒ You will see [
start the slideshow.
How To 2
1. In the picture preview mode, tap [
1/8
Picture Image 1
Start Slideshow
].
ƒ The Start Slideshow window appears.
2. Tap [
].
] on the screen and then the player will
ƒ You will see [
start the slideshow.
ƒ To exit the menu, tap [
NOTE
].
viewing pictures _ 61
USING THE PICTURE MENU (Continued)
To stop the slideshow
How To 1
1. In the slideshow mode, tap [
].
ƒ The slideshow stops.
How To 2
1. In the slideshow mode, tap [
].
Music
Stop Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
ƒ The picture menu appears.
2. Tap [
] to select <Stop Sildeshow> and tap [
].
ƒ The slideshow stops.
To set the slideshow speed
1. Tap [
] while viewing a picture.
ƒ The picture menu appears.
2. Tap [
] to select <Slideshow Speed>
and tap [ ].
ƒ The <Slideshow Speed> menu appears.
3. Tap [
tap [
] to select a desired speed and
].
ƒ Select from <Fast>, <Normal>, and <Slow>.
62 _ viewing pictures
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
USING THE PICTURE MENU (Continued)
To enlarge a picture
You can zoom in a picture.
1. Tap [
] while viewing a picture.
ƒ The picture menu appears.
2. Tap [
] to select <Zoom> and tap [
].
ƒ The <Zoom> menu appears.
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
3. Tap [
] to select a desired zoom factor
and tap [ ].
ƒ Select from <100%>, <200%> and <400%>.
4. Tap [
] to move to the portion of the picture to magnify.
To cancel the zooming
How To 1
1. Tap [
] in an enlarged picture view.
100%
200%
400%
ƒ This returns to the original size.
How To 2
1. Tap [
] in an enlarged picture view.
ƒ The picture menu appears.
2. Tap [
] to select <Zoom> and tap [
].
ƒ The <Zoom> menu appears.
3. Tap [
] to select <100%> and tap [
].
ƒ This returns to the original size.
ƒ A big picture file may take awhile to zoom.
NOTE
viewing pictures _ 63
USING THE PICTURE MENU (Continued)
To rotate a picture
You can rotate a picture for your convenience.
1. Tap [
] while viewing a picture.
ƒ The picture menu appears.
2. Tap [
] to select <Rotate> and tap [
].
ƒ The <Rotate> menu appears.
3. Tap [
tap [
] to select a desired angle and
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
].
ƒ Select from <Left 90°>, <Right 90°>, and <180°>.
To set a picture as a background image
You can set a desired picture as a background image for the display window.
1. Select a picture file to set as a background
image and tap [ ].
ƒ The picture menu appears.
2. Tap [
] to select <Select as My Skin>
and tap [ ].
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
ƒ The save confirmation window appears.
3. Tap [
] to select <Yes> and tap [
].
ƒ The selected picture will be set to the background image.
ƒ If <My Skin> is selected from <Settings> ĺ <Menu Style> ĺ
<Menu Design>, the set image will be displayed.
64 _ viewing pictures
listening to FM radio
ƒ Before you start - Connect the earphones, then turn on the player, and check the battery.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
screen.
2. Tap [
] to move to the main menu
] to select <FM Radio> and tap [
].
ƒ FM radio reception will start.
TO USE THE MUTE FUNCTION
1. Tap [
] while listening to FM Radio.
ƒ Sound is muted.
2. Tap [
NOTE
] once again to resume listening.
ƒ Always connect your earphones to the player when searching or setting frequencies
and listening to FM Radio using the speakers or Bluetooth stereo headset.
The earphones serve as antennas to receive FM radio reception.
ƒ In poor reception areas, the player may not find an available FM frequency.
listening to FM radio _ 65
TO SEARCH FOR FM STATIONS
1. Press and briefly hold [
mode.
] and then release in Manual
ƒ <Searching> apprears.
ƒ The search will stop at the frequency nearest from the point the
button is released.
Searching
OR,
1. Tap [
] to progress through the frequencies one by one
in Manual mode.
ƒ Moves to frequencies whenever the button is pressed.
66 _ listening to FM radio
USING THE FM RADIO MENU
To switch to Preset Mode
Select this mode if you want to search through your saved FM presets
one preset at a time.
1. Tap [
] in Manual mode.
ƒ The <FM Radio> menu appears.
2. Tap [
tap [
] to select <Go to Preset Mode> and
].
ƒ You will see <Preset> on the screen.
NOTE
ƒ If no preset frequencies are set, you will see <No
preset> and the player will not switch to Preset mode.
ƒ If <Default Set>is selected from<Settings>ĺ <System>,
any preset list will be lost.
Go to Preset Mo..
Add to Preset
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
To switch to Manual Mode
Select this mode if you want to manually search through the FM band
one frequency at a time.
1. Tap [
] in Preset mode.
ƒ The <FM Radio> menu appears.
2. Tap [
tap [
] to select <Go to Manual Mode> and
].
ƒ You will see <Manual> on the screen.
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
listening to FM radio _ 67
USING THE FM RADIO MENU (Continued)
To store stations in the preset memory
You can store up to 30 stations in your MP3 player’s memory and return
to them with the press of just one number. Have the MP3 player choose
only the stations you want using the manual process, or find and store
the local stations automatically.
Manual - choose only the stations you want to store
] to select a frequency to preset in
1. Tap [
Manual mode and tap [ ].
ƒ The <FM Radio> menu appears.
2. Tap [
] to select <Add to Preset> and tap [
].
ƒ The selected frequency will be added to the preset list.
3. To set a preset for other frequencies, follow 1-2 steps
above.
NOTE
Go to Preset Mo..
Add to Preset
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
ƒ If the same frequency is already set, the <This preset
already exists> message appears and the setting is disabled.
68 _ listening to FM radio
USING THE FM RADIO MENU (Continued)
To store stations in the preset memory (Continued)
Automatic – automatically store all the stations the player receives
1. Tap [
] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap [
] to select <Auto Preset> and tap [
].
ƒ The confirmation window appears.
3. Tap [
] to select <Yes> and tap [
].
ƒ <Auto Preset> will appear and up to 30 frequencies are
automatically set.
Go to Preset Mo..
Add to Preset
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
To cancel Auto Preset
If you want to cancel the auto preset, tap [
] in the process.
ƒ The auto preset setting is canceled, and only frequencies set up to that point are
stored.
NOTE
ƒ You may want to re-set the stored stations if you’re going to listen to your
MP3 player in a different city. To delete the preset stations and store new
ones, simply repeat the process.
listening to FM radio _ 69
USING THE FM RADIO MENU (Continued)
To listen to preset stations
While in Preset mode, tap [
preset stations.
] to scroll through
ƒ You can listen to the stored radio frequency.
To delete a preset
Follow the steps below to delete frequencies while listening to FM
Radio.
] to search for a
1. While in Preset mode, tap [
preset frequency to delete and tap [ ].
ƒ The <FM Radio> menu appears.
2. Tap [
[ ].
] to select <Delete from Preset> and tap
ƒ The selected frequency will be deleted.
3. To delete other preset frequencies, follow 1-2 steps
above.
70 _ listening to FM radio
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
USING THE FM RADIO MENU (Continued)
To record FM Radio broadcasting
You can record a FM radio program at any time while listening to the radio.
1. Tap [
] to select a frequency to record in
FM Radio mode and tap [ ].
ƒ The <FM Radio> menu appears.
2. Tap [
tap [
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
] to select <Start Recording> and
].
ƒ An automatically created file name appears and the
recording starts.
To stop recording
1. Tap [ ] during the recording.
ƒ A message appears asking you if you want to listen to
the file you just recorded.
2. Tap [
] to select <Yes> or <No> and tap [
].
ƒ Selecting <Yes> will play the just recorded file.
ƒ Selecting <No> will not play the recorded file.
ƒ The recorded file is stored in <File Browser> ĺ
<Recorded Files> ĺ <FM Radio>.
NOTE
ƒ You can store a maximum of 999 files for FM radio recording.
ƒ You can make a recording for up to approximately 30 hours (based on
128Kbps, 2GB)
ƒ The recording file name will be automatically specified, for example, as such as
“FM_000.mp3”. “FM” indicates FM radio recording and “000” is the recording
file number.
listening to FM radio _ 71
USING THE FM RADIO MENU (Continued)
To set the FM recording quality
You can choose the recording quality for FM radio.
1. Tap [
] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap [
tap [
] to select <FM REC Quality> and
Go to Manual Mo
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
].
ƒ The FM recording quality menu appears.
3. Tap [
tap [
] to select a desired quality level and
].
ƒ Select from <Super High(192kbps)>, <High(160kbps)>
and <Normal(128kbps)>.
ƒ The higher the number is, the better the audio quality and the larger the file
size becomes.
To set the FM sensitivity
To receive more or fewer FM radio frequencies, adjust the FM sensitivity.
1. Tap [
] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap [
tap [
] to select <FM Sensitivity> and
].
ƒ The< FM Sensitivity> menu appears.
3. Tap [
] to select the search level and tap [
].
ƒ Select from <High>, <Middle> and <Low>.
ƒ If you select <High>, more frequencies will be received.
ƒ To exit the menu, tap [
NOTE
72 _ listening to FM radio
].
Go to Manual Mo
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
USING THE FM RADIO MENU (Continued)
To set the FM region
You can change an FM region setting in preparation for overseas travel.
1. Tap [
] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap [
] to select <FM Region> and tap [
].
ƒ The <FM Region> menu appears.
3. Tap [
] to select your regional area for FM radio
and tap [ ].
ƒ Select from <Korea/US>, <Japan> and <Other
Countries>.
NOTE
Go to Manual Mo
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
ƒ Your previously stored radio frequencies will be deleted when you change
the <FM Region> on your player.
ƒ Frequency range by region
- Korea/US: Search for FM frequencies in 100 kHz increments between
87.5 MHz~108.0 MHz.
- Japan: Search for FM frequencies in 100 kHz increments between 76.0
MHz~108.0 MHz.
- Other Countries: Search for FM frequencies in 50 kHz increments
between 87.50 MHz~108.00 MHz.
listening to FM radio _ 73
USING THE FM RADIO MENU (Continued)
To add to the alarm sound
You can add your FM radio to the alarm sound list, so it can be heard
the next time the alarm goes off. See page 86 to set the alarm.
1. Select a radio frequency to add to the alarm sound
and tap [ ].
ƒ The <FM Radio> menu appears.
2. Tap [
] to select <Add to Alarm> and tap [
].
ƒ If you set the alarm sound to <FM Radio> in the alarm
setting, you can listen to FM radio.
74 _ listening to FM radio
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
Add to Alarm
using the datacast
Using <Media Studio>, you can transfer blog information and files registered on
RSS to the player for your entertainment.
NOTE
ƒ What is RSS?
RSS stands for Rich Site Summary or Really Simple Syndication. It is a xml-based data
transmission system used to deliver information on frequently updated web sites such as
news and blogs to users in a more convenient and easier way.
ƒ What are Datacasts?
You can automatically receive updated information without having to visit your frequently
visited news, blog and UCC sites every time.
ƒ Before you start - Media Studio must be installed on your PC. See page 34.
REGISTERING A CHANNEL
You can create a new channel by registering RSS-supported web sites or web pages.
1. Click the <Subscribe> on the bottom of
the <Datacasts> of <Media Studio>.
2. Enter an address in the <URL> and Click
<ŹNext>.
ƒ When you copy a web address and click
<Subscribe>, the copied address is displayed
automatically in the <URL>.
ƒ The setting confirmation window appears if the
Web address supports RSS.
2
2
3. Click <OK>.
ƒ The channel you want is registered.
ƒ The
icon appears in Datacasts for the registered channel.
using the datacast _ 75
CREATING A NEW CHANNEL GROUP
You can create a new group to manage channels by the category.
1. Click <New Group> on the bottom of
<Datacasts> of <Media Studio>.
2. Type in a group name and description and
click <OK>.
2
TRANSFERRING A DATACAST FROM <MEDIA STUDIO>
ƒ Before you start - Connect the player to your PC.
Media Studio must be installed on your PC. See page 34.
1. <Media Studio> will automatically start
when the player is connected to your PC.
2
ƒ If the program does not start automatically,
icon on
double click the <Media Studio>
the desktop.
2. Click <Datacasts> on the top of <Media
Studio>.
ƒ Datacasts group channel list appears.
[YP-S5[MTP]]
Portable [YP-S5[MTP]]
5
6
3. Click a desired group channel.
4. Click a desired channel.
5. Select the post you want to transfer.
6. Click the
icon.
ƒ The Post of the selected channel will be transferred to the player in <File Browser> ĺ
<Datacasts>.
NOTE
on the top of <Media Studio> to move to the previous screen.
ƒ Click
ƒ In <Datacasts> of <Media Studio>, if the post has the attachment, you can
download the attachment to the player. However, the attachment may not be
downloaded, depending on the policy of the applicable website.
76 _ using the datacast
VIEWING DATACASTS
You can view channel posts added to <Datacasts>.
ƒ Before you start - Transfer a desired channel post to to the player using <Media
Studio>. See page 76.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
screen.
2. Tap [
] to move to the main menu
] to select <Datacasts> and tap [
].
ƒ The Datacasts list appears.
3. Tap [
] to select a desired channel and tap [
].
ƒ The title is the same as that of the channel added to <Datacasts>
in <Media Studio>.
4. Tap [
] to select a desired post and tap [
].
ƒ The file list appears.
ƒ
Datacasts
icon : main text for the transferred post
ƒ
icon : picture file
ƒ
icon : music file
ƒ
icon : video file
5. Tap [
] to select a desired file and tap [
1/4
Datacast 1
Datacast 2
Datacast3
Datacast 4
].
ƒ The selected file will start playing.
using the datacast _ 77
enjoying the prime pack
Prime Pack enables you to enjoy various functions such as reading text,
a voice recording, playing games and the alarm setting, etc.
READING TEXT
Whether it’s a novel, the manuscript of a new story, or your research paper, your
mp3 player allows you to read it… all while listening to music!
NOTE
ƒ Before you start - Turn on the player and check the battery.
Transfer text files to the player using <Media Studio>. See page 35.
Set a preferred text language for text in <Settings> ˧ <Language> ˧
<Contents>. See page 28.
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
2. Tap [
] to move to the main menu screen.
] to select <Prime Pack> and tap [
].
Voice REC
ƒ The <Prime Pack> list appears.
3. Tap [
Games
] to select <Text> and tap [
].
Alarm
World Clock
ƒ The text file list appears.
4. Tap [
Prime Pack
Text
Audio In
] to select a desired text file and tap [
].
ƒ You will see the text on the screen.
To move to previous/next page
Tap [
].
ƒ Press and briefly hold [
NOTE
] to move continuously to the previous / next page.
ƒ You can also use the <File Browser>>to search for a text file. See page 23.
ƒ Your mp3 player supports the TXT file format in Text mode.
78 _ enjoying the prime pack
USING THE TEXT MENU
To listen to music while viewing your text
You can listen to the music that you last played while viewing your text.
1. Tap [
] while viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap [
] to select <Music> and tap [
].
ƒ The <Music> menu appears.
3. Tap [
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
] to select a desired mode and tap [
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
].
ƒ <Off> : No background music is played while viewing
your text.
ƒ <On> : You can listen to the music that you last played
while viewing your text.
To move to the first page
Use this if you want to view the text from the first page.
1. Tap [
] while viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap [
] to select <Go to 1st page> and tap [
].
ƒ You will see the confirmation window to move to the first
page.
3. Tap [
] to select <Yes> and tap [
ƒ Moves to the first page.
ƒ To exit the menu, tap [
].
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
].
NOTE
enjoying the prime pack_ 79
USING THE TEXT MENU (Continued)
To set a bookmark
Set a bookmark to return to that point in the text at any time.
1. Tap [ ] at the desired page you want while
viewing a text.
ƒ The <Text> menu appears.
2. Tap [
[ ].
] to select <Add Bookmark> and tap
ƒ The current text screen is set to a bookmark with the
[ ] symbol displayed on the top left corner.
NOTE
Book1
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
ƒ The Overwrite window appears if there is a bookmark
previously set. If you select <Yes>, the previously set
bookmark is deleted and a new bookmark is added.
ƒ The bookmark can be set one for each text file, and you can set a
maximum of 50 bookmarks.
To move to/ remove the bookmark
1. Tap [
] while viewing a text.
ƒ The <Text> menu appears.
2. Tap [
] to select <Go to Bookmark> or <Delete
Bookmark> and tap [ ].
ƒ When you selected <Go to Bookmark> then it will move
to the selected bookmark and <Delete Bookmark> will
remove the selected bookmark from the text file.
80 _ enjoying the prime pack
Book1
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
USING THE TEXT MENU (Continued)
To change the font size
You can change the font size of the text.
1. Tap [
] while viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap [
] to select <Font Size> and tap [
].
ƒ The <Font Size> menu appears.
3. Tap [
[ ].
] to select a desired font size and tap
ƒ Select from <Small>, <Medium> and <Large>.
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
To set the text viewer color
Choose what color you’d like the text to appear.
1. Tap [
] while viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap [
[ ].
] to select <Text Viewer Color> and tap
ƒ The <Text Viewer Color> menu appears.
3. Tap [
tap [
] to select a desired text viewer color and
].
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Color
ƒ Select from <Type 1> ~ <Type 6>.
enjoying the prime pack_ 81
VOICE RECORDING
You can make a voice recording.
To make a voice recording
1. Press and briefly hold [ ] to move to the main
menu screen.
2. Tap [
] to select <Prime Pack> and tap [ ].
ƒ The <Prime Pack> list appears.
3. Tap [
] to select <Voice REC> and tap [
Voice REC
Games
].
Alarm
ƒ The file name is displayed and the recording window
appears.
4. Tap [
Prime Pack
Text
World Clock
Audio In
].
ƒ Recording is started with displaying the file name to save.
ƒ You can make a recording for up to approximately 30
hours (based on 128Kbps, 2GB)
NOTE
ƒ You can store a maximum of 999 files for voice recording.
ƒ The recording file name will be automatically specified, for example, as
such as “VCE_000.mp3”. “VCE” indicates the file is a voice recording and
“000” is the recording file number.
ƒ Voice recording does not perform properly when the battery is low.
ƒ Do not put the microphone too close to or far away from your mouth as it
may cause a poor recording.
ƒ You can listen to the sound only via the earphones while you are recording.
To stop voice recording
1. Tap [
] during the recording.
ƒ A message appears asking you if you want to listen to
the file you just recorded.
2. Tap [
] to select <Yes> or <No> and tap [
ƒ <Yes> will play the just recorded file.
ƒ <No> will not play the just recorded file.
ƒ The recorded file is stored in <File Browser> ĺ
<Recorded Files> ĺ <Voice>.
82 _ enjoying the prime pack
].
USING THE VOICE RECORDING MENU
To set the voice recording quality
You can select the voice recording quality.
1. Tap [
] in the recording window.
ƒ The <Recording voice> menu appears.
2. Tap [
tap [
] to select <Voice REC Quality> and
].
Voice REC Quality
Recorded Files
ƒ The voice recording quality menu appears.
3. Tap [
tap [
] to select a desired quality level and
].
ƒ Select from <Super High(128kbps)>, <High(96kbps)>
and <Normal(64kbps)>.
ƒ The higher the number is, the better the audio quality and the larger the file
size becomes.
To listen to the recorded files
You can listen to a previously recorded file.
1. Tap [
] in the recording window.
ƒ The <Recording voice> menu appears.
2. Tap [
tap [
Voice REC Quality
Recorded Files
] to select <Recorded Files> and
].
ƒ The <Recorded files> list appears.
3. Tap [
] to select a recorded file of your choice
and tap [ ].
ƒ The recorded file will start playing.
enjoying the prime pack_ 83
PLAYING VIDEO GAMES
Your mp3 player comes with the exciting games already loaded on!
NOTE
ƒ Before you start - Connect the earphones, then turn on the player, and check the
battery.
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [ ] to move to the main menu.
2. Tap [
] to select <Prime Pack> and tap [ ].
] to select <Games> and tap [
Alarm
].
World Clock
ƒ Tha game list appears.
4. Tap [
] to select a desired game and tap [
Audio In
].
Baseball
Try to score against one of the league’s best pitchers in
this version of America’s favorite pastime.
] to select a menu or function.
Tap [
Tap [ ] to pitch or hit the ball.
Pizza Delivery
See if you can get the pizza delivered on time and
avoid the many obstacles along the way.
Tap [ ] to jump up.
84 _ enjoying the prime pack
Voice REC
Games
ƒ The <Prime Pack> list appears.
3. Tap [
Prime Pack
Text
PLAYING VIDEO GAMES (Continued)
Honeybee
This is a puzzle game where you match 3 or more
colored objects to gain scores.
] to select a menu or move the object’s
Use [
direction.
Tap [ ] to select or cancel.
Jungmumun
This is a martial arts type game requiring
instantaneous reactionary ability, in which you have to
kick and punch to remove the stones according to the
arrow direction marked on them.
Use [
] to remove the stone.
Food King
This is a game that requires you to arrange food
by changing the order of three colored objects
(representing burger, tomato and bun) up and down,
diagonally, or in a row. The object is to prevent the food
from reaching the top of the screen.
] to move the object.
Use [
Use [ ] to change the position of the object.
Tap [ ] to drop the object.
NOTE
ƒ Games may be added or changed without notice.
ƒ For more information about Game navigation, see the Help section.
enjoying the prime pack_ 85
SETTING THE ALARM
This player has an alarm which can be set to go off at a scheduled time.
ƒ Before you start - Set the current date and time . See page 29.
1. Press and briefly hold [
screen.
2. Tap [
] to move to the main menu
Prime Pack
Text
] to select <Prime Pack> and tap [
Voice REC
].
Games
ƒ The <Prime Pack> list appears.
Alarm
3. Tap [
] to select <Alarm> and tap [
4. Tap [
] to select <New Alarm> and tap [
World Clock
].
Audio In
].
ƒ The new alarm settings window appears
5. Tap [
] to select an alarm frequency and tap [
].
ƒ Select from <Once>, <Everyday>, <Mon~Fri>, <Mon~Sat>,
<Sat~Sun> and <Off>.
6. Tap [
] to select the hour and tap [
7. Tap [
] to select the minute and tap [
8. Tap [
] to select <AM> or <PM> and tap [
86 _ enjoying the prime pack
].
].
].
Alarm
New Alarm
SETTING THE ALARM (Continued)
9. Tap [
] to select an alarm sound and tap [
].
ƒ Select one from <Alarm Sound 1> through <Alarm Sound 3>,
music file added to the alarm sound and FM Radio.
10. Tap [
] to select an interval and tap [
].
New Alarm Settings
Once
08
ƒ Select one from <Interval : Off>, <Interval : 3min>,
<Interval : 5min> and <Interval : 10min>.
] to select <Yes> and tap [
AM
Ÿ
ź
Interval : Off
ƒ The save confirmation window will appear.
11. Tap [
00
Alarm Sound 1
].
ƒ When the alarm setting is done, the symbol (
) will appear on the top.
ƒ You can store up to 7 alarms.
NOTE
ƒ The player will sound the alarm when it reaches the scheduled time.
To end the alarm, tap [ ].
] to select <Yes> and tap [
When the confirmation window appears, tap [
You will return to the main menu.
].
enjoying the prime pack_ 87
SETTING THE ALARM (Continued)
To edit the alarm setting
1. Tap [
] to select the alarm setting to change in
the alarm list and tap [ ].
ƒ The Alarm Settings window appears.
2. Use the [
prefer.
] and [
Alarm
New Alarm
08:00 AM
] to edit the settings you
To delete an alarm setting
1. Tap [
] to select the alarm setting to delete in
the alarm list and tap [ ].
ƒ The delete menu appears.
2. Tap [
Alarm
New Alarm
08:00 AM
Delete
].
ƒ The Delete window appears.
3. Tap [
] to select <Yes> and tap [
].
ƒ The selected alarm will be deleted.
ƒ If the USB cable is connected to the player, the alarm function does not work.
CAUTION
88 _ enjoying the prime pack
VIEWING THE WORLD CLOCK
You can check the location and date/time of major world cities based on their
respective time zone.
ƒ Before you start - Set the current date and time. See page 29.
Set the time zone you want in the <Settings> ˧ <Time> ˧ <Time Zone>.
1. Press and briefly hold [
screen.
2. Tap [
] to move to the main menu
] to select <Prime Pack> and tap [
].
] to select <World Clock> and tap [
ƒ The world clock screen appears.
4. Tap [
Voice REC
Games
ƒ The <Prime Pack> list appears.
3. Tap [
Prime Pack
Text
Alarm
].
World Clock
Audio In
] to select a time zone.
You can check local time of the following time zone.
(‘/’ indicates the standard time zone in the region)
Cape Verde / London, Lisbon / Rome, Paris, Berlin, Stockholm, Madrid, Frankfurt/
Athens, Helsinki, Cairo, Ankara / Moscow, Riyadh / Abu Dhabi, Muscat / Tashkent, Ashgabat /
Alma Ata, Kathmandu / Bangkok, Jakarta, Rangoon / Hongkong, Beijing, Manila, Singapore /
Seoul, Tokyo, Pyongyang / Guam, Sydney, Brisbane / Okhotsk /
Wellingtons, Oakland, Fiji / Samoa, Midway / Honolulu, Hawaii, Tahiti / Alyeska /
Los Angeles, San Francisco, Vancouver, Seattle / Denver, Phoenix, Salt Lake City /
Chicago, Dallas, Houston, Mexico City / New York, Miami, Washington DC, Montreal, Atlanta /
Caracas, LA Paz, Santiago / Buenos Aires, Brasilia, Sao Paulo / The middle Atlantic
enjoying the prime pack_ 89
USING THE SPEAKERS TO LISTEN TO MUSIC FROM
AN EXTERNAL DEVICE
ƒ Before you start - Open the speakers panel by sliding.
1. Press and briefly hold [
screen.
] to move to the main menu
Prime Pack
Text
2. Tap [
] to select <Prime Pack> and tap [
3. Tap [
] to select <Audio In> and tap [
ƒ The <Prime Pack> list appears.
].
Voice REC
Games
Alarm
].
World Clock
4. Connect the 3.5ĭ earphone jack on the external device to
the USB connection port on the player with the Audio in
cable.
Audio In
ƒ You will see connection completion message on the
screen.
5. Press the Play button on the external device to
play music over the YP-S5’s speakers.
To disconnect the External Device
1. Tap [
].
ƒ You will see the audio input exit message.
2. Tap [
] to select <Yes> and tap [
].
ƒ The audio input mode will be terminated.
3. Disconnect the player from the external device.
ƒ The sound volume may vary, depending on the connected external device.
NOTE
90 _ enjoying the prime pack
using bluetooth
Using Bluetooth wireless, you can connect your player wirelessly to other
Bluetooth devices and exchange data with them, talk hands-free or enjoy music
using a Bluetooth stereo headset.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
WHAT IS BLUETOOTH?
Bluetooth is an industry specification that describes how Bluetooth-compliant
stereo headsets, mobile phones, and external devices can easily interconnect
with each other using a short wireless connection.
ƒ The Bluetooth device can cause a noise or malfunction, depending on the use
conditions.
ƒ Physical signal interference, for instance, if you hold the player in the hand and wear a
stereo headset in your ears, or if you hold the player in the one hand and take a mobile
phone in the other hand.
ƒ When a part of the body is in contact with the receiving/transmitting system of the
player or the stereo headset.
ƒ Electrical variation from electrical jamming by the wall, corner or office partitioning.
ƒ Electrical interference from the same frequency-band devices including medical
equipment, microwave oven and wireless LAN.
ƒ When pairing the Bluetooth device with the player, make it within as short distance
as possible.
ƒ The farther the distance between player and stereo headset is, the worse the
quality is. If the distance exceeds the limit, the communications are disconnected.
using bluetooth_ 91
WHAT IS BLUETOOTH? (Continued)
ƒ We do not recommend you use text and picture view modes while listening to
the music with the stereo headset or hands-free (mobile phone), or transferring
files as it can cause deterioration of both player performance and Bluetooth
communications.
ƒ Depending on the model of the stereo headset, files less than 32 KHz can not be
played.
ƒ In poor reception-sensitivity areas such as inside an elevator or underground,
the Bluetooth connection may not work properly.
ƒ The maximum distance that enables wireless connection between the player and
the Bluetooth device is 32.8 feet. The connection will be automatically cut off if
the distance is out of this range. Even within this range, the sound quality may be
deteriorated by obstacles such as walls or doors.
NOTE
ƒ When not in use, set the <Bluetooth Mode> to <Off>. If you stay in <On> for
<Bluetooth Mode>, the battery usable time is reduced.
ƒ The Bluetooth features of the player are optimized with Samsung products. If used with
third party products, the Bluetooth features may not work properly.
92 _ using bluetooth
USING A BLUETOOTH STEREO HEADSET
You can use a Bluetooth stereo headset to let you enjoy music with high quality
stereo sound, all without wires!
ƒ Before you start - If the player has connected to a Bluetooth mobile phone or
external device, set off the connection first.
Ensure that the Bluetooth device to connect is ready for pairing.
(refer to the device’s user manual)
To register the Bluetooth Stereo Headset
(you only need to register it once)
1. Press and briefly hold [
menu screen.
2. Tap [
] to move to the main
] to select <Bluetooth> and tap [
].
ƒ The <Bluetooth Mode> is set to <On>.
ƒ The
icon will light.
3. Set the stereo headset ready for pairing.
ƒ To set the headset ready for the pairing mode, refer to
the headset’s user manual.
4. Tap [
tap [
] to select <Stereo Headset> and
].
ƒ This player automatically starts to search for any
Bluetooth stereo headset.
5. Tap [
] to select the name of headset you want
to register and tap [ ].
Bluetooth
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
ƒ The password input window appears if the password for
the headset is other than 0000. Refer to the headset’s
manual for the password.
ƒ The registration of the headset is completed.
using bluetooth_ 93
USING A BLUETOOTH STEREO HEADSET (Continued)
To register the Bluetooth Stereo Headset (continued)
NOTE
ƒ You can use the Bluetooth function only when playing music and listening
to FM Radio. It is not supported while you are enjoying a video or playing
a game.
ƒ Description of the Bluetooth icon
: Bluetooth mode off
:Connected to a stereo headset
: File transfer mode
: Bluetooth mode on
:Connected to a mobile phone
ƒ If you want to turn off the Bluetooth function, set the Bluetooth Mode to
<Bluetooth> ĺ <Bluetooth Mode> ĺ <Off>..
ƒ Bluetooth-compliant Headsets
Company
Model
Company
Model
i.TECH
Blueband
SAMSUNG
SBH100
Plantronics
PULSAR 590A
Jabra
BT620s
MOTOROLA
HT820
ƒ Use only a Bluetooth-certified stereo headset. Mono hands-free headsets
are not supported.
94 _ using bluetooth
USING A BLUETOOTH STEREO HEADSET (Continued)
To connect the registered Bluetooth stereo headset
1. Tap [
] to select <Stereo Headset> in the
Bluetooth screen and tap [ ].
2. Tap [
] to select a stereo headset to connect
and tap [ ].
ƒ When the connection is successfully done, you will see
icon.
the
Bluetooth
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
3. Play a file of your choice.
ƒ You can listen to the music using a stereo headset.
ƒ If you can’t find the desired headset to connect, register it first.
NOTE
ƒ If you turn off the player or the headset, and then turn it on, the bluetooth
communication may be disconnected. If you want to listen to the music
again using the stereo headset, repeat the instructions above.
using bluetooth_ 95
USING A BLUETOOTH MOBILE PHONE
You can make and receive phone calls on your player once you connect a
Bluetooth mobile phone. The player will function as a hands-free device.
ƒ Before you start - If the player is connected to a Bluetooth stereo headset or
external device, set the connection to off first.
Ensure that the Bluetooth mobile phone you are going to
connect is ready for pairing. (refer to the mobile phone’s user
manual)
Set to <Discoverable> from <Bluetooth Settings> ĺ <Discover
option>. See page 108.
To register the Bluetooth mobile phone
(you only need to register it once)
1. Press and briefly hold [ ] to move to the main
menu screen.
2. Tap [
] to select <Bluetooth> and tap [ ].
ƒ The <Bluetooth Mode> is set to <On>.
ƒ The icon will light.
Bluetooth
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
3. Search for YP-S5 in your mobile phone’s menu.
ƒ If you renamed the YP-S5 player, search the new name.
NOTE
ƒ With some mobile phones, the search device and mobile conversation
(placing/receiving calls) functions may not work properly.
ƒ If you press a button on the mobile phone or make or end a call when there
is a Bluetooth connection between the player and the mobile phone, you may
hear a noise from the player.
ƒ We recommended using English for the device name of the mobile phone.
ƒ Bluetooth-compliant Mobile Phones
Company
NOKIA
Model
SGH-D500, SGH-D600, SGH-D820, SGH-D900,
SPH-V6900, SPH-V7400, SPH-V8900, SPH-V9000
N73
MOTOROLA
MOTORIZR Z3
SAMSUNG
96 _ using bluetooth
USING A BLUETOOTH MOBILE PHONE (Continued)
To register the Bluetooth mobile phone (Continued)
4. Enter the password when the password input
window appears on the mobile phone.
5. When you see <Pair?>,
tap [
] to select <Yes> and tap [
Enter PIN code
].
ƒ The PIN code (password) input window appears.
6. Use [
] and [ ] to enter the password
for the mobile phone to add to the player.
ƒ Make sure to enter the same password as in step 4 above.
7. Use [
] to move to <OK> and tap [
].
ƒ The mobile phone registration is complete.
NOTE
ƒ The password digits may differ, depending on the mobile phone. (refer to
the mobile phone’s user manual)
using bluetooth_ 97
USING A BLUETOOTH MOBILE PHONE (Continued)
To connect to the registered Bluetooth mobile phone
1. Tap [
] to select <Mobile Phone> in the
Bluetooth screen and tap [ ].
2. Tap [
[ ].
] to select <Connect to Phone> and tap
Mobile Phone
Connect to Phone
Call by Number
Call History
ƒ The phone number input window appears.
3. Tap [
] to select the mobile phone to connect to
and tap [ ].
ƒ When the connection is successfully done, you will see the
icon.
NOTE
ƒ If you can’t find a phone to connect to, register the phone with the player
first.
ƒ The mobile phone connection can be set off if you turn off and restart the
player. If the connection is set off, refer to the steps above to connect
again.
98 _ using bluetooth
USING A BLUETOOTH MOBILE PHONE (Continued)
To make a call using the player
1. Tap [
] to select <Mobile Phone> in the
Bluetooth screen and tap [ ].
] to select <Call by Number> and
2. Tap [
tap [ ].
Mobile Phone
Connect to Phone
Call by Number
Call History
ƒ The phone number input window appears.
3. Use [
] and [ ] to enter the phone
number for the other person.
] to move to < > and tap [ ].
4. Use [
ƒ You are now placing a call to the other person.
Mobile Phone
To switch to the mobile phone while
talking on the player (YP-S5)
While talking on the player, tap [
] to select
<
> on the screen display and tap [ ].
ƒ You can now make conversations on the mobile phone.
To switch to the player (YP-S5) while
talking on the mobile phone
While talking on the mobile phone, tap [
screen display and tap [ ].
] to select <
> on the
ƒ You can now make conversations on the hands-free device.
To adjust the volume
While talking on the hands-free device, tap [
ƒ You can select the volume from 0 to 30.
] to adjust the volume.
using bluetooth_ 99
USING A BLUETOOTH MOBILE PHONE (Continued)
To make a call using the phone number list
1. Tap [
] to select <Mobile Phone> in the
Bluetooth screen and tap [ ].
2. Tap [
] to select <Call History> and tap [
ƒ The phone number list appears.
3. Tap [
[ ].
Mobile Phone
].
Connect to Phone
Call by Number
Call History
] to select a desired number and tap
ƒ You are now placing a call to the other person.
To delete a phone number in the phone number list
1. In <Call History> list, tap [
delete and tap [ ].
2. Tap [
] to select the phone number to
] to select <Delete> and tap [
].
ƒ If you want to delete all numbers in the phone number list, select
<Delete All>.
ƒ The confirmation window appears
3. Tap [
] to select <Yes> and tap [
ƒ The selected number will be deleted.
100 _ using bluetooth
].
USING A BLUETOOTH MOBILE PHONE (Continued)
To answer the phone
1. You will see <Connect?> when you have an incoming call.
2. Tap [
] to select <Yes> and tap [
].
ƒ You can now make conversations.
To end the phone call
Tap [
] to select < > on the screen display while making
conversations and tap [ ].
ƒ The call is hung up.
using bluetooth_ 101
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE
You can transfer music, picture and video files on Bluetooth-compliant external
devices such as an MP3 player, mobile phone, etc. to the player or vice versa.
ƒ Before you start - If the player is connected to a Bluetooth stereo headset or
mobile phone, set the connection to off first.
Ensure that the Bluetooth device you are going to connect is ready for pairing. (refer
to the device’s user manual)
Check if the Bluetooth device to supports the file transfer function.
(refer to the device’s user manual)
Set <Discoverable> from <Bluetooth Settings> ĺ <Discover option>. See page 108.
Set <Search All> from <Bluetooth Settings> ĺ <Search Option>.
To register an external device
(you only need to register it once)
1. Press and briefly hold [
menu screen.
2. Tap [
] to move to the main
] to select <Bluetooth> and tap [
Bluetooth
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
].
ƒ The <Bluetooth Mode> is set to <On>.
ƒ The icon will light.
3. Set the external device so it is ready for pairing.
ƒ For information on setting the external device so it is
ready for pairing, refer to the device’s user manual.
ƒ For YP-S5, set it to <Server Mode>. See page 106.
4. Tap [
] to select <File Transfer> and tap [
5. Tap [
] to select <Connect to Device> and tap [
ƒ The device to be registered will be listed.
102 _ using bluetooth
].
].
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE (Continued)
To register an external device (Continued)
6. Tap [
tap [
] to select a device to register and
Storage Device
].
Search Device
ƒ The PIN code (password) input window appears.
Samsung YP-S5
7. Use [
] and [ ] to enter the password for
the device to add to the player.
ƒ For the password, refer to the device’s user manual.
8. Use [
] to move to <OK> and tap [ ].
9. When you see <Pair?> on the external device,
tap [
] to select <Yes> and tap [ ].
10. Enter the password when the password input
window appears on the external device.
N/A
Enter PIN code
ƒ You must enter the same password as in step 7 above.
ƒ When done, you will see the file list of the external device
on the player’s display.
If you want to transfer files on the external device to the
player, see step 4 at page 104.
NOTE
ƒ The password digits may differ, depending on the
external device. (refer to the device’s user manual)
ƒ GSome functions may not work properly if you use a Bluetooth device other
than YP-S5 for file transfer.
ƒ Bluetooth-compliant Mobile Phones
Company
Model
SAMSUNG
SGH-D500, SGH-D600, SGH-D820, SGH-D900
SPH-V6900, SPH-V7400, SPH-V9000
NOKIA
N73
MOTOROLA
MOTORIZR Z3
using bluetooth_ 103
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE (Continued)
To transfer a file on the external device to the player
ƒ Before you start - If you can’t find the external device to connect to,
register it with the player first. See page 102.
Ensure that the Bluetooth device you are connecting is ready for pairing.
(refer to the device’s user manual)
For YP-S5, set it to <Server Mode>. See page 106.
1. Tap [
] to select <File Transfer> in the
Bluetooth screen and tap [ ].
2. Tap [
] to select <Connect to Device> and tap
[ ].
] to select an external device to connect
3. Tap [
and tap [ ].
ƒ When the connection is completed, you will see the
and folder list of the external device.
4. Tap [
5. Tap [
File Transfer
Connect to Device
Server Mode
icon
] to select a desired folder and tap [ ].
] to select a desired file and tap [ ].
ƒ The selected files on the external device will be transferred
to the player.
ƒ Files transferred to the player are saved in
<File Browser> ĺ <Received Files> folder.
External Device
Music
Playlists
Texts
Pictures
Video
Recorded Files
Received Files
Datacasts
ƒ When the file transfer is done, tap [ ] to exit the file
transfer mode. See page 106.
ƒ The connection can be set off if you turn off and restart
the player or external device.
If the connection is set off, refer to the steps above to
Ex) Display of the
connect again.
ƒ DRM files (chargeable) can not be played on the player. <External Device>
ƒ The display of the external device may differ depending
on the connected device.
104 _ using bluetooth
NOTE
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE (Continued)
To transfer a file on the player to the external device
ƒ Before you start - If you can’t find the external device to connect to,
register it with the player first. See page 102.
Ensure that the Bluetooth device you are connecting is ready for pairing.
(refer to the device’s user manual)
For YP-S5, set it to <Server Mode>. See page 106.
1. Tap [
] to select <File Transfer> in the
Bluetooth screen and tap [ ].
2. Tap [
] to select <Connect to Device> and tap
[ ].
] to select an external device to connect
3. Tap [
and tap [ ].
ƒ When the connection is completed, you will see the
and a list of files on the external device.
4. Tap [
[ ].
External Device
icon
] to select <Go to My Device> and tap
File Browser
ƒ You will see the <File Browser> screen of the player.
G ach time you press the [ ] button, the player switches
ƒ E
the display between <Go to My Device> and <Go to
Connected Device> of the player.
5. Use [
[ ].
Music
Playlists
Go to My Device
Texts
NOTE
Pictures
Video
Recorded Files
Received Files
Datacasts
] and [
] to select a desired file and tap
ƒ The selected file will be transferred to the external device.
ƒ When the file transfer is done, tap [
transfer mode. See page 106.
Music
Playlists
Video
Pictures
Datacasts
Texts
Recorded Files
Received Files
Ex) <File Browser>
screen of the player
] to exit the file
ƒ DRM files (chargeable) can not be played on the player.
using bluetooth_ 105
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE (Continued)
To set the player to the Server Mode
If you want to transfer a file on the player to the external device, you
must first make it ready for pairing.
1. Tap [
] to select <File Transfer> in the
Bluetooth screen and tap [ ].
2. Tap [
] to select <Server Mode> and tap [
File Transfer
].
Connect to Device
Server Mode
ƒ The player switches to server mode.
ƒ You can transfer a file on the player to the external
device.
ƒ To exit the Server Mode, tap [
].
NOTE
To cancel transferring the file
1. Tap [
] during the transfer.
ƒ The file transfer is stopped.
To exit the File Transfer mode
1. Press and briefly hold [
] in the file list screen.
ƒ Each time you tap [ ] , the player will return to the previous screen and you
will see the file transfer close window.
2. Tap [
] to select <Yes> and tap [
ƒ The file transfer mode is closed.
106 _ using bluetooth
].
USING THE BLUETOOTH MENU
To disconnect the Bluetooth device
1. Tap [
] in the Bluetooth screen.
Bluetooth
Stereo Headset
Mobile Phone
Disconnect
File Transfer
Connected Devi...
Bluetooth Mode
Bluetooth Settings
ƒ The <Bluetooth> menu appears.
2. Tap [
] to select <Disconnect> and tap [
].
ƒ The Disconnection Confirmation window appears.
3. Tap [
] to select <Yes> and tap [
].
ƒ The currently connected device will be disconnected.
To check the Bluetooth device connected
1. Tap [
] in the Bluetooth screen.
ƒ The <Bluetooth> menu appears.
2. Tap [
tap [
] to select <Connected Device> and
].
Bluetooth
Stereo Headset
Mobile Phone
Disconnect
File Transfer
Connected Devi...
Bluetooth Mode
Bluetooth Settings
ƒ You can see information of the connected device.
ƒ Tap [
] to exit the menu.
NOTE
using bluetooth_ 107
BLUETOOTH SETTINGS
ƒ Before you start - Set <Bluetooth Mode> to <On>.
1. Press and briefly hold [
screen.
] to move to the main menu
2. Tap [
] to select <Bluetooth> and tap [
3. Tap [
] to select <Bluetooth Settings> and tap [
Bluetooth
].
].
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
ƒ The Bluetooth Settings menu appears.
4. Use [
] and [
] to choose the settings you prefer.
Bluetooth Setting Options
ƒ Discover Option : You can set the Bluetooth device to detect this player. <Discoverable>
sets it to detect and <Non-Discoverable> turns off detection.
ƒ Search Option : You can set search options for Bluetooth devices. <Search All>
searches for all possible devices while <Search by Service> searches for the only
selected device.
ƒ Search Timeout : You can select the search time period for a new device. Select one
from <10sec>, <20sec>, <30sec>, <45sec> and <60sec>.
After setting a time, a new device will be searched for the time limit you set.
ƒ Delete Device : You can delete a registered device in the player. See page 109.
Tap <Delete All> to delete all of the registered devices.
ƒ My Device Info. : You can check the name and address of your player.
108 _ using bluetooth
BLUETOOTH SETTINGS (Continued)
To delete a Bluetooth device
1. Tap [
] to select <Delete Device> and tap [
].
ƒ You will see the list of the registered devices.
2. Tap [
] to select a device to delete and tap [
].
ƒ If you want to delete all of the registered devices, select
<Delete All>.
3. Tap [
] to select <Yes> and tap [
Bluetooth Settings
Discover Option
Search option
Search Timeout
Delete Device
My Device Info.
].
ƒ The selected device will be removed.
To rename a Bluetooth Device
1. Tap [
tap [
].
] to select <My Device Info.> and
2. Tap [
].
3. Tap [
tap [
].
Edit Device Na..
] to select <Edit Device Name> and
ƒ The Edit Device Name window appears.
4. Use [
] and [
] to rename the device.
] : The input mode switches from number to
uppercase English and to lowercase English.
ƒ [
] : You can delete the characters one at a time.
] : Confirm your change.
ƒ [
ƒ E.g. To enter “YPS5”
-Move to the corresponding key icon and tap on it.
[ ] (once) ¨
(3 times) ¨
(once) ¨
ƒ [
¨[
] (twice) ¨
(3 times)
(once)
using bluetooth_ 109
upgrading firmware
Future upgrades may be available for this player to enhance performance and
compatibility.
1. Connect to http://www.samsung.com, select [SUPPORT] [DOWNLOAD
CENTER] and then select your player.
2. When the player page appears, select [Firmware] below the model name to
download the latest firmware.
3. Uncompress the downloaded file
onto your Desktop.
ƒ The uncompressed files will be
displayed.
4. Connect the player to your PC with
the USB cable.
5. Right click on the Start button on the
bottom left of your PC’s screen, then
choose Explore to Open Windows
Explorer on your PC.
ƒ [S5] is displayed in Windows Explorer.
110 _ upgrading firmware
6. Locate and click on the Desktop icon in
Windows Explorer (left column).
The contents of the Desktop will appear in the
right column.
7. (Windows Media Player 10)
Locate and select the Firmware update files
(right column) and drag-and-drop it into the
folder of [S5] [Data].
OR,
(Windows Media Player 11)
Locate and select the Firmware update files (right column) and drag-and-drop
it into the [S5] [Internal Storage].
8. After disconnecting the USB cable, the player will be turned off automatically.
9. Slide and hold the
switch in the opposite direction of the arrow.
ƒ The firmware will be upgraded.
ƒ When upgrading is complete, the player will be turned off automatically.
ƒ Check the battery charge status of the player. If the battery is not sufficiently
NOTE
charged, the firmware will not be upgraded.
ƒ You need to have at least 30MB of free space on the player for the upgrade.
upgrading firmware _ 111
troubleshooting
If you have a problem with your new mp3 player, check for a solution in
this list. If the problem persists, contact Samsung Customer Service at
1-800-SAMSUNG (1-800-726-7864).
PROBLEM
SOLUTION
Power will not turn on.
• Power will not turn on if the battery is
completely drained. Recharge the battery and
turn the power on again.
• Press the Reset hole.
Buttons do not work.
• Check if the
switch is in the
direction of the arrow position.
• Check if you pressed the right button, then
press again.
• Press the Reset hole.
The screen will not
turn on.
112 _ troubleshooting
• The screen may not be visible under direct
sunlight.
• If <Display Off> is selected from <Settings>
ĺ <Display>, the screen display can be
turned off. Tap any button and see if it turns on.
PROBLEM
SOLUTION
Power is turning off.
• Check the battery status.
• The power is automatically turned off when the
battery is completely drained. Recharge the battery.
• If <Auto Power Off> is selected from
<Settings> ĺ <System>, the Power will be
turned off when the player is in Pause mode.
Turn on the Player.
Battery life differs from
the manual.
• The battery life can vary depending on the
sound mode and display setting.
• Battery life may be shortened when the player
is left for extended periods in low or high
temperatures.
Media Studio Program
Malfunction
• Check if your PC meets the basic system
requirements.
• Check if the USB cable is correctly connected
and try again.
Connection to your PC
is disabled.
The file transfer rate is
too slow.
• Press <Start> on the toolbar of your PC to run
Windows Update. Select Key Updates and
Service Packs, then update all. Reboot your
PC and reconnect.
• If you are running multiple programs including
<Media Studio> on your PC, the file transfer
rate will be slow. Exit unnecessary programs
and try transferring again.
troubleshooting _ 113
PROBLEM
SOLUTION
Player isn’t playing.
• Check if the available file has been saved in
the memory.
• Check if the music file is damaged.
• Check if there is enough battery power.
File upload doesn’t
work.
• Check if the USB cable is securely connected.
Reconnect if necessary.
• Check if the memory is full.
• Press the Reset hole.
Files or data are
missing.
• Check if the USB cable has been disconnected
during file or data transmission. If this is
the case, it may cause serious damage not
only to files/data but also to the product. You
have to be extra cautious as Samsung is not
responsible for data loss.
Abnormal play time
display during play.
• Check if the file is in Variable Bit Rate (VBR)
format.
Abnormal display of file
name.
• Go to <Settings> ĺ <Language> ĺ
<Contents> in the main menu screen and set
an appropriate language.
The product is hot.
• Heat may be generated during recharging. This
has no effect on the product life or functions.
A message appears
while watching a video.
• Try to download the video clip through Media
Studio again.
114 _ troubleshooting
PROBLEM
SOLUTION
Bluetooth connections
could not be made.
• Check if the stereo headset is Bluetoothcertified. The mono hands-free headset is not
supported.
• The Bluetooth connection can be set off if you
turn the player or stereo headset off and on. In
this case, try to connect again.
• If you want to talk on your mobile phone, check
if you have set off the Bluetooth connections
between player and stereo headset.
• If you want to talk on your mobile phone, check
if you have set the player to <Discoverable>
in the <Bluetooth Settings> ĺ <Discover
Option>.
If set to <Non-Discoverable>, you can’t find
the player on your mobile phone.
troubleshooting _ 115
appendix
MENU TREE
Here’s a quick look at how the menus and functions are organized on your new
mp3 player.
Menu Select Screen
Music
Videos
Pictures
FM
Radio
Datacasts
Prime
Pack
Bluetooth
Settings
Text
Stereo
Headset
Menu
Style
Voice REC
Mobile
Phone
Sound
Games
File
Transfer
Display
Alarm
Bluetooth
Mode
Language
World Clock
Bluetooth
Settings
Time
Audio In
116 _ appendix
File
Browser
System
PRODUCT SPECIFICATIONS
Model Name
YP-S5
Rating
DC 5.0V/ 500mA
Built-in Battery Power
Earphone Output
600 mAh/ DC 3.7V
AUDIO : MPEG1/2/2.5 Layer3 (8kbps ~ 320kbps,
8kHz ~ 48kHz), WMA (48kbps ~ 192kbps,
8kHz ~ 48kHz), AAC-LC (24kbps ~
128kbps, 44.1kHz, 48kHz)
VIDEO : SVI (Video: MPEG4, Audio: MP3
(44.1kHZ, 128kbps),
Resolution: 208X176, Frame Rate: 15fps)
IMAGE : JPG (Progressive, Sequential Scanning,
File Size: less than 3MB)
20mW (16ȍ)
Output Frequency Range
20Hz~20kHz
Signal to Noise Ratio
90 dB with 20 kHz LPF(based on 1kHz 0 dB)
Earphone: Maximum of 24 hours for music
playback, Maximum of 4 hours for
video playback
File Compatibility
Play Time
Speakers: Maximum of 5 hours for music
playback, Maximum of 3 hours for video
playback
(based on: MP3 128kbps, Volume: 15, Normal
Mode)
Temperature Range for
Operation
Case
-5~35°C (23~95°F)
Plastic
Weight
3 oz
Dimensions (WxHxD)
1.83˝ X 3.78˝ X 0.59˝
appendix _ 117
Speakers
FM Radio
Power Output
0.7W/Ch x 2Ch
Impedance
8ȍ
Frequency Range
400 Hz ~ 20 kHz
FM Frequency
FM Signal to
Noise Ratio
87.5~108.0MHz
FM T.H.D
1%
55 dB
FM Useable
Sensitiivity
38dB—
Wireless System
Emission Type
F1D
RF Power
2.2mW
Transmit Frequency
2402MHz ~ 2480MHz
Receive Frequency
2402MHz ~ 2480MHz
No. of channels
79 ch
Temperature
-10°C~ +50°C (14 ~ 122°F)
Modulation System
GFSK
Communication Mode
Semi-duplex Operation
Humidity
95%
Spec Version Supported
1.2
Module
LBMA465CP3-113
The contents of this Manual are subject to change without prior notice for further
improvement.
118 _ appendix
LICENSE
The product unit accompanying this user manual is licensed under certain
intellectual property rights of certain third parties. In particular, this product is
licensed under the following US patents : 5,991,715, 5,740,317, 4,972,484,
5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308,
5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under
US Published Patent Application
No. 2001-44713-A1.
This license is limited to private non-commercial use by end-user consumers for
licensed contents. No rights are granted for commercial use. The license does
not cover any product unit other than this product unit and the license does not
extend to any unli-censed product unit or process conforming to ISO/IEC 111723 or ISO/IEC 13818-3 used or sold in combination with this product unit. The
license only covers the use of this product unit to encode and/or decode audio
files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are
granted under this license for product features or func-tions that do not conform
to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
appendix _ 119
WARRANTY
Samsung warrants this product as free of defects in material, design and
workmanship for a period of twelve (12) months from the original date of
purchase.
If during the period of warranty this product proves defective under normal use
and service, you should return the product to the retailer from whom it was
originally purchased.
The liability of Samsung and its appointed maintenance company is limited to
the cost of repair and/or replacement of the unit under warranty.
Return of the product for defective reasons should be to the original purchaser;
however, Samsung Authorized Dealers and Authorized Service Centers will
comply with the warranty on the terms issued to purchasers in the country
concerned. For further information relating to the Authorized Service Centers
contact; 1-800-SAMSUNG (1-800-726-7864).
www.samsung.com/us
WARANTY CONDITIONS:
1. The warranty is only valid when the warranty card is properly completed,
and upon presentation of the proof of purchase consisting of original invoice
or sales slip confirmation, indicating the date of purchase, dealer’s name,
model, serial No. and product number.
Samsung reserves the right to refuse warranty service if this information
has been removed or changed after the original purchase of the product
from the dealer.
WARRANTY (Continued)
2. Samsung’s obligations are to the repair of the defective part, and at its
discretion, replacement of the product (service exchange unit).
3. Warranty repairs must be carried out by an Authorized Samsung Dealer/
Service Center. No reimbursement will be made for repairs carried out by non
Samsung Centers, and warranty coverage will not be valid for any repairs or
damage caused by such repairs.
4. Repair or replacement under the terms of this warranty does not give right
to extension to or a new starting of the period of warranty. Repair or direct
replacement under the terms of this warranty may be fulfilled with functionally
equivalent service exchange units.
5. The warranty is not applicable in cases other than defects in material, design
and workmanship.
ƒ The warranty does not cover the following:
- Periodic checks, maintenance, repair and replacement of parts due to
normal wear and tear.
- Abuse or misuse, including but not solely limited to the failure to use
this product for its normal purposed or in accordance with Samsung’s
instructions usage and maintenance.
- Use of the product in conjunction with accessories not approved by
Samsung for use with this product.
WARRANTY (Continued)
- Failure of the product arising from incorrect installation or use not
consistent with technical or safety standardsin current force, or failure to
comply with productmanual instructions.
- Accidents, Acts of God or any cause beyond the control of Samsung
caused by lightning, water, fire, public disturbances and improper
ventilation.
- Unauthorized modifications carried out for the product to comply with
local or national technical standards in countries for which the Samsung
product was not originally designed.
- Repairs performed by non-authorized service centers such as opening of
the product by a non-authorized person.
- The model, serial No. and product number on the product has been
altered, deleted, removed or made illegible.
6. This warranty does not affect the consumer’s statutory rights nor the
consumers rights against the dealer from their purchase/sales agreement.
WARRANTY (Continued)
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED
AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED
ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN
BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS
PRODUCT SHALL BE BINDING ON SAMSUNG, SAMSUNG SHALL NOT
BE LIABLE FOR LOSS OF REVENUE OR PROFITS,FAILURE TO REALIZE
SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR
INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL
THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER
IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY
SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING,
WARRANTY (Continued)
PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE
OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR
INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED
DIRECTLY BY THE NEGLIGENCE OF SAMSUNG.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE
AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or
the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
This product is for personal use only, and is only for use in compliance with the
limitations of copyright and other laws.
To obtain warranty service, please contact SAMSUNG at: Samsung Electronics
America, Inc. 400 Valley Road, Suite 201 Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
www.samsung.com/us 081299
QUESTIONS OR COMMENTS?
COUNTRY
CALL
IN THE US
800-SAMSUNG
(800-726-7864)
OR VISIT US ONLINE AT
WRITE
Samsung Electronics America, Inc.
www.samsung.com/us 105 Challenger Road
Ridgefield Park, NJ 07660-0511
REV.0.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
