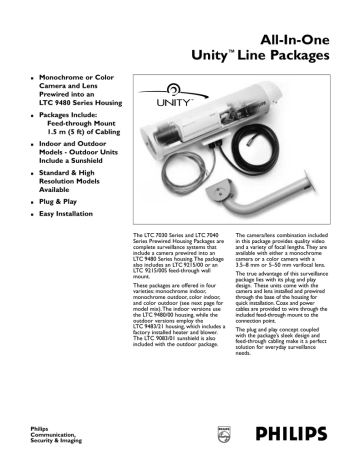

All-In-One Unity™ Line Packages

All-In-One Unity™ Line Packages
All-In-One
Unity™ Line Packages
Monochrome or Color
Camera and Lens
Prewired into an
LTC 9480 Series Housing
Packages Include:
Feed-through Mount
1.5 m (5 ft) of Cabling
Indoor and Outdoor
Models - Outdoor Units
Include a Sunshield
Standard & High
Resolution Models
Available
Plug & Play
Easy Installation
The LTC 7030 Series and LTC 7040
Series Prewired Housing Packages are
complete surveillance systems that
include a camera prewired into an
LTC 9480 Series housing.The package
also includes an LTC 9215/00 or an
LTC 9215/00S feed-through wall
mount.
These packages are offered in four
varieties: monochrome indoor,
monochrome outdoor, color indoor,
and color outdoor (see next page for
model mix).The indoor versions use
the LTC 9480/00 housing, while the
outdoor versions employ the
LTC 9483/21 housing, which includes a
factory installed heater and blower.
The LTC 9083/01 sunshield is also
included with the outdoor package.
Philips
Communication,
Security & Imaging
The camera/lens combination included
in this package provides quality video
and a variety of focal lengths.They are
available with either a monochrome
camera or a color camera with a
3.5–8 mm or 5–50 mm varifocal lens.
The true advantage of this surveillance
package lies with its plug and play
design. These units come with the
camera and lens installed and prewired
through the base of the housing for
quick installation. Coax and power
cables are provided to wire through the
included feed-through mount to the
connection point.
The plug and play concept coupled
with the package’s sleek design and
feed-through cabling make it a perfect
solution for everyday surveillance
needs.
SPECIFICATIONS
Video Output: 1.0 Vp-p, 75.
Synchronization:
Line-lock (With AC supply only):
Synchronizes camera to power line zero crossing for rollfree vertical interval switching.Vertical phase delay can be
externally adjusted (continuously) to allow vertical
synchronization in multiphase power installations.
Crystal-lock (DC-supply or L/L OFF):
Internal crystal reference is standard on all models.
Controls:
Phase Adjust: 0° to 300° (AC supply only).
Backlight Compensation: On/Off.
Back-focus: External adjustment.
DC Iris Level: Adjustable.
Connectors:
Video Out: Prewired 1.5 m (5 ft) coax with female BNC
connector.
Power1: 1 mm2 (18 AWG), 3 conductor, 1.5 m (5 ft) wiring
harness with flying leads.
Models
Model No.
Included in Package
Indoor EIA Monochrome Model
LTC 7030/20-38
LTC 0330/21 Camera, LTC 3364/31 Lens,
LTC 9480/00 Housing, LTC 9215/00S Mount
LTC 7035/20-38
LTC 0350/21 Camera, LTC 3364/31 Lens,
LTC 9480/00 Housing, LTC 9215/00S Mount
Indoor NTSC Color Model
LTC 7040/20-38
LTC 0430/21 Camera, LTC 3364/31 Lens,
LTC 9480/00 Housing, LTC 9215/00S Mount
LTC 7045/20-38
LTC 0450/21 Camera, LTC 3364/31 Lens,
LTC 9480/00 Housing, LTC 9215/00S Mount
Outdoor EIA Monochrome Model
LTC 7030/21-38
LTC 0330/21 Camera, LTC 3364/31 Lens,
LTC 9483/21 Housing, LTC 9083/01 Sunshield,
LTC 9215/00 Mount
LTC 7035/21-38
LTC 0350/21 Camera, LTC 3364/31 Lens,
LTC 9483/21 Housing, LTC 9083/01 Sunshield,
LTC 9215/00 Mount
LTC 7030/21-55
LTC 0330/21 Camera, LTC 3374/20 Lens,
LTC 9483/21 Housing, LTC 9083/01 Sunshield,
LTC 9215/00 Mount
LTC 7035/21-55
LTC 0350/21 Camera, LTC 3374/20 Lens,
LTC 9483/21 Housing, LTC 9083/01 Sunshield,
LTC 9215/00 Mount
Outdoor NTSC Color Model
LTC 7040/21-38
LTC 0430/21 Camera, LTC 3364/31 Lens,
LTC 9483/21 Housing, LTC 9083/01 Sunshield,
LTC 9215/00 Mount
LTC 7045/21-38
LTC 0450/21 Camera, LTC 3364/31 Lens,
LTC 9483/21 Housing, LTC 9083/01 Sunshield,
LTC 9215/00 Mount
LTC 7040/21-55
LTC 0430/21 Camera, LTC 3374/20 Lens,
LTC 9483/21 Housing, LTC 9083/01 Sunshield,
LTC 9215/00 Mount
LTC 7045/21-55
LTC 0450/21 Camera, LTC 3374/20 Lens,
LTC 9483/21 Housing, LTC 9083/01 Sunshield,
LTC 9215/00 Mount
1. Power supply input terminals are isolated from video output terminals.
LTC 3364/31 Lens
Focal Length: 3.5–8 mm.
Iris Range: F1.4–90.
Focus Range: 0.3 m (1 ft) to infinity.
Iris Control: Automatic; adjustable from camera.
Focus Control: Manual.
Zoom Control: Manual.
LTC 3374/20 Lens
Focal Length: 5–50 mm.
Iris Range: F1.4–185.
Focus Range: 1 m (3.3 ft) to infinity.
Iris Control: Automatic; adjustable from camera.
Focus Control: Manual.
Zoom Control: Manual.
Note: Outdoor Models include a heater and blower
Electrical
Model
No.
Rated
Voltage
Monochrome
Color
24 VAC, 60 Hz
24 VAC, 60 Hz
Power at Rated Voltage
Indoor Models
Outdoor Models
2.5 W
5W
27.5 W
30 W
Imager Format: Interline transfer CCD; 1/3-inch format.
Horizontal Resolution:
LTC 7030 Series: 380TVL
LTC 7035 Series: 570TVL
LTC 7040 Series: 330TVL
LTC 7045 Series: 460TVL
Sensitivity (3200 K):
Scene Illumination
1
Usable
0.027
0.27
Full
Video
0.09
0.9
LTC 7030:
fc
lx
LTC 7040:
fc
0.27
2.7
0.8
8.0
LTC 7035:
fc
lx
0.018
0.18
0.072
0.72
LTC 7045:
fc
0.27
2.7
0.8
8.0
Mechanical
Housing Window: 3 mm (0.12 in) thick UV-stabilized
polycarbonate.
Mounting: Four (4) 8 mm (5/16 in) diameter fasteners (not
included) are required for mounting.
Housing Construction: Aluminum cover, aluminum base,
aluminum mounting foot, polycarbonate end caps, neoprene
gasket, ethylene propylene seal, and all stainless steel hardware.
Housing Finish: Dark Mushroom.
Housing Dimensions: See Drawings.
Weight: (approx.)
Indoor Models: 2.57 kg (5.7 lb) .
Outdoor Models: 2.97 kg (6.5 lb).
Feed-through Mount:
Max load: 9 kg (20 lb).
Size: 30 cm (12 in).
Approx.Weight: 0.4 kg (0.9 lb).
Environmental
Housing Temperature (Outdoor Models):
At external temperature of –40°C to 50°C (–40°F to 122°F),
maintains internal temperatures between –20°C to 55°C
(–4°F to 131°F).
Humidity: 0% to 93% relative, noncondensing.
1. f/1.4 lens, 75% scene reflectance.
Signal-to-noise (Min. AGC): 50 dB minimum.
White Balance: LTC 7040 Series: Automatic Sensing
(through the lens): 2500 K to 8000 K.
2
Salt Atmosphere: MIL-STD-810E, Method 509, Procedure 1.
Housing Enclosure Protection:
Designed to NEMA 4, IP-65.
Safety: UL, cUL.
Accessories
LTC 9080/00 Tamper Resistant Kit: Includes ten screws
and insertion tool to permit tamper resistance for five
housings.
Electromagnetic Compatibility
EMC Requirements: FCC Class B.
277
10.9
107
4.2
96
3.8
196
7.7
50.8
2.0
20
0.8
8
0.3
73.7
2.9
89
3.5
mm
in
LTC 70x0/20-xx Series - Indoor Models
404
15.9
107
4.2
96
3.8
20
0.8
8
0.3
50.8
2.0
259
10.2
73.7
2.9
89
3.5
LTC 70x0/21-xx Series - Outdoor Models
3
mm
in
9498 961 25414 01-44
© 2001 Philips Electronics N.V.
© 2001 Philips Communication, Security & Imaging, Inc.
All Rights Reserved. Philips ® is a registered trademark of
Philips Electronics N.V.
Data subject to change without notice
