Miller Dynasty 200

Miller Dynasty 200

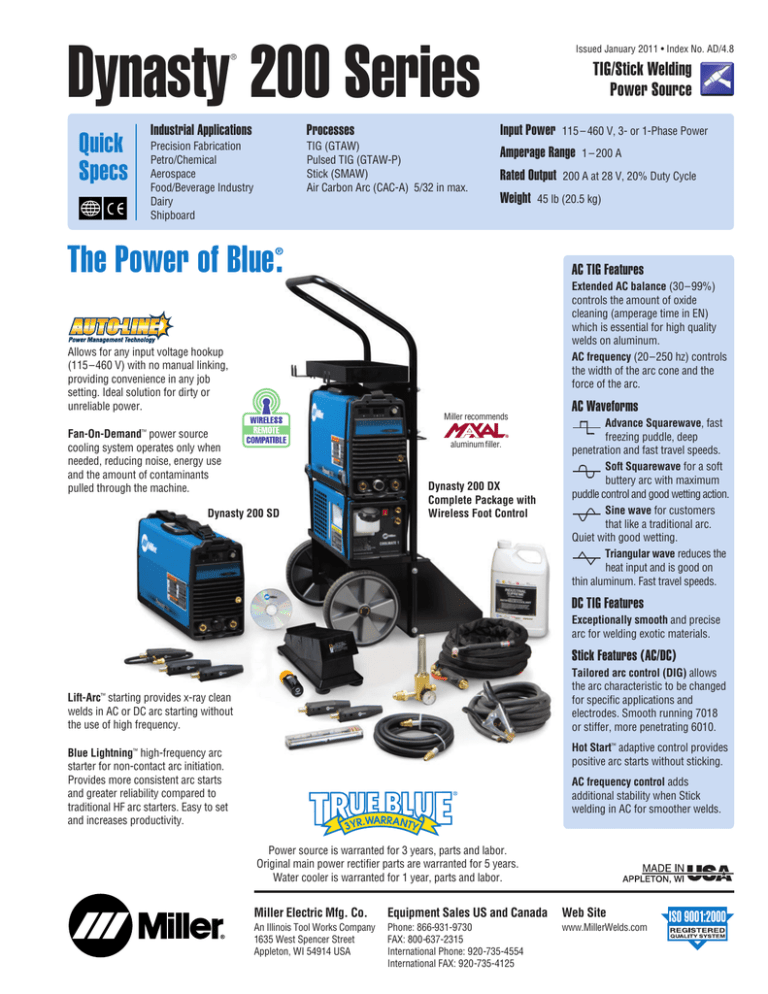

Dynasty 200 Series
Issued January 2011 • Index No. AD/4.8
®
Quick
Specs
TIG/Stick Welding
Power Source
Industrial Applications
Processes
Input Power
Precision Fabrication
Petro/Chemical
Aerospace
Food/Beverage Industry
Dairy
Shipboard
TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air Carbon Arc (CAC-A) 5/32 in max.
Amperage Range
Rated Output
Weight
115 – 460 V, 3- or 1-Phase Power
1 – 200 A
200 A at 28 V, 20% Duty Cycle
45 lb (20.5 kg)
The Power of Blue .
®
AC TIG Features
Extended AC balance (30–99%)
controls the amount of oxide
cleaning (amperage time in EN)
which is essential for high quality
welds on aluminum.
AC frequency (20–250 hz) controls
the width of the arc cone and the
force of the arc.
Allows for any input voltage hookup
(115–460 V) with no manual linking,
providing convenience in any job
setting. Ideal solution for dirty or
unreliable power.
AC Waveforms
Miller recommends
Fan-On-Demand™ power source
cooling system operates only when
needed, reducing noise, energy use
and the amount of contaminants
pulled through the machine.
aluminum filler.
Dynasty 200 SD
Dynasty 200 DX
Complete Package with
Wireless Foot Control
Advance Squarewave, fast
freezing puddle, deep
penetration and fast travel speeds.
Soft Squarewave for a soft
buttery arc with maximum
puddle control and good wetting action.
Sine wave for customers
that like a traditional arc.
Quiet with good wetting.
Triangular wave reduces the
heat input and is good on
thin aluminum. Fast travel speeds.
DC TIG Features
Exceptionally smooth and precise
arc for welding exotic materials.
Stick Features (AC/DC)
Tailored arc control (DIG) allows
the arc characteristic to be changed
for specific applications and
electrodes. Smooth running 7018
or stiffer, more penetrating 6010.
Lift-Arc™ starting provides x-ray clean
welds in AC or DC arc starting without
the use of high frequency.
Hot Start™ adaptive control provides
positive arc starts without sticking.
Blue Lightning™ high-frequency arc
starter for non-contact arc initiation.
Provides more consistent arc starts
and greater reliability compared to
traditional HF arc starters. Easy to set
and increases productivity.
AC frequency control adds
additional stability when Stick
welding in AC for smoother welds.
Power source is warranted for 3 years, parts and labor.
Original main power rectifier parts are warranted for 5 years.
Water cooler is warranted for 1 year, parts and labor.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
www.MillerWelds.com
Specifications
Welding
Amperage
Range
Welding
Mode
TIG
(GTAW)
AC 5–150 A
DC 1–150 A
(115 VAC)
(Subject to change without notice.)
Max.
OpenCircuit
Voltage
Input
Power
Rated
Output
Amps Input at Rated Load Output, 50/60 Hz
115 V 230 V 400 V 460 V KVA KW
80 VDC
3-Phase
200 A at 18 V,
20% Duty Cycle
—
—
13.7 8.7
6.9
5.5
5.2
0.16* 0.24* 0.25* 0.06* 0.03*
150 A at 16 V,
60% Duty Cycle
—
—
9.4
6.0
4.7
3.8
3.6
0.16* 0.24* 0.25* 0.06* 0.03*
150 A at 16 V,
60% Duty Cycle
—
—
15.8 —
0.23* —
140 A at 15.6 V,
40% Duty Cycle
31.0 —
0.42* —
—
—
—
—
3.6
3.5
0.05* 0.03*
100 A at 14 V,
100% Duty Cycle
20.7 —
0.42* —
—
—
—
—
2.3
2.3
0.05* 0.03*
200 A at 28 V,
20% Duty Cycle
—
—
20.8 13.0 10.2 8.1
7.8
0.16* 0.24* 0.25* 0.06* 0.03*
130 A at 25.2 V,
60% Duty Cycle
—
—
12.3 7.6
6.0
4.8
4.6
0.16* 0.24* 0.25* 0.06* 0.03*
130 A at 25.2 V,
60% Duty Cycle
—
—
20.0 —
0.23* —
100 A at 24 V,
60% Duty Cycle
31.3 —
0.42* —
—
—
—
—
3.6
3.6
0.05* 0.03*
90 A at 23.6 V,
100% Duty Cycle
27.6 —
0.42* —
—
—
—
—
3.2
3.2
0.05* 0.03*
5 – 10 VDC**
AC 5–200 A
DC 1–200 A
(200–460 VAC)
Stick
(SMAW)
AC 5–105 A
DC 1–105 A
(115 VAC)
1-Phase
80 VDC
3-Phase
5 – 10 VDC**
AC 5–200 A
DC 1–200 A
(200–460 VAC)
1-Phase
7.9
3.6
3.6
0.25* 0.05* 0.02*
Dimensions
Net
Weight
H: 13-1/2 in
(343 mm)
W: 7-1/2 in
(191 mm)
D: 21-1/2 in
(546 mm)
Contractor
Kit
with
77 lb
(34.9 kg)
TIGRunner®
H: 46-1/4 in
(1,175 mm)
W: 23-1/2 in
(597 mm)
D: 22-1/4 in
(565 mm)
45 lb
(20.5 kg)
with
with
TIGRunner®
137 lb
(62.1 kg)
10.0 4.7
4.7
0.25* 0.05* 0.03*
*While idling. **Sense voltage for Stick and Lift-Arc ™ TIG. Note: Duty cycle limitations on units with 115 V input power are due to the input power cord supplied with the unit.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Performance Data
DUTY CYCLE
110–120 V INPUT VOLTAGE
%
30%
40%
60%
100%
2
TIG
150 A
140 A
120 A
100 A
STICK
100 A
100 A
100 A
90 A
200–460 V INPUT VOLTAGE
%
20%
30%
40%
60%
100%
TIG
200 A
180 A
166 A
150 A
120 A
STICK
200 A
170 A
150 A
130 A
110 A
Control Panel
Dynasty 200 SD
Dynasty 200 DX
6
1
2
6
1
2
7
7
3
8
3
8
4
5
9
4
5
9
10
11
Control Panel Parameter Values
1. Voltmeter Display
Advanced features on the Dynasty DX only:
Additional Setup Parameter Values
2. Ammeter Display
10. Sequencer Control
Initial Amps
AC: 5 – 200 A
DC: 1– 200 A
Initial Slope
0.0 – 25.0 Seconds
Final Slope
0.0 – 25.0 Seconds
Final Amps
AC: 5 – 200 A
DC: 1– 200 A
Preprogrammed Starts
.020 –1/8 in Tungsten
3. Polarity
AC/DC
4. Process/
Arc Starting
TIG: HF Impulse, Lift Arc
STICK: Adaptive Hot Start
5. Output Control
Standard Remote,
2T Trigger Hold,
Output ON
6. Encoder Control
7. Amperage Control
8. AC Waveshape
Balance
AC Frequency
30 – 99%
20 – 250 Hz
11. Pulser Control
Pulses per Second DC: 0.1 – 500 PPS
AC: 0.1– 500 PPS
Peak Time
5 – 95%
Background Amps 5 – 95%
Programmable Starts
Amperage
AC: 5 – 200 A
DC: 1– 200 A
Time
1– 200 Milliseconds
Ramp Time
1– 250 Milliseconds
Minimum Amperage 1– 20 A
Polarity
EP, EN
Additional Triggers 3T, 4T, Mini Logic,
4T Momentary
Waveshapes
Advance Squarewave,
Soft Squarewave, Sine
Wave, Triangular wave
Spot/Timer
0.1– 25.0 Seconds
OCV
Low OCV, Normal OCV
9. Gas/DIG Preflow 0.0 – 25.0 Seconds
Postflow
0 – 50 Seconds
DIG
0 – 100%
Stick Stuck Check On/Off
Lockouts
Four levels
Arc Timer
0.0 – 9999 Hours
and 0 – 59 Min
Cycle Counter
0 – 999,999 Cycles
3
TIG Upgrade Chart
Which Machine is Right for You?
Why Upgrade?
Syncrowave 200
Dynasty 200
Dynasty 200 Benefits
Maximum Thickness Capacity
1/4 in Aluminum
1/4 in Aluminum
Same material thickness capacity.
High Frequency Arc Starting
Continuous HF
UPGRADE
Start Only
Start Only limits HF interference issues.
Frequency Control
AC Output Control
Fixed at 60 Hz
UPGRADE
Variable 20–250 Hz
Higher frequencies provide better arc control
and faster travel speeds.
AC Waveforms
Soft Squarewave
UPGRADE
Advanced Squarewave
Soft Squarewave
Advanced Squarewave = Travel faster
Soft Squarewave = Maximum puddle control
Sine Wave
Triangular Wave
Sine Wave = Traditional characteristics
Triangular Wave = Reduced heat input
Weld Aluminum
with Pointed Tungsten
Waveshaping controls maintain the point. The
benefits are: reduced heat input into your part,
smaller weld beads, better starting and more
control of the arc.
UPGRADE
Portability
238 lb
UPGRADE
Manual Link
208–230 or 460–575 V
Single-Phase
45 lb
Auto-Line™
115–460 V
Single-Phase or Three-Phase
Easier to move because of size and weight.
Auto-Line™ allows the unit to operate on any
voltage. Single- or three-phase. Even generators!
Power Draw at 150 Amps
54 A at 230 V
Single-Phase
15.8 A at 230 V
Single-Phase
Power requirement to operate is much less.
Smaller electrical service needed, smaller
breaker/fuses and power cord.
UPGRADE
Pulse TIG Controls
High Speed DC TIG-Pulse Controls
• PPS Pulses per second (Hz): DC = 0.1 – 500 PPS / AC = 0.1 – 500 PPS
• % ON – % Peak Time: 5 - 95% (Controls the amount of time during each pulse cycle at the PEAK amperage.)
• Background Amps: 5 – 99% (Sets the low-pulse amperage value as a % of the Peak Amps.)
CONVENTIONAL PULSED TIG
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Pulse Cycle
Typically from 1 to 10 PPS. Provides a heating and cooling effect
on the weld puddle and can reduce distortion by lowering the
average amperage. This heating and cooling effect also produces a
distinct ripple pattern in the weld bead. The relationship between
pulse frequency and travel speed determines the distance between
the ripples. Slow pulsing can also be coordinated with filler metal
addition and can increase overall control of the weld puddle.
4
HIGH SPEED PULSED TIG
Pulse Cycle
In excess of 40 PPS, Pulsed TIG becomes more audible than visible —
causing increased puddle agitation for a better as-welded microstructure.
Pulsing the weld current at high speeds — between a high Peak and a
low Background amperage — can also constrict and focus the arc.
This results in maximum arc stability, increased penetration and
increased travel speeds (Common Range: 100 – 500 PPS).
AC Waveshape Controls
Feature
Waveform
AC Balance Control
Effect on Bead
Controls arc cleaning action. Adjusting the
% EN of the AC wave controls the width of
the etching zone surrounding the weld.
Amperage
51 – 99% EN
% EP
Narrow bead, with no
visible cleaning
Reduces balling
action and helps
maintain point
0
Bead
% EN
Note: Set the AC Balance control for adequate arc
cleaning action at the sides and in front of the weld
puddle. AC Balance should be fine tuned according to
how heavy or thick the oxides are.
Time (1 AC Cycle)
Deep, narrow
penetration
No Visible Cleaning
Amperage
30 – 50% EN
% EP
Wider bead and
cleaning action
Bead
% EN
60 Cycles per Second
AC Frequency Control
Amperage
Increases balling
action of the electrode
0
Time (1 AC Cycle)
Controls the width of the arc cone. Increasing
the AC Frequency provides a more focused arc
with increased directional control.
Effect on Appearance
% EP
Shallow
penetration
Cleaning
Wider bead,
good penetration —
ideal for buildup work
Wider bead and
cleaning action
0
Bead
% EN
Note: Decreasing the AC Frequency softens the arc
and broadens the weld puddle for a wider weld bead.
Time (1 AC Cycle)
Amperage
120 Cycles per Second
%
EP
0
%
EP
Cleaning
Narrower bead for
fillet welds and
automated applications
Narrower bead and
cleaning action
Bead
% EN
% EN
Time (1 AC Cycle)
Cleaning
AC Waveform Selection
Select from four different AC waveforms to optimize the arc characteristic for your application. Choose from:
ADVANCED SQUAREWAVE
SOFT SQUAREWAVE
Fast transitions for
responsive and
dynamic arc.
0
(–)
0
(–)
Time (1 AC Cycle)
Time (1 AC Cycle)
SINEWAVE
TRIANGULAR WAVE
0
(–)
Time (1 AC Cycle)
(+)
Amps
Square transitions
eliminate the need for
continuous HF, while
the sinewave peaks
soften the arc.
(+)
Amps
All the benefits of
advanced square,
fine tuned to provide
a smooth, soft arc
with maximum
puddle control and
good wetting action.
(+)
Amps
Amps
(+)
0
(–)
Time (1 AC Cycle)
Unconventional wave
provides the punch of
the peak amperage,
while reducing overall
heat input. Quick puddle
formation reduces weld
time — limiting heat
input and reducing weld
distortion, especially
on thin materials.
5
Packages
Dynasty 200 Power Sources
®
Dynasty® 200 SD #907 099 (CSA)
Dynasty® 200 DX #907 099-01-1 (CSA)
Dynasty® 200 DX #907 356 (CE)
Includes adjustable shoulder strap, 8 ft
(2.4 m) primary power cord, (2) Dinse 50
connectors, (1) air-cooled TIG torch
adapter (#195 378) and DVD Setup Video
(#251 116).
Note: See page 7 for recommended Contractor Torch Kit.
Dynasty 200 DX Contractor Kit Packages (Air Cooled)
®
Dynasty 200 DX with Contractor Kit
#951 174 (CSA) w/Foot Control
#951 175 (CSA) w/Fingertip Control
Packages include:
Dynasty® 200 DX (#903 099-01-1)
RFCS-14 HD foot pedal (#194 744) or
RCCS-14 fingertip control (#043 688)
Protective carrying case for accessories
Weldcraft® 25 ft (7.6 m) WP17 TIG torch
with adapter
Smith® flow gauge regulator with
gas hose
AK2C accessory kit
.040", 1/16" and 3/32" cerium tungsten
Collets and cups
200 amp, 15 ft (4.6 m) Stick electrode
holder
Work clamp with 15 ft (4.6 m) #4 cable
(1) air-cooled TIG torch adapter
(#195 378)
TIGRunner Package (Water Cooled)
®
Dynasty 200 DX TIGRunner®
#907 099-02-1 (CSA)
Completely assembled.
Package includes:
Dynasty® 200 DX (#907 099-01-1)
Coolmate™ 1, 120 VAC (#300 360)
1 gallon of pre-mixed, low-conductivity
coolant (#043 810)
2-Wheel Trolley Cart (#300 480) with
the following features: easy-to-maneuver
single-cylinder cart with cable and torch
holders. Easy to release and remove
welder from cart for even more portability.
Convenient tray for consumable storage
and filler rod holders.
Notes: TIG Torch Adapter must be ordered separately.
See page 7 for recommended 250 A Water-Cooled
Torch Kit (#300 185).
The Coolmate 1 requires a separate source for
electricity. The Dynasty 200 does not contain
auxiliary power.
Complete Packages (Water Cooled)
Dynasty 200 DX
Complete Package
with Wireless
Foot Control
Dynasty 200 DX Complete
#951 397 (CSA) w/Wireless Foot Control
#951 139 (CSA) w/Foot Control
#951 140 (CSA) w/Fingertip Control
Completely assembled.
Package includes:
Dynasty® 200 DX (#907 099-01-1)
Coolmate™ 1, 120 VAC (#300 360)
1 gallon of pre-mixed, low-conductivity
coolant (#043 810)
Wireless Remote Foot Control (#300 429)
or RFCS-14 HD foot control (#194 744)
or RCCS-14 fingertip control (#043 688)
6
2-Wheel Trolley Cart (#300 480) with
the following features: easy-to-maneuver
single-cylinder cart with cable and torch
holders. Easy to release and remove
welder from cart for even more portability.
Convenient tray for consumable storage
and filler rod holders.
250 A Water-Cooled Torch Kit and
Accessories (#300 185) See page 7 for
more details.
Note: The Coolmate 1 requires a separate source for
electricity. The Dynasty 200 does not contain
auxiliary power.
Genuine Miller Accessories
Remote Controls and Switches
2-Wheel Trolley Cart
#300 480
Easy-to-maneuver two-wheel
cart features single-cylinder
rack, chain for cylinder, straps
(quick and easy to detach and
carry machine), cable holders,
torch holder, storage area, and
filler rod storage area. Works
with Dynasty® or Maxstar® 200 and Coolmate™ 1.
Contact you local distributor for filler material holders.
Universal Carrying Cart
and Cylinder Rack
#042 934
Holds power source, and
gas cylinder up to 56 in
(142 cm) high and 6 to 9 in
(15 to 23 cm) in diameter.
Coolmate™ 1
#300 360
120 VAC 60 Hz CSA
#300 360-00-1
120 VAC 60 Hz CE
#300 459 240 VAC 50/60 Hz CSA
#300 459-00-1 240 VAC 50/60 Hz CE
1-gallon water cooler designed for 200 A
portable welders. Features include:
Fin-and-Tube heat exchanger, back-lit power
switch, external filter, polyethylene tank and
coolant level sight gauge.
TIG Coolant #043 810
Sold in multiples of 4.
Pre-mixed low-conductivity
Miller coolant contains
ethylene glycol and
deionized water to protect from freezing and
boiling -37˚ to 227˚F (-38˚ to 108˚C). 1-gallon
plastic recyclable bottles.
#195 054
kit shown.
Contractor Kits
#195 054 Foot Pedal Kit
#195 055 Fingertip Kit
RFCS-14HD foot or RCCS-14 fingertip control,
protective carrying case, 150 amp WP17 25 ft
(7.6 m) TIG torch with adapter, Smith® flow
gauge regulator and gas hose, AK2C accessory
kit (.040, 1/16, and 3/32 in cerium tungsten,
collets and cups), Stick electrode holder, 200
amp, 15 ft (4.6 m) #4 cable, and work clamp with
15 ft (4.6 m) #4 AWG cable.
200 Amp Air-Cooled Torch
#WP2612RM (12 ft)
#WP2625RM (25 ft)
Torch body gas valve
models are available.
Note: Adapter #195 379 required for WP26. Order
from Miller Parts.
Air-Cooled Torch Adapters
#195 378 WP17, WP9,
WP50, WP23
#195 379 WP26
Order from Miller Parts.
Gas Tungsten Arc (TIG) Welding Book
#170 555
To order, distributors can call the Miller Literature
Distribution Center at 1-920-735-4356, or
FAX 1-920-735-4011.
Ron Covell TIG Welding Basics DVD
To order go to MillerWelds.com
DVD Setup Video #251 116
Video topics include Tungsten Selection, Setup
Menus, DC Pulse, Sequencer, Balance and
Frequency Settings. (Included with machine.)
250 A Water-Cooled Torch Kit #300 185
25 ft (7.6 m) Weldcraft® WP2025RM torch
Torch cable cover
AK4C torch accessory kit includes shielding
cups, collets, collet bodies and 2% cerium
tungsten electrodes (1/16, 3/32 and 1/8 in)
Smith® regulator/flowmeter HM2051A-580
Gas hose (regulator to machine)
Water-cooled Dinse torch adapter
15 ft (4.6 m) 1/0 weld lead with clamp (work
or ground lead) and Dinse connector
Water-Cooled Dinse
#195 377
Used to adapt WP20,
WP18, and CS310 to
dinse-style connector. Order from Miller Parts.
Tungsten
Tungsten is 7 in length and available in pkgs of 10.
Order from Miller Parts.
2% Ceriated (orange) for AC/DC applications
#WC040X7 .040 in, 10– 80 A
#WC116X7 1/16 in, 70– 150 A
#WC332X7 3/32 in, 140– 250 A
#WC018X7 1/8 in, 225– 400 A
#WC532X7 5/32 in, 300– 500 A
1.5% Lanthanum (gold) for AC/DC applications
#WL040X7 .040 in, 10– 80 A
#WL116X7 1/16 in, 70– 150 A
#WL332X7 3/32 in, 140– 250 A
#WL018X7 1/8 in, 225– 400 A
#WL532X7 5/32 in, 300– 500 A
Wireless Remote Foot
Control #300 429
For remote current and
contactor control. Receiver
plugs directly into the 14-pin
receptacle of Miller machine. 90 ft (27.4 m)
operating range.
Wireless Remote Hand
Control #300 430
For remote current and
contactor control. Receiver
plugs directly into the
14-pin receptacle of Miller
machine. 300 ft (91.4 m)
operating range.
RCCS-14 Remote Contactor and Current
Control #043 688 14-pin plug
North/south rotary-motion fingertip control
fastens to TIG torch using two Velcro® straps.
Includes 26.5 ft (8 m) control cord.
RFCS-14 HD Foot Control
#194 744
Maximum flexibility is
accomplished with a
reconfigurable cord that can
exit the front, back or either side of the pedal.
Foot pedal provides remote current and contactor
control. Includes 20 ft (6 m) cord and 14-pin plug.
RHC-14 Hand Control
#242 211 020
Miniature hand control for
remote current and contactor
control. Dimensions: 4 x 4 x
3-1/4 in (102 x 102 x 83 mm).
Includes 20 ft (6 m) cord
and 14-pin plug.
RMLS-14 Switch #129 337
Momentary- and maintained-contact rocker switch
for contactor control. Push forward for maintained
contact and backward for momentary contact.
Includes 26.5 ft (8 m) cord and 14-pin plug.
RMS-14 On/Off Control #187 208
Momentary-contact switch for contactor control.
Rubber-covered pushbutton dome switch ideal
for repetitive on-off applications. Includes 26.5 ft
(8 m) cord and 14-pin plug.
Extension Cables for 14-Pin Remote Controls
#242 208 025 25 ft (7.6 m)
#242 208 050 50 ft (15.2 m)
#242 208 080 80 ft (24.4 m)
7
Ordering Information
Equipment and Options
Stock No.
Description
Dynasty 200 SD
Dynasty® 200 DX
Dynasty® 200 DX International
#907 099
#907 099-01-1
#907 356
Auto-Line 115 – 460 VAC, 50/60 Hz, CSA. 8 ft primary cord
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8 ft primary cord
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CE. 8 ft primary cord
Air-Cooled Packages
Dynasty® 200 DX Contractor Kit w/Foot Control
Dynasty® 200 DX Contractor Kit w/Fingertip Control
#951 174
#951 175
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8 ft primary cord
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8 ft primary cord
Water-Cooled Packages
Dynasty® 200 DX TIGRunner ®
#907 099-02-1
#951 397
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8 ft primary cord
(Torch kit and accessories sold separately.)
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8 ft primary cord
#951 139
#951 140
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8 ft primary cord
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8 ft primary cord
#300 185
#195 054
#195 055
#WP2625RM
See page 7
See page 7
See page 7
Adapter #195 379 required. Order from Miller Parts
Distributor: See Miller Parts Catalog
#300 429
#300 430
#043 688
#194 744
#242 211 020
#129 337
#187 208
#242 208 025
#242 208 050
#242 208 080
Foot control with wireless 90 ft (27.4 m) operating range
Hand control with wireless 300 ft (91.4 m) operating range
North/south fingertip control
Heavy-duty foot control
Hand control
Momentary/maintained rocker switch
Momentary rubber dome switch
25 ft (7.6 m)
50 ft (15.2 m)
80 ft (24.4 m)
#300 480
#042 934
#300 360
#300 360-00-1
#300 459
#300 459-00-1
#043 810
#170 555
See page 7
See page 7
120 VAC, 60 Hz, CSA. Requires coolant
120 VAC, 60 Hz, CE. Requires coolant
240 VAC, 50/60 Hz, CSA. Requires coolant
240 VAC, 50/60 Hz, CE. Requires coolant
Sold in multiples of four in 1-gallon plastic bottles
Order at MillerWelds.com/resources/tools
Order at MillerWelds.com/resources/tools
Included with machine
Used to connect water-cooled torch to Dinse terminal machine.
For WP20, WP18 and SC310 (adapter included in Complete Package)
Used to connect WP17, WP9 and WP23 torch to Dinse terminal machine
Used to connect WP26 torch to Dinse terminal machine
Used to connect weld lead to Dinse terminal machine
Used to extend weld cables
Male Dinse to female Tweco
Male Dinse to female Cam-Lok
®
Dynasty® 200 DX Complete
with Wireless Remote Foot Control
Dynasty® 200 DX Complete w/Foot Control
Dynasty® 200 DX Complete w/Fingertip Control
TIG Torch Kits
Weldcraft® 250 A Water-Cooled Torch Kit
Contractor Kit Foot Pedal (Air-Cooled)
Contractor Kit Fingertip (Air-Cooled)
Weldcraft® 200 A Air-Cooled Torch
Consumables and Tungsten
Remote Controls
Wireless Remote Foot Control
Wireless Remote Hand Control
RCCS-14
RFCS-14 HD
RHC-14
RMLS-14
RMS-14
Extension Cables
Accessories
2-Wheel Trolley Cart
Universal Carrying Cart and Cylinder Rack
Coolmate™ 1
TIG Coolant
Gas Tungsten Arc (TIG) Welding Book
Ron Covell TIG Welding Basics DVD
DVD Setup Video
Water-Cooled Dinse
Order from Miller Parts
Air-Cooled Dinse
Order from Miller Parts
Dinse Connector 50 mm (1 male)
Dinse Connector 50 mm (1 male, 1 female)
Tweco® Terminal Adapter
Cam-Lok Terminal Adapter
#251 116
#195 377
#195 378
#195 379
#042 418
#042 419
#042 465
#042 466
Qty.
™
Miscellaneous
Stick Electrodes
Welding and Work Cables
Welding Gloves and Helmet
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
