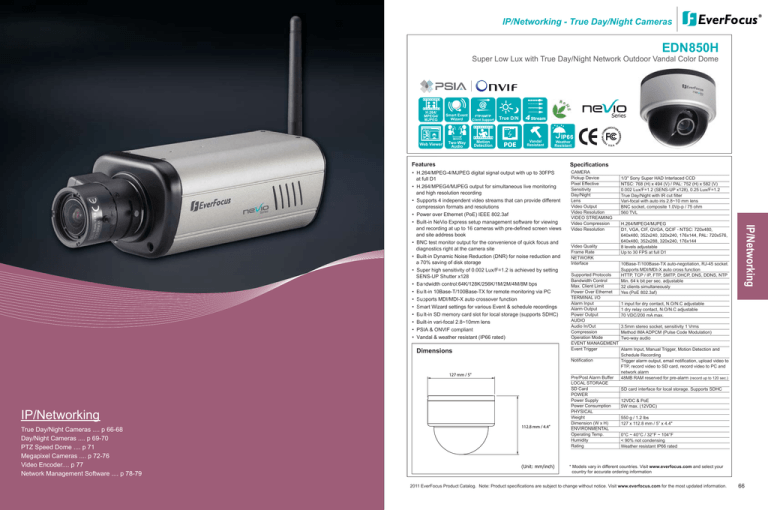

IP/Networking - True Day/Night Cameras

EDN850H

Super Low Lux with True Day/Night Network Outdoor Vandal Color Dome

H.264/

MPEG4/

MJPEG

Smart Event

Wizard

True D/N

Web Viewer

Vandal

Resistant

Weather

Resistant

Features

• H.264/MPEG-4/MJPEG digital signal output with up to 30FPS

at full D1

• H.264/MPEG4/MJPEG output for simultaneous live monitoring

and high resolution recording

• Supports 4 independent video streams that can provide different

compression formats and resolutions

• Power over Ethernet (PoE) IEEE 802.3af

• Built-in NeVio Express setup management software for viewing

and recording at up to 16 cameras with pre-defined screen views

and site address book

• BNC test monitor output for the convenience of quick focus and

diagnostics right at the camera site

• Built-in Dynamic Noise Reduction (DNR) for noise reduction and

a 70% saving of disk storage

• Super high sensitivity of 0.002 Lux/F=1.2 is achieved by setting

SENS-UP Shutter x128

• Bandwidth control:64K/128K/256K/1M/2M/4M/8M bps

• Built-in 10Base-T/100Base-TX for remote monitoring via PC

• Supports MDI/MDI-X auto crossover function

• Smart Wizard settings for various Event & schedule recordings

• Built-in SD memory card slot for local storage (supports SDHC)

• Built-in vari-focal 2.8~10mm lens

• PSIA & ONVIF compliant

• Vandal & weather resistant (IP66 rated)

Dimensions

127 mm / 5”

112.8 mm / 4.4”

Specifications

CAMERA

Pickup Device

Pixel Effective

Sensitivity

Day/Night

Lens

Video Output

Video Resolution

VIDEO STREAMING

Video Compression

Video Resolution

1/3" Sony Super HAD Interlaced CCD

NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V)

0.002 Lux/F=1.2 (SENS-UP x128), 0.25 Lux/F=1.2

True Day/Night with IR cut filter

Vari-focal with auto iris 2.8~10 mm lens

BNC socket, composite 1.0Vp-p / 75 ohm

560 TVL

Video Quality

Frame Rate

NETWORK

Interface

H.264/MPEG4/MJPEG

D1, VGA, CIF, QVGA, QCIF - NTSC: 720x480,

640x480, 352x240, 320x240, 176x144, PAL: 720x576,

640x480, 352x288, 320x240, 176x144

8 levels adjustable

Up to 30 FPS at full D1

Supported Protocols

Bandwidth Control

Max. Client Limit

Power Over Ethernet

TERMINAL I/O

Alarm Input

Alarm Output

Power Output

AUDIO

Audio In/Out

Compression

Operation Mode

EVENT MANAGEMENT

Event Trigger

Notification

10Base-T/100Base-TX auto-negotiation, RJ-45 socket.

Supports MDI/MDI-X auto cross function

HTTP, TCP / IP, FTP, SMTP, DHCP, DNS, DDNS, NTP

Min. 64 k bit per sec. adjustable

32 clients simultaneously

Yes (PoE 802.3af)

1 input for dry contact, N.O/N.C adjustable

1 dry relay contact, N.O/N.C adjustable

70 VDC/200 mA max.

3.5mm stereo socket, sensitivity 1 Vrms

Method IMA ADPCM (Pulse Code Modulation)

Two-way audio

Alarm Input, Manual Trigger, Motion Detection and

Schedule Recording

Trigger alarm output, email notification, upload video to

FTP, record video to SD card, record video to PC and network alarm

48MB RAM reserved for pre-alarm

(record up to 120 sec.)

Pre/Post Alarm Buffer

LOCAL STORAGE

SD Card

POWER

Power Supply

Power Consumption

PHYSICAL

Weight

Dimension (W x H)

ENVIRONMENTAL

Operating Temp.

Humidity

Rating

SD card interface for local storage. Supports SDHC

12VDC & PoE

5W max. (12VDC)

550 g / 1.2 lbs

127 x 112.8 mm / 5” x 4.4"

0°C ~ 40°C / 32°F ~ 104°F

< 90% not condensing

Weather resistant IP66 rated

* Models vary in different countries. Visit www.everfocus.com and select your

country for accurate ordering information

2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.

66

IP/Networking

True Day/Night Cameras .... p 66-68

Day/Night Cameras .... p 69-70

PTZ Speed Dome .... p 71

Megapixel Cameras .... p 72-76

Video Encoder.... p 77

Network Management Software .... p 78-79

04

IP/Networking - True Day/Night Cameras

EDN850H

Super Low Lux with True Day/Night Network Outdoor Vandal Color Dome

H.264/

MPEG4/

MJPEG

Smart Event

Wizard

True D/N

Web Viewer

Vandal

Resistant

Weather

Resistant

Features

• H.264/MPEG-4/MJPEG digital signal output with up to 30FPS

at full D1

• H.264/MPEG4/MJPEG output for simultaneous live monitoring

and high resolution recording

• Supports 4 independent video streams that can provide different

compression formats and resolutions

• Power over Ethernet (PoE) IEEE 802.3af

• Built-in NeVio Express setup management software for viewing

and recording at up to 16 cameras with pre-defined screen views

and site address book

• BNC test monitor output for the convenience of quick focus and

diagnostics right at the camera site

• Built-in Dynamic Noise Reduction (DNR) for noise reduction and

a 70% saving of disk storage

• Super high sensitivity of 0.002 Lux/F=1.2 is achieved by setting

SENS-UP Shutter x128

• Bandwidth control:64K/128K/256K/1M/2M/4M/8M bps

• Built-in 10Base-T/100Base-TX for remote monitoring via PC

• Supports MDI/MDI-X auto crossover function

• Smart Wizard settings for various Event & schedule recordings

• Built-in SD memory card slot for local storage (supports SDHC)

• Built-in vari-focal 2.8~10mm lens

• PSIA & ONVIF compliant

• Vandal & weather resistant (IP66 rated)

Dimensions

127 mm / 5”

112.8 mm / 4.4”

Specifications

CAMERA

Pickup Device

Pixel Effective

Sensitivity

Day/Night

Lens

Video Output

Video Resolution

VIDEO STREAMING

Video Compression

Video Resolution

1/3" Sony Super HAD Interlaced CCD

NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V)

0.002 Lux/F=1.2 (SENS-UP x128), 0.25 Lux/F=1.2

True Day/Night with IR cut filter

Vari-focal with auto iris 2.8~10 mm lens

BNC socket, composite 1.0Vp-p / 75 ohm

560 TVL

Video Quality

Frame Rate

NETWORK

Interface

H.264/MPEG4/MJPEG

D1, VGA, CIF, QVGA, QCIF - NTSC: 720x480,

640x480, 352x240, 320x240, 176x144, PAL: 720x576,

640x480, 352x288, 320x240, 176x144

8 levels adjustable

Up to 30 FPS at full D1

Supported Protocols

Bandwidth Control

Max. Client Limit

Power Over Ethernet

TERMINAL I/O

Alarm Input

Alarm Output

Power Output

AUDIO

Audio In/Out

Compression

Operation Mode

EVENT MANAGEMENT

Event Trigger

Notification

10Base-T/100Base-TX auto-negotiation, RJ-45 socket.

Supports MDI/MDI-X auto cross function

HTTP, TCP / IP, FTP, SMTP, DHCP, DNS, DDNS, NTP

Min. 64 k bit per sec. adjustable

32 clients simultaneously

Yes (PoE 802.3af)

1 input for dry contact, N.O/N.C adjustable

1 dry relay contact, N.O/N.C adjustable

70 VDC/200 mA max.

3.5mm stereo socket, sensitivity 1 Vrms

Method IMA ADPCM (Pulse Code Modulation)

Two-way audio

Alarm Input, Manual Trigger, Motion Detection and

Schedule Recording

Trigger alarm output, email notification, upload video to

FTP, record video to SD card, record video to PC and network alarm

48MB RAM reserved for pre-alarm

(record up to 120 sec.)

Pre/Post Alarm Buffer

LOCAL STORAGE

SD Card

POWER

Power Supply

Power Consumption

PHYSICAL

Weight

Dimension (W x H)

ENVIRONMENTAL

Operating Temp.

Humidity

Rating

SD card interface for local storage. Supports SDHC

12VDC & PoE

5W max. (12VDC)

550 g / 1.2 lbs

127 x 112.8 mm / 5” x 4.4"

0°C ~ 40°C / 32°F ~ 104°F

< 90% not condensing

Weather resistant IP66 rated

* Models vary in different countries. Visit www.everfocus.com and select your

country for accurate ordering information

2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
