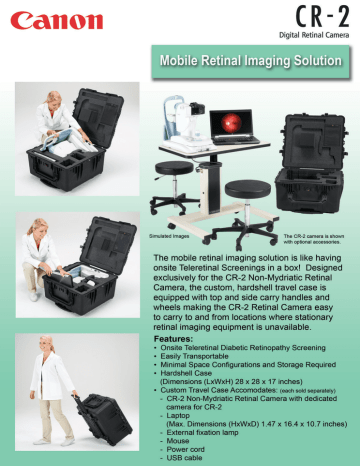

CR-2 Mobile Retinal Imaging Solution

CR-2 Mobile Retinal Imaging Solution
Canon CR-2
Digital Retinal Camera
The CR-2 camera is shown
with optional accessories.
Simulated Images
The mobile retinal imaging solution is like having
onsite Teleretinal Screenings in a box! Designed
exclusively for the CR-2 Non-Mydriatic Retinal
Camera, the custom, hardshell travel case is
equipped with top and side carry handles and
wheels making the CR-2 Retinal Camera easy
to carry to and from locations where stationary
retinal imaging equipment is unavailable.
Features:
¢ * Onsite Teleretinal Diabetic Retinopathy Screening
| » Easily Transportable
- Minimal Space Configurations and Storage Required
* Hardshell Case
(Dimensions (LXWxH) 28 x 28 x 17 inches)
1 - * Custom Travel Case Accomodates: (each sold separately)
| - CR-2 Non-Mydriatic Retinal Camera with dedicated
camera for CR-2
- Laptop
(Max. Dimensions (HxWxD) 1.47 x 16.4 x 10.7 inches)
External fixation lamp
Mouse
Power cord
USB cable
CR-2 Digital Retinal Camera
Specifications’
Type
Type of photography
Angle of view
Magnification
Minimal pupil size
Working distance
Focus adjustment range
Flash intensity
Light source
Auto exposure
Sensor resolution
Camera
Built-in monitor
Eye Fixation Lamp
Mount movement
amount
Chin rest movement
amount
Power supply
Operating Environment
Dimensions (WxDxH)
Weight
Digital retinal camera, non-mydriatic
Color, Digital Red-Free, Digital Cobalt
45 degrees
2X
4 mm (3.3 mm SP mode)
35 mm
Without compensation lens: -10 to +15D
With “-” compensation lens: -31 to -7D
With “+” compensation lens: +11 to +33D
Split-line aligning type focusing
Linked to the photography mode
Can be set manually
Observation light source: Infrared LED
Flash light source: White LED
Available
15.1 megapixels
(resolution may vary with other models)
Dedicated Camera for CR-2
3.0 inch color LCD monitor
COMPONENTS
Main Unit
Digital camera
Objective lens cap
Camera mount cap
Chin rest paper (100 sheets)
Power cable
Dust cover
CD-ROM
(Retinal Imaging control software NM)
OPTIONAL ACCESSORIES**
External eye fixation lamp EL-1
Chin rest paper (500 sheets)
Wheelchair accessible table
Hard shell travel case
Laptop
Internal eye fixation lamp, LED dot matrix, green
External eye fixation lamp (sold separately)
Stage unit: 100 mm (side to side), 70 mm
(front and back)
Main unit: 32 mm (vertical)
60 mm
AC100V to 240V, 50/60Hz, 1 to 0.4A
Temperature: 10 degrees to 35 degrees Celsius
Humidity: 30% to 90% (no condensation)
Atmospheric pressure: 800 hPa to 1060hPa
12 inches x 19.7 inches x 18.6 inches
(305 mm x 500 mm x 473 mm)
Approximately 33 pounds
Canon
CANON MEDICAL SYSTEMS, A Division of Canon U.S.A, Inc.
15955 Alton Parkway, Irvine CA 92618-3731 U.S.A.
Phone (toll-free U.S.A. only): 800-970-7227
Email: [email protected] Fax: 949-753-4184
Website: www.usa.canon.com/cr-2
*The CR-2 Digital Retinal Camera is sold separately from the travel case.
**Stools are not part of the CR-2 Digital Retinal Camera.
CANON is a registered trademark of Canon Inc. in the United States and may also be a registered trademark of trademark in other countries.
Specifications are subject to change without notice.
O 2011 Canon U.S.A., Inc. EF-014 Rev. A
