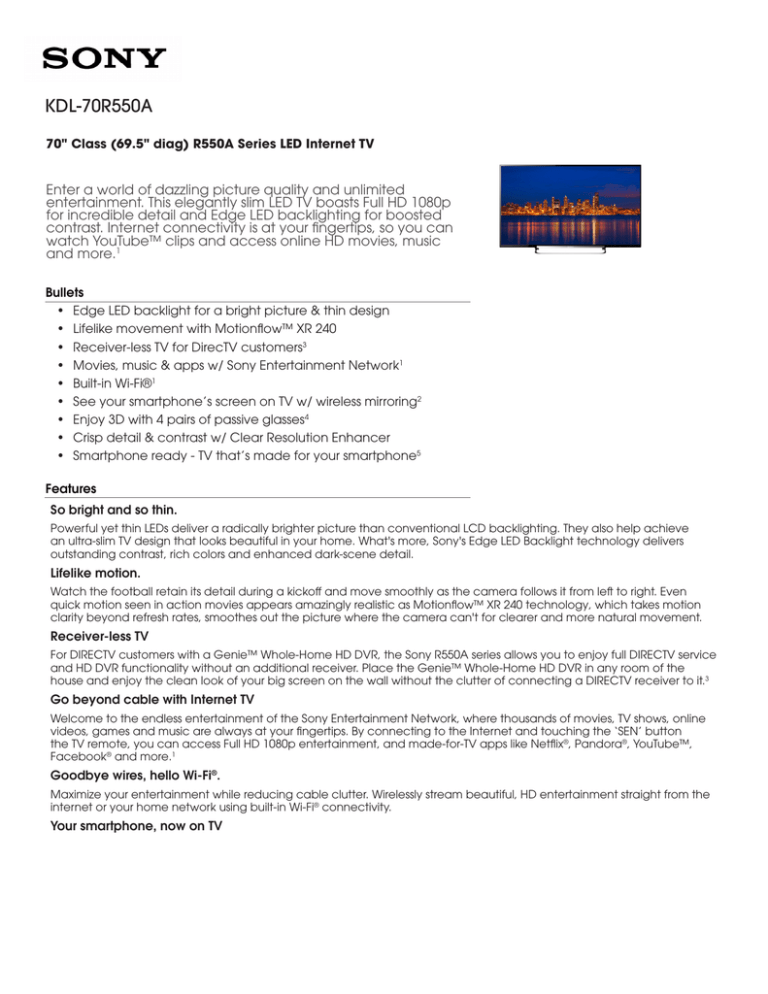

KDL-70R550A
KDL-70R550A
70" Class (69.5" diag) R550A Series LED Internet TV
Enter a world of dazzling picture quality and unlimited
entertainment. This elegantly slim LED TV boasts Full HD 1080p
for incredible detail and Edge LED backlighting for boosted
contrast. Internet connectivity is at your fingertips, so you can
watch YouTube™ clips and access online HD movies, music
and more.1
Bullets
• Edge LED backlight for a bright picture & thin design
• Lifelike movement with Motionflow™ XR 240
• Receiver-less TV for DirecTV customers3
• Movies, music & apps w/ Sony Entertainment Network1
• Built-in Wi-Fi®1
• See your smartphone’s screen on TV w/ wireless mirroring2
• Enjoy 3D with 4 pairs of passive glasses4
• Crisp detail & contrast w/ Clear Resolution Enhancer
• Smartphone ready - TV that’s made for your smartphone5
Features
So bright and so thin.
Powerful yet thin LEDs deliver a radically brighter picture than conventional LCD backlighting. They also help achieve
an ultra-slim TV design that looks beautiful in your home. What's more, Sony's Edge LED Backlight technology delivers
outstanding contrast, rich colors and enhanced dark-scene detail.
Lifelike motion.
Watch the football retain its detail during a kickoff and move smoothly as the camera follows it from left to right. Even
quick motion seen in action movies appears amazingly realistic as Motionflow™ XR 240 technology, which takes motion
clarity beyond refresh rates, smoothes out the picture where the camera can't for clearer and more natural movement.
Receiver-less TV
For DIRECTV customers with a Genie™ Whole-Home HD DVR, the Sony R550A series allows you to enjoy full DIRECTV service
and HD DVR functionality without an additional receiver. Place the Genie™ Whole-Home HD DVR in any room of the
house and enjoy the clean look of your big screen on the wall without the clutter of connecting a DIRECTV receiver to it.3
Go beyond cable with Internet TV
Welcome to the endless entertainment of the Sony Entertainment Network, where thousands of movies, TV shows, online
videos, games and music are always at your fingertips. By connecting to the Internet and touching the ‘SEN’ button
the TV remote, you can access Full HD 1080p entertainment, and made-for-TV apps like Netflix®, Pandora®, YouTube™,
Facebook® and more.1
Goodbye wires, hello Wi-Fi®.
Maximize your entertainment while reducing cable clutter. Wirelessly stream beautiful, HD entertainment straight from the
internet or your home network using built-in Wi-Fi® connectivity.
Your smartphone, now on TV
Movies, music and apps from your smartphone can now be viewed big on your TV. With two ways to connect Android
phones and tablets to the R550A, Sony is helping you add value to the entertainment you already own.
1. Using a Mobile High Definition Link cable, you can connect your smartphone to the TV to literally “mirror” what’s seen
on the smartphone screen. Video, photos and apps are re-sized and scaled to fit the larger TV screen. You can then use
the TV remote to navigate the phone, while it’s charging from the TV.5
2. Using screen mirroring technology, you can connect phones that are Miracast™ enabled to the TV.2
Theater-like 3D
Using the same passive 3D technology used in movie theaters, feel the explosive excitement of theater-like 3D. Even the
sound profile is enhanced for 3D viewing to provide a more immersive experience.3 Slip on the latest generation of light,
comfortable 3D glasses to enjoy your favorite 3D movies. Four pair of glasses included.
Clearly different.
Fine details and textures appear in whatever you’re watching, even in flat areas. Powered by Sony’s advanced noise
reduction algorithm, this technology boosts image clarity with heightened contrast and depth that you won’t find on most
televisions.
Against the grain.
Dazzle the whole family with ultra-crisp HD clarity and less grain. Digital Noise Reduction enhances detail in whatever
you're watching with meticulous processing. It even helps clean up video from USB and other PC sources so the picture
looks pristine and vivid.
Specifications
3D Features
Convenience Features
USB Play
Yes
USB Play (Contents)
MPEG1/ MPEG2TS/
MPEG2PS/ MPEG4Visual/
MPEG4AVC/ H.264/
WMV/ Xvid/ MP3/
AAC/ HE-AAC/
DolbyDigitalAC3/ DTS/
WMA/ Jpeg
Yes
USB Super Multi-Format
Play
Yes
Favorites (Simple UI)
Yes
Design Features
Info Banner
Yes
Stand Design
Input Skip
Yes
Label Inputs
Yes
Multiple Language
Display
Backlight Type
Edge LED
English/Spanish /French
Dimming Type
Frame Dimming
On/Off Timer
Yes
Display Device
LCD
On-Screen Clock
Yes
Display
On-Screen Display for
External Input
Yes
3D
Passive
Auto Shut-off
Yes
BRAVIA® Sync™
Yes
3D Format Support
HDMI: Frame Packing/
Side-By-Side/Over-Under
USB/MHL: Side-By-Side/
Over-Under
Channel Block (with
password)
Yes
Simulated 3D
Yes
Channel Jump
Yes
Channel Surf
Yes
Edit Channel Labels
Audio
Audio Power Output
10W + 10W
Speaker Configuration
Full Range (45x200mm)
x2
Speaker Position
Bottom
Audio Features
5.1 Channel Audio Out
Yes
5.1ch Through Out
(Handycam)
Yes
Alternate Audio
(Digital)
Yes
Audio Out
Variable/Fixed
Dolby®
MS10 (Dolby Digital Plus,
Dolby Pulse)
Parental Control
Yes
Photo Frame Mode
Yes
Invisible Speaker
Yes
Sound Booster
Yes
Picture Adjustments
Lock
Yes
Sound Mode
Standard
Music
Cinema
Game
Sports
Scene Select
Music
Cinema
Game
Graphics
Sports
SteadySound®
Automatic Volume
Control
Yes
Stereo System
MTS(AUTO SAP)
Show/Hide Channels
Yes
Sleep Timer
Yes
Twin Picture
PAP(Fixed),PIP
Steel Rod / Chrome
Plating
Display Features
Aspect Ratio
16:9
Display Resolution
Full HD
Dynamic Contrast
Ratio
over 1 million
Screen Size (cm)
176.6 cm
Screen Size (measured
diagonally)
70"(69.5")
Viewing Angle (Right/
Left)
176(88/88)
Viewing Angle (Up/
Down)
176(88/88)
Energy Saving & Efficiency
Backlight Off Mode
Yes
Dynamic Backlight
Control
Yes
Energy Star®
compliant
Ver6
Power Consumption
(On Mode) for Energy
Star
102.6W
Power Consumption
(Standby Mode) for
Energy Star
0.153W
Power Consumption
(in Standby)
0.2W
Digital Noise Reduction
Yes
LED Motion Mode
Power Requirements
(frequency)
Yes
60Hz
Live Color™
Technology
Yes
Power Requirements
(voltage)
AC120V
Motionflow™
Technology
Motionflow XR 240
MPEG Noise Reduction
Yes
Picture Mode
Vivid
Standard
Custom
Cinema
Graphics
SimulView™
Yes
Wide Mode
Full
Normal
Wide Zoom
Zoom
Caption
Normal/Full1/Full2 for PC
Recycled & Recyclable Materials
Packaging Materials
Recycled Carton (more
than 40%)
Regulation and Standards Compliance
General Features
VESA® Hole Pitch
300x300 mm /11 7/8x11
7/8 inch
Yes
VESA® Hole Spacing
Compatible
Yes
Finish (Surface Color)
Black
Sensing Features
Hotel Mode Menu
Yes
Start Up Sony Logo
Display
Yes
LightSensor™
Technology
Audio Return Channel
Yes
Closed Captions (CC)
Yes
Demo Mode
Inputs and Outputs
Yes
TV System
AC Power Input
1 (Rear)
Channel Coverage
(Analog)
VHF: 2-13/UHF: 14-69/
CATV: 1-135
Analog Audio Input(s)
(Total)
1(Rear)
Channel Coverage
(Digital Cable)
CATV: 1-135
Audio Out
1(Rear)
VHF: 2-13/UHF: 14-69
Component Video (Y/
Pb/Pr) Input(s)
1 (Rear Hybrid w/
Component)
Channel Coverage
(Digital Terrestrial)
Color System
NTSC
1(Digital/Analog)
Composite Video
Input(s)
1 (Rear Hybrid w/
Component)
Number of Tuners
(Terrestrial/Cable)
Digital Audio Output(s)
1(Rear)
TV System (Analog)
M
Ethernet Connection(s)
1 (Rear)
Clear QAM
HDMI™ Connection(s)
(Total)
TV System (Digital
Cable)
4 (2Rear,2Side)
HDMI™ PC Input
Yes
TV System (Digital
Terrestrial)
MHL
Yes
RF Connection Input(s)
1 (Rear)
USB 2.0
2 (Side)
ATSC
Video Signal
1080/24p (HDMI only)
1080/60i
1080/60p(HDMI /
Component)
480/60i
480/60p
720/60p
1080/30p (HDMI™ only)
720/30p (HDMI™ only)
720/24p (HDMI™ only)
BIVL (System)
Yes
DLNA Content
JPG/ MP3/ WMA/
MPEG1/ MPEG2PS/
MPEG2TS/ AVCHD/ MP4/
WMV
Internet_Browser
Yes (Opera)
Video Features
Opera Apps (System)
Yes
Screen mirroring
Yes
24p True Cinema™
Technology
Yes
Sony Entertainment
Network
Yes
3D Comb Filter
Yes
4:3 Default
Yes
TV Tweet
Yes (Opera)
Wi-Fi Certified
Yes
Advanced Contrast
Enhancer (ACE)
Yes
Wi-Fi Direct
Yes
Auto Wide
Yes
Wireless LAN
Integrated
Blinking Type
Frame Blinking
Yes
240W
CineMotion®
Reverse 3:2 Pulldown
Technology
Clear Resolution
Enhancer
Yes
Power
Power Consumption
(in Operation) max.
Dimensions (Approx.)
TV only: 62 1/2 x 36 3/4
x 3 5/8 (2 1/4) in (1587 x
931 x 90.54 mm)
TV with stand: 62 1/2 x 38
1/2 x 15 in (1587 x 975 x
378 mm)
Packaging (Approx.)
Carton Weight: 103.6 lbs
(47.0 kg)
Carton Dimensions: 69
5/8 x 40 5/8 x 8 5/8 in
(1767 x1030 x 217 mm)
Weight (Approx.)
TV only: 79.3 lbs (36.0 kg)
TV with stand: 83.8 lbs
(38.0 kg)
Optional Accessories
Video
Network Features
Weights and Measurements
3D Glasses
TDG-500P/TDG-SV5P
Wallmount Bracket
SU-WL500
Accessories
Supplied Accessories
3D Glasses x 4 (TDG500P)
AC Power Cord (US 2 Pin,
Pig Tail)
Table Top Stand
(assembly required)
Operating Instructions
(US)
Warranty (12 months)
Remote Control (RMYD094)
Batteries (R03)
1. Broadband speed of at least 2.5 Mbps recommended (10 Mbps for HD). Content subject to change and may require fees. Wireless connectivity requires 802.11 home network (802.11n
recommended).
2. Requires smartphone with Wi-Fi® certified Miracast™ technology. Certain formats are not supported. The video quality may be degraded due to environmental interference.
3. Requires compatible DIRECTV Genie™ Whole Home HD DVR and TV be connected to the same wireless home network.
4. Requires 3D content, 3D player, HDMI® cable (at least 10.2 Gbps) and 3D active glasses sold separately.
5. Requires Mobile High Definition Link-compatible smartphone to be connected to the TV with a Mobile High Definition Link cable, sold separately.
6. Requires active internet connection and devices connected to the same wireless home network.
© 2013 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Sony, BRAVIA, Motionflow, Sony Tablet and the Sony make.believe logo are trademarks of Sony. PlayStation is a trademark of Sony Computer Entertainment Inc. TrackID is a trademark of
Sony Ericsson Mobile Communications AB. Blu-ray Disc is a trademark. Android is a trademark of Google Inc. iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.
All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice.
/Updated: February 18, 2014
