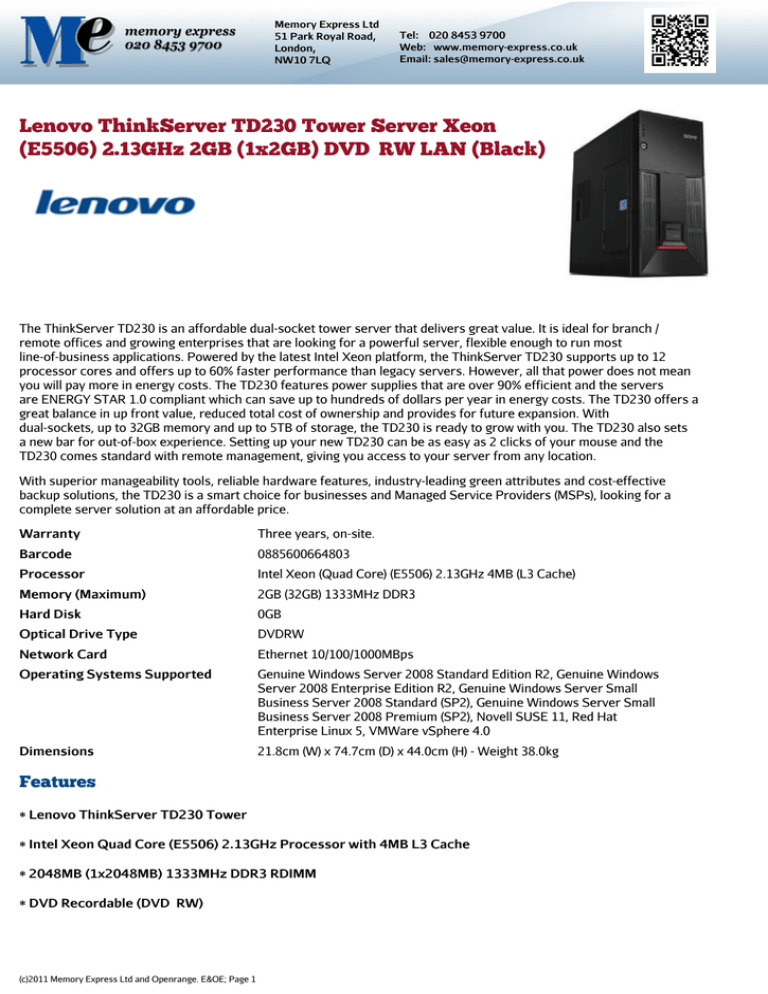

Lenovo ThinkServer TD230 Tower Server Xeon

Lenovo ThinkServer TD230 Tower Server Xeon
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
Lenovo ThinkServer TD230 Tower Server Xeon
(E5506) 2.13GHz 2GB (1x2GB) DVD±RW LAN (Black)
The ThinkServer TD230 is an affordable dual-socket tower server that delivers great value. It is ideal for branch /
remote offices and growing enterprises that are looking for a powerful server, flexible enough to run most
line-of-business applications. Powered by the latest Intel Xeon platform, the ThinkServer TD230 supports up to 12
processor cores and offers up to 60% faster performance than legacy servers. However, all that power does not mean
you will pay more in energy costs. The TD230 features power supplies that are over 90% efficient and the servers
are ENERGY STAR 1.0 compliant which can save up to hundreds of dollars per year in energy costs. The TD230 offers a
great balance in up front value, reduced total cost of ownership and provides for future expansion. With
dual-sockets, up to 32GB memory and up to 5TB of storage, the TD230 is ready to grow with you. The TD230 also sets
a new bar for out-of-box experience. Setting up your new TD230 can be as easy as 2 clicks of your mouse and the
TD230 comes standard with remote management, giving you access to your server from any location.
With superior manageability tools, reliable hardware features, industry-leading green attributes and cost-effective
backup solutions, the TD230 is a smart choice for businesses and Managed Service Providers (MSPs), looking for a
complete server solution at an affordable price.
Warranty
Three years, on-site.
Barcode
0885600664803
Processor
Intel Xeon (Quad Core) (E5506) 2.13GHz 4MB (L3 Cache)
Memory (Maximum)
2GB (32GB) 1333MHz DDR3
Hard Disk
0GB
Optical Drive Type
DVDRW
Network Card
Ethernet 10/100/1000MBps
Operating Systems Supported
Genuine Windows Server 2008 Standard Edition R2, Genuine Windows
Server 2008 Enterprise Edition R2, Genuine Windows Server Small
Business Server 2008 Standard (SP2), Genuine Windows Server Small
Business Server 2008 Premium (SP2), Novell SUSE 11, Red Hat
Enterprise Linux 5, VMWare vSphere 4.0
Dimensions
21.8cm (W) x 74.7cm (D) x 44.0cm (H) - Weight 38.0kg
Features
* Lenovo ThinkServer TD230 Tower
* Intel Xeon Quad Core (E5506) 2.13GHz Processor with 4MB L3 Cache
* 2048MB (1x2048MB) 1333MHz DDR3 RDIMM
* DVD Recordable (DVD±RW)
(c)2011 Memory Express Ltd and Openrange. E&OE; Page 1
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
Lenovo ThinkServer TD230 Tower Server Xeon
(E5506) 2.13GHz 2GB (1x2GB) DVD±RW LAN (Black)
* DVD Recordable
* Dual gigabit ethernet
* Integrated Dual Gigabit Ethernet
* 625Watt fixed power supply
* 5 x 3.5-inch DC SATA HDD support
* 60% faster performance-Intel Xeon 5500 and 5600 series processors with up to 12 CPU cores
* Three years, on-site warranty
* Integrated Web-enabled remote manageability features
* Significant power savings with ENERGY STAR qualification
* High levels of data protection-enhanced RAID levels and battery cache
* Robust storage capacity-up to 5 TB with 5 storage bays
* Rapid 2-click setup and advanced management solutions
* High-performance SAS drives or low-cost SATA drives
* Whisper-quiet operation
* Flexible configurations to solution any workload
Specification
General
The ThinkServer TD230 is an affordable dual-socket tower server that delivers great value. It is ideal for branch /
remote offices and growing enterprises that are looking for a powerful server, flexible enough to run most
line-of-business applications. Powered by the latest Intel Xeon platform, the ThinkServer TD230 supports up to 12
processor cores and offers up to 60% faster performance than legacy servers. However, all that power does not mean
you will pay more in energy costs. The TD230 features power supplies that are over 90% efficient and the servers
are ENERGY STAR 1.0 compliant which can save up to hundreds of dollars per year in energy costs. The TD230 offers a
great balance in up front value, reduced total cost of ownership and provides for future expansion. With
dual-sockets, up to 32GB memory and up to 5TB of storage, the TD230 is ready to grow with you. The TD230 also sets
a new bar for out-of-box experience. Setting up your new TD230 can be as easy as 2 clicks of your mouse and the
TD230
comes
standard
with remote
giving you access to your server from any location.
(c)2011
Memory
Express
Ltd and Openrange.
E&OE;management,
Page 2
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
Lenovo ThinkServer TD230 Tower Server Xeon
(E5506) 2.13GHz 2GB (1x2GB) DVD±RW LAN (Black)
With superior manageability tools, reliable hardware features, industry-leading green attributes and cost-effective
backup solutions, the TD230 is a smart choice for businesses and Managed Service Providers (MSPs), looking for a
complete server solution at an affordable price.
Warranty
Three years, on-site.
Barcode
0885600664803
CPU
Processor
Intel Xeon (Quad Core) (E5506) 2.13GHz 4MB (L3 Cache)
Motherboard
Chipset
Intel 5500
PCI Express Slot
3 x PCI Express x8 1 x PCI Express x4 Slots
PCI 32 bit
1 x PCI Slots
Integrated Network
Yes
BIOS
BIOS
Flash
Memory
Memory (Maximum)
2GB (32GB) 1333MHz DDR3
Memory Slots (Free)
8 x DIMM
Storage
Hard Disk
0GB
HotSwap Bays (Free)
5
Maximum External Storage
5TB
Storage: Included Array
RAID Format
RAID Level 0, 1, 10
Optical Drive
Optical Drive Type
(c)2011 Memory Express Ltd and Openrange. E&OE; Page 3
DVDRW
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
Lenovo ThinkServer TD230 Tower Server Xeon
(E5506) 2.13GHz 2GB (1x2GB) DVD±RW LAN (Black)
Interfaces/Ports
RJ-45 Ports
2 x RJ-45
VGA Port
1 x VGA
USB Ports
6 x USB 2.0 (2 Front, 4 Rear)
Serial Ports
1 x Serial
Network
Network Card
Ethernet 10/100/1000MBps
System
Management
Web Remote Management capable, iBMC Standard
System Requirements
Operating Systems Supported
Genuine Windows Server 2008 Standard Edition R2, Genuine Windows
Server 2008 Enterprise Edition R2, Genuine Windows Server Small
Business Server 2008 Standard (SP2), Genuine Windows Server Small
Business Server 2008 Premium (SP2), Novell SUSE 11, Red Hat
Enterprise Linux 5, VMWare vSphere 4.0
Compliance
Standards
ENERGY STAR for servers 1.0 qualified
Electrical
Voltage/Power/Frequency
100 to 240VAC / 50 to 60Hz
Electrical Power Available
625W
Environmental
Environmental
Operating Temperature 10 to 35C - Humidity 8 to 80%
Physical
Case Colour
(c)2011 Memory Express Ltd and Openrange. E&OE; Page 4
Black
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
Lenovo ThinkServer TD230 Tower Server Xeon
(E5506) 2.13GHz 2GB (1x2GB) DVD±RW LAN (Black)
In The Box
ThinkServer TD230 systems, Power cord, Publications
Dimensions
21.8cm (W) x 74.7cm (D) x 44.0cm (H) - Weight 38.0kg
(c)2011 Memory Express Ltd and Openrange. E&OE; Page 5
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
Lenovo ThinkServer TD230 Tower Server Xeon
(E5506) 2.13GHz 2GB (1x2GB) DVD±RW LAN (Black)
Options
High capacity removable media dr
Lenovo
67Y1394
Lenovo 160GB Internal USB Bundle (RDX Backup)
£319.67
VIEW>
Hard Disk Drives
Lenovo
67Y1402
Lenovo 3.5-inch 1TB 7200rpm Serial ATA II Cabled Hard Drive
for ThinkServer TS200v
£302.33
VIEW>
Lenovo
67Y1401
Lenovo 3.5-inch 500GB 7200rpm Serial ATA II Cabled Hard
Drive for ThinkServer TS200v
Call us
VIEW>
Lenovo
67Y1400
Lenovo 3.5-inch 250GB 7200rpm Serial ATA II Cabled Hard
Drive for ThinkServer TS200v
£146.33
VIEW>
67Y1433
Lenovo 4096MB Memory Module PC3-10600 1333MHz DDR3 (2R x 4)
ECC RDIMM for ThinkServer RD240
£166.18
VIEW>
RAM
Lenovo
