XT-53: The XT-53 transmitter uses a 3-volt lithium ion batteries (#CR2032) To replace the battery,
SILENT LOCKING AND UNLOCKING: ARMING / DISARMING: Press the
button on the
transmitter to LOCK or UNLOCK your security system, No chirp sound will be heard; arm / disarm
confirmation will be through the vehicles parking lights only.
you will need to use a small flat blade screwdriver. Locate the small notch on the lower right side of the
transmitter case next to the key ring. Using the flat blade screwdriver, carefully pry the top case from the
bottom case. It should snap apart after breaking the seal. Before removing the batteries note the
direction of the positive (+) terminal. Place the new batteries in exactly the same manner, being careful
not to bend or damage the contact terminal. Snap the cases back together and then test the transmitter
to insure it arms and disarms the alarm.
SHOCK SENSOR / OPTIONAL SENSOR BY-PASS: Pressing the
button on the transmitter twice
within 3 seconds will arm the security system and by-pass the shock sensor. The system will chirp
one additional time to confirm the sensor bypass mode was activated. The sensor bypass feature is
programmed to activate for one arming cycle only. The security system will return to normal operation
during the next arming cycle
CHANGING THE BATTERY IN YOUR TRANSMITTERS
PASSIVE LOCKING OR ARMING : Programmable
Active arming / disarming is controlling your security system via the remote transmitter. This
security system is equipped with an optional Passive Arming feature, which allows the security
system to arm 30 seconds after the last door is closed. Operation is as follows.
1.
2.
Turn the ignition to the “OFF” position and exit the vehicle.
After all entrances are closed, the security system LED will flash fast for 30 seconds. If you
reopen any door / hood / trunk, the security system LED will stop flashing. It will begin flashing
again once all vehicle entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically “ARM”. The siren or
horn will chirp [1] time and the parking lights will flash [1] time.
PASSIVE DOOR LOCKING: Programmable
The vehicle doors will automatically lock after passive arming cycle has been completed.
ACTIVE UN-LOCKING – UNLOCK & DISARM:
TRANSMITTER OPERATION
Transmitter
Button
System Function
Remark
Lock Doors & Arm System
Panic function
Press and Hold for 3 seconds
Car Locator
Under armed mode
-
Arm and Delete The 2 Stage Shock
Sensor
Press twice within 3 seconds
+
Silent Arming / Disarming
Ignition in "off" position.
-
Two Steps Door Unlock & Disarm
System
Press twice within 3 seconds.
Trunk Release (Channel 3)
Press and Hold for 2 seconds
Passive Arming By-pass
While the system Disarmed.
Silent Arming / Disarming or 4th ch
+
Switching code For 2nd Car Operation.
ALARM OPERATING CONDITION: (OPTIONAL)
Parking Lights
Function
Siren or horn
LED
Doors
Starter
Disable
1. Arm
2. Disarm
1 Chirp
1 Flash
2or4 Chirps 2 or 3 Flashes
Slow flash
Locking
Off or Fast flash Unlocking
On
Off
3. Trigger
4. Panic
Alarming
Alarming
Slow flash
Slow flash
On
On
Flashing
Flashing
door only when disarming the security system. Pushing the
button on the transmitter a second
time within 3 seconds will unlock the entire vehicle. (Optional, Additional installation required).
AUTOMATIC RE-LOCKING or RE-ARM: If this feature is selected, the security system will
automatically re-arm itself 60 seconds after disarming with remote transmitter. Automatic rearm will
cancel if any door is opened before the 60 seconds timer has elapsed.
DISARMING WITHOUT A TRANSMITTER
Unlock Doors & Disarm System
-
1. Press the
button on the transmitter.
2. The siren or horn will chirp twice and parking lights will flash twice to indicate that the security
system is now disarmed. The vehicle doors will unlock when interfaced with the security system.
TAMPER DISARMING: (OPTIONAL). If the alarm is triggered; Upon disarming the system the
siren or horn will chirp 4 times and parking lights will flash 3 times. This will indicate that the alarm
has been triggered while armed.
TWO STEP DOOR UNLOCK: (OPTIONAL) This feature will independently unlock the driver’s
Locking
ACTIVE LOCKING – LOCK & ARMING:
1. Press button on transmitter.
2. The siren or horn will chirp once and the parking lights will flash once indicating that the system is
now armed. The vehicle doors will lock upon arming when interfaced with the security system.
Note: Defective sensor reminder: If the siren or horn sounds 3 chirps, then you have left a door, trunk,
or hood lid ajar. (OPTIONAL)
The Override function may be used if the remote transmitter is lost or inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode. You can now start and operate the
vehicle normally.
VALET MODE:
The valet switch allows you to temporarily bypass all alarm functions eliminating the need to hand
your transmitter to parking attendants or garage mechanics. When the system is in valet mode,
all alarm functions are bypassed, however, the remote panic feature and remote door locks will
remain operational.
Enter Valet Mode:
1. Turn the ignition to “ON” position.
2. Push and hold valet switch for 2 seconds or until the LED turns on. The LED will remain on as
long as the system is in 'valet mode'.
Exit Valet Mode:
1. Return to normal operation, turn ignition 'ON'.
2. Push and hold valet switch for 2 seconds; the LED will turn off indicating the system is exiting
the valet mode.
PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm in case of
emergency.
1.
Press and hold the
sound.
2.
To stop the alarm, press and hold the
button for 3 seconds on the transmitter, the panic
mode will be turned off immediately.
If the button is not pressed, the alarm will automatically stop after 30 seconds.
3.
button on the transmitter for 3 seconds. The alarm will immediately
TRIGGER THE SYSTEM: (OPTIONAL) If alarm option is installed.
When armed, your vehicle is protected as follows:
1. Light impacts will trigger the warn-away signal. A long chirp from siren /horn.
2. Heavy impacts / Doors open / Hood open / Trunk open / Turning on the ignition switch- All will trigger the
programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The siren or horn and parking
lights will turn on to alert of an intrusion for 30 seconds. Then the siren or horn will stop and automatically reset
and re-arm. If any the sensors or detectors are still active, the alarm system will sound a maximum of three-30
second cycles.
ANTI CAR-JACKING: (OPTIONAL) If alarm option is installed.
Warning: If you don't need the carjacking function in this alarm system, be sure to set carjacking feature “OFF”.
This system is default setting Car-jacking “OFF”.
1. TRANSMITTER ACTIVATES THE CAR JACKING:
Press and hold
+
button on the transmitter for 1 second while the vehicle’s ignition is ON. The parking
light will turns on for 1.5” seconds to indicate car jacking activated.
2. DOOR SWITCH ACTIVATE CAR JACKING:
1. Turn the ignition switch to “ON” position, the system is armed.
2. Once the system is armed, if you are forced from the vehicle, the system will active the carjacking trigger
when the door is opened and closed while the ignition is “ON”.
TRIGGER THE CAR JACK MODE:
3-timer circuits will function as follows:
First timer:
a. 50 seconds after the system has been triggered. The siren or horn will start chirping for 15 seconds.
b. During this 15 seconds period of chirping, you will be alerting to push the valet switch once to turn off the
car-jacking feature.
c. If not, it will enter second timer car jacking.
Second timer:
65 seconds after the system has beer triggered. The siren or horn starts alarming and the parking light starts
flashing.
Third timer:
90 seconds after the system has been triggered
a. The siren or horn will still be alarming and the parking light flashing.
b. The starter disable will activate to prevent the vehicle from starting.
c. It will remain active until the vehicle's battery power exhausted.
OVERRIDE THE SYSTEM TO TURN OFF CAR JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch. The siren or horn will
stop and the system will be disarmed
IGNITION CONTROL DOOR LOCKS.
If the vehicle’s door locks have been interfaced to the security system, the system will automatically lock the
vehicle's doors when the ignition is turned “ON” and /or unlock the vehicle’s doors when the ignition is turned
“OFF”.
TRUNK RELEASE: Press and hold
release or other electric devices.
button on transmitter for three seconds to remote control the trunk
CAR LOCATOR : Press the
button on the transmitter when the vehicle is in the armed / locked mode to active
car locator function. The siren or horn will chirp 6 times. The parking light will flash 12 times, allowing you to easily
locate your car.
LIMITED LIFETIME WARRANTY PROVISIONS
( U.S. ,Continental U.S. and Canada Only)
VARAD International offers an industry-leading lifetime system warranty on the Autopage brand of remote start and security
products which protects users of its products from defects in material and workmanship under normal use and circumstances. This
warranty only covers materials both sold and installed by an "Authorized Dealer" of Autopage product
"Authorized Dealer" is defined by VARAD International as a company who qualifies to purchase Autopage products directly from
VARAD International, or one of its approved distributors. Thus, products not sold nor installed by an "Authorized Dealer" are not
covered by this warranty. This includes, but is not limited to, Autopage products sold on Amazon.com that are not supplied directly
by Amazon or eBay.com. If you would like more information on "Authorized Dealer" locations, please e-mail
[email protected] or visit www.Autopageusa.com.
Autopage Lifetime System Warranty does NOT cover remote transmitters, or RF kits, as these materials are covered by a separate
warranty. Autopage remote transmitters are covered by a 1-year warranty, which protects users from defects in material and
workmanship.
VARAD International warrants to the original purchaser that this product shall be free of defects in material and workmanship under
normal circumstances for the period of time that the original owner of this product owns the vehicle in which it is first installed;
except that the remote controller unit, or "brain", for the period of five years from the date of installation to the original owner of this
product. When purchased or prepaid postal to VARAD International, 5349 Zambrano Street, Commerce,CA, USA within the
warranty period, and if the product is defective, VARAD International i.e. Autopage will at its own option, repair or replace as such.
To the maximum extent allowed by law, any and all warranties are excluded by the manufacturer and each entity participating in the
stream of commerce there with. This exclusion includes but is not limited to, the exclusion of any and all warranty of merchantability
and/or any and all warranty of fitness for a particular purpose and/or any and all warranty of non-infringement or patents, in the
United States of America and/or abroad. Neither the manufacturer of any entities connected therewith shall be responsible or liability
for any damages whatsoever, including but not limited to, any consequential damages, incidental damages, damages for loss of time,
loss of earnings, commercial loss, loss of economic opportunity and the like, notwithstanding the above, manufacturer does offer a
limited warranty to replace or repair the control module, or "brain", as described above.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation on how long an implied
warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty gives you the specific legal
rights, and you may also have other rights, which vary state to state.
VARAD International i.e. Autopage, is not responsible or liable for any damages whatsoever, including but not limited to, any
consequential damages, incidental damages, damages for loss of time, loss of earnings, commercial loss, loss of economic
opportunity, and the like that may or may not result from the operation of Autopage products. Not with standing the above, VARAD
International i.e. Autopage does offer a limited warranty to replace or repair the control module, or "brain", as described above.
355A
355A

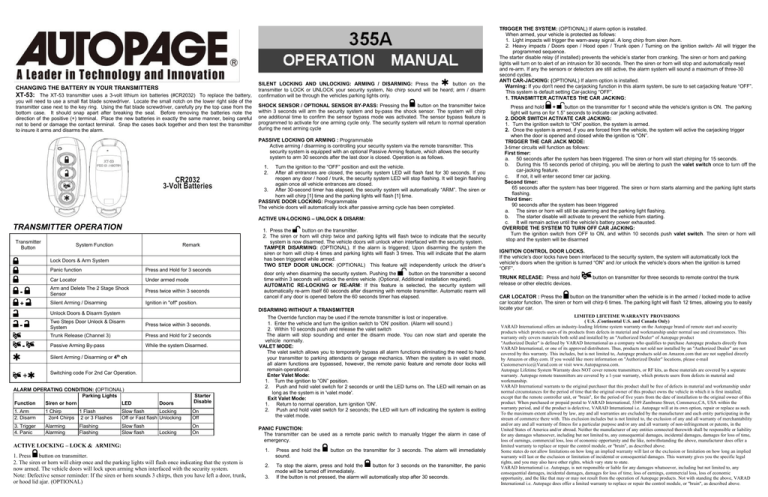

INSTALLATION
Transmitter Programming
MANUAL
Note: This mode will only retain the last 4 remote transmitters programmed. If the transmitter
memory is exceeded, the security system will start deleting transmitters from memory in
chronological order.
1. Turn the Ignition 'switch ‘OFF/ON’ 3 TIMES and stay in ON position.
“Within 15 seconds”.
2. Push the Valet switch 2 times and hold it on the 2nd push until a long chirp is heard then
release the valet switch. You are now in the Transmitter programming mode.
3. Press and hold any button of the transmitter until the siren responds with a confirming chirp,
indicating the signal has been stored into memory.
4. If you have additional transmitters (up to 4) that need to be programmed, repeat step 3 for
each transmitter.
Exit: Turn Ignition to 'OFF' position, or leave it for 15 seconds. 3 long chirps & 3 parking light
flashes will confirm exit.
8 PIN CONNECTOR WIRE HARNESS:
ALARM FEATURE “B” PROGRAMMING:
1
2
Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
Push the Valet switch 5 times and hold in on the 5th push. When a long chirp is heard, release the
valet switch. You are now in the Alarm feature ‘B’ programming mode.
3
Press the transmitter button corresponding to the feature you want to program.
One Chirp / LED
Press
one pulse
Four Chirps /
Transmitter
Two Chirps / LED
Three Chirps / LED
LED four
two pulses
three pulses
pulses
Factory Default
Button
Setting
Pathway
Parking light turns
Parking light turns
1
illumination feature
“on” for 30- second
“on” for 30- second
“off”
upon an unlock
upon an unlock signal
signal
& 10-second upon a
lock signal.
Ignition controlled
Without ignition
2
Ignition controlled
Ignition controlled
door locks &
controlled door
door locks only
door unlocks only
unlocks
locks & unlocks
* Starter Kill relay optional
ALARM FEATURE “I” PROGRAMMING:
1
2
3
4
Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
Push the Valet switch 3 times and hold in on the 3rd push. When a long chirp is heard, release the
valet switch. You are now in the Alarm feature ‘I’ programming mode.
Press the transmitter button corresponding to the feature you want to program.
a. The factory default settings is always [1] LED flash, [1] chirp.
Depress the transmitter button again to change the feature. Simply keep pressing the transmitter
button again until the module advances to your desired setting.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
1
Active arming
5 PIN WIRE HARNESS
2
1. Red / White Wire: Parking Light Relay input
4. Brown Wire: Positive output To
Siren
5. Red Wire: +12V To Constant Battery Source
Passive arming
without passive
door locking
Automatic Rearm
on
3
Instant Door Ajar
error chirp
45 seconds delay
Door Ajar error
chirp.
4
Siren Confirmation
chirp on only
All Confirmation
chirps On
5
+
15A Fuse
White wire=
Dome Light Output
6
+
This manual was written September 1, 2015
7.
+
©2015 Varad International, Inc. All rights reserved.
8.
+
GI-S346
LED two pulses
Automatic Rearm off
2. White Wire: Parking Light Relay Output
3. Black Wire: Ground to Vehicle FRAME
Two Chirps /
White wire=
4th Channel
Momentary
Lock/Arm &
Unlock/Disarm
Confirmation Chirps
Lock/Arm
Confirmation
Chirp Only
ALARM with
Keyless Entry
Keyless Entry
ONLY
Car Jacking
feature Off
Car Jacking
feature On
Three Chirps
/
LED three
pulses
Passive
arming with
passive door
locking.
3
0.8-second Door
lock pulses.
3rd Channel Pulsed
4
5
Four Chirps /
LED four
pulses
+
6
+
7.
+
3.5-second Door
lock pulse.
Double pulse unlock
Comfort feature
3rd Channel
Momentary
Button = 4th
Channel Aux.
Button =
Silent Arm/Disarm
Gray Wire = Trunk
(Channel 3) Output
Gray Wire = Two
Step Door Unlock
Output
Horn chirp Duration
Horn chirp Duration
Horn chirp Duration
Standard
50 mS
30 mS
Horn chirp
duration
10 mS
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. 3 long chirps will confirm exit.
SHOCK SENSOR ADJUSTMENT
Horn
Confirmation
chirp on only
White =
4th channel
Latched
All
Confirmation
chirps off
1.
2.
Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
Push the Valet switch 7 times holding in on the 7th push. Three chirps with a long chirp will be heard. Release the valet
switch. You are now in the Alarm feature ‘Shock Sensor’ programming mode.
3.
Press and hold
shock sensor.
4.
Press
button on the transmitter once. This will decrease sensitivity level by one. Each time the button is pushed and a
decrease is made the siren/horn chirp will respond with [1] chirp. Two chirps indicate the minimum sensitivity. Warn away &
full trigger will be deleted when minimum sensitivity is selected
button for 2 seconds. One long siren chirp will indicate the unit is ready to accept adjustments of the
5.
Press
button on the transmitter once. This will increase sensitivity level by one. Each time an increase is made the
siren/horn chirp will respond with [1] chirp. Two chirps indicate the maximum sensitivity.
6. Hit the bumper or strong metal part of the vehicle to test the threshold level of the sensor.
a). Activate the warn-away (first stage the shock sensor), the siren will emit a short chirp.
b). Activate the full alarm (second stage the shock sensor), the siren will emit a long chirp.
7. When you are satisfied with the setting, press the
unit has locked in the adjustment.
button to lock in the adjustment. One long siren chirp will indicate the
Note: If 30 seconds of inactivity expires or you turn ON the ignition during of above steps, the unit will exit the program mode
and return to the disarmed mode. Three long chirps will confirm exit.
Varad International, Inc.
5349 Zambrano Street,
Commerce,CA 90040
www.varad.com
FCC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
