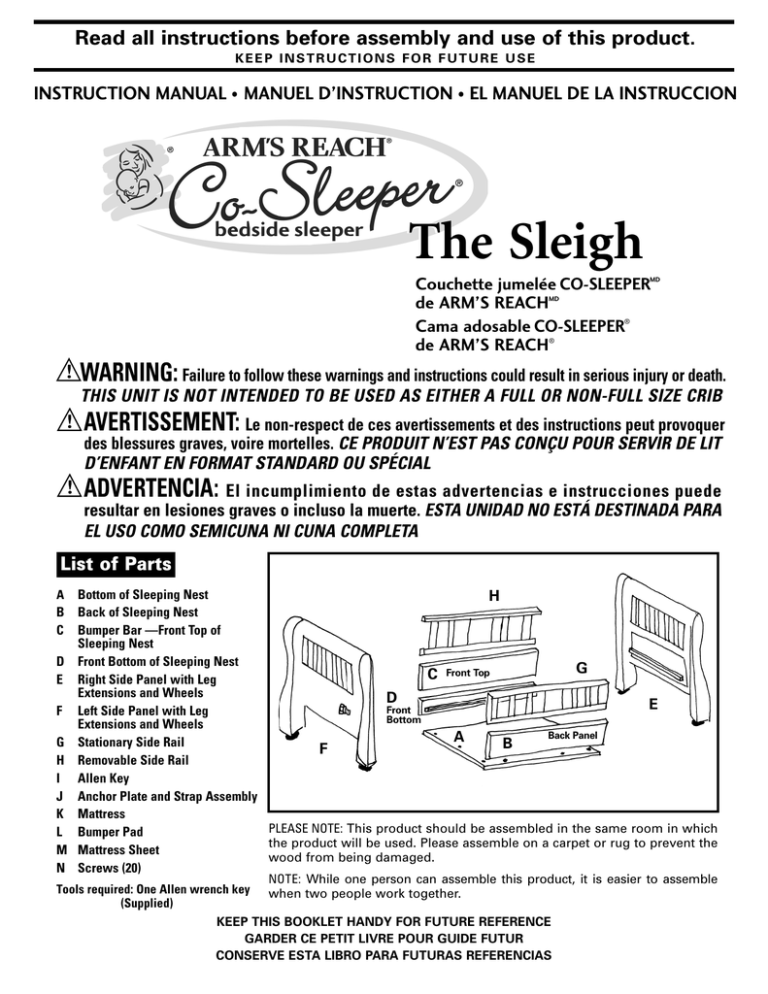

SLEIGH Instruction2004 Revision (Page 1)

SLEIGH Instruction2004 Revision (Page 1)
Read all instructions before assembly and use of this product.
KEEP INSTRUCTIONS FOR FUTURE USE
INSTRUCTION MANUAL • MANUEL D’INSTRUCTION • EL MANUEL DE LA INSTRUCCION
T he Sleigh
Couchette jumelée CO-SLEEPER
de ARM’S REACH
Cama adosable CO-SLEEPER®
de ARM’S REACH®
MD
MD
!
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
THIS UNIT IS NOT INTENDED TO BE USED AS EITHER A FULL OR NON-FULL SIZE CRIB
!
AVERTISSEMENT: Le non-respect de ces avertissements et des instructions peut provoquer
des blessures graves, voire mortelles. CE PRODUIT N’EST PAS CONÇU POUR SERVIR DE LIT
D’ENFANT EN FORMAT STANDARD OU SPÉCIAL
!
ADVERTENCIA: El incumplimiento de estas advertencias e instrucciones puede
resultar en lesiones graves o incluso la muerte. ESTA UNIDAD NO ESTÁ DESTINADA PARA
EL USO COMO SEMICUNA NI CUNA COMPLETA
List of Parts
Bottom of Sleeping Nest
H
Back of Sleeping Nest
Bumper Bar —Front Top of
Sleeping Nest
D Front Bottom of Sleeping Nest
G
C Front Top
E Right Side Panel with Leg
Extensions and Wheels
D
E
Front
F Left Side Panel with Leg
Bottom
Extensions and Wheels
Back Panel
A
G Stationary Side Rail
B
F
H Removable Side Rail
I Allen Key
J Anchor Plate and Strap Assembly
K Mattress
PLEASE NOTE: This product should be assembled in the same room in which
L Bumper Pad
the product will be used. Please assemble on a carpet or rug to prevent the
M Mattress Sheet
wood from being damaged.
N Screws (20)
NOTE: While one person can assemble this product, it is easier to assemble
Tools required: One Allen wrench key
when two people work together.
(Supplied)
KEEP THIS BOOKLET HANDY FOR FUTURE REFERENCE
GARDER CE PETIT LIVRE POUR GUIDE FUTUR
CONSERVE ESTA LIBRO PARA FUTURAS REFERENCIAS
A
B
C
Read all instructions before assembly and use of this product.
!
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
THIS UNIT IS NOT INTENDED TO BE USED AS EITHER A FULL OR NON-FULL SIZE CRIB.
SUFFOCATION HAZARD. Discard all packing materials immediately after opening. Plastic bags
and ties may cause suffocation or choking. Caution: do not discard the anchor plate with the two
10 foot long straps, as this is necessary for using the product in the co-sleeping configuration.
• NEVER leave child unattended in the Arm's Reach® CO-SLEEPER ® bedside sleeper.
• Before assembly, inspect product for damaged hardware, loose joints, missing parts or
sharp edges. DO NOT substitute parts.
• WARNING – Never attach the Arm's Reach® CO-SLEEPER ® bedside sleeper to your bed
without completely assembling all parts.
• WARNING – Always keep caster wheels in the locked position except when moving the unit.
• NEVER USE more than 4-2" (5 CM) extension segments with the Arm’s Reach® CO-SLEEPER ®
bedside sleeper.
• SUFFOCATION HAZARD – Infants can suffocate:
– In gaps between an extra pad and side of the bassinet / cradle
– On soft bedding
• NEVER add a mattress, pillow, comforter or padding. Use ONLY the pad provider by
the manufacturer.
• DO NOT place infant face down on mattress. Always place the infant on his/ her back.
• SUFFOCATION HAZARD – To help prevent suffocation and entrapment, use only the
bumper pad and the mattress pad provided by Arm's Reach Concepts, Inc.
Never use additional padding or mattress.
• DO NOT use shipping or other bags as mattress covers since they can cause suffocation.
• Use ONLY fitted sheets manufactured for Arm's Reach® CO-SLEEPER ® bedside sleeper
by Arm’s Reach Concepts, Inc.
• STRANGULATION / SUFFOCATION HAZARD: The top edge of the bumper bar/shelf (item C
in parts list) must be level with or below the top of the adult mattress when used as a bedside sleeper. The level of the "The Sleigh" Arm's Reach® CO-SLEEPER ® bedside sleeper
mattress must be a minimum of 4 inches below the top edge of the bumper bar/shelf.
NEVER raise the level of the "The Sleigh" Arm's Reach® CO-SLEEPER ® bedside sleeper
mattress level with, or above the top, of the bumper bar/shelf.
• Be sure to put mattress on top of bumper pad lining.
• NEVER use the Arm's Reach® CO-SLEEPER ® bedside sleeper without the anchor plate
attached and locked as shown. Failure to use this anchoring system could result in injury
or death to the infant. Failure to use this securing system will allow the Arm's Reach®
CO-SLEEPER ® bedside sleeper to move away from the adult bed and could result in
the infant falling out or becoming entrapped. NEVER leave infant unattended in the Arm's
Reach® CO-SLEEPER ® bedside sleeper.
• STRANGULATION HAZARD: When anchor plate and strap assembly is not in use,
store in a safe place not accessible to children.
2
• Strings can cause strangulation. DO NOT place items with a string around a child’s neck,
such as hood strings, pacifier cords, etc. DO NOT suspend strings over the Arm's Reach®
CO-SLEEPER ® bedside sleeper or attach string to toys. DO NOT place product near a window
where cords from blinds or drapes may strangle a child.
• WARNING – The removable rail (item H in parts list) should always be installed unless the
parent/care giver is in the adult bed and the unit is in the co-sleeping position.
• NEVER leave a child in the unit without the removable rail (item H in parts list) assembled
and locked in place. When being used as an attachable Sleigh bedside sleeper the removable
rail next to the adult bed should always be installed unless the parent/care giver is in the
adult bed and the unit is in the co-sleeping configuration.
• Always check to be sure that the upper locking bars and the lower locking bars are in
their "locked position" before placing the infant in the bedside sleeper.
• FALLING HAZARD – To help prevent falls, DO NOT use this product when the infant begins
to push up on hands and knees or has reached manufacturer’s recommended maximum
weight, whichever comes first.
• Discontinue use of the Arm's Reach® CO-SLEEPER ® bedside sleeper when child is able to
roll over, or pull to a kneeling, sitting or standing position.
• Periodically check your attachable bed to make certain all screws, nuts and bolts are tight
ened securely.
• Make sure all straps are secured and tight. Check straps before each use.
• If refinishing, use a non-toxic finish specific for children’s products.
• Never aim or point a vaporizer or humidifier directly at the product. The water vapor will ruin
the finish of the product, as it would any other piece of fine furniture.
• Your Arm's Reach® CO-SLEEPER ® bedside sleeper may be cleaned using a damp cloth with
a mild soap or a soft dry cloth. Avoid furniture polish or cleaners that may be hazardous to
children.
• DO NOT allow children to climb or play on or under the Arm's Reach® CO-SLEEPER ® bedside
sleeper.
• To avoid injury from pinching, shearing or trauma from falling parts, ONLY an adult should
adjust to any of the suggested configurations.
• FALLING HAZARD: Remove infant from the Arm's Reach® CO-SLEEPER ® bedside sleeper
before starting any conversions.
• Discontinue using your The Sleigh – Arm's Reach® CO-SLEEPER ® bedside sleeper should it
become damaged or broken.
• WARNING – To prevent serious or fatal injury from falls always keep child within arm's reach.
Never leave child unattended.
3
Assembly
Step 1
Part F
Part A
Part E
Lay bottom of sleeping nest piece (A) on the lip of the right and left
side sleigh panels (E) and (F) as shown in fig. 1. Screw into place
with the Allen wrench and 3 screws on each side. Make sure the
front of the sleeping nest bottom has no screw holes, only the
back. The front of the side Arm's Reach® CO-SLEEPER® bedside
sleeper panels (E) and (F) have plastic rail connectors for the front
removable rail (H). Make sure the sleeping nest bottom front is on
the same side as the front of the side panels.
fig. 1
fig. 2
fig. 3
fig. 4
Step 2
Screw on the back of the sleeping nest (B) see fig. 2, 4 screws total,
then the front bottom piece (D) fig. 3, then the front top (C) fig. 4.
4
Step 3 - Attaching the front and back rails
Screw the stationary side rail (G) to both side panels (E & F) of
the Arm's Reach® CO-SLEEPER® bedside sleeper. See fig. 5. The
bumper pad should be placed on the Arm's Reach® CO-SLEEPER®
bedside sleeper at this time. See drawing (fig. 5a) for a visual of
the placement of the bumper pad. The mattress goes on after the
bumper pad is in place and securely fastened to the Arm's
Reach ® CO-SLEEPER ® bedside sleeper.
fig. 5
Be sure to put mattress on top of bumper pad lining.
fig. 5 a
For use as a bedside sleeper go to Step 5
To use the Arm's Reach® CO-SLEEPER® bedside sleeper as a
free-standing bassinet: line up the rail with the plastic connectors
fig. 6
and snap on the removable side piece. The removable rail should
click into place. Make sure the leg extensions are in the lowest position. See fig. 6 for close-up of placement. It is now ready to be used
as a baby bed.
5
fig. 7
Step 4 – Adjusting the height of The Sleigh —
Arm's Reach® CO-SLEEPER® bedside sleeper
To make the Arm's Reach® CO-SLEEPER® bedside sleeper panels
higher, measure first how much higher you will need to make the
Arm's Reach® CO-SLEEPER ® bedside sleeper. Lay the bedside
sleeper on its side. On the bottom of the legs, find the leg adjuster
mechanism. Push down on the white ring while pulling up on the
brass knob (fig. 7) and the leg extension will slide out (fig. 8). Do
this on all four legs.
fig. 8
Step 5 – Connecting to your bed
See fig. 9 for placement of straps and anchor plate. To secure your
Arm's Reach® CO-SLEEPER® bedside sleeper panels to the adult
bed, unroll nylon straps from the plastic plate and lay straps
across the adult bed to line up with the center of the desired position. The straps must now be positioned between the box spring
and mattress.This can be done by sliding the straps using a "sawing"
motion and at the same time pulling downward until the straps
and anchor plate are in their desired position. One strap should
come out on each side of the Arm's Reach® CO-SLEEPER® bedside
sleeper panels. Connect the strap connectors to the left and right
side of the Arm's Reach® CO-SLEEPER® bedside sleeper panels.
Pull the strap taut so the Arm's Reach® CO-SLEEPER® bedside
sleeper is tight up against the adult bed.
fig. 9
Conversion to the Read-to-Me Love Seat
Take off the bumper pad and the removable rail. Using the Allen
wrench, unscrew the top front panel of the sleeping nest.
Make sure the leg extensions are in the lowest position.
fig. 10
6
If you have any questions – call or write Arm’s Reach Concepts, Inc.
2081 N Oxnard Blvd., PMB#187, Oxnard, CA 93036-2964
( 800) 954-9353
fax: 805-604-7982
w w w. a r m s re a c h . c o m
Hours: 9:00 A.M. - 4:00 P.M. Pacific Time
®©2004 ARM’S REACH CONCEPTS INC. ARM'S REACH, CO-SLEEPER, Mother & Child Logo and all other trademarks are stringently protected. All rights reserved. Sleigh 3/04
