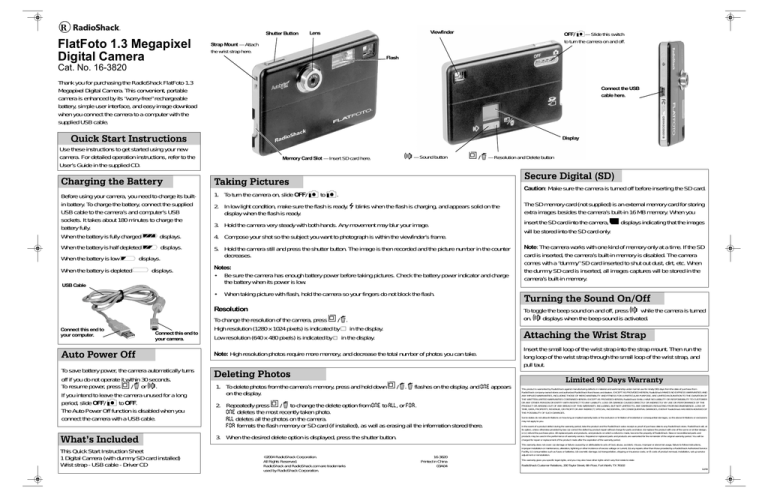

FlatFoto 1.3 Megapixel Digital Camera

FlatFoto 1.3 Megapixel Digital Camera
Shutter Button
FlatFoto 1.3 Megapixel
Digital Camera
Viewfinder
Lens
OFF/ Ñ— Slide this switch
to turn the camera on and off.
Strap Mount — Attach
the wrist strap here.
Flash
Cat. No. 16-3820
Thank you for purchasing the RadioShack FlatFoto 1.3
Megapixel Digital Camera. This convenient, portable
camera is enhanced by its “worry-free” rechargeable
battery, simple user interface, and easy image download
when you connect the camera to a computer with the
supplied USB cable.
Connect the USB
cable here.
Quick Start Instructions
Display
Use these instructions to get started using your new
camera. For detailed operation instructions, refer to the
User’s Guide in the supplied CD.
Memory Card Slot — Insert SD card here.
Charging the Battery
Taking Pictures
Before using your camera, you need to charge its builtin battery. To charge the battery, connect the supplied
USB cable to the camera’s and computer’s USB
sockets. It takes about 180 minutes to charge the
battery fully.
displays.
When the battery is fully charged :
1. To turn the camera on, slide OFF/ Ñ to Ñ.
displays.
When the battery is half depleted ;
displays.
When the battery is low <
displays.
When the battery is depleted =
USB Cable
] — Sound button
\ / ^ — Resolution and Delete button
Secure Digital (SD)
Caution: Make sure the camera is turned off before inserting the SD card.
2. In low light condition, make sure the flash is ready. ? blinks when the flash is charging, and appears solid on the
display when the flash is ready.
3. Hold the camera very steady with both hands. Any movement may blur your image.
4. Compose your shot so the subject you want to photograph is within the viewfinder’s frame.
5. Hold the camera still and press the shutter button. The image is then recorded and the picture number in the counter
decreases.
Notes:
• Be sure the camera has enough battery power before taking pictures. Check the battery power indicator and charge
the battery when its power is low.
•
When taking picture with flash, hold the camera so your fingers do not block the flash.
Resolution
Connect this end to
your computer.
Connect this end to
your camera.
To change the resolution of the camera, press \ / ^.
High resolution (1280 x 1024 pixels) is indicated by @in the display.
Low resolution (640 x 480 pixels) is indicated by Ain the display.
To save battery power, the camera automatically turns
off if you do not operate it within 30 seconds.
To resume power, press \ / ^ or ].
If you intend to leave the camera unused for a long
period, slide OFF/ Ñ to OFF.
The Auto Power Off function is disabled when you
connect the camera with a USB cable.
Deleting Photos
1. To delete photos from the camera’s memory, press and hold down \ / ^. ^ flashes on the display, and ONE appears
on the display.
2. Repeatedly press \ / ^ to change the delete option from ONE to ALL, or FOR.
ONE deletes the most recently taken photo.
ALL deletes all the photos on the camera.
FOR formats the flash memory or SD card (if installed), as well as erasing all the information stored there.
3. When the desired delete option is displayed, press the shutter button.
©2004 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com are trademarks
used by RadioShack Corporation.
Note: The camera works with one kind of memory only at a time. If the SD
card is inserted, the camera’s built-in memory is disabled. The camera
comes with a “dummy” SD card inserted to shut out dust, dirt, etc. When
the dummy SD card is inserted, all images captures will be stored in the
camera’s built-in memory.
Turning the Sound On/Off
Attaching the Wrist Strap
Note: High resolution photos require more memory, and decrease the total number of photos you can take.
This Quick Start Instruction Sheet
1 Digital Camera (with dummy SD card installed)
Wrist strap - USB cable - Driver CD
insert the SD card into the camera, 9 displays indicating that the images
will be stored into the SD card only.
To toggle the beep sound on and off, press ] while the camera is turned
on. ] displays when the beep sound is activated.
Auto Power Off
What’s Included
The SD memory card (not supplied) is an external memory card for storing
extra images besides the camera’s built-in 16 MB memory. When you
16-3820
Printed in China
03A04
Insert the small loop of the wrist strap into the strap mount. Then run the
long loop of the wrist strap through the small loop of the wrist strap, and
pull taut.
Limited 90 Days Warranty
This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from
RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND
ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF
THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER
OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE
PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF
TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you.
In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at
its option, unless otherwise provided by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace the product with one of the same or similar design;
or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and
products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be
charged for repair or replacement of the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions,
improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by a RadioShack Authorized Service
Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation, set-up service
adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
12/99
