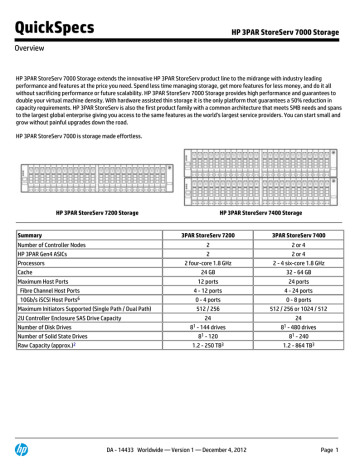

HP 3PAR StoreServ 7000 Storage

QuickSpecs

Overview

HP 3PAR StoreServ 7000 Storage

HP 3PAR StoreServ 7000 Storage extends the innovative HP 3PAR StoreServ product line to the midrange with industry leading performance and features at the price you need. Spend less time managing storage, get more features for less money, and do it all without sacrificing performance or future scalability. HP 3PAR StoreServ 7000 Storage provides high performance and guarantees to double your virtual machine density. With hardware assisted thin storage it is the only platform that guarantees a 50% reduction in capacity requirements. HP 3PAR StoreServ is also the first product family with a common architecture that meets SMB needs and spans to the largest global enterprise giving you access to the same features as the world's largest service providers. You can start small and grow without painful upgrades down the road.

HP 3PAR StoreServ 7000 is storage made effortless.

HP 3PAR StoreServ 7200 Storage

Summary

Number of Controller Nodes

HP 3PAR Gen4 ASICs

Processors

Cache

Maximum Host Ports

Fibre Channel Host Ports

10Gb/s iSCSI Host Ports

6

Maximum Initiators Supported (Single Path / Dual Path)

2U Controller Enclosure SAS Drive Capacity

Number of Disk Drives

Number of Solid State Drives

Raw Capacity (approx.)

2

HP 3PAR StoreServ 7400 Storage

3PAR StoreServ 7200

2

2

2 four-core 1.8 GHz

24 GB

12 ports

4 - 12 ports

0 - 4 ports

512 / 256

24

8

1

- 144 drives

8

1

- 120

1.2 - 250 TB

3

3PAR StoreServ 7400

2 or 4

2 or 4

2 - 4 six-core 1.8 GHz

32 - 64 GB

24 ports

4 - 24 ports

0 - 8 ports

512 / 256 or 1024 / 512

24

8

1

- 480 drives

8

1

- 240

1.2 - 864 TB

3

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 1

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Overview

Capacity Details

RAID Levels

RAID 5 Data to Parity Ratios

RAID 6 Data to Parity Ratios

Drive Capacities (approximate GB

3

)

(RAID levels, parity ratios, and drive capacities all mixable within the same Storage System)

Number of Add-on Drive Enclosures

(Each Drive Enclosure holds up to 24 drives in 2U for small form factor drives and 4U for large form factor drives)

RAID 0, 1, 5, 6

2:1 - 8:1

4:2, 6:2, 8:2, 10:2, 14:2

100 SSD

4

, 200 SSD

4

,

300 SAS, 450 SAS, 900 SAS, 2000

NL

5

,3000 NL

5

0 - 5 enclosures

1

The minimum drive quantity is permitted as long as the total raw capacity is at least 1.2 TB.

2

Maximum raw capacity currently supported with any and all drive types.

3

For storage capacity, 1 GB = 1,000,000,000 bytes and 1 TB = 1,000 GB.

4

SSDs are Solid State Drives.

5

NL drives are 7200 RPM Enterprise SAS drives.

6

Ports are FCoE ready. FCoE support will be available in 2013.

NOTE: Specifications are subject to change without notice.

RAID 0, 1, 5, 6

2:1 - 8:1

4:2, 6:2, 8:2, 10:2, 14:2

100 SSD

4

, 200 SSD

4

,

300 SAS, 450 SAS, 900 SAS, 2000

NL

5

,3000 NL

5

0 - 18 enclosures

Host OS Support

Citrix® XenServer® | HP-UX® | IBM® AIX®

Microsoft® Windows® Server, including Microsoft® Hyper-V™

Open VMS** | Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris

Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization

SUSE® Linux Enterprise | VMware vSphere™

* Available in 2013

** Registered release

For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HP Storage Products

(SPOCK): http://www.hp.com/storage/spock

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 2

QuickSpecs

Features

Efficient

Autonomic

Resilient

HP 3PAR StoreServ 7000 Storage

Get thin and stay thin - Thin technologies unique to the HP 3PAR StoreServ family can reduce capacity requirements by 50%. Purchase only what you need, as you need it so you can focus resources on growing your business, not maintaining your storage. Additionally, the HP 3PAR ASIC with Thin Built In features an efficient, silicon-based zero-detection mechanism. This unique hardware capability gives HP 3PAR

StoreServ Storage the power to remove allocated but unused space without impacting performance.

Data center virtualization - Increase virtualization return on investment. Double virtual machine density on your physical servers, spend up to 90 percent less time managing your storage, and support your virtualization deployment with 50 percent less storage capacity. HP 3PAR StoreServ is built from the ground up to deliver performance that exceeds the demands of virtualized data centers along with transformative levels of simplicity, agility, and efficiency.

Service levels - With policy-based autonomic sub-LUN tiering, you can balance the cost of capacity and the cost of performance and put the right data on the right storage tier at the right time.

Do more with less - With HP 3PAR StoreServ Storage you can purchase up to 75 percent less capacitymeaning less equipment to house, fewer disks to power and cool, less hardware to retire after it has reached its end of life, and a reduced carbon footprint.

It's like breathing-you don't even have to think about it. Simplify, automate, and expedite storage management by handling storage provisioning, tiering, and change management autonomicallyintelligently, at a sub-system level, and without administrator intervention.

SmartStart Software - software designed to get you off to a quick start with your new HP 3PAR StoreServ

7000 system.

Common architecture - Access the same features as the world's largest service providers with a common architecture that meets SMB needs and spans to the largest global enterprise.

Secure multi-tenancy - Consolidate with confidence. Achieve higher service levels for more users and applications with less infrastructure. HP 3PAR StoreServ Storage is designed to support massive consolidation by supporting mixed workloads and secure administrative segregation of users, hosts, and application data. Deliver higher performance levels, greater availability, and next-generation functionality to multiple user groups and applications from a single storage system.

Scalable - HP 3PAR StoreServ 7000 provides affordable entry pricing and unique, non-disruptive scalability to four nodes.

High Availability - Featuring the same mesh-active architecture as all HP 3PAR StoreServ products, HP

3PAR StoreServ 7000 offers the highest levels of data availability and protection for the midrange.

Intelligent data striping across all available enclosures provides HA Cage, the ability to maintain availability even when a whole drive enclosure fails. HP 3PAR Persistent Cache in four node configurations eliminates performance impacts that result from unplanned component failures, making it a must-have for maintaining service levels in the virtual data center-a feature that you can't get from any other midrange storage platform.

Storage federation - Meet the needs of today's data center with the ability to move data and workloads between arrays without impact to applications, users, or services. Simply and non-disruptively shift data between any model HP 3PAR StoreServ system without additional management layers or appliances.

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 3

QuickSpecs

Features

HP 3PAR StoreServ 7000 Storage

Storage federation on HP 3PAR StoreServ Storage can also help you improve availability in clustered

VMware environments.

Mixed workload - Mixed workload support serves transactional and throughput-intensive workloads from a single device. The purpose-built HP 3PAR ASIC delivers mixed workload support to alleviate performance concerns and cut traditional array costs. Transaction- and throughput-intensive workloads run on the same storage resources without contention, thereby cutting array purchases in half.

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 4

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Warranty

HP 3PAR StoreServ 7000 Storage

3 Year, On-site Warranty Service. 7x24 4-hour remote response with next business day on-site response

HP 3PAR StoreServ 7000 drive (SSD, SAS performance and Nearline) warranty is 3 years, parts only.

HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery.

For more information about HP's Global Limited Warranty and Technical Support, visit: http://www.hp.com/products/storageworks/warranty

Service and Support Technology Services for increased uptime, productivity and ROI

TRUST HP storage technology experts for every level of service and support. Our integrated portfolio of

Services for storage help customers reduce costs, optimize data, streamline storage management, and improve backup and recovery. Capitalizing on HP Storage Systems' capabilities requires a service partner who understands your increasingly complex environment. Team with the people who know HP infrastructure hardware and software best-the experienced professionals at HP Services.

Protect your business beyond warranty

Warranty protects against manufacturer defects, however warranty uplifts, such as HP Care Pack Services protect the business-by reducing downtime risks and providing operational consistency for missioncritical and standard business computing.

What HP Storage Technology Services can do for you

HP Storage Technology Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. HP storage lifecycle support services offers a full spectrum of customer carefrom technology support to complex migrations to complete managed services.

Optimized Care - delivers best performance and stability through deployment and proactive management practices

Choose the right level of support, deployment and integration services

HP support recommendations are designed to help you enhance technology operations and lower risk-and make it easier for you to seek the right balance between affordability and service-level commitments.

Depending on your individual support needs, choose from three levels of care that cover the entire lifecycle to better address your needs-Optimized Care, Standard Care, and Basic Care. If none of our support recommendations meet your needs, we can tailor a service solution for your unique support requirements. Only HP brings together deep expertise, proactive and business critical support and a strong partner network-plus, a full set of infrastructure services designed to power a Converged Infrastructure.

HP Critical Service- For mission critical environments demanding the best performance and stability. This service delivers 24x7 monitoring of your environment, making it the right choice when uninterrupted uptime is essential. We implement improvement projects to mitigate risks and reduce incidents to maximize uptime. If outages do occur, they will be addressed immediately through access to our dedicated critical support escalation resources, with a six-hour call-to-repair commitment from our mission-critical call center.

Additional Option:

HP Proactive Select 10 or 30 Credits Service-HP Proactive Select is a flexible way to purchase services to fit your particular environment or situation. Working with an HP Account Support Manager, you select a package of services in the form of services credits that include proactive services spanning many technologies and processes, such as on-site firmware upgrades, health checks, assessments, and education. You tailor the service delivery to improve time to production, optimize performance, or build in

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 5

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information

Standard Care - maintains high level of uptime, along with expert help to cut the cost and complexity of implementation and support continuous improvements.

HP Proactive Care 24x7- For business critical environments who need to maintain the highest level of uptime. For a higher return on your storage investment, Proactive Care delivers hardware and software support services designed specifically for your technology; rapid access to Advanced Solution Center

Specialists plus, Firmware/Software management and best practice advice. Customers can optimize the return on their IT investment and realize the advantage of running their business critical applications on virtualized infrastructure. Plus, HP Proactive Select 20 credits per year, select from an extensive menu of consultancy and technical services, such as onsite firmware upgrades, health checks, assessments, and education.

Basic Care - Minimum recommended support

Implementation

Additional Option:

HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for an increased personalization of the Proactive Care support experience through the assignment of an

Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.

The ASM will develop an annual support plan, provide four days of operational and technical advice, and conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the customer's IT priorities. This option is only available for Proactive Care customers and may be purchased once per environment.

HP Personalized Support Additional Day - Customers who require more time than is provided by the

Personalized Support option can elect to purchase additional days through the Personalized Support

Additional Day option. The time may be used to provide extra support reviews and/or more operational and technical advice.

HP Proactive Care 24x7- for a higher return on your storage investment, Proactive Care delivers hardware and software support services designed specifically for your technology; rapid access to Advanced

Solution Center Specialists plus, Firmware/Software management and best practice advice. Customers can optimize the return on their IT investment and realize the advantage of running their business critical applications on virtualized infrastructure. Plus, 10 credits per year, select from an extensive menu of consultancy and technical services, such as onsite firmware upgrades, health checks, assessments, and education.

Additional Option:

HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for an increased personalization of the Proactive Care support experience through the assignment of an

Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.

The ASM will develop an annual support plan, provide four days of operational and technical advice, and conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the customer's IT priorities. This option is only available for Proactive Care customers and may be purchased once per environment.

HP Personalized Support Additional Day - Customers who require more time than is provided by the

Personalized Support option can elect to purchase additional days through the Personalized Support

Additional Day option. The time may be used to provide extra support reviews and/or more operational and technical advice.

Installation:

Whichever level of care you select, consider our Installation and Startup Services for a smooth

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 6

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information implementation:

Related Services

HP 3PAR StoreServ 7000 Storage Installation and Startup Service - For smooth startup, this service provides you with deployment of your HP 3PAR StoreServ 7000 Storage, ensuring proper installation into your storage environment and helping you realize the maximum benefit from your storage investment.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2568ENW.pdf

HP 3PAR 7000 Software Installation and Startup Service - For smooth startup, this service provides you with deployment of HP 3PAR 7000 Software, ensuring proper installation into your storage environment and helping you realize the maximum benefit from your storage investment.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf

HP Storage Data Migration Service - HP expertise and tools help you migrate data across your data center or around the globe. Take the burden of migration off your shoulders and put it in the capable hands of expert HP storage migration consultants. Our proven approach helps orchestrate the complete data migration and consolidation process while maintaining consistent data availability during the transfer process.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-4107EN.pdf

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf

HP Enhanced Implementation Service for SANs - HP delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI storage area network (SAN) connectivity components. This service includes three levels of support based on the type of environment, ranging from simple to more complex. A trained service specialist guides the implementation of the storage switches in the SAN environment according to HP quality standards.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-8527EN.pdf

Data Replication Solution for 3PAR Virtual Copy - HP Data Replication Solution Service for HP 3PAR

Virtual Copy Software helps create, manage and configure local replication data mirroring and snapshot capabilities of 3PAR storage systems. This service enables snapshots and mirroring to facilitate data restores, minimize downtime for backups, perform application testing, support data mining use with decision-support tools.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8107ENW.pdf

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0217ENW.pdf

Data Replication Solution Service for HP 3PAR Remote Copy - HP Data Replication Solution Service for

3PAR Remote Copy Software configures real-time data mirroring between local and remote 3PAR storage systems to safeguard critical business information. Provides scalable deployment of HP Remote Copy

Software real-time data mirroring between a local and a remote 3PAR storage system.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8627ENW.pdf

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-9431ENW.pdf

HP 3PAR 7000 Replication Software Suite Installation and Startup Service - Provides implementation of the HP 3PAR 7000 Replication Software Suite product. Replication Suite includes 3PAR Remote Copy, 3PAR

Virtual Copy, and 3PAR Peer Persistence. The service is designed to help get HP 3PAR 7000 Replication

Software Suite up and running quickly and to provide a demonstration of the product's key features using sample or test data only.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2570ENW.pdf

HP 3PAR Peer Persistence Software Installation and Startup Service - Provides implementation of the HP

3PAR Peer Persistence Software product. The service is designed to help get HP 3PAR Peer Persistence up and running quickly and to provide a demonstration of the product's key features using sample or test

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 7

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information data only.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2772ENW.pdf

HP 3PAR Adaptive Optimization Policy Implementation Service - HP 3PAR Adaptive Optimization Policy

Implementation Service provides analysis, recommendations, and implementation of HP 3PAR Adaptive

Optimization policies to enable storage tiering using data collected from the HP 3PAR Storage system over time. With the assistance of a designated IT storage administrator, a service specialist works with the customer to implement Adaptive Optimization policies on the HP 3PAR Storage system to help deliver service level optimization for virtual and cloud data centers while reducing cost, increasing agility and minimizing risk.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

HP Storage Virtual Volume Design and Implementation Service - When redeploying an HP Disk Array, the service provides the necessary activities required to design and implement a new virtual volume configuration.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3764ENN.pdf

HP Thin Volume Conversion Service - Provides evaluation and execution of conversion from standard to thin provisioned virtual volumes for HP 3PAR StoreServ Storage. A service specialist advises the customer on HP thin provisioning best practices, provides evaluation of potential disk capacity savings if target virtual volumes are converted, and plans and implements thin conversion processing. The service leverages 3PAR thin provisioning capabilities to help optimize storage capacity, reduce cost, increase agility and maintain performance.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

HP Performance Analysis Service for HP Disk Arrays - The service provides data collection, detailed I/O analysis and enhancement recommendations for HP 3PAR StoreServ Storage disk arrays, HP EVA P6000

Storage disk arrays and HP XP P9000 Storage disk arrays. HP Performance Analysis Service for HP Storage

Disk Arrays provides a single engagement concerning the performance of a single HP Disk Array.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6668EN.pdf

HP 3PAR Health Check Service - The HP 3PAR Health Check service is delivered as a single engagement, providing data collection, analysis, report creation, and a briefing session concerning the performance of a single HP 3PAR StoreServ Storage system. This health check service is best for HP 3PAR StoreServ Storage systems that have been installed and are in normal production mode. It can also be used to establish a baseline for future reference to improve the effective use of your storage system.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-3225ENW.pdf

HP 3PAR Storage Assessment Service - The HP 3PAR Assessment Service is delivered remotely for a single HP 3PAR StoreServ StoragesSystem and does not include performance analysis, testing, or modeling. The service requires that remote monitoring be enabled on the HP 3PAR StoreServ Storage system being assessed. The assessment findings are compared to HP best practices and a summary report is provided that includes recommendations intended to improve availability and ongoing management of your HP 3PAR StoreServ Storage.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-2346ENW.pdf

HP 3PAR Storage Rebalance Service - The HP 3PAR Rebalance Service helps balance data across your HP

3PAR StoreServ Storage to take advantage of the capabilities of the array architecture. The service provides analysis, planning, and implementation of data movement and/or physical movement of drive magazines within the array.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0280ENW.pdf

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 8

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information

For more information

www.hp.com/services/storage

To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized

Channel Partner

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.

Customers purchasing from a commercial reseller can find HP Care Pack Services at: www.hp.com/go/lookuptool

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 9

QuickSpecs

Configuration

HP 3PAR StoreServ 7000 Storage

Step 1 - Choose a Base configuration

HP 3PAR StoreServ 7000 configurations start with the selection of the Base. The Base includes controller nodes, bays for small form factor drives, and PCIe slots for host adapter cards.

HP 3PAR StoreServ 7000 Base Configurations

HP 3PAR StoreServ 7200 2-node Storage Base

HP 3PAR StoreServ 7400 2-node Storage Base

HP 3PAR StoreServ 7400 4-node Storage Base

A minimum of one (1) configuration base must be ordered.

The HP 3PAR StoreServ 7200 base configuration includes (2) controller nodes, 24

GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4)

8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per node, (4) 2m SAS cables, (1) mounting rail kit, and power cords.

The HP 3PAR StoreServ 7400 2-node base configuration includes (2) controller nodes, 32 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards one slot per node, (4) 2m SAS cables, (2) 1U rack filler panels to reserve 2U of rack space above the 2-node Storage Base for a future upgrade to a 4-node configuration, (1) mounting rail kit, and power cords.

The HP 3PAR StoreServ 7400 4-node base configuration includes (4) controller nodes, 64 GB of cache, (48) small form factor drive bays, (8) built-in 8 Gb/sec FC ports, (8) 8Gb shortwave FC SFP, (4) PCIe adapter slots for host adapter cards one slot per node, (8) 2m SAS cables, (4) node link cables, (2) mounting rail kits, and power cords.

All base configurations include built-in Gigabit Ethernet ports for management and Remote Copy over IP.

QR482A

QR483A

QR485A

HP 3PAR StoreServ 7000 Upgrade Controller Node Pair

Use the HP 3PAR StoreServ 7400 Upgrade Node Pair to convert an existing previously installed HP 3PAR StoreServ 7400 2-node

Storage Base into a 4-node configuration.

HP 3PAR StoreServ 7400 Upgrade Node Pair

Used to upgrade the QR483A HP 3PAR StoreServ 7400 2-node Storage Base to a

4-node configuration.

One (1) pair of controller nodes beyond the base configuration is supported on the 3PAR StoreServ 7400.

The 3PAR StoreServ 7400 Upgrade Node Pair includes (2) controller nodes, 32 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per node, (4) 2m SAS cables, (4) node link cables, (1) mounting rail kit, and power cords

The upgrade node pair includes built-in Gigabit Ethernet ports for management and Remote Copy over IP.

QR484A

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 10

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration

Step 2 - Choose Host Adapter

Host adapters can be ordered separately to be installed in the field or they can be factory configured into controller nodes. Host adapter cards provide the array with additional FC ports or with 10Gb/sec iSCSI/FCoE ports. The additional FC ports can be used for connection to hosts or used to connect to other HP 3PAR StoreServ Storage systems in a Remote Copy relationship. The iSCSI/FCoE ports permit host connection in iSCSI and FCoE environments.

NOTE: FCoE functionality will be enabled in 2013.

HP 3PAR StoreServ 7000 Host Adapters

HP 3PAR StoreServ 7000 4-port 8Gb/sec Fibre Channel Adapter

HP 3PAR StoreServ 7000 2-port 10Gb/sec iSCSI/FCoE Adapter

Used in the Storage Base products (QR482A, QR483A, and QR485A) and the

Upgrade Node Pair (QR484A).

Because the Storage Base products and the Upgrade Node Pair include built-in FC ports, the host adapter cards are optional.

QR486A and QR487A include one adapter card each. Adapters must be purchased in pairs.

Each node in a node pair (a node pair is composed of the two controller nodes in a single 2U enclosure) must have the same number and type of adapters. FC and iSCSI/FCoE adapters may not be intermixed in a node pair.

The 4 ports of the FC adapter can be individually configured to connect to a host or to a remote array in an RC configuration.

The two ports of the iSCSI/FCoE adapter can be individually configured by the user as iSCSI or FCoE ( NOTE: FCoE functionality will be enabled in 2013 ).

QR486A

QR487A

Product Nodes

QR482A Node 0

Node 1

QR483A

QR484A

Node 0

Node 1

Node 2

Node 3

A*

Empty

Empty

Empty

Empty

Empty

Empty

B*

FC

FC

FC

FC

FC

FC

C*

Permitted Adapter Configurations

iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE

D

QR485A

Node 0

Node 1

Node 2

Node 3

Empty

Empty

Empty

Empty

FC

FC

Empty

Empty iSCSI/FCoE iSCSI/FCoE

Empty

Empty

* Factory default configurations for given quantities of adapters.

Empty

Empty

FC

FC

E

Empty

Empty iSCSI/FCoE iSCSI/FCoE

F *

FC

FC iSCSI/FCoE iSCSI/FCoE

G H * iSCSI/FCoE iSCSI/FCoE

FC

FC

FC

FC

FC

FC

I * iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 11

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration

Step 3 - Choose Drive Enclosures

Add drive enclosures to expand the configuration and to add large form factor drives to the configuration. Drive enclosures can be ordered separately for installation in the field, or they can be factory configured in a rack. Drive enclosures are optional. Because the

Storage Base products and the Upgrade Node Pair include small form factor drive bays, the minimum configuration does not require any additional drive enclosures. For larger configurations, attach drive enclosures. Each drive enclosure includes 24 drive bays. The HP

3PAR StoreServ 7200 supports up to five (5) added drive enclosures. The HP 3PAR StoreServ 7400 supports up to nine (9) added drive enclosures per node pair. The two drive enclosure types can be intermixed in a single array.

HP M6710 2.5 inch 2U SAS Drive Enclosure

Drive Enclosures

HP M6720 3.5 inch 4U SAS Drive Enclosure

HP M6710 2.5 inch 2U SAS Drive Enclosure

HP M6720 3.5 inch 4U SAS Drive Enclosure

Each drive enclosure includes 24 drive bays, (2) IO modules, (2) 1m SAS cables,

(1) mounting rail kit, and power cables.

The M6710 2U drive enclosure provides 24 SFF drive bays arranged in a single row.

The M6720 4U drive enclosure provides 24 LFF drive bays, arranged in four (4) columns of six (6) slots each.

Minimum of zero (0) drive enclosures, maximum of five (5) attached to QR482A.

Minimum of zero (0) drive enclosures, maximum of nine (9) attached to QR483A.

Minimum of zero (0) drive enclosures, maximum of (18) attached to QR485A.

Drive enclosures are connected in daisy chains from the SAS ports of the controller nodes.

The best practice is to balance the drive enclosures across the SAS ports, remembering that the controller node enclosures include (24) drives attached to the SAS port labeled DP-1.

The best practice when including LFF and SFF drive enclosures in the same array is to arrange them in the rack so that all of the 2U enclosures that belong to one node pair are together and all of the 4U enclosures for that node pair are together. When connecting the backend SAS cables, intermix the M6710 and

M6720 enclosures on each SAS port.

With a four node configuration, the best practice is to attach the same number of drive enclosures to each node pair.

To achieve highest availability in multi-enclosure configurations, configure a minimum of two (2) enclosures per node pair for RAID 1, a minimum of four (4) enclosures per node pair if RAID 5 is included, and a minimum of three (3) enclosures per node pair if RAID 6 is included. Include enclosures containing node pairs in the count with the M6710 enclosures.

Drive bays that are not filled with a drive must be covered with a drive blank to preserve proper air flow.

If future capacity upgrades are expected, include enough Drive Enclosures so that there are some empty bays in each enclosure after all drives are added.

QR490A

QR491A

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 12

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration

Step 4 - Choose Drives

Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Unlike other

HP 3PAR StoreServ Storage systems where drives are sold in magazines of four, HP 3PAR StoreServ 7000 drives are sold as single drives. Note that these drives are only compatible with the M6710 and M6720 drive enclosures.

HP 3PAR StoreServ 7000 SAS Drives

HP 3PAR SSDs

HP M6710 100GB 6G SAS 2.5in SLC SSD (small form factor)

HP M6710 200GB 6G SAS 2.5in SLC SSD (small form factor)

HP M6720 100GB 6G SAS 3.5in SLC SSD (large form factor)

HP M6720 200GB 6G SAS 3.5in SLC SSD (large form factor)

QR502A

QR503A

QR506A

QR507A

HP 3PAR SAS HDDs

(Performance HDDs)

HP 3PAR NL SAS HDDs

HP M6710 300GB 6G SAS 15K 2.5in HDD

HP M6710 450GB 6G SAS 10K 2.5in HDD

HP M6710 900GB 6G SAS 10K 2.5in HDD

HP M6720 2TB 6G SAS 7.2K 3.5in NL HDD

HP M6720 3TB 6G SAS 7.2K 3.5in NL HDD

For each drive type installed in the array, the minimum recommended initial quantity is

SSD and SAS performance HDDs - eight (8) drives* per node pair

Nearline HDDs - twelve (12) drives per node pair

Minimum upgrade quantity is 4 drives per node pair or 2 drives per enclosure, whichever is larger. Best practice is to run Autonomic Rebalance (also known as tunesys) after adding the drives.

RAID 6 is strongly recommended for Nearline drives.

All node enclosures must contain either zero (0) or an even number of drives. All drive enclosures must contain an even number of drives, with a minimum of two.

Minimum raw capacity is 1.2TB per node pair.

A best practice is to add equal numbers of drives to all enclosures compatible with the drive type being added.

With a four node configuration, the best practice is to attach the same number and type of drives to each node pair.

Small Form Factor (SFF)-specific configuration practices

SFF drives may be loaded into the Storage Base enclosures, the Upgrade

Node Pair enclosure and the M6710 drive enclosure.

SFF drives must be loaded in pairs of identical drives, beginning with the leftmost slot, slot 0, and filling to the right, leaving no empty slots between drives.

Large Form Factor (LFF)-specific configuration practices

LFF drives may be loaded into the M6720 drive enclosure.

LFF drives must be loaded in pairs of identical drives starting at the bottom of a column, leaving no empty slots between drives in the column.

Columns of drives in the M6720 enclosure must be of the same type (SSD or NL) and, for HDDs, the same rotational speed. Drives of different types may not be mixed in a single column. It is permitted to have empty

QR492A

QR494A

QR496A

QR499A

QR500A

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 13

QuickSpecs

Configuration

HP 3PAR StoreServ 7000 Storage

columns between columns containing drives. Different columns do not have to contain the same number of drives.

An all LFF drive configuration is permitted, leaving the Storage Base

Enclosure empty.

SSD specific configuration practices

SSD-only configurations are permitted.

Maximum of 120 SSDs per node pair.

The SFF and LFF SSDs allow the user to create SSD volumes that stripe across SFF and LFF enclosures.

* 8 drives support RAID 1 and RAID 5. For RAID 6 choose 12 drives.

Step 5 - Choose Service Processor Implementation

The HP 3PAR Service Processor monitors the HP 3PAR StoreServ 7000 and enables remote monitoring and remote servicing of the array. A virtual Service Processor is included free with the 3PAR Base Operating System. Each HP 3PAR StoreServ 7000 requires its own

Service Processor. The Service Processor can be installed on a VMware system (or Hyper-V system later in 2013), provided by the customer, meeting the following specifications.

VMware vSphere 4.1, 5.0, or 5.1

Server listed in VMware Compatibility Guide and with the following features

2GB RAM (minimum)

320GB free disk space

DVD ROM or DVD RW

1Gb Ethernet port

If a hardware Service Processor is desired, order the following product.

Service Processor

HP 3PAR 7000 Service Processor QR516A

Step 6 - Choose Cables for host connection and remote copy connection

The optical cables listed below support 8 Gb/s FC and 10 Gb/s iSCSI/FCoE for host connect (FC and iSCSI/FCoE) and for Remote Copy connections (FC only). The copper1GbE cables are used for Remote Copy over IP and for connection to the Management Port.

Cables

FC and 10GbE

HP 3PAR 4m 50/125 (LC-LC) Fiber Cable

HP P10000 V-Class 3PAR 6m 50/125 (LC-LC) Fiber Cable

HP 3PAR 10m 50/125 (LC-LC) Fiber Cable

HP P10000 V-Class 3PAR 25m 50/125 (LC-LC) Fiber Cable

HP 3PAR 50m 50/125 (LC-LC) Fiber Cable

HP 3PAR 100m 50/125 (LC-LC) Fiber Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

HP Premier Flex LC/LC Multi-mode OM4 5 fiber 5m Cable

QL281B

QR631A

QL266B

QR593A

QL267B

QL268B

QK732A

QK733A

QK734A

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 14

QuickSpecs

Configuration

1GbE

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

HP Ethernet 4.3m (14 ft) CAT5e RJ45 M/M Cable

HP Ethernet 7.6m (25 ft) CAT5e RJ45 M/M Cable

HP Ethernet 15.2m (50 ft) CAT5e RJ45 M/M Cable

HP 3PAR StoreServ 7000 Storage

QK735A

QK736A

QK737A

C7536A

C7537A

C7542A

Step 7 - Choose Racking Options

The HP 3PAR StoreServ 7000 is compatible with most industry standard 4-post EIA 19 inch racks with square mounting holes, including the HP Intelligent Series Rack and the HP 10000 G2 Series Rack. The HP 3PAR StoreServ 7000 can be factory configured and shipped in a rack or shipped without a rack for field integration into an existing rack. The rack used for factory integration is the HP Intelligent

Series Rack.

HP Rack and Rack Options

Factory Integration

Select a rack to house your HP 3PAR StoreServ 7000.

NOTE: The HP Intelligent Series Rack is the only series supported for factory configuration.

Primary Configuration

Rules

HP Intelligent Series

Racks

The HP 3PAR StoreServ 7000 will be configured into an HP Intelligent Series Rack with the appropriate power distribution units (PDUs). If other products such as servers or back-up products are included in the cab, a different PDU will be added (if required) or can be chosen from a list of appropriate offerings shown in the configuration tool. The

HP Intelligent Series Rack must be purchased for factory configuration. Additional 3PAR

StoreServ 7000 controller node enclosures and drive enclosures may be ordered for multiple subsystem integration at the factory.

The 3PAR StoreServ 7000 is also supported in HP 10000 G2 Series racks for field installation.

When calculating available U-space, assume that no space will be placed between the mounted components. For redundancy, order PDUs in quantities of two. Refer to the

Configuration and User Guide in the Information Library at the Rack Solutions webpage.

NOTE: The number of components that will fit in a rack varies and is determined by the interior U-space of the rack.

HP 647 1075mm Shock Intelligent Series Rack

HP 47U 1075mm Side Panel Kit

HP 642 1075mm Shock Intelligent Series Rack

HP 42U 1075mm Side Panel Kit

HP 636 1075mm Shock Intelligent Series Rack

HP 36U 1075mm Side Panel Kit

HP 622 1075mm Pallet Intelligent Series Rack (22U) (available in 2013)

BW912A

BW915A

BW904A

BW906A

BW896A

BW898A

BW893A

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 15

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration

HP PDU Pivot Kit

For more information on the HP rack offerings, please see the following URL: http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html

.

For more information on rack options, see: http://www.hp.com/products/rackoptions .

For more information on PDUs, see: http://h18004.www1.hp.com/products/servers/proliantstorage/powerprotection/pdu.html

.

Used to reclaim 2U of space in an HP Intelligent Series Rack with HP 3PAR StoreServ

7000 configurations. This kit allows the PDUs to be placed in the back of the rack without requiring any rack U space.

NOTE: The use of the PDU Pivot Kit is strongly recommended and is the default option when orders are configured, as it will save 2U of valuable rack space.

NOTE: 0D1 will appear after this part number to indicate factory integration where appropriate.

HP 3PAR StoreServ 7000 Storage is qualified for use in HP Performance Optimized Data

Centers. Go to www.hp.com/go/POD for more information.

For detailed information on determining compatibility of a non-HP rack, please review the information included in the HP 3PAR StoreServ 7000 User Guide.

AG730A

Performance Optimized

Data Centers

Non-HP rack and power requirements

Expansion Options

HP provides a variety of SAS cable kits to allow expansion of the HP3PAR StoreServ 7000. Note that the Storage Base products, the

Upgrade Node Pair and the Drive Enclosures all include SAS cables. Most configurations will not require a SAS expansion cable kit.

SAS expansion cable kit

6 meter SAS expansion cable kit

If an HP 3PAR StoreServ 7000 needs to be expanded into an adjacent rack, one 6 meter

SAS expansion cable kit is required for every node pair that must access drive enclosures in the expansion rack. Each 6 meter SAS expansion cable kit contains four 6 meter SAS cables.

HP P6000 EVA 2 Meter Expansion Cable Kit

If an HP 3PAR StoreServ 7000 needs to be expanded within the same rack, but the new drive enclosure must be located some distance from the nearest existing drive enclosure within the same rack, one or two 2 meter SAS expansion cable kits is needed, depending on configuration. Each 2 meter SAS expansion cable kit contains two 2 meter

SAS cables.

1 meter SAS expansion cable kit

The 1 meter SAS expansion cable kit is provided for cases where a shorter SAS cable is required. Each 1 meter SAS expansion cable kit contains two 1 meter SAS cables.

NOTE: The 2-node Storage Bases and Upgrade Node Pair come with four 2 meter SAS cables each and the 4-node Storage Base comes with eight 2 meter SAS cables. The

Drive Enclosures come with two 1 meter SAS cables each.

AP879A

AW566A

QR514A

Step 8 - Choose Software

HP provides an extensive selection of features for HP 3PAR StoreServ Storage. All of the features available on the HP 3PAR StoreServ

10000 Storage system are also available on the HP 3PAR StoreServ 7000 Storage system, the result of a common architecture that spans from small and medium businesses to the largest global enterprise. For convenient ordering, the 3PAR StoreServ 7000 provides the features in Suites.

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 16

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration

Two types of software licensing methods are employed with the HP 3PAR StoreServ 7000. Some software titles are licensed per system, other titles are licensed by drive., frame-based licensing and drive-based licensing. With framesystem-based licensing one license covers the whole array, independent of configuration or capacity. Drive-based licensing, in contrast, is licensed per installed drive. A software title with drive-based licensing includes two Licenses to Use (LTU), a Base LTU that enables the software feature for the system and a Drive LTU that licenses the use of one drive. For each software title, Ppurchase one Base LTU per title per array, and one Drive LTU, up to a cap, for every drive, independent of drive type, that is installed in the array, independent of drive type. With just one Drive LTU that is independent of drive type, the HP 3PAR 7000 drive-based licensing differs from other 3PAR arrays which have different drive LTUs for each drive type.For the HP 3PAR StoreServ 7200 the Drive LTUs cap at 48. For the HP 3PAR StoreServ 7400 the

Drive LTUs cap at 168. After reaching the cap, you do not need to purchase any more Drive LTUs for that title.

For more information regarding HP 3PAR software see http://h18006.www1.hp.com/storage/solutions/3par/software.html

.

HP 3PAR 7000 Operating System Software Suite (Required)

HP 3PAR OS SW Suite -

3PAR Operating System,

System Setup, and

Management Software

HP 3PAR 7000 Operating System Software Suite is the foundation software of HP 3PAR

StoreServ 7000 Storage, combining advanced virtualization capabilities with simple storage management, high efficiency, and world class performance. The included comprehensive thin provisioning capabilities allow your storage to start thin, get thin and stay thin. System Tuner and Autonomic Rebalance help maintain high performance over time. Migrating your existing data from HP EVA and 3PAR systems to HP 3PAR

StoreServ 7000 is easy with the included 180 day Online Import license. HP 3PAR

SmartStart Software, included in the suite, guides you through the configuration of the service processor, HP 3PAR StoreServ Storage and the application hosts - making storage setup quick and easy. HP 3PAR 7000 Operating System Software Suite is a required purchase. It uses drive-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/oss/index.html

.

HP 3PAR 7000 Replication Software Suite

HP 3PAR 7000 Replication

Software Suite - Local

Replication, Remote

Replication and

Transparent Failover

The HP 3PAR Replication Software Suite offers automatic replication, transparent failover and Point-in-Time (PIT) copies enabling seamless disaster recovery for critical data. These features provide an agile, efficient and simple solution to protect against the unpredictable. This suite is ideal for virtualized data centers demanding data availability and business continuity 24x7. HP 3PAR 7000 Replication Software Suite consists of HP 3PAR Remote Copy Software, HP 3PAR Peer Persistence Software and

HP 3PAR Virtual Copy Software, which are also available separately. Replication

Software Suite uses drive-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/drs/index.html

.

NOTE: The Peer Persistence feature provides transparent failover in VMware cluster environments and requires the Remote Copy feature as a prerequisite.

HP 3PAR 7000 Security Software Suite

HP 3PAR 7000 Security

Software Suite

HP 3PAR 7000 Security Software Suite provides secure administrative segregation of users and hosts, allowing individual user groups and applications to confidently share a

3PAR StoreServ 7000 system. It also allows you to secure volumes and copies so they cannot be deleted, even by a 3PAR StoreServ 7000 user with the highest level privileges. When coupled with reservationless, non-duplicative, read-only virtual copies

(snapshots), the Virtual Lock feature enables you to retain frozen, point-in-time copies of your data to assist internal data retention and simplify compliance with internal governance procedures. HP 3PAR 7000 Security Software Suite consists of HP 3PAR

Virtual Domains Software and HP 3PAR Virtual Lock Software, which are also available

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 17

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration separately. Security Software Suite uses drive-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/ss/index.html

.

HP 3PAR 7000 Data Optimization Software Suite

HP 3PAR 7000 Data

Optimization Software

Suite - Rebalance,

Redistribute, and Refresh

The HP 3PAR 7000 Data Optimization Software Suite makes sure that data is on the right storage asset at the right time. This suite rebalances, redistributes and refreshes storage non-disruptively with features that provide autonomic storage tiering and dynamic data mobility, reducing cost and increasing agility. HP 3PAR 7000 Data

Optimization Software Suite consists of HP 3PAR Dynamic Optimization Software, HP

3PAR Adaptive Optimization Software and HP 3PAR Peer Motion Software (providing federation capability for data mobility), which are also available separately. Data

Optimization Software Suite uses drive-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/dos/index.html

.

NOTE: The Adaptive Optimization feature requires HP 3PAR Reporting Software Suite as a prerequisite.

HP 3PAR Reporting Software Suite

HP 3PAR Reporting

Software Suite -

Historical Performance and Capacity

Management Tool

The HP 3PAR Reporting Software Suite includes System Reporter, a historical performance and capacity management tool for storage reporting, monitoring, and troubleshooting. Also included is 3PARInfo, a command line tool that allows you to view

HP 3PAR StoreServ Storage configuration information. Reporting Software Suite uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/rs/index.html

.

HP 3PAR Application Software Suite for Oracle

HP 3PAR Application

Software Suite for Oracle

- Application Protection

The HP 3PAR Application Software Suite for Oracle provides everything you need for protecting Oracle databases, including Recovery Manager for Oracle and Oracle Space

Reclamation capabilities. Recovery Manager for Oracle is an extension to 3PAR Virtual

Copy that intelligently creates, manages, and presents time-consistent snapshot images of Oracle® databases for rapid application recovery, near-continuous data protection, data sharing, and non-disruptive backup. Application Software Suite for

Oracle uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/as-oracle/index.html

.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP 3PAR Replication Software Suite.

HP 3PAR Application Software Suite for SQL

HP 3PAR Application

Software Suite for SQL -

Application Protection

The HP 3PAR Application Software Suite for SQL protects Microsoft® SQL databases with Recovery Manager for Microsoft® SQL and the 3PAR VSS Provider software. 3PAR

Recovery Manager for Microsoft® SQL Server is an extension to 3PAR Virtual Copy that eases costs and administration by providing rapid, affordable online recovery of

Microsoft® SQL Server databases from multiple, highly granular point-in-time snapshots. Quickly recover a database to a known point in time, speeding up a variety of operations including rapid recovery of the production SQL server. Application

Software Suite for SQL uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/as-sql/index.html

.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP 3PAR Replication Software Suite.

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 18

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration

HP 3PAR Application Software Suite for Exchange

HP 3PAR Application

Software Suite for

Exchange - Application

Protection

The HP 3PAR Application Software Suite for Exchange provides you the essentials for protecting your Microsoft Exchange data, including Recovery Manager for Exchange and the VSS Provider software. Recovery Manager for Exchange is an extension to 3PAR

Virtual Copy that intelligently creates and manages snapshots that can be used to quickly restore Exchange instances or databases (or non-disruptively back them up to tape) for near-continuous data protection. Application Software Suite for Exchange uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/as-exchange/index.html

.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP 3PAR Replication Software Suite.

HP 3PAR Application Software Suite for VMware

HP 3PAR Application

Software Suite for

VMware - Application

Protection

The HP 3PAR Application Software Suite for VMware provides everything you need to make your VMware environment more agile and efficient-including Recovery Manager for VMware, Host Explorer for VMware, VASA support, and three essential plug-ins: the

VMware Site Replication Manager (SRM) Adapter, the 3PAR VAAI plug-in, and the 3PAR management plug-in for VMware View. Application Software Suite for VMware uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/as-vmware/index.html

.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP 3PAR Replication Software Suite.

HP Cluster Extension Software

HP Cluster Extension

Software- High

Availability

HP Cluster Extension Software (CLX) offers protection against application downtime from fault, failure, or site disaster by extending a local cluster between data centers over metropolitan distance. CLX reinstates critical applications at a remote site within minutes or seconds after an adverse event. CLX integrates with the OS clustering software (such as MS Cluster Service in Windows) and the remote mirroring software on storage (such as HP Continuous Access software on P6000 EVA/P9000 and HP 3PAR

Remote Copy Software on HP 3PAR systems) to automate failover and failback between sites. This dual integration enables the cluster service to verify the status of the storage as well as the server cluster; thus allowing the correct failover and failback decisions to be made which minimize downtime, and accelerates recovery without human intervention. Thus the Cluster Extension Software can help customers achieve

'zero' RPO and RTO in minutes or seconds. For more information, including how Cluster

Extension Software is licensed, see http://h18006.www1.hp.com/storage/software/ces/index.html

.

Step 9 - Choose Options for Storage Networking

HP's comprehensive portfolio of Storage Area Network infrastructure products and solutions are designed to meet a range of storage networking needs from small and midsized businesses to the largest corporate enterprises. HP Storage Networking SAN Solutions deliver scalability, performance, and broad interoperability required for critical data and applications.

For additional details on SAN infrastructure components and options and storage compatibility information, please visit: http://hp.com/go/san or select from the part numbers below.

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 19

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration

HP Rack and Rack Options

Fibre Channel

Host Bus Adapters

Brocade Fibre Channel HBAs

HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP 41B 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 42B 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

Emulex Fibre Channel HBAs

HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP FC2142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP FC2242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

QLogic Fibre Channel HBAs

HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP FC1142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP FC1242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

Fibre Channel Switches HP B-series

HP SN8000B 8-Slot Power Pack+ SAN Backbone Director

HP SN8000B 4-slot SAN Director

HP DC SAN Backbone Director Power Pack+

HP DC04 SAN Director

HP SN3000B 16Gb 24/12 FC Switch

HP SN6000 16Gb 24/48 FC Switch

HP 8/8 Base SAN Switch

HP SN8000B 8-Slot Power Pack+ SAN Backbone Director

HP SN8000B 4-slot SAN Director

HP DC SAN Backbone Director Power Pack+

HP DC04 SAN Director

HP SN3000B 16Gb 24/12 FC Switch

HP SN6000 16Gb 24/48 FC Switch

HP 8/8 Base SAN Switch

HP 8/8 SAN Switch

HP 8/24 Base SAN Switch

HP 8/40 Base SAN Switch

HP 8/80 Base SAN Switch

HP 1606 Base Extension SAN Switch

HP 2408 FCoE Base Converged Network Switch

Brocade 8/12c SAN Switch for HP BladeSystem c-Class

Brocade 8/24c SAN Switch for HP BladeSystem c-Class

Brocade 8/24c SAN Switch for HP BladeSystem c-Class Power Pack+

AP769B

AP770B

AP767B

AP768B

AJ762B

AJ763B

A8002B

A8003B

AK857C

AR478B

QW937A

QK754B

AM866B

AM867B

AM868B

AM869B

AM871B

AP862B

AP801B

AJ820B

AJ821B

AJ822B

AK344A

AJ764A

AE311A

AE312A

QK710B

QK712B

AK857C

AR478B

QW937A

QK754B

AM866B

QK710B

QK712B

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 20

QuickSpecs

Configuration

PremierFlexOM4 cable options

OM3 FC LC-LC cables options

HP 3PAR StoreServ 7000 Storage

HP H-series

HP 8/20q Fibre Channel 8-ports Active Switch

NOTE: 8 device ports active, upgradeable to 20 device ports active

HP 8Gb Simple SAN Connection Kit

NOTE: 8 device ports active, upgradeable to 20 device ports active

HP 8/20q Fibre Channel Switch

NOTE: 16 switch ports active

HP SN6000 Stackable 8Gb 24-port single power supply FC Switch

NOTE: 20 device ports active/4 stacking (ISL) ports active

HP SN6000 Stackable 8Gb 24-port dual power supply FC Switch

NOTE: 20 device ports active/4 stacking (ISL) ports active

HP SN6000 Stackable 8 Gb 12-port Single Power Fibre Channel Switch

NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device ports active

HP C-series

Cisco MDS 9124 8-ports Active Fabric Switch

Cisco MDS 9124 16-ports Active Fabric Switch

Cisco MDS 9124 24-ports Active Fabric Switch

Cisco MDS 8Gb 12-port Fabric Switch for HP BladeSystem c-Class

Cisco MDS 8Gb 24-port Fabric Switch for HP BladeSystem c-Class

Cisco MDS 9124e 12-port Fabric Switch for HP c-Class BladeSystem

Cisco MDS 9124e 24-port Fabric Switch for HP c-Class BladeSystem

Cisco MDS 9134 24-ports Active Fabric Switch

Cisco MDS 9134 32-ports Active Fabric Switch

Cisco MDS 9222i Fabric Switch

HP SN6000C 16-ports Active Fabric Switch

HP SN6000C 32-ports Active Fabric Switch

HP Nexus 5010 Converged Network Switch

HP Nexus 5020 Converged Network Switch

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

HP Premier Flex LC/LC Multi-mode OM4 5 fiber 5m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AQ233A

AK241A

AK242A

AW575B

AW576B

BK780B

AP776A

QK732A

QK733A

QK734A

QK735A

QK736A

QK737A

AJ833A

AJ834A

AJ835A

AJ836A

AJ837A

AJ838A

AJ839A

AG646A

AG647A

AG648A

AW563A

AW564A

AG641A

AG642A

AG874A

AG875A

AG851B

AW585A

AW586A

AP775A

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 21

QuickSpecs

Configuration

HP 3PAR StoreServ 7000 Storage

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 22

QuickSpecs

Technical Specifications

HP 3PAR StoreServ 7000 Product Dimensions, and Weight

Physical Dimensions

42U Intelligent Series

Rack

HP 3PAR StoreServ 7200

2-node Storage Base (no host adapters, no drives)

HP 3PAR StoreServ 7200

2-node Storage Base

(with two host adapters, no drives)

HP 3PAR StoreServ 7400

2-node Storage Base (no host adapters, no drives)

HP 3PAR StoreServ 7400

2-node Storage Base

(with two host adapters, no drives)

HP 3PAR StoreServ 7400

4-node Storage Base (no host adapters, no drives)

HP 3PAR StoreServ 7400

4-node Storage Base

(with four host adapters, no drives)

HP M6710 2.5 inch 2U SAS

Drive Enclosures (without drives)

HP M6720 3.5 inch 4U SAS

Drive Enclosures (without drives)

SFF SAS drive with carrier

Height in/mm/U

79.0/2006.6

3.46/87.95/2

3.46/87.95/2

3.46/87.95/2

3.46/87.95/2

6.925/175.9/4

6.925/175.9/4

3.46/87.95/2

6.89/175/4

3.42/86.85

**

Width in/mm

23.5/597.8

19/483

19/483

19/483

19/483

19/483

19/483

19/483

19/483

0.78/19.9

**

LFF SAS drive with carrier 1.18/30.0

** 4.36/110.84

**

* includes length of ejector handles

** includes RFI clips

HP 3PAR StoreServ 7000 Storage

Depth in/mm

42.7/1125.2

26.6/676.1

*

26.6/676.1

*

26.6/676.1*

26.6/676.1

*

26.6/676.1

*

26.6/676.1

*

24.8/630.7

24.9/631.4

896/227.7

8.67/220.26

Max Weight lb/kg

243/110 (empty)

47.7/21.6

48.7/22.1

47.7/21.6

48.7/22.1

97.8/44.4

99.8/45.3

33.5/15.2

42.9/19.5

0.7/0.32

(varies by type)

1.9/0.86

(varies by type)

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 23

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Technical Specifications

Power Requirements

Input Voltage (VAC)

Frequency (Hz)

Component Idle

(watts / BTU/hr)

236 / 803 Node Pair (7200 or 7400), no drives, no add-on host adapters

4-port 8Gb/sec Fibre Channel Adapter

2-port 10Gb/sec iSCSI/FCoE Adapter

24 / 81.7

34 / 115.8

HP M6710 2.5 inch 2U SAS Drive Enclosure, no drives

150 / 512 (average)

HP M6720 3.5 inch 4U SAS Drive Enclosure, no drives

300GB 15K Small Form Factor HDD

164 / 559 (average)

6.2 / 21.1

450GB 10K Small Form Factor HDD

900GB 10K Small Form Factor HDD

2TB 7.2K Large Form Factor NL HDD

3TB 7.2K Large Form Factor NL NDD

100GB SLC SSD

200GB SLC SSD

3.7 / 12.6

4.8 / 16.4

7.5 / 25.6

8.5 / 28.9

1.4 / 4.8

1.4 / 4.8

Environmental Specifications

Operating Temperature

Shipping Temperature

Altitude (ft/m) max.

Shipping Altitude (ft/m) max.

Humidity

Shipping Humidity

Operating Vibration

Non-operating Vibration

Operating Shock

Non-operating Shock

Maximum Air Flow

Electromagnetic Compatibility

100 - 240 VAC

50 - 60

Transactional

(watts / BTU/hr)

398 / 1357

32.6 / 111

40 / 136.4

150 / 512 (average)

164 / 559 (average)

8.0 / 27.3

6.3 / 21.5

6.2 / 21.1

10.6 / 36.1

11.8 / 40.2

3.9 / 13.3

3.9 / 13.3

41° to 104° F (5° to 40° C) - Reduce rating by 1° F for each 1000 ft altitude

(1.8° C/1,000 m)

32° to 140° F (0° to 60° C)

10,000 ft / 3,048 m

40,000ft/ 12,192 m

10% to 90% non condensing

10% to 90% non condensing

0.25 G, Sine, 5-500 Hz, 0.1 Grms, Random 10-100Hz

0.5 G, 5 - 500 Hz, Sine

2 G, 11ms, half-sine

10 G, 11ms, half-sine

Storage Base and Upgrade Node Pair - 109 CFM per enclosure

M6710 Drive Enclosure - 105 CFM

M6720 Drive Enclosure - 109 CFM

CISPR 22:2008/ EN55022:2010 Class A

CISPR 24:2010/ EN 55024:2010

IEC 61000-3-2:2005/ EN 61000-3-2:2006 +A1:2009 +A2:2009

IEC/ EN 61000-3-3:2008

AS/NZS CIPSR 22: 2009 Class A

CNS 13438:2006 Class A

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 24

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Technical Specifications

Safety

Certifications / Markings

NOTE: Specifications are subject to change without notice.

47 CFR Part 15 Subpart b Class A

ICES-003 Issue 4 Class A

V-3/2012.04 Class A

RRA Notice No. 2011-24 (2011.12.23) Class A

RRA Notice No. 2011-25 (2011.12.23)

IEC 60950-1:2005 (2nd Edition)

EN 60950-1:2006 +A11:2009

EN 62479:2010

CNS 14336-1 2nd Edition

UL 60950-1 2nd Ed.

CAN/CSA C22.2 No. 60950-1 cTUVus Mark

TUV T-mark (EN 60950)

CE Mark

FCC Class A

IC Class A

VCCI Class A

BSMI Class A

KCC

GOST-R

C-Tick

WEEE

China RoHS

EU RoHS

© Copyright 2012 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For drives, 1 TB = 1 trillion bytes. Actual formatted capacity is less.

DA - 14433 Worldwide — Version 1 — December 4, 2012 Page 25

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
