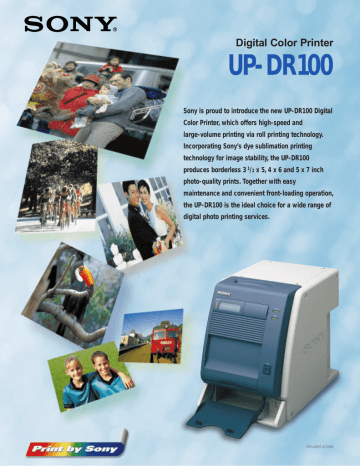

Digital Color Printer
UP-DR100
Sony is proud to introduce the new UP-DR100 Digital
Color Printer, which offers high-speed and
large-volume printing via roll printing technology.
Incorporating Sony’s dye sublimation printing
technology for image stability, the UP-DR100
produces borderless 3 1/2 x 5, 4 x 6 and 5 x 7 inch
photo-quality prints. Together with easy
maintenance and convenient front-loading operation,
the UP-DR100 is the ideal choice for a wide range of
digital photo printing services.
Simulated pictures
F
E A T U R E S
■ Photo-quality prints are produced via a combination of
dye sublimation printing technology and Sony Digital
Photography Paper (UPC-R35/R46/R57)
■ Three standard print sizes (3 1/2 x 5, 4 x 6 and 5 x 7 inch)
■ Borderless prints
■ High speed printing of approx. 20 seconds for
3 1/2 x 5 inch images
■ Paper and ribbon equipped with IC chip, which indicates
the remaining number of prints and prevents mismatching of
different paper sizes and ribbons
■ Equipped with a SCSI-2 interface and a 32 MB spool
memory for high efficiency
■ Compact size
■ High volume printing of 400 prints at 3 1/2 x 5 inch,
350 prints at 4 x 6 inch size
■ Sony Digital Photography Paper offers superior image stability,
guarding against the effects of light, heat and humidity
■ Front-loading operation allows for easy maintenance and
it can be located in minimum space
■ Space-saving design incorporates recessed interface
connections on the side panel for easy set up
■ Real-time monitoring of the remaining number of prints,
the total number of prints, the printer status and any error
status allows remote diagnostics
■ Printer drivers for Windows® 98/ME/2000, Windows NT® 4.0
and Mac OS® 8.5 or later
■ Gray balance adjustment capability
S
P E C I F I C A T I O N S
Dye Sublimation Printing
Resolution
334 dpi
Gradation
8 bits per color
Image Pixels Transferred
UPC-R35: 1210 x 1710 pixels
UPC-R46: 1382 x 2048 pixels
UPC-R57: 1710 x 2380 pixels
Paper Size
UPC-R35: 3.5 x 5 inches (89 x 127 mm)
UPC-R46: 4 x 6 inches (102 x 152 mm)
UPC-R57: 5 x 7 inches (127 x 178 mm)
Print Quantity
UPC-R35: 400 prints
UPC-R46: 350 prints
UPC-R57: 205 prints
Printing Times
UPC-R35: approx. 20 seconds
UPC-R46: approx. 23 seconds
UPC-R57: approx. 34 seconds
Spool Memory
32 MB
Power Requirements
AC 100 to 240 V, 50/60 Hz
Dimensions
11 1/8 (W) x 14 3/8 (H) x 18 1/8 (D) inches
(280 x 362 x 458 mm)
Weight
Approx. 39 lb 10 oz (18 kg)
Safety Standards
UL1950 (UC)
CSA C22.2 No. 950 (UC)
EN60950 (CE)
Supplied Accessories
Cleaning Kit (1)
AC Power Cord (1)
Print Tray (1)
Trash Box (1)
CD-ROM (Printer drivers, ICC profiles, On-line manual)
Operation Manual (1)
Optional Accessories
11 1/8 (280)
Front view
Rear view
17 1/2 (444)
UPC-R35 Self-laminating Color Printing Pack (400 prints)
UPC-R46 Self-laminating Color Printing Pack (350 prints)
UPC-R57 Self-laminating Color Printing Pack (205 prints)
Sony Electronics Inc.
One Sony Drive
Park Ridge, NJ 07656
www.sony.com/displaysystems
DP-UPDR100
14 3/8 (362)
Printing Method
18 1/8 (458)
Side view
unit: inches (mm )
©2002 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony is a registered trademark of Sony Corporation.
Macintosh and Macintosh OS are trademarks of Apple Computer Inc.
Microsoft Windows and Windows NT are trademarks of Microsoft Corporation.
Printed in USA (1/02)
