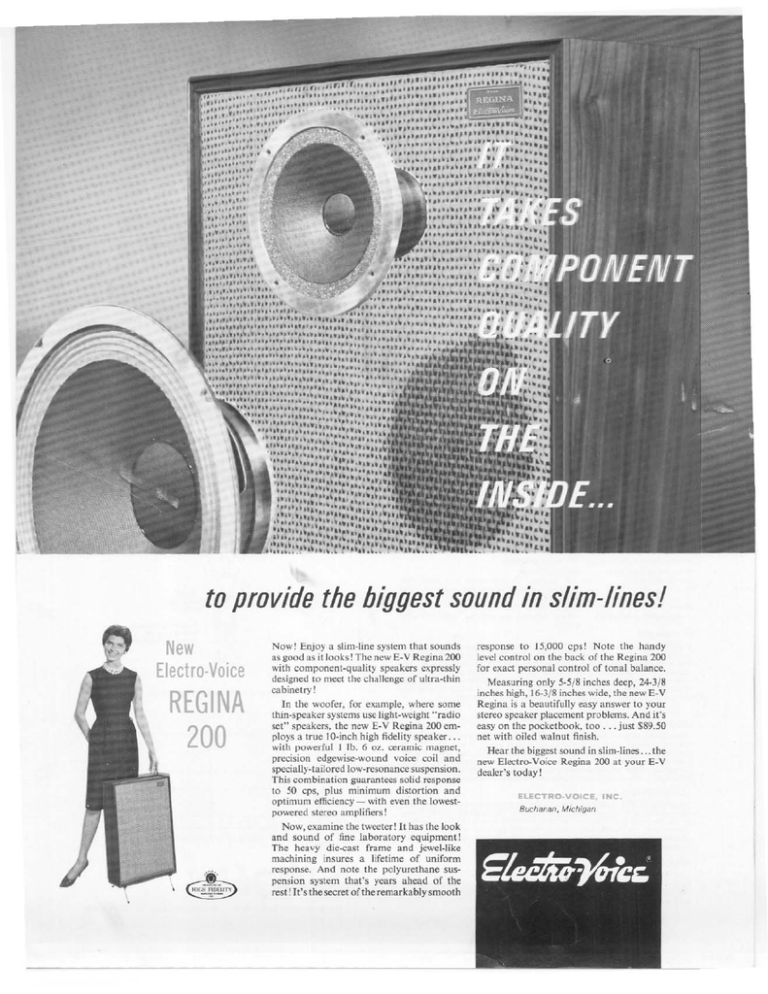

to provide the biggest sound in slim-lines!
Now! Enjoy a slim-line system that sounds response to 15,000 cps! Note the handy
as good as it looks! The new E-V Regina 200 level control on the back of the Regina 200
with component-quality speakers expressly for exact personal control of tonal balance.
designed to meet the challenge of ultra-thin Measuring only 5-5/8 inches deep, 24-3/8
cabinetry! inches high, 16-3/8 inches wide, the new E-V
In the woofer, for example, where some Regina is a beautifully easy answer to your
thin-speaker systems use light-weight “radio — stereo speaker placement problems. And it’s
set” speakers, the new E-V Regina 200 em- easy on the pocketbook, too . . . just $89.50
ploys a true 10-inch high fidelity speaker... net with oiled walnut finish.
with powerful 1 1b, 6 oz. ceramic magnet,
precision edgewise-wound voice coil and
specially-tailored low-resonance suspension.
This combination guarantees solid response
to 50 cps, plus minimum distortion and A En
optimum efficiency — with even the lowest- E am
powered stereo amplifiers! Buchanan, Michigan
Now, examine the tweeter! It has the look
and sound of fine laboratory equipment!
The heavy die-cast frame and jewel-like
machining insures a lifetime of uniform
response. And note the polyurethane sus-
pension system that's years ahead of the
rest! It’s the secret of the remarkably smooth
Hear the biggest sound in slim-lines. . . the
new Electro-Voice Regina 200 at your E-V
dealer's today!
New
Electro-Voice
REGINA
200
в FEATURES
sa TRUE TWO-WAY SYSTEM with electrical crossover
# ULTRA-COMPACT
sa HIGH EFFICIENCY
o FINISHED ON FOUR SIDES for vertical or horizontal placement
The new Electro-Voice Regina 200 is a two-way low-resonance system
which, despite its slim contours, provides exceptionally wide-range
response. It contains a special 10" woofer, and a 5" extended-range
cone-type speaker. These specialized components make it an excel-
lent choice for either monaural or stereo reproduction.
Constructed of fine hardwood veneers, the Regina 200 is finished on
four sides to allow use in either vertical or horizontal position. The
nameplate may be rotated for vertical placement. The use of heavy,
vibration-free 34" panels gives it unusual rigidity.
SPECIFICATIONS
Nominal Impedance: 8 ohms
Power Handling Capacity: 30 watts program
Frequency Response: 50-15,000 eps
Components: 10" woofer, 5° mid-range and high fre-
quency speaker, crossover network, and
level control
Size: 5%" D,, 24%" H., 1633" W.
Accessories Available: Brass finished leg set (not provided with
unit)
PLACEMENT
Nearly any speaker system will sound best if it is placed in or near the
corner of the room in which it is to be used. This positioning provides
the best coupling between the speakers and the air in the room, the
corners and walls acting as a large “horn'"' for the sound. The small
size of the Regina 200 also makes it ideal for bookshelf placement.
Best height is at the listener's ear level. Four small self-adhesive felt
pads are provided to protect the bottom face of the cabinet.
CONNECTIONS OPERATION
Connection of your Regina 200 to the amplifier should be made with
No. 18 or larger wire (common lamp cord is good). If you wish to run
the lead behind a moulding strip or under a carpet, use 300-обт TV
twin lead. Connect to the 8-ohm and common taps on the back of the
amplifier. If the amplifier has a variable damping control, it should
be set at 1. Be certain that these connections are secure.
LEVEL CONTROL
Your Regina 200 is equipped with a treble adjustment at the rear. Set
this control at “Normal” setting indicated. This setting will be found
to be the best possible adjustment for most rooms. Further adjust-
ments may be made, however, to compensate for individual room
characteristics or to match a speaker of differing efficiency in a stereo
arrangement.
STEREO OPERATION
Your Regina 200 is designed for professional quality sound reproduc-
tion. The same performance features which make this unit outstand-
ing for monaural reproduction will also give superb performance in
stereophonic array.
Part Ha. 5262
The wiring connections for a pair of Regina 200's in stereo are shown
in Fig. 1. When connecting be sure to run the lead from T1 on the
Regina 200 to the 8-chm terminal on the amplifier and from T2 to the
COMMON terminal. With this connection both units will then be
phased correctly.
PLACEMENT FOR STEREO
When arranging a pair of Regina 200's in stereo array, the units should
be placed at positions which allow the listener to sit at the apex of a
30° to 40° angle, as shown in Fig. 2. This will provide the best stereo-
phonic effect. If this placement is not possible, you may, by experi-
ment, use room reverberations to advantage in finding other desirable
positions.
SPEAKER REPAIRS
The Regina 200 system is guaranteed indefinitely against defacts in
workmanship and materials, Should it become damaged or develop
faulty operation from unusual conditions or use, the Electro-Voice
service department can return it to factory-new condition. If it be-
comes necessary to return the equipment for repair, please write for
authorization and shipping instructions.
Regina Regina
2 Tl T2 T1
Cu | сво
Amp. A Amp. B
Figure 1 — Stereo Connection
‘Hole in the
Middle"
Best
Listening
Position
Sound becomes
monaural at
Longer Distances
Figure 2 — Placement for Stereo
T 2.99mh
Pape RE т
INPUT 13 mfd al [10W
T2 1
= 13 mid
Ii =
1%
2.99
5" M.R.
8 mh 100
Figure 3 — Schematic
E ®
cs
ELEGCTRO-VOICE, ING. BUCHANAN, MICHIGAN
