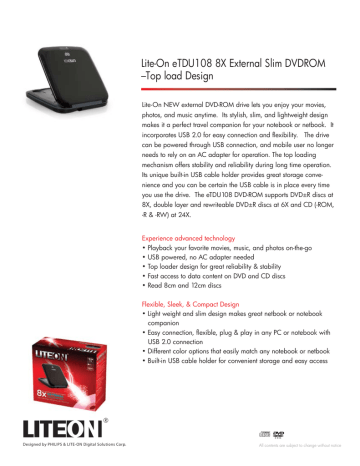

Lite-On eTDU108 8X External Slim DVDROM –Top load

Lite-On eTDU108 8X External Slim DVDROM –Top load
Lite-On eTDU108 8X External Slim DVDROM
–Top load Design
Lite-On NEW external DVD-ROM drive lets you enjoy your movies,
photos, and music anytime. Its stylish, slim, and lightweight design
makes it a perfect travel companion for your notebook or netbook. It
incorporates USB 2.0 for easy connection and flexibility. The drive
can be powered through USB connection, and mobile user no longer
needs to rely on an AC adapter for operation. The top loading
mechanism offers stability and reliability during long time operation.
Its unique built-in USB cable holder provides great storage convenience and you can be certain the USB cable is in place every time
you use the drive. The eTDU108 DVD-ROM supports DVD±R discs at
8X, double layer and rewriteable DVD±R discs at 6X and CD (-ROM,
-R & -RW) at 24X.
Experience advanced technology
• Playback your favorite movies, music, and photos on-the-go
• USB powered, no AC adapter needed
• Top loader design for great reliability & stability
• Fast access to data content on DVD and CD discs
• Read 8cm and 12cm discs
Flexible, Sleek, & Compact Design
• Light weight and slim design makes great netbook or notebook
companion
• Easy connection, flexible, plug & play in any PC or notebook with
USB 2.0 connection
• Different color options that easily match any notebook or netbook
• Built-in USB cable holder for convenient storage and easy access
®
Designed by PHILIPS & LITE-ON Digital Solutions Corp.
All contents are subject to change without notice
Top Load External Slim DVD ROM Drive
Features
eTDU108
★ USB Powred Top Load Slim Type DVD-ROM drive.
★ External Slim DVD-ROM Supports Reading of DVD+R / DVD+RW / DVD-R / DVD-RW / DVD+R9 / DVD-R9 /DVD-ROM /
CD-R / CD-RW / CD-ROM format
★ Power Though USB Port, so no bulky AC power adapter needed
★ Portable design, using USB2.0 connection to ensure the best performance
★ Plug & Play, and emergency manual eject function is embeded
★ SMART-X(*) function adjusts CD-DA / VCD / DVD data extraction to a fastest allowable speed
according to both data request rate from host and disk quality
★ DVD read compliant: DVD single/dual layer (PTP/OTP), DVD-R (3.9GB/4.7GB), DVD-R multi-borders,
DVD-R DL, DVD+R, DVD+R DL, DVD-RW, and DVD+RW
★ CD read compliant: CD-DA, CD-ROM, CD-ROM/XA, Photo-CD, Multi-session, Video-CD, CD-I FMV, CD Extra,
CD Plus, CD-R, and CD-RW
★ Support both 8cm and 12cm discs of CD and DVD family
★ High efficient power saving mode, slim size and ultra light weight
Specifications
◎ DVD Family:
Read
DVD-ROM/DL
DVD+/-R
DVD+/-R DL
DVD+/-RW
Access time
8X/6X maximum by CAV
8X maximum by CAV
6X maximum by CAV
6X maximum by CAV
1/3 Stroke: 170ms
Full Stroke: 300ms
Random Access: 160ms
◎ CD Family :
Read
CD-ROM
CD-R
CD-RW
Access time
24X maximum by CAV
24X maximum by CAV
24X maximum by CAV
1/3 Stroke :150ms
Full Stroke :300ms
Random Access :150ms
(Maximum transfer rate is limited by PC system or interface speed)
◎ Data Buffer:
200KB(Max)
◎ Burst Data Transfer Rate :
USB1.1
12Mb/s
USB2.0
480Mb/s
◎ Compatibility :
MS-Windows XP / Vista
◎ MTBF(Life) :
60,000 POH
◎ Environment :
Operating
5℃ to 35℃; Relative Humidity: 10% to 80%
Non-Operating
-40℃ to 65℃; Relative Humidity: 10% to 90%
◎ Dimension :
141.8 (W) x 19.8 (H) x 143.1 (L) mm
◎ Weight :
< 0.3Kg
*
SMART-X : Smart Monitoring & Adjusting Read-speed Technology for eXtraction.
Copyright© LITE-ON IT Corp. All Rights Reserved.
Designed by Philips & Lite-on Digital Solutions Corporation
Contents are subject to change without notice
