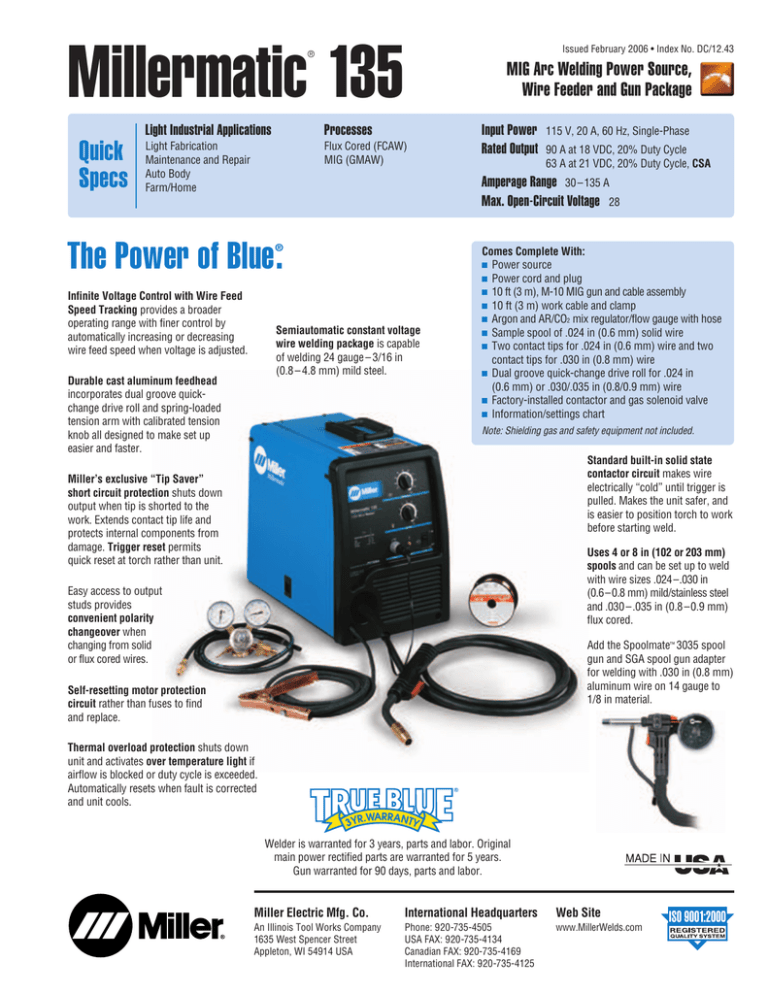

Millermatic 135
Issued February 2006 • Index No. DC/12.43
®
Quick
Specs
MIG Arc Welding Power Source,
Wire Feeder and Gun Package
Light Industrial Applications
Processes
Light Fabrication
Maintenance and Repair
Auto Body
Farm/Home
Flux Cored (FCAW)
MIG (GMAW)
Input Power
Rated Output
115 V, 20 A, 60 Hz, Single-Phase
90 A at 18 VDC, 20% Duty Cycle
63 A at 21 VDC, 20% Duty Cycle, CSA
Amperage Range 30 – 135 A
Max. Open-Circuit Voltage 28
The Power of Blue .
®
Infinite Voltage Control with Wire Feed
Speed Tracking provides a broader
operating range with finer control by
automatically increasing or decreasing
wire feed speed when voltage is adjusted.
Semiautomatic constant voltage
wire welding package is capable
of welding 24 gauge – 3/16 in
(0.8 – 4.8 mm) mild steel.
Durable cast aluminum feedhead
incorporates dual groove quickchange drive roll and spring-loaded
tension arm with calibrated tension
knob all designed to make set up
easier and faster.
Comes Complete With:
Power source
Power cord and plug
10 ft (3 m), M-10 MIG gun and cable assembly
10 ft (3 m) work cable and clamp
Argon and AR/CO2 mix regulator/flow gauge with hose
Sample spool of .024 in (0.6 mm) solid wire
Two contact tips for .024 in (0.6 mm) wire and two
contact tips for .030 in (0.8 mm) wire
Dual groove quick-change drive roll for .024 in
(0.6 mm) or .030/.035 in (0.8/0.9 mm) wire
Factory-installed contactor and gas solenoid valve
Information/settings chart
Note: Shielding gas and safety equipment not included.
Standard built-in solid state
contactor circuit makes wire
electrically “cold” until trigger is
pulled. Makes the unit safer, and
is easier to position torch to work
before starting weld.
Miller’s exclusive “Tip Saver”
short circuit protection shuts down
output when tip is shorted to the
work. Extends contact tip life and
protects internal components from
damage. Trigger reset permits
quick reset at torch rather than unit.
Uses 4 or 8 in (102 or 203 mm)
spools and can be set up to weld
with wire sizes .024–.030 in
(0.6–0.8 mm) mild/stainless steel
and .030 –.035 in (0.8 –0.9 mm)
flux cored.
Easy access to output
studs provides
convenient polarity
changeover when
changing from solid
or flux cored wires.
Add the Spoolmate™ 3035 spool
gun and SGA spool gun adapter
for welding with .030 in (0.8 mm)
aluminum wire on 14 gauge to
1/8 in material.
Self-resetting motor protection
circuit rather than fuses to find
and replace.
Thermal overload protection shuts down
unit and activates over temperature light if
airflow is blocked or duty cycle is exceeded.
Automatically resets when fault is corrected
and unit cools.
Welder is warranted for 3 years, parts and labor. Original
main power rectified parts are warranted for 5 years.
Gun warranted for 90 days, parts and labor.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
Specifications
(Subject to change without notice.)
Amperage Max. OpenAmps Input at Rated Output, 60 Hz
Range
Circuit Voltage 115 V
KVA
KW
Rated Output
30 – 135 A 28
90 A, 18 VDC at
20% Duty Cycle
63 A, 21 VDC at
20% Duty Cycle, CSA
20
2.9
2.4
15
2.2
1.8
Wire Feed Speed
Dimensions
20 – 600 IPM
(0.5 –15.2 m/min);
40 – 620 IPM at no load
(1.0 –15.8 m/min)
H: 17-1/2 in (444 mm)
W:10-5/8 in 273 mm)
D: 15-3/4 in 400 mm)
Net
Weight
Ship
Weight
60 lb
(27.3 kg)
67 lb
(30.5 kg)
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
Control Panel
7
2
8
®
WIRE SPEED
135
115 V Wire Welder
9
3
10
6
V
VOLTAGE
4
11
5
12
ON
1
OFF
M A D E IN
MILLER ELECTRIC MFG. CO. APPLETON, WI
TRIGGER
OVER TEMP
POWER
6. Plastic Hub with Retaining Ring for 8 in Spools
(shaft also accepts 4 in spools)
7. Storage Holes for Spare Tips
8. Polarity Changeover Terminals
9. Calibrated Tension Knob
10. Springloaded Tension Arm
11. T-Knob (secures torch)
12. Dual Groove Quick-Change Drive Roll
1. Trigger Lead Switch Connection
2. Wire Feed Speed Control
3. Infinite Voltage Control
(with Wire Feed Speed Tracking)
4. Over Temperature Light
5. Power Switch
Performance Data
DUTY CYCLE CHART
VOLT/AMP CURVES
140
30
120
25
100
20
VOLTAGE
OUTPUT AMPERAGE
Voltage Control at 10
80
60
RATED
OUTPUT
40
Voltage Control at 1
10
5
20
0
0
10
20
30
40
50
60
% DUTY CYCLE
2
15
70
80
90
100
0
10 20
30 40
50 60
70 80 90 100 110 120 130
AMPERAGE
Genuine Miller Accessories
M-10 Replacement Gun #195 605
10 ft (3 m). Shipped with liner #194 011.
SGA 100 #043 856
Miller’s exclusive
spool gun adapter
is dedicated to the
Spoolmate 3035 spool
gun and is rated at 150 A at 60% duty cycle.
Comes with 10 ft (3 m), 115 VAC power
cable and plug, 6 ft (1.8 m) interconnecting
cable and 5 ft (1.5 m) gas hose.
Small Running Gear/Cylinder Rack
#194 776
Durable construction. For gas cylinders
no larger than 7 in (178 mm) diameter,
maximum weight 75 lb (34 kg).
Spoolmate™ 3035 Spool Gun #195 016
Spool gun for aluminum and other wires.
4 in spools; .030 –.035 in (0.8 – 0.9 mm)
aluminum, steel and stainless steel. Rated
at 150 amps, 60% duty cycle with 20 ft (6 m)
cable assembly.
Running Gear/ Cylinder Rack #770 187
Heavy-duty construction. For gas cylinders
no larger than 7 in (178 mm) diameter,
maximum weight 100 lb (45 kg).
Consumables
Purchase the Millermatic 135 package
(#907 048) and receive Millermatic 135
and Small Running Gear/Cylinder Rack
(#194 776) packaged together!
(Order from Miller Service Parts.)
For M-10 Gun
Contact Tips
#087 299 .023/.025 in (0.6 mm)
#000 067 .030 in (0.8 mm)
#000 068 .035 in (0.9 mm)
#000 069 .045 in (1.2 mm)
Contact Tip Adapter #169 716
Replacement Liners
#194 010 .023/.025 in
#194 011 .030 –.035 in (standard)
#194 012 .035 –.045 in
For Spoolmate 3035 Gun
™
Spot Nozzles
#176 237 Flat
#176 239 Inside corner
#176 241 Outside corner
Gun Convenience Kit #193 973
Contains:
3 – .025 in (0.6 mm) contact tips (#087 299)
5 – .030 in (0.8 mm) contact tips (#000 067)
5 – .035 in (0.9 mm) contact tips (#000 068)
2 – Tip adapters (#169 716)
3 – O-rings (#170 471)
2 – Shock washers (#169 717)
1 – 1/2 in (13 mm) diameter orifice nozzle
(#169 715)
Drive Rolls — Quick Change
Nozzle #169 715
1/2 in (13 mm) diameter orifice. Nozzle
flush with contact tip (standard).
Dual Groove, V-Smooth #220 179
For .023/.025, .030 and .035 in (0.6,
0.8 and 0.9 mm) wire.
Dual Groove, V-Knurled #202 926
For .030/.035 in (0.8/0.9 mm) or .045 in
(1.2 mm) flux cored wire.
Contact Tips (5 per package)
#199 730 For .023 in (0.6 mm) wire.
#186 419 For .030 in (0.8 mm) wire.
#186 409 For .035 in (0.9 mm) wire.
Nozzle #186 405
Drive Roll (1)
#199 731
For .023 in
(0.6 mm) wire
#186 413
For .030/.035 in
(0.8/0.9 mm) wire.
Push Roll (1)
#199 732
For .023 in
(0.6 mm) wire
#186 414
For .030/.035 in
(0.8/0.9 mm) wire.
3
Typical Installations
Shielding
Gas Cylinder
MIG (GMAW) or Flux Cored (FCAW)
Basic Equipment
Gun
Work
Ordering Information
Equipment and Options
Stock No.
Description
Millermatic® 135
Millermatic® 135 with #194 776 Running Gear
#907 019
#907 048
115 V, 60 Hz
Both items packaged together
#195 605
10 ft (3 m), .030 –.035 in (0.8 – 0.9 mm)
Qty.
Guns
M-10 Gun
Spoolmate 3035
#195 016
Spool gun for aluminum
SGA 100
#043 856
Spool gun adapter for Spoolmate 3035
™
Consumables (Order from Miller Service Parts.)
Contact Tips
Contact Tip Adapter
Replacement Liners
Nozzles
Spot Nozzles
Gun Convenience Kit
#193 973
Drive Rolls
Push Roll
Accessories
Running Gear/Cylinder Rack
#770 187
Small Running Gear/Cylinder Rack
#194 776
Flux Cored Wire
Solid Wire
Shielding Gas Cylinder
Helmet/Gloves/Scratch Brush
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Price
