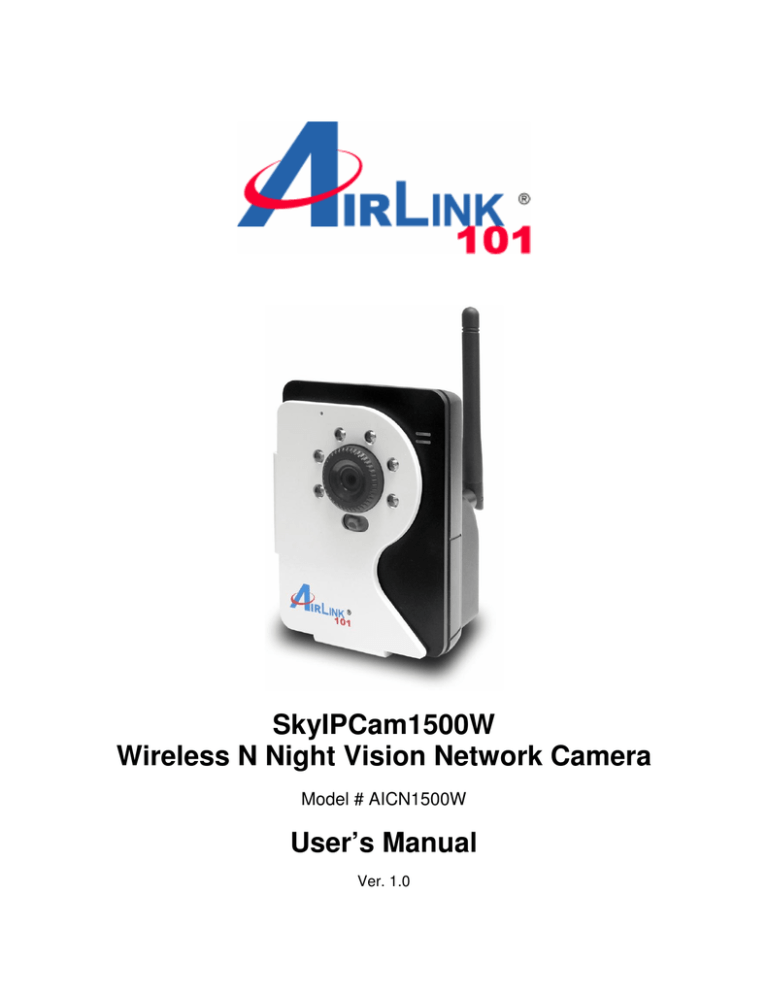

SkyIPCam1500W
Wireless N Night Vision Network Camera
Model # AICN1500W
User’s Manual
Ver. 1.0
CHAPTER 1 ................................................................................................................. 2
INTRODUCTION TO YOUR CAMERA ................................................................... 2
1.1
1.2
1.3
1.4
Checking the Package Contents ............................................................................................... 2
Getting to Know Your Camera .................................................................................................. 2
Features and Benefits ............................................................................................................... 4
System Requirement ................................................................................................................. 4
CHAPTER 2 ................................................................................................................. 5
HARDW ARE INSTALL ATION ................................................................................. 5
2.1 Installing the Wall Mount Kit ...................................................................................................... 5
2.2 Connecting the Camera to LAN/WLAN..................................................................................... 5
2.3 Applications of the Camera ....................................................................................................... 6
CHAPTER 3 ................................................................................................................. 7
SOFTW ARE INST ALL ATION .................................................................................. 7
3.1 Installing SkyIPCam Utility and Ultraview ................................................................................. 7
3.2 Configuring the Camera .......................................................................................................... 10
3.3 Viewing Images........................................................................................................................ 15
CHAPTER 4 ............................................................................................................... 17
CONFIGURATION .................................................................................................... 18
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
Using the Web Configuration .................................................................................................. 18
Basic Setup.............................................................................................................................. 18
Network Settings ..................................................................................................................... 21
Setting up Video & Audio ........................................................................................................ 27
Event Server Configuration ..................................................................................................... 29
Motion Detect........................................................................................................................... 31
Event Configuration ................................................................................................................. 32
Tools ........................................................................................................................................ 35
Information............................................................................................................................... 36
CHAPTER 5 ............................................................................................................... 37
USING SKYIPCAM ULTRAVIEW .......................................................................... 37
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
Starting the Program ............................................................................................................... 37
Main Window and Item Feature .............................................................................................. 38
Accessing the Camera ............................................................................................................ 41
Recording / Playing Video ....................................................................................................... 48
Configuring the eMap View Setting......................................................................................... 52
Configuring the System ........................................................................................................... 57
Event Configuration ................................................................................................................. 61
Terminating Operation............................................................................................................. 64
APPENDIX ................................................................................................................. 65
A.1 Specification ............................................................................................................................ 65
A.2 Glossary of Terms ................................................................................................................... 66
TECHNICAL SUPPORT ............................................................................................... 71
-1-
C HAPTER 1
I NTRODUCTION T O Y OUR C AMERA
1.1 Checking the Package Contents
Check the items contained in the package carefully. You should have the following:
One SkyIPCam1500W Wireless N Night Vision Network Camera.
One Antenna.
One AC Power Adapter.
One Camera Stand.
One Ethernet Cable (Cat.5).
One Installation CD-ROM.
One Quick Installation Guide.
NOTE Once any item contained is damaged or missing, contact the store where you purchased the
product.
1.2 Getting to Know Your Camera
Internal Microphone
allows the camera to
capture audio.
Power LED indicates
the camera is powered
on with the steady
yellow light.
Infrared LEDs
allows your camera to
capture clear images in a
dark environment.
Link LED indicates
the camera’s network
connectivity with the
flashing green light.
Lens Assembly
Light Sensor
is used to trigger on and
off the Infrared LEDs
according to the
environmental light level.
Front View
-2-
External Antenna
Screw Hole is used
to connect the camera
stand.
WPS button is used
to connect to router/AP
wirelessly.
DC Power Connector
is used to connect the
power adapter, in order
to supply power to the
camera.
Ethernet Cable Connector
is used to connect the network
cable, which supports the NWay
protocol so that the camera can
detect the network speed
automatically.
Reset Button will restart
the camera when it is
pressed quickly; when it is
long pressed for ten
seconds, the camera will be
reset to the factory’s default
settings.
Rear View
-3-
1.3 Features and Benefits
Audio Capability
The built-in microphone allows you to capture and monitor sounds and voices.
Day & Night Surveillance Supported
The six Infrared LEDs around the standard lens assembly enable the camera to capture crystal clear
images in dark environments or at night. When the Light Sensor detects low light levels, the camera
captures the images in black & white mode using the infrared LEDs.
Remote Control Supported
By using a standard Web browser or the bundled SkyIPCam View software application, the
administrator can easily change the configuration of the camera via Intranet or Internet. In addition,
the camera can be upgraded over the network when a new firmware is available. The users are also
allowed to monitor the images and take snapshots via the network.
Multiple Platforms Supported
The camera supports multiple network protocols, including TCP/IP, SMTP e-mail, HTTP, and other
Internet related protocols. Therefore, you can use the camera in a mixed operating system
environment, such as Windows 2000 and Windows XP.
Multiple Applications Supported
With remote access technology, you can use the cameras to monitor various objects and places for
your own purposes.
For example, babies at home, patients in the hospital, offices and banks, and so on. The camera can
capture both still images and video clips, so that you can keep the archives and restore them at any
time.
1.4 System Requirement
Networking
LAN:
10Base-T Ethernet or 100Base-TX Fast Ethernet.
WLAN:
802.11b/g Wireless LAN
Accessing the Camera using Web Browser
Platform:
Microsoft® Windows® 2000/XP/Vista/Windows 7
CPU:
Intel Pentium III 350MHz or above
RAM:
500MB
Resolution:
800x600 or above
User Interface: Microsoft® Internet Explorer 6.0 or above
Apple Safari 2 or above*
Mozilla Firefox 2 or above*
*Some web features not available
Accessing the Camera using SkyIPCam UltraView
Platform:
Microsoft® Windows® 2000/XP/Vista/Windows 7
Hardware Requirement:
1 camera connected: Intel Pentium III 800MHz; 512MB RAM
2 ~ 4 cameras connected: Intel Pentium 4 1.3GHz; 512MB RAM
5 ~ 8 cameras connected: Intel Pentium 4 2.4GHz; 1GB RAM
9 ~ 16 cameras connected: Intel Pentium 4 3.4GHz; 2GB RAM
Resolution:
1024x768 or above
NOTE If you connect multiple cameras and monitor them simultaneously, it is recommended that you use
a computer with higher performance.
-4-
C HAPTER 2
H ARDWARE I NSTALLATION
2.1 Installing the Wall Mount Kit
The camera comes with a camera stand, which uses a swivel ball screw head to lock to the camera’s
screw hole. When the camera stand is attached, you can place the camera anywhere by mounting the
camera through the three screw holes located in the base of the camera stand.
The Camera Stand
2.2 Connecting the Camera to LAN/WLAN
Use the provided Ethernet cable to
connect the camera to your local
area network (LAN).
When you connect the AC power
adapter, the camera is powered on
automatically. You can verify the
power status from the Power LED
on the front panel of the camera.
Once connected, the Link LED
starts flashing green light and the
camera is on standby and ready
for use now.
Connecting the Ethernet Cable
-5-
If you use a wireless network in
your application environment, you
need to attach the included
external antenna to the camera.
When the camera is powered on,
the camera will automatically
search any access point with
“default” SSID and with security
encryption disabled.
Connecting the Antenna
NOTE If the camera cannot connect to your wireless network, you need to connect the camera to LAN
first and proceed with WLAN settings.
2.3 Applications of the Camera
The camera can be applied in multiple applications, including:
Monitor local and remote places and objects via Internet or Intranet.
Capture still images and video clips remotely.
Upload images or send email messages with the still images attached.
The following diagram explains some of the typical applications for your camera and provides a basic
example for installing the camera.
-6-
C HAPTER 3
S OFTWARE I NSTALLATION
3.1 Installing SkyIPCam Utility and UltraView
Step 1 Insert the provided CD into your computer’s CD ROM drive.
Step 2 Click on Install Utility and Software.
Note: If you do not see the autorun menu pops up on the screen, please go to your CD-ROM drive >
UltraView folder > run “Setup.exe”.
-7-
Windows 7 and Vista users: an AutoPlay window pops up on screen, please make sure you give
permission to run the setup program by clicking Autorun.exe.
Step 3 Click Install to install the SkyIPCam utility and UltraView.
-8-
Step 4 Click Finish when installation finishes.
-9-
3.2 Configuring the Camera
Step 1 Go to Start > (All) Programs > Airlink101 SkyIPCam UltraView > SkyIPCam Utiliy
Step 2 Click on Search to find the camera on your network. Select the Camera you wish to configure and
click on Link.
Note If the Camera you wish to configure does not show up in the utility, make sure the camera is
properly connected to the same local network as your computer is, and the Green LED should be on.
Click on Search to try again.
- 10 -
Step 3 When you are prompted for the user name and password, enter “admin” for both User name and
Password, and click OK.
Step 4 The camera viewing window will appear. Click on Setup, then click on Smart Wizard.
- 11 -
Step 5 You may change the default Camera Name and enter a name for the Location if you like. Then
enter “admin” for both Admin Password and Confirm Password. Click Next.
Step 6 You may simply accept the suggested default setting DHCP if your router’s DHCP server is
enabled, so the router will automatically assign a dynamic IP address to your camera. Another option is to
select Static IP, you can manually change the last 3-digit number of the IP Address, in case that the
suggested one has already been used by another device in the same network. Enter IP, Subnet Mask,
Default Gateway, Primary/Secondary DNS addresses here.
Note Be sure to enter Primary/Secondary DNS addresses assigned by your ISP if you set up Static
IP for the camera so that the Email alert / FTP uploading can function properly.
- 12 -
Step 7 If you would like to set up email alerts that you can receive in the future, enter your email
information here. You can get this information from your Email Service Provider. You can also set this up
at a later time. Click Next.
Step 8 Enter the Network ID (SSID) of your wireless network, or click on Site Survey and select from the
list. Select the Authentication and Encryption, and enter the security Key of your wireless network. This
information is stored in your wireless AP/router. Click Next.
- 13 -
Step 9 Confirm your settings at this page. If everything is correct, click Apply to save the settings, then
the camera will restart in 50 seconds.
Step 10 After the camera is restarted, unplug the network cable from it. It will take around 1 or 2 minutes
for the camera to connect wirelessly to your wireless router/AP.
To make sure the wireless connection is successfully established, open the SkyIPCam Utility and click
on Search. If the camera shows up in the list, it is connected to your wireless network successfully. If not,
please verify the SSID and the wireless security settings you configured at Step 8 are correct.
- 14 -
3.3 Viewing Images
Method A > Access Camera from SkyIPCam Utility
Step 1A Open Airlink101 SkyIPCam Utility, select the camera you wish to connect to and click on Link
button. Go to Step 3.
Method B > Access Camera from Web Browser
Step 1B If you assigned a static IP address for your camera (at Step 6, Chapter 3.2), you may open the
Web Browser on your computer.
Step 2B Type the IP address of your camera in the Address bar, and press Enter.
- 15 -
Step 3 Enter administrator’s user name and password of the camera, then click OK. The default user
name and password are both “admin” if you did not make any change to it at Step 5, Chapter 3.2.
Step 4 Internet Explorer User: If this is the first time for your computer to view image from the web
configuration page, you will be prompted to install the ActiveX Control. Click on the bar on top of the
screen and click on Run Add-on or Install ActiveX Control (depending on different IE versions).
- 16 -
Step 5 Click on Run, then you will be able to view the image.
Note If you are using Mozilla Firefox or Safari and you are not able to view any image, please make sure
you have Java and Quick Time add-ons installed.
Step 6 To get a clear view of images, you can simply rotate the camera’s lens clockwise or counterclockwise to adjust the focus.
- 17 -
C HAPTER 4
C ONFIGURATION
4.1 Using the Web Configuration
You can access and manage the camera through the Web browser and the provided software application
SkyIPCam UltraView. This chapter describes the Web Configuration, and guides you through the
configuration of the camera by using the web browser.
To configure the camera, click Setup on the main page of Web Configuration. The Web Configuration will
start from the Basic page.
4.2 Basic Setup
Basic >> System
The Basic menu contains three sub-menus that provide the system settings for the camera, such as the
Camera Name, Location, Date & Time, and User management.
Basic
- Camera Name: Enter a descriptive name for the camera.
- Location: Enter a descriptive name for the location used by the camera.
Indication LED
This item allows you to set the Power LED’s illumination as desired. There are two options: Normal
and OFF.
IR LED
This item allows you to set the IR(Infrared) LED’s illumination as desired. There are two options:
Normal and OFF.
- 18 -
Basic >> Date & Time
Date & Time
- TimeZone: Select the proper time zone for the region from the pull-down menu.
- Synchronize with PC: Select this option and the date & time settings of the camera will be
synchronized with the connected computer.
- Synchronize with NTP Server: Select this option and the time will be synchronized with the NTP
Server. You need to select the proper IP address of the server and the update interval from the pulldown menu in the following two boxes.
- Manual: Select this option to set the date and time manually.
- 19 -
Basic >> User
Administrator
You can use this option to change administrator’s password for your camera.
General User
- User Name: Enter the user’s name you want to add to use the camera.
- Password: Enter the password for the new user.
When you are finished, click Add/Modify to add the new user to the camera. To modify the user’s
information, select the one you want to modify from UserList and click Add/Modify.
- UserList: Display the existing users of the camera. To delete a user, select the one you want to
delete and click Delete.
Guest
- User Name: Enter the guest’s name you want to add to use the camera.
- Password: Enter the password for the new guest.
- UserList: Display the existing guests of the camera. To delete a user, select the one you want to
delete and click Delete.
NOTE A “General User” can access the camera and control the Function buttons of the camera’s Web
Configuration; a “Guest’ can only view the live view image from the main page of the Web
Configuration while accessing the camera. Only the “Administrator” is allowed to configure the
camera through the Web Configuration.
- 20 -
4.3 Network Settings
The Network menu contains three sub-menus that provide the network settings for the camera, such as
the IP Setting, DDNS Setting, IP Filter, and Wireless Network.
Network >> Network
IP Setting
This item allows you to select the IP address mode and set up the related configuration.
- DHCP: The default setting is DHCP and it uses your network’s DHCP server. When the camera
starts up, it will be assigned an IP address from the DHCP server automatically. Another option is
to use Static IP, You should use Static IP mode to set a static IP so that the IP address will never
change and you will always know what it is.
- Static IP: Select this option to assign the IP address for the camera directly. You can use
SkyIPCam Utility to obtain the related setting values.
IP
Enter the IP address of the camera. The
default setting is 192.168.2.240.
Subnet Mask
Enter the Subnet Mask of the camera. The
default setting is 255.255.255.0.
Default Gateway
Enter the Default Gateway of the camera.
The default setting is 192.168.2.1.
- 21 -
Primary/
Secondary DNS
DNS (Domain Name System) translates
domain names into IP addresses. Enter the
Primary DNS and Secondary DNS that are
provided by ISP. It is usually recommended
that you input the Default Gateway of your
network, which is the IP address of your
router. Check with your router manufacturer
for that information. THIS IS MANDATORY
IF YOU WANT TO USE THE FTP OR
EMAIL OPTIONS
- PPPoE: Select this option when you use a direct connection via the ADSL modem. You should
have a PPPoE account from your Internet service provider. Enter the User Name and Password.
The camera will get an IP address from the ISP as starting up. If you are using a router, you will
NOT use this option.
NOTE Once the camera gets an IP address from the ISP as starting up, it automatically sends a
notification email to you. Therefore, when you select PPPoE as your connecting type, you have to
set up the email or DDNS configuration in advance.
DDNS Setting
With the Dynamic DNS feature, you can assign a fixed host and domain name to a dynamic Internet
IP address. Select the Enable option to enable this feature. Then, select the Provider from the pulldown list and enter the required information in the Host Name, User Name, and Password boxes.
Please note that you have to sign up for DDNS service with the service provider first. DDNS function
on the camera is ONLY used if you are NOT using a NAT router and your camera has a public IP
address. If you ARE using the camera with a NAT router, the camera’s DDNS function will not work,
and you will need to use the DDNS function in your router.
UPnP
The camera supports UPnP (Universal Plug and Play), which is a set of computer network protocols
that enable the device-to-device interoperability. In addition, it supports port auto mapping function so
that you can access the camera if it is behind a NAT router or firewall. Select the Enable option to
enable this feature.
Ports Number
- HTTP Port: The default HTTP port is 80. Some ISP’s have port 80 blocked. If you are having
problems, you can change it to some other port. The suggested port to be used is anything
between 1024 to 65535
- 22 -
Network >> IP Filter
The IP Filter setting allows the administrator of the camera to limit the users within a certain range of IP
addresses to access the camera.
Start/End IP Address
Assign a range of IP addresses that are not allowed to access the camera by entering the Start IP
address and End IP address. When you are finished, click Add to save the range setting. You can
repeat the action to assign multiple ranges for the camera.
For example, when you enter 192.168.0.50 in Start IP Address and 192.168.0.80 in End IP Address,
the users whose IP address located within 192.168.0.50 ~ 192.168.0.80 will not be allowed to access
the camera.
Deny IP List
The list displays the range setting(s) of IP addresses that are not allowed to access the camera. To
clear the setting, select a range of IP addresses from the list and click Delete.
- 23 -
Network >> Wireless Setting
The camera supports WLAN while you use the wireless network. Select the Enable option to enable this
feature.
The camera supports Wireless feature that can connect to your wireless network. Select the Enable
option to enable this feature.
Network ID (SSID): Keep the default setting of this option to connect the camera to any access point
under the infrastructure network mode. To connect the camera to a specified access point, set a
SSID for the camera to correspond with the access point’s ESSID. To connect the camera to an AdHoc wireless workgroup, set the same wireless channel and SSID to match with the computer’s
configuration.
Click Site Survey to display the available wireless networks, so that you can easily connect to one of
the listed wireless networks.
Wireless Mode: Select the type of wireless communication for the camera: Infrastructure or AdHoc.
Channel: Select the appropriate channel from the list.
Authentication: Select the authentication method to secure the camera from being used by
unauthorized user: Open, Shared-key, WPA-PSK, and WPA2-PSK. The following table explains the
four options:
Open
The default setting of Authentication mode,
which communicates the key across the network.
Shared-key
Allow communication only with other devices
with identical WEP settings.
WPA-PSK/
WPA2-PSK
WPA-PSK/WPA2-PSK is specially designed for
the users who do not have access to network
authentication servers. The user has to manually
enter the starting password in their access point
or gateway, as well as in each PC on the
wireless network.
If you select Open or Shared-key as the Authentication mode, you need to complete the following
settings:
- 24 -
- Encryption: Select the WEP option to enable the data encryption feature to secure the camera
within the wireless network.
- Format: Once you enable the Encryption feature, you need to determine the encryption format by
selecting ASCII or HEX. ASCII format causes each character you type to be interpreted as an
eight-bit value. Hex format causes each pair of characters you type to be interpreted as an eightbit value in hexadecimal (base 16) notation.
- Key Length: Select the WEP key length you use: 64 bits or 128 bits.
- WEP Key 1/2/3/4: Enter the WEP key(s) in the following boxes. This must match the WEP key
value configured for your wireless router/AP.
If you select WPA-PSK or WPA2-PSK as the Authentication mode, you need to complete the
following settings:
- Encryption: Select TKIP or AES. TKIP (Temporal Key Integrity Protocol) changes the temporal
key every 10,000 packets to insure much greater security than the standard WEP security. AES
(Advanced Encryption Standard) is used to ensure the highest degree of security and authenticity
for digital information. This must match the encryption type configured for your wireless router/AP.
- Pre-Shared Key: Enter your wireless network key into the box, and this must match the Preshared key value configured for your wireless router/AP.
- 25 -
Network >> Wireless >> WPS Setting
The camera supports WPS (WiFi Protected Setup™) feature that allows your camera to connect to the
wireless network easily and safely without manually configuring the wireless security settings. Please
note that Your AP/Router must support WPS feature as well. If you are not sure, please refer to the
manufacturer’s manual of your AP/Router.
Select either PIN or PBC mode to start the WPS session:
Select PIN Mode:
Step 1
Enter the SSID of the AP/Router you wish to connect to, or click Site Survey and select
from the listed wireless networks.
Step 2
Go to the WPS section of your AP/Router’s web configuration page, then enter the PIN
Code generated by the camera (in this case, “00639392”) into the corresponding field.
Please check your AP/Router’s manufacturer’s manual for more details.
Select PBC Mode (Recommended):
Step 1
Step 2
Click on the Connect button on this page or push the WPS button on the backside of the
camera.
Push the WPS hardware button on your AP/Router or the WPS software button in the
web configuration page of your AP/Router.
Within 2 minutes, the camera will be wirelessly associated with your AP/Router.
- 26 -
4.4 Setting up Video & Audio
The Video & Audio menu contains three sub-menus that provide the video and audio settings for the
camera.
Video & Audio >> Camera
Image Setting
- Brightness: Adjust the brightness level from 0 ~ 100.
- Contrast: Adjust the contrast level from 0 ~ 100.
- Saturation: Adjust the colors level from 0 ~ 100.
Click Default to restore the default settings of the three options above.
- Mirror: Select the Horizontal option to mirror the image horizontally. Select the Vertical option to
mirror the image vertically.
- Light Frequency: Select the proper frequency according to the camera’s location: 50Hz, 60Hz, or
Outdoor.
Overlay Setting
- Includes Date & Time: Select this option to display the date & time stamp on the live view image.
- Enable Opaque: Select this option to set a black background to the displayed date & time stamp.
- 27 -
Video & Audio >> Video
MJPEG
- Video Resolution: Select the desired video resolution from the three formats: VGA, QVGA and
QQVGA. The higher setting (VGA) obtains better video quality while it uses more resource within
your network.
- Video Quality: Select the desired image quality from five levels: Lowest, Low, Medium, High, and
Highest.
- Frame Rate: Select Auto or a proper setting depending on your network status.
Video & Audio >> Audio
Camera Microphone In
Select the Enable option to enable the camera’s audio function, so that you can receive the on-site
sound and voice from the camera.
- 28 -
4.5 Event Server Configuration
The Event Server menu contains two sub-menus that allow you to upload images to FTP, and send
emails that include still images.
When you complete the required settings for FTP, or Email, click Test to find out if the related
configuration is correct or not. Once the camera connects to the server successfully, click Apply.
Event Server Setting>> FTP
FTP
- Host Address: Enter the IP address or domain name of the target FTP server. If you enter the
domain name, you MUST configure DNS settings in Network / IP Setting first.
- Port Number: Enter the port number used for the FTP server.
- User Name: Enter the user name to login into the FTP server.
- Password: Enter the password to login into the FTP server.
- Directory Path: Enter the destination folder for uploading the images. For example, /Test/.
- Passive Mode: Select the Enable option to enable passive mode. If you are having trouble, you
can enable/disable this mode.
- 29 -
Event Server Setting >> Email
Email
- SMTP Server Address: Enter the mail server address. For example, mymail.com.
- Sender Email Address: Enter the email address of the user who will send the email. For example,
[email protected]
- Sender User Name: Enter the user name to login the mail server.
- Sender Password: Enter the password to login the mail server.
- Receiver #1 Email Address: Enter the first email address of the user who will receive the email.
- Receiver #2 Email Address: Enter the second email address of the user who will receive the email.
- 30 -
4.6 Motion Detect
*This function can only be configured in Windows Internet Explorer.
The Motion Detect menu contains the command and option that allow you to enable and set up the
motion detection feature of the camera. The camera provides two detecting areas.
To enable the detecting area, select Window 1 or 2 from the pull-down list, and then check Enable.
When the detecting area is enabled, you can use the mouse to move the detecting area and change the
area coverage.
- Name: Assign a name to the detecting area.
- Threshold: Move the slide bar to adjust the sensitivity of motion detection. Make sure the threshold
(the horizontal line) is low (sensitive) enough to come across the waves (appear when motion
detected), so that the events (i.e, emailing snapshot, FTP uploading) you set up in Event Config
will be triggered.
NOTE Sliding the Threshold bar to the right will decrease the sensitivity of motion detection; sliding the
Threshold bar to the left will increase the sensitivity of motion detection.
- 31 -
4.7 Event Configuration
The Event Config menu contains five sub-menus that provide the commands to configure event profiles.
Event Configuration >> General Setting
- Snapshot/Recording Subfolder: You can assign a descriptive name for the subfolder to save the
captured image/video files. Otherwise, leave this option blank to use the default setting.
- 32 -
Event Configuration >> Arrange Schedule Profile
This sub-menu displays the scheduled profile(s). To customize the profile, click Add and then enter a
descriptive name for the profile in the prompt dialog window. After entering the profile name, click OK and
the profile is added to the Schedule Profiles list. To delete the profile, select the profile in the list and click
Delete.
- Profile Name: Display the profile name that you select in the Schedule Profiles list.
- Days: Select the day(s) that you want to separately assign in the schedule profile. The day that has
been assigned will be displayed with green color.
- Time List: Display the time period that you have assigned within the selected weekday. To assign
the same time period to every day, click Add this to all week days; click Delete this from all
week days to remove the selected time period from every day. Click Delete to remove the selected
time period.
- Start/End Time: Enter the start and end time and then click Add to assign a time period within the
selected day.
- 33 -
Event Configuration >> Motion Detection Trigger
Select the Enable option to enable the motion detection trigger function of the camera, so that you can
send captured images within the detecting area to the FTP server or email receiver. You have to
configure corresponding settings, such as FTP server and email server, to enable this feature.
- Schedule Profile: Select a schedule profile from the pull-down list.
- Action: Select the destination of the captured images: Send Email, or FTP Upload.
Event Configuration >> Schedule Trigger
You can separately configure the schedule for trigger function of the camera by Email, or FTP. Select the
Enable option on each item, and then select a Schedule Profile from the pull-down list and set the
Interval time.
- 34 -
4.8 Tools
The Tools menu provides the commands that allow you to restart or reset the camera. You can also
backup and restore your configuration, and upgrade the firmware for the camera.
Factory Reset
Click Reset to restore all factory default settings for the camera.
System Reboot
Click Reboot to restart the camera just like turning the device off and on. The camera configuration
will be retained after rebooting.
Configuration
You can save your camera configuration as a backup file on your computer. Whenever you want to
resume the original settings, you can restore them by retrieving the backup file.
- Backup: Click Get the backup file to save the current configuration of the camera.
- Restore: Click Browse to locate the backup file and then click Restore.
Update Firmware
This item displays the current firmware version. You can upgrade the firmware for your camera once
you obtained a latest version of firmware.
- Select the firmware: Click Browse to locate the backup file and then click Update.
NOTE Make sure to keep the camera connected to the power source during the process of upgrading
firmware. Otherwise, the camera might be damaged because of failure of upgrading firmware.
- 35 -
4.9
Information
The Information menu displays the current configuration and events log of the camera.
Device Info
Display the Basic, Video & Audio, and Network settings of the camera.
System Log
The Logs table displays the events log recorded by the system.
- 36 -
C HAPTER 5
U SING S KY IPC AM U LTRAV IEW
5.1 Starting the Program
To start UltraView Pro, click Start (All) Programs Airlink101 SkyIPCam UltraView SkyIPCam
UltraView. Alternatively, you can start the program by simply double-clicking the program icon on the
desktop of your computer.
In the login window, enter the User name/Password and click OK to log in. If this is the first time you
start the program and log in, use the default user name / password: admin / admin.
NOTE For security purpose, you are highly recommended to change the default user name and
password after login. For more information, please refer to 5.6 Configuring the System > User
Management section.
- 37 -
5.2 Main Window and Item Feature
When you start and login to UltraView, the Main window will display as below:
The Main window provides you with the information on operating the system, as well as the control panel
such as the Quick Launch buttons, and so on.
NOTE UltraView Software requires the resolution setting to be1024 x 768 or higher. For best view of the
application, you are recommended to configure the resolution setting to 1024 x 768 or higher;
otherwise, it cannot be displayed on the screen when launching the program.
Live View Window displays the live video of the connected camera(s).
Quick Launch Buttons are located below the Live View Window, providing you with the following
quick-launch functions:
Button
Function
Click to select Logout or Close UltraView Software.
Click to select Restore Recording Type, All
Continuous Recording, or Stop All Recording.
Click and then select to display the View Setting
window, switch to the eMap View window, or check the
Camera Status.
Click to display the Playback window.
Click to display the Schedule Configuration window.
Click to configure the event settings: Event Server,
Address Book, and Event Trigger.
Click to configure Device Setting and Recording
Setting.
Click to set the Account, Language, and System
Setting; or view the Version of the program.
- 38 -
Camera View Mode buttons in this area allow you to switch the camera view mode.
Button
Function
Display the connected camera(s) in single camera view
mode.
Display the connected camera(s) in quad view mode.
Display the connected camera(s) in 3 x 3 grid view
mode.
Display the connected camera(s) in 13-camera view
mode using a split window. The first camera is displayed
as the major view.
Display the connected camera(s) in 17-camera view
mode using a split window. The first camera is displayed
as the major view.
Display the connected camera(s) in N x N grid view
mode, supporting up to 36 views (up to 32 cameras).
Display the live view of the selected camera in full
screen mode.
Automatically switch the live view of each connected
cameras in single camera view mode every 30
seconds*. Click once to start and click again to stop.
* The auto-switch time is set as 30 seconds by default,
which can be changed by clicking the
System
Setting and then change the value from the pull-down
list of the Auto Switch time interval option.
System Information displays the system information, including the date and time, and the available
storage space of the system.
Live View Status provides the status of live view mode, including Camera List and eMap.
Camera List displays the status of the connected cameras. If multiple cameras are connected,
you can switch to the live view of each camera by simply selecting the camera from the list.
eMap allows you to select the desired camera to the view from the map for viewing easily. Please
note that you have to set up the eMap for monitoring in advance.
Camera Control Buttons provides the control buttons that allow you to control the selected camera.
Button
Function
Talk On/Off. If the connected camera features speaker
function, click to enable/disable the speaker function.
This option is available only in single camera view mode.
Listen On/Off. Click to enable/disable the microphone
function of the connected camera. This option is
available only in single camera view mode.
If the connected camera features pan/tilt functions, you
can use this control panel to set the preset positions (up
to 8 positions). Once configured, you can move the
camera lens to the desired position quickly.
To set the preset positions, adjust the camera lens to the
desired position using the Navigation buttons, and then
select the position number (1~8) from the Set button.
- 39 -
ERROR: syntaxerror
OFFENDING COMMAND: %ztokenexec_continue
STACK:
-filestream-
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
